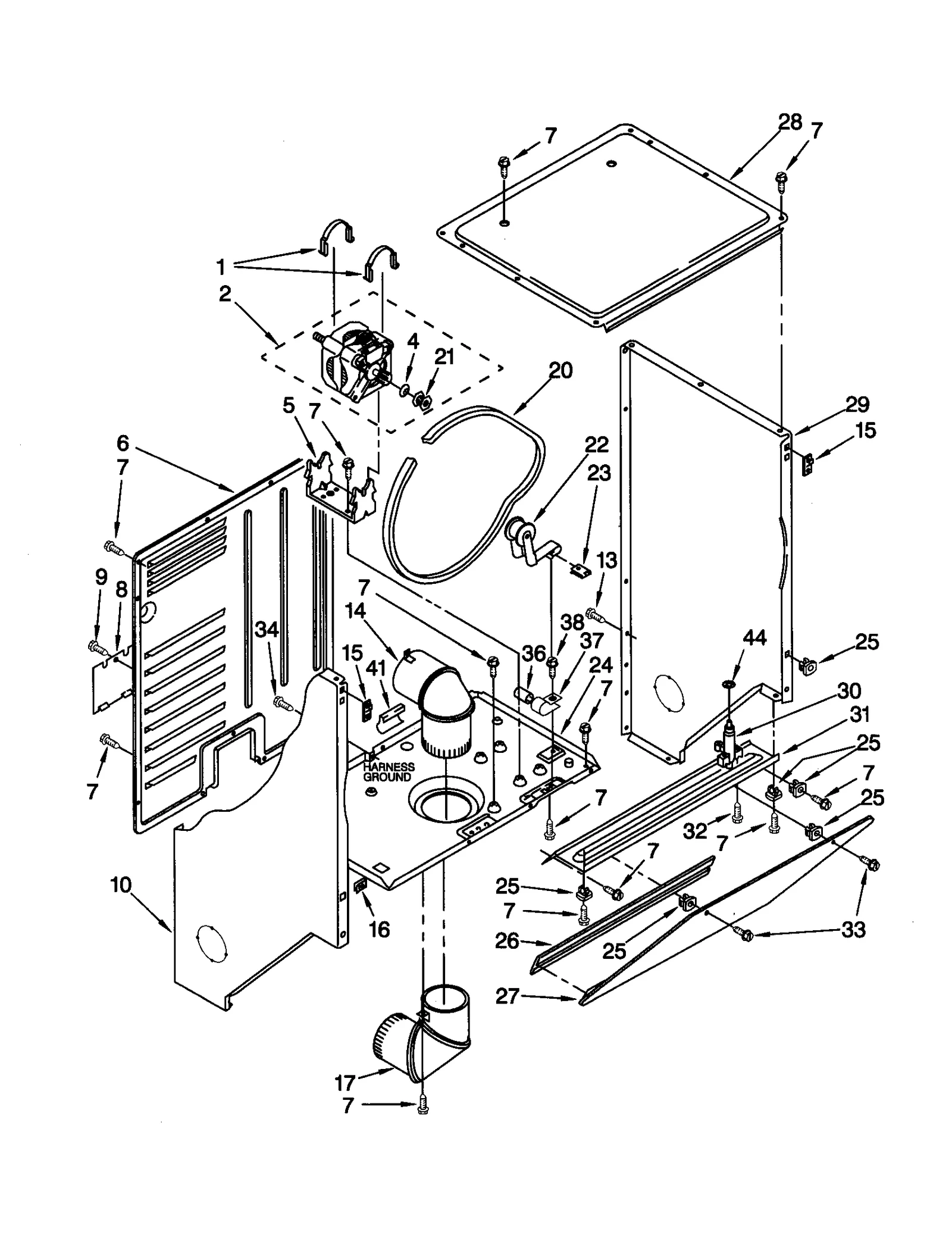

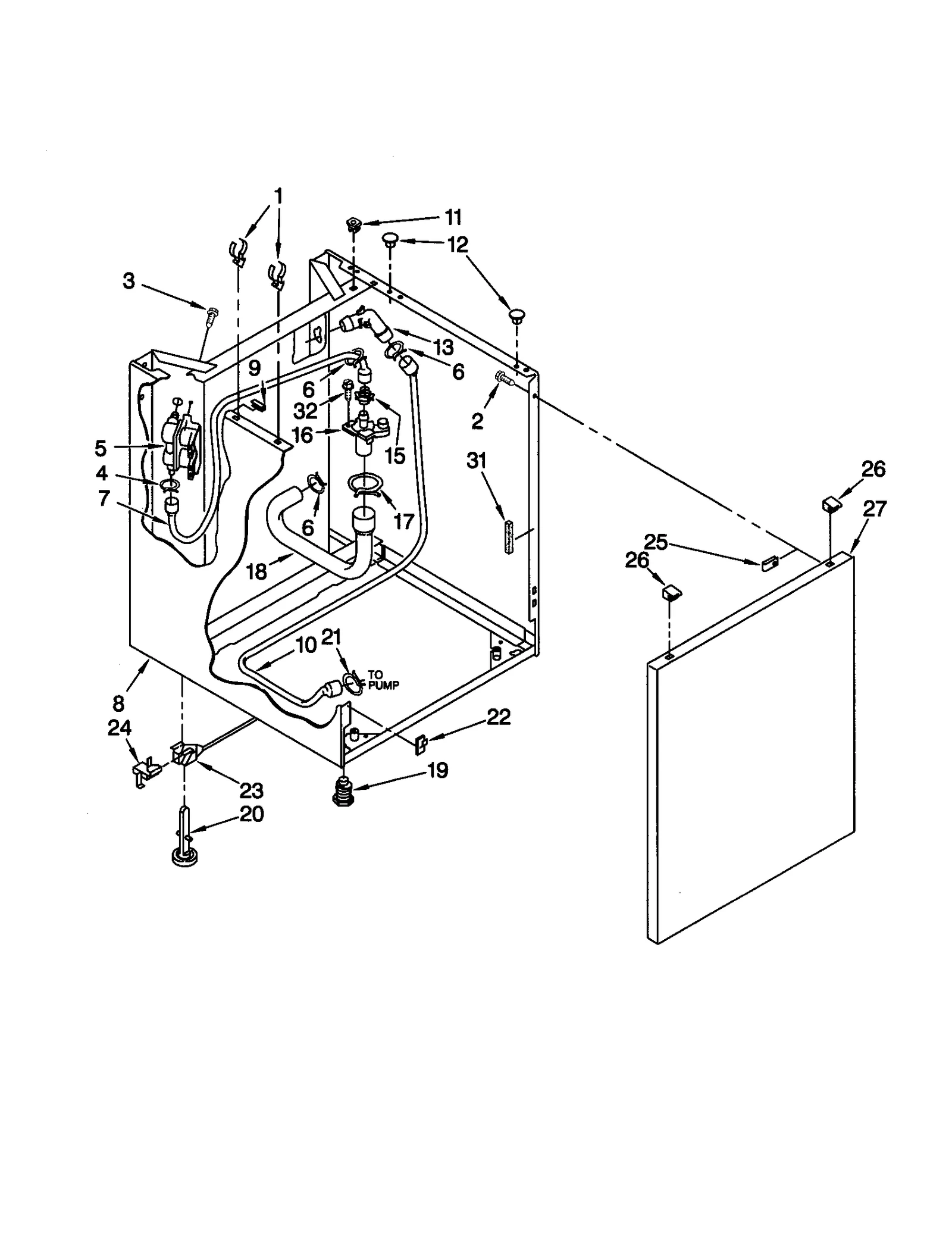

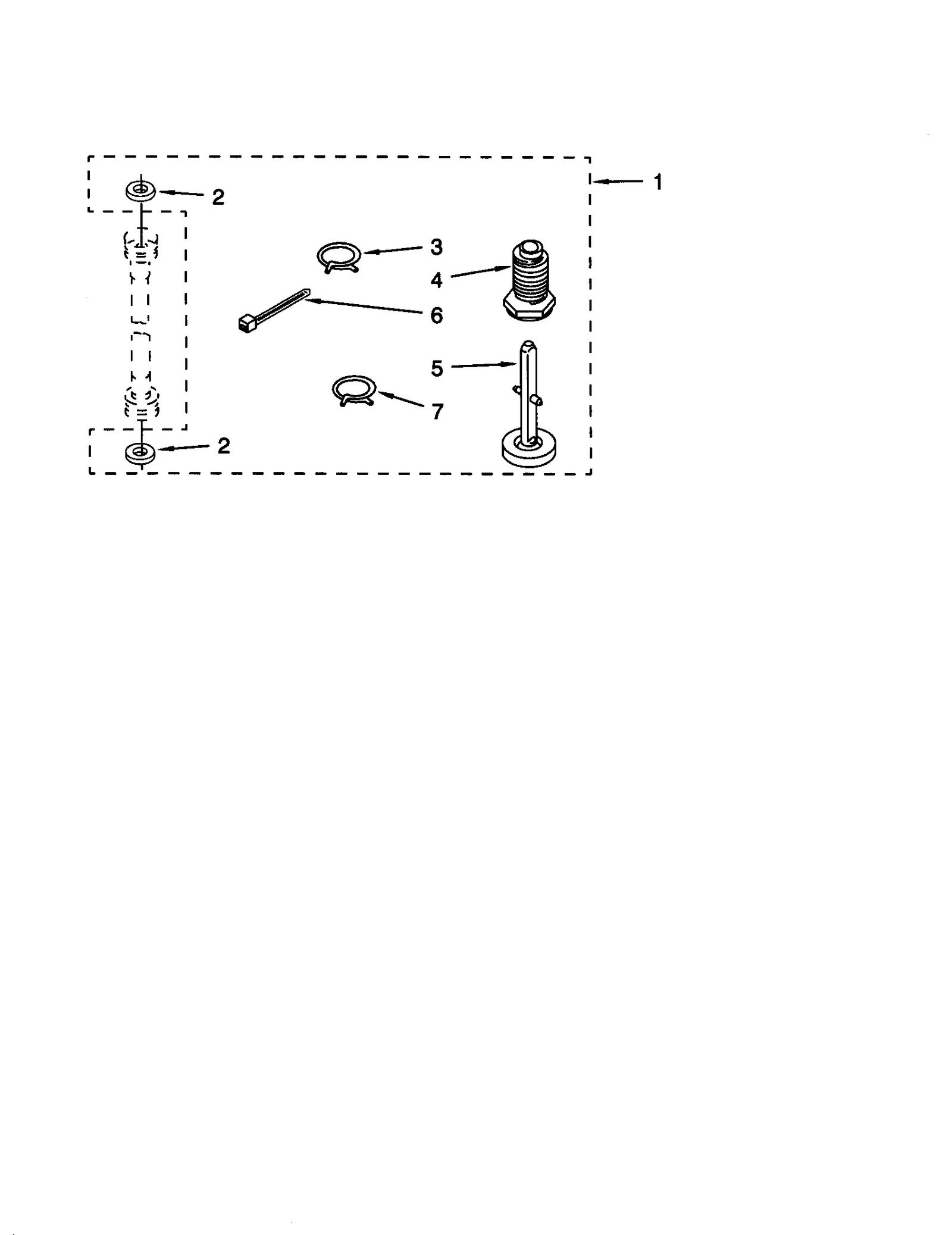

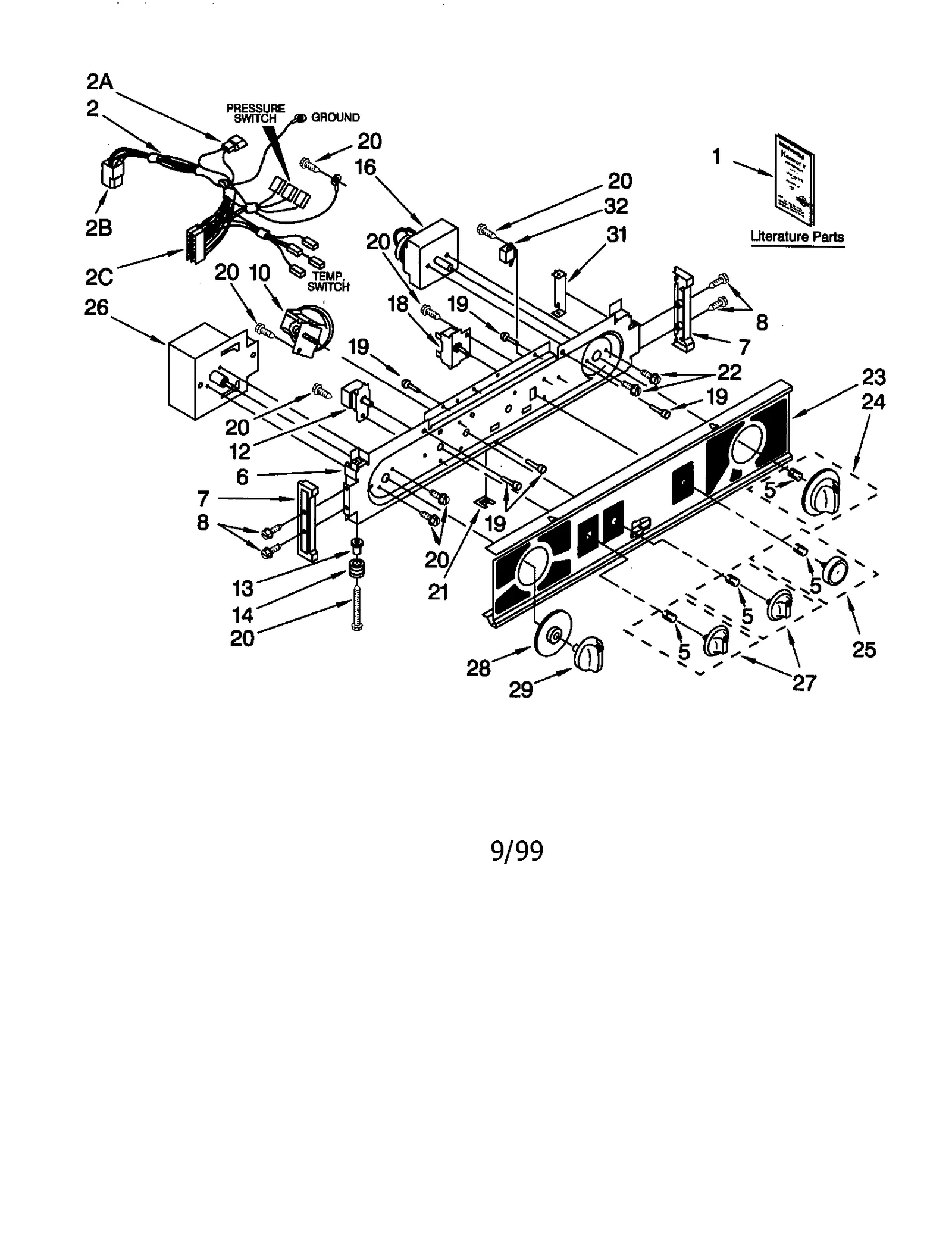

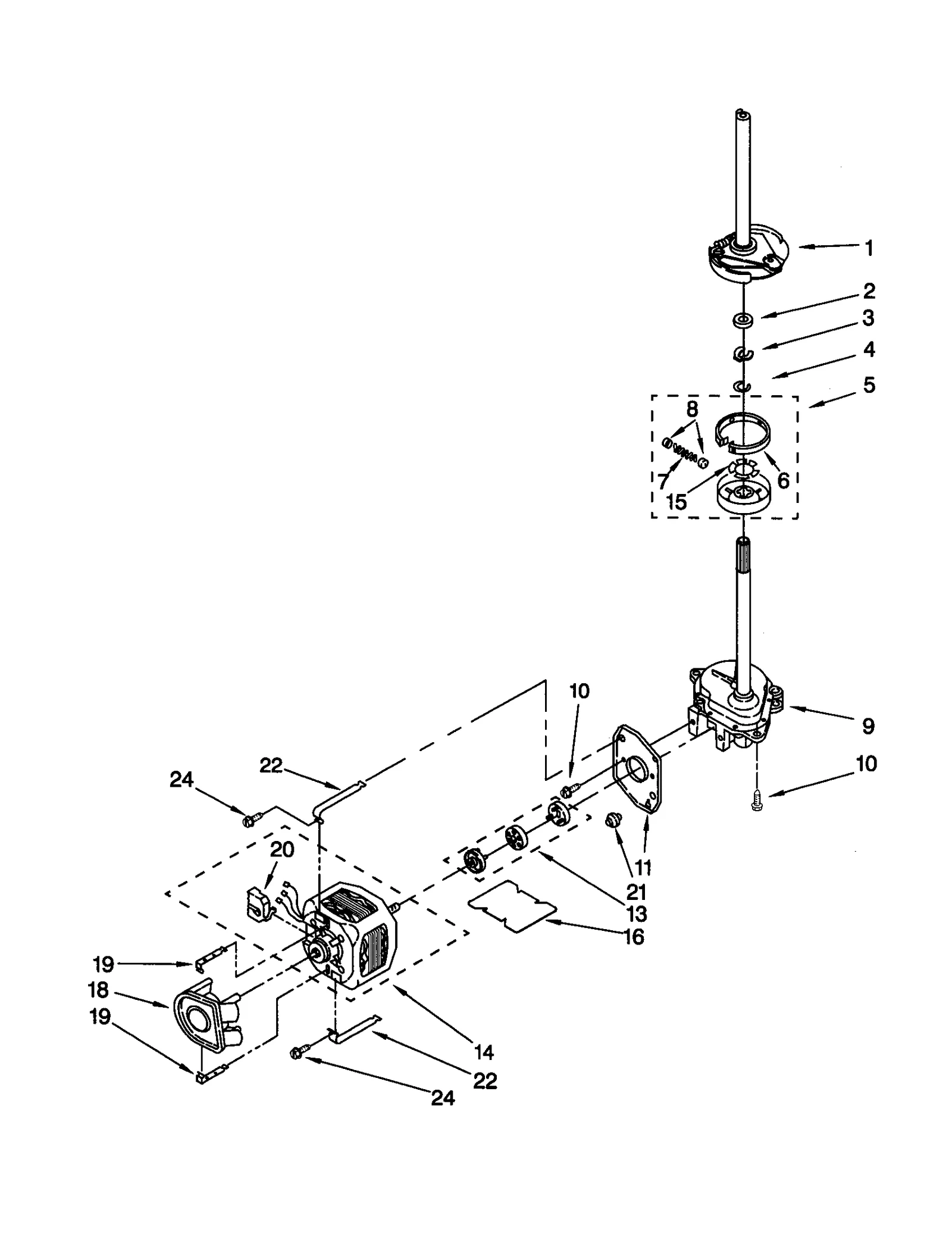

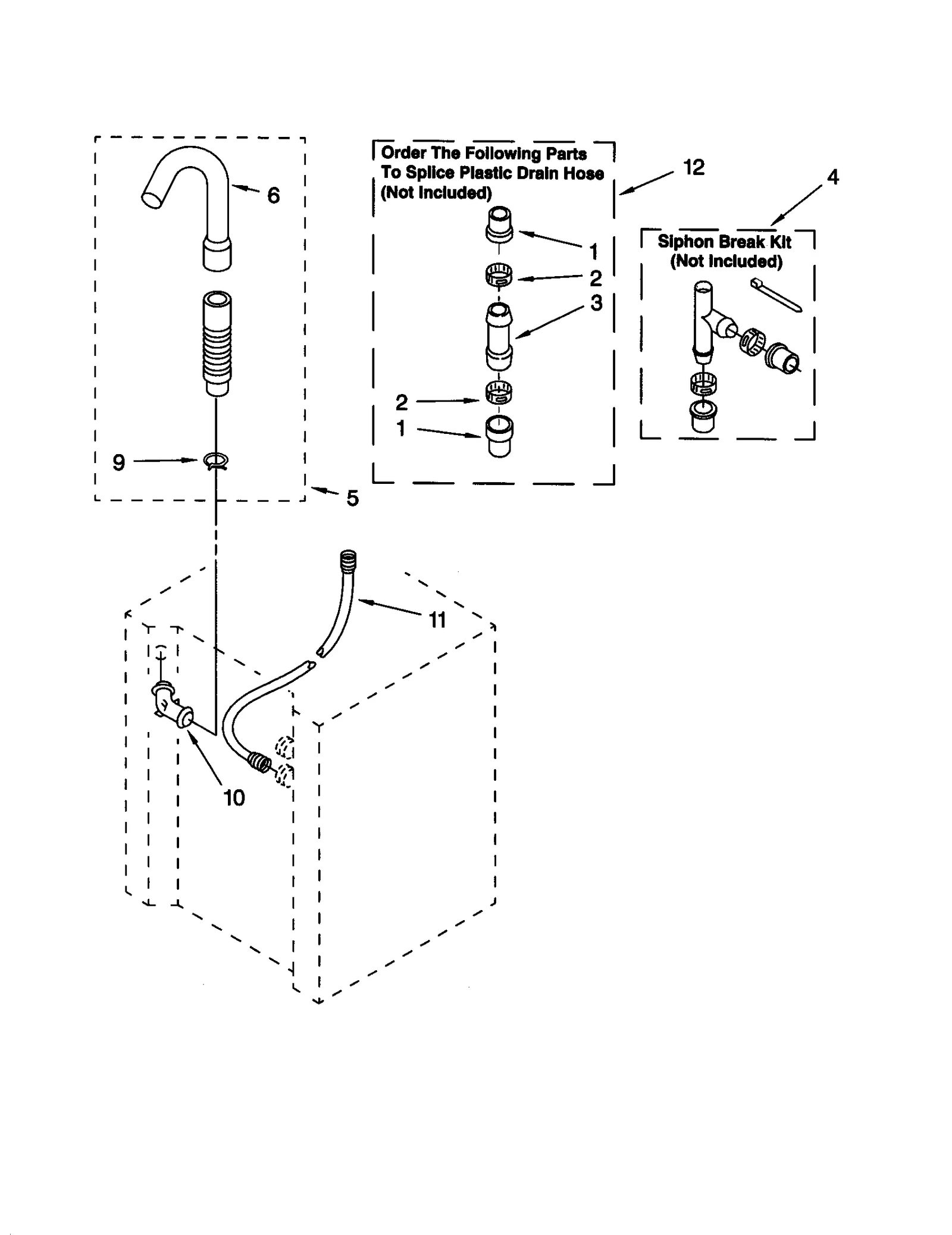

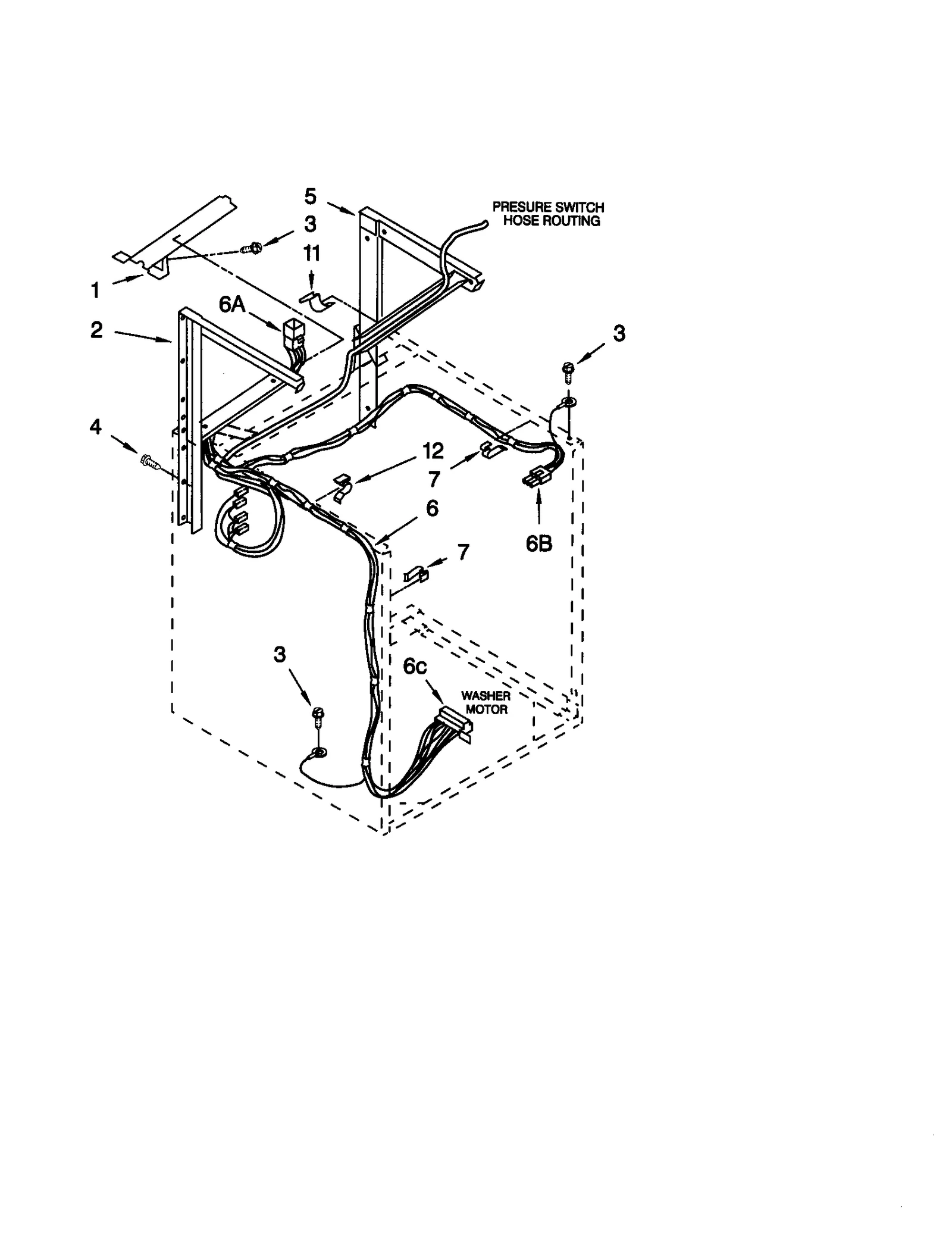

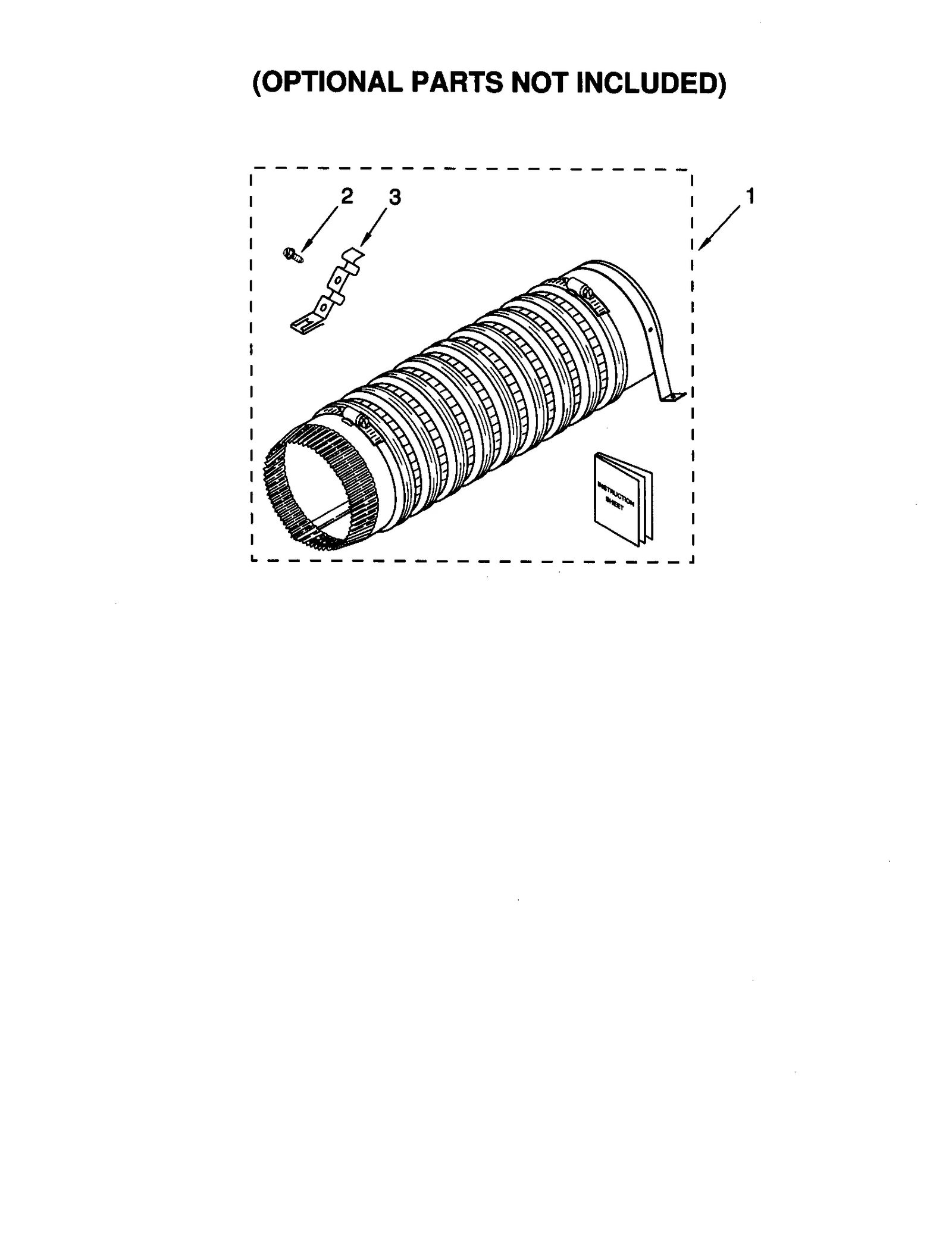

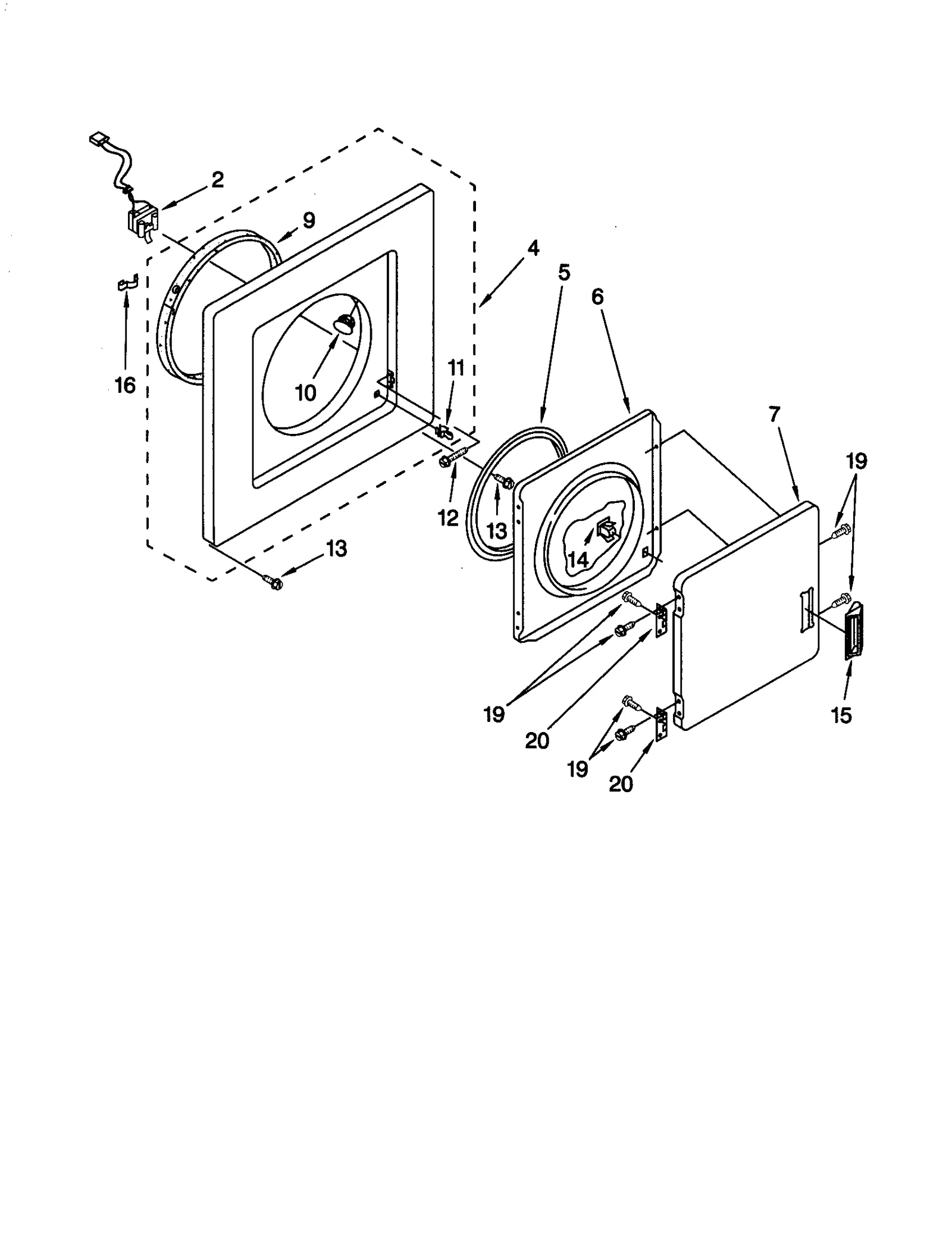

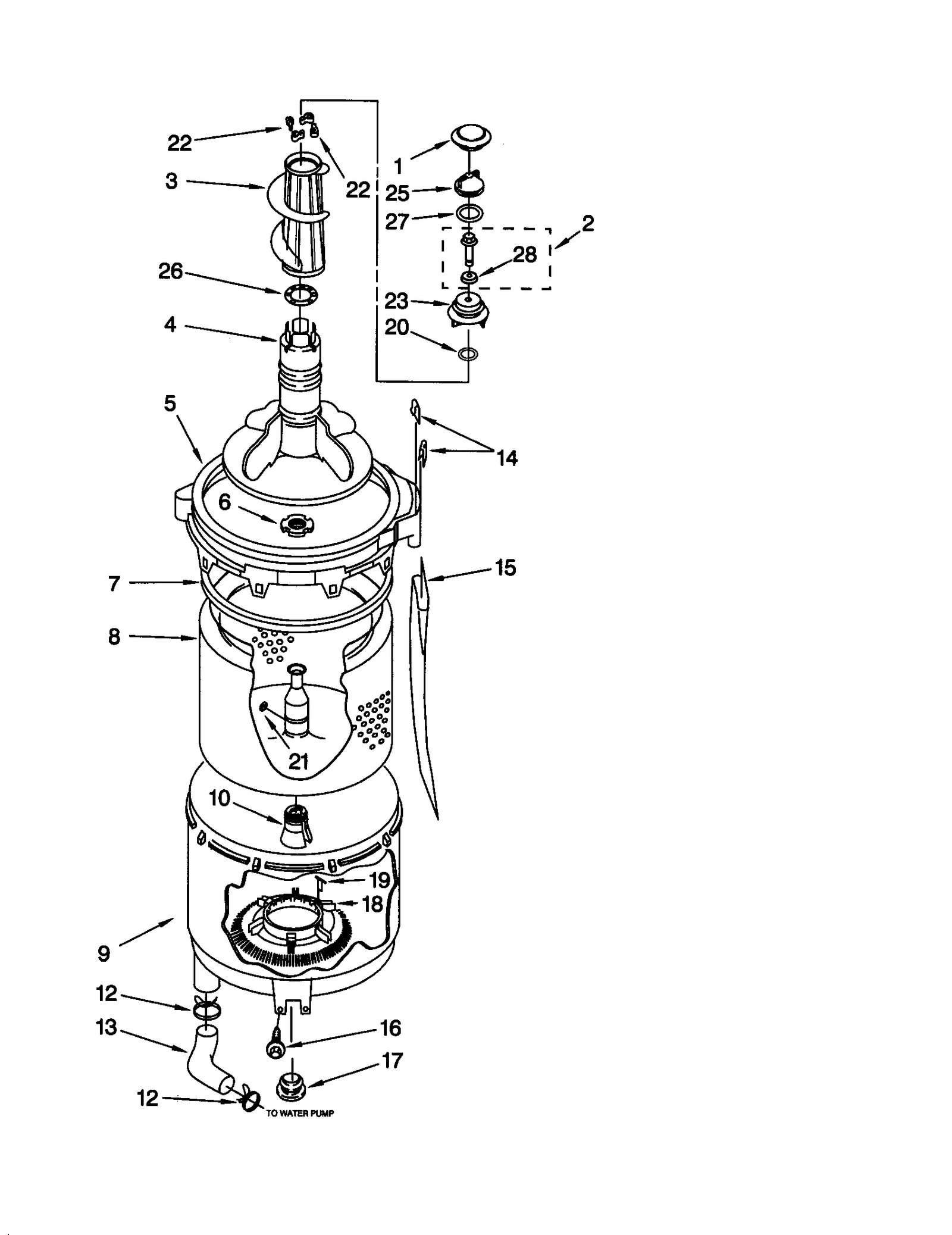

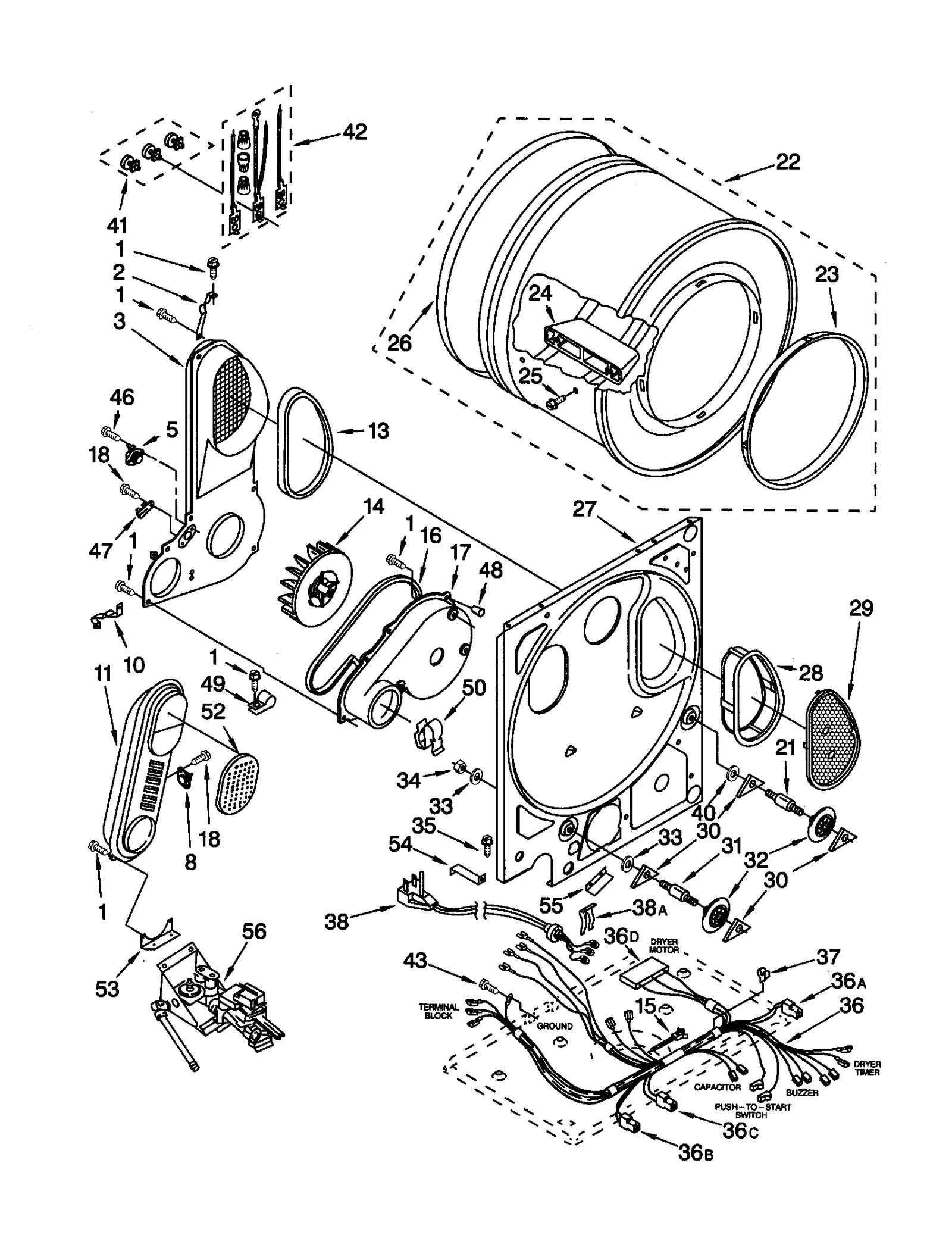

Model Whirlpool 110.98752792 Washer/Dryer Laundry System (Kenmore 11098752792) – Common Parts &amp; Diagrams

1

285203 Whirlpool CP Bearing In Stock WPL 285203 $68.08

1

285321 Whirlpool Sleeve Backorder WPL 285321 $30.26

1

356746 Whirlpool Clip Backorder WPL 356746 $10.94

1

WP387095 Whirlpool Cap Backorder WPL WP387095 $34.09

1

WP660658 Whirlpool Clamp In Stock WPL WP660658 $3.18

2

WP16123 Whirlpool Washer In Stock WPL WP16123 $2.55

2

WP3406108 Whirlpool Door Switch In Stock WPL WP3406108 $18.30

2

WP358237 Whirlpool Agitator Bolt In Stock WPL WP358237 $2.47

2

WP488729 Whirlpool Refrigerator Door Screw In Stock WPL WP488729 $2.68

2

WP63292 Whirlpool Washer In Stock WPL WP63292 $3.76

2

WP681414 Whirlpool Screw In Stock WPL WP681414 $2.55

2

Laundry Center Wire Harness WPL 3406287 Contact Us For Availability

2A

3350130 Whirlpool Connector Backorder WPL 3350130 $8.44

2B

696073 Whirlpool Connector Backorder WPL 696073 $32.59

2C

Washer Timer Wire Harness Connector WPL 3948614 Contact Us For Availability

3

63977 Whirlpool Agitator Auger Backorder WPL 63977 $77.68

3

696529 Whirlpool Air Duct Backorder WPL 696529 $51.97

3

WP16272 Whirlpool Hose Coupling Backorder WPL WP16272 $2.55

4

285320 Whirlpool Washer Siphon Break Kit In Stock WPL 285320 $29.80

4

WP3349098 Whirlpool Agitator Assembly In Stock WPL WP3349098 $76.76

4

WP3393657 Whirlpool Belt Retainer Backorder WPL WP3393657 $57.81

4

WP596669 Whirlpool Hose Clamp In Stock WPL WP596669 $2.55

5

285664 Whirlpool Drain Hose In Stock WPL 285664 $18.62

5

285805 Whirlpool Washer Water Inlet Valve In Stock WPL 285805 $18.54

5

384458 Whirlpool Hinge Assembly Backorder WPL 384458 $33.28

5

696541 Whirlpool Base Backorder WPL 696541 $33.28

5

W11613302 Whirlpool Door Seal In Stock WPL W11613302 $22.30

5

WP3398128 Whirlpool Cycling Thermostat In Stock WPL WP3398128 $44.51

5

WP688805 Whirlpool Spring Clip In Stock WPL WP688805 $3.94

5

Washer Tub Ring WPL 64175 Contact Us For Availability

5A

285666 Whirlpool Drain Hose 10' In Stock WPL 285666 $30.28

6

WP21366 Whirlpool Spanner Nut In Stock WPL WP21366 $3.76

6

WP285655 Whirlpool Hose Clamp In Stock WPL WP285655 $3.76

6

WP3357027 Whirlpool Nozzle Assembly In Stock WPL WP3357027 $32.59

6

Laundry Center Wire Harness WPL 3954108 Contact Us For Availability

6B

WP62889 Whirlpool Washer Lid Switch Receptacl Backorder WPL WP62889 $3.76

6C

WP62505 Whirlpool Connector Backorder WPL WP62505 $10.94

7

3976428 Whirlpool End Cap Backorder WPL 3976428 $30.26

7

WP3359587 Whirlpool Tub Seal Backorder WPL WP3359587 $9.52

7

WP348205 Whirlpool Door Backorder WPL WP348205 $63.17

7

WP692699 Whirlpool Hose Backorder WPL WP692699 $17.84

8

WP694424 Whirlpool Limiter In Stock WPL WP694424 $12.78

8

Washer Cover WPL 3394228 Contact Us For Availability

8

Cabinet WPL 696013 Contact Us For Availability

9

3390046 Whirlpool Protector Backorder WPL 3390046 $5.47

9

WP3357331 Whirlpool Clamp Backorder WPL WP3357331 $3.76

9

WP692985 Whirlpool Clip Assembly Backorder WPL WP692985 $3.76

9

WP693995 Whirlpool Screw In Stock WPL WP693995 $1.92

W11213338 Whirlpool Connector Backorder WPL W11213338 $30.45

WP3362987 Whirlpool Washer Water Level Switch In Stock WPL WP3362987 $103.92

WP389140 Whirlpool Drive Block or Bell In Stock WPL WP389140 $8.57

WP696710 Whirlpool Hose In Stock WPL WP696710 $27.42

11

WP694422 Whirlpool Spring Backorder WPL WP694422 $9.58

11

WP89503 Whirlpool Washer Fill Hose In Stock WPL WP89503 $8.43

285442 Whirlpool Coupling Backorder WPL 285442 $32.59

WP371502 Whirlpool Clamp Backorder WPL WP371502 $4.85

WP384693 Whirlpool Top Backorder WPL WP384693 $169.05

WP660975 Whirlpool Button Plug Backorder WPL WP660975 $3.76

WP8054143 Whirlpool Temperature Switch In Stock WPL WP8054143 $55.99

693711 Whirlpool Sleeve Backorder WPL 693711 $4.67

W11676450 Whirlpool Screw Backorder WPL W11676450 $8.24

WP339956 Whirlpool Foam Seal In Stock WPL WP339956 $3.94

WP63134 Whirlpool Ring Backorder WPL WP63134 $3.76

WP694423 Whirlpool Regulator Backorder WPL WP694423 $3.76

Bumper, Lid Hinge WPL 19119 Contact Us For Availability

8577411 Whirlpool Pad Backorder WPL 8577411 $4.61

WP21258 Whirlpool Washer Lid Hinge Bearing In Stock WPL WP21258 $3.53

WP3389441 Whirlpool Door Catch In Stock WPL WP3389441 $3.76

WP661600 Whirlpool Drive Motor In Stock WPL WP661600 $148.24

WP693151 Whirlpool Lock Spring Backorder WPL WP693151 $3.76

WP696426 Whirlpool Wheel In Stock WPL WP696426 $44.55

356398 Whirlpool Tube Backorder WPL 356398 $32.59

63636 Whirlpool Bracket Backorder WPL 63636 $30.24

WP3356311 Whirlpool Screw In Stock WPL WP3356311 $2.55

WP356471 Whirlpool Cap In Stock WPL WP356471 $3.76

WP686711 Whirlpool Door Handle In Stock WPL WP686711 $3.94

16

WP3406723 Whirlpool Timer Assembly Backorder WPL WP3406723 $195.74

16

WP356363 Whirlpool Siphon Break In Stock WPL WP356363 $3.94

16

WP358684 Whirlpool Strike Assembly In Stock WPL WP358684 $3.19

3399603 Whirlpool Elbow Backorder WPL 3399603 $48.06

384459 Whirlpool Hinge Backorder WPL 384459 $33.28

W10814296 Whirlpool Washer Center Post Seal G In Stock WPL W10814296 $2.77

WP616099 Whirlpool Clamp Backorder WPL WP616099 $3.29

18

WP3363394 Whirlpool Washer Drain Pump In Stock WPL WP3363394 $24.85

18

WP3395382 Whirlpool Push To Start Switch In Stock WPL WP3395382 $32.33

18

WP696394 Whirlpool Hose In Stock WPL WP696394 $39.19

19

693152 Whirlpool Bumper In Stock WPL 693152 $7.18

19

W10863713 Whirlpool Support In Stock WPL W10863713 $200.80

19

WP367594 Whirlpool Leveling Feet In Stock WPL WP367594 $11.07

20

WP348023 Whirlpool Hinge Backorder WPL WP348023 $3.76

20

WP358594 Whirlpool Leveling Feet In Stock WPL WP358594 $7.38

20

O-Ring WPL 64002 Contact Us For Availability

21

694037 Whirlpool Clip Backorder WPL 694037 $32.59

21

WP338906 Whirlpool Dryer Gas Sensor In Stock WPL WP338906 $18.27

21

WP62691 Whirlpool Grommet In Stock WPL WP62691 $5.39

3406051 Whirlpool Elbow Backorder WPL 3406051 $42.05

W10854425 Whirlpool Dryer Front Panel Bottom In Stock WPL W10854425 $6.60

WP3355806 Whirlpool Lid Switch In Stock WPL WP3355806 $26.15

WP691366 Whirlpool Dryer Idler Pulley Assembl In Stock WPL WP691366 $5.50

WP90767 Whirlpool Screw In Stock WPL WP90767 $2.55

386011 Whirlpool Screw Backorder WPL 386011 $29.89

WP3394508 Whirlpool Bearing Ring In Stock WPL WP3394508 $44.52

WP358652 Whirlpool Link Backorder WPL WP358652 $32.59

WP90016 Whirlpool Clip Backorder WPL WP90016 $4.85

Laundry Center Control Panel WPL 3976403 Contact Us For Availability

696044 Whirlpool Block In Stock WPL 696044 $33.28

WP359364 Whirlpool Clip In Stock WPL WP359364 $3.94

Dryer Control Knob WPL 3402594 Contact Us For Availability

Sears Canada Dryer Drum Baffle WPL 685207 Contact Us For Availability

25

WP692400 Whirlpool Nut In Stock WPL WP692400 $3.76

25

WP98234 Whirlpool Nut In Stock WPL WP98234 $4.85

25

Nut Union WPL 233076 Contact Us For Availability

26

WP345670 Whirlpool Lock In Stock WPL WP345670 $3.94

26

WP3952379 Whirlpool Timer In Stock WPL WP3952379 $179.95

27

692933 Whirlpool Panel Backorder WPL 692933 $112.17

27

Washer Control Knob WPL 3402572 Contact Us For Availability

27

Washer Front Panel WPL 692628 Contact Us For Availability

28

WP3949550 Whirlpool Gasket Assembly In Stock WPL WP3949550 $5.04

28

Washer Timer Dial WPL 3949428 Contact Us For Availability

30

WP693145 Whirlpool Lid Latch In Stock WPL WP693145 $32.59

31

3350013 Whirlpool Foam Seal Backorder WPL 3350013 $32.59

31

WP692983 Whirlpool Console Lock Backorder WPL WP692983 $32.59

32

60001022 Whirlpool Oven Screw Backorder WPL 60001022 $35.04

32

WP694419 Whirlpool Buzzer Adjuster Backorder WPL WP694419 $55.40

33

WP348197 Whirlpool Washer Assembly Backorder WPL WP348197 $2.55

33

WP693304 Whirlpool Screw Backorder WPL WP693304 $2.55

34

WP3359452 Whirlpool Nut In Stock WPL WP3359452 $1.93

35

WP3390631 Whirlpool Screw In Stock WPL WP3390631 $2.55

36B

Connector WPL 697780 Contact Us For Availability

36D

3395683 Whirlpool Connector Backorder WPL 3395683 $36.27

37

357030 Whirlpool Clamp Backorder WPL 357030 $10.94

41

279393 Whirlpool Terminal Block Screw and Nut In Stock WPL 279393 $15.61

42

279318 Whirlpool Terminal In Stock WPL 279318 $44.77

44

WP90296 Whirlpool Clip Backorder WPL WP90296 $2.55

47

WP3392519 Whirlpool Dryer Thermal Fuse In Stock WPL WP3392519 $7.79

49

488946 Whirlpool Air Conditioner Clamp Backorder WPL 488946 $10.42

50

WP3400935 Whirlpool Dishwasher Clip Backorder WPL WP3400935 $4.72

52

345335 Whirlpool Cover Backorder WPL 345335 $64.38

53

347455 Whirlpool Support Assembly Backorder WPL 347455 $8.44

54

3387208 Whirlpool Support Backorder WPL 3387208 $7.94

55

Guard WPL 697571 Contact Us For Availability

56

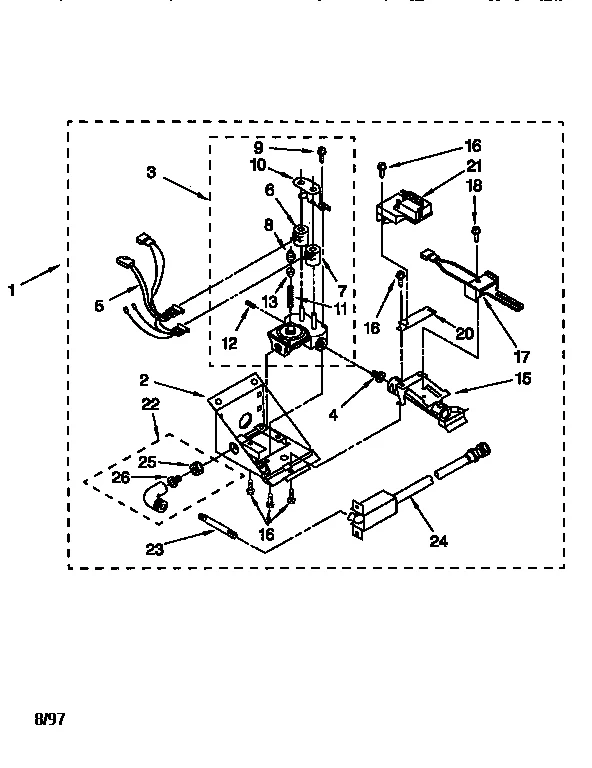

Gas Burner WPL 3402856 Contact Us For Availability

350572 Whirlpool Oil Transmission 15 Oz In Stock WPL 350572 $35.08

350930 Whirlpool White Spray Paint In Stock WPL 350930 $21.76

350938 Whirlpool Spray Gun Backorder WPL 350938 $51.15

350956 Whirlpool Spray Assembly In Stock WPL 350956 $29.30

692790 Whirlpool Plug Backorder WPL 692790 $30.26

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $5.00

WP285195 Whirlpool Sealer Assembly Backorder WPL WP285195 $50.89

WP72107 Whirlpool Touchup In Stock WPL WP72107 $6.23

Paint (White) WPL 799344 Contact Us For Availability

Washer Brake Shoe Roller and Pin Lubricant WPL 285208 Contact Us For Availability

Grease WPL 389236 Contact Us For Availability

Plug (Almond) WPL 692791 Contact Us For Availability

Paint (Almond) WPL 978883 Contact Us For Availability
