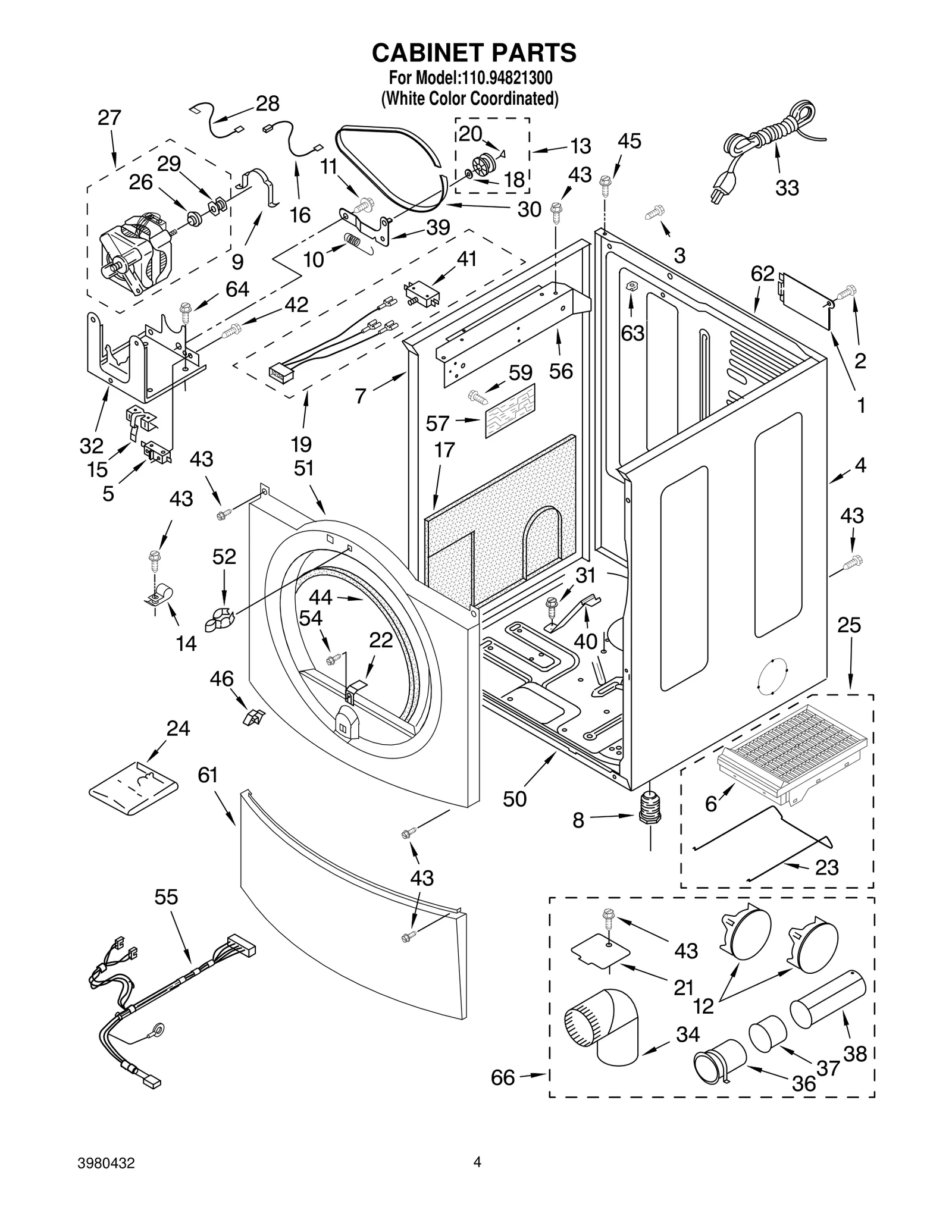

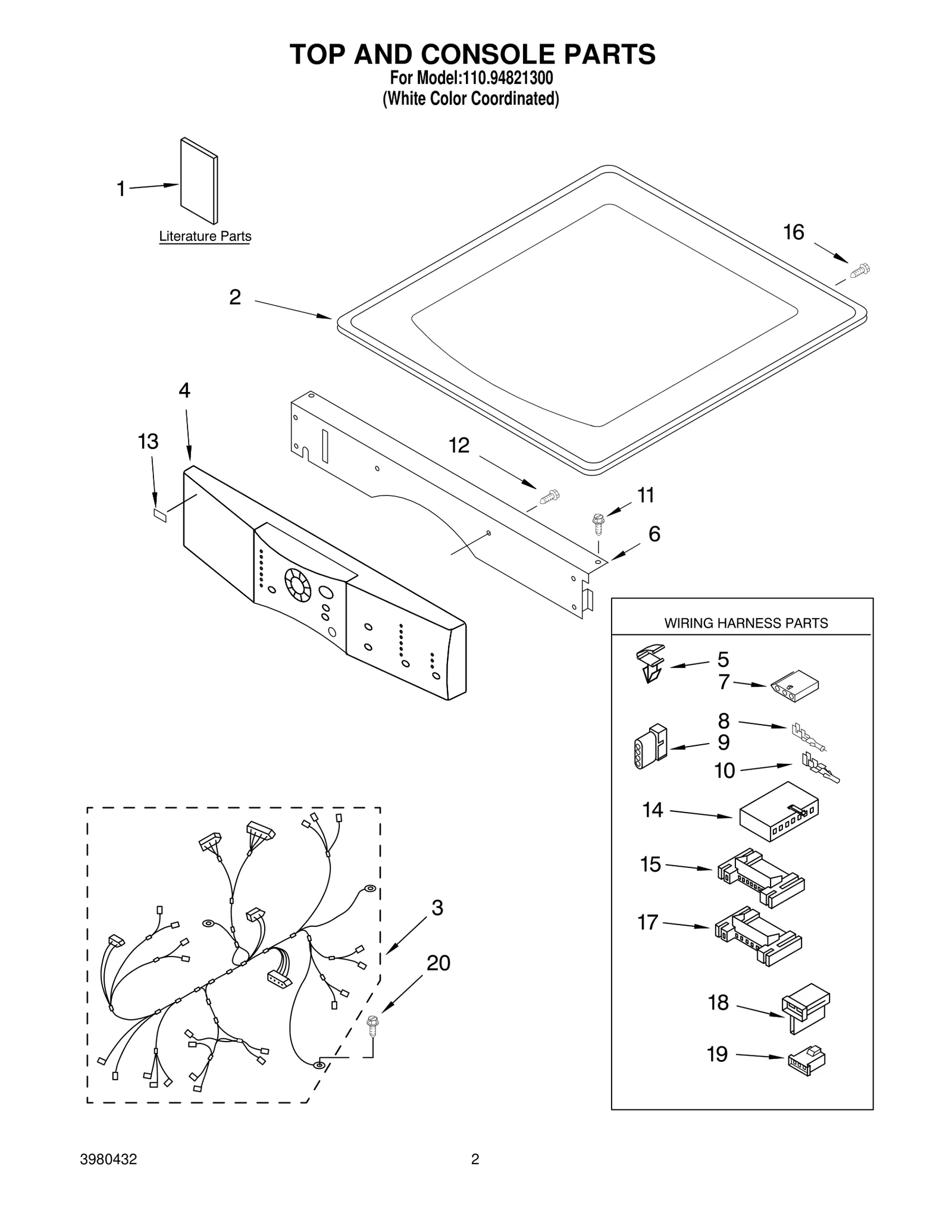

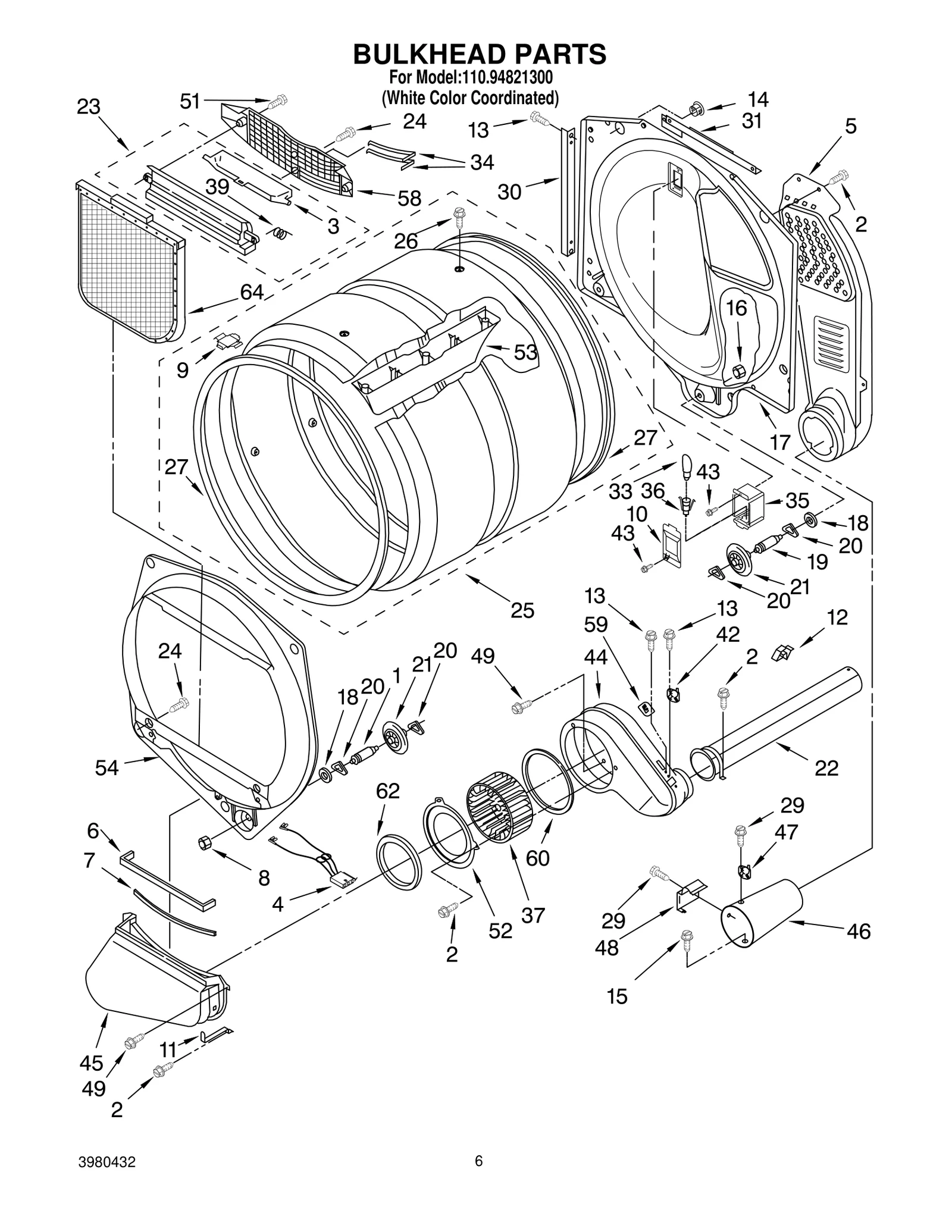

Model Whirlpool 110.94821300 Dryer – Common Parts &amp; Diagrams

1

WP3404413 Whirlpool Plug Backorder WPL WP3404413 $2.55

2

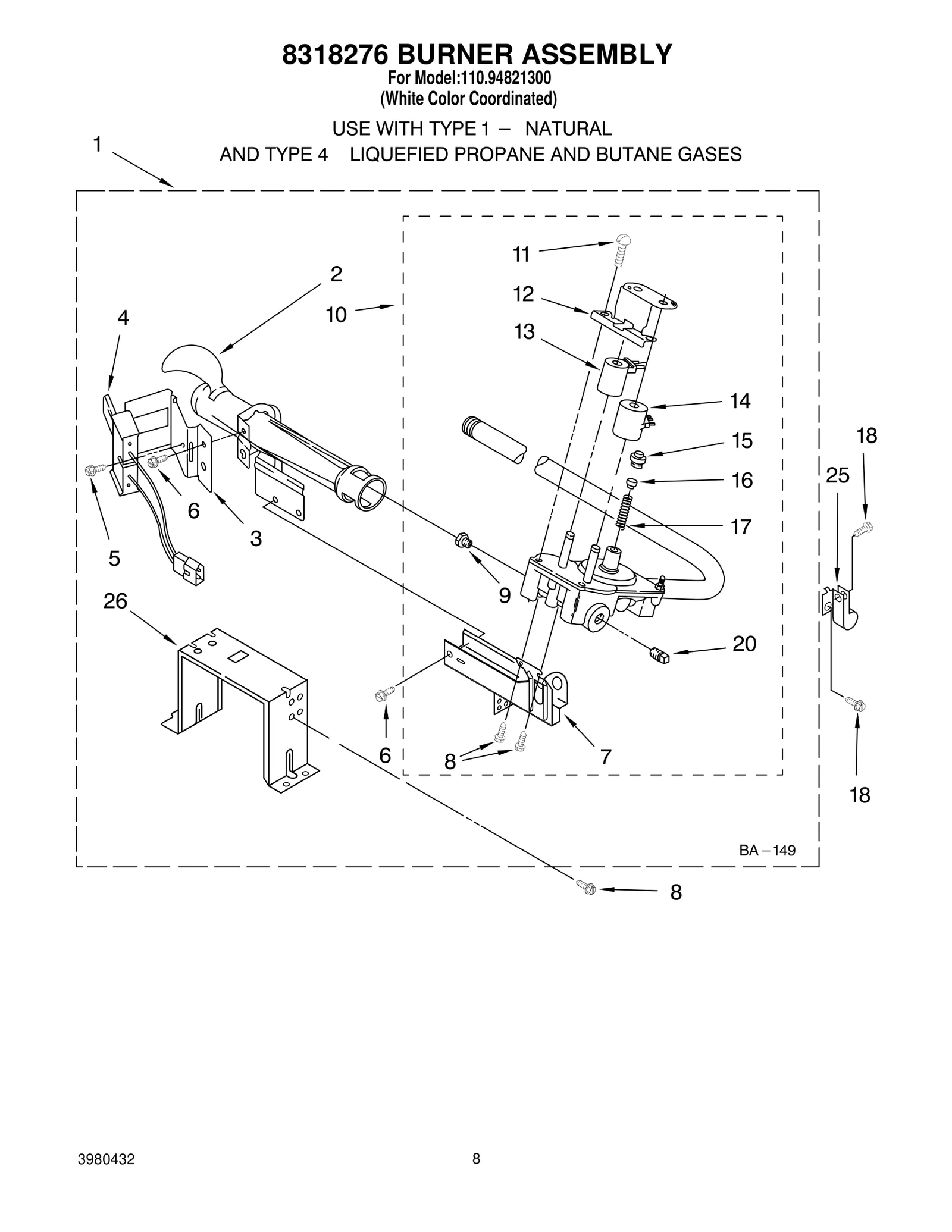

WP693140 Whirlpool Burner Backorder WPL WP693140 $77.91

2

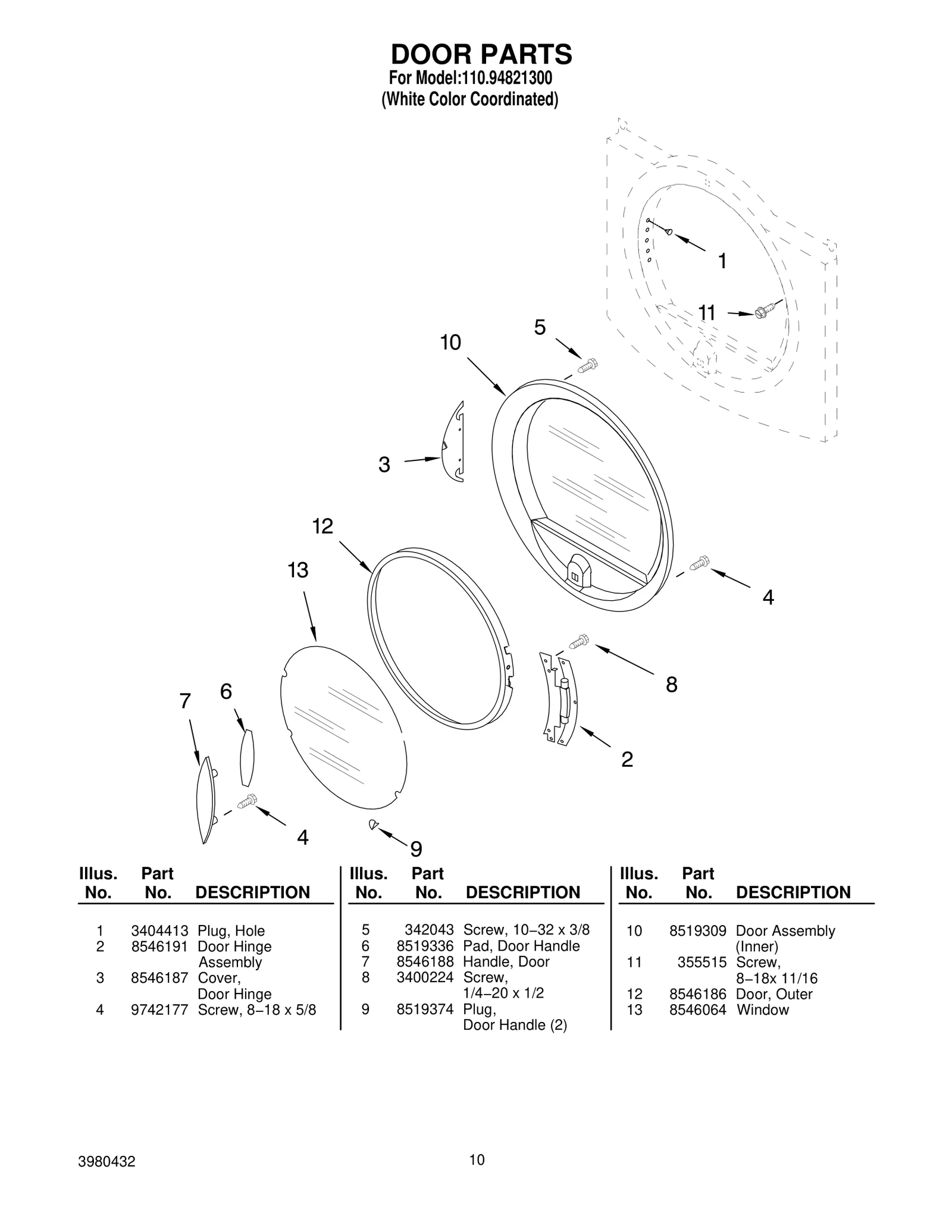

Door Hinge Assembly WPL 8546191 Contact Us For Availability

2

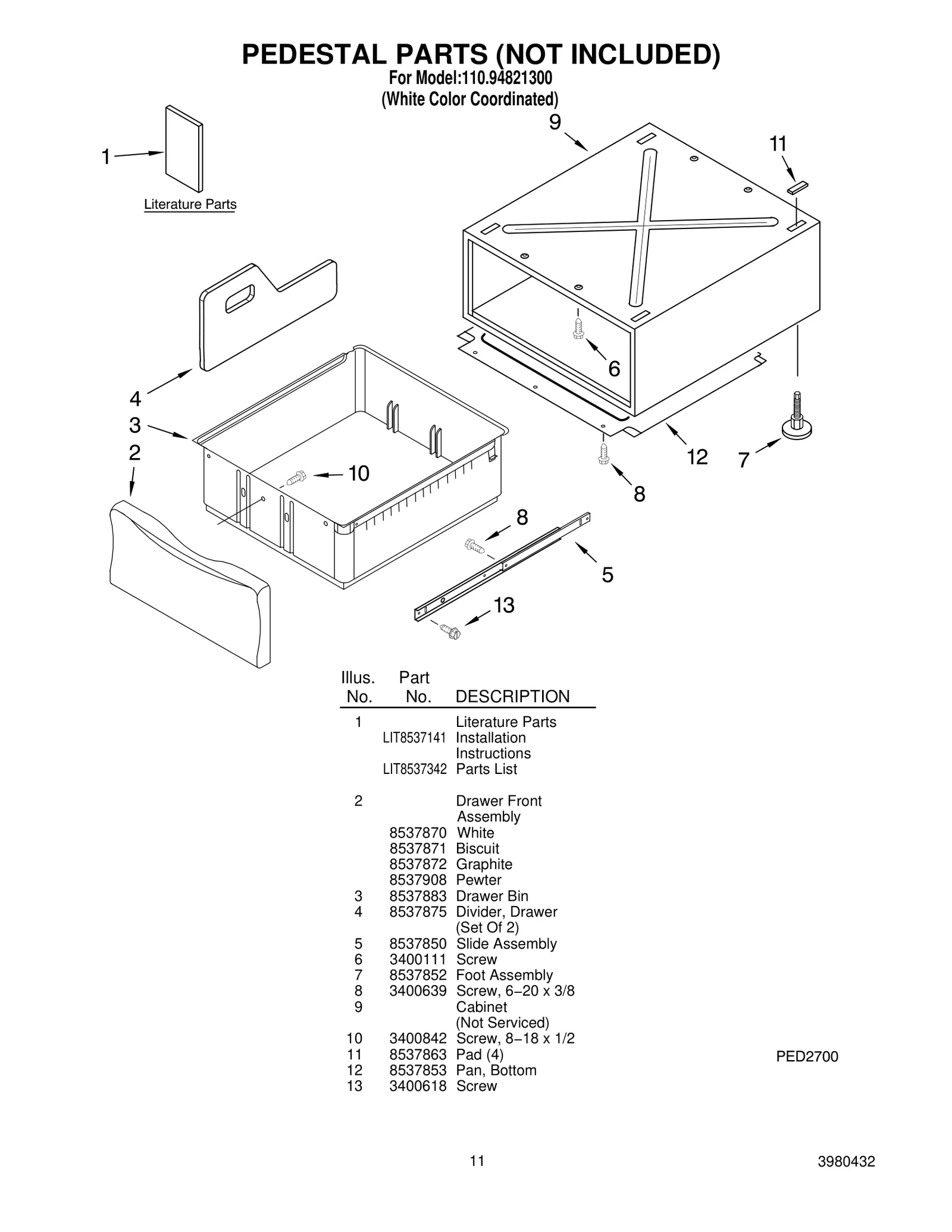

Drawer Front Assembly — White WPL 8537870 Contact Us For Availability

2

Drawer Front Assembly — Biscuit WPL 8537871 Contact Us For Availability

2

Drawer Front Assembly — Graphite WPL 8537872 Contact Us For Availability

2

Drawer Front Assembly — Pewter WPL 8537908 Contact Us For Availability

3

WP694298 Whirlpool Bracket Backorder WPL WP694298 $9.62

3

Harness, Main WPL 8299950 Contact Us For Availability

3

Cover, Door Hinge WPL 8546187 Contact Us For Availability

3

Drawer Bin WPL 8537883 Contact Us For Availability

4

279311 Whirlpool Dryer Flat Igniter Assembly In Stock WPL 279311 $22.79

4

WP3406653 Whirlpool Wire Harness In Stock WPL WP3406653 $48.71

4

Screw, 8−18 x 5/8 WPL 9742177 Contact Us For Availability

4

Divider, Drawer WPL 8537875 Contact Us For Availability

5

W11168650 Whirlpool Air Duct Backorder WPL W11168650 $62.95

5

WP3394427 Whirlpool Clip In Stock WPL WP3394427 $3.76

5

WP8578394 Whirlpool Slide Assembly Backorder WPL WP8578394 $38.67

5

WPW10366705 Whirlpool Screw In Stock WPL WPW10366705 $2.55

5

Screw, 10−32 x 3/8 WPL 342043 Contact Us For Availability

6

WP681414 Whirlpool Screw In Stock WPL WP681414 $2.55

6

WP697813 Whirlpool Seal In Stock WPL WP697813 $3.94

6

WPW10346892 Whirlpool Screw In Stock WPL WPW10346892 $2.55

6

Pad, Door Handle WPL 8519336 Contact Us For Availability

7

W10819774 Whirlpool Dryer Door Handle Assembl Backorder WPL W10819774 $52.68

7

WP8563585 Whirlpool Foot Assembly In Stock WPL WP8563585 $7.18

7

Connector, Sensor WPL 353424 Contact Us For Availability

7

Base, Burner WPL 3389871 Contact Us For Availability

8

49621 Whirlpool Leveling Feet In Stock WPL 49621 $2.44

8

WP3359452 Whirlpool Nut In Stock WPL WP3359452 $1.93

8

WP3388228 Whirlpool Screw In Stock WPL WP3388228 $2.55

8

WP693995 Whirlpool Screw In Stock WPL WP693995 $1.92

8

WP94614 Whirlpool Terminal Backorder WPL WP94614 $2.55

8

Screw, 1/4−20 x 1/2 WPL 3400224 Contact Us For Availability

9

3936144 Whirlpool Connector Backorder WPL 3936144 $10.94

9

8066086 Whirlpool Plug Backorder WPL 8066086 $4.84

9

WP229742 Whirlpool Gas Orifice Backorder WPL WP229742 $12.28

9

WP234826 Whirlpool Gas Orifice In Stock WPL WP234826 $16.76

9

WP234868 Whirlpool Gas Orifice Backorder WPL WP234868 $12.28

9

WP660658 Whirlpool Clamp In Stock WPL WP660658 $3.18

9

Plug, Door Handle (2) WPL 8519374 Contact Us For Availability

9

Cabinet WPL N/S Contact Us For Availability

10

WP1163283 Whirlpool Air Conditioner Screw Backorder WPL WP1163283 $2.55

10

WP8318281 Whirlpool Gas Valve Backorder WPL WP8318281 $213.76

10

Door Assembly WPL 8519309 Contact Us For Availability

694421 Whirlpool Screw Assembly Backorder WPL 694421 $7.70

WP3389420 Whirlpool Screw Backorder WPL WP3389420 $2.55

WP355515 Whirlpool Screw Backorder WPL WP355515 $2.55

Pad (4) WPL 8537863 Contact Us For Availability

WP3388229 Whirlpool Dryer Spring Clip In Stock WPL WP3388229 $3.94

Door, Outer WPL 8546186 Contact Us For Availability

Bracket, Coil WPL 694538 Contact Us For Availability

Pan, Bottom WPL 8537853 Contact Us For Availability

13

3400618 Whirlpool Screw Backorder WPL 3400618 $2.33

13

Window WPL 8546064 Contact Us For Availability

14

279834 Whirlpool Dryer Gas Valve Solenoid Coi In Stock WPL 279834 $17.78

15

3395683 Whirlpool Connector Backorder WPL 3395683 $36.27

15

WP694424 Whirlpool Limiter In Stock WPL WP694424 $12.78

15

WP8066120 Whirlpool Lever Assembly Backorder WPL WP8066120 $11.92

16

WP694423 Whirlpool Regulator Backorder WPL WP694423 $3.76

16

Wire, Belt Switch WPL 3394081 Contact Us For Availability

17

W11299301 Whirlpool Bulkhead Assembly Backorder WPL W11299301 $105.36

17

WP694422 Whirlpool Spring Backorder WPL WP694422 $9.58

18

WP488729 Whirlpool Refrigerator Door Screw In Stock WPL WP488729 $2.68

18

WPW10121334 Whirlpool Washer In Stock WPL WPW10121334 $2.55

19

WP8283288 Whirlpool Door Switch In Stock WPL WP8283288 $64.92

20

W10295523 Whirlpool Plug Backorder WPL W10295523 $10.94

22

279936 Whirlpool Exhaust Pipe Backorder WPL 279936 $53.48

22

Ramp, Door WPL 8529053 Contact Us For Availability

23

W11129408 Whirlpool Out Housing In Stock WPL W11129408 $25.77

23

Dry Rack Support WPL 8521961 Contact Us For Availability

24

8541503 Whirlpool Stacking Kit Backorder WPL 8541503 $26.69

25

3387561 Whirlpool Clamp Backorder WPL 3387561 $10.42

25

W10545924 Whirlpool Drum Assembly Backorder WPL W10545924 $162.66

49572A Whirlpool Dryer Propane Gas Conversion In Stock WPL 49572A $17.06

WP3393657 Whirlpool Belt Retainer Backorder WPL WP3393657 $57.81

WPW10109200 Whirlpool Screw In Stock WPL WPW10109200 $2.55

Bracket, Support Following Parts Not Illustra WPL 3389889 Contact Us For Availability

27

280114 Whirlpool Dryer Drum Seal In Stock WPL 280114 $27.38

28

3398948 Whirlpool Wire Backorder WPL 3398948 $43.06

29

W10837625 Whirlpool Dryer Motor Pulley In Stock WPL W10837625 $7.53

29

WP90767 Whirlpool Screw In Stock WPL WP90767 $2.55

30

Channel Bracket, Rear Bulkhead (2) WPL 8519221 Contact Us For Availability

31

W10118337 Whirlpool Bracket Assembly Backorder WPL W10118337 $70.27

32

WP3387118 Whirlpool Base Assembly Backorder WPL WP3387118 $50.72

33

WP22002263 Whirlpool Dryer 10W Light Bulb In Stock WPL WP22002263 $8.44

34

WP3387223 Whirlpool Electrode Assembly In Stock WPL WP3387223 $3.65

35

3977373 Whirlpool Bracket Backorder WPL 3977373 $75.73

36

W11700522 Whirlpool Socket Backorder WPL W11700522 $31.77

37

WP697772 Whirlpool Dryer Blower Wheel In Stock WPL WP697772 $31.84

39

WP3394986 Whirlpool Spring Backorder WPL WP3394986 $32.87

42

WP8577274 Whirlpool Dryer Thermistor In Stock WPL WP8577274 $16.62

44

W10888146 Whirlpool Housing In Stock WPL W10888146 $38.67

44

WP3387242 Whirlpool Seal In Stock WPL WP3387242 $9.32

45

Lint Duct Assembly WPL 8530036 Contact Us For Availability

46

WP8066047 Whirlpool Funnel Backorder WPL WP8066047 $59.28

47

W11050897 Whirlpool Dryer High Limit Thermost In Stock WPL W11050897 $6.38

48

WP338906 Whirlpool Dryer Gas Sensor In Stock WPL WP338906 $18.27

49

3400826 Whirlpool Screw Backorder WPL 3400826 $5.47

51

WP3387230 Whirlpool Screw In Stock WPL WP3387230 $2.68

52

279780 Whirlpool Plate Cover Backorder WPL 279780 $35.15

53

Baffle, Drum WPL 697693 Contact Us For Availability

54

Bulkhead, Front WPL 8519245 Contact Us For Availability

55

Harness, Digital Interface WPL 8299929 Contact Us For Availability

58

W11086603 Whirlpool Dryer Link Screen Air Gri In Stock WPL W11086603 $14.47

59

WP3392519 Whirlpool Dryer Thermal Fuse In Stock WPL WP3392519 $7.79

60

WP697770 Whirlpool Blower Cover Plate Seal In Stock WPL WP697770 $3.94

62

WP8566209 Whirlpool Seal Backorder WPL WP8566209 $32.59

63

WP692400 Whirlpool Nut In Stock WPL WP692400 $3.76

350930 Whirlpool White Spray Paint In Stock WPL 350930 $21.76

350938 Whirlpool Spray Gun Backorder WPL 350938 $51.15

4392067 Whirlpool Dryer Repair Kit In Stock WPL 4392067 $22.36

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $5.00

W10120998 Whirlpool Dryer Lint Screen Filter In Stock WPL W10120998 $23.21

White (Uncut) WPL 799344 Contact Us For Availability

Hold Down Kit WPL 8529894 Contact Us For Availability
