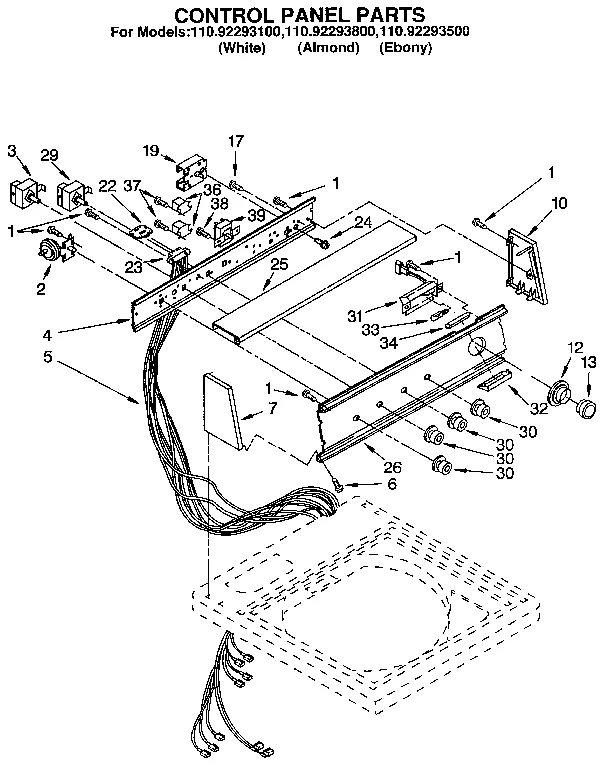

Model Whirlpool 110.92293500 Washer (Kenmore 11092293500) – Common Parts &amp; Diagrams

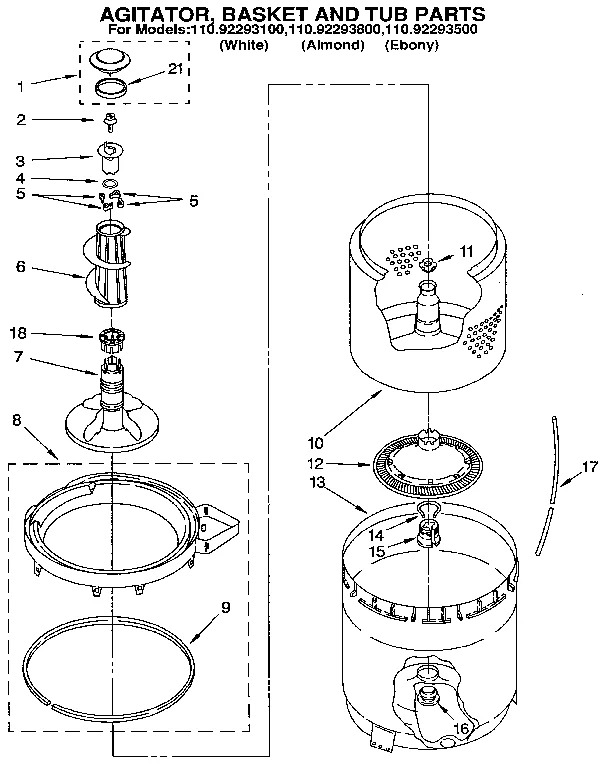

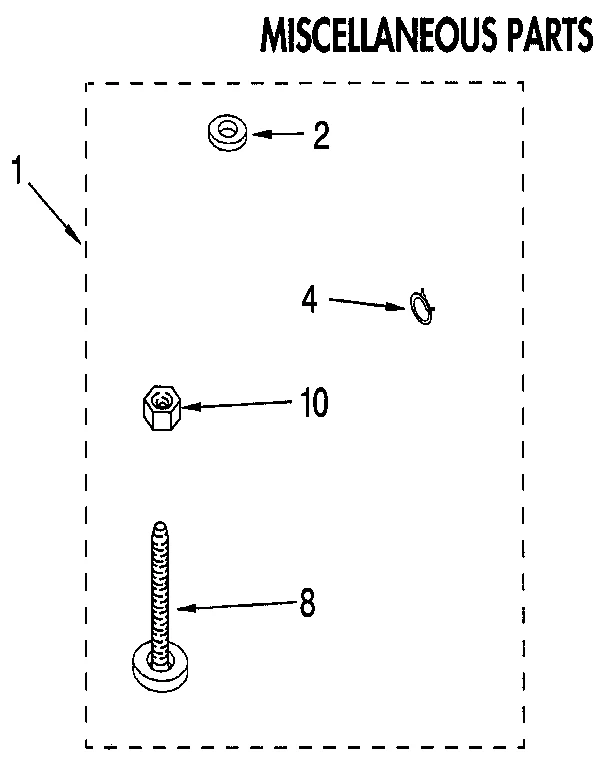

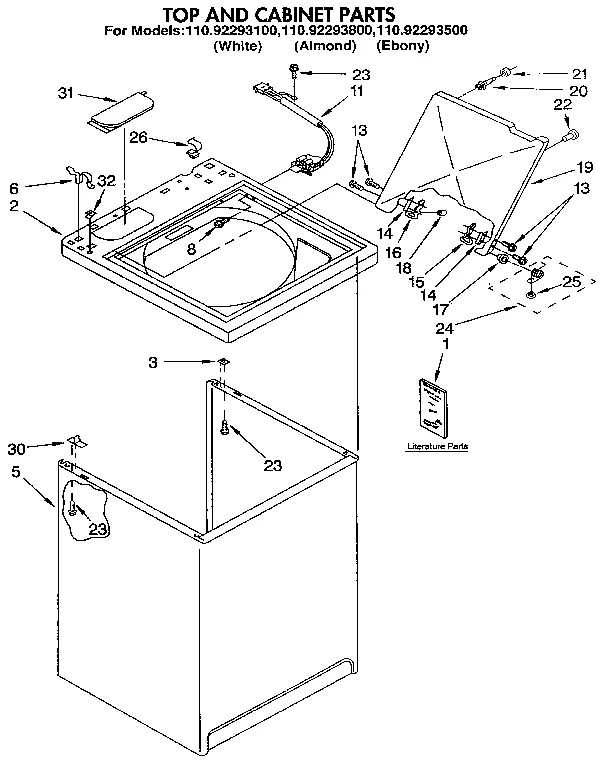

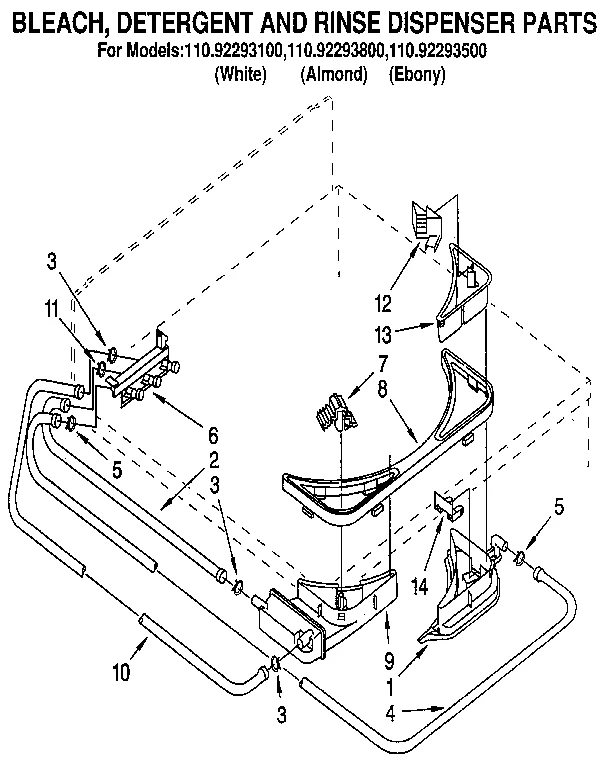

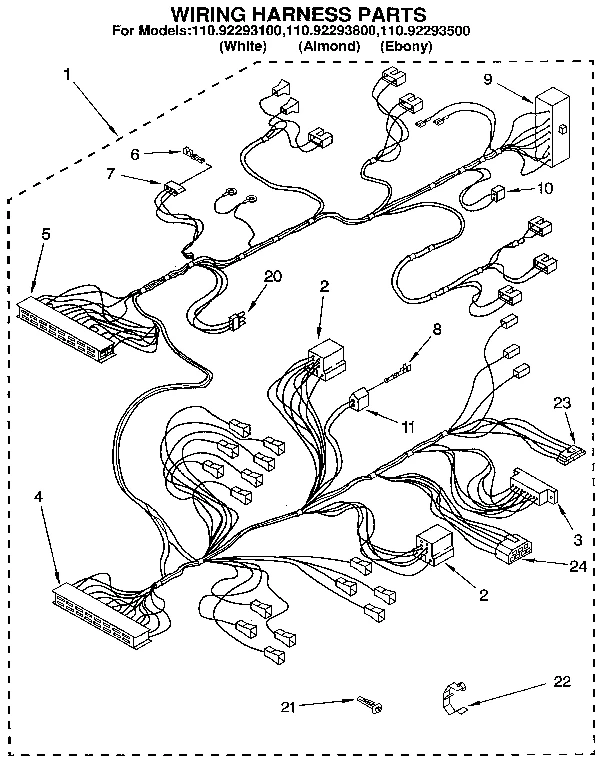

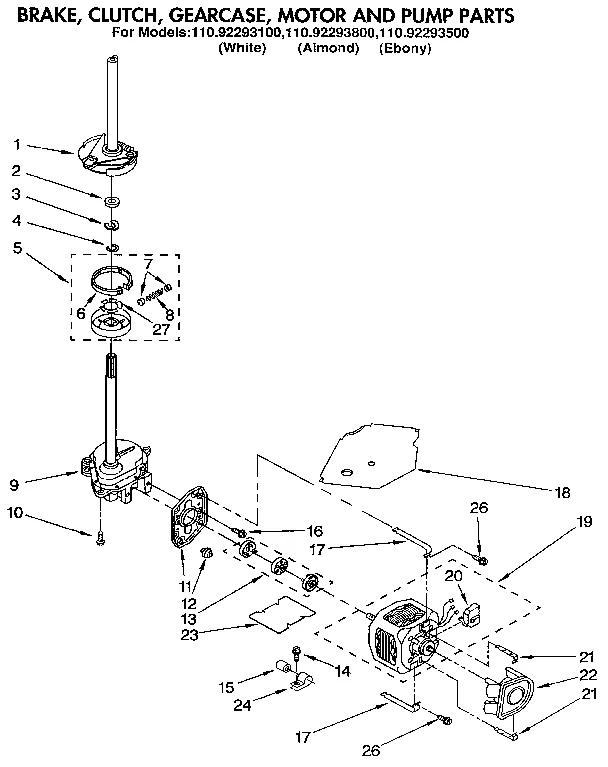

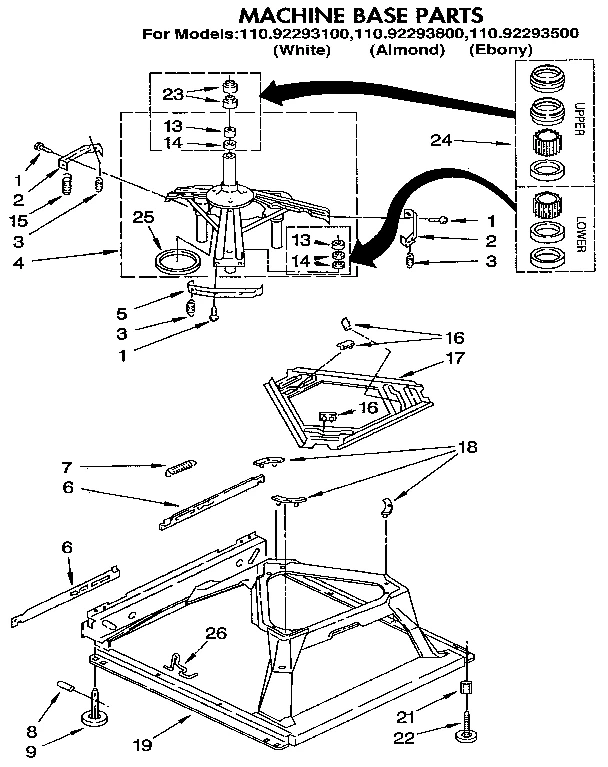

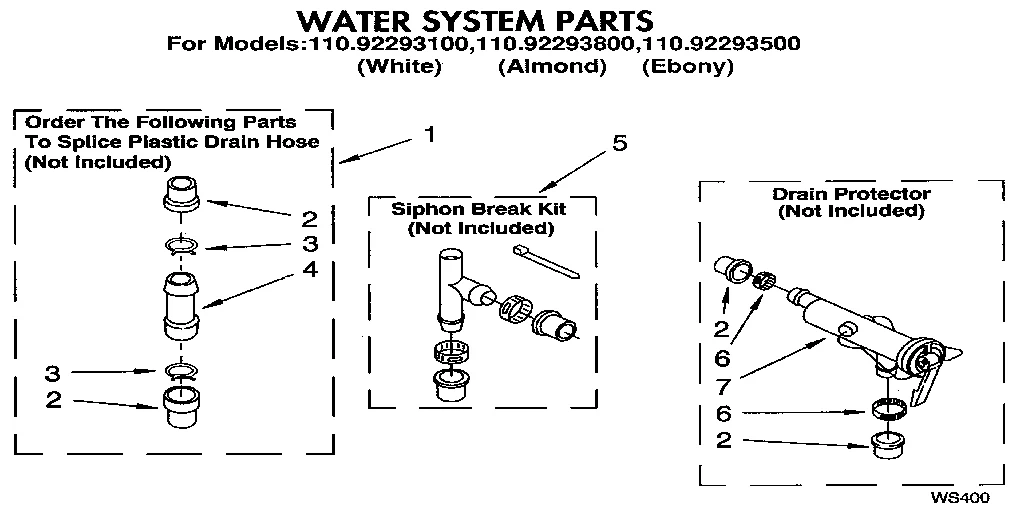

1

WP273556 Whirlpool Screw In Stock WPL WP273556 $2.55

1

WP3362061 Whirlpool Cap Backorder WPL WP3362061 $47.69

1

WP90767 Whirlpool Screw In Stock WPL WP90767 $2.55

1

Washer Detergent Dispenser Reservoir WPL 3348814 Contact Us For Availability

1A

Laundry Guide WPL LIT3349103 Contact Us For Availability

1B

Installation Instructions WPL LIT3356571 Contact Us For Availability

1C

Operating Instructions WPL LIT3356517 Contact Us For Availability

1D

Wiring Diagram WPL LIT377762 Contact Us For Availability

1E

Wiring Diagram WPL LIT3360174 Contact Us For Availability

1F

Repair Manual WPL LIT4314044 Contact Us For Availability

1G

Energy Guide WPL LIT3356086 Contact Us For Availability

1H

Parts List WPL LIT3356475 Contact Us For Availability

2

WP358237 Whirlpool Agitator Bolt In Stock WPL WP358237 $2.47

2

WP63292 Whirlpool Washer In Stock WPL WP63292 $3.76

2

WP64067 Whirlpool Bracket In Stock WPL WP64067 $3.94

2

Washer Water-Level Pressure Switch WPL 3356464 Contact Us For Availability

2

Washer Dispenser Hose WPL 64169 Contact Us For Availability

2A

Top W P WPL 3360681 Contact Us For Availability

2B

Top Al P WPL 3360682 Contact Us For Availability

2C

Top Bl P WPL 64187 Contact Us For Availability

3

285748 Whirlpool Agitator Cam Kit In Stock WPL 285748 $17.71

3

WP62750 Whirlpool Spacer In Stock WPL WP62750 $3.76

3

WP63907 Whirlpool Washer Suspension Spring In Stock WPL WP63907 $3.94

3

Washer Temperature Switch WPL 661546 Contact Us For Availability

3A

Temperature Switch WPL 3348356 Contact Us For Availability

3B

Temperature Switch WPL 3349592 Contact Us For Availability

4

WP3948608 Whirlpool Bracket Backorder WPL WP3948608 $47.30

4

Appliance O-Ring WPL 357574 Contact Us For Availability

4

Washer Detergent Dispenser Hose WPL 64168 Contact Us For Availability

4

Support WPL 389350 Contact Us For Availability

5

285320 Whirlpool Washer Siphon Break Kit In Stock WPL 285320 $29.80

5

80040 Whirlpool Washer Agitator Dog Kit In Stock WPL 80040 $1.43

5

WP356138 Whirlpool Hose Clamp Backorder WPL WP356138 $3.76

5

WP596669 Whirlpool Hose Clamp In Stock WPL WP596669 $2.55

5

Bracket WPL 64065 Contact Us For Availability

5

Wire Harness WPL 3357317 Contact Us For Availability

5A

63424 Whirlpool Cabinet Assembly Backorder WPL 63424 $258.72

5B

Cabnt Al WPL 63425 Contact Us For Availability

5C

Cabnt Bl WPL 388127 Contact Us For Availability

6

WP3360824 Whirlpool Agitator Auger In Stock WPL WP3360824 $84.18

6

WP388326 Whirlpool Screw Backorder WPL WP388326 $2.55

6

WP62780 Whirlpool Cabinet Clip In Stock WPL WP62780 $3.94

6

Connector WPL 3348818 Contact Us For Availability

6

Link WPL 3348727 Contact Us For Availability

7

8316845 Whirlpool Washer Spring In Stock WPL 8316845 $3.94

7

WP389386 Whirlpool Agitator Assembly Backorder WPL WP389386 $83.26

7

Insert WPL 64147 Contact Us For Availability

7A

Endcap Wht WPL 388204 Contact Us For Availability

7B

Endcap Eby WPL 388205 Contact Us For Availability

7C

Endcap Alm WPL 388206 Contact Us For Availability

8

WP3356311 Whirlpool Screw In Stock WPL WP3356311 $2.55

8

WP62837 Whirlpool Dowel Pin Backorder WPL WP62837 $6.25

8

WP94614 Whirlpool Terminal Backorder WPL WP94614 $2.55

8

Washer Tub Ring WPL 388201 Contact Us For Availability

8

(338471) (ALT.) WPL N/P Contact Us For Availability

8A

Bezel W WPL 64153 Contact Us For Availability

8B

Bezel Al WPL 64154 Contact Us For Availability

8C

Bezel Bl WPL 64158 Contact Us For Availability

9

285244 Whirlpool Leveling Feet In Stock WPL 285244 $11.55

9

WP3976308 Whirlpool Tub Seal In Stock WPL WP3976308 $9.58

9

Connector WPL 94612 Contact Us For Availability

9

Reservoir WPL 3348812 Contact Us For Availability

W10389328 Whirlpool Basket Backorder WPL W10389328 $203.31

Hinge Panel WPL 387402 Contact Us For Availability

Washer Fabric Softener Dispenser Hose WPL 64170 Contact Us For Availability

Connector WPL 3348075 Contact Us For Availability

10A

End Cap (White) WPL 388210 Contact Us For Availability

10B

Endcap Eby WPL 388211 Contact Us For Availability

10C

End Cap (Almond) WPL 388212 Contact Us For Availability

11

285671 Whirlpool Lid Switch Assembly In Stock WPL 285671 $24.07

11

WP21366 Whirlpool Spanner Nut In Stock WPL WP21366 $3.76

11

Receptacle WPL 717252 Contact Us For Availability

12

285868 Whirlpool Washer Filter Plug Kit Backorder WPL 285868 $14.82

12

WP62691 Whirlpool Grommet In Stock WPL WP62691 $5.39

12

Insert WPL 3350127 Contact Us For Availability

12A

Dial (White) WPL 3350996 Contact Us For Availability

12B

Dial (Almond) WPL 3350997 Contact Us For Availability

12C

Dial WPL 387998 Contact Us For Availability

63849 Whirlpool Outer Tub Primary Assembly In Stock WPL 63849 $134.92

WP8546455 Whirlpool Bearing In Stock WPL WP8546455 $9.62

WPW10119828 Whirlpool Screw In Stock WPL WPW10119828 $2.68

Reservoir WPL 3350126 Contact Us For Availability

13A

WP3362625 Whirlpool Timer Knob In Stock WPL WP3362625 $37.27

13B

WP3362624 Whirlpool Washer Timer Knob In Stock WPL WP3362624 $17.07

W11095997 Whirlpool Seal In Stock WPL W11095997 $10.94

WP21097 Whirlpool Pad In Stock WPL WP21097 $3.76

WP62747 Whirlpool Pad Backorder WPL WP62747 $10.94

Washer Filter Plate Lock Ring WPL 62942 Contact Us For Availability

Diverter WPL 387691 Contact Us For Availability

15

WP389140 Whirlpool Drive Block or Bell In Stock WPL WP389140 $8.57

15

WP54583 Whirlpool Hinge In Stock WPL WP54583 $9.52

15

WPW10250667 Whirlpool Washer Suspension Sprin In Stock WPL WPW10250667 $2.33

16

285219 Whirlpool Washer Suspension Plate Fric In Stock WPL 285219 $11.31

16

W10814296 Whirlpool Washer Center Post Seal G In Stock WPL W10814296 $2.77

16

WP54584 Whirlpool Hinge Backorder WPL WP54584 $10.25

WP21258 Whirlpool Washer Lid Hinge Bearing In Stock WPL WP21258 $3.53

WP3351614 Whirlpool Screw Backorder WPL WP3351614 $2.55

WP353244 Whirlpool Hose In Stock WPL WP353244 $34.65

WP3946509 Whirlpool Skate Plate Backorder WPL WP3946509 $86.88

18

285587 Whirlpool Thrust Washer In Stock WPL 285587 $1.54

18

285744 Whirlpool Washer Tub Suspension Rod Ki In Stock WPL 285744 $5.91

18

Bumper, Lid Hinge WPL 19119 Contact Us For Availability

19

WP3352287 Whirlpool Drive Motor Backorder WPL WP3352287 $258.27

19

Timer WPL 3358112 Contact Us For Availability

19

Base WPL 3359886 Contact Us For Availability

19A

Lid W P WPL 3360658 Contact Us For Availability

19B

Lid Al P WPL 3360659 Contact Us For Availability

19C

Lid Eby P WPL 3353450 Contact Us For Availability

20

WP62889 Whirlpool Washer Lid Switch Receptacl Backorder WPL WP62889 $3.76

20

Strike WPL 357141 Contact Us For Availability

WP3359452 Whirlpool Nut In Stock WPL WP3359452 $1.93

WP354255 Whirlpool Bumper Assembly In Stock WPL WP354255 $2.55

WP358912 Whirlpool Gasket Backorder WPL WP358912 $3.76

Harness Clip WPL 3390496 Contact Us For Availability

WP9724509 Whirlpool Bumper In Stock WPL WP9724509 $2.68

WPW10001130 Whirlpool Leveling Leg In Stock WPL WPW10001130 $2.47

Washer Wire Harness Retainer WPL 3349557 Contact Us For Availability

Control WPL 3349478 Contact Us For Availability

WP16123 Whirlpool Washer In Stock WPL WP16123 $2.55

WP681414 Whirlpool Screw In Stock WPL WP681414 $2.55

WP8577376 Whirlpool Seal In Stock WPL WP8577376 $3.94

Connector WPL 3347243 Contact Us For Availability

Connector WPL 3349494 Contact Us For Availability

285203 Whirlpool CP Bearing In Stock WPL 285203 $68.08

357030 Whirlpool Clamp Backorder WPL 357030 $10.94

WP356418 Whirlpool Screw In Stock WPL WP356418 $2.55

WP96160 Whirlpool Washer Inlet Valve Screen Backorder WPL WP96160 $4.84

24A

Spring WPL 53749 Contact Us For Availability

24B

Spring WPL 53748 Contact Us For Availability

25

WP63134 Whirlpool Ring Backorder WPL WP63134 $3.76

25

Plug WPL 54690 Contact Us For Availability

25A

Control Panel (White) WPL 3350932 Contact Us For Availability

25B

Control Panel (Almond) WPL 3350933 Contact Us For Availability

25C

Control Panel WPL 3350936 Contact Us For Availability

26

WP90016 Whirlpool Clip Backorder WPL WP90016 $4.85

26

WPW10145155 Whirlpool Retainer In Stock WPL WPW10145155 $2.25

26A

Control Panel (White) WPL 3357979 Contact Us For Availability

26B

Control Panel (Almond) WPL 3357980 Contact Us For Availability

26C

Control Panel WPL 3357981 Contact Us For Availability

29

Cycle Switch WPL 3354284 Contact Us For Availability

30

Spacer WPL 388252 Contact Us For Availability

30A

Control Knob (White) WPL 3350980 Contact Us For Availability

30B

Knob Control (Almond) WPL 3350981 Contact Us For Availability

30C

Control Knob WPL 388037 Contact Us For Availability

31

Hose Cover WPL 64172 Contact Us For Availability

31

Socket WPL 3349612 Contact Us For Availability

32

WP357213 Whirlpool Hinge Stopper Backorder WPL WP357213 $3.76

32A

Lens W WPL 3350945 Contact Us For Availability

32B

Lens Alm WPL 3350946 Contact Us For Availability

32C

Lens Bl WPL 3349577 Contact Us For Availability

33

Light Bulb WPL 3350382 Contact Us For Availability

34

Protector WPL 3350384 Contact Us For Availability

35

WP371502 Whirlpool Clamp Backorder WPL WP371502 $4.85

36

697811 Whirlpool Relay Backorder WPL 697811 $35.34

37

WP3388228 Whirlpool Screw In Stock WPL WP3388228 $2.55

37

Washer Inlet Valve WPL 64164 Contact Us For Availability

38

WP3390631 Whirlpool Screw In Stock WPL WP3390631 $2.55

39

Fabric Switch WPL 3358115 Contact Us For Availability

51

Washer Water Temperature Sensor WPL 3352282 Contact Us For Availability

53

WP3349365 Whirlpool Hose In Stock WPL WP3349365 $7.30

285006 Whirlpool Spray In Stock WPL 285006 $45.11

350572 Whirlpool Oil Transmission 15 Oz In Stock WPL 350572 $35.08

350930 Whirlpool White Spray Paint In Stock WPL 350930 $21.76

350938 Whirlpool Spray Gun Backorder WPL 350938 $51.15

350956 Whirlpool Spray Assembly In Stock WPL 350956 $29.30

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $5.00

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $7.33

WP285195 Whirlpool Sealer Assembly Backorder WPL WP285195 $50.89

WP72107 Whirlpool Touchup In Stock WPL WP72107 $6.23

Paint (White) WPL 799344 Contact Us For Availability
