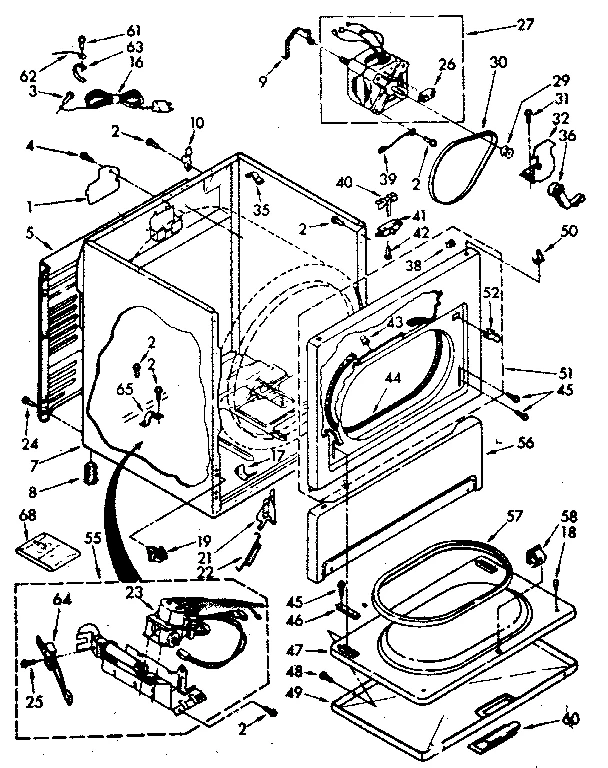

Whirlpool 110.87583820 Gas Dryer (Kenmore 11087583820) Parts List

1

W11736322 Whirlpool Cover Assembly Backorder WPL W11736322 $26.28

View on Model

2

WP681414 Whirlpool Screw In Stock WPL WP681414 $2.51

View on Model

4

279771 Whirlpool Clip Backorder WPL 279771 $6.20

View on Model

5

Panel WPL 348364 Contact Us For Availability

View on Model

7

End Cap Clip WPL 689559 Contact Us For Availability

View on Model

7A

Cabinet (White) WPL 690841 Contact Us For Availability

View on Model

7B

Cabinet WPL 690845 Contact Us For Availability

View on Model

7C

Cabinet (Almond) WPL 690842 Contact Us For Availability

View on Model

7D

Cabinet WPL 694876 Contact Us For Availability

View on Model

7E

Cabinet (Platinum) WPL 694877 Contact Us For Availability

View on Model

8

279900 Whirlpool Box O/S1 Backorder WPL 279900 $137.93

View on Model

8

49621 Whirlpool Leveling Feet In Stock WPL 49621 $2.40

View on Model

9

WP338906 Whirlpool Dryer Gas Sensor In Stock WPL WP338906 $17.97

View on Model

9

WP660658 Whirlpool Clamp In Stock WPL WP660658 $3.18

View on Model

9A

WP234826 Whirlpool Gas Orifice In Stock WPL WP234826 $15.42

View on Model

9C

Burner Orifice WPL 15419 Contact Us For Availability

View on Model

9D

WP229742 Whirlpool Gas Orifice Backorder WPL WP229742 $12.08

View on Model

9E

WP234868 Whirlpool Gas Orifice Backorder WPL WP234868 $12.08

View on Model

10

WP8066217 Whirlpool Hinge In Stock WPL WP8066217 $3.70

View on Model

10

Dryer Thermostat Heater WPL 61894 Contact Us For Availability

View on Model

11

694421 Whirlpool Screw Assembly Backorder WPL 694421 $7.58

View on Model

11

WP488729 Whirlpool Refrigerator Door Screw In Stock WPL WP488729 $2.64

View on Model

12

Sears Canada Dryer Valve Coil Bracket WPL 694538 Contact Us For Availability

View on Model

12

Support, Heater Box WPL 348484 Contact Us For Availability

View on Model

13

WP357213 Whirlpool Hinge Stopper Backorder WPL WP357213 $3.70

View on Model

13

WP965173 Whirlpool Dishwasher Screw Backorder WPL WP965173 $2.64

View on Model

14

279834 Whirlpool Dryer Gas Valve Solenoid Coi In Stock WPL 279834 $17.78

View on Model

15

WP694424 Whirlpool Limiter In Stock WPL WP694424 $12.57

View on Model

16

W11222083 Whirlpool Power Cord In Stock WPL W11222083 $41.12

View on Model

16

WP694423 Whirlpool Regulator Backorder WPL WP694423 $3.70

View on Model

17

WP297092 Whirlpool Clip In Stock WPL WP297092 $3.18

View on Model

17

WP694422 Whirlpool Spring Backorder WPL WP694422 $9.42

View on Model

17

Bulkhead WPL 685821 Contact Us For Availability

View on Model

18

238614 Whirlpool Bumper Hinge Backorder WPL 238614 $75.86

View on Model

18

WP3401850 Whirlpool Wire Harness Backorder WPL WP3401850 $113.53

View on Model

18

WP348197 Whirlpool Washer Assembly Backorder WPL WP348197 $2.51

View on Model

19

WPW10359270 Whirlpool Dryer Drum Roller Shaft In Stock WPL WPW10359270 $34.33

View on Model

19

Clip WPL 694510 Contact Us For Availability

View on Model

19

Clip WPL 696232 Contact Us For Availability

View on Model

20

W10295523 Whirlpool Plug Backorder WPL W10295523 $10.76

View on Model

20

WPW10512946 Whirlpool Dryer Tri-Ring Drum Rol In Stock WPL WPW10512946 $4.79

View on Model

20

Dryer Timer Knob WPL 688865 Contact Us For Availability

View on Model

21

349241T Whirlpool Dryer Drum Support Roller K In Stock WPL 349241T $8.16

View on Model

21

WP8066056 Whirlpool Door Hinge In Stock WPL WP8066056 $27.08

View on Model

21

Gas Pipe WPL 233273 Contact Us For Availability

View on Model

21A

WP8066057 Whirlpool Door Hinge In Stock WPL WP8066057 $34.59

View on Model

22

W11684613 Whirlpool Bracket Backorder WPL W11684613 $7.96

View on Model

22

WPW10041960 Whirlpool Door Spring Backorder WPL WPW10041960 $14.04

View on Model

22

Valve WPL 345062 Contact Us For Availability

View on Model

22B

Dryer Lint Filter WPL 689467 Contact Us For Availability

View on Model

23

279923 Whirlpool Gas Valve In Stock WPL 279923 $150.52

View on Model

23

3393767 Whirlpool Pipe Backorder WPL 3393767 $63.59

View on Model

23

WP3390631 Whirlpool Screw In Stock WPL WP3390631 $2.51

View on Model

24

WP489069 Whirlpool Compactor Screw In Stock WPL WP489069 $2.51

View on Model

24

WP90296 Whirlpool Clip Backorder WPL WP90296 $2.51

View on Model

24

Nut Union WPL 233076 Contact Us For Availability

View on Model

25

W10899578 Whirlpool Dryer Drum Assembly Backorder WPL W10899578 $132.34

View on Model

25

WPW10366705 Whirlpool Screw In Stock WPL WPW10366705 $2.51

View on Model

26

279827 Whirlpool Dryer Drive Motor In Stock WPL 279827 $91.50

View on Model

26

Screw WPL 690372 Contact Us For Availability

View on Model

27

279408 Whirlpool Dryer Rear Drum Seal In Stock WPL 279408 $26.88

View on Model

27

W11693756 Whirlpool Screw Assembly Backorder WPL W11693756 $8.11

View on Model

28

WP688805 Whirlpool Spring Clip In Stock WPL WP688805 $3.88

View on Model

28

Seal WPL 694630 Contact Us For Availability

View on Model

29

W10837625 Whirlpool Dryer Motor Pulley In Stock WPL W10837625 $7.41

View on Model

30

341241 Whirlpool Dryer Drum Belt In Stock WPL 341241 $6.00

View on Model

31

3400500 Whirlpool Screw In Stock WPL 3400500 $9.59

View on Model

32

WP348780 Whirlpool Base In Stock WPL WP348780 $40.41

View on Model

33

WP90767 Whirlpool Screw In Stock WPL WP90767 $2.51

View on Model

34

Thermostat WPL 660036 Contact Us For Availability

View on Model

35

8528351 Whirlpool Clip Backorder WPL 8528351 $29.17

View on Model

35

W11233063 Whirlpool Shield Assembly Backorder WPL W11233063 $10.76

View on Model

36

WP339956 Whirlpool Foam Seal In Stock WPL WP339956 $3.88

View on Model

36

WP691366 Whirlpool Dryer Idler Pulley Assembl In Stock WPL WP691366 $5.06

View on Model

37

WP694089 Whirlpool Dryer Blower Wheel In Stock WPL WP694089 $17.39

View on Model

38

W11415783 Whirlpool Seal In Stock WPL W11415783 $7.16

View on Model

38

WP98234 Whirlpool Nut In Stock WPL WP98234 $4.78

View on Model

39

WP3392519 Whirlpool Dryer Thermal Fuse In Stock WPL WP3392519 $7.67

View on Model

39

WP693995 Whirlpool Screw In Stock WPL WP693995 $1.92

View on Model

39

Wire WPL 690236 Contact Us For Availability

View on Model

40

WP691581 Whirlpool Actuator In Stock WPL WP691581 $3.88

View on Model

41

W10820036 Whirlpool Door Switch Kit In Stock WPL W10820036 $9.94

View on Model

41

WP694674 Whirlpool Cycling Thermostat In Stock WPL WP694674 $27.10

View on Model

42

WP98129 Whirlpool Screw Backorder WPL WP98129 $2.51

View on Model

42

Signal WPL 690981 Contact Us For Availability

View on Model

43

279220 Whirlpool Clip Backorder WPL 279220 $11.93

View on Model

43

Hose WPL 686577 Contact Us For Availability

View on Model

44

W11035878 Whirlpool Bearing and Seal In Stock WPL W11035878 $42.72

View on Model

44

Housing WPL 695081 Contact Us For Availability

View on Model

45

WP308685 Whirlpool Microwave Screw In Stock WPL WP308685 $2.51

View on Model

46

W11252547 Whirlpool Clip Assembly Backorder WPL W11252547 $10.76

View on Model

46

WP342267 Whirlpool Clip Backorder WPL WP342267 $4.36

View on Model

47

WP298877 Whirlpool Washer Backorder WPL WP298877 $13.32

View on Model

47

WP695737 Whirlpool Door Backorder WPL WP695737 $114.85

View on Model

48

279366 Whirlpool Sensor Kit In Stock WPL 279366 $51.72

View on Model

48

WP694091 Whirlpool Screw Backorder WPL WP694091 $2.51

View on Model

49

WP348859 Whirlpool Electrode Assembly Backorder WPL WP348859 $2.51

View on Model

49A

WP3393549 Whirlpool Door Assembly In Stock WPL WP3393549 $88.96

View on Model

49B

Door WPL 692322 Contact Us For Availability

View on Model

49C

Door (Almond) WPL 692319 Contact Us For Availability

View on Model

49D

Door WPL 695130 Contact Us For Availability

View on Model

49E

Door (Platinum) WPL 695131 Contact Us For Availability

View on Model

50

WP18776 Whirlpool Lock In Stock WPL WP18776 $5.01

View on Model

50

WP348860 Whirlpool Electrode Backorder WPL WP348860 $2.51

View on Model

51

WPW10359269 Whirlpool Dryer Shaft Support Rol In Stock WPL WPW10359269 $29.44

View on Model

51A

279740 Whirlpool Panel Primary with O/S2 Backorder WPL 279740 $184.47

View on Model

51B

Panel WPL 695632 Contact Us For Availability

View on Model

51C

Panel (Almond) WPL 695631 Contact Us For Availability

View on Model

51D

Panel WPL 695633 Contact Us For Availability

View on Model

51E

Panel (Platinum) WPL 695634 Contact Us For Availability

View on Model

52

WP692490 Whirlpool Drum Baffle Backorder WPL WP692490 $54.77

View on Model

53

WP3403636 Whirlpool Drum Baffle Backorder WPL WP3403636 $50.42

View on Model

54

279441 Whirlpool Front Bearing Ring In Stock WPL 279441 $45.13

View on Model

55

Chute WPL 686214 Contact Us For Availability

View on Model

55

Burner WPL 694670 Contact Us For Availability

View on Model

56

98460 Whirlpool Nut Backorder WPL 98460 $9.59

View on Model

56A

Panel (White) WPL 692427 Contact Us For Availability

View on Model

56B

Panel WPL 692431 Contact Us For Availability

View on Model

56C

Panel (Almond) WPL 692428 Contact Us For Availability

View on Model

56D

Panel WPL 695142 Contact Us For Availability

View on Model

56E

Panel (Platinum) WPL 695143 Contact Us For Availability

View on Model

57

W10906683 Whirlpool Door Seal In Stock WPL W10906683 $37.83

View on Model

57

Socket WPL 691034 Contact Us For Availability

View on Model

58

279570 Whirlpool Dryer Door Latch Kit In Stock WPL 279570 $3.17

View on Model

58

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $8.24

View on Model

59

Lens WPL 341165 Contact Us For Availability

View on Model

60

686770 Whirlpool Support Bracket Backorder WPL 686770 $7.52

View on Model

60A

WP348721 Whirlpool Handle In Stock WPL WP348721 $48.46

View on Model

60B

Handle WPL 689459 Contact Us For Availability

View on Model

60C

Handle (Almond) WPL 689457 Contact Us For Availability

View on Model

60D

Handle WPL 695174 Contact Us For Availability

View on Model

60E

Handle (Platinum) WPL 695175 Contact Us For Availability

View on Model

61

Screw WPL 132848 Contact Us For Availability

View on Model

62

Ground Wire WPL 364089 Contact Us For Availability

View on Model

63

Ground Strap WPL 22965 Contact Us For Availability

View on Model

64

279311 Whirlpool Dryer Flat Igniter Assembly In Stock WPL 279311 $22.79

View on Model

65

341029 Whirlpool Clamp Backorder WPL 341029 $7.58

View on Model

NI

350930 Whirlpool White Spray Paint In Stock WPL 350930 $21.41

View on Model

NI

350938 Whirlpool Spray Gun Backorder WPL 350938 $50.33

View on Model

NI

350956 Whirlpool Spray Assembly In Stock WPL 350956 $28.82

View on Model

NI

49572A Whirlpool Dryer Propane Gas Conversion In Stock WPL 49572A $16.78

View on Model

NI

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.92

View on Model

NI

72110 Whirlpool Dryer Touch-Up Paint, Golden In Stock WPL 72110 $10.07

View on Model

NI

72113 Whirlpool Touch-Up Paint Backorder WPL 72113 $10.07

View on Model

NI

WP72107 Whirlpool Touchup In Stock WPL WP72107 $6.13

View on Model

NI

Paint (White) WPL 799344 Contact Us For Availability

View on Model

NI

(338471) (ALT.) WPL N/P Contact Us For Availability

View on Model

NI

Conversion Kit WPL 279243 Contact Us For Availability

View on Model

NI

Spray (Golden Harvest) WPL 261890 Contact Us For Availability

View on Model

NI

Natural Gas Paint WPL 261891 Contact Us For Availability

View on Model

NI

Spray (Toast) WPL 285365 Contact Us For Availability

View on Model

NI

Spray (Platinum) WPL 285366 Contact Us For Availability

View on Model

NI

Paint To WPL 285367 Contact Us For Availability

View on Model

NI

Paint Pl WPL 285368 Contact Us For Availability

View on Model

NI

Spray Th WPL 350941 Contact Us For Availability

View on Model

NI

Touch-Up WPL 72112 Contact Us For Availability

View on Model

NI

Paint (Almond) WPL 978883 Contact Us For Availability

View on Model

NI

Operating Instructions WPL LIT687759 Contact Us For Availability

View on Model

NI

Owner's Manual WPL LIT690811 Contact Us For Availability

View on Model

NI

Instructions WPL LIT693494 Contact Us For Availability

View on Model

NI

Label WPL LIT695749 Contact Us For Availability

View on Model

NI

Parts List WPL LIT696968 Contact Us For Availability

View on Model

NI

Washer Service Manual WPL LIT787206 Contact Us For Availability

View on Model

NI

Serv Manul WPL LIT787207 Contact Us For Availability

View on Model

Model Whirlpool 110.87583820 Gas Dryer (Kenmore 11087583820) – Common Parts & Diagrams

Common parts from model Whirlpool 110.87583820 Gas Dryer (Kenmore 11087583820)

Search result for :
