Model Whirlpool 110.86992700 Electric Dryer (Kenmore 11086992700) – Common Parts & Diagrams
DRY RACK
CABINET

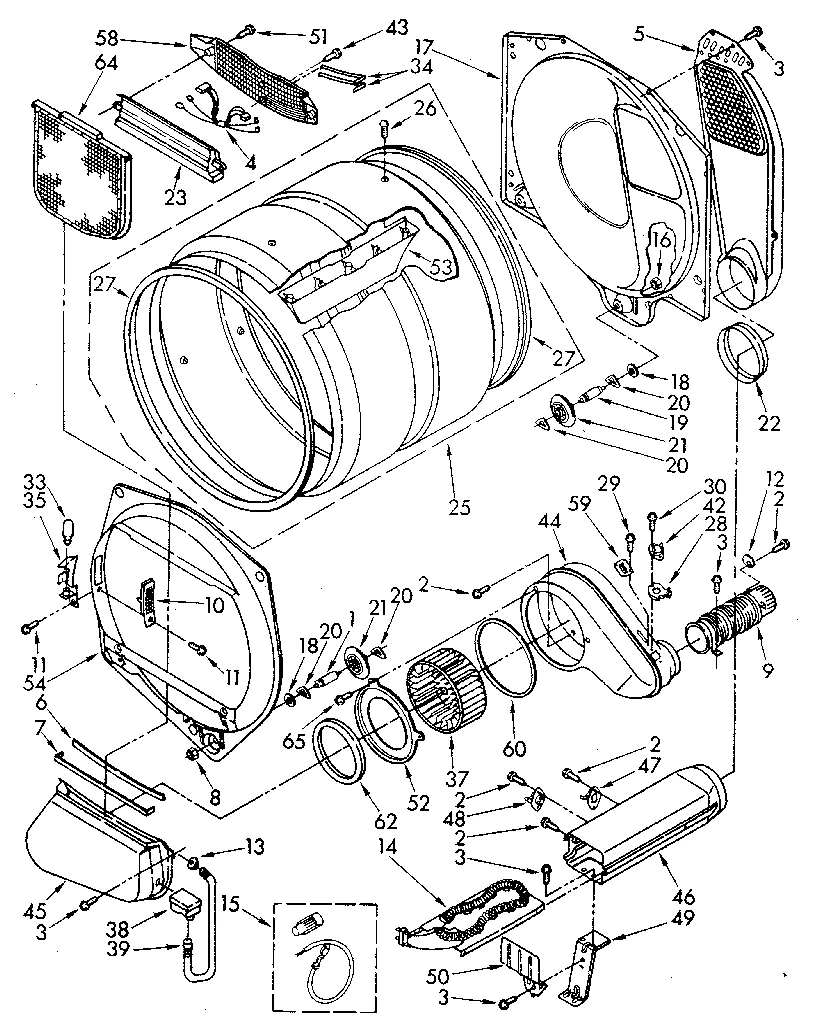

BULKHEAD
All Parts

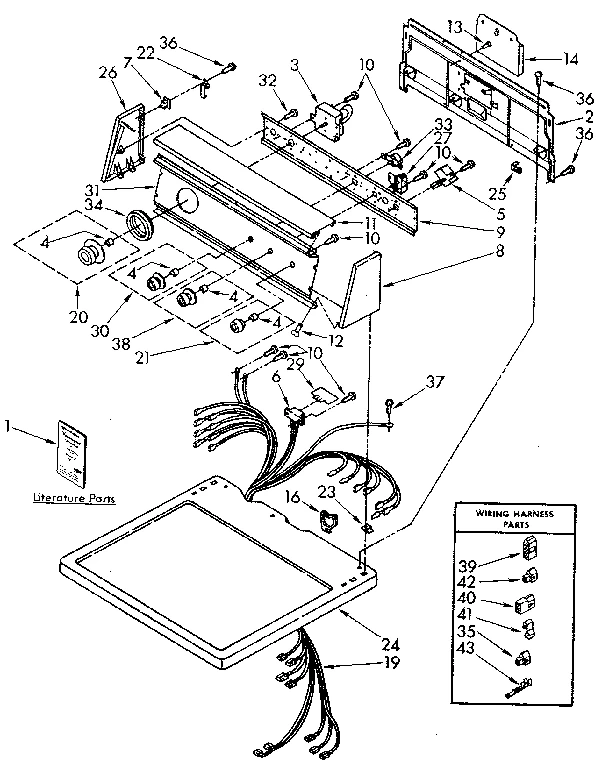

TOP AND CONSOLE
Common parts from model Whirlpool 110.86992700 Electric Dryer (Kenmore 11086992700)
1
(338471) (ALT.) WPL N/P Contact Us For Availability
1A
Wiring Diagram WPL LIT3390540 Contact Us For Availability
1B
Operating Instructions WPL LIT3389110 Contact Us For Availability
1C
Operating Instructions WPL LIT3390910 Contact Us For Availability
1D
Owner's Manual WPL LIT3388865 Contact Us For Availability
1E
Installation Instructions WPL LIT3389090 Contact Us For Availability
1F
Operating Instructions WPL LIT687759 Contact Us For Availability
1G
Parts List WPL LIT3389148 Contact Us For Availability
2A
Rear Panel (White) WPL 3388660 Contact Us For Availability
2B
Panel (Platinum) WPL 3388663 Contact Us For Availability
2C
Panel WPL 3388662 Contact Us For Availability
2D
Rear Panel (Almond) WPL 3388661 Contact Us For Availability
3
Dryer Timer WPL 3388752 Contact Us For Availability
4
Wire Harness WPL 3389663 Contact Us For Availability
6
Connector WPL 341141 Contact Us For Availability
7
End Cap Clip WPL 689559 Contact Us For Availability
8A
Endcap Wht WPL 388204 Contact Us For Availability
8B
Endcap Alm WPL 388206 Contact Us For Availability
8C
Endcap Tst WPL 388207 Contact Us For Availability
8D
Endcap Plt WPL 388208 Contact Us For Availability
9
Exhaust Extension WPL 3389494 Contact Us For Availability
10
Lens WPL 3390788 Contact Us For Availability
11A
Control Panel (White) WPL 3350937 Contact Us For Availability
11B
Control Panel (Almond) WPL 3350938 Contact Us For Availability
11C
Control Panel WPL 3350939 Contact Us For Availability
11D
Control Panel (Platinum) WPL 3350940 Contact Us For Availability
12
Washer WPL 3390028 Contact Us For Availability
13
Adapter WPL 3391032 Contact Us For Availability
13
Fastener WPL 3389802 Contact Us For Availability
14
Rack WPL 3388908 Contact Us For Availability
16
Hex Nut WPL 3387709 Contact Us For Availability
16
Clip WPL 688412 Contact Us For Availability
19
Wire Harness WPL 3390544 Contact Us For Availability
20A
Knob Timer (White) WPL 3389826 Contact Us For Availability
20B
Knob (Almond) WPL 3389827 Contact Us For Availability
20C
Timer Knob WPL 3389828 Contact Us For Availability
20D
Knob Timer (Platinum) WPL 3389829 Contact Us For Availability
21A
Control Knob (White) WPL 3389816 Contact Us For Availability
21B
Control Knob (Almond) WPL 3389817 Contact Us For Availability
21C
Control Knob WPL 3389818 Contact Us For Availability
21D
Knob Control (Platinum) WPL 3389819 Contact Us For Availability
22
Hinge Panel WPL 387402 Contact Us For Availability
23
Housing WPL 697768 Contact Us For Availability
24A
Top W WPL 697202 Contact Us For Availability
24B
Top Al WPL 697203 Contact Us For Availability
24C
Top WPL 697204 Contact Us For Availability
24D
Top Pl WPL 697205 Contact Us For Availability
25
Harness Clip WPL 3390514 Contact Us For Availability
26
Screw WPL 697777 Contact Us For Availability
26A
End Cap (White) WPL 388210 Contact Us For Availability
26B
End Cap (Almond) WPL 388212 Contact Us For Availability
26C
Endcap Tst WPL 388213 Contact Us For Availability
26D
Endcap Plt WPL 388214 Contact Us For Availability
27
Buzzer WPL 347137 Contact Us For Availability
28
Dryer Thermostat Heater WPL 61894 Contact Us For Availability
29
Dryer Control WPL 661513 Contact Us For Availability
30
Screw WPL 3387055 Contact Us For Availability
30A
Knob Control (White) WPL 3350984 Contact Us For Availability
30B
Knob Control (Almond) WPL 3350985 Contact Us For Availability
30C
Control Knob WPL 3350986 Contact Us For Availability
30D
Knob Control (Platinum) WPL 3350987 Contact Us For Availability
31A
Control Panel (White) WPL 3391283 Contact Us For Availability
31B
Control Panel (Almond) WPL 3391284 Contact Us For Availability
31C
Control Panel WPL 3391285 Contact Us For Availability
31D
Control Panel (Platinum) WPL 3391286 Contact Us For Availability
33
Bulb WPL 3387683 Contact Us For Availability
33
Temperature Switch WPL 696321 Contact Us For Availability
34A
Trim Ring WPL 388259 Contact Us For Availability
34B
Trim Ring WPL 3350942 Contact Us For Availability
34C
Trim Ring WPL 3350943 Contact Us For Availability
34D
Trim Ring WPL 3350944 Contact Us For Availability
35
Socket WPL 3390655 Contact Us For Availability
38
Signal WPL 3390691 Contact Us For Availability
39
Hose WPL 3391033 Contact Us For Availability
39
Terminal WPL 717315 Contact Us For Availability
40
Receptacle WPL 717252 Contact Us For Availability
41
Clip WPL 689180 Contact Us For Availability
42
Plug WPL 342529 Contact Us For Availability
45
Duct Lint WPL 3390532 Contact Us For Availability
49
Bracket WPL 697700 Contact Us For Availability
49C
Door To WPL 697223 Contact Us For Availability
49D
Door Pl WPL 697224 Contact Us For Availability
50
Heater Shield WPL 697699 Contact Us For Availability
51A
Panel WPL 697227 Contact Us For Availability
51B
Panel Al WPL 697228 Contact Us For Availability
51C
Panel To WPL 697229 Contact Us For Availability
51D
Panel Pl WPL 697230 Contact Us For Availability
53
Drum Baffle WPL 697693 Contact Us For Availability
54
Bulkhead WPL 697563 Contact Us For Availability
58
Grill WPL 697767 Contact Us For Availability
59
Wire WPL 3387376 Contact Us For Availability
60B
Handle (Almond) WPL 689457 Contact Us For Availability
60C
Handle WPL 695174 Contact Us For Availability
60D
Handle (Platinum) WPL 695175 Contact Us For Availability
61B
Toepnl Al WPL 697216 Contact Us For Availability
61C
Toepnl To WPL 697217 Contact Us For Availability
61D
Toepnl Pl WPL 697218 Contact Us For Availability
NI
Paint (White) WPL 799344 Contact Us For Availability
NI
Spray (Golden Harvest) WPL 261890 Contact Us For Availability
NI
Natural Gas Paint WPL 261891 Contact Us For Availability
NI
Spray (Toast) WPL 285365 Contact Us For Availability
NI
Spray (Platinum) WPL 285366 Contact Us For Availability
NI
Paint To WPL 285367 Contact Us For Availability
NI
Paint Pl WPL 285368 Contact Us For Availability
NI
Spray Th WPL 350941 Contact Us For Availability
NI
Touch-Up WPL 72112 Contact Us For Availability
NI
Spray WPL 786020 Contact Us For Availability
NI
Paint (Ebony) WPL 786032 Contact Us For Availability
NI
Paint (Almond) WPL 978883 Contact Us For Availability
× ![]()
