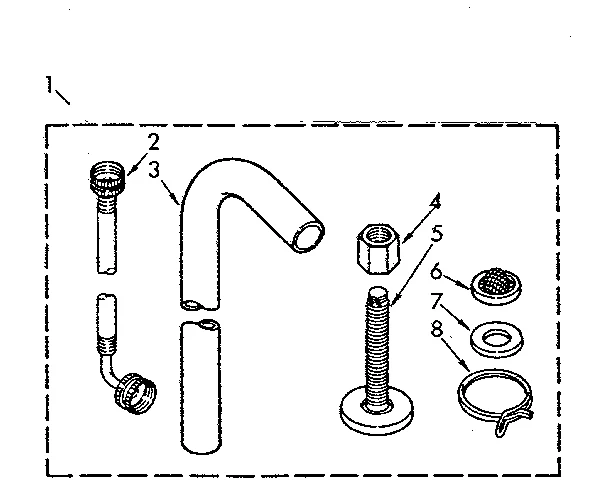

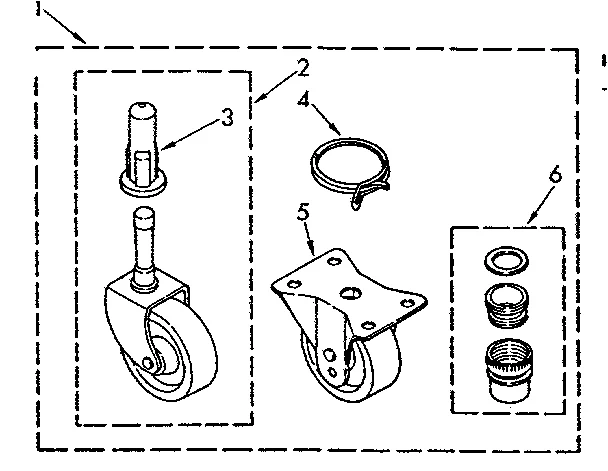

Model Whirlpool 110.84671700 Washer (Kenmore 11084671700) – Common Parts &amp; Diagrams

1

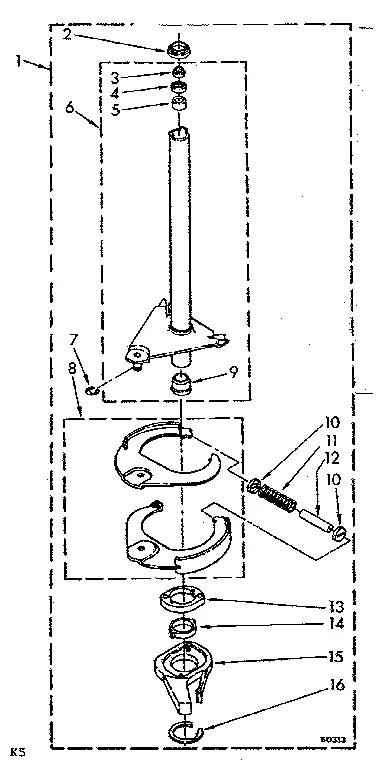

W10820043 Whirlpool Washer Drive and Brake Ba In Stock WPL W10820043 $88.94

1

WP387095 Whirlpool Cap Backorder WPL WP387095 $33.54

1

Replacement Part WPL 3348248 Contact Us For Availability

1

Installation WPL 285418 Contact Us For Availability

1

Timer WPL 3350928 Contact Us For Availability

1A

Installation Instructions WPL LIT388192 Contact Us For Availability

1B

Washer Terminal Connector WPL 353424 Contact Us For Availability

1B

Operating Instructions WPL LIT388872 Contact Us For Availability

1C

Wiring Diagram WPL LIT3348452 Contact Us For Availability

1D

Energy Guide Label WPL LIT3351224 Contact Us For Availability

1E

Owner's Manual WPL LIT64190 Contact Us For Availability

1F

Parts List WPL LIT387632 Contact Us For Availability

1G

Laundry Guide WPL LIT3349104 Contact Us For Availability

2

WP358237 Whirlpool Agitator Bolt In Stock WPL WP358237 $2.43

2

WP62658 Whirlpool Seal Ring Backorder WPL WP62658 $5.27

2

WP63292 Whirlpool Washer In Stock WPL WP63292 $3.70

2

WP76314 Whirlpool Fill Hose Backorder WPL WP76314 $17.42

2

Bracket WPL 356499 Contact Us For Availability

2

Shield Control WPL 388189 Contact Us For Availability

3

WP64137 Whirlpool Shield Assembly Backorder WPL WP64137 $12.96

3

WP91939 Whirlpool Shaft Seal In Stock WPL WP91939 $3.88

3

WP96743 Whirlpool Hose In Stock WPL WP96743 $27.03

3

Power Cord WPL 63847 Contact Us For Availability

3

Screw, Nibbed WPL 339607 Contact Us For Availability

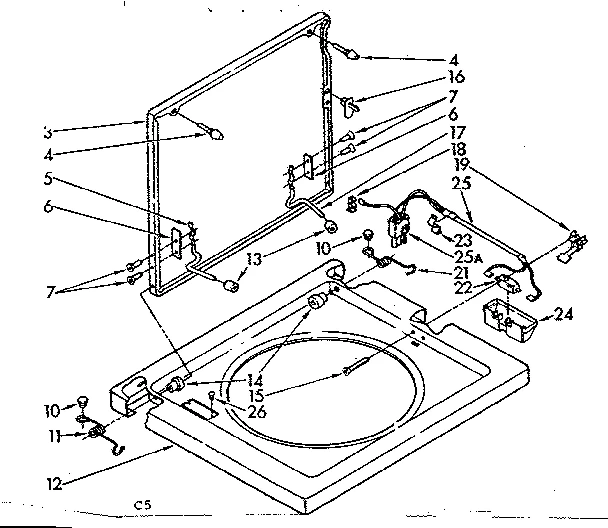

3A

WP3398848 Whirlpool Lid Backorder WPL WP3398848 $194.66

3A

Receptacle WPL 691707 Contact Us For Availability

3B

Lid Assembly (Almond) WPL 384332 Contact Us For Availability

3C

Lid WPL 384335 Contact Us For Availability

3D

Lid WPL 385853 Contact Us For Availability

3E

Lid (Platinum) WPL 385854 Contact Us For Availability

4

357030 Whirlpool Clamp Backorder WPL 357030 $10.76

4

80011 Whirlpool Washer Lid Bumper Kit of 2 In Stock WPL 80011 $2.73

4

WP285655 Whirlpool Hose Clamp In Stock WPL WP285655 $3.70

4

WP356054 Whirlpool Cap Assembly Backorder WPL WP356054 $4.56

4

WP62739 Whirlpool Nut Backorder WPL WP62739 $2.51

4

WPW10250667 Whirlpool Washer Suspension Sprin In Stock WPL WPW10250667 $2.29

4

O-Ring WPL 64002 Contact Us For Availability

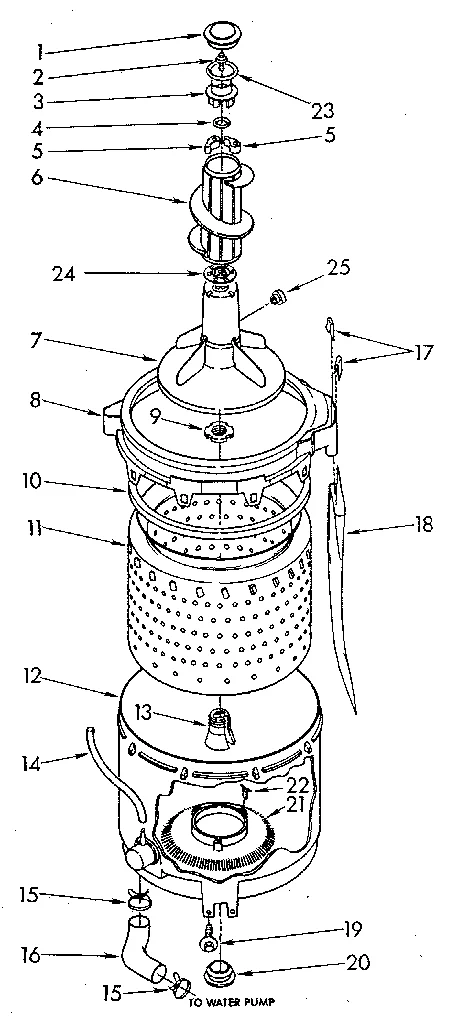

5

384458 Whirlpool Hinge Assembly Backorder WPL 384458 $32.74

5

WPW10001130 Whirlpool Leveling Leg In Stock WPL WPW10001130 $2.43

5

WPW10358149 Whirlpool Hose In Stock WPL WPW10358149 $13.74

5

Spacer WPL 356937 Contact Us For Availability

5

Spring Susp WPL 63731 Contact Us For Availability

5

Switch WPL 87136 Contact Us For Availability

6

285452A Whirlpool Hose Seal and Screen In Stock WPL 285452A $2.64

6

63977 Whirlpool Agitator Auger Backorder WPL 63977 $76.42

6

WP21097 Whirlpool Pad In Stock WPL WP21097 $3.70

6

WP356427 Whirlpool Shaft Seal In Stock WPL WP356427 $3.88

6

WP64208 Whirlpool Spin Tube Backorder WPL WP64208 $141.72

6

WP8577373 Whirlpool Base Assembly In Stock WPL WP8577373 $142.17

6

WPW10254672 Whirlpool Faucet Adapter In Stock WPL WPW10254672 $22.72

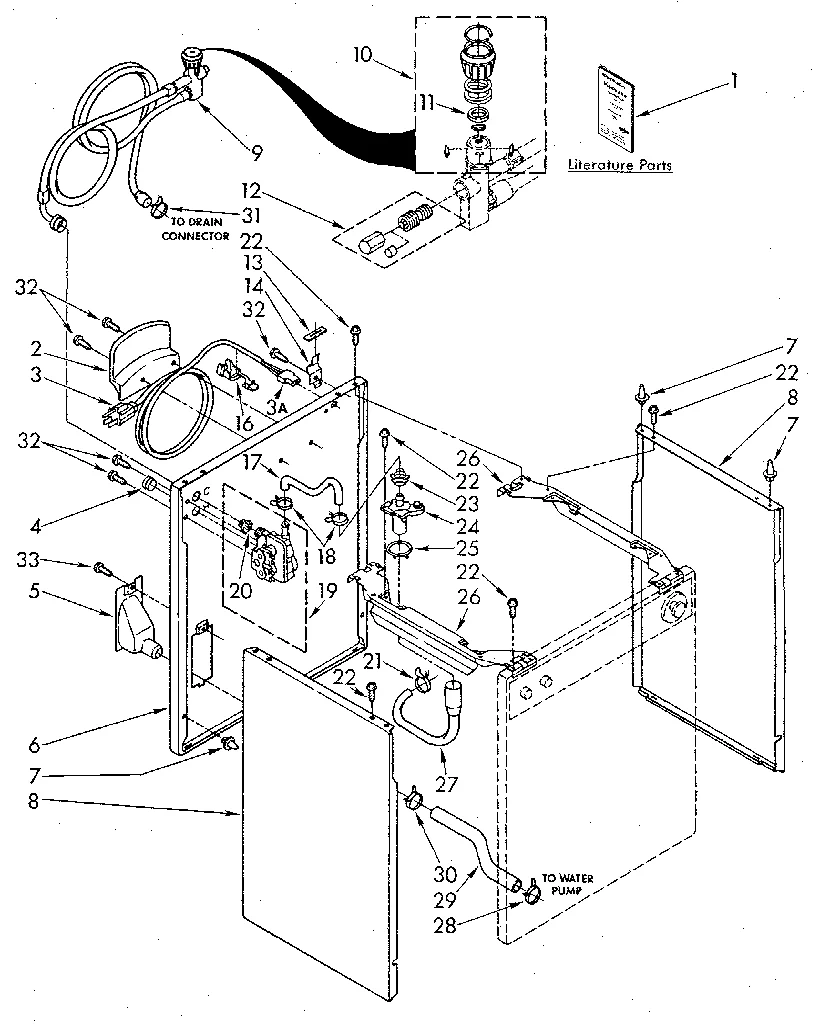

6A

Rear Panel W WPL 63615 Contact Us For Availability

6B

Rear Panl Al WPL 63616 Contact Us For Availability

6C

Panel To WPL 63617 Contact Us For Availability

6D

Panel (Platinum) WPL 63618 Contact Us For Availability

6E

Rear Panel WPL 63619 Contact Us For Availability

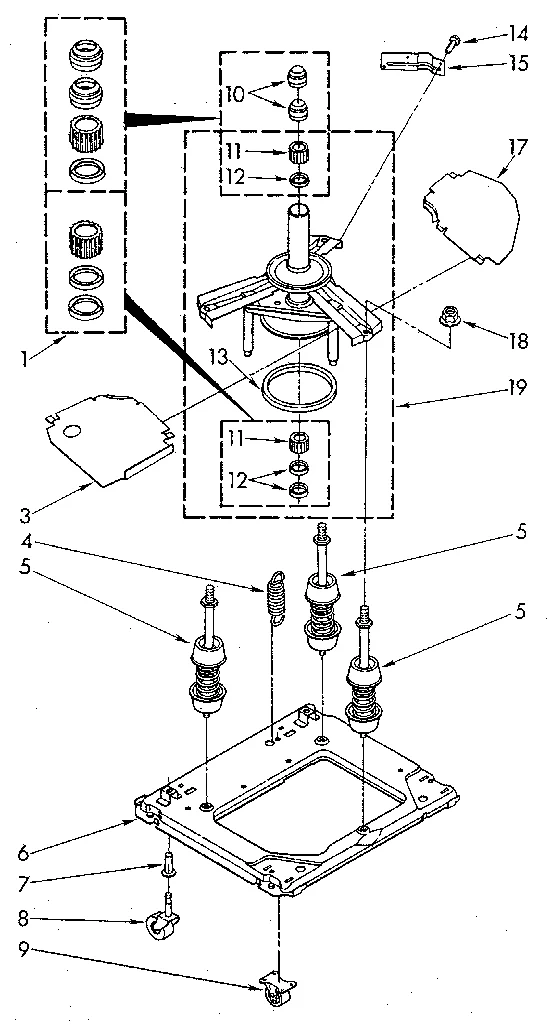

7

W10083190 Whirlpool Ring-E Backorder WPL W10083190 $4.94

7

WP16123 Whirlpool Washer In Stock WPL WP16123 $2.51

7

WP3349098 Whirlpool Agitator Assembly In Stock WPL WP3349098 $75.51

7

WP389387 Whirlpool Agitator Shaft Backorder WPL WP389387 $117.58

7

WP8572717 Whirlpool Capacitor In Stock WPL WP8572717 $47.63

7

WPW10119828 Whirlpool Screw In Stock WPL WPW10119828 $2.64

7

Socket WPL 300450 Contact Us For Availability

8

285438 Whirlpool Brake Shoe In Stock WPL 285438 $83.51

8

Washer Tub Ring WPL 64175 Contact Us For Availability

8

Water-Level Switch WPL 64054 Contact Us For Availability

8A

Panel WPL 3350063 Contact Us For Availability

8B

Panel Al WPL 3350064 Contact Us For Availability

8C

Panel WPL 3350065 Contact Us For Availability

8D

Panel (Platinum) WPL 3350066 Contact Us For Availability

8E

Panel WPL 3350067 Contact Us For Availability

9

62677 Whirlpool Retainer Backorder WPL 62677 $7.58

9

WP21366 Whirlpool Spanner Nut In Stock WPL WP21366 $3.70

9

WP8546462 Whirlpool Bearing In Stock WPL WP8546462 $3.88

9

WPW10187809 Whirlpool Washer Filter and Drain Backorder WPL WPW10187809 $122.59

9

Wheel WPL 64057 Contact Us For Availability

9

Dryer Cabinet Panel Guide Pin WPL 98669 Contact Us For Availability

285658 Whirlpool Sleeve Kit Backorder WPL 285658 $6.44

WP285170 Whirlpool Collar In Stock WPL WP285170 $31.46

WP8577376 Whirlpool Seal In Stock WPL WP8577376 $3.88

Plug WPL 54690 Contact Us For Availability

Lock WPL 356422 Contact Us For Availability

WP63748 Whirlpool Spring Backorder WPL WP63748 $2.51

WP8546455 Whirlpool Bearing In Stock WPL WP8546455 $9.46

Seal WPL 711696 Contact Us For Availability

(338471) (ALT.) WPL N/P Contact Us For Availability

Spring WPL 384463 Contact Us For Availability

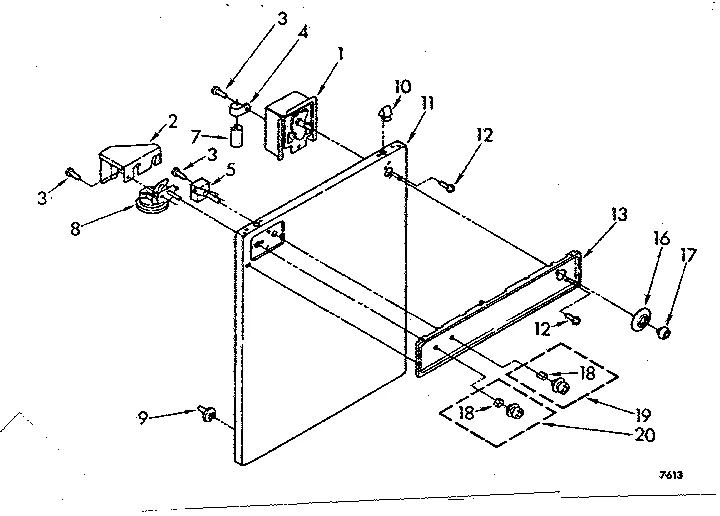

11A

Front Panl W WPL 63609 Contact Us For Availability

11B

Frnt Panl Al WPL 63610 Contact Us For Availability

11C

Frnt Panl To WPL 63611 Contact Us For Availability

11D

Panel Pl WPL 63612 Contact Us For Availability

11E

Panel WPL 63613 Contact Us For Availability

62619 Whirlpool Washer Backorder WPL 62619 $9.59

W11095997 Whirlpool Seal In Stock WPL W11095997 $10.76

WP356418 Whirlpool Screw In Stock WPL WP356418 $2.51

Washer Outer Tub WPL 63782 Contact Us For Availability

Relief Valve WPL 285171 Contact Us For Availability

12A

WP384693 Whirlpool Top Backorder WPL WP384693 $166.25

12B

Top (Almond) WPL 384210 Contact Us For Availability

12C

Top WPL 384213 Contact Us For Availability

12D

Top WPL 386544 Contact Us For Availability

12E

Top (Platinum) WPL 386545 Contact Us For Availability

18849 Whirlpool Pad Backorder WPL 18849 $9.13

WP389140 Whirlpool Drive Block or Bell In Stock WPL WP389140 $8.44

WP63134 Whirlpool Ring Backorder WPL WP63134 $3.70

WP8546461 Whirlpool Brake Cam Assembly Backorder WPL WP8546461 $2.51

Bumper, Lid Hinge WPL 19119 Contact Us For Availability

Control Panel WPL 384507 Contact Us For Availability

WP21258 Whirlpool Washer Lid Hinge Bearing In Stock WPL WP21258 $3.25

WP273556 Whirlpool Screw In Stock WPL WP273556 $2.51

WP63022 Whirlpool Sleeve Backorder WPL WP63022 $13.67

Hinge WPL 356606 Contact Us For Availability

285790 Whirlpool Washer Clutch Band and Linin In Stock WPL 285790 $29.92

63636 Whirlpool Bracket Backorder WPL 63636 $29.76

WP371502 Whirlpool Clamp Backorder WPL WP371502 $4.78

Washer Lid Switch Screw WPL 354764 Contact Us For Availability

WP358684 Whirlpool Strike Assembly In Stock WPL WP358684 $3.19

WPW10083200 Whirlpool Wire Ring In Stock WPL WPW10083200 $4.96

Washer Power Cord Strain Relief WPL 63848 Contact Us For Availability

Dial WPL 388003 Contact Us For Availability

384459 Whirlpool Hinge Backorder WPL 384459 $32.74

63637 Whirlpool Shield Backorder WPL 63637 $12.96

8577411 Whirlpool Pad Backorder WPL 8577411 $4.54

WP3362624 Whirlpool Washer Timer Knob In Stock WPL WP3362624 $16.80

Water Inlet Hose WPL 386932 Contact Us For Availability

279710 Whirlpool Nut Backorder WPL 279710 $29.17

356398 Whirlpool Tube Backorder WPL 356398 $32.06

W10113937 Whirlpool Clamp Backorder WPL W10113937 $4.78

WP596669 Whirlpool Hose Clamp In Stock WPL WP596669 $2.51

WP688805 Whirlpool Spring Clip In Stock WPL WP688805 $3.88

285805 Whirlpool Washer Water Inlet Valve In Stock WPL 285805 $17.06

W10863713 Whirlpool Support In Stock WPL W10863713 $200.80

Actuator WPL 357347 Contact Us For Availability

Knob Wt WPL 388030 Contact Us For Availability

20

W10814296 Whirlpool Washer Center Post Seal G In Stock WPL W10814296 $2.73

20

WP96160 Whirlpool Washer Inlet Valve Screen Backorder WPL WP96160 $4.76

20

Knob Wl WPL 388028 Contact Us For Availability

21

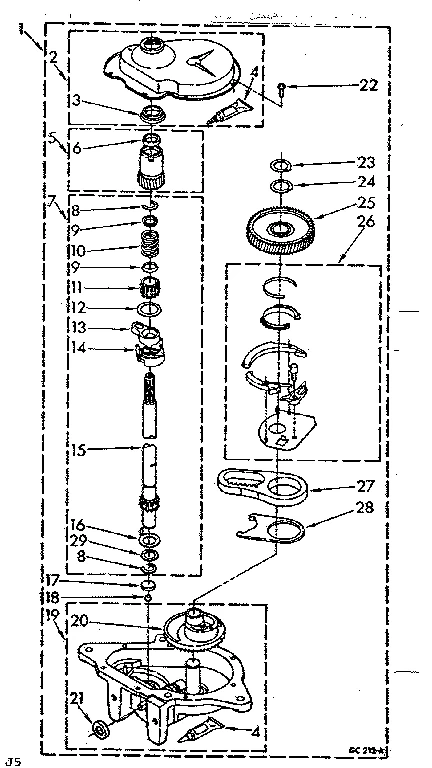

285352 Whirlpool Washer Oil Seal Kit for Gear In Stock WPL 285352 $32.54

21

WP62691 Whirlpool Grommet In Stock WPL WP62691 $5.31

21

Spring WPL 384462 Contact Us For Availability

22

60001022 Whirlpool Oven Screw Backorder WPL 60001022 $34.48

22

W10820036 Whirlpool Door Switch Kit In Stock WPL W10820036 $9.94

23

WP356471 Whirlpool Cap In Stock WPL WP356471 $3.70

23

WP90016 Whirlpool Clip Backorder WPL WP90016 $4.78

24

WP356363 Whirlpool Siphon Break In Stock WPL WP356363 $3.88

24

WP359231 Whirlpool Shield In Stock WPL WP359231 $3.70

25

WP616099 Whirlpool Clamp Backorder WPL WP616099 $3.24

25

Harness Lid Switch WPL 63909 Contact Us For Availability

25A

WP62889 Whirlpool Washer Lid Switch Receptacl Backorder WPL WP62889 $3.70

26

388253A Whirlpool Neutral Drain Kit In Stock WPL 388253A $32.72

26

Rivet WPL 354239 Contact Us For Availability

26

Brace Tie WPL 3351017 Contact Us For Availability

27

Vacuum Break Hose WPL 386933 Contact Us For Availability

29

Hose WPL 386930 Contact Us For Availability

30

WP356138 Whirlpool Hose Clamp Backorder WPL WP356138 $3.70

32

WP3390631 Whirlpool Screw In Stock WPL WP3390631 $2.51

33

WP681414 Whirlpool Screw In Stock WPL WP681414 $2.51

350572 Whirlpool Oil Transmission 15 Oz In Stock WPL 350572 $34.51

350930 Whirlpool White Spray Paint In Stock WPL 350930 $21.41

350938 Whirlpool Spray Gun Backorder WPL 350938 $50.33

350956 Whirlpool Spray Assembly In Stock WPL 350956 $28.82

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.92

72110 Whirlpool Dryer Touch-Up Paint, Golden In Stock WPL 72110 $10.07

72113 Whirlpool Touch-Up Paint Backorder WPL 72113 $10.07

WP285195 Whirlpool Sealer Assembly Backorder WPL WP285195 $50.07

WP72107 Whirlpool Touchup In Stock WPL WP72107 $6.13

Paint (White) WPL 799344 Contact Us For Availability

Shipig Blk WPL 3348675 Contact Us For Availability

Spray Th WPL 350941 Contact Us For Availability

Touch-Up WPL 72112 Contact Us For Availability

Paint (Almond) WPL 978883 Contact Us For Availability
