Model Whirlpool 110.83283800 Electric Washer (Kenmore 11083283800) – Common Parts &amp; Diagrams

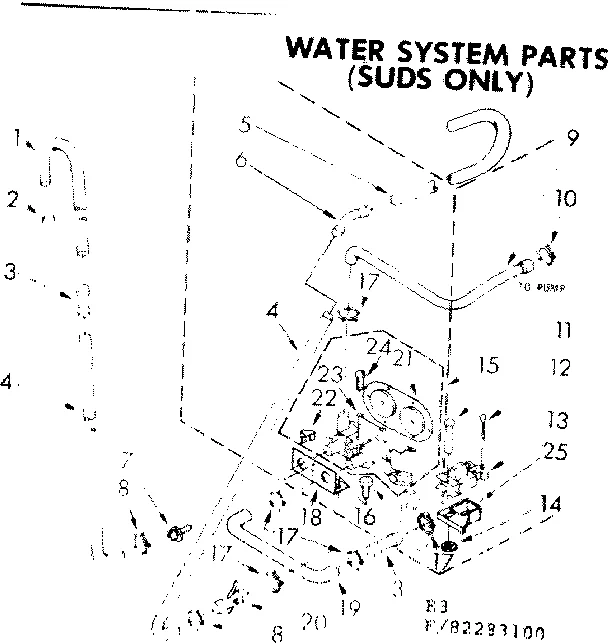

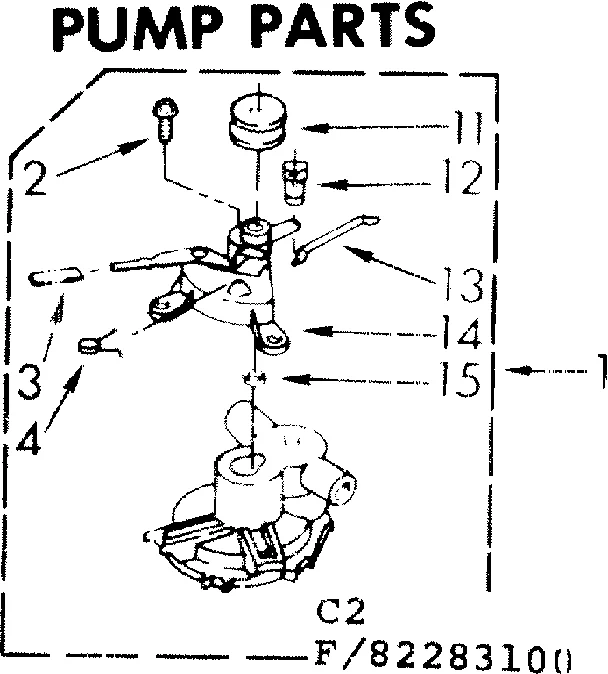

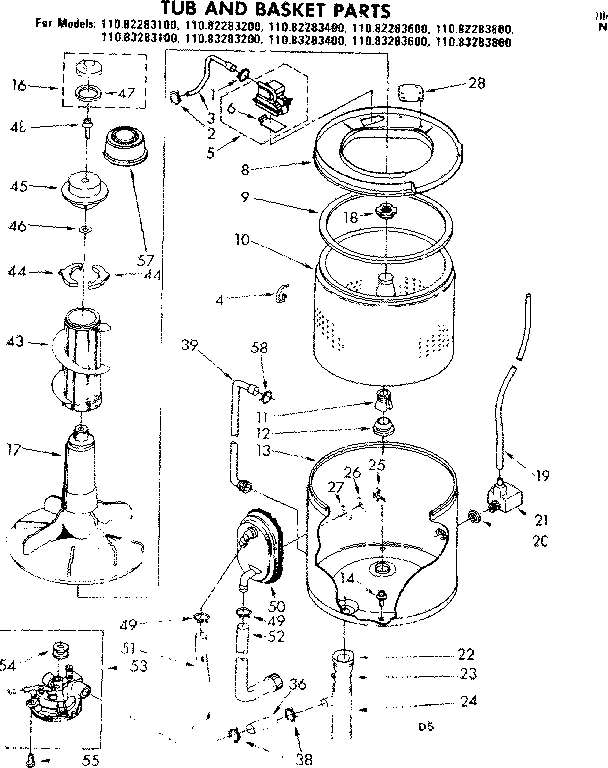

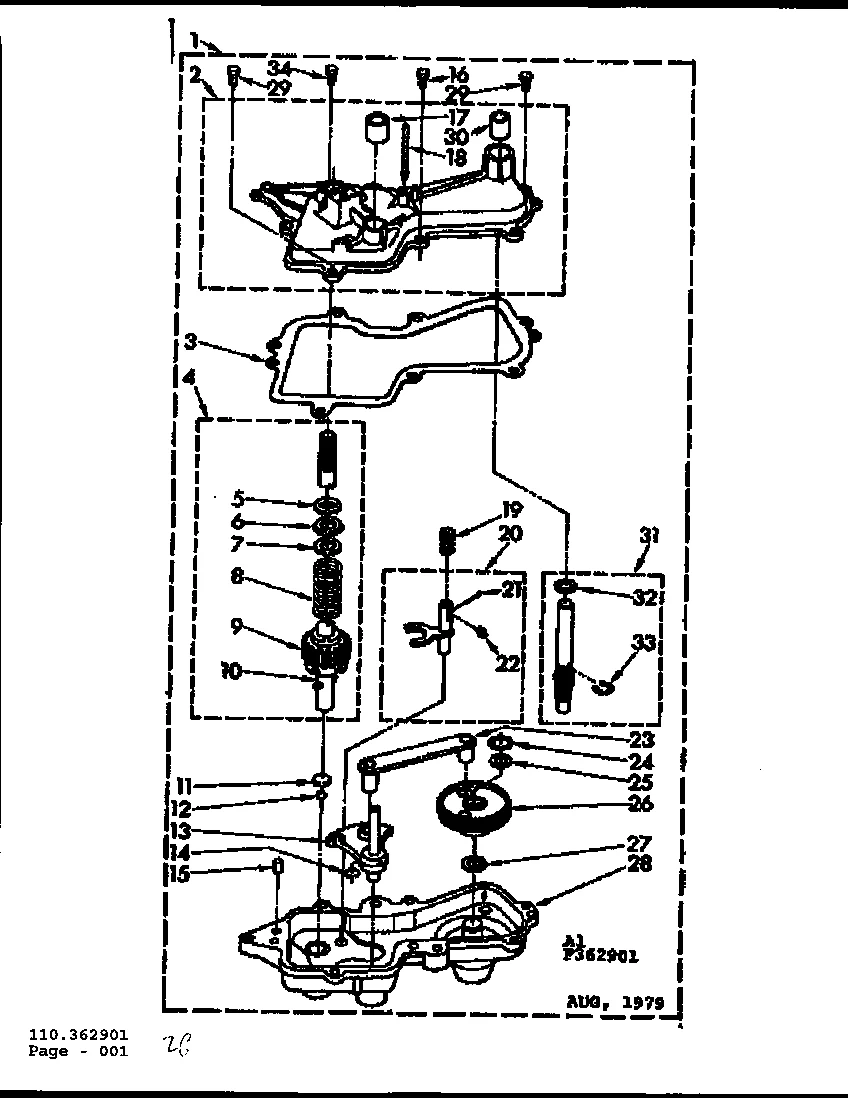

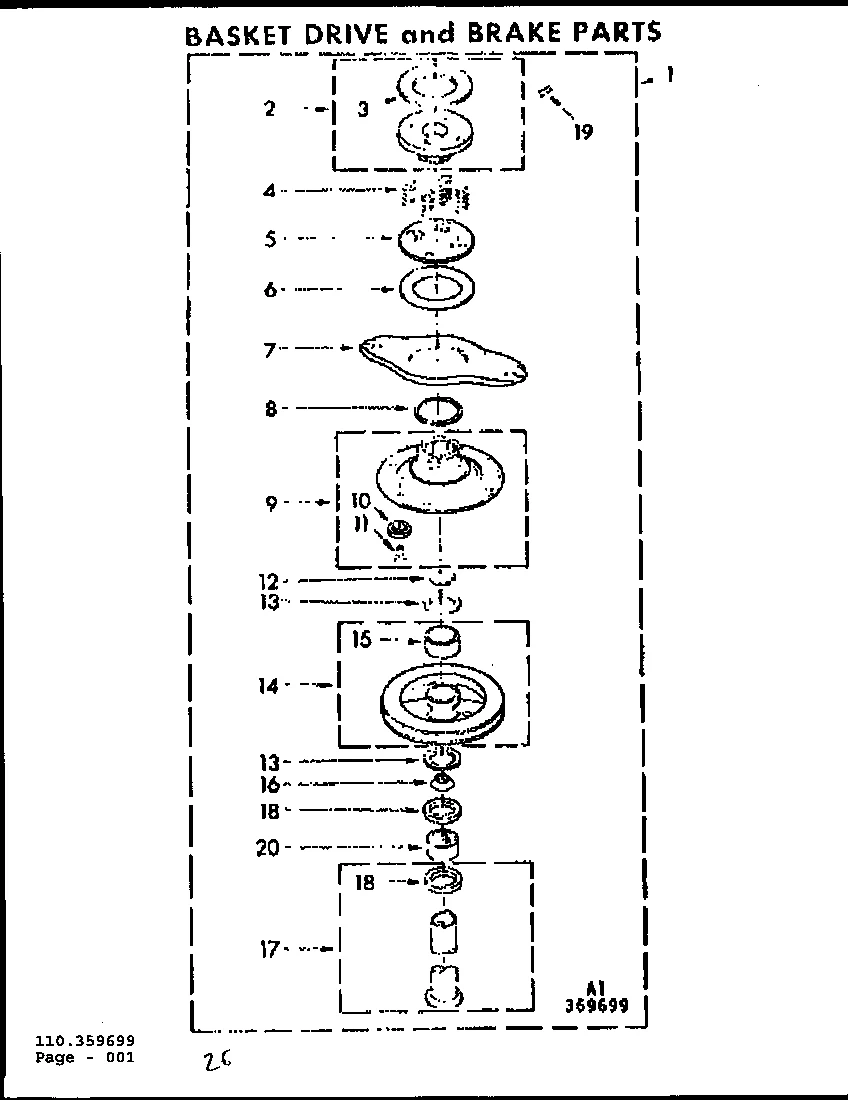

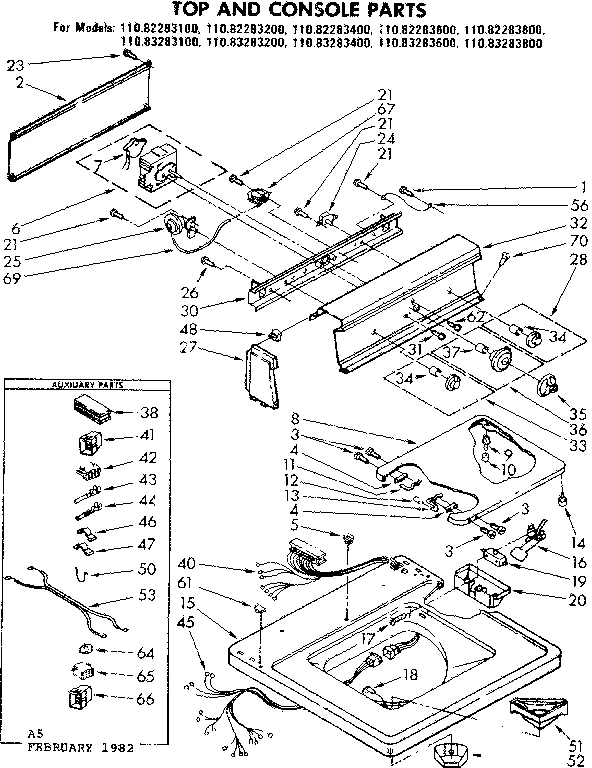

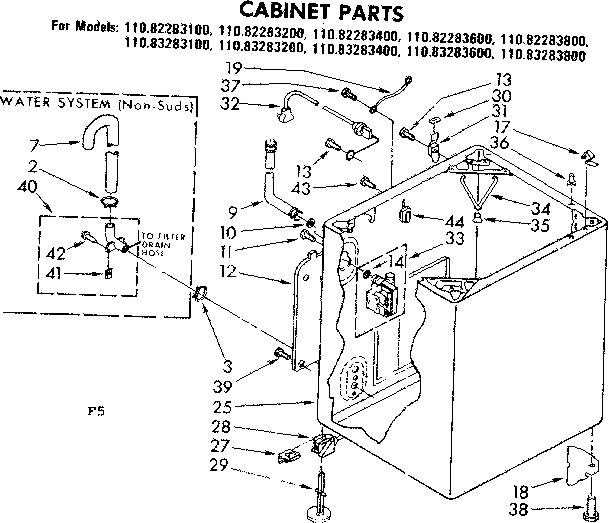

1

Drive Basket WPL 359699 Contact Us For Availability

1

Gear Case WPL 362901 Contact Us For Availability

1

Discharge Hose WPL 91273 Contact Us For Availability

2

WP273556 Whirlpool Screw In Stock WPL WP273556 $2.51

2

Washer Gear Case Brake Line and Guide WPL 350522 Contact Us For Availability

2

Cover WPL 367552 Contact Us For Availability

2

Strainer WPL 352833 Contact Us For Availability

2

Panel WPL 359374 Contact Us For Availability

3

WP16272 Whirlpool Hose Coupling Backorder WPL WP16272 $2.51

3

WPW10119828 Whirlpool Screw In Stock WPL WPW10119828 $2.64

3

Washer Gear Case Cover Seal WPL 95089 Contact Us For Availability

3

Lining WPL 354550 Contact Us For Availability

3

Sleeve WPL 96175 Contact Us For Availability

3

Hose WPL 356349 Contact Us For Availability

3

Clamp WPL 353096 Contact Us For Availability

4

96746 Whirlpool Drain Hose Assembly Backorder WPL 96746 $30.51

4

WP21097 Whirlpool Pad In Stock WPL WP21097 $3.70

4

Brake Spring WPL 354275 Contact Us For Availability

4

Shaft WPL 362642 Contact Us For Availability

4

Spring WPL 96266 Contact Us For Availability

4

Washer Tub Ring Clip WPL 359763 Contact Us For Availability

5

98460 Whirlpool Nut Backorder WPL 98460 $9.59

5

Ground Strap WPL 22965 Contact Us For Availability

5

Drum WPL 97664 Contact Us For Availability

5

Ring WPL 352430 Contact Us For Availability

5

Inlet WPL 366072 Contact Us For Availability

6

Washer Drain Hose Connector WPL 95440 Contact Us For Availability

6

Lining WPL 354244 Contact Us For Availability

6

Shaft Seal WPL 92814 Contact Us For Availability

6

Flapper WPL 355584 Contact Us For Availability

6B

Timer WPL 376012 Contact Us For Availability

7

WP96743 Whirlpool Hose In Stock WPL WP96743 $27.03

7

Screw WPL 132848 Contact Us For Availability

7

Brake Yoke WPL 92903 Contact Us For Availability

7

Shield WPL 94276 Contact Us For Availability

7

Screw WPL 190575 Contact Us For Availability

7

Washer Motor WPL 362681 Contact Us For Availability

7A

Motor WPL 365941 Contact Us For Availability

8

WP356138 Whirlpool Hose Clamp Backorder WPL WP356138 $3.70

8

Ring WPL 16049 Contact Us For Availability

8

Spring WPL 92815 Contact Us For Availability

8

Ring WPL 381971 Contact Us For Availability

8

(338471) (ALT.) WPL N/P Contact Us For Availability

8A

Lid (White) WPL 371378 Contact Us For Availability

8B

Lid (Almond) WPL 371385 Contact Us For Availability

8C

Lid WPL 371387 Contact Us For Availability

8D

Lid WPL 371388 Contact Us For Availability

9

WP89503 Whirlpool Washer Fill Hose In Stock WPL WP89503 $8.29

9

Plate WPL 357155 Contact Us For Availability

9

Gear WPL 355469 Contact Us For Availability

9

Washer Tub Ring Seal WPL 383553 Contact Us For Availability

9

Hose WPL 357189 Contact Us For Availability

9

Strike WPL 357141 Contact Us For Availability

WP16123 Whirlpool Washer In Stock WPL WP16123 $2.51

WP354255 Whirlpool Bumper Assembly In Stock WPL WP354255 $2.51

WP616099 Whirlpool Clamp Backorder WPL WP616099 $3.24

Lining WPL 354243 Contact Us For Availability

Shaft WPL 362098 Contact Us For Availability

Basket WPL 359705 Contact Us For Availability

285205 Whirlpool Bearing Backorder WPL 285205 $3.70

WP3351614 Whirlpool Screw Backorder WPL WP3351614 $2.51

WP389140 Whirlpool Drive Block or Bell In Stock WPL WP389140 $8.44

Eyelet WPL 98281 Contact Us For Availability

Pulley WPL 359630 Contact Us For Availability

Rivet WPL 359089 Contact Us For Availability

Washer Lid Hinge WPL 91367 Contact Us For Availability

W10814296 Whirlpool Washer Center Post Seal G In Stock WPL W10814296 $2.73

WPW10083200 Whirlpool Wire Ring In Stock WPL WPW10083200 $4.96

Bumper, Lid Hinge WPL 19119 Contact Us For Availability

Lever WPL 355538 Contact Us For Availability

Pin WPL 90228 Contact Us For Availability

Panel WPL 85279 Contact Us For Availability

12A

Panel WPL 357335 Contact Us For Availability

WP91770 Whirlpool Hinge In Stock WPL WP91770 $8.80

WP95405 Whirlpool Belt In Stock WPL WP95405 $10.68

Washer WPL 353320 Contact Us For Availability

Gr Sec/shaft WPL 75073 Contact Us For Availability

Rod WPL 96264 Contact Us For Availability

Tub WPL 359668 Contact Us For Availability

Solenoid WPL 86798 Contact Us For Availability

WP90296 Whirlpool Clip Backorder WPL WP90296 $2.51

WP96160 Whirlpool Washer Inlet Valve Screen Backorder WPL WP96160 $4.76

WP9724509 Whirlpool Bumper In Stock WPL WP9724509 $2.64

Pulley WPL 359697 Contact Us For Availability

Ring WPL 52083 Contact Us For Availability

Bearng Blck WPL 87290 Contact Us For Availability

Screw WPL 370571 Contact Us For Availability

Washer Brake Pad Retainer WPL 94726 Contact Us For Availability

Bearing WPL 16033 Contact Us For Availability

Pin WPL 5018 Contact Us For Availability

Wick Oil WPL 96265 Contact Us For Availability

Valve WPL 359634 Contact Us For Availability

15A

Top (White) WPL 376183 Contact Us For Availability

15B

Top (Almond) WPL 377613 Contact Us For Availability

15C

Top WPL 377615 Contact Us For Availability

15D

Top WPL 377616 Contact Us For Availability

WP91939 Whirlpool Shaft Seal In Stock WPL WP91939 $3.88

Actuator WPL 370959 Contact Us For Availability

Bolt WPL 356599 Contact Us For Availability

Washer Agitator Cap WPL 358348 Contact Us For Availability

WP18776 Whirlpool Lock In Stock WPL WP18776 $5.01

Tube WPL 357965 Contact Us For Availability

Bearing WPL 96853 Contact Us For Availability

Agitator WPL 359070 Contact Us For Availability

Washer Lid Switch Screw WPL 354764 Contact Us For Availability

WP21258 Whirlpool Washer Lid Hinge Bearing In Stock WPL WP21258 $3.25

WP21366 Whirlpool Spanner Nut In Stock WPL WP21366 $3.70

WP356427 Whirlpool Shaft Seal In Stock WPL WP356427 $3.88

Support WPL 356445 Contact Us For Availability

Bracket WPL 357191 Contact Us For Availability

Gusset WPL 356459 Contact Us For Availability

W10820036 Whirlpool Door Switch Kit In Stock WPL W10820036 $9.94

Screw WPL 356057 Contact Us For Availability

Spring WPL 16015 Contact Us For Availability

Hose WPL 97784 Contact Us For Availability

Ground Wire WPL 364089 Contact Us For Availability

19B

WP353244 Whirlpool Hose In Stock WPL WP353244 $34.09

WP359231 Whirlpool Shield In Stock WPL WP359231 $3.70

Washer Seal WPL 351830 Contact Us For Availability

Spacer WPL 356937 Contact Us For Availability

Fork Gear WPL 80398 Contact Us For Availability

Connector WPL 357334 Contact Us For Availability

21

Pin WPL 90532 Contact Us For Availability

21

Air Dome WPL 360804 Contact Us For Availability

21

Diagram WPL 358317 Contact Us For Availability

22

Roller WPL 92119 Contact Us For Availability

22

Washer Outer Tub Grommet WPL 93553 Contact Us For Availability

22

Retainer Clip WPL 96262 Contact Us For Availability

W11693756 Whirlpool Screw Assembly Backorder WPL W11693756 $8.11

Cnnctng Rod WPL 76577 Contact Us For Availability

Clamp WPL 9421321 Contact Us For Availability

Strap WPL 358343 Contact Us For Availability

WP90767 Whirlpool Screw In Stock WPL WP90767 $2.51

Ring WPL 95082 Contact Us For Availability

Manifold WPL 84091 Contact Us For Availability

Switch WPL 358029 Contact Us For Availability

Washer WPL 95083 Contact Us For Availability

Nut WPL 92229 Contact Us For Availability

Shield WPL 359096 Contact Us For Availability

Switch WPL 359907 Contact Us For Availability

25A

Cabinet (White) WPL 379111 Contact Us For Availability

25B

Cabinet (Almond) WPL 379112 Contact Us For Availability

25C

Cabinet WPL 379114 Contact Us For Availability

25D

Cabinet WPL 379115 Contact Us For Availability

26

Drive Gear WPL 353397 Contact Us For Availability

26

Washer WPL 92232 Contact Us For Availability

26

Screw WPL 355326 Contact Us For Availability

27

WP359364 Whirlpool Clip In Stock WPL WP359364 $3.88

27

Washer WPL 363362 Contact Us For Availability

27

Washer WPL 92235 Contact Us For Availability

27A

Cap (Chestnut) WPL 372127 Contact Us For Availability

27B

Cap (Chestnut) WPL 372134 Contact Us For Availability

Gear Case WPL 362906 Contact Us For Availability

Washer Snubber Plate WPL 355852 Contact Us For Availability

Link WPL 359059 Contact Us For Availability

Knob WPL 382823 Contact Us For Availability

29

WP358594 Whirlpool Leveling Feet In Stock WPL WP358594 $7.27

29

Screw WPL 356512 Contact Us For Availability

30

18849 Whirlpool Pad Backorder WPL 18849 $9.13

30

Bearing WPL 354513 Contact Us For Availability

30

Bracket WPL 381473 Contact Us For Availability

31

Drive Pinion WPL 84467 Contact Us For Availability

31

Hinge WPL 92657 Contact Us For Availability

31

Screw, Nibbed WPL 339607 Contact Us For Availability

31A

Hinge WPL 18775 Contact Us For Availability

32

Washer WPL 16024 Contact Us For Availability

32

Power Cord WPL 92667 Contact Us For Availability

32

Panel WPL 382466 Contact Us For Availability

32A

Panel WPL 382467 Contact Us For Availability

33

Washer Water Inlet Valve Assembly WPL 358277 Contact Us For Availability

33

Ring WPL 90094 Contact Us For Availability

33

Washer Control Knob WPL 382825 Contact Us For Availability

33A

Valve WPL 358971 Contact Us For Availability

16515 Whirlpool Clip Backorder WPL 16515 $11.62

Screw WPL 355613 Contact Us For Availability

Spring WPL 357977 Contact Us For Availability

Compression Ring WPL 90015 Contact Us For Availability

35

Washer Snubber Pad WPL 358336 Contact Us For Availability

35

Washer Timer Knob WPL 359507 Contact Us For Availability

36

Hose WPL 92231 Contact Us For Availability

36

Dryer Cabinet Panel Guide Pin WPL 98669 Contact Us For Availability

36

Pointer WPL 359505 Contact Us For Availability

37

Clip WPL 354555 Contact Us For Availability

38

W10876590 Whirlpool Connector In Stock WPL W10876590 $4.94

38

WP285655 Whirlpool Hose Clamp In Stock WPL WP285655 $3.70

38

WP367594 Whirlpool Leveling Feet In Stock WPL WP367594 $10.89

38A

Block (White) WPL 352090 Contact Us For Availability

39

Washer Exhaust Hose WPL 352978 Contact Us For Availability

40

Connector WPL 358805 Contact Us For Availability

40

Harness WPL 359926 Contact Us For Availability

40A

Harness WPL 359927 Contact Us For Availability

41

Clip WPL 351395 Contact Us For Availability

41

Connector WPL 94612 Contact Us For Availability

42

Grommet, Motor Bracket WPL 19138 Contact Us For Availability

42

Tap Screw WPL 90876 Contact Us For Availability

42

Plug WPL 94611 Contact Us For Availability

43

Agitator Auger WPL 358690 Contact Us For Availability

43

Screw WPL 98853 Contact Us For Availability

44

WP94614 Whirlpool Terminal Backorder WPL WP94614 $2.51

44

Washer Agitator Dog WPL 358692 Contact Us For Availability

44

Relay WPL 365956 Contact Us For Availability

45

Cam WPL 358691 Contact Us For Availability

45

Harness WPL 358711 Contact Us For Availability

46

WP90016 Whirlpool Clip Backorder WPL WP90016 $4.78

46

Appliance O-Ring WPL 357574 Contact Us For Availability

47

8528351 Whirlpool Clip Backorder WPL 8528351 $29.17

47

WP358912 Whirlpool Gasket Backorder WPL WP358912 $3.70

48

357030 Whirlpool Clamp Backorder WPL 357030 $10.76

48

WP358237 Whirlpool Agitator Bolt In Stock WPL WP358237 $2.43

48

End Cap Clip WPL 689559 Contact Us For Availability

50

Washer Lint Filter WPL 368772 Contact Us For Availability

50

Clip WPL 357469 Contact Us For Availability

51

Hose WPL 359798 Contact Us For Availability

51A

Bezel (White) WPL 355823 Contact Us For Availability

51B

Bezel (Almond) WPL 376975 Contact Us For Availability

51C

Bezel WPL 376977 Contact Us For Availability

51D

Bezel WPL 376978 Contact Us For Availability

52

Hose WPL 356645 Contact Us For Availability

52

Tray WPL 352827 Contact Us For Availability

52A

Hose WPL 357052 Contact Us For Availability

53

350365 Whirlpool Dryer Washer Water Pump, 2-P Backorder WPL 350365 $84.71

53

Harness WPL 359587 Contact Us For Availability

54

Pump Pulley WPL 16113 Contact Us For Availability

55

386011 Whirlpool Screw Backorder WPL 386011 $29.41

56

3184020 Whirlpool Oven Wire Backorder WPL 3184020 $32.06

57

Washer Fabric Softener Dispenser WPL 359163 Contact Us For Availability

58

WP596669 Whirlpool Hose Clamp In Stock WPL WP596669 $2.51

61

WP357213 Whirlpool Hinge Stopper Backorder WPL WP357213 $3.70

61

Washer Center Post Bearing Kit WPL 285134 Contact Us For Availability

62

Screw WPL 359504 Contact Us For Availability

64

Ring WPL 357695 Contact Us For Availability

65

Plug WPL 94696 Contact Us For Availability

66

Cap WPL 94697 Contact Us For Availability

67

Switch WPL 359712 Contact Us For Availability

70

Screw WPL 358225 Contact Us For Availability

350572 Whirlpool Oil Transmission 15 Oz In Stock WPL 350572 $34.51

350930 Whirlpool White Spray Paint In Stock WPL 350930 $21.41

350938 Whirlpool Spray Gun Backorder WPL 350938 $50.33

350956 Whirlpool Spray Assembly In Stock WPL 350956 $28.82

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.92

72109 Whirlpool Dacor Avocado Touch-Up Paint Backorder WPL 72109 $10.07

72110 Whirlpool Dryer Touch-Up Paint, Golden In Stock WPL 72110 $10.07

WP72107 Whirlpool Touchup In Stock WPL WP72107 $6.13

Washer Agitator Grease WPL 350849 Contact Us For Availability

Paint (White) WPL 799344 Contact Us For Availability

Spray (Avocado) WPL 261888 Contact Us For Availability

Paint Na WPL 261889 Contact Us For Availability

Spray (Golden Harvest) WPL 261890 Contact Us For Availability

Natural Gas Paint WPL 261891 Contact Us For Availability

Spray Th WPL 350941 Contact Us For Availability

Thinnr 1 Gal WPL 799351 Contact Us For Availability

Paint (Almond) WPL 978883 Contact Us For Availability

Guide WPL LIT358052 Contact Us For Availability

Label WPL LIT379385 Contact Us For Availability

Checklist WPL LIT382589 Contact Us For Availability

Installation Instructions WPL LIT383541 Contact Us For Availability

Installation Instructions WPL LIT383542 Contact Us For Availability

Operating Instructions WPL LIT383544 Contact Us For Availability

Parts List WPL LIT383571 Contact Us For Availability

Operating Instructions WPL LIT383597 Contact Us For Availability

Energy Guide WPL LIT383834 Contact Us For Availability

Energy Guide WPL LIT383835 Contact Us For Availability

Service Manual WPL LIT821462 Contact Us For Availability
