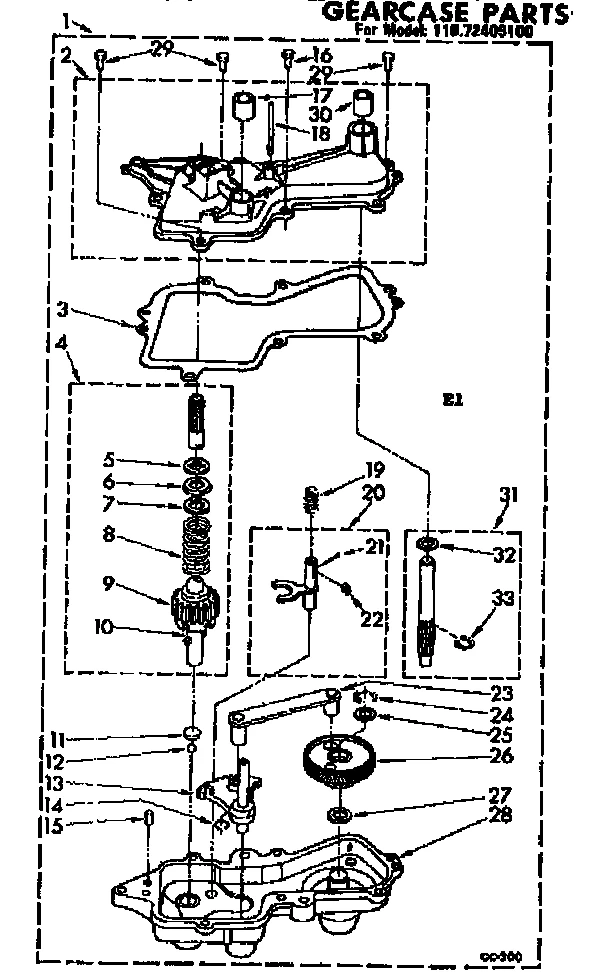

Model Whirlpool 110.72409100 Electric Washer (Kenmore 11072409100) – Common Parts &amp; Diagrams

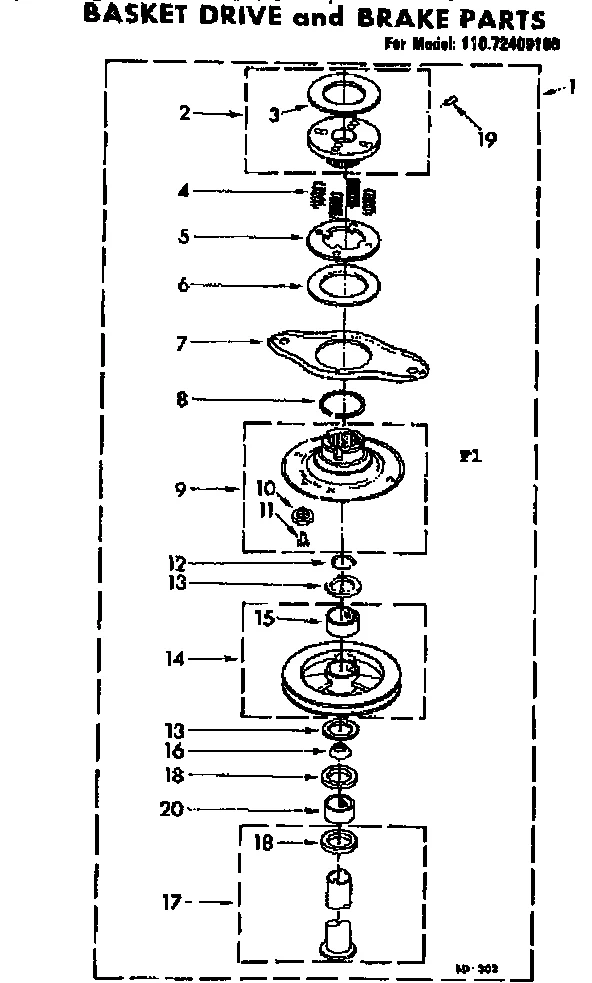

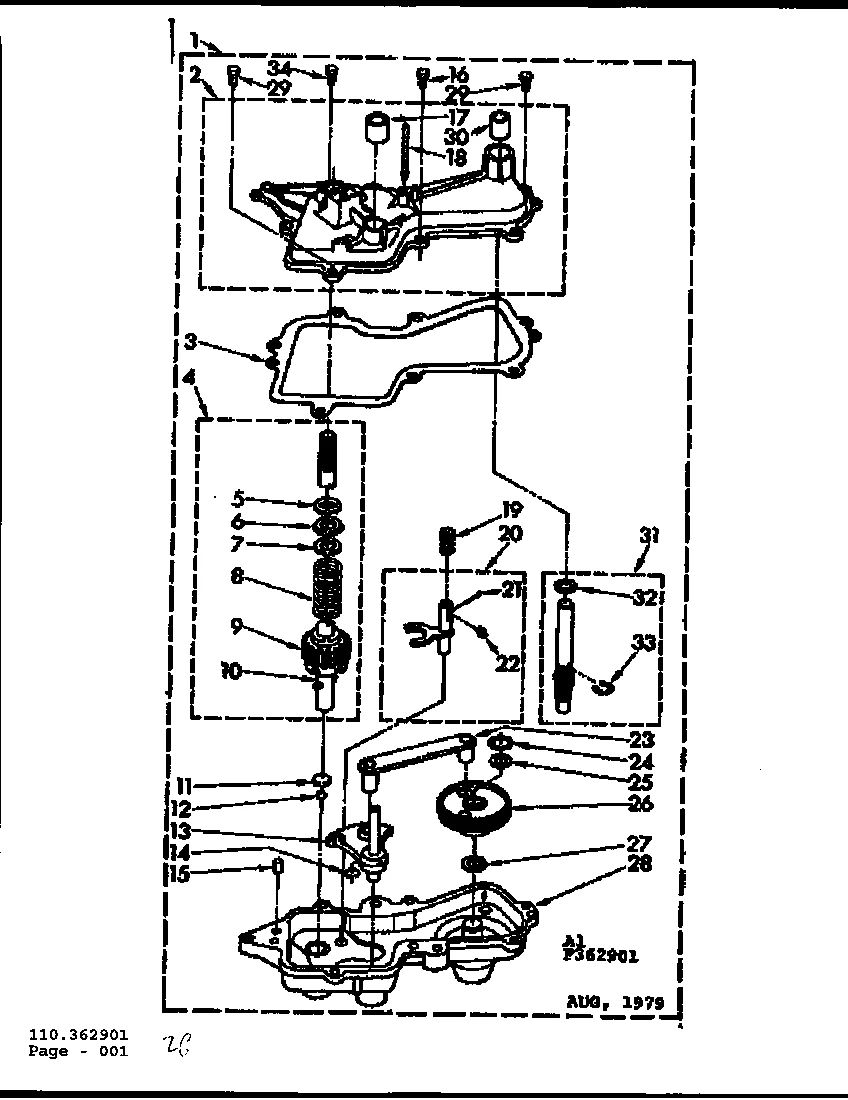

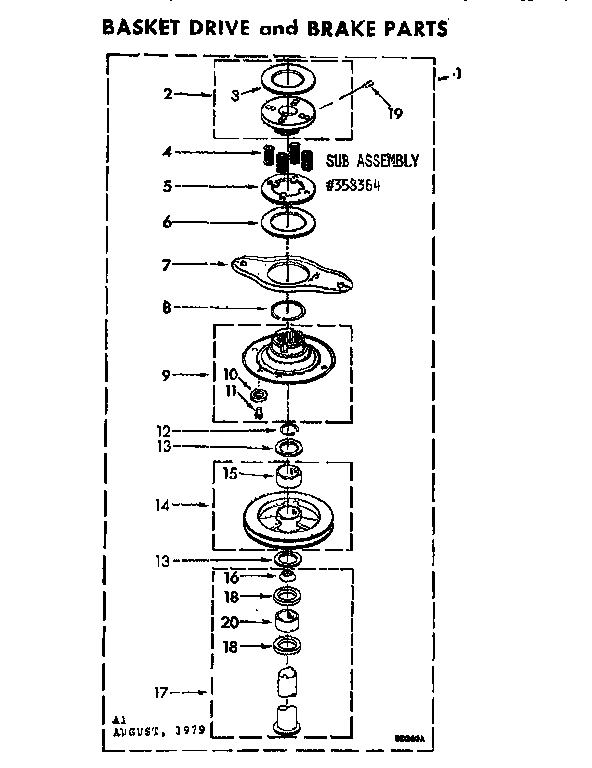

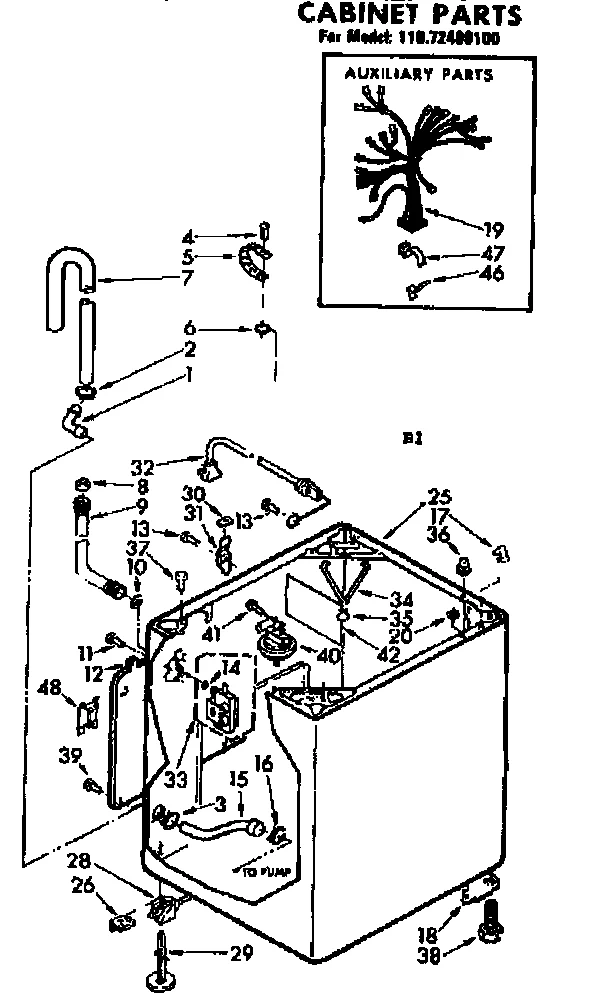

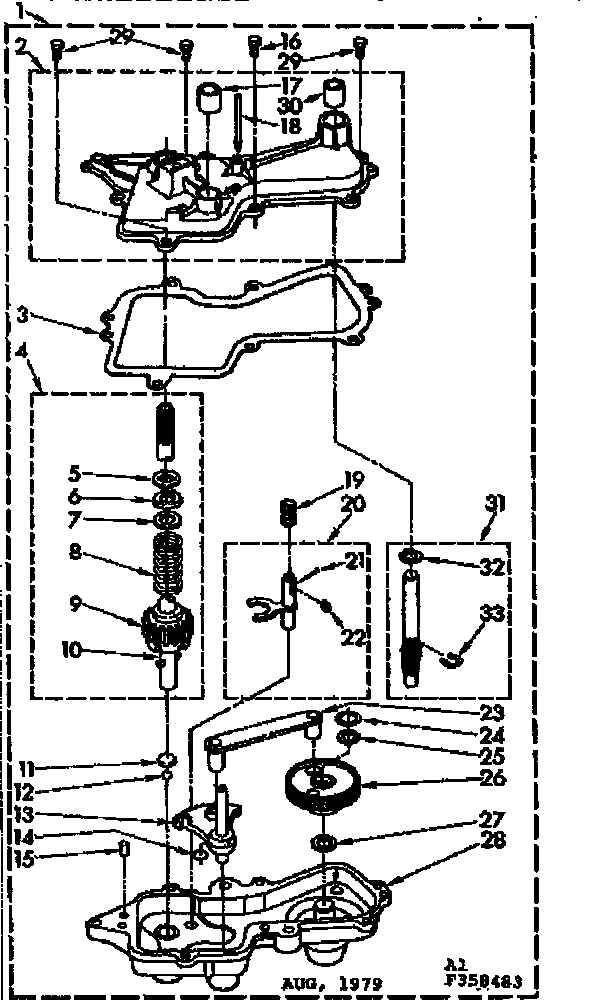

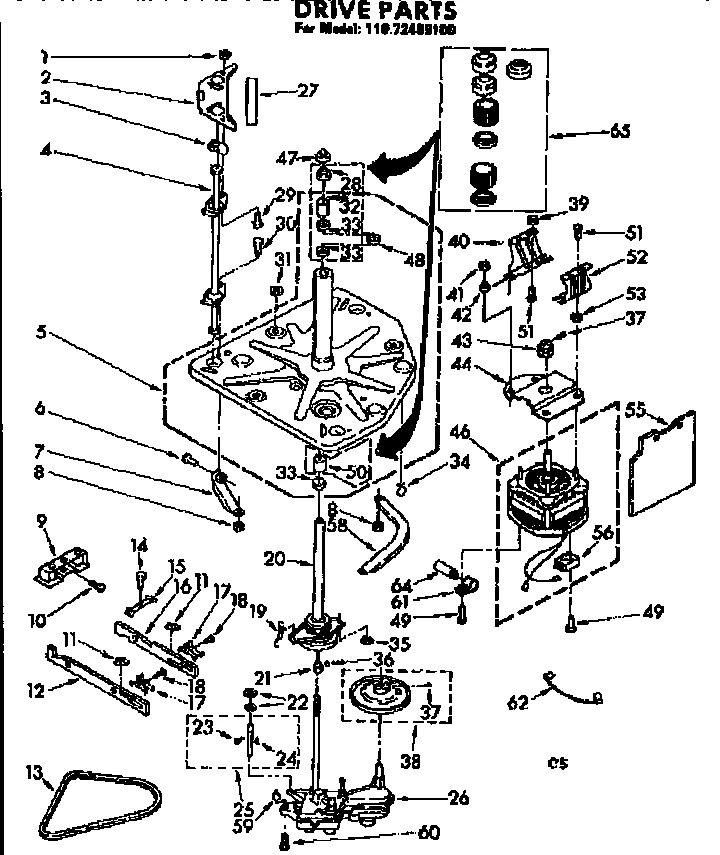

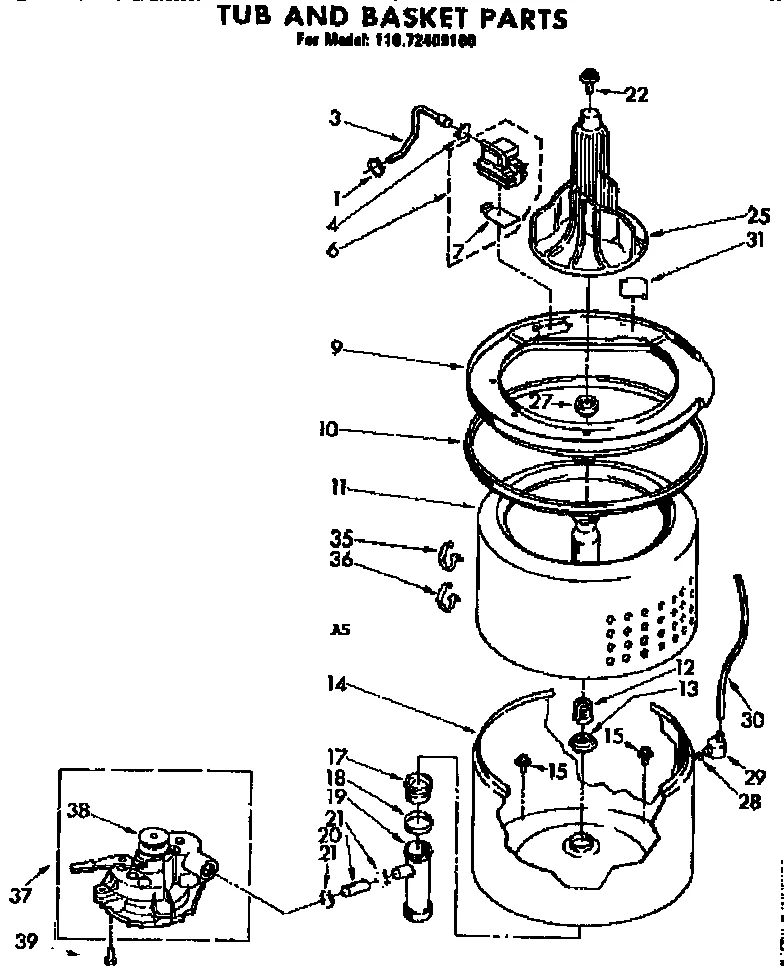

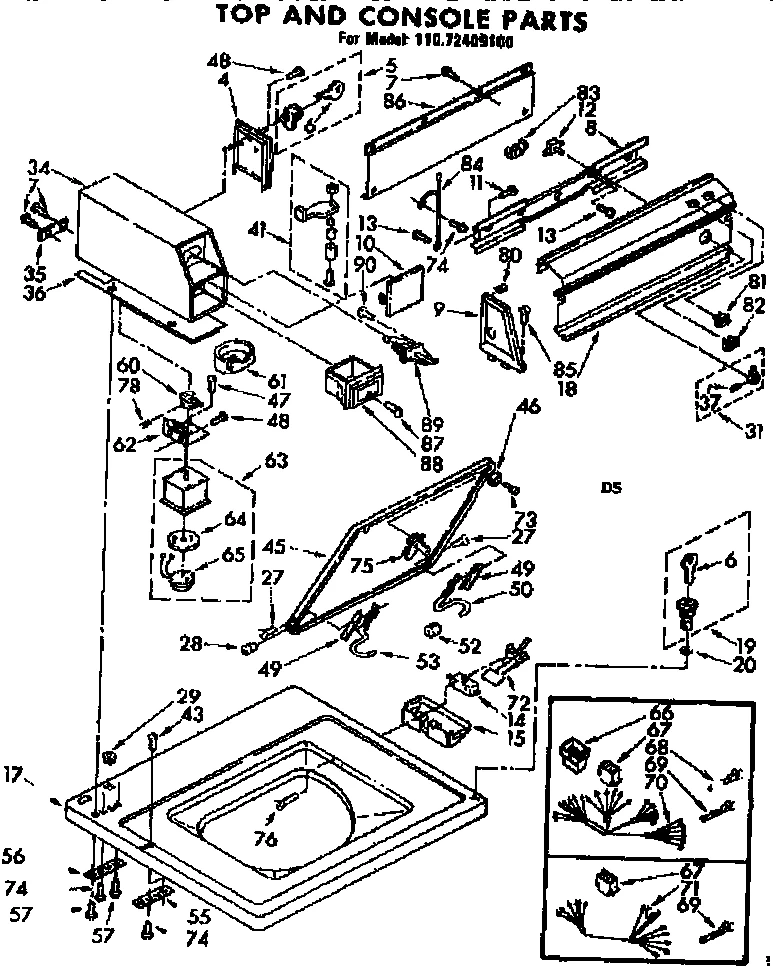

1

WP596669 Whirlpool Hose Clamp In Stock WPL WP596669 $2.51

1

Washer Drain Hose Connector WPL 95440 Contact Us For Availability

1

Case WPL 358483 Contact Us For Availability

1

Drive WPL 358364 Contact Us For Availability

2

WP356138 Whirlpool Hose Clamp Backorder WPL WP356138 $3.70

2

Cover WPL 367552 Contact Us For Availability

2

Washer Gear Case Brake Line and Guide WPL 350522 Contact Us For Availability

2

Cover WPL 352143 Contact Us For Availability

2A

Basic Cover WPL 94114 Contact Us For Availability

3

Washer Gear Case Cover Seal WPL 95089 Contact Us For Availability

3

Lining WPL 354550 Contact Us For Availability

3

Ball WPL 91073 Contact Us For Availability

3

Hose WPL 356349 Contact Us For Availability

4

Shaft WPL 362642 Contact Us For Availability

4

Spring WPL 381046 Contact Us For Availability

4

NLA Parts WPL 82584 Contact Us For Availability

4

Screw WPL 132848 Contact Us For Availability

5

Ring WPL 352430 Contact Us For Availability

5

Drum WPL 97664 Contact Us For Availability

5

Base Plate WPL 359430 Contact Us For Availability

5

Ground Strap WPL 22965 Contact Us For Availability

6

WP3400516 Whirlpool Screw In Stock WPL WP3400516 $2.51

6

Shaft Seal WPL 92814 Contact Us For Availability

6

Lining WPL 354244 Contact Us For Availability

6

Ground Wire WPL 364089 Contact Us For Availability

6

Inlet WPL 366072 Contact Us For Availability

7

WP96743 Whirlpool Hose In Stock WPL WP96743 $27.03

7

Shield WPL 94276 Contact Us For Availability

7

Brake Yoke WPL 92903 Contact Us For Availability

7

Brace WPL 353301 Contact Us For Availability

7

Flapper WPL 355584 Contact Us For Availability

8

285452A Whirlpool Hose Seal and Screen In Stock WPL 285452A $2.64

8

Spring WPL 92815 Contact Us For Availability

8

Ring WPL 16049 Contact Us For Availability

8

Nut WPL 96101 Contact Us For Availability

9

WP89503 Whirlpool Washer Fill Hose In Stock WPL WP89503 $8.29

9

Gear WPL 355469 Contact Us For Availability

9

Plate WPL 357155 Contact Us For Availability

9

Wig Way Ay WPL 365998 Contact Us For Availability

9

Ring WPL 381968 Contact Us For Availability

WP16123 Whirlpool Washer In Stock WPL WP16123 $2.51

Shaft WPL 362098 Contact Us For Availability

Lining WPL 354243 Contact Us For Availability

Tap End Scr WPL 16135 Contact Us For Availability

Seal WPL 355850 Contact Us For Availability

285205 Whirlpool Bearing Backorder WPL 285205 $3.70

WP3351614 Whirlpool Screw Backorder WPL WP3351614 $2.51

Eyelet WPL 98281 Contact Us For Availability

Cam Bar Guide WPL 95462 Contact Us For Availability

Basket WPL 358389 Contact Us For Availability

WPW10083200 Whirlpool Wire Ring In Stock WPL WPW10083200 $4.96

Washer Drive Block WPL 96384 Contact Us For Availability

Cam Bar WPL 354838 Contact Us For Availability

Panel WPL 85279 Contact Us For Availability

W10814296 Whirlpool Washer Center Post Seal G In Stock WPL W10814296 $2.73

WP681414 Whirlpool Screw In Stock WPL WP681414 $2.51

WP95405 Whirlpool Belt In Stock WPL WP95405 $10.68

Gr Sec/shaft WPL 75073 Contact Us For Availability

Washer WPL 353320 Contact Us For Availability

WP96160 Whirlpool Washer Inlet Valve Screen Backorder WPL WP96160 $4.76

Ring WPL 52083 Contact Us For Availability

Pulley WPL 364032 Contact Us For Availability

Bolt WPL 98001 Contact Us For Availability

Tub WPL 360783 Contact Us For Availability

Washer Brake Pad Retainer WPL 94726 Contact Us For Availability

Pin WPL 5018 Contact Us For Availability

Bearing WPL 16033 Contact Us For Availability

Pump Hose WPL 21114 Contact Us For Availability

Screw WPL 370571 Contact Us For Availability

16

WP91939 Whirlpool Shaft Seal In Stock WPL WP91939 $3.88

16

Bolt WPL 356599 Contact Us For Availability

16

Bar Cam WPL 18642 Contact Us For Availability

WP18776 Whirlpool Lock In Stock WPL WP18776 $5.01

Bearing WPL 96853 Contact Us For Availability

Tube WPL 357965 Contact Us For Availability

Plunger WPL 84866 Contact Us For Availability

Washer Outer Tub Grommet WPL 93553 Contact Us For Availability

WP356427 Whirlpool Shaft Seal In Stock WPL WP356427 $3.88

Support WPL 356445 Contact Us For Availability

Rivet WPL 354959 Contact Us For Availability

Gusset WPL 356459 Contact Us For Availability

Clamp WPL 9421321 Contact Us For Availability

Commercial Dryer Top Panel Lock WPL 358290 Contact Us For Availability

Spring WPL 16015 Contact Us For Availability

Screw WPL 356057 Contact Us For Availability

Spring WPL 17261 Contact Us For Availability

Harness WPL 358342 Contact Us For Availability

Manifold WPL 84091 Contact Us For Availability

WP90406 Whirlpool Nut Backorder WPL WP90406 $3.51

Fork Gear WPL 80398 Contact Us For Availability

Spacer WPL 356937 Contact Us For Availability

Hose WPL 92231 Contact Us For Availability

21

WP285655 Whirlpool Hose Clamp In Stock WPL WP285655 $3.70

21

Bearing WPL 358586 Contact Us For Availability

22

WP358237 Whirlpool Agitator Bolt In Stock WPL WP358237 $2.43

23

Pin WPL 90532 Contact Us For Availability

23

Cnnctng Rod WPL 76577 Contact Us For Availability

24

Roller WPL 92119 Contact Us For Availability

24

Ring WPL 95082 Contact Us For Availability

Washer WPL 95083 Contact Us For Availability

(338471) (ALT.) WPL N/P Contact Us For Availability

Shaft WPL 359460 Contact Us For Availability

Agitator (White) WPL 365779 Contact Us For Availability

25A

Cabinet (White) WPL 379111 Contact Us For Availability

26

WP359364 Whirlpool Clip In Stock WPL WP359364 $3.88

26

Gear Case WPL 362901 Contact Us For Availability

26

Drive Gear WPL 353397 Contact Us For Availability

27

WP21366 Whirlpool Spanner Nut In Stock WPL WP21366 $3.70

27

Washer WPL 363362 Contact Us For Availability

27

Pad WPL 352434 Contact Us For Availability

WP21258 Whirlpool Washer Lid Hinge Bearing In Stock WPL WP21258 $3.25

WP8577376 Whirlpool Seal In Stock WPL WP8577376 $3.88

Washer Seal WPL 351830 Contact Us For Availability

Gear Case WPL 362906 Contact Us For Availability

Link WPL 359059 Contact Us For Availability

WP358594 Whirlpool Leveling Feet In Stock WPL WP358594 $7.27

Screw WPL 356512 Contact Us For Availability

Bolt WPL 126358 Contact Us For Availability

Air Dome WPL 360804 Contact Us For Availability

29A

Carriage Bolt WPL 126211 Contact Us For Availability

29B

Bolt WPL 353770 Contact Us For Availability

29C

Bolt WPL 354730 Contact Us For Availability

18849 Whirlpool Pad Backorder WPL 18849 $9.13

WP353244 Whirlpool Hose In Stock WPL WP353244 $34.09

Bearing WPL 354513 Contact Us For Availability

Screw WPL 98048 Contact Us For Availability

Laundry Appliance Timer Knob WPL 359575 Contact Us For Availability

Drive Pinion WPL 84467 Contact Us For Availability

Gasket WPL 17235 Contact Us For Availability

Hinge WPL 92657 Contact Us For Availability

Washer Snubber Plate WPL 355852 Contact Us For Availability

31A

Hinge WPL 18775 Contact Us For Availability

32

WP8546455 Whirlpool Bearing In Stock WPL WP8546455 $9.46

32

Washer WPL 16024 Contact Us For Availability

32

Cord WPL 354837 Contact Us For Availability

33

W11095997 Whirlpool Seal In Stock WPL W11095997 $10.76

33

Washer Water Inlet Valve Assembly WPL 358277 Contact Us For Availability

33

Ring WPL 90094 Contact Us For Availability

34

16515 Whirlpool Clip Backorder WPL 16515 $11.62

34

Screw WPL 355613 Contact Us For Availability

34

Spring WPL 357977 Contact Us For Availability

35

Washer Tub Cover Clamp WPL 359689 No Longer Available

35

Washer Snubber Pad WPL 358336 Contact Us For Availability

35

Washer Basket Drive Spring Retainer WPL 356444 Contact Us For Availability

36

Washer Tub Ring Clip WPL 359690 No Longer Available

36

Ball WPL 358585 Contact Us For Availability

36

Dryer Cabinet Panel Guide Pin WPL 98669 Contact Us For Availability

37

350365 Whirlpool Dryer Washer Water Pump, 2-P Backorder WPL 350365 $84.71

37

Screw WPL 355345 Contact Us For Availability

38

WP367594 Whirlpool Leveling Feet In Stock WPL WP367594 $10.89

38

Washer Transmission Pulley WPL 360840 Contact Us For Availability

38

Pump Pulley WPL 16113 Contact Us For Availability

39

386011 Whirlpool Screw Backorder WPL 386011 $29.41

40

Bracket WPL 85286 Contact Us For Availability

40

Switch WPL 359361 Contact Us For Availability

41

WP90767 Whirlpool Screw In Stock WPL WP90767 $2.51

41

Nut WPL 98023 Contact Us For Availability

42

Grommet, Motor Bracket WPL 19138 Contact Us For Availability

42

Barrier WPL 353885 Contact Us For Availability

43

Motor Pulley WPL 92216 Contact Us For Availability

44

Shield WPL 356217 Contact Us For Availability

46

8528351 Whirlpool Clip Backorder WPL 8528351 $29.17

46

Lid Bumper WPL 356908 Contact Us For Availability

46

Motor WPL 357822 Contact Us For Availability

47

WP90016 Whirlpool Clip Backorder WPL WP90016 $4.78

47

Seal WPL 359190 Contact Us For Availability

48

339805 Whirlpool Screw Backorder WPL 339805 $9.59

48

Spacer WPL 358804 Contact Us For Availability

48

Plug WPL 354179 Contact Us For Availability

49

WP21097 Whirlpool Pad In Stock WPL WP21097 $3.70

49

WP3390631 Whirlpool Screw In Stock WPL WP3390631 $2.51

50

WP91770 Whirlpool Hinge In Stock WPL WP91770 $8.80

50

Bearing WPL 354195 Contact Us For Availability

51

Bolt WPL 98537 Contact Us For Availability

52

Bracket WPL 93549 Contact Us For Availability

53

Nut WPL 95721 Contact Us For Availability

55

Shield WPL 357571 Contact Us For Availability

56

Motor Switch WPL 362738 Contact Us For Availability

58

Brace WPL 351500 Contact Us For Availability

58A

Brace WPL 351499 Contact Us For Availability

59

Spacer WPL 16062 Contact Us For Availability

60

Hex Screw WPL 90877 Contact Us For Availability

61

357030 Whirlpool Clamp Backorder WPL 357030 $10.76

61

Funnel WPL 355446 Contact Us For Availability

62

Wire WPL 370950 Contact Us For Availability

64

WP8572717 Whirlpool Capacitor In Stock WPL WP8572717 $47.63

65

Washer Center Post Bearing Kit WPL 285134 Contact Us For Availability

67

Plug WPL 94696 Contact Us For Availability

69

WP94614 Whirlpool Terminal Backorder WPL WP94614 $2.51

70

Harness WPL 359287 Contact Us For Availability

71

Harness WPL 359289 Contact Us For Availability

72

Actuator WPL 370959 Contact Us For Availability

73

WP356907 Whirlpool Rivet Backorder WPL WP356907 $3.70

74

Screw WPL 90057 Contact Us For Availability

75

WP358684 Whirlpool Strike Assembly In Stock WPL WP358684 $3.19

76

Washer Lid Switch Screw WPL 354764 Contact Us For Availability

78

Screw WPL 98654 Contact Us For Availability

80

Clip WPL 98084 Contact Us For Availability

81

Light WPL 360398 Contact Us For Availability

82

Light WPL 360402 Contact Us For Availability

83

W10113937 Whirlpool Clamp Backorder WPL W10113937 $4.78

84

Wire WPL 357535 Contact Us For Availability

85

Screw WPL 358225 Contact Us For Availability

86

Panel WPL 356712 Contact Us For Availability

350572 Whirlpool Oil Transmission 15 Oz In Stock WPL 350572 $34.51

350930 Whirlpool White Spray Paint In Stock WPL 350930 $21.41

350938 Whirlpool Spray Gun Backorder WPL 350938 $50.33

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.92

Paint (White) WPL 799344 Contact Us For Availability

Spray Th WPL 350941 Contact Us For Availability

Replacement Part WPL 379911 Contact Us For Availability

Thinnr 1 Gal WPL 799351 Contact Us For Availability

Parts List WPL LIT378174 Contact Us For Availability

Label WPL LIT380084 Contact Us For Availability

Installation Instructions WPL LIT381344 Contact Us For Availability

Service Manual WPL LIT821462 Contact Us For Availability
