Model Whirlpool 110.27172601 Automatic Washer – Common Parts &amp; Diagrams

2

285202 Whirlpool Cover Assembly Backorder WPL 285202 $87.35

2

WP385421 Whirlpool Washer Coin-Operated Laund In Stock WPL WP385421 $30.98

2

WP387240 Whirlpool Balance Ring Backorder WPL WP387240 $79.32

2

WP63292 Whirlpool Washer In Stock WPL WP63292 $3.70

2

WP64067 Whirlpool Bracket In Stock WPL WP64067 $3.88

2

WP9740848 Whirlpool Dishwasher Screw Backorder WPL WP9740848 $2.51

3

339805 Whirlpool Screw Backorder WPL 339805 $9.59

3

WP3349985 Whirlpool Shaft Seal In Stock WPL WP3349985 $9.35

3

WP3949550 Whirlpool Gasket Assembly In Stock WPL WP3949550 $4.96

3

WP62750 Whirlpool Spacer In Stock WPL WP62750 $3.70

3

WP63907 Whirlpool Washer Suspension Spring In Stock WPL WP63907 $3.88

4

WP358237 Whirlpool Agitator Bolt In Stock WPL WP358237 $2.43

4

Switch, Cycle Selector WPL W10112669 Contact Us For Availability

5

63424 Whirlpool Cabinet Assembly Backorder WPL 63424 $258.72

5

WP8299642 Whirlpool Clutch In Stock WPL WP8299642 $68.96

5

WP8568314 Whirlpool Strap Backorder WPL WP8568314 $3.70

5

Bracket, Spring Outer (L.F.) WPL 64065 Contact Us For Availability

6

W10817888 Whirlpool Lining In Stock WPL W10817888 $49.15

6

W11715721 Whirlpool Screw Assembly Backorder WPL W11715721 $2.58

6

WP356427 Whirlpool Shaft Seal In Stock WPL WP356427 $3.88

6

WP62780 Whirlpool Cabinet Clip In Stock WPL WP62780 $3.88

6

Link, Leveling Mechanism (2) WPL 63466 Contact Us For Availability

7

W10114854 Whirlpool Wire Harness Backorder WPL W10114854 $228.13

7

WP357213 Whirlpool Hinge Stopper Backorder WPL WP357213 $3.70

7

WP3976308 Whirlpool Tub Seal In Stock WPL WP3976308 $9.42

7

WP62747 Whirlpool Pad Backorder WPL WP62747 $10.76

8

W10414165 Whirlpool Washer Water Level Switch Backorder WPL W10414165 $97.31

8

W11283272 Whirlpool Washer Dryer Access Door In Stock WPL W11283272 $73.40

8

WP21366 Whirlpool Spanner Nut In Stock WPL WP21366 $3.70

8

WP3356311 Whirlpool Screw In Stock WPL WP3356311 $2.51

8

WP62837 Whirlpool Dowel Pin Backorder WPL WP62837 $6.15

8

Ring, Retaining (2) WPL 90369 Contact Us For Availability

9

62677 Whirlpool Retainer Backorder WPL 62677 $7.58

9

W10389329 Whirlpool Washer Basket Backorder WPL W10389329 $176.56

10

Lens (Green) WPL 3349305 Contact Us For Availability

10

Spring, Agitate WPL 62676 Contact Us For Availability

11

WP389140 Whirlpool Drive Block or Bell In Stock WPL WP389140 $8.44

11

Lens, (Red) WPL 3349304 Contact Us For Availability

62619 Whirlpool Washer Backorder WPL 62619 $9.59

W10814296 Whirlpool Washer Center Post Seal G In Stock WPL W10814296 $2.73

WP62691 Whirlpool Grommet In Stock WPL WP62691 $5.31

WP63022 Whirlpool Sleeve Backorder WPL WP63022 $13.67

WPW10112081 Whirlpool Timer In Stock WPL WPW10112081 $162.90

13

W10361977 Whirlpool Washer Water Level Switch Backorder WPL W10361977 $92.83

13

WP8546455 Whirlpool Bearing In Stock WPL WP8546455 $9.46

13

WPW10119828 Whirlpool Screw In Stock WPL WPW10119828 $2.64

14

WP354987 Whirlpool C-Clip In Stock WPL WP354987 $4.94

WP389387 Whirlpool Agitator Shaft Backorder WPL WP389387 $117.58

WP54584 Whirlpool Hinge Backorder WPL WP54584 $10.08

WP90767 Whirlpool Screw In Stock WPL WP90767 $2.51

WPW10250667 Whirlpool Washer Suspension Sprin In Stock WPL WPW10250667 $2.29

16

WP54583 Whirlpool Hinge In Stock WPL WP54583 $9.37

16

Washer, Cam Thrust WPL 62618 Contact Us For Availability

285205 Whirlpool Bearing Backorder WPL 285205 $3.70

3347825 Whirlpool Plate Backorder WPL 3347825 $2.40

WP3946509 Whirlpool Skate Plate Backorder WPL WP3946509 $85.47

WPW10086010 Whirlpool Motor Retainer Clip Backorder WPL WPW10086010 $3.70

Bumper, Lid Hinge WPL 19119 Contact Us For Availability

18

WP21258 Whirlpool Washer Lid Hinge Bearing In Stock WPL WP21258 $3.25

18

WP8578343 Whirlpool Valve In Stock WPL WP8578343 $107.78

19

WP3398848 Whirlpool Lid Backorder WPL WP3398848 $194.66

19

WP661600 Whirlpool Drive Motor In Stock WPL WP661600 $145.78

19

Bottom and Pinion, Gearcase WPL 389230 Contact Us For Availability

285352 Whirlpool Washer Oil Seal Kit for Gear In Stock WPL 285352 $32.54

WP3359452 Whirlpool Nut In Stock WPL WP3359452 $1.93

WP8546127 Whirlpool Retainer Clip In Stock WPL WP8546127 $3.07

Bumper, Lid WPL 356908 Contact Us For Availability

Coin Chute WPL 386271 Contact Us For Availability

WP3351614 Whirlpool Screw Backorder WPL WP3351614 $2.51

WP3363394 Whirlpool Washer Drain Pump In Stock WPL WP3363394 $24.45

WP356907 Whirlpool Rivet Backorder WPL WP356907 $3.70

WPW10001130 Whirlpool Leveling Leg In Stock WPL WPW10001130 $2.43

Knob, Control WPL 359575 Contact Us For Availability

WP3349091 Whirlpool Lock Cam Mechanism Backorder WPL WP3349091 $58.81

WP358684 Whirlpool Strike Assembly In Stock WPL WP358684 $3.19

WP8577376 Whirlpool Seal In Stock WPL WP8577376 $3.88

Ring, Retaining WPL 3362552 Contact Us For Availability

24

285203 Whirlpool CP Bearing In Stock WPL 285203 $62.63

24

WP8576635 Whirlpool Bolt In Stock WPL WP8576635 $29.74

24

Washer Kit, Thrust WPL 285735 Contact Us For Availability

25

WP63134 Whirlpool Ring Backorder WPL WP63134 $3.70

25

WP8519200 Whirlpool Support Assembly Backorder WPL WP8519200 $7.96

25

WP8572717 Whirlpool Capacitor In Stock WPL WP8572717 $47.63

26

388253A Whirlpool Neutral Drain Kit In Stock WPL 388253A $32.72

26

WPW10145155 Whirlpool Retainer In Stock WPL WPW10145155 $2.21

26

WPW10358149 Whirlpool Hose In Stock WPL WPW10358149 $13.74

27

3360629 Whirlpool Washer Gearcase Transmissio In Stock WPL 3360629 $251.09

27

WP8577374 Whirlpool Seal Shaft In Stock WPL WP8577374 $3.88

28

Restraint, Hose WPL 3976395 No Longer Available

29

WP388815 Whirlpool Washer Backorder WPL WP388815 $2.51

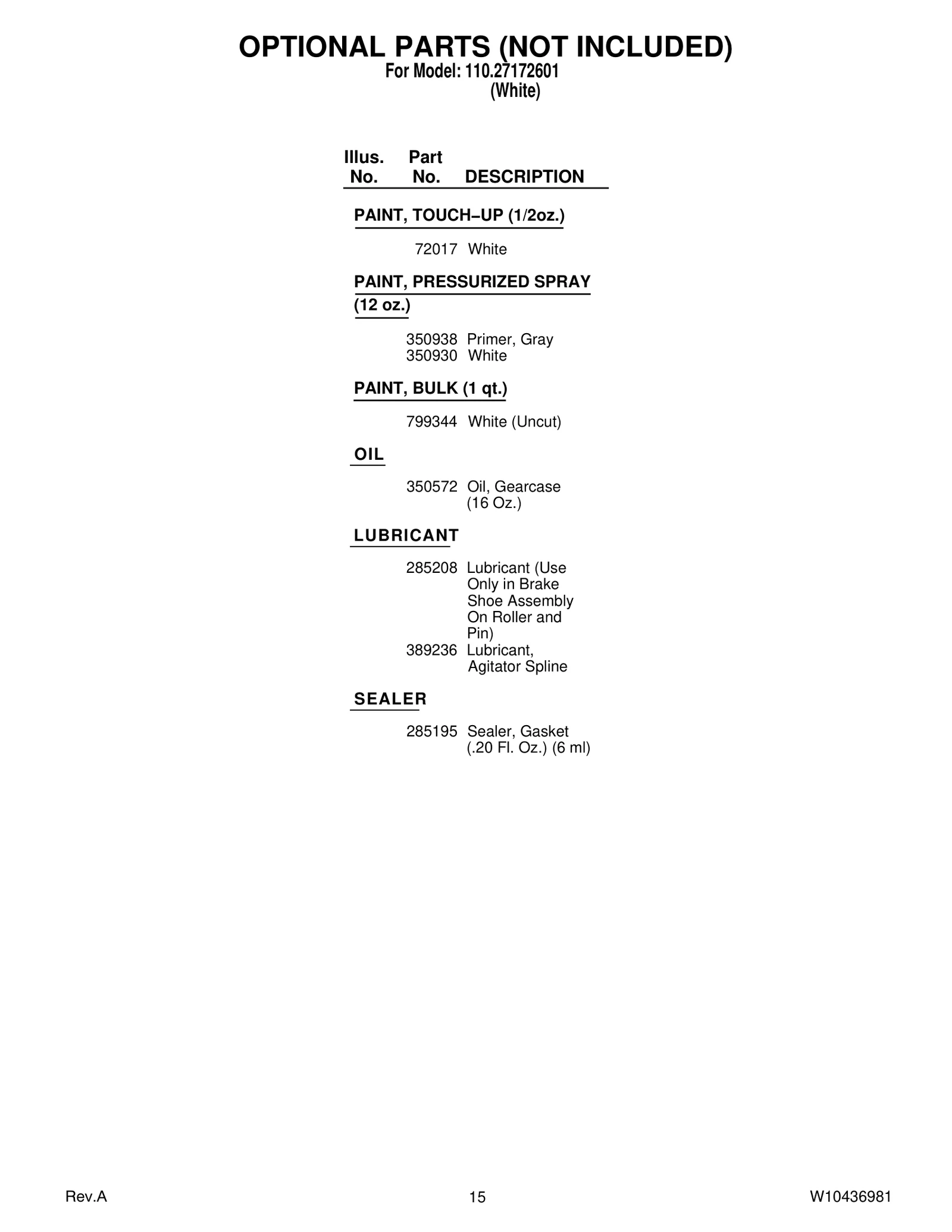

OPT-1

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.92

OPT-2

350938 Whirlpool Spray Gun Backorder WPL 350938 $50.33

OPT-3

350930 Whirlpool White Spray Paint In Stock WPL 350930 $21.41

OPT-4

White (Uncut) WPL 799344 Contact Us For Availability

OPT-5

350572 Whirlpool Oil Transmission 15 Oz In Stock WPL 350572 $34.51

OPT-6

Lubricant (Use WPL 285208 Contact Us For Availability

OPT-7

Lubricant, WPL 389236 Contact Us For Availability

OPT-8

WP285195 Whirlpool Sealer Assembly Backorder WPL WP285195 $50.07
