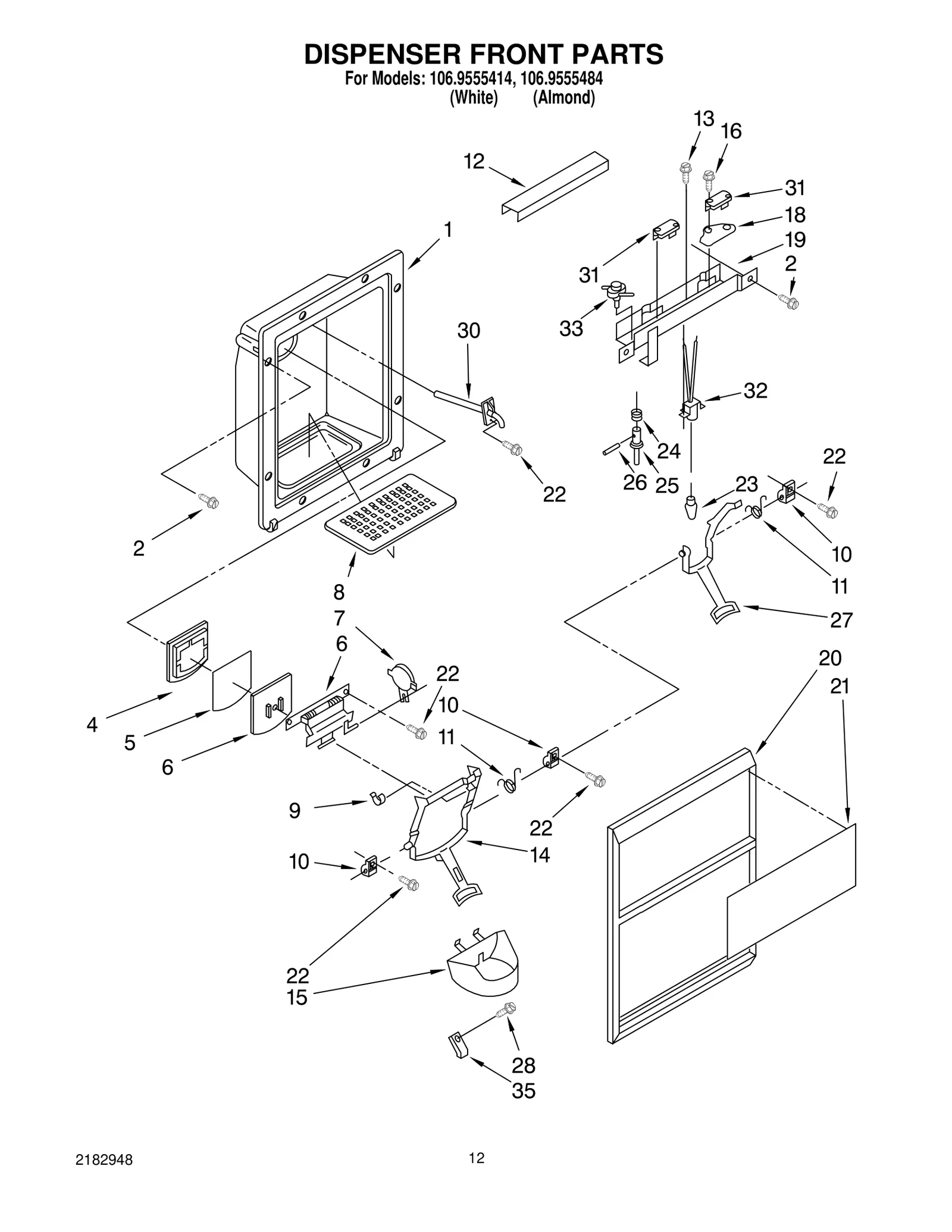

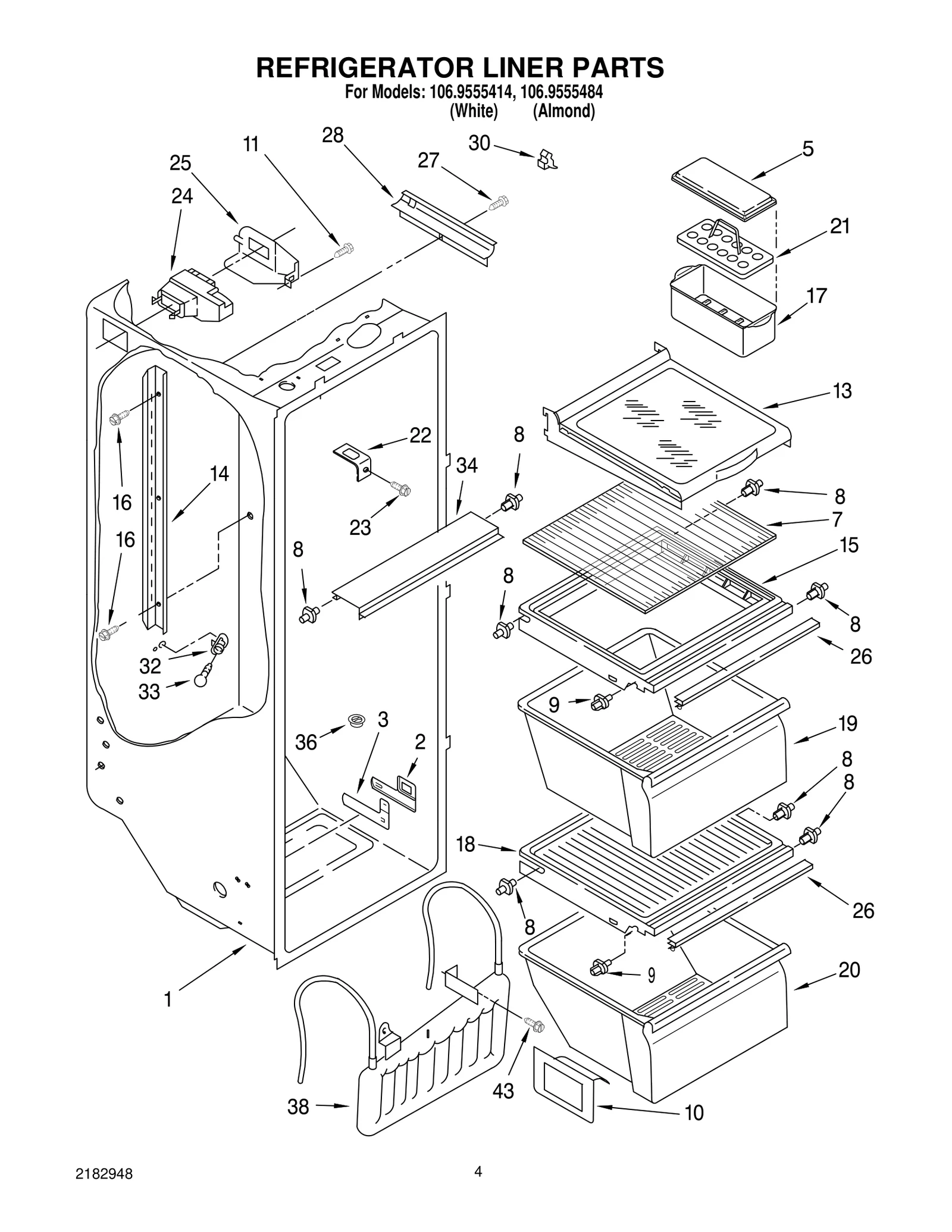

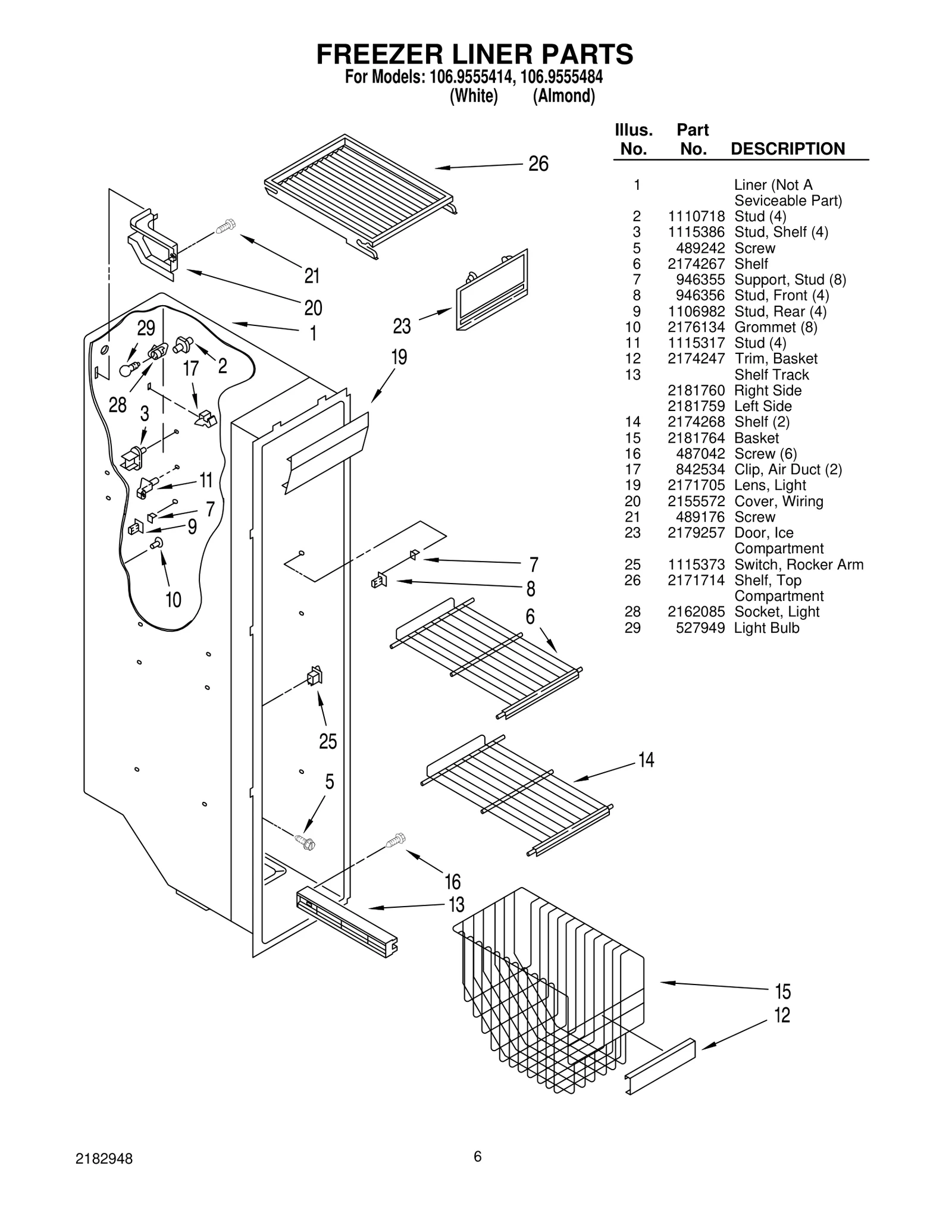

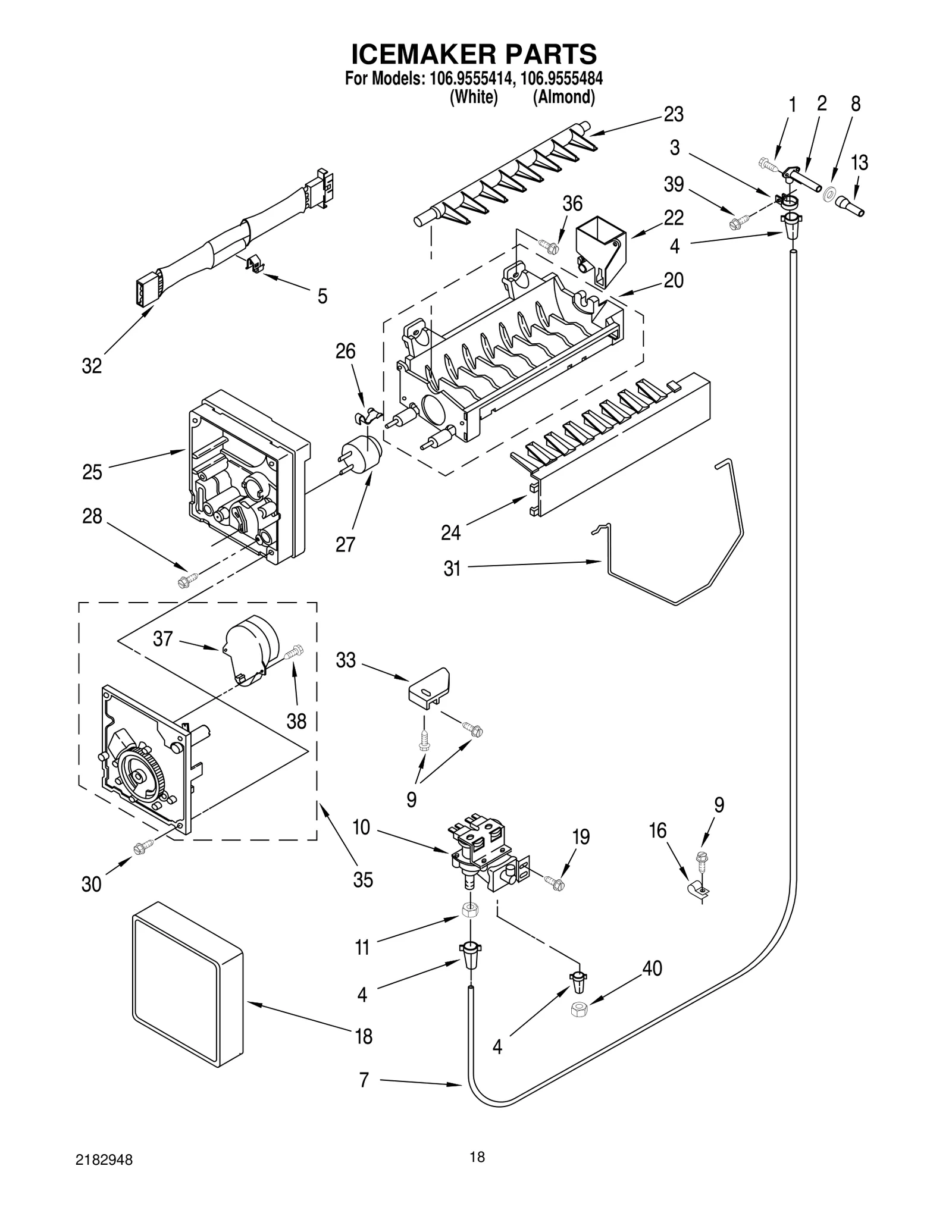

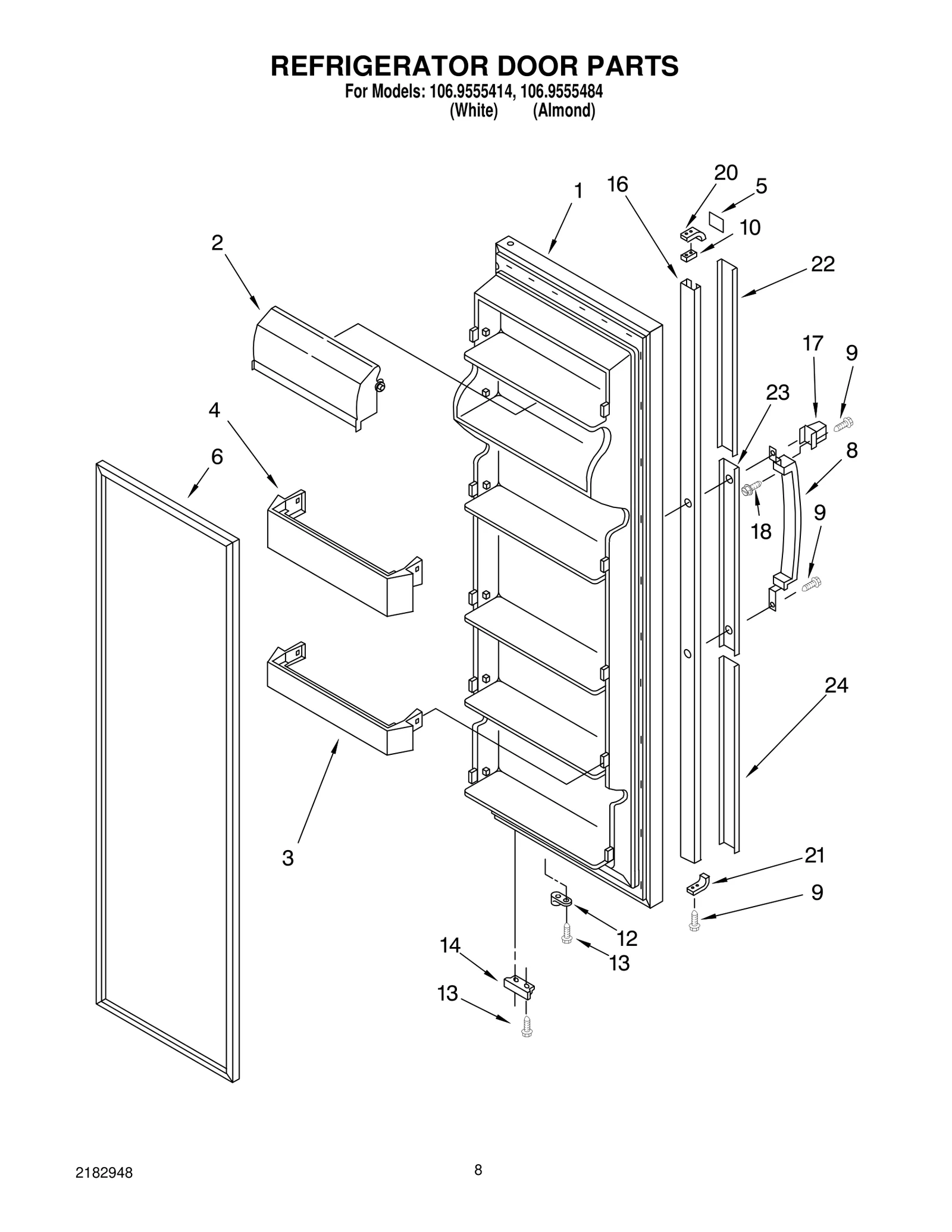

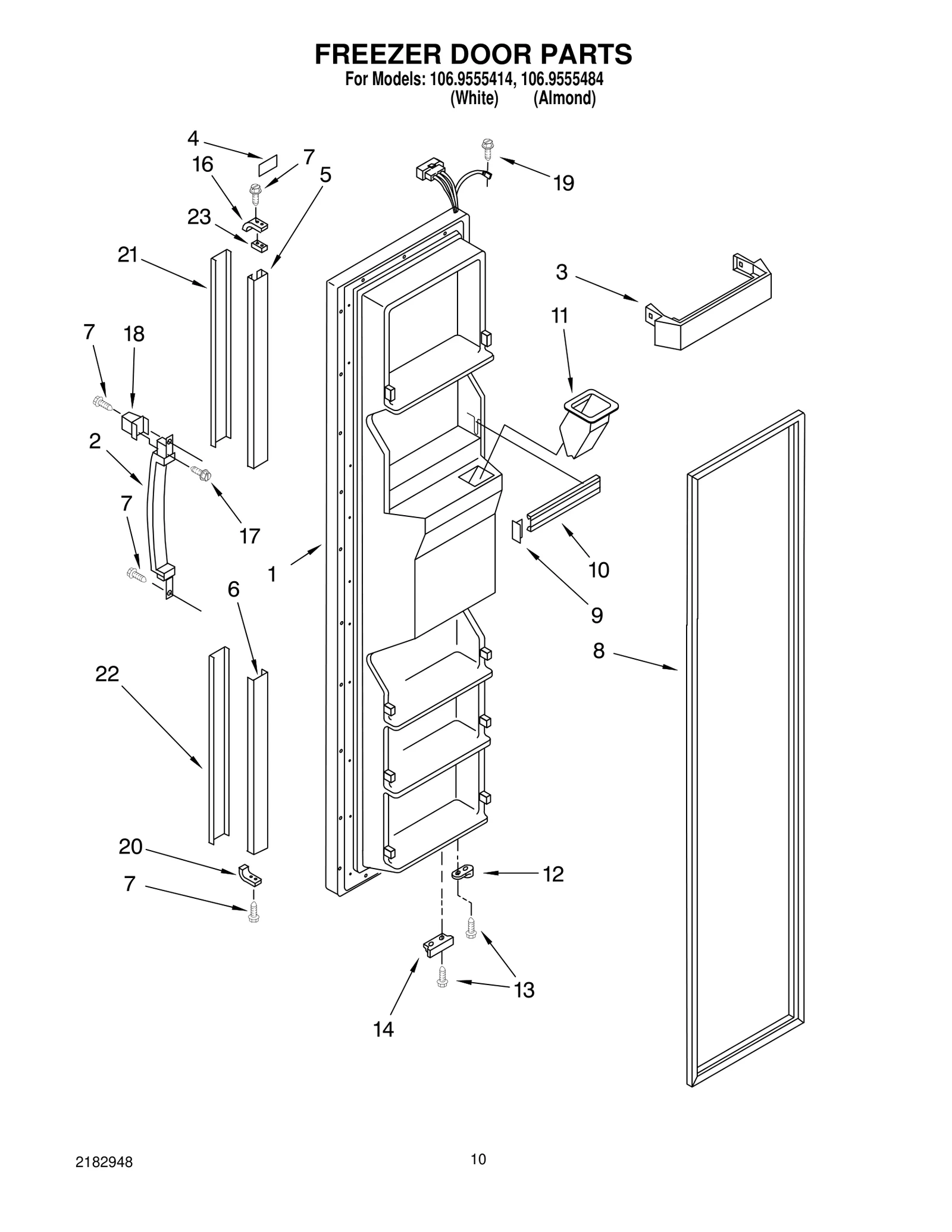

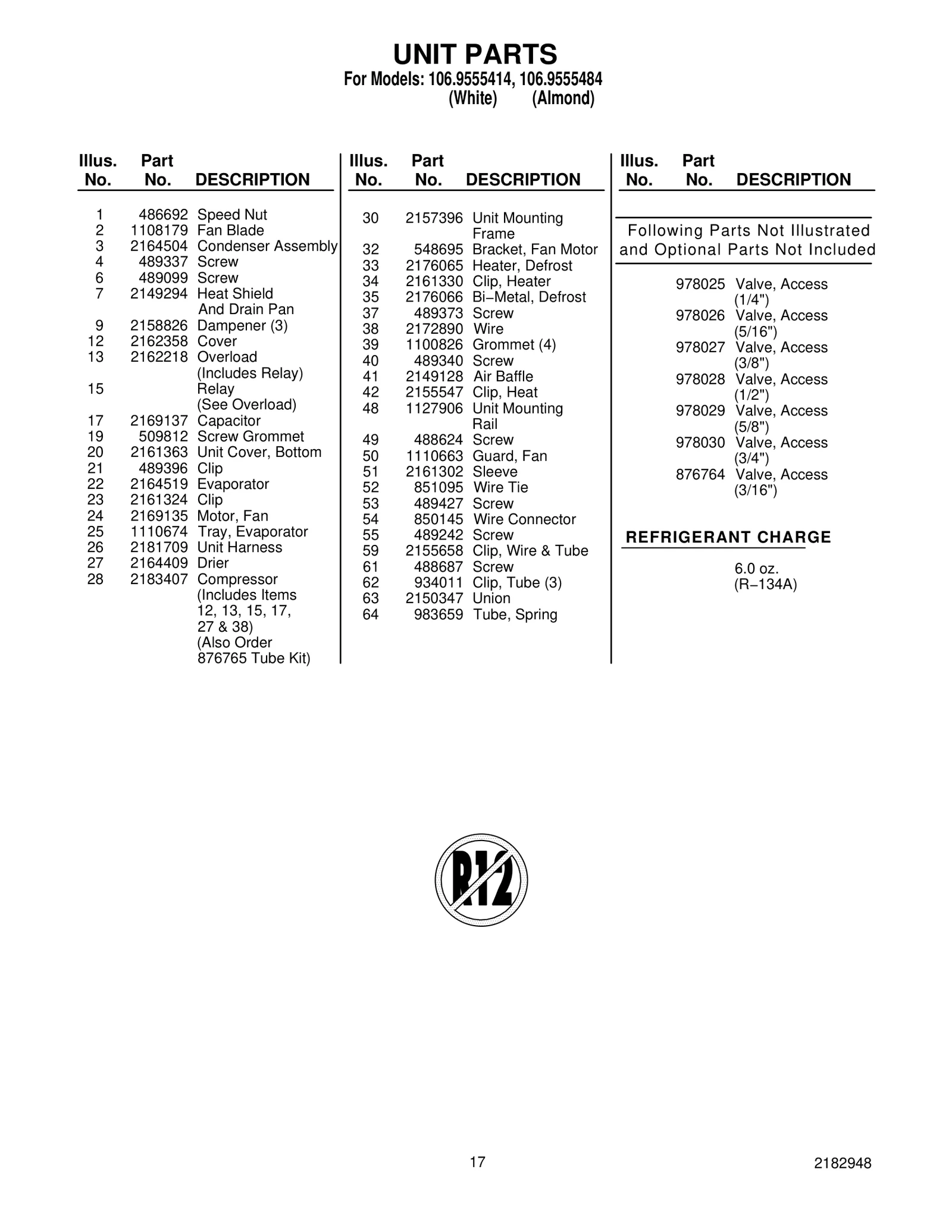

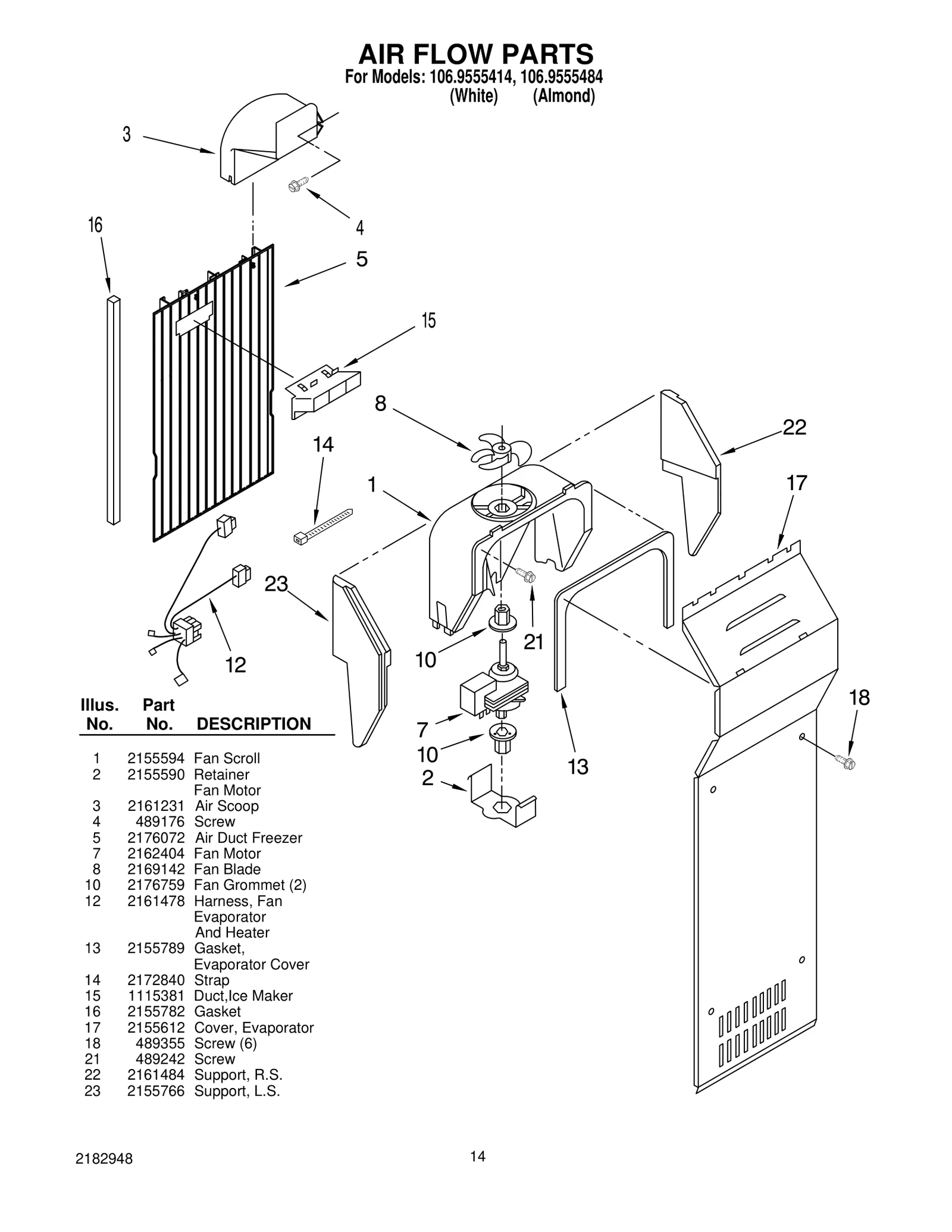

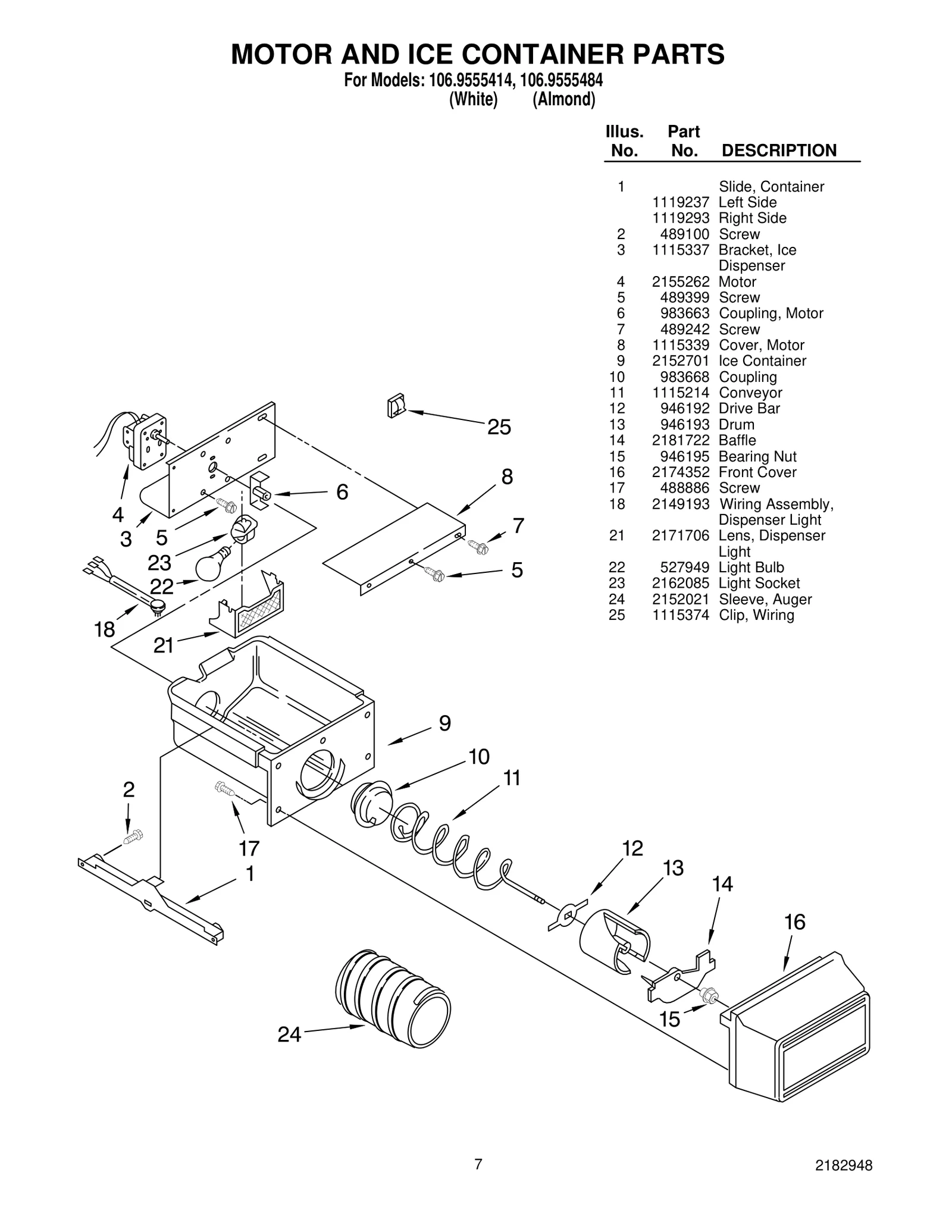

Model Whirlpool 106.9555414 Refrigerator – Common Parts &amp; Diagrams

1

W10845585 Whirlpool Refrigerator Track Backorder WPL W10845585 $56.13

1

WP2182120 Whirlpool Refrigerator Scroll Fan Backorder WPL WP2182120 $36.67

1

WP486692 Whirlpool Refrigerator Nut Backorder WPL WP486692 $3.70

1

NLA:SCREW Backorder WPL WPW10141645 $3.70

1

Refrigerator Door — White WPL 2169651 Contact Us For Availability

1

Refrigerator Door — Almond WPL 2169652 Contact Us For Availability

1

Freezer Door (Includes #8 And Dispenser Front WPL 2179930 Contact Us For Availability

1

Freezer Door (Includes #8 And Dispenser Front WPL 2179931 Contact Us For Availability

1

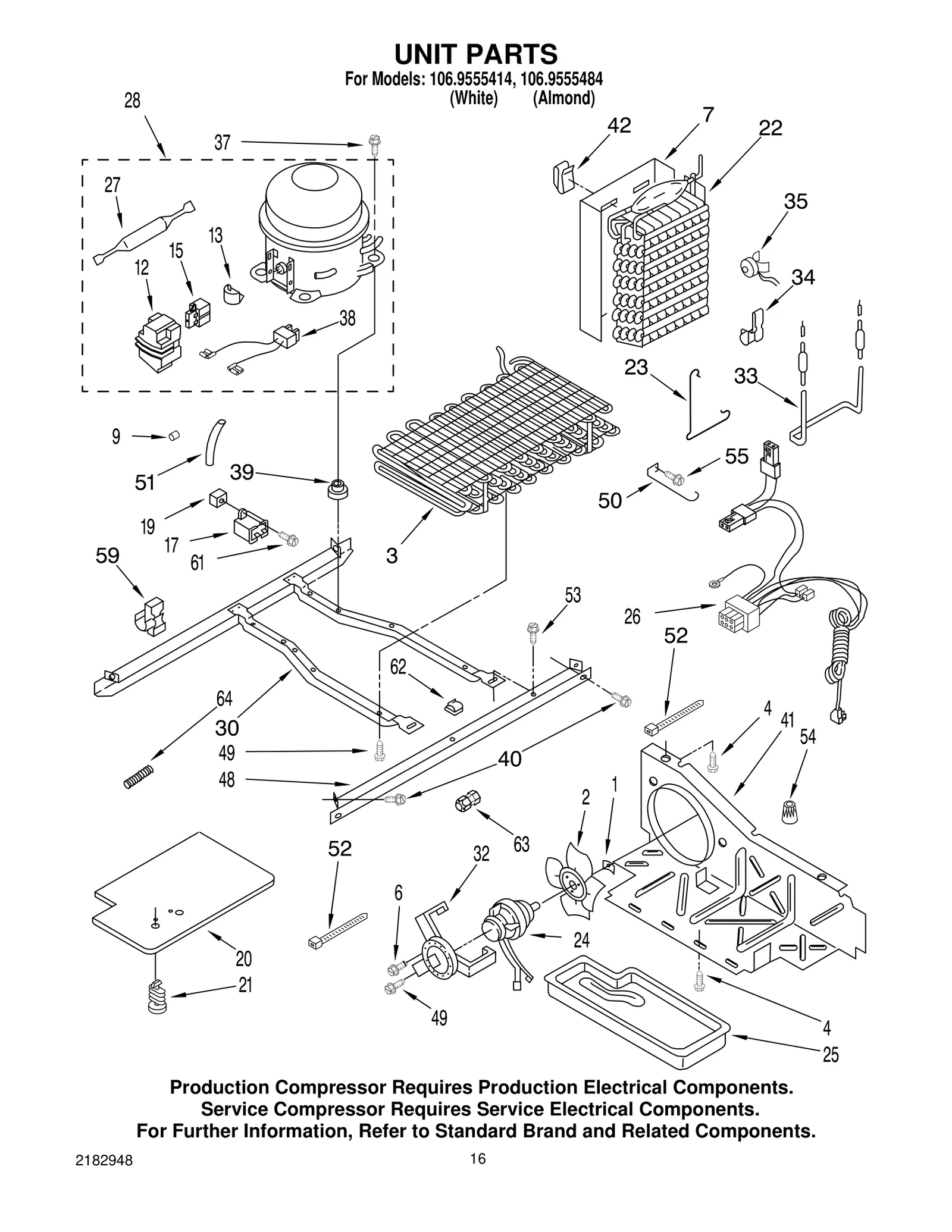

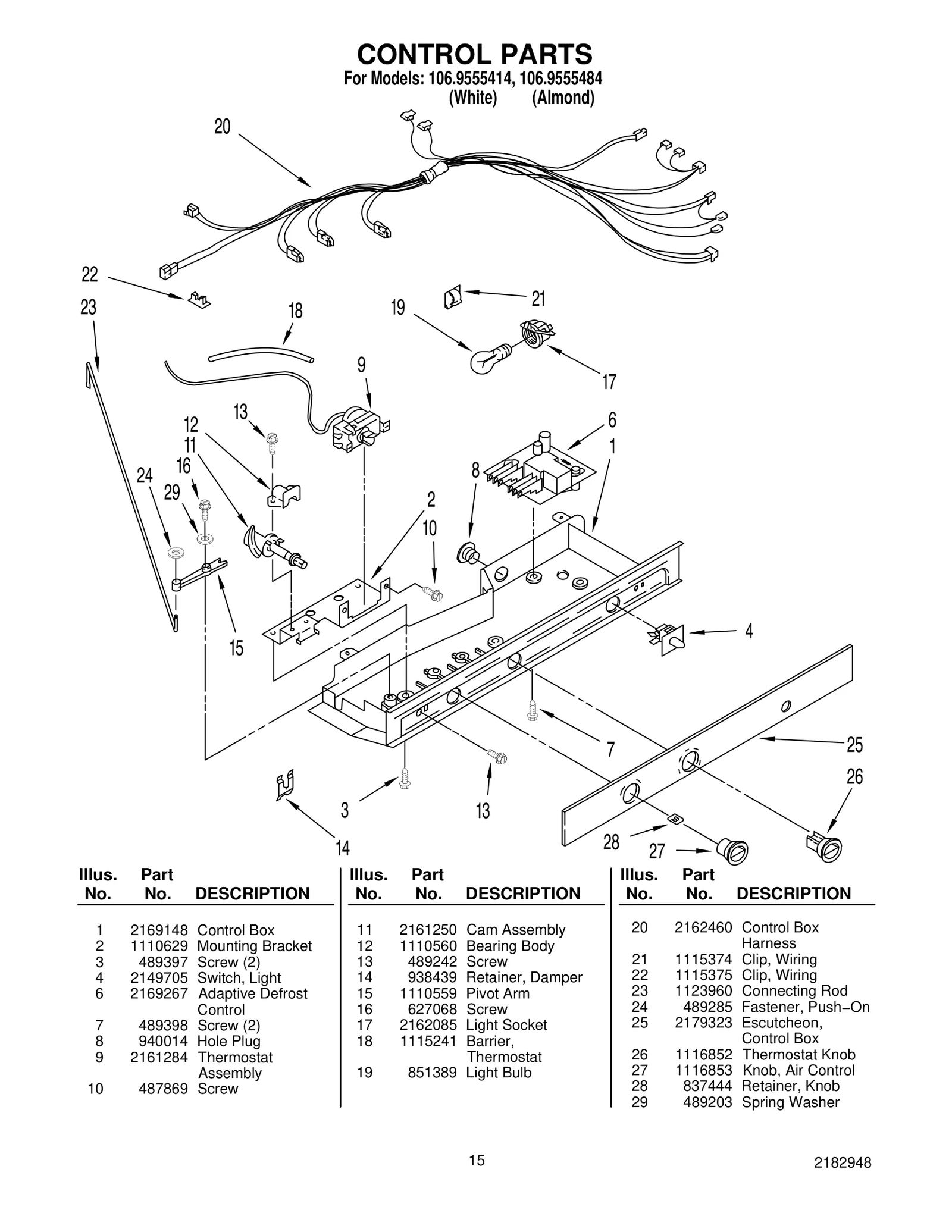

Control Box WPL 2169148 Contact Us For Availability

2

WP2196157 Whirlpool Fill Tube In Stock WPL WP2196157 $4.83

2

WP2256101 Whirlpool Dairy Door In Stock WPL WP2256101 $44.17

2

Handle WPL 2169729 Contact Us For Availability

2

Retainer Fan Motor WPL 2155590 Contact Us For Availability

2

Fan Blade WPL 1108179 Contact Us For Availability

2

Mounting Bracket WPL 1110629 Contact Us For Availability

3

WP488878 Whirlpool Refrigerator Tube Clamp Backorder WPL WP488878 $4.81

3

Slide, Meat Pan Control WPL 2182757 Contact Us For Availability

3

Shelf Bin (3) WPL 2182791 Contact Us For Availability

3

Shelf Bin WPL 2182794 Contact Us For Availability

3

Air Scoop WPL 2161231 Contact Us For Availability

3

Screw (2) WPL 489397 Contact Us For Availability

3

Condenser Assembly WPL 2164504 Contact Us For Availability

4

4387491 Whirlpool Refrigerator Insert In Stock WPL 4387491 $3.70

4

WP2149705 Whirlpool Refrigerator Door Switch In Stock WPL WP2149705 $20.89

4

WP2177962K Whirlpool Refrigerator Door Trim Backorder WPL WP2177962K $37.92

4

WP488729 Whirlpool Refrigerator Door Screw In Stock WPL WP488729 $2.64

4

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $3.70

4

Shield, Ice Door WPL 987121 Contact Us For Availability

4

Nameplate WPL 2155971 Contact Us For Availability

5

WP2180353 Whirlpool Dispenser Door In Stock WPL WP2180353 $7.65

5

WP489399 Whirlpool Refrigerator Screw In Stock WPL WP489399 $2.51

5

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $4.61

5

Track, Roll−Top WPL 2154321 Contact Us For Availability

5

Air Duct Freezer WPL 2176072 Contact Us For Availability

6

2159075 Whirlpool Door Gasket Seal In Stock WPL 2159075 $129.84

6

4388932 Whirlpool Refrigerator Adaptive Defro In Stock WPL 4388932 $139.55

6

681390 Whirlpool Refrigerator Screw Backorder WPL 681390 $9.13

6

WP2174267 Whirlpool Refrigerator Wire Shelf Backorder WPL WP2174267 $52.52

6

Track, Roll− Bottom WPL 2154320 Contact Us For Availability

6

Door Mechanism Assembly WPL 2157650 Contact Us For Availability

7

4389144 Whirlpool Refrigerator Evaporator Fan In Stock WPL 4389144 $38.95

7

489392 Whirlpool Refrigerator Screw Backorder WPL 489392 $9.59

7

W10823511 Whirlpool Refrigerator Water Tube In Stock WPL W10823511 $13.36

7

W10864399 Whirlpool Glass Shelf In Stock WPL W10864399 $93.38

7

WP1120581 Whirlpool Refrigerator Mechanism Backorder WPL WP1120581 $89.54

7

Heat Shield And Drain Pan WPL 2149294 Contact Us For Availability

8

2159074 Whirlpool Door Gasket Seal In Stock WPL 2159074 $161.37

8

WP1106508 Whirlpool Refrigerator Gasket Backorder WPL WP1106508 $4.14

8

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $13.65

8

Grille, Overflow WPL 983900 Contact Us For Availability

8

Hole Plug WPL 940014 Contact Us For Availability

9

WP2156006 Whirlpool Refrigerator Shelf Trim E In Stock WPL WP2156006 $4.10

9

WP2158826 Whirlpool Refrigerator Dampener In Stock WPL WP2158826 $0.90

9

WP2198202 Whirlpool Refrigerator Temperature In Stock WPL WP2198202 $51.64

9

WP489478 Whirlpool Refrigerator Screw Backorder WPL WP489478 $2.51

9

Clip, Bearing (2) WPL 987917 Contact Us For Availability

2179350 Whirlpool Refrigerator Deflector Backorder WPL 2179350 $30.20

W10749708 Whirlpool Refrigerator Coupling Backorder WPL W10749708 $13.85

W10853654 Whirlpool Water Inlet Valve In Stock WPL W10853654 $80.14

WP2176759 Whirlpool Refrigerator Grommet In Stock WPL WP2176759 $3.70

WP965173 Whirlpool Dishwasher Screw Backorder WPL WP965173 $2.64

WPW10307490 Whirlpool Door Trim Assembly In Stock WPL WPW10307490 $8.60

Grommet (8) WPL 2176134 Contact Us For Availability

Bearing, Lever (3) WPL 983697 Contact Us For Availability

WP627018 Whirlpool Refrigerator Nut In Stock WPL WP627018 $4.59

Spring, Lever (2) WPL 983696 Contact Us For Availability

Chute, Ice WPL 2156146 Contact Us For Availability

Cam Assembly WPL 2161250 Contact Us For Availability

1110560 Whirlpool Refrigerator Bearing Backorder WPL 1110560 $4.72

4318165 Whirlpool Refrigerator Door Closure C In Stock WPL 4318165 $9.99

WP2162358 Whirlpool Refrigerator Terminal Cov Backorder WPL WP2162358 $33.42

Shield, Wiring WPL 984494 Contact Us For Availability

Harness, Fan Evaporator And Heater WPL 2161478 Contact Us For Availability

WP2155789 Whirlpool Refrigerator Gasket Backorder WPL WP2155789 $3.70

WP489128 Whirlpool Refrigerator Screw Backorder WPL WP489128 $4.56

WP489483 Whirlpool Screw In Stock WPL WP489483 $4.58

WP61006294 Whirlpool Refrigerator Overload Backorder WPL WP61006294 $54.30

Tube, Water Inlet WPL 2171943 Contact Us For Availability

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $2.51

Shelf (2) WPL 2174268 Contact Us For Availability

Baffle WPL 2181722 Contact Us For Availability

Bracket, Door Stop WPL 2155334 Contact Us For Availability

Lever, Ice Dispenser WPL 1127421 Contact Us For Availability

Retainer, Damper WPL 938439 Contact Us For Availability

2182146 Whirlpool Refrigerator Duct Backorder WPL 2182146 $36.51

Hinge Cover — White WPL 1129262 Contact Us For Availability

Pivot Arm WPL 1110559 Contact Us For Availability

Relay WPL N/S Contact Us For Availability

Guide, Ice WPL 1118269 Contact Us For Availability

627068 Whirlpool Refrigerator Screw Backorder WPL 627068 $7.52

WP2304241 Whirlpool Refrigerator Gasket Backorder WPL WP2304241 $29.17

WP488366 Whirlpool Refrigerator Clamp Backorder WPL WP488366 $4.81

Track, Roll WPL 2154318 Contact Us For Availability

End Cap, Top WPL 2160457 Contact Us For Availability

Screw WPL 488362 Contact Us For Availability

4387478 Whirlpool Refrigerator Light Socket In Stock WPL 4387478 $34.28

WPW10109200 Whirlpool Screw In Stock WPL WPW10109200 $2.51

Cover, Evaporator WPL 2155612 Contact Us For Availability

Capacitor WPL 2169137 Contact Us For Availability

W11233072 Whirlpool Screw In Stock WPL W11233072 $9.59

WP2196003 Whirlpool Refrigerator Bar Riser Backorder WPL WP2196003 $3.70

WPW10289690 Whirlpool Ice Maker Cover Backorder WPL WPW10289690 $2.64

End Cap WPL 2174700 Contact Us For Availability

Insulator, Switch WPL 984683 Contact Us For Availability

WP22002263 Whirlpool Dryer 10W Light Bulb In Stock WPL WP22002263 $8.31

WP488234 Whirlpool Air Conditioner Screw Backorder WPL WP488234 $3.09

WPW10141625 Whirlpool Refrigerator Screw Asse Backorder WPL WPW10141625 $9.59

Lens, Light WPL 2171705 Contact Us For Availability

Bracket, Control WPL 1129283 Contact Us For Availability

Screw Grommet WPL 509812 Contact Us For Availability

WPW10190929 Whirlpool Refrigerator Ice Maker Backorder WPL WPW10190929 $153.49

End Cap, Bottom WPL 2151819 Contact Us For Availability

Front Cover, Housing WPL 2174301 Contact Us For Availability

Control Box Harness WPL 2162460 Contact Us For Availability

Unit Cover, Bottom WPL 2161363 Contact Us For Availability

489396 Whirlpool Refrigerator Clip Backorder WPL 489396 $4.72

WP1115374 Whirlpool Refrigerator Clip Backorder WPL WP1115374 $2.51

WP2171706 Whirlpool Refrigerator Light Lens Backorder WPL WP2171706 $33.64

Trim, Door−Top WPL 2161089 Contact Us For Availability

Overlay WPL 2174319 Contact Us For Availability

WP3400906 Whirlpool Refrigerator Screw Backorder WPL WP3400906 $2.51

WP628356 Whirlpool Refrigerator Fill Cup Backorder WPL WP628356 $17.55

Grille WPL 2155485 Contact Us For Availability

Trim, Door−Bottom WPL 2161273 Contact Us For Availability

Clip, Wiring WPL 1115375 Contact Us For Availability

Evaporator WPL 2164519 Contact Us For Availability

4388358 Whirlpool Refrigerator Support Bracke Backorder WPL 4388358 $12.65

WP627843 Whirlpool Refrigerator Ejector Arm In Stock WPL WP627843 $32.06

Clip WPL 2161324 Contact Us For Availability

Shim WPL 2160458 Contact Us For Availability

Trim, Middle WPL 2161272 Contact Us For Availability

Connecting Rod WPL 1123960 Contact Us For Availability

4317870 Whirlpool Refrigerator Auger Sleeve Backorder WPL 4317870 $91.80

WP2182124 Whirlpool Refrigerator Stripper Arm Backorder WPL WP2182124 $29.83

Motor, Fan WPL 2169135 Contact Us For Availability

Fastener, Push−On WPL 489285 Contact Us For Availability

Spring−Plunger WPL 983986 Contact Us For Availability

2152019 Whirlpool Refrigerator Cover Backorder WPL 2152019 $36.71

WP2195914 Whirlpool Refrigerator Ice Maker Ho Backorder WPL WP2195914 $41.30

Plunger WPL 1116563 Contact Us For Availability

Escutcheon, Control Box WPL 2179323 Contact Us For Availability

Tray, Evaporator WPL 1110674 Contact Us For Availability

26

WP2315522 Whirlpool Refrigerator Clip Backorder WPL WP2315522 $4.59

26

Pin−Retainer WPL 983987 Contact Us For Availability

26

Unit Harness WPL 2181709 Contact Us For Availability

W10843121 Whirlpool Refrigerator Tube In Stock WPL W10843121 $24.91

WP627985 Whirlpool Icemaker Cycling Thermosta In Stock WPL WP627985 $46.67

Lever, Water Dispenser WPL 2159196 Contact Us For Availability

Knob, Air Control WPL 1116853 Contact Us For Availability

2150331 Whirlpool Refrigerator Wire Cover Backorder WPL 2150331 $11.11

8533917 Whirlpool Refrigerator Screw In Stock WPL 8533917 $9.59

876765 Whirlpool Primary Mounting Kit Refrige In Stock WPL 876765 $27.52

W10309994 Whirlpool Refrigerator Compressor In Stock WPL W10309994 $314.61

Screw WPL 489197 Contact Us For Availability

Retainer, Knob WPL 837444 Contact Us For Availability

29

489203 Whirlpool Refrigerator Washer Backorder WPL 489203 $4.36

30

2304904 Whirlpool Frame Assembly Backorder WPL 2304904 $115.36

30

WP4388152 Whirlpool Refrigerator Fitting In Stock WPL WP4388152 $93.40

30

WP681249 Whirlpool Screw Assembly In Stock WPL WP681249 $2.51

31

W11342242 Whirlpool Refrigerator Ice Level Ar In Stock WPL W11342242 $28.40

31

WP2162361 Whirlpool Switch In Stock WPL WP2162361 $8.80

32

WP2187464 Whirlpool Refrigerator Wire Harness Backorder WPL WP2187464 $48.79

32

Lampholder WPL 987265 Contact Us For Availability

32

Bracket, Fan Motor WPL 548695 Contact Us For Availability

33

W11500948 Whirlpool Refrigerator Bracket In Stock WPL W11500948 $12.32

33

WP2323198 Whirlpool Refrigerator Heater In Stock WPL WP2323198 $30.17

33

Switch−Light WPL 851386 Contact Us For Availability

34

Light Lens WPL 2174436 Contact Us For Availability

34

Clip, Heater WPL 2161330 Contact Us For Availability

35

W10190935 Whirlpool Refrigerator Icemaker Mot In Stock WPL W10190935 $49.38

35

WPW10225581 Whirlpool Refrigerator Defrost Th In Stock WPL WPW10225581 $19.51

35

Stop, Glass WPL 1119056 Contact Us For Availability

36

WP488163 Whirlpool Refrigerator Screw In Stock WPL WP488163 $3.70

36

Release Valve WPL 2171846 Contact Us For Availability

38

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $4.56

38

WP2172890 Whirlpool Refrigerator Wire Backorder WPL WP2172890 $2.51

39

876811 Whirlpool Grommet Backorder WPL 876811 $3.70

39

WP488787 Whirlpool Refrigerator Screw Backorder WPL WP488787 $4.56

40

489340 Whirlpool Refrigerator Screw Backorder WPL 489340 $4.56

40

Nut, Compression WPL 1129179 Contact Us For Availability

41

W10896764 Whirlpool Refrigerator Air Baffle In Stock WPL W10896764 $40.19

42

Clip, Heat WPL 2155547 Contact Us For Availability

48

2305374 Whirlpool Refrigerator Unit Rail Backorder WPL 2305374 $29.17

49

Hinge Cover — White WPL 1119787 Contact Us For Availability

49

Screw WPL 488624 Contact Us For Availability

50

GUARD-FAN Backorder WPL 1110663 $26.83

51

W11751592 Whirlpool Sleeve In Stock WPL W11751592 $12.17

52

Wire Tie WPL 851095 Contact Us For Availability

53

WP489427 Whirlpool Refrigerator Screw Backorder WPL WP489427 $3.70

54

Wire Connector WPL 850145 Contact Us For Availability

59

Clip, Wire & Tube WPL 2155658 Contact Us For Availability

61

W11693756 Whirlpool Screw Assembly Backorder WPL W11693756 $8.11

62

Clip, Tube (3) WPL 934011 Contact Us For Availability

63

WP4211117 Whirlpool Refrigerator Connector In Stock WPL WP4211117 $5.34

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $23.44

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $35.96

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $37.79

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $39.53

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $28.82

Valve, Access WPL 978029 Contact Us For Availability

Tube, Spring Following Parts Not Illustrated WPL 983659 Contact Us For Availability

Valve, Access WPL 978028 Contact Us For Availability

65

WP2155013 Whirlpool Refrigerator Clip In Stock WPL WP2155013 $3.70

100

4317943 Whirlpool Refrigerator Ice Maker Asse In Stock WPL 4317943 $107.21

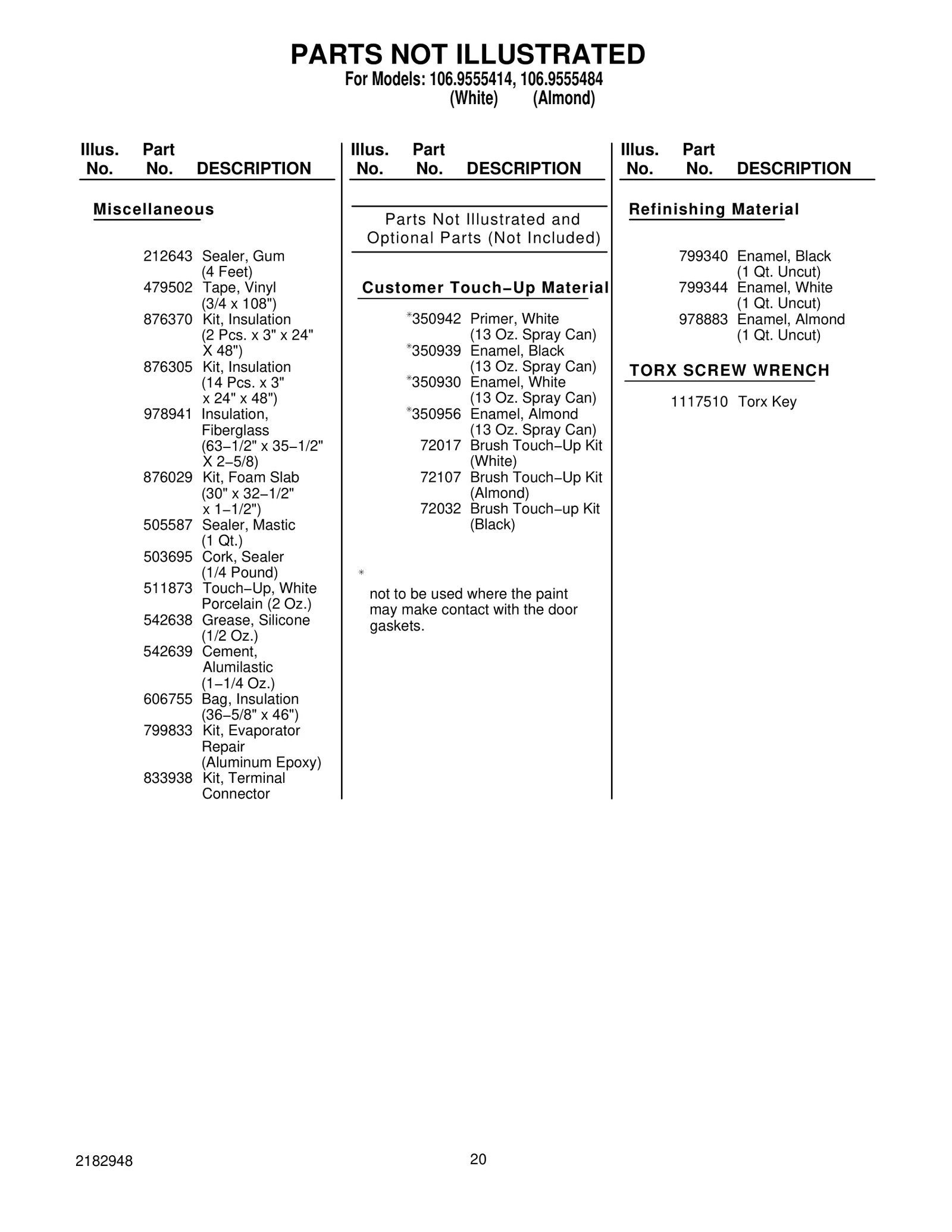

OPT-1

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $30.25

OPT-2

Tape, Vinyl WPL 479502 Contact Us For Availability

OPT-4

876370 Whirlpool Refrigerator Insulation Backorder WPL 876370 $106.84

OPT-6

Kit, Foam Slab WPL 876029 Contact Us For Availability

OPT-7

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $64.36

OPT-8

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $43.61

OPT-9

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $19.22

OPT-10

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $24.56

OPT-11

Cement, WPL 542639 Contact Us For Availability

OPT-12

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $29.17

OPT-13

Kit, Evaporator WPL 799833 Contact Us For Availability

OPT-14

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

OPT-15

350942 Whirlpool Spray Paint Backorder WPL 350942 $50.33

OPT-16

285006 Whirlpool Spray In Stock WPL 285006 $44.38

OPT-17

350930 Whirlpool White Spray Paint In Stock WPL 350930 $21.41

OPT-18

350956 Whirlpool Spray Assembly In Stock WPL 350956 $28.82

OPT-19

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.92

OPT-20

WP72107 Whirlpool Touchup In Stock WPL WP72107 $6.13

OPT-21

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $7.21

OPT-22

Enamel, Black WPL 799340 Contact Us For Availability

OPT-23

Enamel, White WPL 799344 Contact Us For Availability

OPT-24

Enamel, Almond WPL 978883 Contact Us For Availability

OPT-25

Torx Key WPL 1117510 Contact Us For Availability
