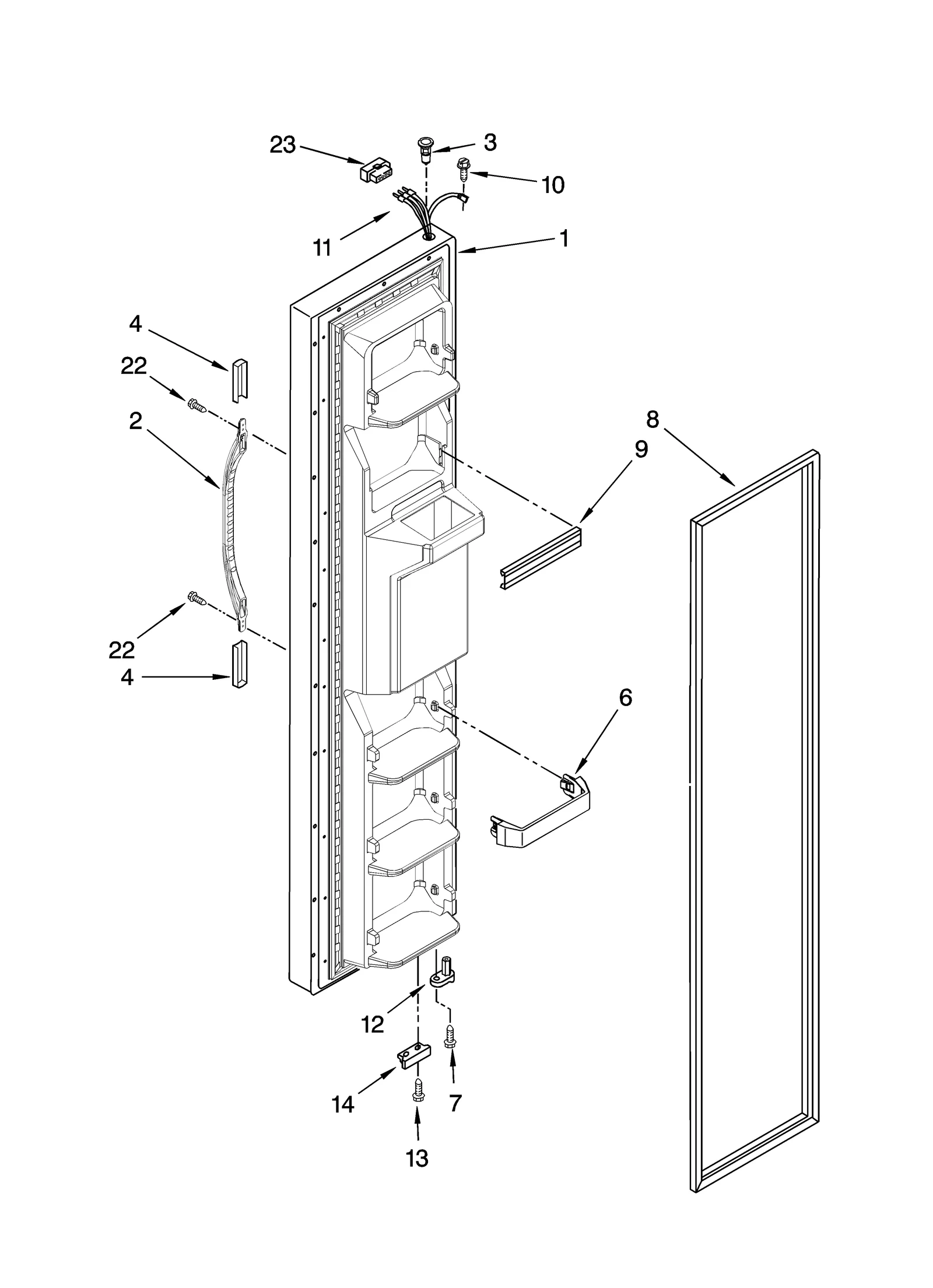

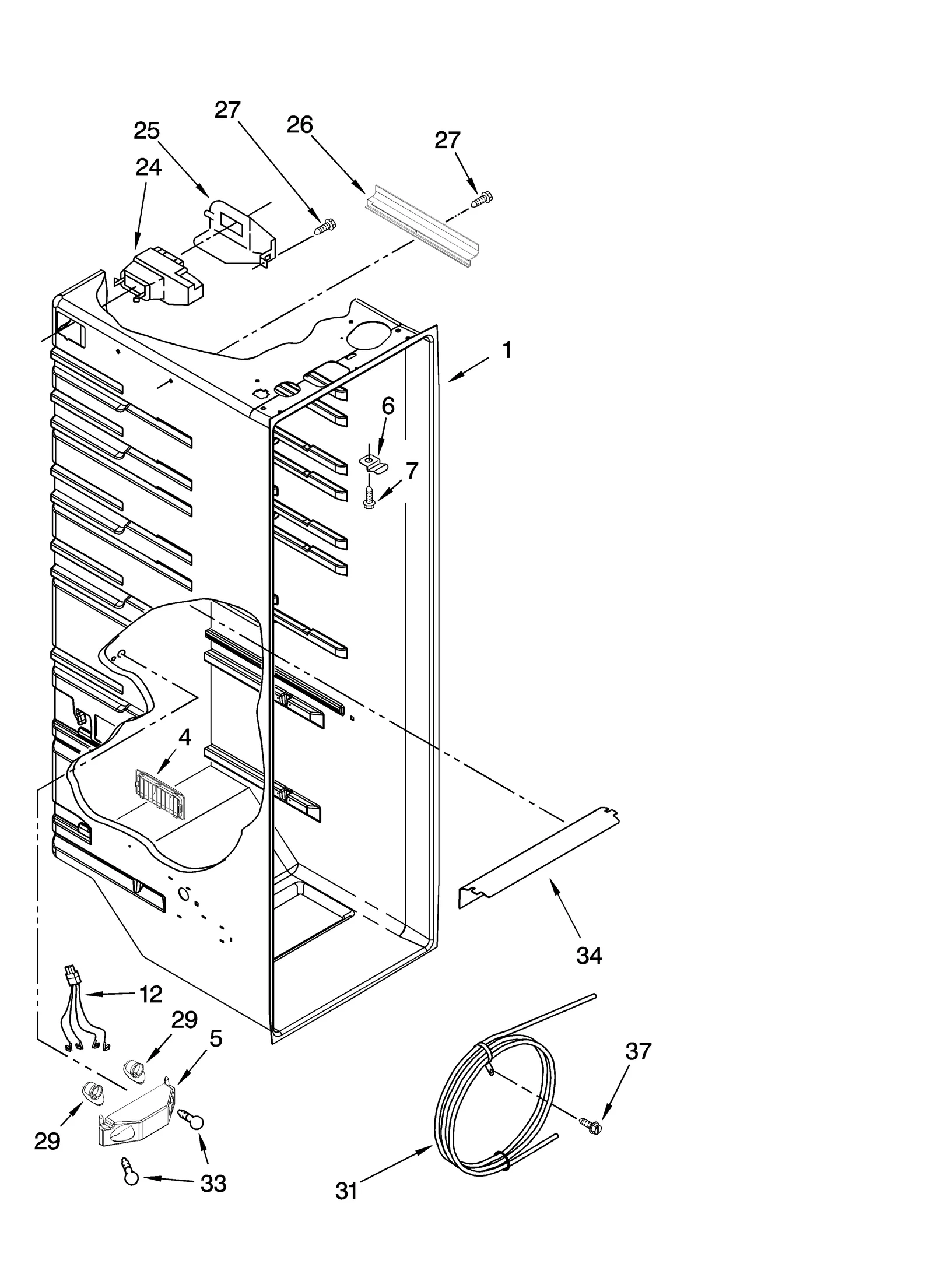

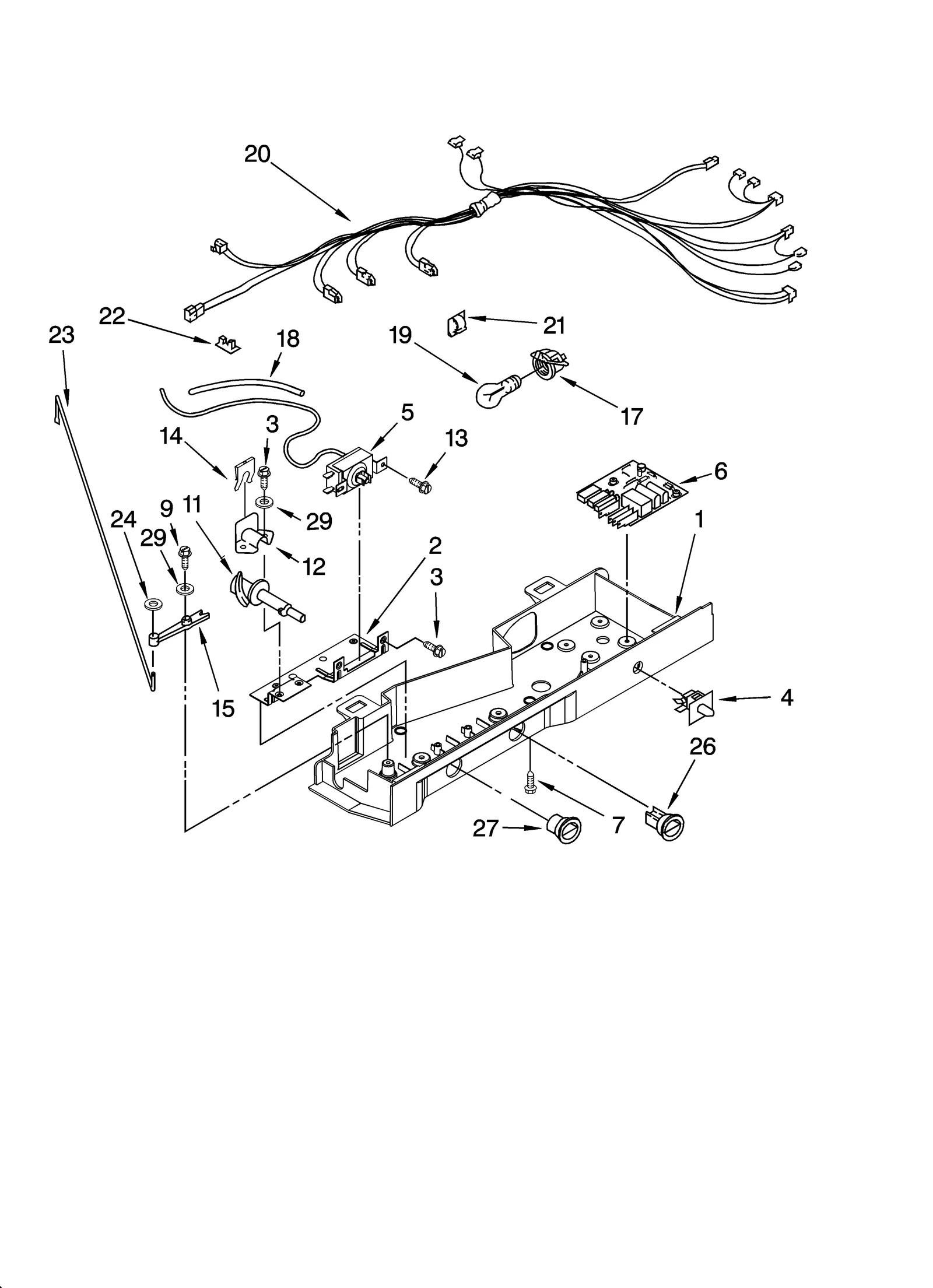

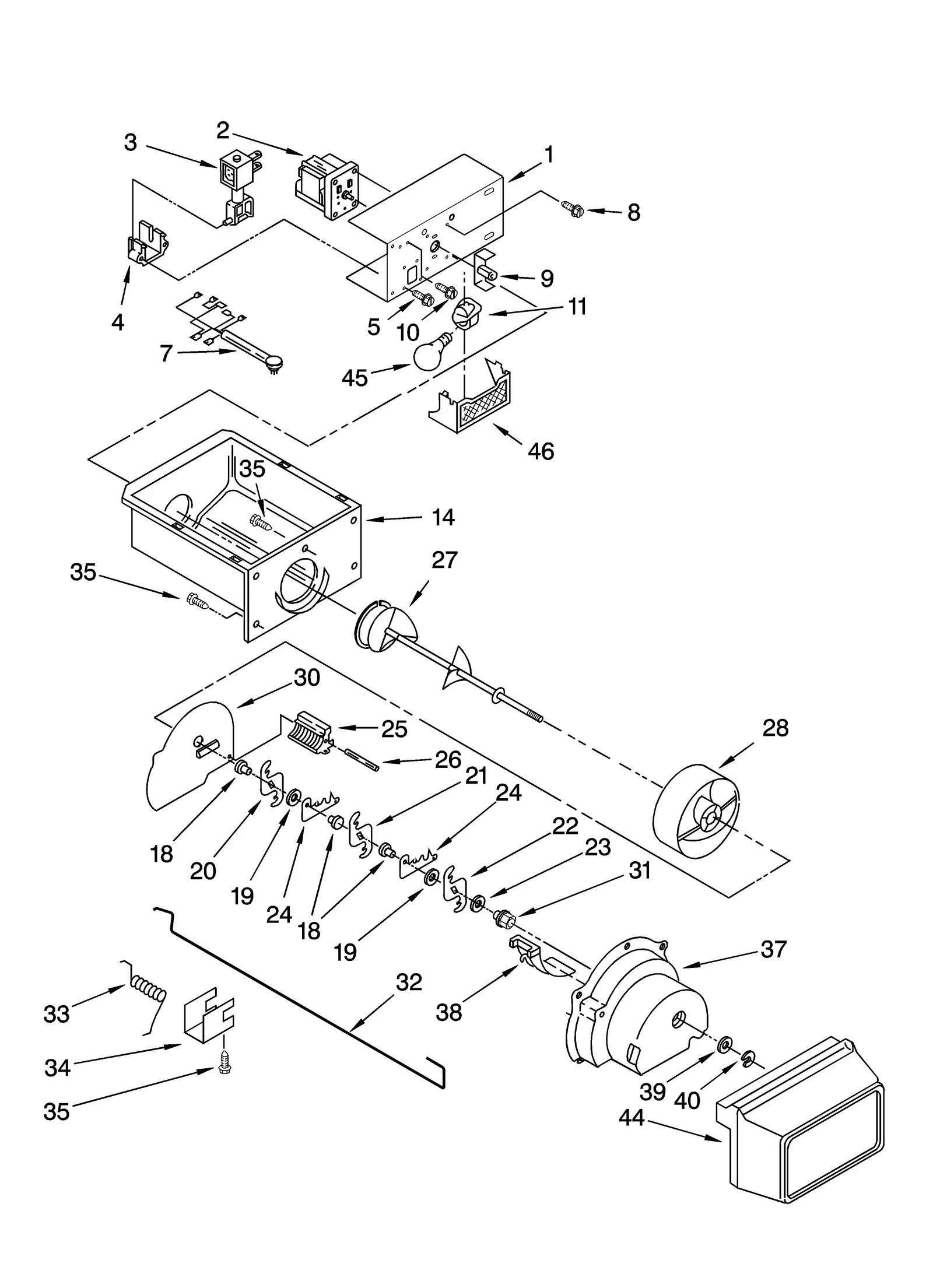

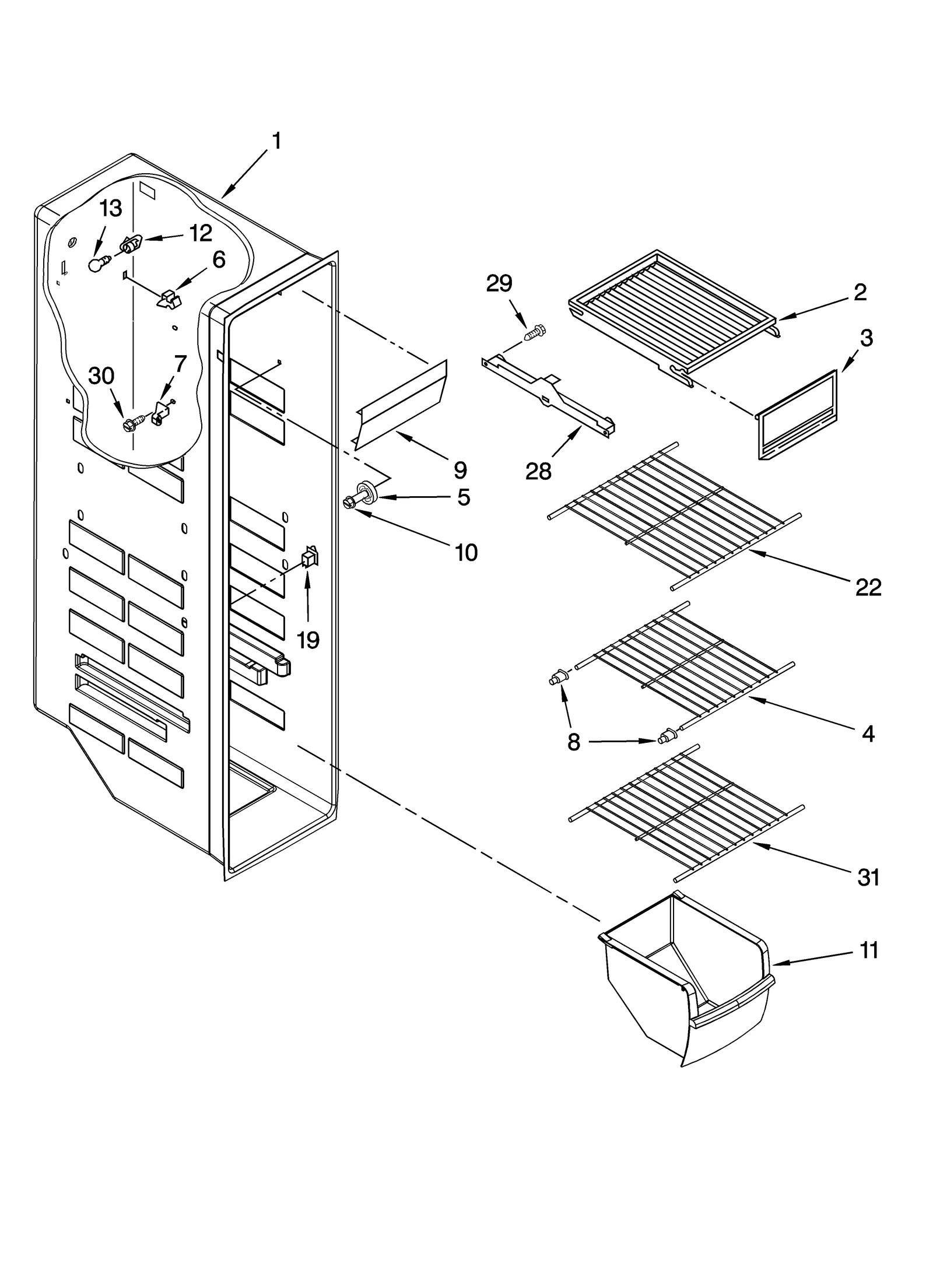

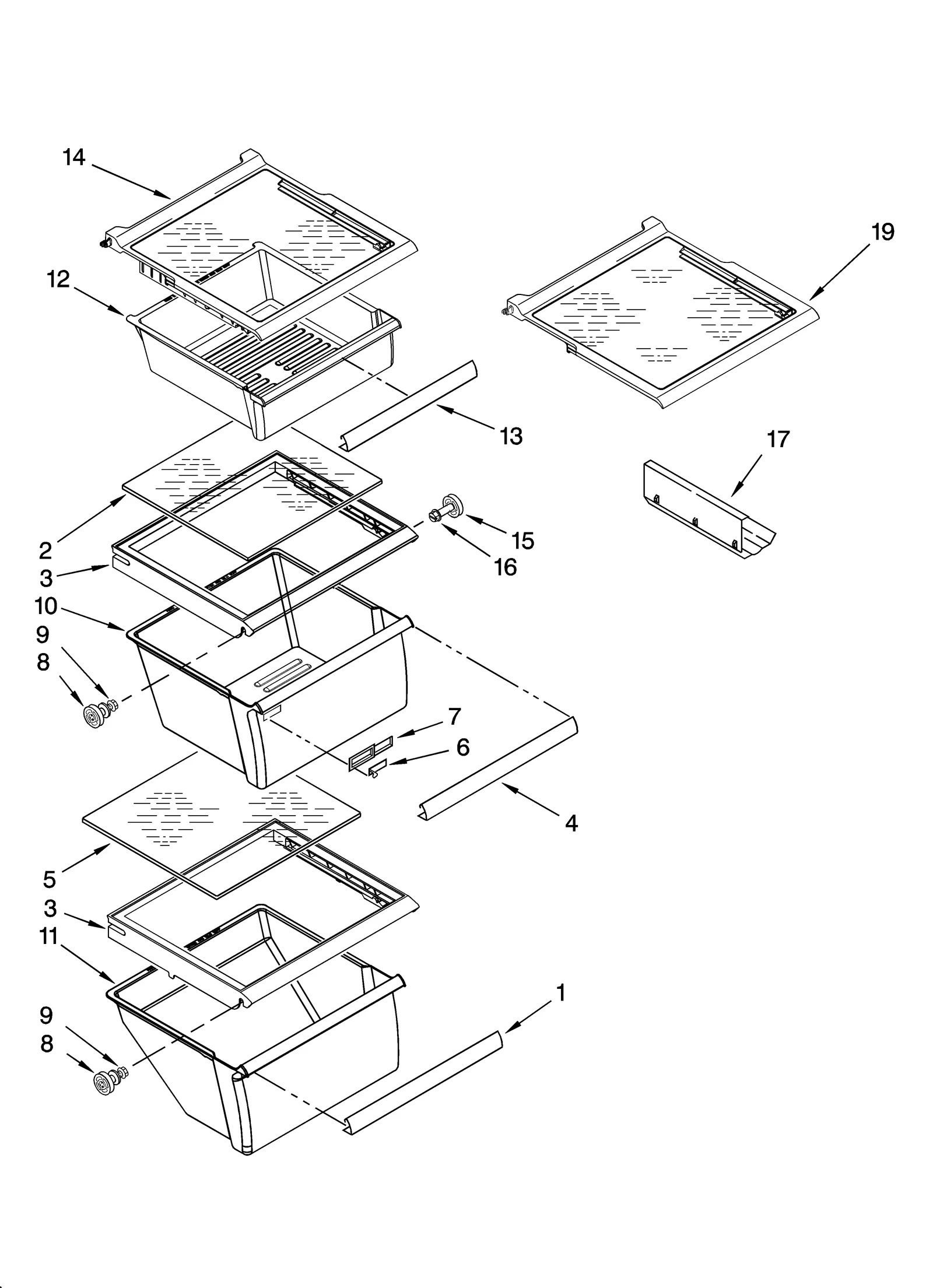

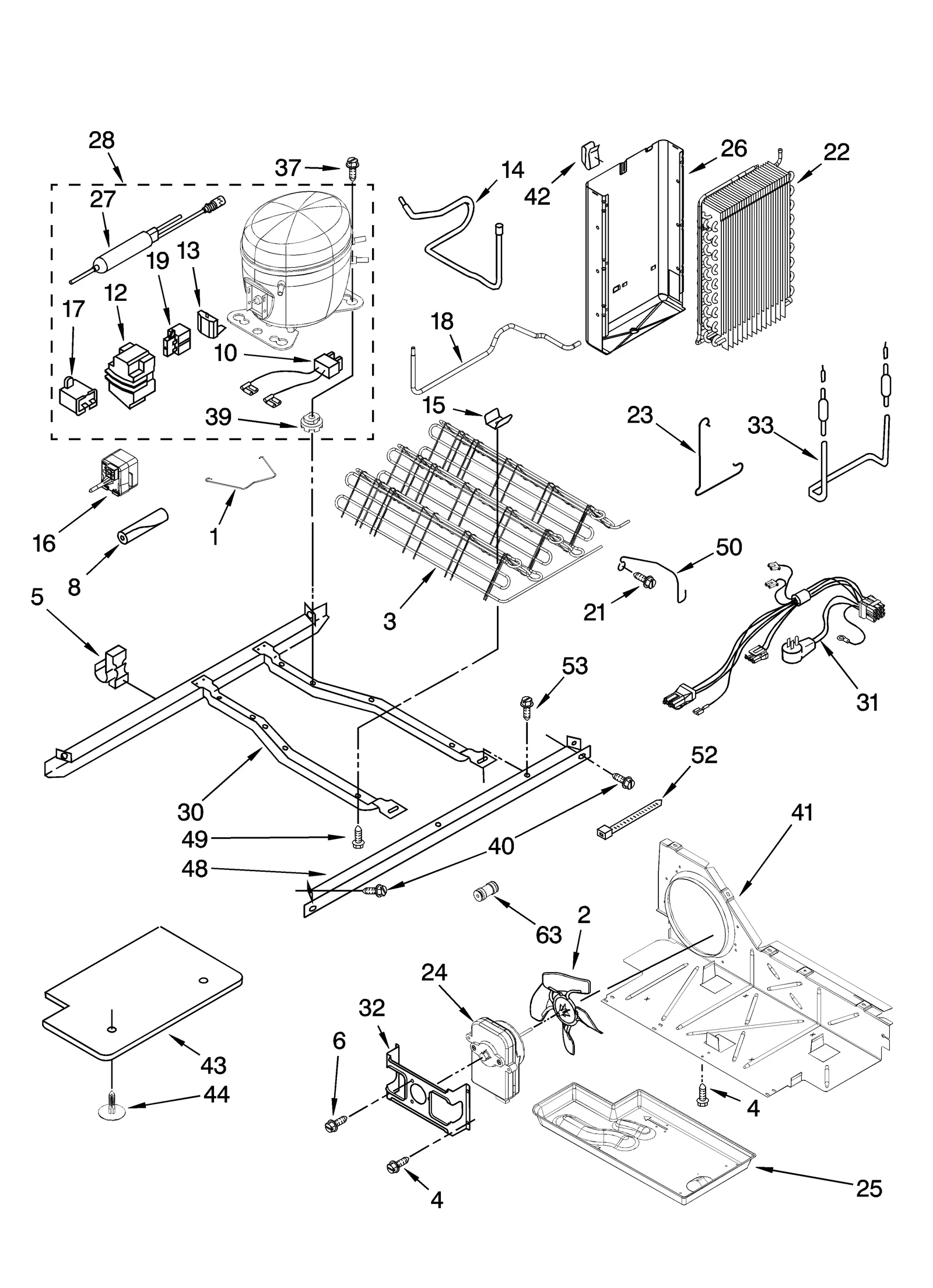

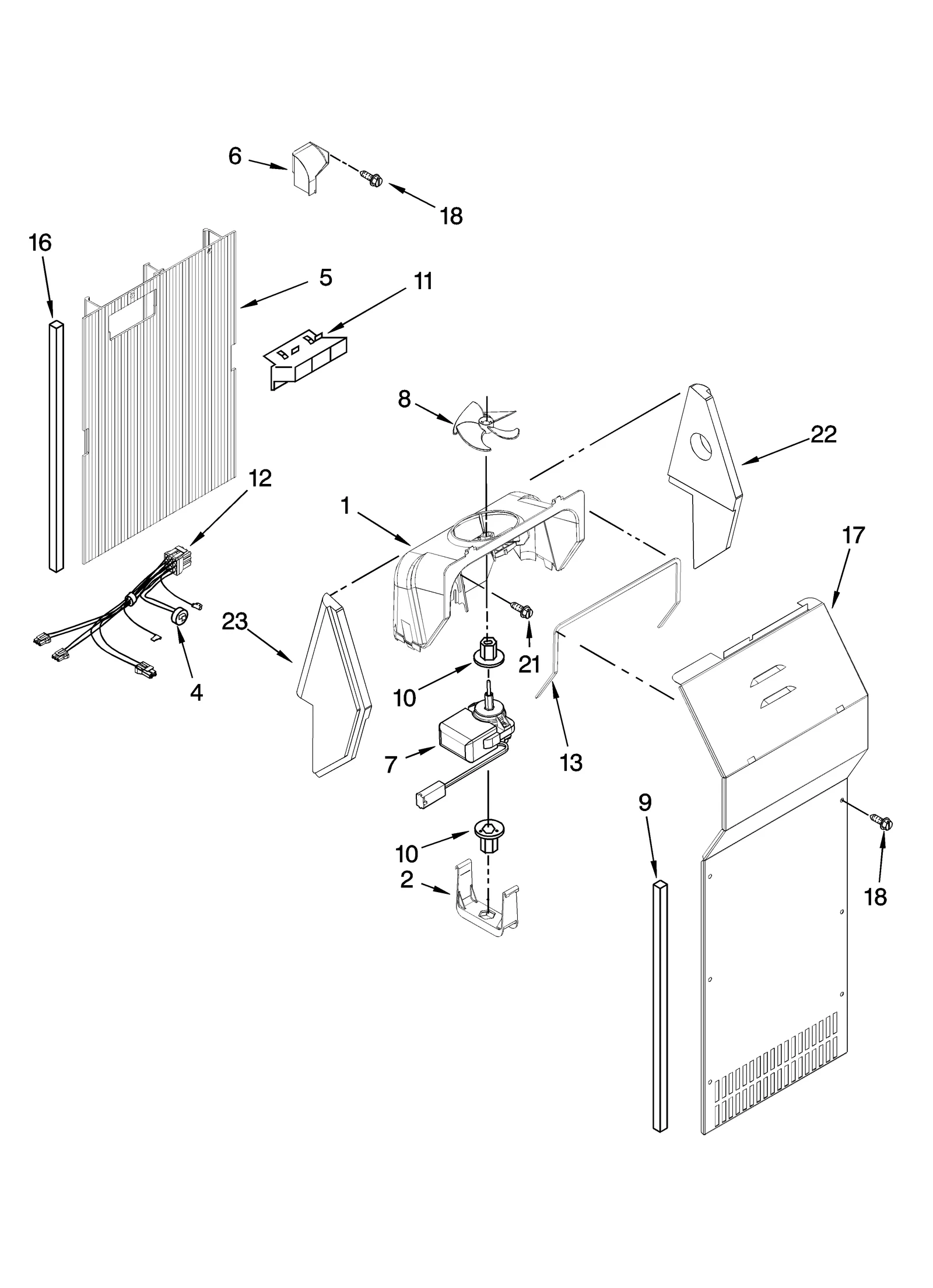

Model Whirlpool 106.58434700 Side-By-Side Refrigerator (Kenmore 10658434700) – Common Parts &amp; Diagrams

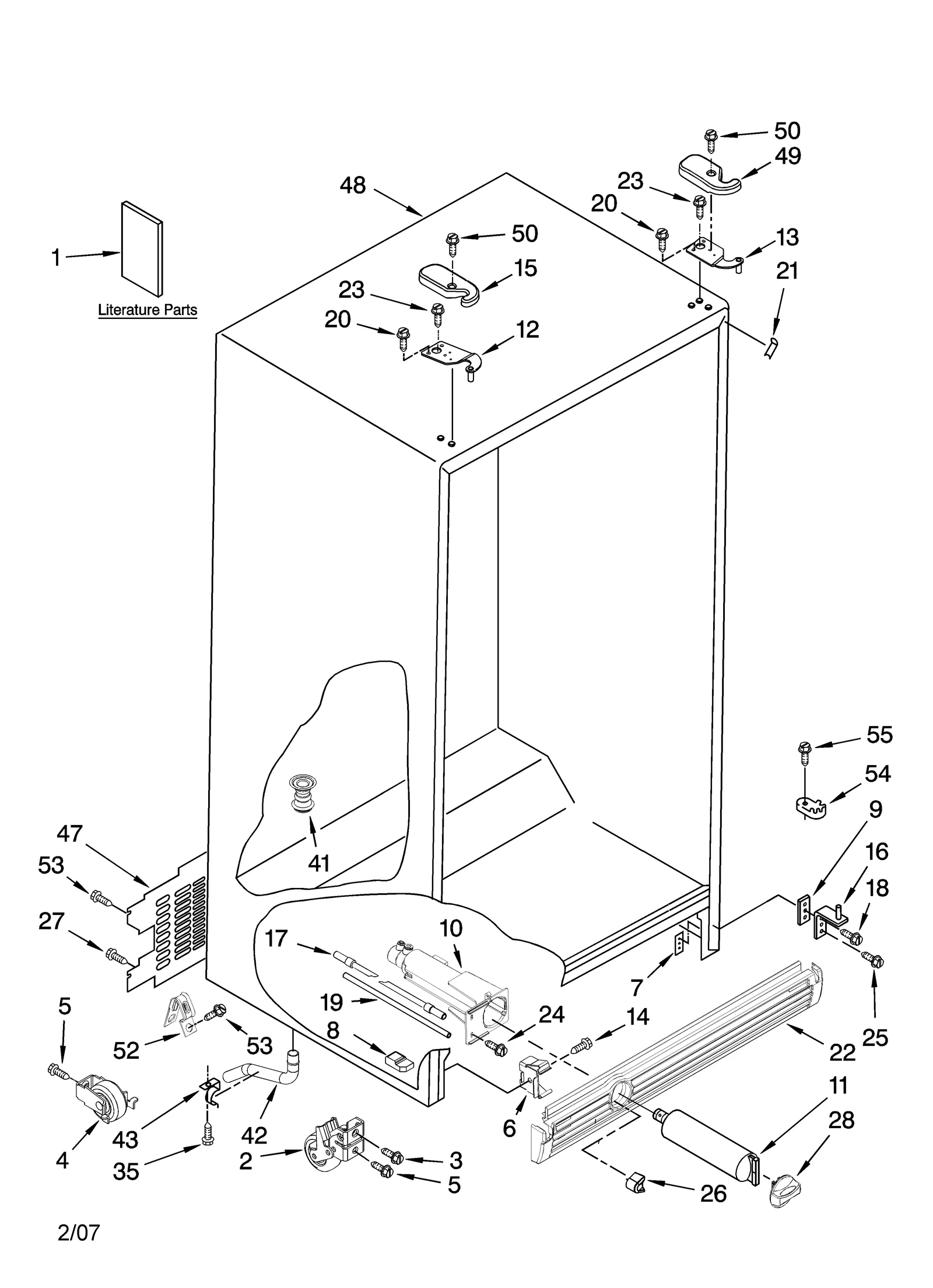

1

Freezer Door Assembly (White) WPL 2309948W Contact Us For Availability

1

Refrigerator Owner's Manual WPL 2309568 Contact Us For Availability

1

Refrigerator Motor Bracket WPL 2183726 Contact Us For Availability

1A

Freezer Door Assembly (Bisque) WPL 2309948T Contact Us For Availability

1A

Refrigerator Technical Sheet WPL 2311815 Contact Us For Availability

1B

Freezer Door Assembly (Black) WPL 2309948B Contact Us For Availability

1B

Refrigerator Energy Guide Label WPL 2311961 Contact Us For Availability

1C

Freezer Door Assembly (Stainless) WPL 2309948L Contact Us For Availability

1C

Refrigerator Energy Guide WPL 2309570 Contact Us For Availability

1D

Refrigerator Installation Instructions WPL 2304845 Contact Us For Availability

1E

Refrigerator Installation Instructions WPL 2261037 Contact Us For Availability

1F

Refrigerator Service Manual WPL 628370 Contact Us For Availability

2

2311611 Whirlpool Refrigerator Bracket Backorder WPL 2311611 $8.73

2

W11505385 Whirlpool Refrigerator Chute In Stock WPL W11505385 $9.89

2

WP2188242 Whirlpool Refrigerator Motor In Stock WPL WP2188242 $145.08

2

WP2256101 Whirlpool Dairy Door In Stock WPL WP2256101 $44.17

2

Refrigerator Evaporator Fan Motor Retainer WPL 2155590 Contact Us For Availability

2

Refrigerator Handle Assembly WPL 2304413W Contact Us For Availability

2

Refrigerator Cabinet Roller WPL 2174748 Contact Us For Availability

2A

Refrigerator Handle WPL 2304413T Contact Us For Availability

2B

Refrigerator Handle (Black) WPL 2304413B Contact Us For Availability

3

W10850698 Whirlpool Refrigerator Screw Backorder WPL W10850698 $4.72

3

WP2152713 Whirlpool Refrigerator Solenoid In Stock WPL WP2152713 $106.45

3

WP2171713 Whirlpool Refrigerator Ice Door Backorder WPL WP2171713 $45.71

3

WP2182181 Whirlpool Refrigerator Thimble In Stock WPL WP2182181 $3.88

3

WP2194719 Whirlpool Refrigerator Clip In Stock WPL WP2194719 $4.13

4

W10850503 Whirlpool Refrigerator Guide Backorder WPL W10850503 $4.63

4

WP2179342 Whirlpool Refrigerator Slide Backorder WPL WP2179342 $10.08

4

WP2187172 Whirlpool Refrigerator Door Shelf B In Stock WPL WP2187172 $24.03

4

WPW10250570 Whirlpool Refrigerator Cabinet Ro Backorder WPL WPW10250570 $14.49

4

Refrigerator Door Handle Trim Cap WPL 2194272W Contact Us For Availability

4A

Refrigerator Door Handle End Cap WPL 2194272T Contact Us For Availability

4B

WP2194272B Whirlpool Refrigerator Handle Endc Backorder WPL WP2194272B $3.70

5

W10864399 Whirlpool Glass Shelf In Stock WPL W10864399 $93.38

5

W11233072 Whirlpool Screw In Stock WPL W11233072 $9.59

5

WP2196195 Whirlpool Refrigerator Door Pin In Stock WPL WP2196195 $7.69

5

WP2198202 Whirlpool Refrigerator Temperature In Stock WPL WP2198202 $51.64

5

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $4.61

6

2311612 Whirlpool Refrigerator Clip Backorder WPL 2311612 $32.04

6

WP2155013 Whirlpool Refrigerator Clip In Stock WPL WP2155013 $3.70

6

WP2179343 Whirlpool Refrigerator Control Body Backorder WPL WP2179343 $13.98

6

WP2180353 Whirlpool Dispenser Door In Stock WPL WP2180353 $7.65

6

Refrigerator Door Trim WPL 2177963 Contact Us For Availability

7

2311639 Whirlpool Refrigerator Dispenser Wiri Backorder WPL 2311639 $126.70

7

WP2179234 Whirlpool Refrigerator Pan Trim Backorder WPL WP2179234 $30.18

7

WP2304249 Whirlpool Refrigerator Plate Backorder WPL WP2304249 $8.11

8

2159074 Whirlpool Door Gasket Seal In Stock WPL 2159074 $161.37

8

2163762 Whirlpool Refrigerator Cup Assembly Backorder WPL 2163762 $4.32

8

W11223328 Whirlpool Refrigerator Shelf Stud Backorder WPL W11223328 $9.59

8

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $13.65

8

WP489399 Whirlpool Refrigerator Screw In Stock WPL WP489399 $2.51

8

Refrigerator Insulation WPL 2260519 Contact Us For Availability

8A

2159082 Whirlpool Refrigerator Door Gasket Bl In Stock WPL 2159082 $141.10

9

WP2206670W Whirlpool Dispenser Tray Backorder WPL WP2206670W $30.76

9

WPW10169511 Whirlpool Refrigerator Coupling In Stock WPL WPW10169511 $9.70

9

WPW10307490 Whirlpool Door Trim Assembly In Stock WPL WPW10307490 $8.60

9

Refrigerator Light Lens WPL 2171705 Contact Us For Availability

9

Refrigerator Shim WPL 2209697 Contact Us For Availability

9A

WP2206670T Whirlpool Refrigerator Grille Backorder WPL WP2206670T $40.39

9B

WP2206670B Whirlpool Dispenser Tray In Stock WPL WP2206670B $21.39

10

WP2176759 Whirlpool Refrigerator Grommet In Stock WPL WP2176759 $3.70

10

WPW10121138 Whirlpool Refrigerator Water Filt In Stock WPL WPW10121138 $56.98

2182146 Whirlpool Refrigerator Duct Backorder WPL 2182146 $36.51

2311641 Whirlpool Refrigerator Wire Harness Backorder WPL 2311641 $96.56

4387478 Whirlpool Refrigerator Light Socket In Stock WPL 4387478 $34.28

WP2182195 Whirlpool Refrigerator Cam Backorder WPL WP2182195 $5.14

Genuine Kenmore Refrigerator Water Filter WPL 9020 Contact Us For Availability

11A

Refrigerator Dispenser Level WPL 2195089T Contact Us For Availability

1110560 Whirlpool Refrigerator Bearing Backorder WPL 1110560 $4.72

WP2180224 Whirlpool Dispenser Funnel Guide In Stock WPL WP2180224 $7.37

WP2182179 Whirlpool Cam Closer In Stock WPL WP2182179 $3.59

WP2203770 Whirlpool Refrigerator Door Hinge Backorder WPL WP2203770 $33.56

2180200 Whirlpool Refrigerator Socket Backorder WPL 2180200 $34.95

WP2154697 Whirlpool Refrigerator Overload Backorder WPL WP2154697 $51.26

WP2203771 Whirlpool Refrigerator Door Hinge In Stock WPL WP2203771 $35.78

WP2206629B Whirlpool Refrigerator Bracket Backorder WPL WP2206629B $13.80

WP489483 Whirlpool Screw In Stock WPL WP489483 $4.58

WP2162361 Whirlpool Switch In Stock WPL WP2162361 $8.80

WP489128 Whirlpool Refrigerator Screw Backorder WPL WP489128 $4.56

WPW10670845 Whirlpool Refrigerator Ice Contai In Stock WPL WPW10670845 $76.66

Refrigerator Suction Line WPL 2205765 Contact Us For Availability

15

WP2196483 Whirlpool Refrigerator Shelf Stud In Stock WPL WP2196483 $4.34

15

WP2203407W Whirlpool Refrigerator Cover Backorder WPL WP2203407W $11.51

15

Refrigerator Damper Control Pivot Arm WPL 1110559 Contact Us For Availability

15A

2203407T Whirlpool Refrigerator Cover Backorder WPL 2203407T $13.83

15B

WP2203407B Whirlpool Refrigerator Cover Backorder WPL WP2203407B $12.81

16

8201707 Whirlpool Door Hinge In Stock WPL 8201707 $31.44

17

WP2304697 Whirlpool Refrigerator Water Tube Backorder WPL WP2304697 $53.34

17A

Refrigerator Dispenser Level WPL 2195090T Contact Us For Availability

18

2261599 Whirlpool Refrigerator Tube Backorder WPL 2261599 $139.55

18

WP1119005 Whirlpool Refrigerator Spacer Backorder WPL WP1119005 $4.67

18

WP489497 Whirlpool Screw In Stock WPL WP489497 $4.58

19

WP1119007 Whirlpool Refrigerator Spacer Backorder WPL WP1119007 $4.87

19

WPW10141625 Whirlpool Refrigerator Screw Asse Backorder WPL WPW10141625 $9.59

19

WPW10350006 Whirlpool Refrigerator Water Tube Backorder WPL WPW10350006 $44.41

20

2311650 Whirlpool Refrigerator Wire Harness Backorder WPL 2311650 $32.06

20

W10278731 Whirlpool Refrigerator Blade Backorder WPL W10278731 $33.71

20

Refrigerator Screw WPL 3400858 Contact Us For Availability

21

W10278732 Whirlpool Refrigerator Blade Backorder WPL W10278732 $33.73

21

WP489478 Whirlpool Refrigerator Screw Backorder WPL WP489478 $2.51

21

WPW10283959 Whirlpool Refrigerator Filler In Stock WPL WPW10283959 $3.70

21A

W10283958 Whirlpool Refrigerator Filler Backorder WPL W10283958 $14.60

21B

W11252732 Whirlpool Refrigerator Filler Backorder WPL W11252732 $7.16

W10278733 Whirlpool Refrigerator Blade Backorder WPL W10278733 $33.73

WP2188823 Whirlpool Refrigerator Evaporator In Stock WPL WP2188823 $196.39

WP489491 Whirlpool Refrigerator Screw Backorder WPL WP489491 $2.51

WP628356 Whirlpool Refrigerator Fill Cup Backorder WPL WP628356 $17.55

WPW10311032 Whirlpool Refrigerator Grille Backorder WPL WPW10311032 $64.96

22A

Refrigerator Grille WPL 2260500T Contact Us For Availability

22B

WPW10311033 Whirlpool Refrigerator Grille Backorder WPL WPW10311033 $83.12

2311631 Whirlpool Refrigerator Rod Backorder WPL 2311631 $9.81

WP2154473 Whirlpool Refrigerator Connector Backorder WPL WP2154473 $10.76

WP3400012 Whirlpool Refrigerator Screw Backorder WPL WP3400012 $2.51

WP489235 Whirlpool Refrigerator Washer Backorder WPL WP489235 $4.59

WP627843 Whirlpool Refrigerator Ejector Arm In Stock WPL WP627843 $32.06

Refrigerator Defrost Clip WPL 2161324 Contact Us For Availability

WP2182124 Whirlpool Refrigerator Stripper Arm Backorder WPL WP2182124 $29.83

WP2188874 Whirlpool Refrigerator Condenser Mo In Stock WPL WP2188874 $59.32

WP489500 Whirlpool Refrigerator Screw Backorder WPL WP489500 $2.51

Spacer WPL 625834 Contact Us For Availability

Refrigerator Air Damper Control Clip WPL 489285 Contact Us For Availability

Refrigerator Ice Crusher Fixed Blade WPL 1119009 Contact Us For Availability

2152019 Whirlpool Refrigerator Cover Backorder WPL 2152019 $36.71

2157405 Whirlpool Refrigerator Blade Block Backorder WPL 2157405 $10.76

W10856122 Whirlpool Refrigerator Screw Backorder WPL W10856122 $2.51

WP2195051 Whirlpool Refrigerator Clip Backorder WPL WP2195051 $4.81

2150331 Whirlpool Refrigerator Wire Cover Backorder WPL 2150331 $11.11

2260503W Whirlpool Refrigerator Button Backorder WPL 2260503W $13.30

489229 Whirlpool Refrigerator Roll Pin Backorder WPL 489229 $30.18

WP2304673 Whirlpool Refrigerator Bracket Backorder WPL WP2304673 $6.35

26B

WP2260503B Whirlpool Refrigerator Button Backorder WPL WP2260503B $29.79

2311615 Whirlpool Refrigerator Knob Backorder WPL 2311615 $34.20

W10422851 Whirlpool Ice Maker Bucket Auger In Stock WPL W10422851 $108.42

WP488488 Whirlpool Refrigerator Screw Backorder WPL WP488488 $3.70

Refrigerator Dispenser Ice Chute Door Motor S WPL 2252127 Contact Us For Availability

4388736 Whirlpool Refrigerator Ice Dispenser In Stock WPL 4388736 $34.20

8533917 Whirlpool Refrigerator Screw In Stock WPL 8533917 $9.59

W10845585 Whirlpool Refrigerator Track Backorder WPL W10845585 $56.13

WP2260518W Whirlpool Refrigerator Filter Cap In Stock WPL WP2260518W $17.24

28A

W10845583 Whirlpool Refrigerator Track Backorder WPL W10845583 $51.59

28A

Refrigerator Water Filter Cap (Bisque) WPL 2260502T Contact Us For Availability

28B

WP2260518B Whirlpool Water Filter Cap In Stock WPL WP2260518B $13.45

30

W10142289 Whirlpool Air Conditioner Screw Backorder WPL W10142289 $5.16

30

W10852691 Whirlpool Refrigerator Baffle Backorder WPL W10852691 $13.16

31

W11342242 Whirlpool Refrigerator Ice Level Ar In Stock WPL W11342242 $28.40

31

WP1119018 Whirlpool Refrigerator Bearing Backorder WPL WP1119018 $3.70

31

Refrigerator Shelf Wire WPL 2309522 Contact Us For Availability

32

W11596045 Whirlpool Refrigerator Control Arm Backorder WPL W11596045 $12.11

32

WP2181929 Whirlpool Refrigerator Bracket Backorder WPL WP2181929 $5.67

33

1119020 Whirlpool Refrigerator Spring Backorder WPL 1119020 $6.09

33

W11500948 Whirlpool Refrigerator Bracket In Stock WPL W11500948 $12.32

34

1119021 Whirlpool Refrigerator Clip Backorder WPL 1119021 $4.63

35

WP488787 Whirlpool Refrigerator Screw Backorder WPL WP488787 $4.56

35

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $3.70

37

WPW10185018 Whirlpool Refrigerator Housing In Stock WPL WPW10185018 $57.34

38

WP1119017 Whirlpool Refrigerator Deflector Backorder WPL WP1119017 $3.70

39

489234 Whirlpool Refrigerator Washer Backorder WPL 489234 $9.59

40

WP489236 Whirlpool Refrigerator Ring Backorder WPL WP489236 $5.09

41

W11566763 Whirlpool Fitting In Stock WPL W11566763 $21.01

42

WP1108438 Whirlpool Refrigerator Extension Backorder WPL WP1108438 $10.07

43

WP1108439 Whirlpool Refrigerator Clip Backorder WPL WP1108439 $4.63

44

489396 Whirlpool Refrigerator Clip Backorder WPL 489396 $4.72

44

Refrigerator Ice Bin Cover, Front WPL 2204321 Contact Us For Availability

45

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $8.24

46

WP2171706 Whirlpool Refrigerator Light Lens Backorder WPL WP2171706 $33.64

47

WP2188755 Whirlpool Rear Panel In Stock WPL WP2188755 $75.44

48

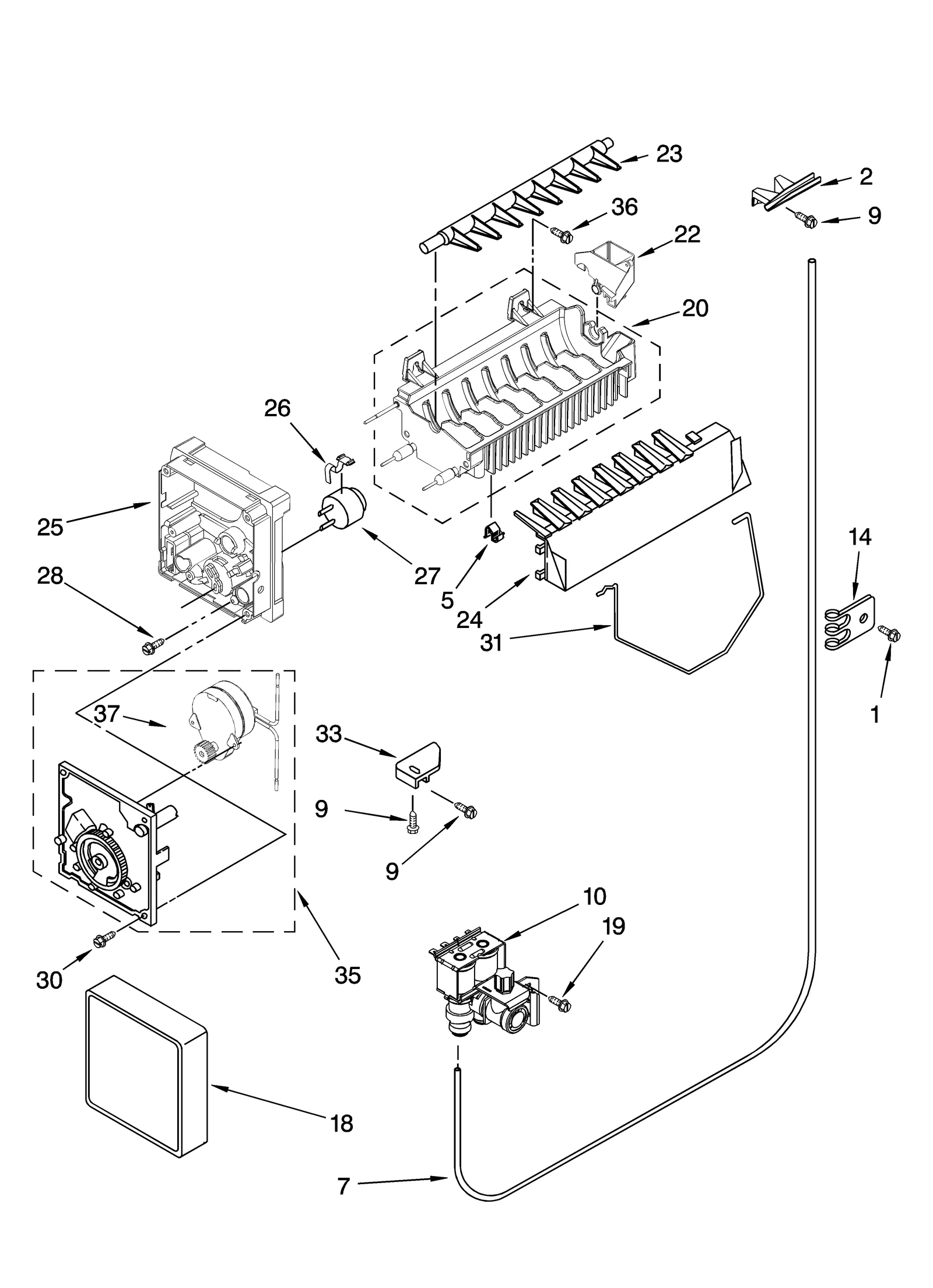

FOR FIELD INSTALLABLE ICEMAKER REPAIR PARTS L WPL N/P Contact Us For Availability

49

W11544659 Whirlpool Refrigerator Screw Backorder WPL W11544659 $9.59

49

WP2203408W Whirlpool Refrigerator Cover Backorder WPL WP2203408W $11.66

49A

Refrigerator Cover WPL 2203408T Contact Us For Availability

49B

WP2203408B Whirlpool Refrigerator Cover Backorder WPL WP2203408B $12.65

50

WP8281227 Whirlpool Screw In Stock WPL WP8281227 $4.58

52

549193 Whirlpool Refrigerator Power Clamp Backorder WPL 549193 $6.94

53

WP489427 Whirlpool Refrigerator Screw Backorder WPL WP489427 $3.70

53

NLA:SCREW Backorder WPL WPW10141645 $3.70

54

WPW10329686 Whirlpool Door Cam Black In Stock WPL WPW10329686 $3.59

100

WPW10312300 Whirlpool Refrigerator Ice Contai In Stock WPL WPW10312300 $185.42

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $30.25

350930 Whirlpool White Spray Paint In Stock WPL 350930 $21.41

350942 Whirlpool Spray Paint Backorder WPL 350942 $50.33

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $7.21

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $43.92

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.92

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $7.21

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $23.44

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $35.96

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $37.79

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $39.53

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $43.61

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $64.36

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $24.56

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $28.82

Refrigerator Service Valve WPL 978029 Contact Us For Availability

Refrigerator Vinyl Tape WPL 479502 Contact Us For Availability

Appliance Porcelain Touch-Up Paint, 1-qt (Whi WPL 799344 Contact Us For Availability

Refrigerator Ice Maker Torx Key Wrench WPL 1117510 Contact Us For Availability
