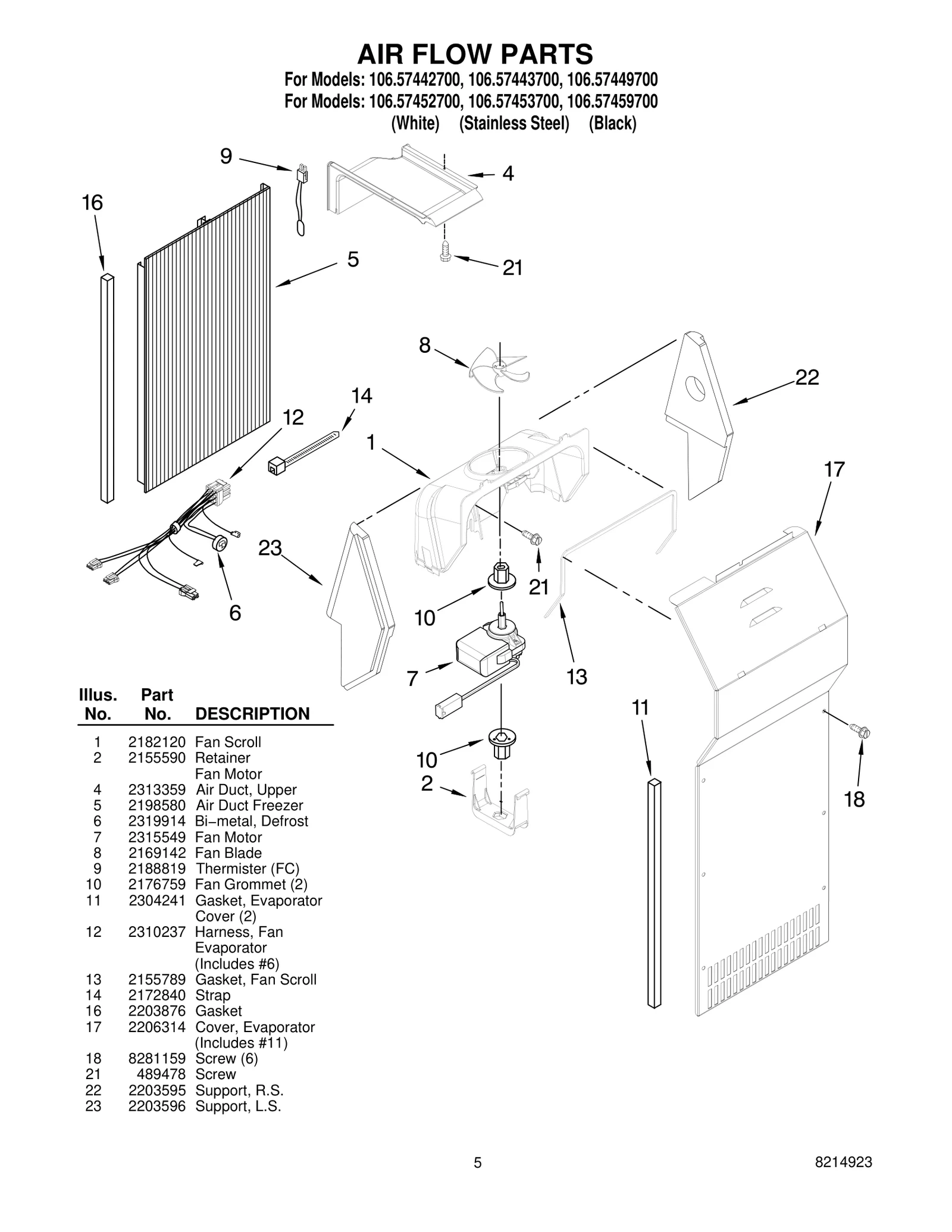

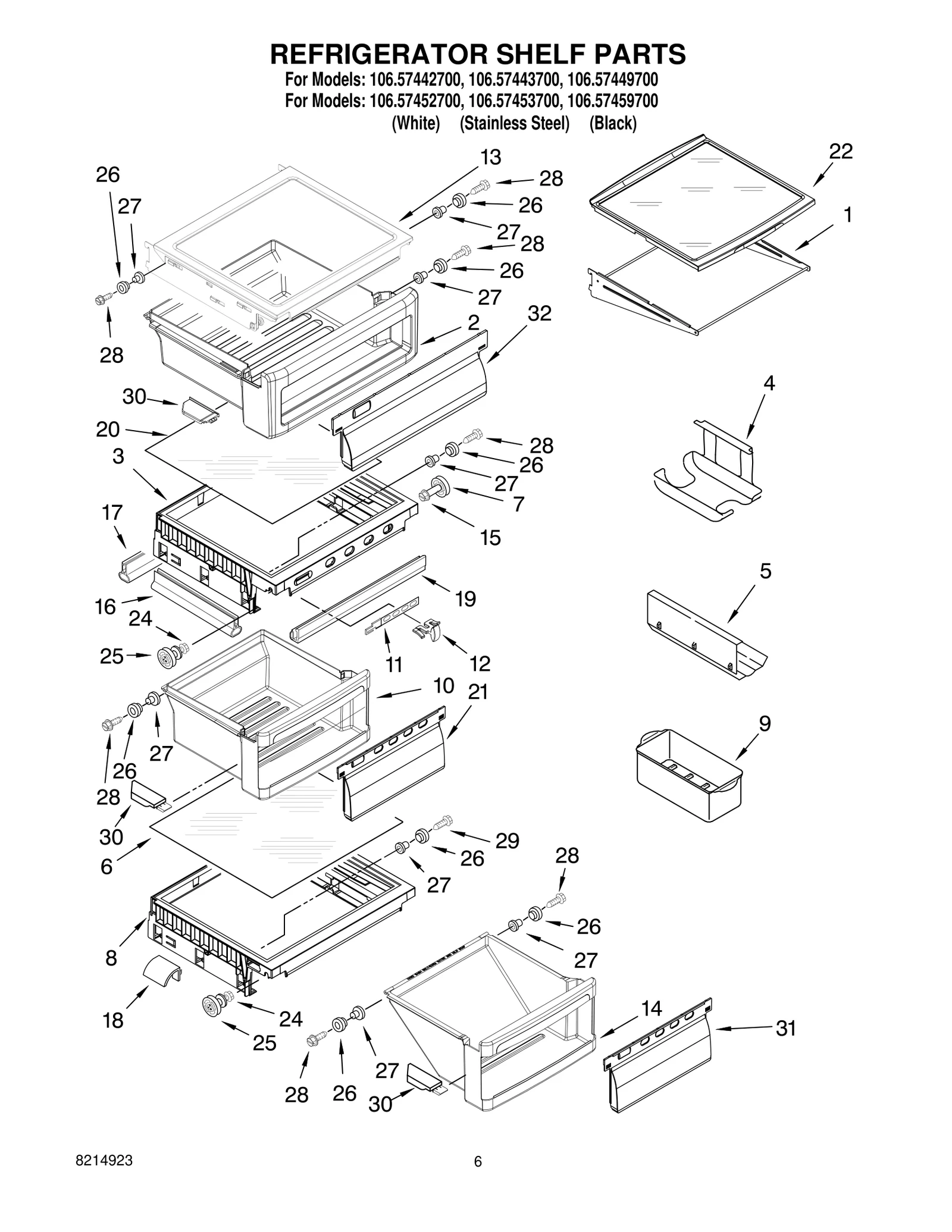

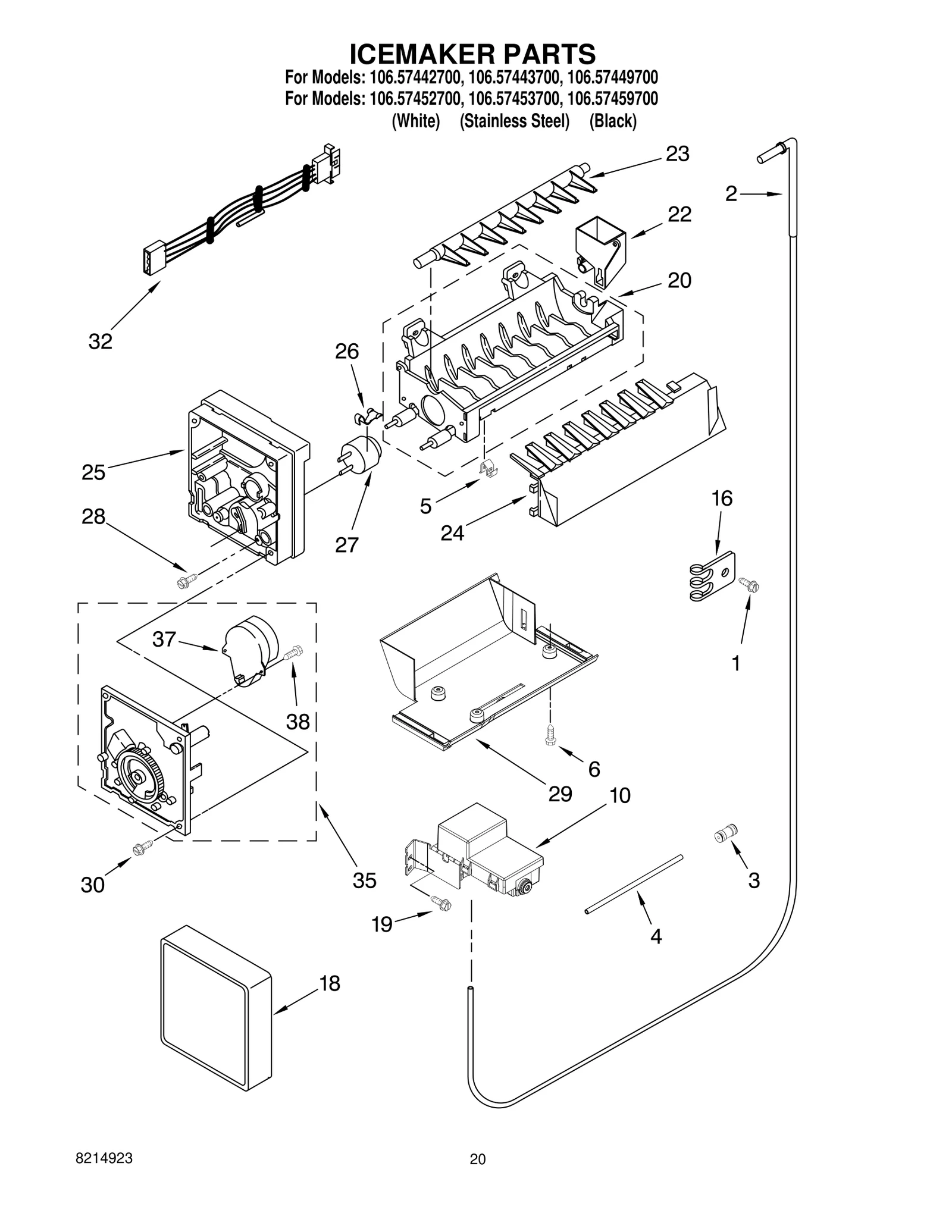

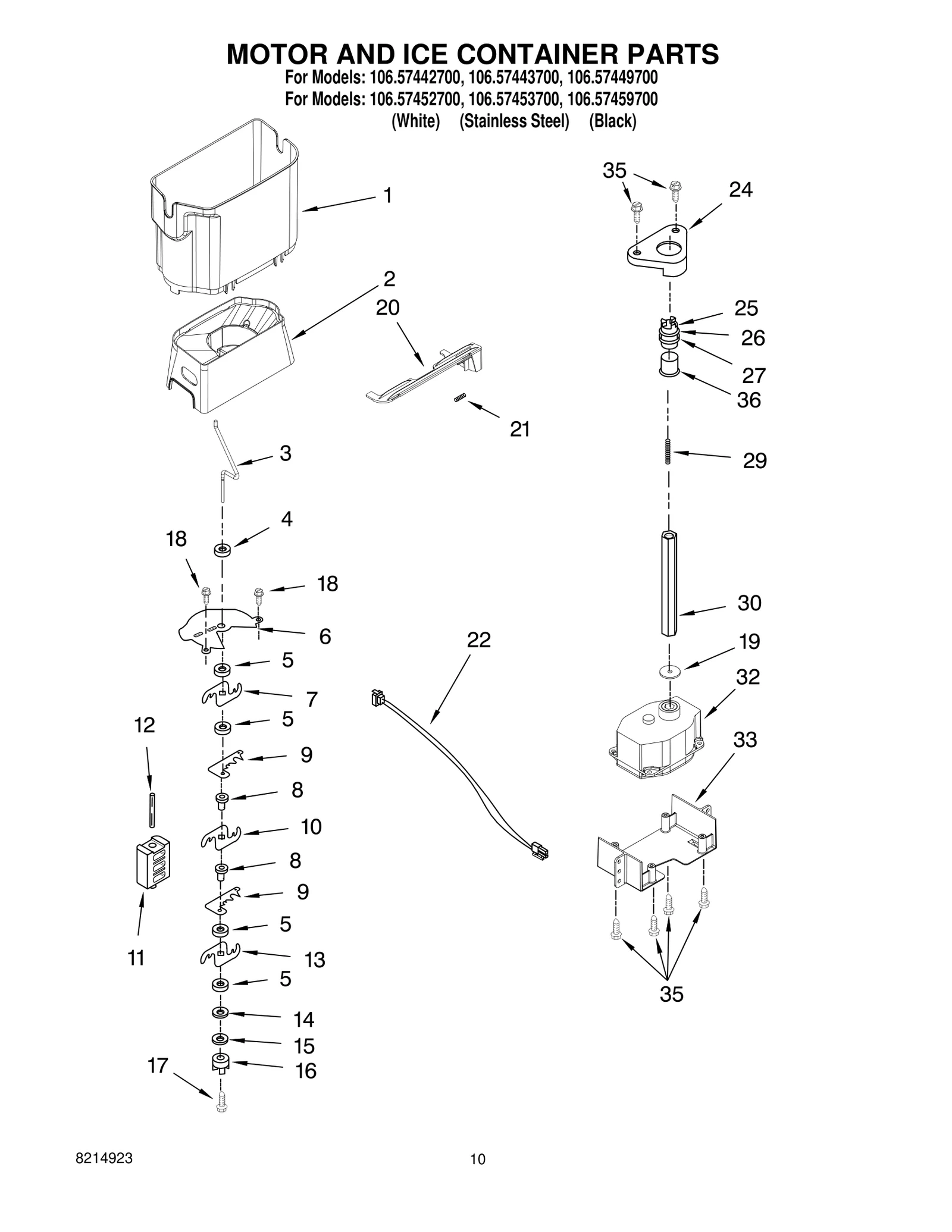

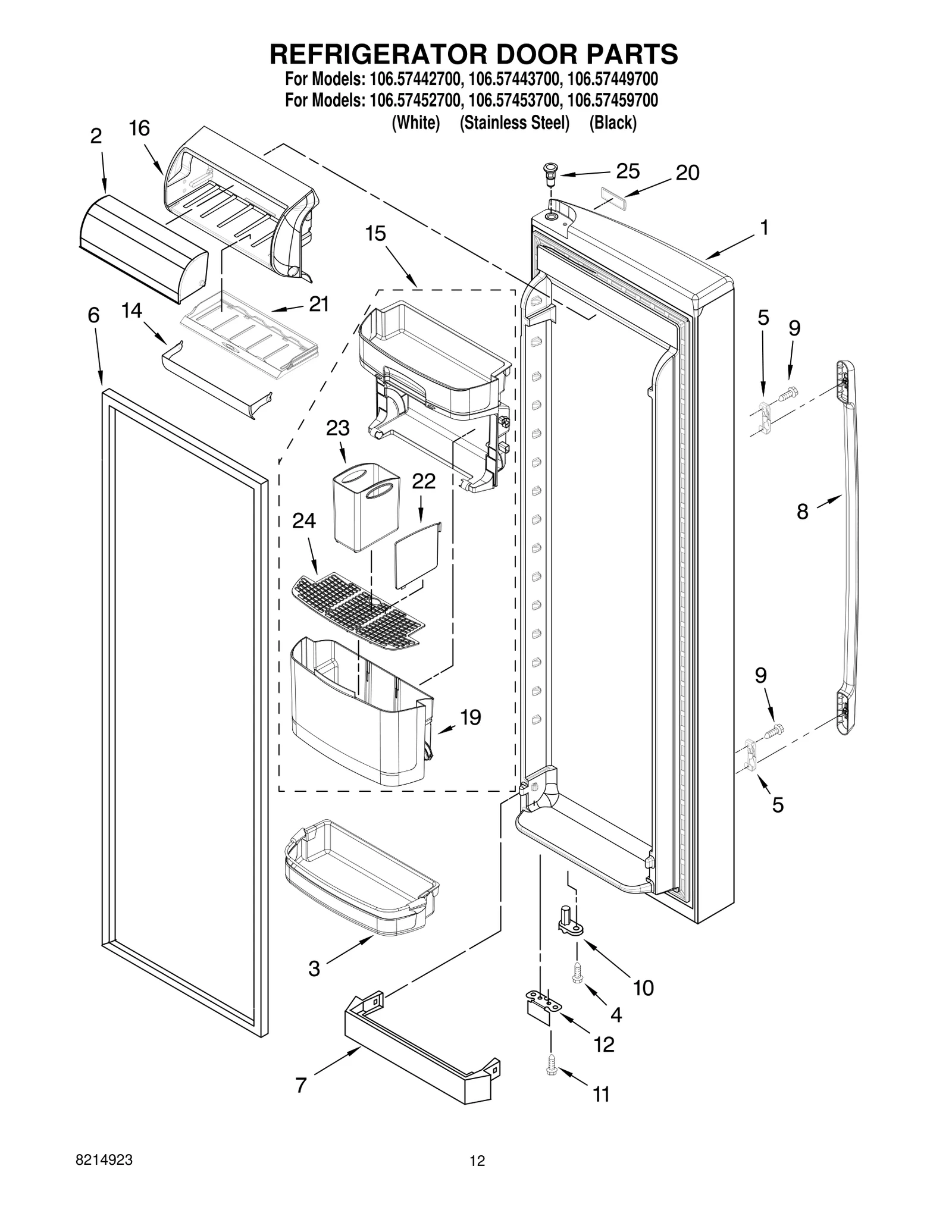

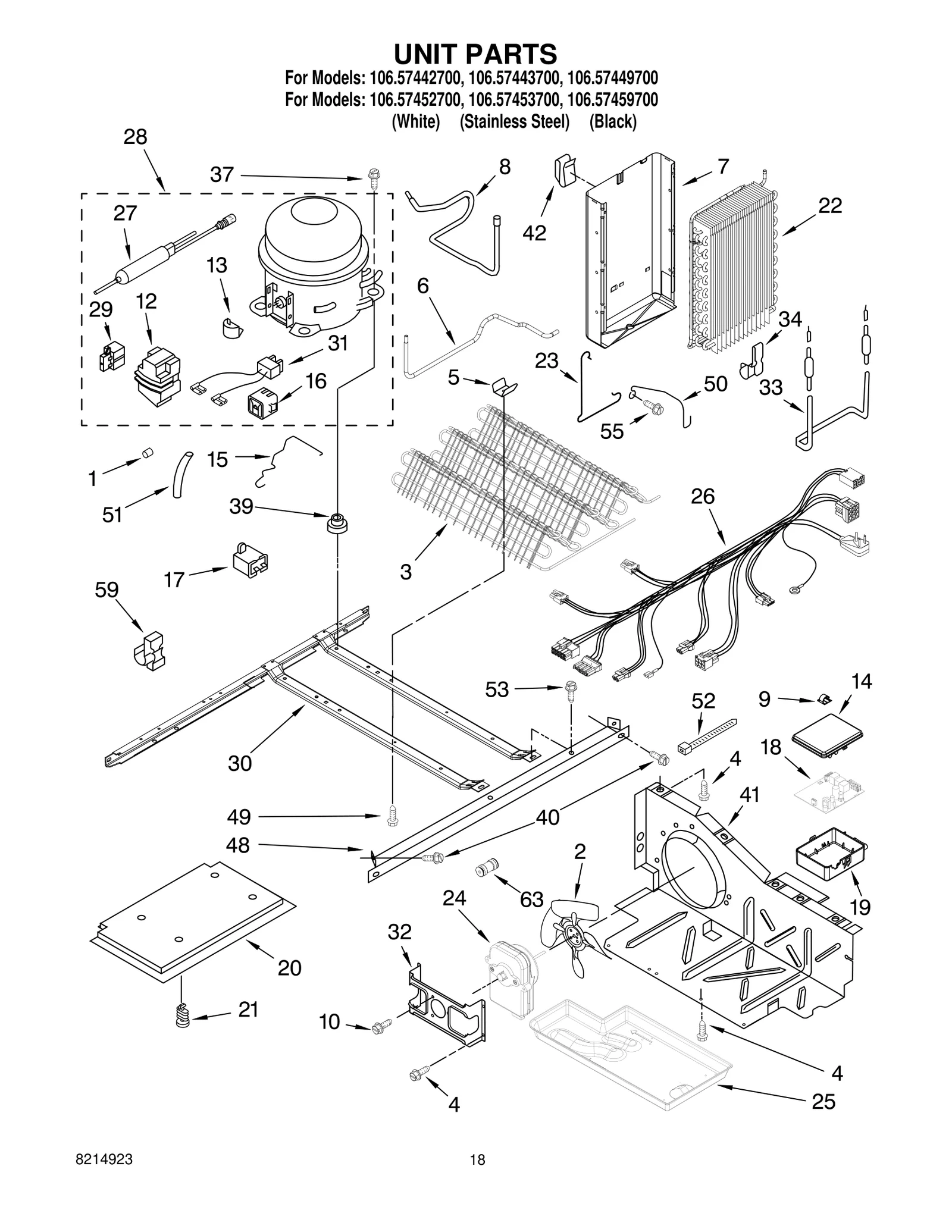

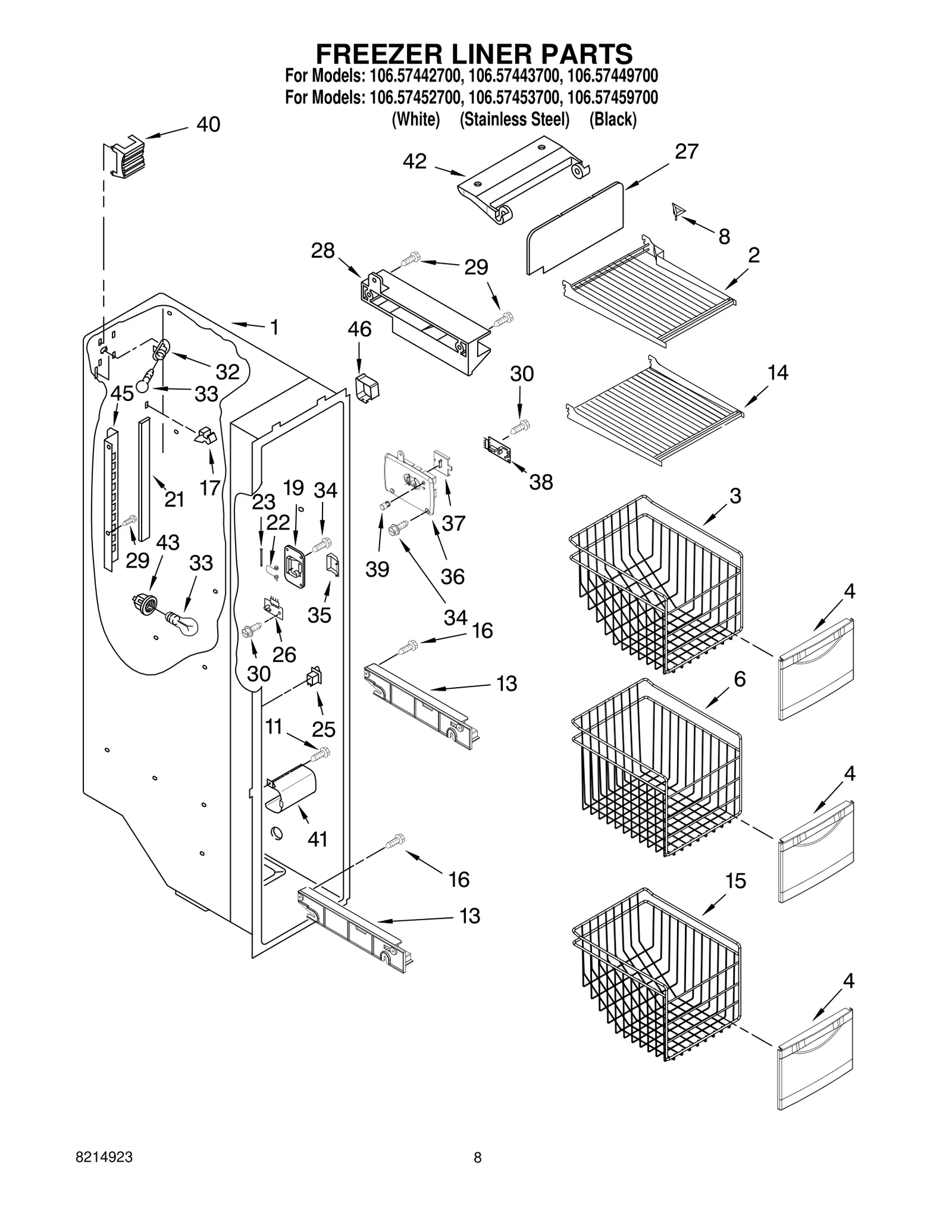

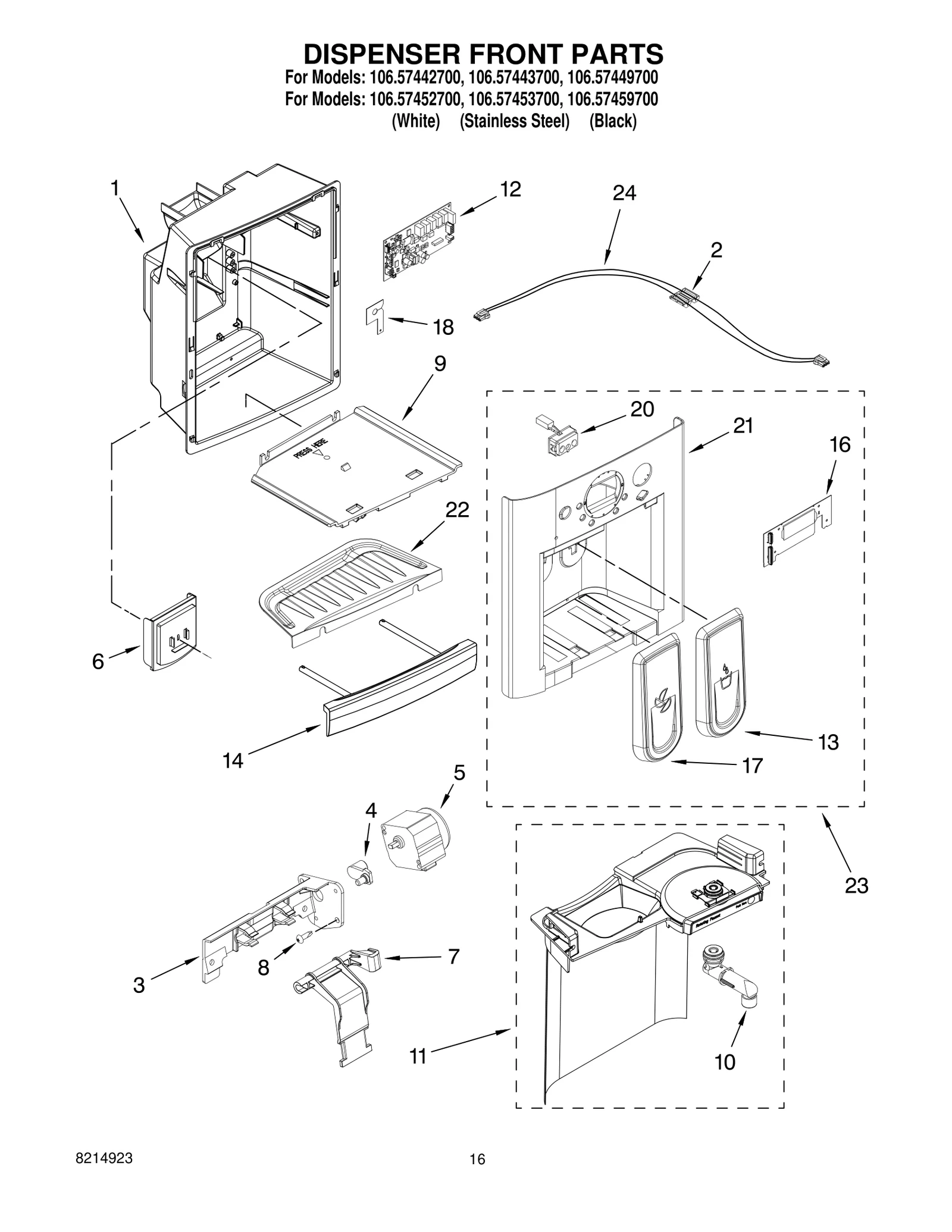

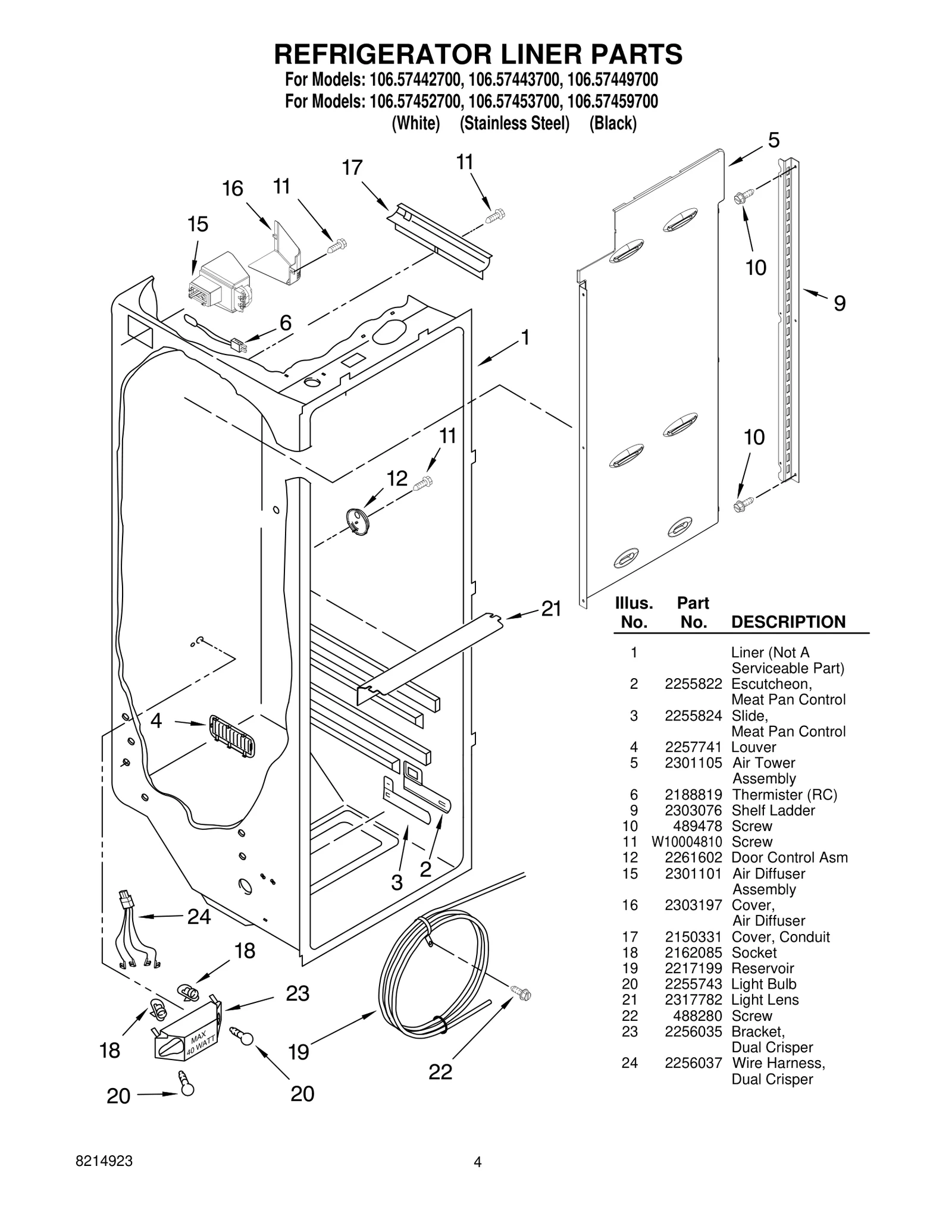

Model Whirlpool 106.57452700 Refrigerator – Common Parts &amp; Diagrams

1

WP2182120 Whirlpool Refrigerator Scroll Fan Backorder WPL WP2182120 $36.67

1

NLA:SCREW Backorder WPL WPW10141645 $3.70

1

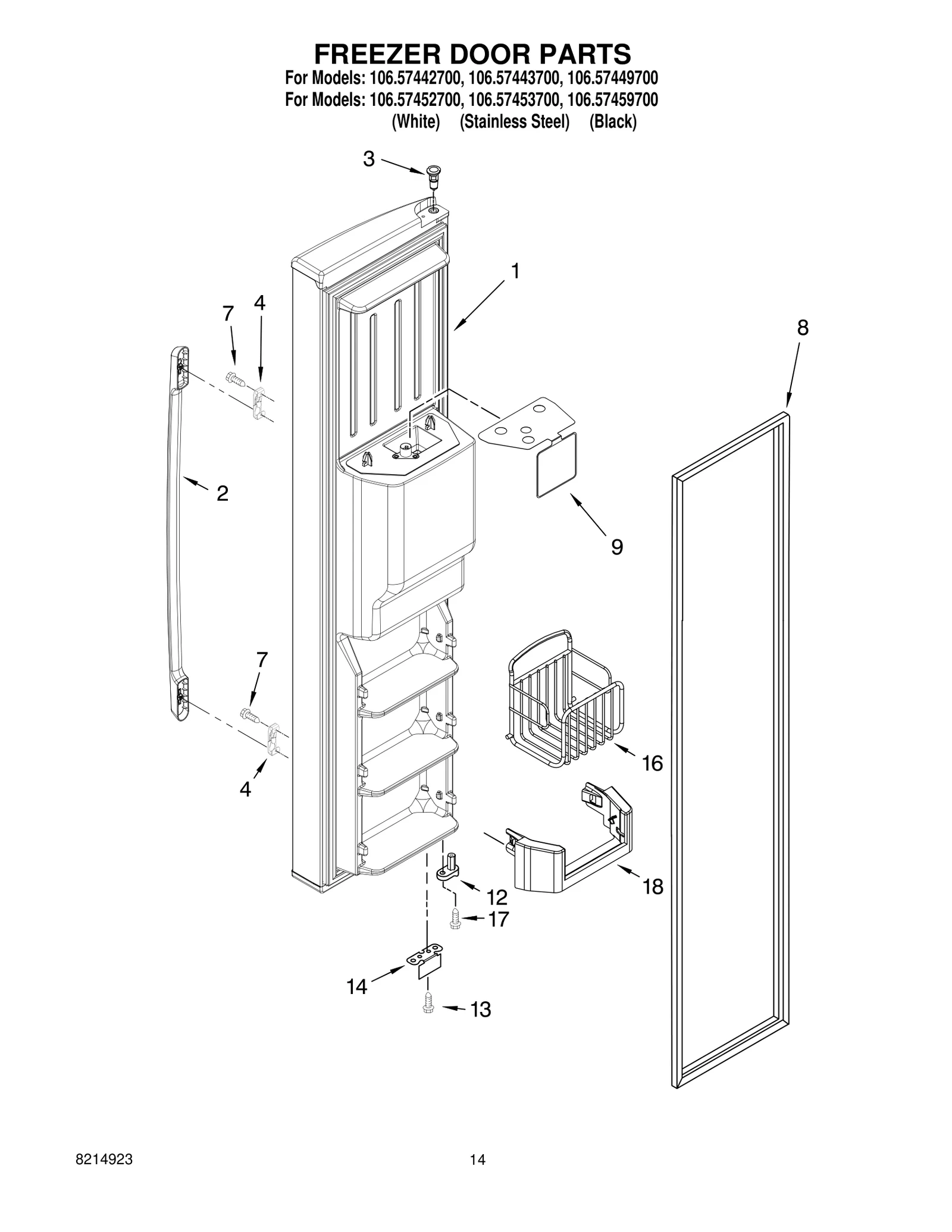

Freezer Door (Includes #8 And Dispenser Front WPL 2303124W Contact Us For Availability

1

Freezer Door (Includes #8 And Dispenser Front WPL 2303124B Contact Us For Availability

1

Freezer Door (Includes #8 And Dispenser Front WPL 2303124S Contact Us For Availability

1

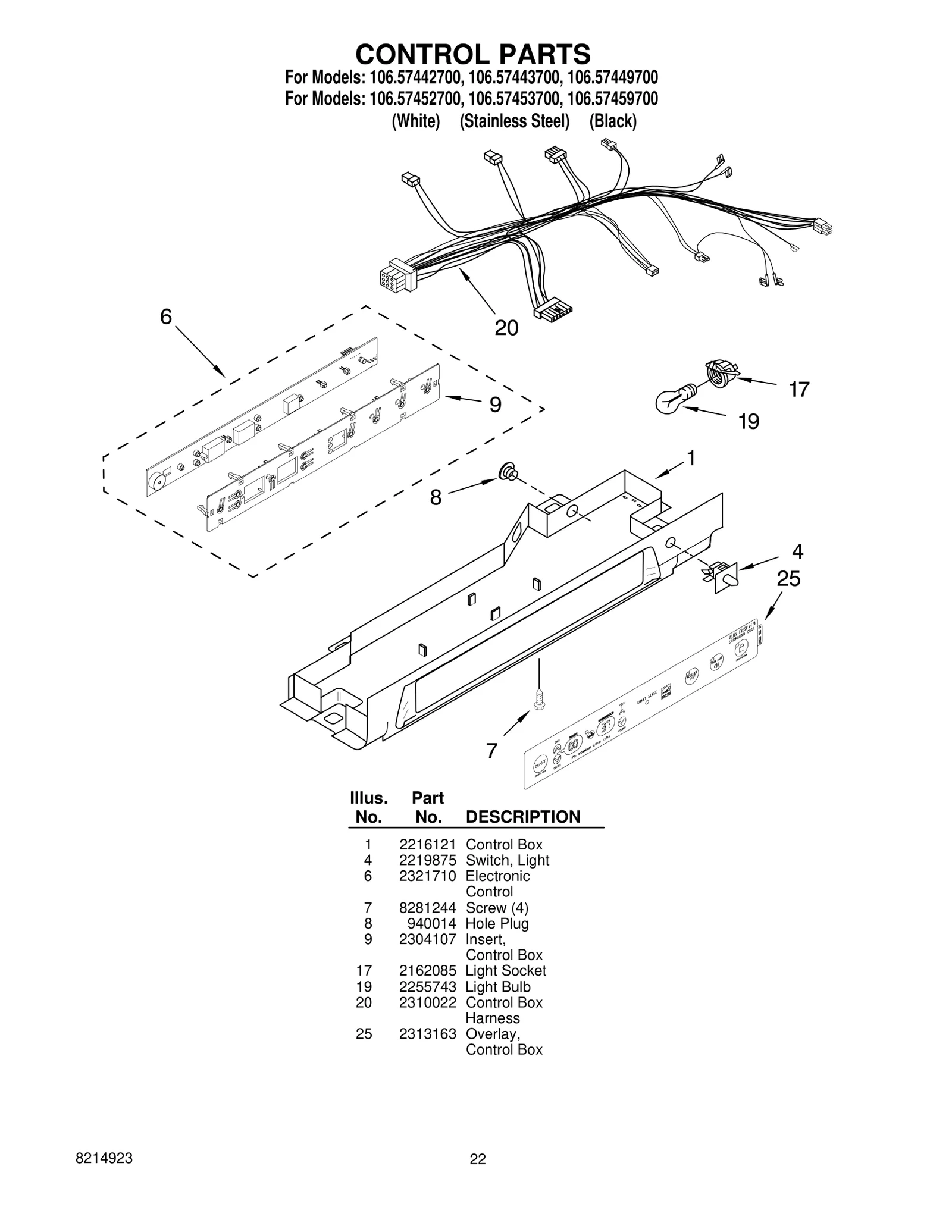

Control Box WPL 2216121 Contact Us For Availability

2

W11458267 Whirlpool Refrigerator Fan Blade In Stock WPL W11458267 $7.16

2

WP2256096 Whirlpool Refrigerator Fitting In Stock WPL WP2256096 $51.10

2

Retainer Fan Motor WPL 2155590 Contact Us For Availability

2

Handle — White WPL 2308117W Contact Us For Availability

2

Handle — Black WPL 2308117B Contact Us For Availability

2

Handle — Universal Silver WPL 2308117US Contact Us For Availability

2

Ferrite Bead WPL 2308165 Contact Us For Availability

3

2324712 Whirlpool Refrigerator Condenser Backorder WPL 2324712 $168.99

3

WP2182181 Whirlpool Refrigerator Thimble In Stock WPL WP2182181 $3.88

3

WP2305202 Whirlpool Refrigerator Bracket Backorder WPL WP2305202 $42.25

3

Union, Tube WPL 2305380 Contact Us For Availability

4

2313359 Whirlpool Refrigerator Air Duct Backorder WPL 2313359 $45.80

4

WP2149705 Whirlpool Refrigerator Door Switch In Stock WPL WP2149705 $20.89

4

WP2205826K Whirlpool Refrigerator Front Baske Backorder WPL WP2205826K $47.10

4

WP2305242 Whirlpool Refrigerator Connector In Stock WPL WP2305242 $33.84

4

Washer, Auger WPL 2258220 Contact Us For Availability

4

Tube, Water WPL 2305388 Contact Us For Availability

5

W10683556 Whirlpool Refrigerator Clip Backorder WPL W10683556 $7.05

5

WP1119007 Whirlpool Refrigerator Spacer Backorder WPL WP1119007 $4.87

5

WP2255411 Whirlpool Refrigerator Clip In Stock WPL WP2255411 $12.22

5

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $4.61

5

WPW10184813 Whirlpool Refrigerator Motor In Stock WPL WPW10184813 $39.22

6

2261599 Whirlpool Refrigerator Tube Backorder WPL 2261599 $139.55

6

WP2155013 Whirlpool Refrigerator Clip In Stock WPL WP2155013 $3.70

6

WP2305258 Whirlpool Dispenser Door Assembly Backorder WPL WP2305258 $7.69

6

Glass, Meat Cover WPL 2255144 Contact Us For Availability

6

Electronic Control WPL 2321710 Contact Us For Availability

7

WP2196483 Whirlpool Refrigerator Shelf Stud In Stock WPL WP2196483 $4.34

7

WP2305204 Whirlpool Refrigerator Support In Stock WPL WP2305204 $30.82

7

WP2315549 Whirlpool Refrigerator Evaporator M In Stock WPL WP2315549 $150.07

7

WP2318736 Whirlpool Refrigerator Door Trim Backorder WPL WP2318736 $46.19

7

WP67006908 Whirlpool Refrigerator Screw In Stock WPL WP67006908 $2.51

7

Heat Shield And Drain Pan WPL 2304289 Contact Us For Availability

8

2159074 Whirlpool Door Gasket Seal In Stock WPL 2159074 $161.37

8

2159082 Whirlpool Refrigerator Door Gasket Bl In Stock WPL 2159082 $141.10

8

WP1119005 Whirlpool Refrigerator Spacer Backorder WPL WP1119005 $4.67

8

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $13.65

8

WP4449745 Whirlpool Screw Backorder WPL WP4449745 $2.51

8

Cover, Meat Pan (Includes 18, 26, 27 & 28) WPL 2319725 Contact Us For Availability

8

Tube, Suction WPL 2205765 Contact Us For Availability

8

Hole Plug WPL 940014 Contact Us For Availability

9

WP1115374 Whirlpool Refrigerator Clip Backorder WPL WP1115374 $2.51

9

WP2188819 Whirlpool Thermistor In Stock WPL WP2188819 $15.49

9

WP2203771 Whirlpool Refrigerator Door Hinge In Stock WPL WP2203771 $35.78

9

WP489491 Whirlpool Refrigerator Screw Backorder WPL WP489491 $2.51

9

Blade, Fixed WPL 2257020 Contact Us For Availability

9

Safety Barrier WPL 2304895 Contact Us For Availability

9

Grille, Slide — White WPL 2305323W Contact Us For Availability

9

Grille, Slide — Black WPL 2305323B Contact Us For Availability

9

Grille, Slide — Apollo Gray WPL 2305323AP Contact Us For Availability

9

Insert, Control Box WPL 2304107 Contact Us For Availability

W10278732 Whirlpool Refrigerator Blade Backorder WPL W10278732 $33.73

WP2176759 Whirlpool Refrigerator Grommet In Stock WPL WP2176759 $3.70

WP8533993 Whirlpool Refrigerator Screw Backorder WPL WP8533993 $4.56

WPW10159839 Whirlpool Refrigerator Inlet Valv In Stock WPL WPW10159839 $177.34

Spigot WPL 2305236 Contact Us For Availability

WP8281227 Whirlpool Screw In Stock WPL WP8281227 $4.58

Block, Blade WPL 2198602 Contact Us For Availability

Separator Assembly — White WPL 2305463W Contact Us For Availability

Separator Assembly — Black WPL 2305463B Contact Us For Availability

Separator Assembly — Apollo Gray WPL 2305463AP Contact Us For Availability

2310237 Whirlpool Refrigerator Wire Harness Backorder WPL 2310237 $87.17

489229 Whirlpool Refrigerator Roll Pin Backorder WPL 489229 $30.18

WP2162358 Whirlpool Refrigerator Terminal Cov Backorder WPL WP2162358 $33.42

WP2223752 Whirlpool Refrigerator Door Cam Backorder WPL WP2223752 $6.00

Electronic Control (Core) WPL 2252174 Contact Us For Availability

Door Control Asm WPL 2261602 Contact Us For Availability

WP2154697 Whirlpool Refrigerator Overload Backorder WPL WP2154697 $51.26

WP489483 Whirlpool Screw In Stock WPL WP489483 $4.58

Shelf Track (3) — Right Side WPL 2301289 Contact Us For Availability

Shelf Track (3) — Left Side WPL 2301290 Contact Us For Availability

Pad, Water — For White Model WPL 2305381WG Contact Us For Availability

Pad, Water — For Black Model WPL 2305381RG Contact Us For Availability

Pad, Water — For Stainless WPL 2305381AP Contact Us For Availability

WP489235 Whirlpool Refrigerator Washer Backorder WPL WP489235 $4.59

Filler, Wrapper — White WPL 2196094 Contact Us For Availability

Bottom Door, Chiller WPL 2305515 Contact Us For Availability

Bracket, Door Stop — Chrome WPL 2303113 Contact Us For Availability

Bracket, Door Stop — Black WPL 2303113B Contact Us For Availability

Front Assembly, Drip Tray — White WPL 2323072W Contact Us For Availability

Front Assembly, Drip Tray — Black WPL 2323072B Contact Us For Availability

Front Assembly, Drip Tray — Universal Silve WPL 2323072US Contact Us For Availability

Cover WPL 2255624 Contact Us For Availability

WP2198661 Whirlpool Refrigerator Washer Backorder WPL WP2198661 $4.61

WP2301101 Whirlpool Refrigerator Diffuser Backorder WPL WP2301101 $125.86

Complete Assembly, Fruit Bin WPL 2313382 Contact Us For Availability

Clip, Retaining WPL 2255199 Contact Us For Availability

WP2220457 Whirlpool Refrigerator Ice Bin Coup In Stock WPL WP2220457 $11.36

WP2319792 Whirlpool Refrigerator Start Device In Stock WPL WP2319792 $50.40

WP488366 Whirlpool Refrigerator Clamp Backorder WPL WP488366 $4.81

Cover Assembly WPL 2304141 Contact Us For Availability

Frame, Door Chiller WPL 2255472 Contact Us For Availability

Basket, Tilt−Out (3) WPL 2304309 Contact Us For Availability

2150331 Whirlpool Refrigerator Wire Cover Backorder WPL 2150331 $11.11

4387478 Whirlpool Refrigerator Light Socket In Stock WPL 4387478 $34.28

WP3400012 Whirlpool Refrigerator Screw Backorder WPL WP3400012 $2.51

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $3.70

WP8281164 Whirlpool Refrigerator Screw In Stock WPL WP8281164 $4.56

WPW10662129 Whirlpool Refrigerator Run Capaci In Stock WPL WPW10662129 $25.41

Pad, Ice — For White Model WPL 2305321WG Contact Us For Availability

Pad, Ice — For Black Model WPL 2305321RG Contact Us For Availability

Pad, Ice — For Stainless WPL 2305321AP Contact Us For Availability

2305447 Whirlpool Refrigerator Clip Backorder WPL 2305447 $7.78

WP3400065 Whirlpool Refrigerator Screw Backorder WPL WP3400065 $2.51

WPW10289690 Whirlpool Ice Maker Cover Backorder WPL WPW10289690 $2.64

Electronic Control WPL 2321711 Contact Us For Availability

Trivet, Tilt−Out (3) NOT ILLUSTRATED WPL 2223334 Contact Us For Availability

Wire Assembly, Freezer Door WPL 2310084 Contact Us For Availability

Tube, Water Dispenser WPL 2305228 Contact Us For Availability

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $8.24

WP1108438 Whirlpool Refrigerator Extension Backorder WPL WP1108438 $10.07

WP2305382 Whirlpool Refrigerator Washer In Stock WPL WP2305382 $4.19

WPW10141625 Whirlpool Refrigerator Screw Asse Backorder WPL WPW10141625 $9.59

Control Box WPL 2255623 Contact Us For Availability

Bin Assembly, Tilt−Out WPL 2313390 Contact Us For Availability

WPW10190929 Whirlpool Refrigerator Ice Maker Backorder WPL WPW10190929 $153.49

Glass, Crisper Cover WPL 2319721 Contact Us For Availability

LED Assembly WPL 2303841 Contact Us For Availability

Unit Cover, Bottom WPL 2304901 Contact Us For Availability

Control Box Harness WPL 2310022 Contact Us For Availability

489396 Whirlpool Refrigerator Clip Backorder WPL 489396 $4.72

WP2198608 Whirlpool Refrigerator Spring In Stock WPL WP2198608 $3.70

Light Lens WPL 2317782 Contact Us For Availability

Window, Crisper Pan WPL 2174076 Contact Us For Availability

Floor Assembly, Chiller WPL 2319742 Contact Us For Availability

Front Cover, Housing (Not Available, Order #2 WPL N/S Contact Us For Availability

WP2188823 Whirlpool Refrigerator Evaporator In Stock WPL WP2188823 $196.39

WP2198635 Whirlpool Refrigerator Spring Backorder WPL WP2198635 $30.36

WP628356 Whirlpool Refrigerator Fill Cup Backorder WPL WP628356 $17.55

Wire Assembly, IDI Motor WPL 2187813 Contact Us For Availability

Divider, Bin (2) WPL 2303287 Contact Us For Availability

Tray, Housing — White WPL 2305334W Contact Us For Availability

Tray, Housing — Black WPL 2305334B Contact Us For Availability

Tray, Housing — Apollo Gray WPL 2305334AP Contact Us For Availability

W10127505 Whirlpool Refrigerator Bin Backorder WPL W10127505 $43.08

WP2198634 Whirlpool Door Pin Backorder WPL WP2198634 $5.44

WP627843 Whirlpool Refrigerator Ejector Arm In Stock WPL WP627843 $32.06

Clip WPL 2161324 Contact Us For Availability

Front Cover Assembly (Includes Items 13, 16, WPL 2323075W Contact Us For Availability

Front Cover Assembly (Includes Items 13, 16, WPL 2323075B Contact Us For Availability

Front Cover Assembly (Includes Items 13, 16, WPL 2323075US Contact Us For Availability

W10297244 Whirlpool Refrigerator Arm Strip In Stock WPL W10297244 $44.47

WP2188874 Whirlpool Refrigerator Condenser Mo In Stock WPL WP2188874 $59.32

Holder WPL 2212369 Contact Us For Availability

Wire Assembly, User Interface WPL 2187814 Contact Us For Availability

Strainer, Bin WPL 2313227 Contact Us For Availability

W11223328 Whirlpool Refrigerator Shelf Stud Backorder WPL W11223328 $9.59

WP2195914 Whirlpool Refrigerator Ice Maker Ho Backorder WPL WP2195914 $41.30

WP2220458 Whirlpool Drive Cam In Stock WPL WP2220458 $11.97

WPW10614158 Whirlpool Refrigerator Evaporator In Stock WPL WPW10614158 $45.89

Overlay, Control Box WPL 2313163 Contact Us For Availability

26

WP2198628 Whirlpool Door Seal In Stock WPL WP2198628 $5.01

26

WP2315522 Whirlpool Refrigerator Clip Backorder WPL WP2315522 $4.59

26

Harness, Unit WPL 2310061 Contact Us For Availability

W10843121 Whirlpool Refrigerator Tube In Stock WPL W10843121 $24.91

WP2212370 Whirlpool Washer In Stock WPL WP2212370 $7.45

WP627985 Whirlpool Icemaker Cycling Thermosta In Stock WPL WP627985 $46.67

Eyelet, Roller WPL 2174478 Contact Us For Availability

8533917 Whirlpool Refrigerator Screw In Stock WPL 8533917 $9.59

876765 Whirlpool Primary Mounting Kit Refrige In Stock WPL 876765 $27.52

W10309994 Whirlpool Refrigerator Compressor In Stock WPL W10309994 $314.61

Slide, Ice Maker Mounting WPL 2212321 Contact Us For Availability

W10852956 Whirlpool Refrigerator Spring In Stock WPL W10852956 $8.14

WPW10272364 Whirlpool Refrigerator Screw Backorder WPL WPW10272364 $4.56

Bracket, Ice Maker Mounting WPL 2303583 Contact Us For Availability

Relay WPL 2183454 Contact Us For Availability

2223285 Whirlpool Refrigerator Cap Backorder WPL 2223285 $10.76

2304904 Whirlpool Frame Assembly Backorder WPL 2304904 $115.36

WP2305243 Whirlpool Refrigerator Shaft Backorder WPL WP2305243 $98.28

WP681249 Whirlpool Screw Assembly In Stock WPL WP681249 $2.51

Cap, Corner — Right Side WPL 2223286 Contact Us For Availability

31

WP2172890 Whirlpool Refrigerator Wire Backorder WPL WP2172890 $2.51

31

WP489500 Whirlpool Refrigerator Screw Backorder WPL WP489500 $2.51

32

WP2181929 Whirlpool Refrigerator Bracket Backorder WPL WP2181929 $5.67

32

WP2187467 Whirlpool Refrigerator Wire Harness Backorder WPL WP2187467 $51.40

32

WP2252130 Whirlpool Refrigerator Motor In Stock WPL WP2252130 $109.32

33

WP2323198 Whirlpool Refrigerator Heater In Stock WPL WP2323198 $30.17

33

Bracket, Motor WPL 2305208 Contact Us For Availability

34

W11623163 Whirlpool Refrigerator Clip Backorder WPL W11623163 $4.39

34

WPW10142283 Whirlpool Refrigerator Screw In Stock WPL WPW10142283 $4.56

35

8201515 Whirlpool Refrigerator Motor and Gear In Stock WPL 8201515 $67.68

35

WP2198633 Whirlpool Refrigerator Flipper In Stock WPL WP2198633 $16.05

35

WP8281163 Whirlpool Refrigerator Screw Backorder WPL WP8281163 $4.56

36

WP2203770 Whirlpool Refrigerator Door Hinge Backorder WPL WP2203770 $33.56

36

WP2212365 Whirlpool Refrigerator Sleeve Backorder WPL WP2212365 $10.43

37

W10190935 Whirlpool Refrigerator Icemaker Mot In Stock WPL W10190935 $49.38

37

Screw WPL 489473 Contact Us For Availability

38

2260503W Whirlpool Refrigerator Button Backorder WPL 2260503W $13.30

38

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $4.56

W11661108 Whirlpool Grommet Backorder WPL W11661108 $5.51

WP2198643 Whirlpool Refrigerator Lens In Stock WPL WP2198643 $2.51

WP4387558 Whirlpool Refrigerator Compressor G Backorder WPL WP4387558 $3.70

Door Closer, FC WPL 2223751 Contact Us For Availability

40

489340 Whirlpool Refrigerator Screw Backorder WPL 489340 $4.56

41

W10896764 Whirlpool Refrigerator Air Baffle In Stock WPL W10896764 $40.19

42

WP2198641 Whirlpool Refrigerator Ice Maker Co In Stock WPL WP2198641 $2.51

42

Clip, Heat WPL 2155547 Contact Us For Availability

46

2303234 Whirlpool Refrigerator Shield Backorder WPL 2303234 $32.06

48

2305374 Whirlpool Refrigerator Unit Rail Backorder WPL 2305374 $29.17

49

W11544659 Whirlpool Refrigerator Screw Backorder WPL W11544659 $9.59

50

2260517 Whirlpool Fan Guard Backorder WPL 2260517 $29.17

51

W11751592 Whirlpool Sleeve In Stock WPL W11751592 $12.17

52

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $2.51

53

WP489427 Whirlpool Refrigerator Screw Backorder WPL WP489427 $3.70

55

WP489478 Whirlpool Refrigerator Screw Backorder WPL WP489478 $2.51

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $23.44

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $35.96

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $37.79

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $39.53

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $28.82

Valve, Access WPL 978029 Contact Us For Availability

Union Following Parts Not Illustrated and Opt WPL 2305227 Contact Us For Availability

Valve, Access WPL 978028 Contact Us For Availability

100

2198597 Whirlpool Refrigerator Ice Maker In Stock WPL 2198597 $107.14

100

Ice Container WPL 2305426 Contact Us For Availability

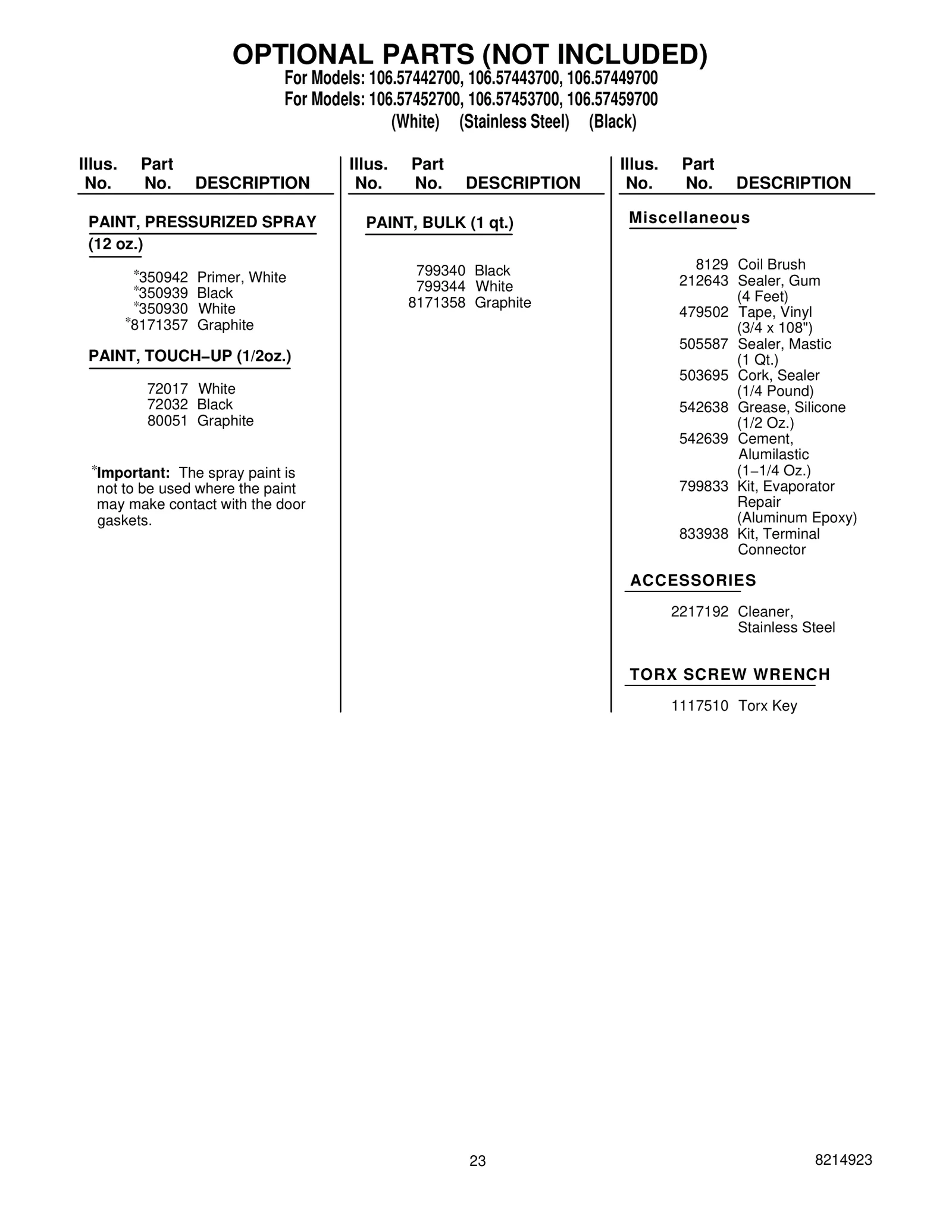

OPT-1

350942 Whirlpool Spray Paint Backorder WPL 350942 $50.33

OPT-2

285006 Whirlpool Spray In Stock WPL 285006 $44.38

OPT-3

350930 Whirlpool White Spray Paint In Stock WPL 350930 $21.41

OPT-4

8171357 Whirlpool Spray Nozzle Backorder WPL 8171357 $46.21

OPT-5

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.92

OPT-6

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $7.21

OPT-7

Graphite WPL 80051 Contact Us For Availability

OPT-8

Black WPL 799340 Contact Us For Availability

OPT-9

White WPL 799344 Contact Us For Availability

OPT-10

Graphite WPL 8171358 Contact Us For Availability

OPT-11

4210463RW Whirlpool Refrigerator Coil Brush In Stock WPL 4210463RW $14.22

OPT-12

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $30.25

OPT-13

Tape, Vinyl WPL 479502 Contact Us For Availability

OPT-14

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $64.36

OPT-15

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $43.61

OPT-16

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $24.56

OPT-17

Cement, WPL 542639 Contact Us For Availability

OPT-18

Kit, Evaporator WPL 799833 Contact Us For Availability

OPT-19

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

OPT-20

Cleaner, WPL 2217192 Contact Us For Availability

OPT-21

Torx Key WPL 1117510 Contact Us For Availability
