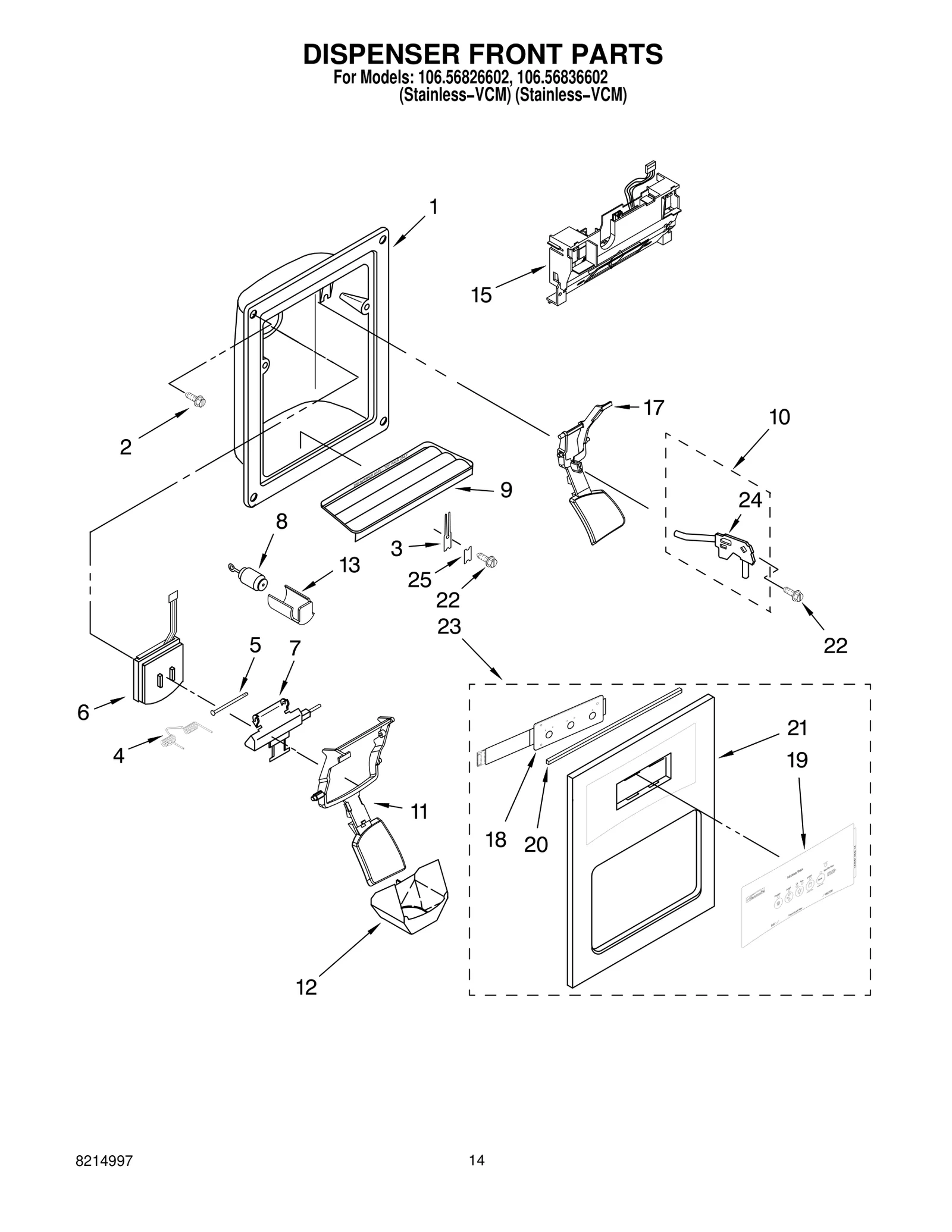

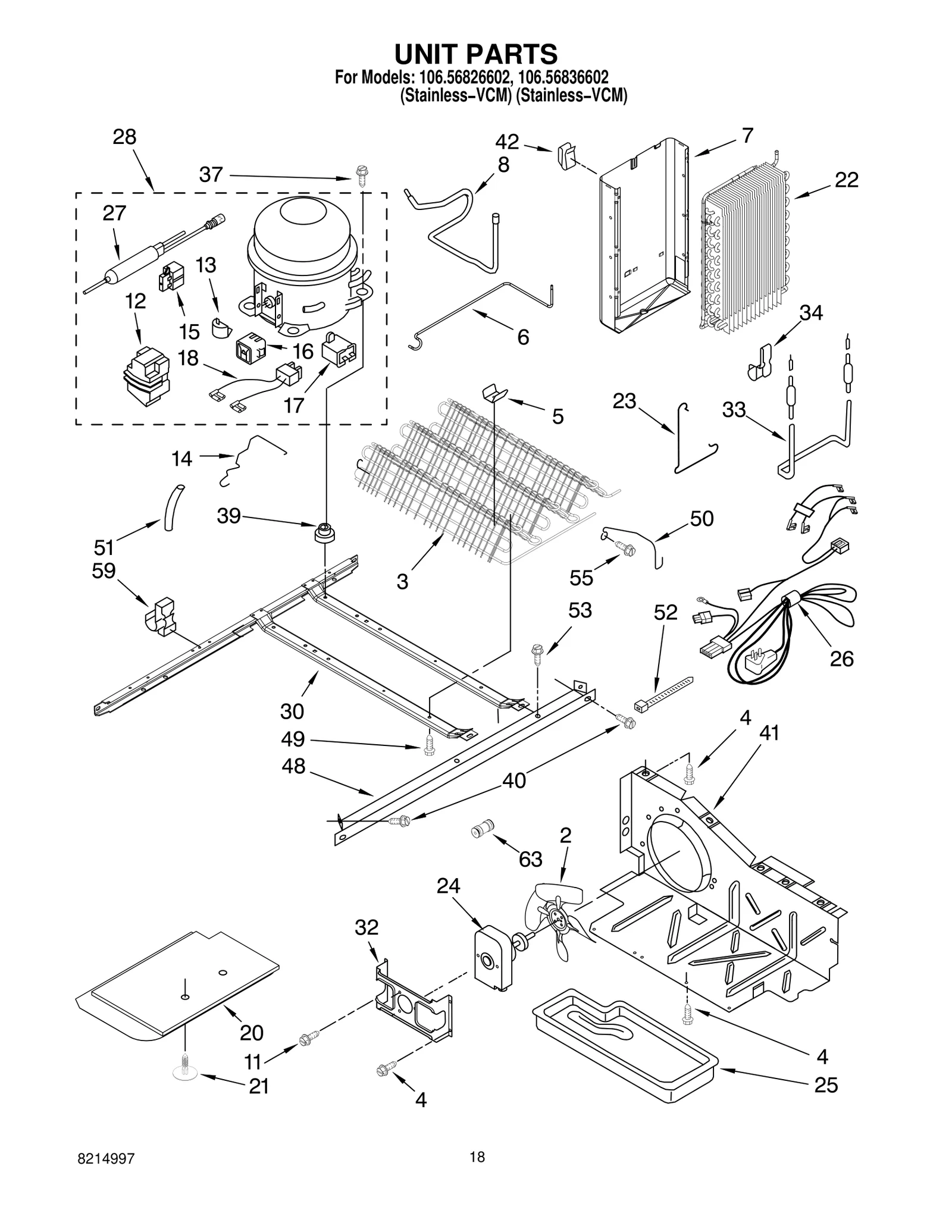

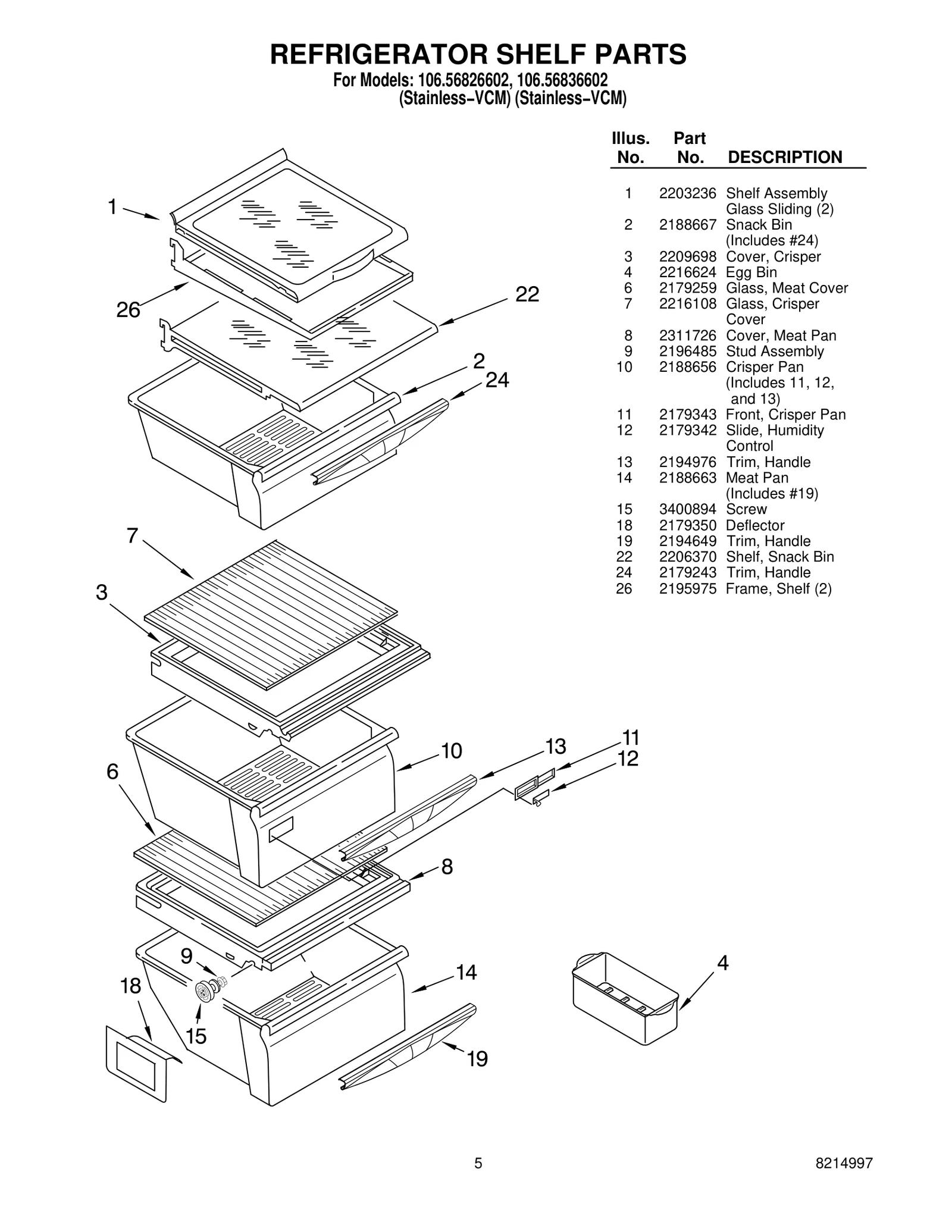

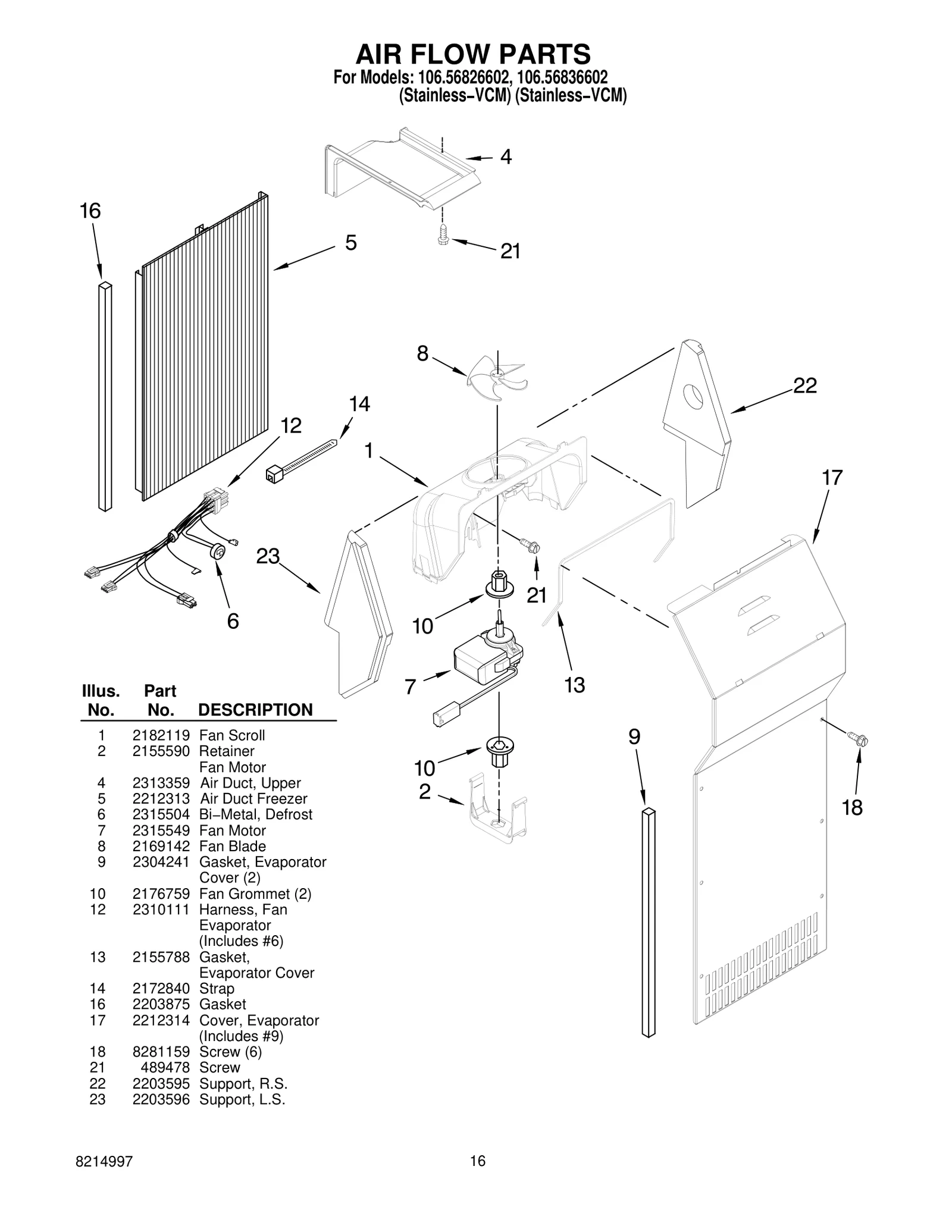

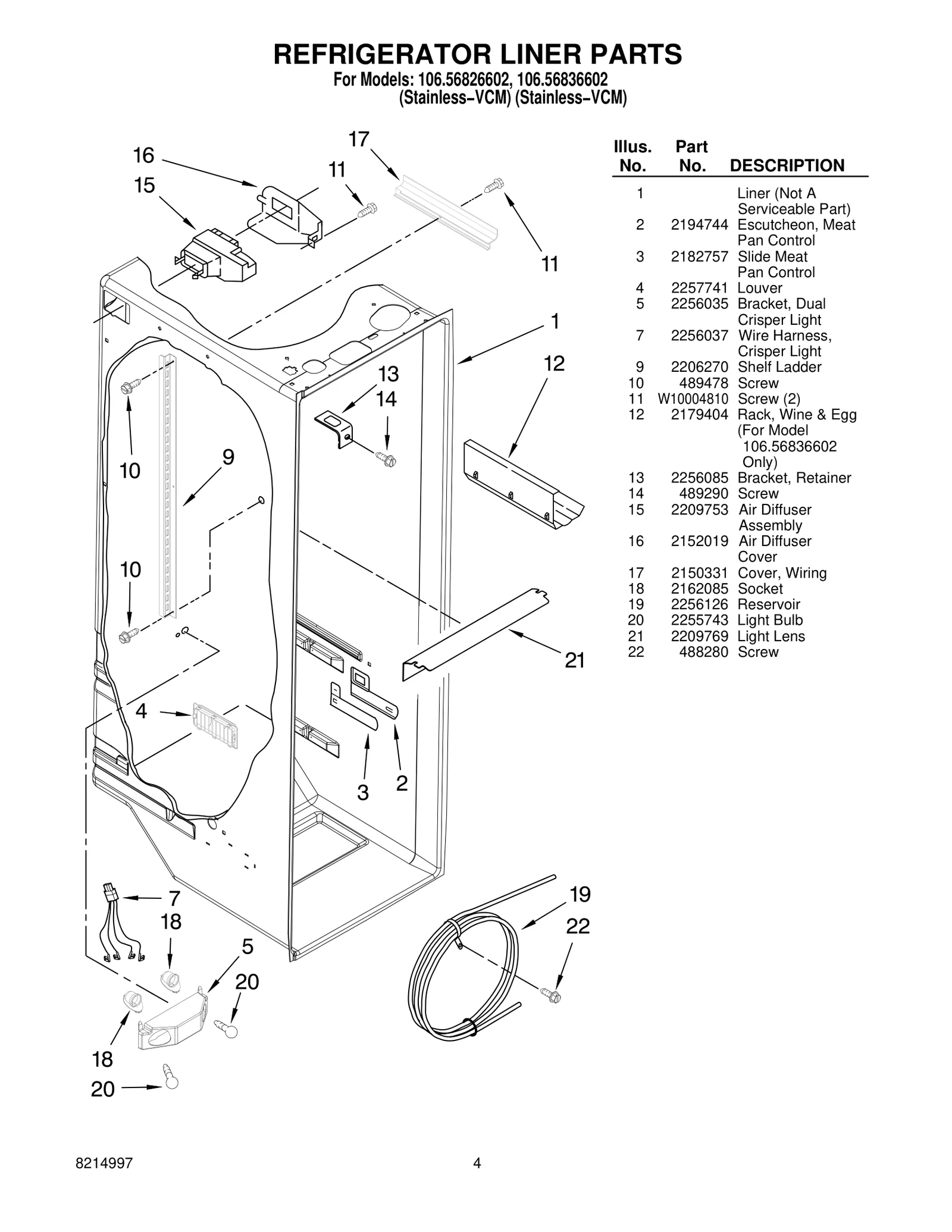

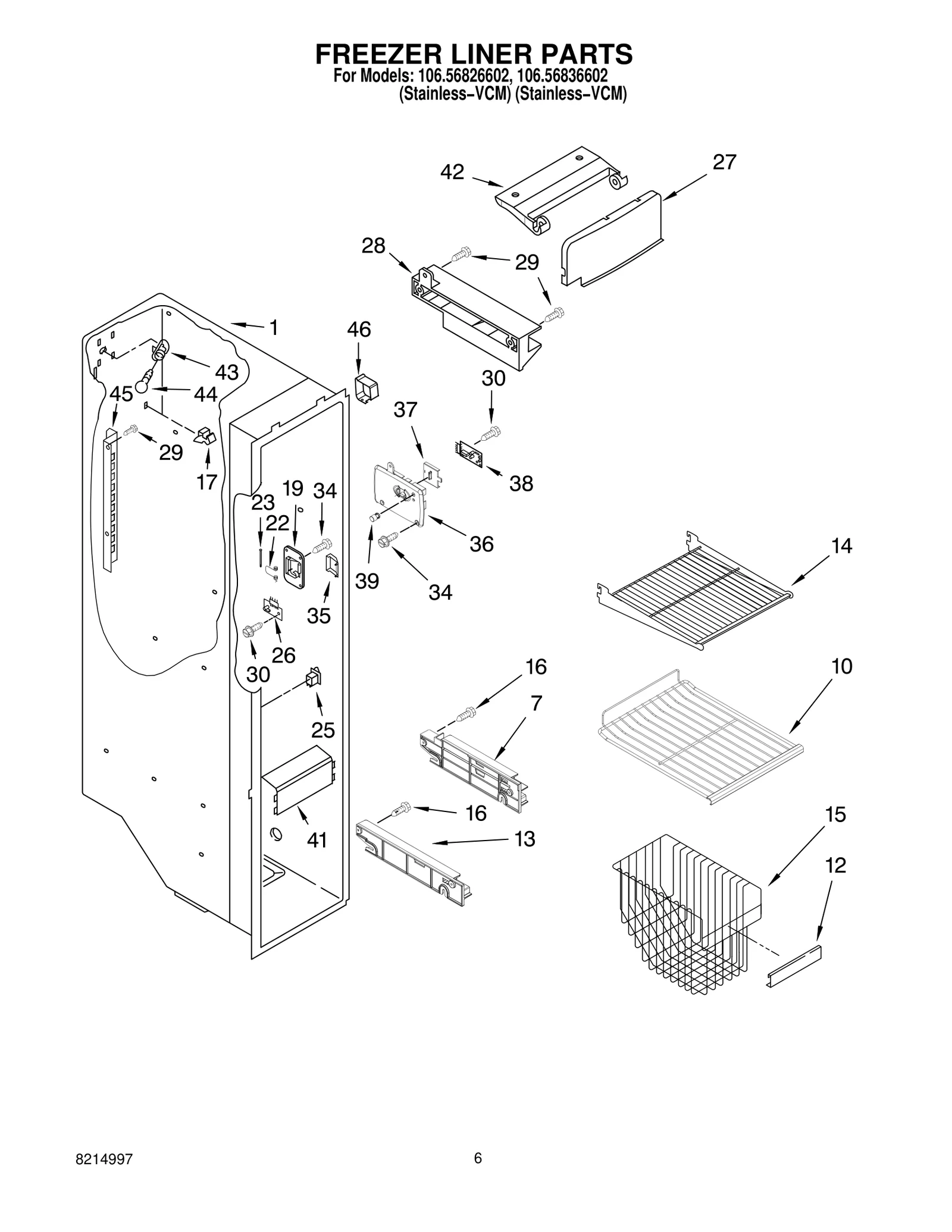

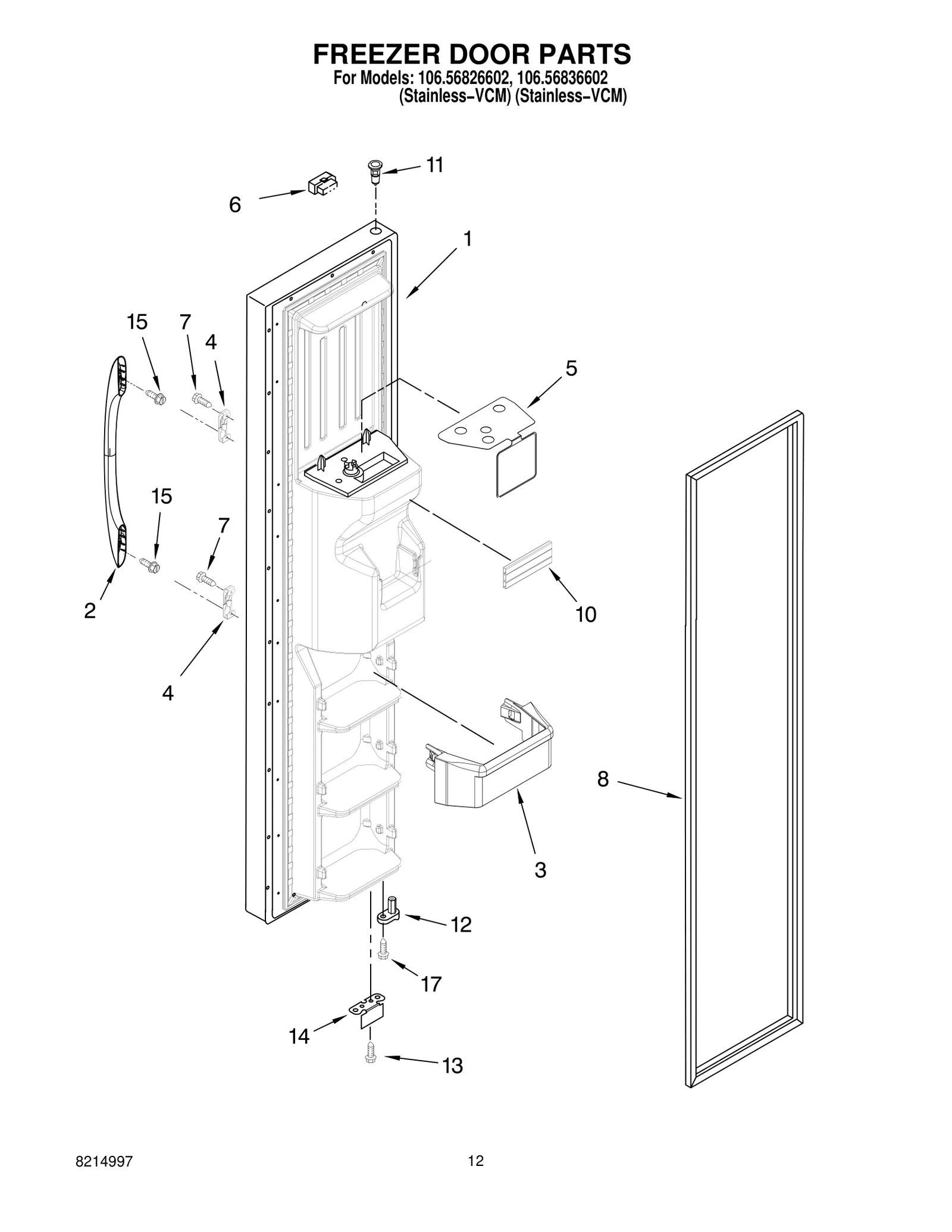

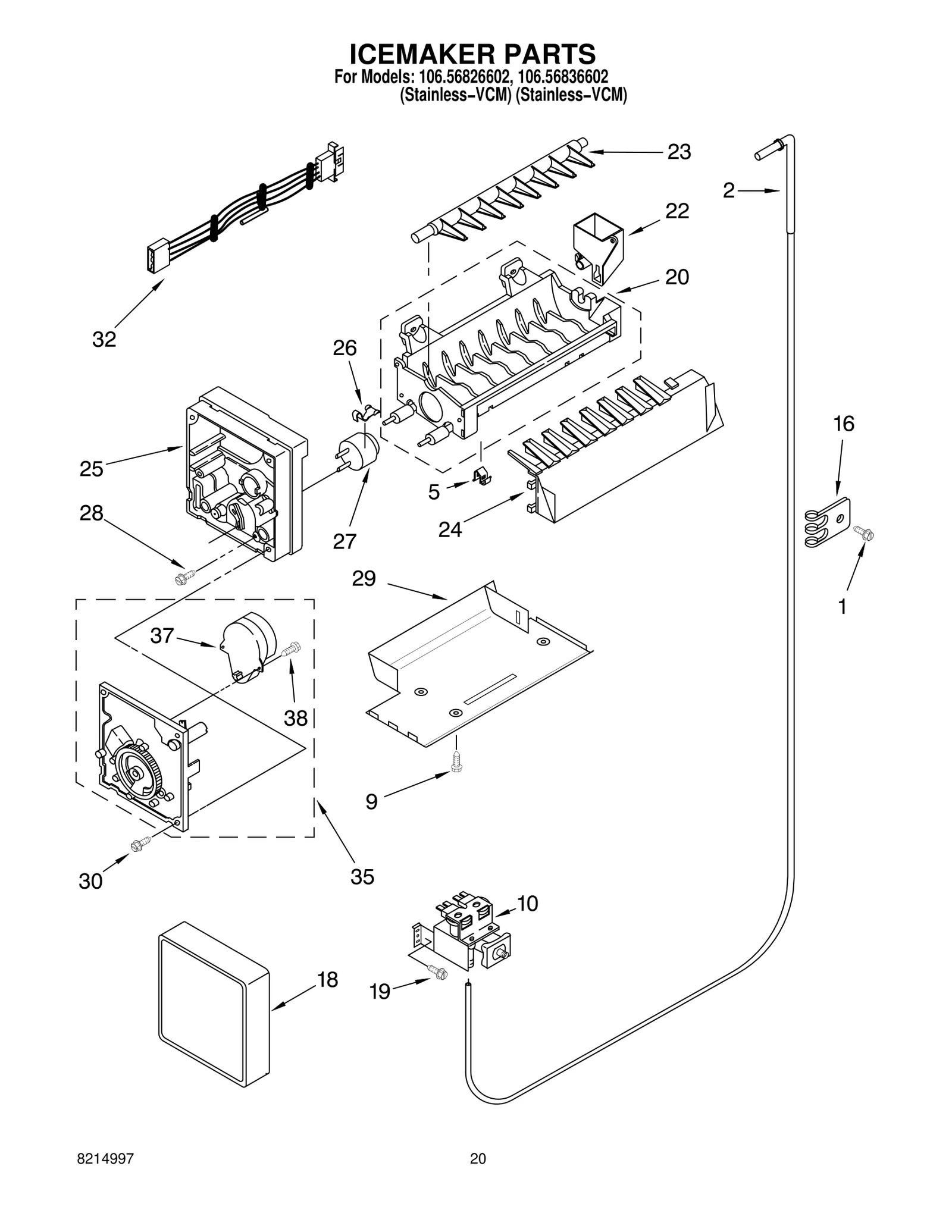

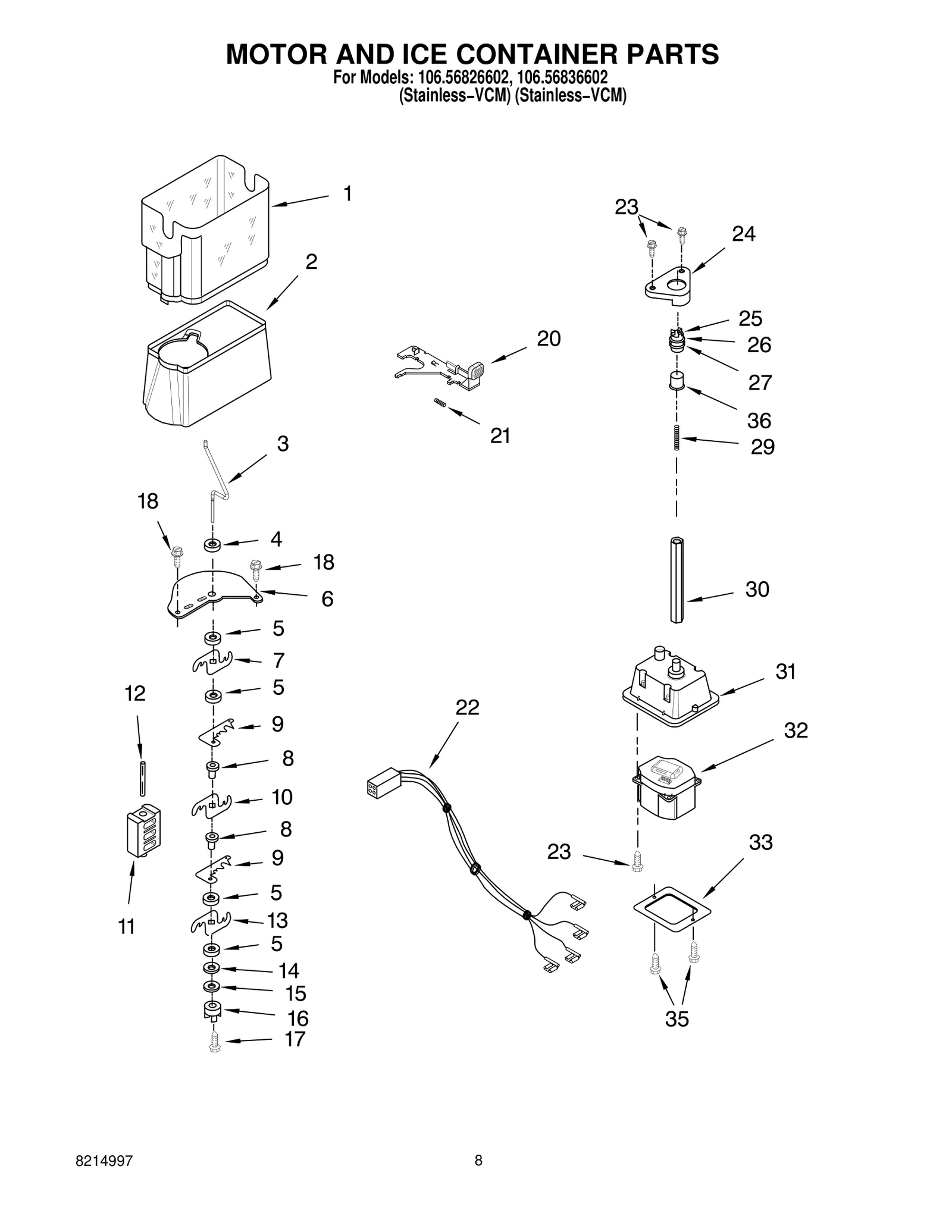

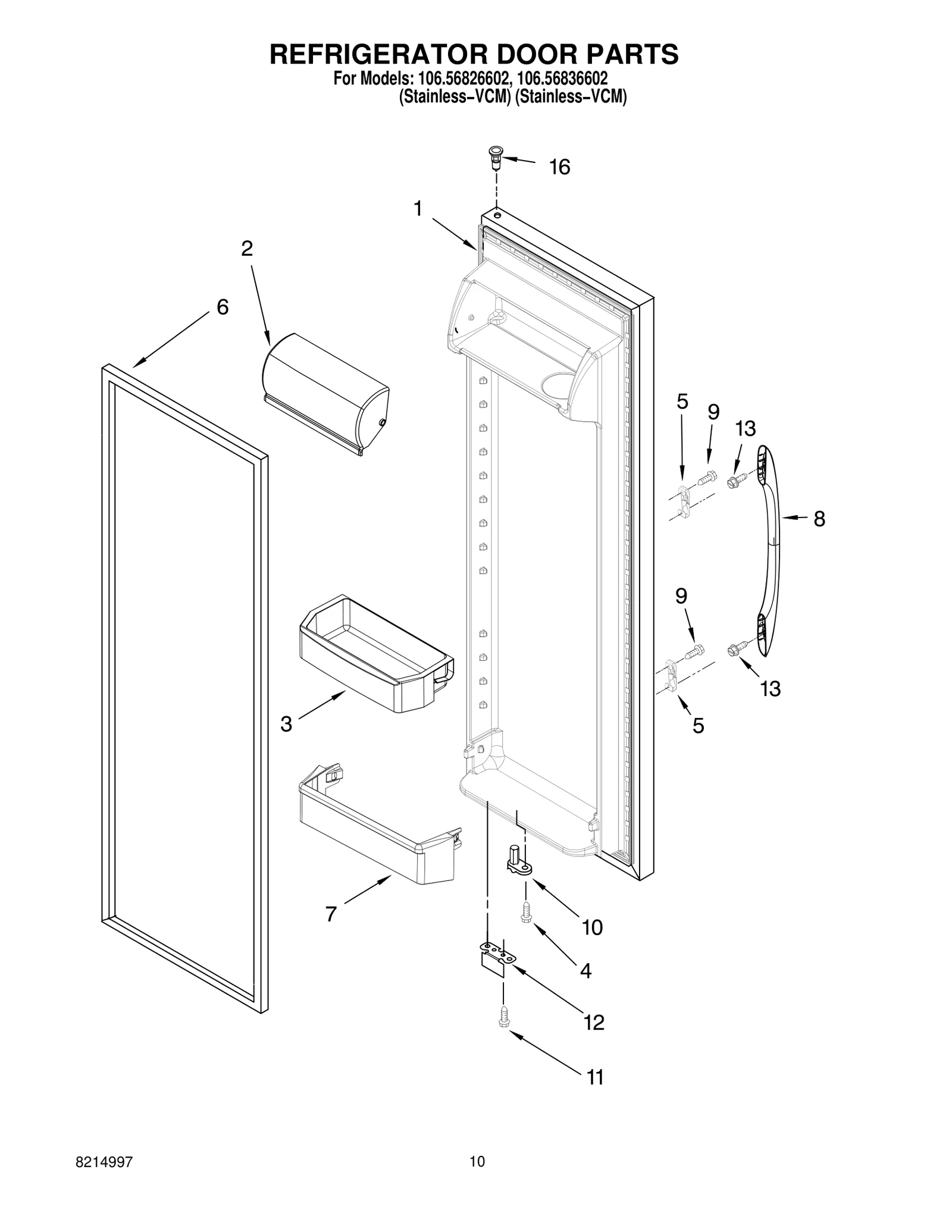

Model Whirlpool 106.56836602 Refrigerator – Common Parts &amp; Diagrams

1

NLA:SCREW Backorder WPL WPW10141645 $3.70

2

2194744 Whirlpool Refrigerator Escutcheon Backorder WPL 2194744 $32.06

2

WP2256096 Whirlpool Refrigerator Fitting In Stock WPL WP2256096 $51.10

2

WP2256101 Whirlpool Dairy Door In Stock WPL WP2256101 $44.17

2

Retainer Fan Motor WPL 2155590 Contact Us For Availability

2

Handle — Black WPL 2319714B Contact Us For Availability

3

WP2194719 Whirlpool Refrigerator Clip In Stock WPL WP2194719 $4.13

3

Slide Meat Pan Control WPL 2182757 Contact Us For Availability

4

2313359 Whirlpool Refrigerator Air Duct Backorder WPL 2313359 $45.80

4

WP2149705 Whirlpool Refrigerator Door Switch In Stock WPL WP2149705 $20.89

4

WPW10250570 Whirlpool Refrigerator Cabinet Ro Backorder WPL WPW10250570 $14.49

4

Washer WPL 2258220 Contact Us For Availability

5

2161307 Whirlpool Refrigerator Rod Backorder WPL 2161307 $8.13

5

WP1119007 Whirlpool Refrigerator Spacer Backorder WPL WP1119007 $4.87

5

WP2196195 Whirlpool Refrigerator Door Pin In Stock WPL WP2196195 $7.69

5

WP2255411 Whirlpool Refrigerator Clip In Stock WPL WP2255411 $12.22

5

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $4.61

6

2261599 Whirlpool Refrigerator Tube Backorder WPL 2261599 $139.55

6

W10864399 Whirlpool Glass Shelf In Stock WPL W10864399 $93.38

6

WP2154473 Whirlpool Refrigerator Connector Backorder WPL WP2154473 $10.76

6

WP2155013 Whirlpool Refrigerator Clip In Stock WPL WP2155013 $3.70

6

WP2180353 Whirlpool Dispenser Door In Stock WPL WP2180353 $7.65

7

WP2156022 Whirlpool Refrigerator Door Trim In Stock WPL WP2156022 $39.73

7

WP2315549 Whirlpool Refrigerator Evaporator M In Stock WPL WP2315549 $150.07

8

2205764 Whirlpool Refrigerator Tube Backorder WPL 2205764 $29.77

8

WP1119005 Whirlpool Refrigerator Spacer Backorder WPL WP1119005 $4.67

8

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $13.65

8

Shim (2) WPL 2209697 Contact Us For Availability

9

W11223328 Whirlpool Refrigerator Shelf Stud Backorder WPL W11223328 $9.59

9

WP2203770 Whirlpool Refrigerator Door Hinge Backorder WPL WP2203770 $33.56

9

WP2206671B Whirlpool Refrigerator Grille In Stock WPL WP2206671B $39.97

9

WP2315562 Whirlpool Refrigerator Thermostat In Stock WPL WP2315562 $56.04

9

WP489491 Whirlpool Refrigerator Screw Backorder WPL WP489491 $2.51

9

Blade, Fixed WPL 2257020 Contact Us For Availability

2161466 Whirlpool Refrigerator Slide Backorder WPL 2161466 $10.76

W10278732 Whirlpool Refrigerator Blade Backorder WPL W10278732 $33.73

W10822681 Whirlpool Refrigerator Water Inlet In Stock WPL W10822681 $92.53

WP2176759 Whirlpool Refrigerator Grommet In Stock WPL WP2176759 $3.70

WP2188656 Whirlpool Refrigerator Crisper Clea In Stock WPL WP2188656 $60.28

WP2179343 Whirlpool Refrigerator Control Body Backorder WPL WP2179343 $13.98

WP2182181 Whirlpool Refrigerator Thimble In Stock WPL WP2182181 $3.88

WP8281227 Whirlpool Screw In Stock WPL WP8281227 $4.58

Light Bar (RC) WPL 2179920 Contact Us For Availability

Block, Blade WPL 2198602 Contact Us For Availability

489229 Whirlpool Refrigerator Roll Pin Backorder WPL 489229 $30.18

WP2179342 Whirlpool Refrigerator Slide Backorder WPL WP2179342 $10.08

WP2180224 Whirlpool Dispenser Funnel Guide In Stock WPL WP2180224 $7.37

WP2182179 Whirlpool Cam Closer In Stock WPL WP2182179 $3.59

WP2203408B Whirlpool Refrigerator Cover Backorder WPL WP2203408B $12.65

2172931 Whirlpool Refrigerator Shield Backorder WPL 2172931 $34.33

WP2187145 Whirlpool Refrigerator Overload Backorder WPL WP2187145 $57.32

Sleeve, Display Mechanism WPL 2252127 Contact Us For Availability

Shelf Track — Right Side WPL 2301289 Contact Us For Availability

Shelf Track — Left Side WPL 2301290 Contact Us For Availability

14

2181741 Whirlpool Refrigerator Slide Backorder WPL 2181741 $42.09

14

WP489235 Whirlpool Refrigerator Washer Backorder WPL WP489235 $4.59

15

2161306 Whirlpool Refrigerator Arm Pivot Backorder WPL 2161306 $4.72

15

WP2198661 Whirlpool Refrigerator Washer Backorder WPL WP2198661 $4.61

15

Screw (2) WPL 8533920 Contact Us For Availability

2152019 Whirlpool Refrigerator Cover Backorder WPL 2152019 $36.71

WP2220457 Whirlpool Refrigerator Ice Bin Coup In Stock WPL WP2220457 $11.36

WP488366 Whirlpool Refrigerator Clamp Backorder WPL WP488366 $4.81

WPW10189190 Whirlpool Start Device In Stock WPL WPW10189190 $71.73

2150331 Whirlpool Refrigerator Wire Cover Backorder WPL 2150331 $11.11

WP3400012 Whirlpool Refrigerator Screw Backorder WPL WP3400012 $2.51

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $3.70

WP8281164 Whirlpool Refrigerator Screw In Stock WPL WP8281164 $4.56

WPW10662129 Whirlpool Refrigerator Run Capaci In Stock WPL WPW10662129 $25.41

2179350 Whirlpool Refrigerator Deflector Backorder WPL 2179350 $30.20

WP2172890 Whirlpool Refrigerator Wire Backorder WPL WP2172890 $2.51

WP3400065 Whirlpool Refrigerator Screw Backorder WPL WP3400065 $2.51

WPW10289690 Whirlpool Ice Maker Cover Backorder WPL WPW10289690 $2.64

WP1108438 Whirlpool Refrigerator Extension Backorder WPL WP1108438 $10.07

WP2198587 Whirlpool Refrigerator Cover Backorder WPL WP2198587 $34.28

WP2256126 Whirlpool Refrigerator Reservoir In Stock WPL WP2256126 $67.09

WPW10141625 Whirlpool Refrigerator Screw Asse Backorder WPL WPW10141625 $9.59

20

W11115203 Whirlpool Control Panel Backorder WPL W11115203 $244.13

20

WPW10122550 Whirlpool Refrigerator Ice Mold Backorder WPL WPW10122550 $103.97

21

489396 Whirlpool Refrigerator Clip Backorder WPL 489396 $4.72

21

WP2198608 Whirlpool Refrigerator Spring In Stock WPL WP2198608 $3.70

22

WP2188822 Whirlpool Refrigerator Evaporator In Stock WPL WP2188822 $203.37

22

WP2198635 Whirlpool Refrigerator Spring Backorder WPL WP2198635 $30.36

22

WP628356 Whirlpool Refrigerator Fill Cup Backorder WPL WP628356 $17.55

626753 Whirlpool Refrigerator Ejector Arm Backorder WPL 626753 $8.53

WP2198634 Whirlpool Door Pin Backorder WPL WP2198634 $5.44

WP2203407B Whirlpool Refrigerator Cover Backorder WPL WP2203407B $12.81

WP8281163 Whirlpool Refrigerator Screw Backorder WPL WP8281163 $4.56

Clip WPL 2161324 Contact Us For Availability

W10297245 Whirlpool Refrigerator Arm Stripper Backorder WPL W10297245 $42.79

WP2179243 Whirlpool Refrigerator Pan Trim Backorder WPL WP2179243 $36.23

WP2188874 Whirlpool Refrigerator Condenser Mo In Stock WPL WP2188874 $59.32

WP2304673 Whirlpool Refrigerator Bracket Backorder WPL WP2304673 $6.35

Holder WPL 2212369 Contact Us For Availability

WP2195051 Whirlpool Refrigerator Clip Backorder WPL WP2195051 $4.81

WP2195914 Whirlpool Refrigerator Ice Maker Ho Backorder WPL WP2195914 $41.30

WP2220458 Whirlpool Drive Cam In Stock WPL WP2220458 $11.97

WPW10614158 Whirlpool Refrigerator Evaporator In Stock WPL WPW10614158 $45.89

26

WP2198628 Whirlpool Door Seal In Stock WPL WP2198628 $5.01

26

WP2315522 Whirlpool Refrigerator Clip Backorder WPL WP2315522 $4.59

26

WPW10309395 Whirlpool Refrigerator Wire Harne Backorder WPL WPW10309395 $147.65

WP2212370 Whirlpool Washer In Stock WPL WP2212370 $7.45

WP489483 Whirlpool Screw In Stock WPL WP489483 $4.58

WP627985 Whirlpool Icemaker Cycling Thermosta In Stock WPL WP627985 $46.67

WPW10143759 Whirlpool Dryer Filter In Stock WPL WPW10143759 $14.68

8533917 Whirlpool Refrigerator Screw In Stock WPL 8533917 $9.59

876765 Whirlpool Primary Mounting Kit Refrige In Stock WPL 876765 $27.52

W10309990 Whirlpool Refrigerator Compressor In Stock WPL W10309990 $312.79

Slide, Ice Maker Mounting WPL 2212321 Contact Us For Availability

29

W10852956 Whirlpool Refrigerator Spring In Stock WPL W10852956 $8.14

29

Bracket, Ice Maker Mounting WPL 2212317 Contact Us For Availability

30

2304903 Whirlpool Refrigerator Frame Backorder WPL 2304903 $106.63

30

WP2188917 Whirlpool Drive Shaft In Stock WPL WP2188917 $45.77

30

WP681249 Whirlpool Screw Assembly In Stock WPL WP681249 $2.51

31

WP489500 Whirlpool Refrigerator Screw Backorder WPL WP489500 $2.51

WP2181929 Whirlpool Refrigerator Bracket Backorder WPL WP2181929 $5.67

WP2203771 Whirlpool Refrigerator Door Hinge In Stock WPL WP2203771 $35.78

WP2252130 Whirlpool Refrigerator Motor In Stock WPL WP2252130 $109.32

WPW10309401 Whirlpool Refrigerator Wire Harne Backorder WPL WPW10309401 $52.48

33

WP2323197 Whirlpool Refrigerator Heater Backorder WPL WP2323197 $52.59

34

W11623163 Whirlpool Refrigerator Clip Backorder WPL W11623163 $4.39

34

WP2304697 Whirlpool Refrigerator Water Tube Backorder WPL WP2304697 $53.34

34

WPW10142283 Whirlpool Refrigerator Screw In Stock WPL WPW10142283 $4.56

35

W10190935 Whirlpool Refrigerator Icemaker Mot In Stock WPL W10190935 $49.38

35

WP2198633 Whirlpool Refrigerator Flipper In Stock WPL WP2198633 $16.05

36

WP2212365 Whirlpool Refrigerator Sleeve Backorder WPL WP2212365 $10.43

37

2315398 Whirlpool Refrigerator Slide Backorder WPL 2315398 $4.78

37

Motor (Not Serviced, Order #35) WPL N/S Contact Us For Availability

38

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $4.56

39

876811 Whirlpool Grommet Backorder WPL 876811 $3.70

39

WP2198643 Whirlpool Refrigerator Lens In Stock WPL WP2198643 $2.51

39

WP4387558 Whirlpool Refrigerator Compressor G Backorder WPL WP4387558 $3.70

40

489340 Whirlpool Refrigerator Screw Backorder WPL 489340 $4.56

41

W10896764 Whirlpool Refrigerator Air Baffle In Stock WPL W10896764 $40.19

42

WP2198641 Whirlpool Refrigerator Ice Maker Co In Stock WPL WP2198641 $2.51

42

Clip, Heat WPL 2155547 Contact Us For Availability

48

Unit Mounting Rail WPL 2149718 Contact Us For Availability

49

W11544659 Whirlpool Refrigerator Screw Backorder WPL W11544659 $9.59

50

Guard, Fan WPL 2260516 Contact Us For Availability

51

W11751592 Whirlpool Sleeve In Stock WPL W11751592 $12.17

52

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $2.51

53

WP489427 Whirlpool Refrigerator Screw Backorder WPL WP489427 $3.70

55

WP489478 Whirlpool Refrigerator Screw Backorder WPL WP489478 $2.51

59

Clip, Wire & Tube WPL 2208280 Contact Us For Availability

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $23.44

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $35.96

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $37.79

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $39.53

WP4373559 Whirlpool Fitting In Stock WPL WP4373559 $25.22

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $28.82

Valve, Access WPL 978029 Contact Us For Availability

Valve, Access WPL 978028 Contact Us For Availability

100

WPW10190961 Whirlpool Ice Maker In Stock WPL WPW10190961 $85.90

OPT-1

350942 Whirlpool Spray Paint Backorder WPL 350942 $50.33

OPT-2

285006 Whirlpool Spray In Stock WPL 285006 $44.38

OPT-3

350930 Whirlpool White Spray Paint In Stock WPL 350930 $21.41

OPT-4

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $43.92

OPT-5

8171357 Whirlpool Spray Nozzle Backorder WPL 8171357 $46.21

OPT-6

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.92

OPT-7

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $7.21

OPT-8

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $5.60

OPT-9

Graphite WPL 80051 Contact Us For Availability

OPT-10

Black WPL 799340 Contact Us For Availability

OPT-11

White WPL 799344 Contact Us For Availability

OPT-12

Bisque WPL 4392900 Contact Us For Availability

OPT-13

Graphite WPL 8171358 Contact Us For Availability

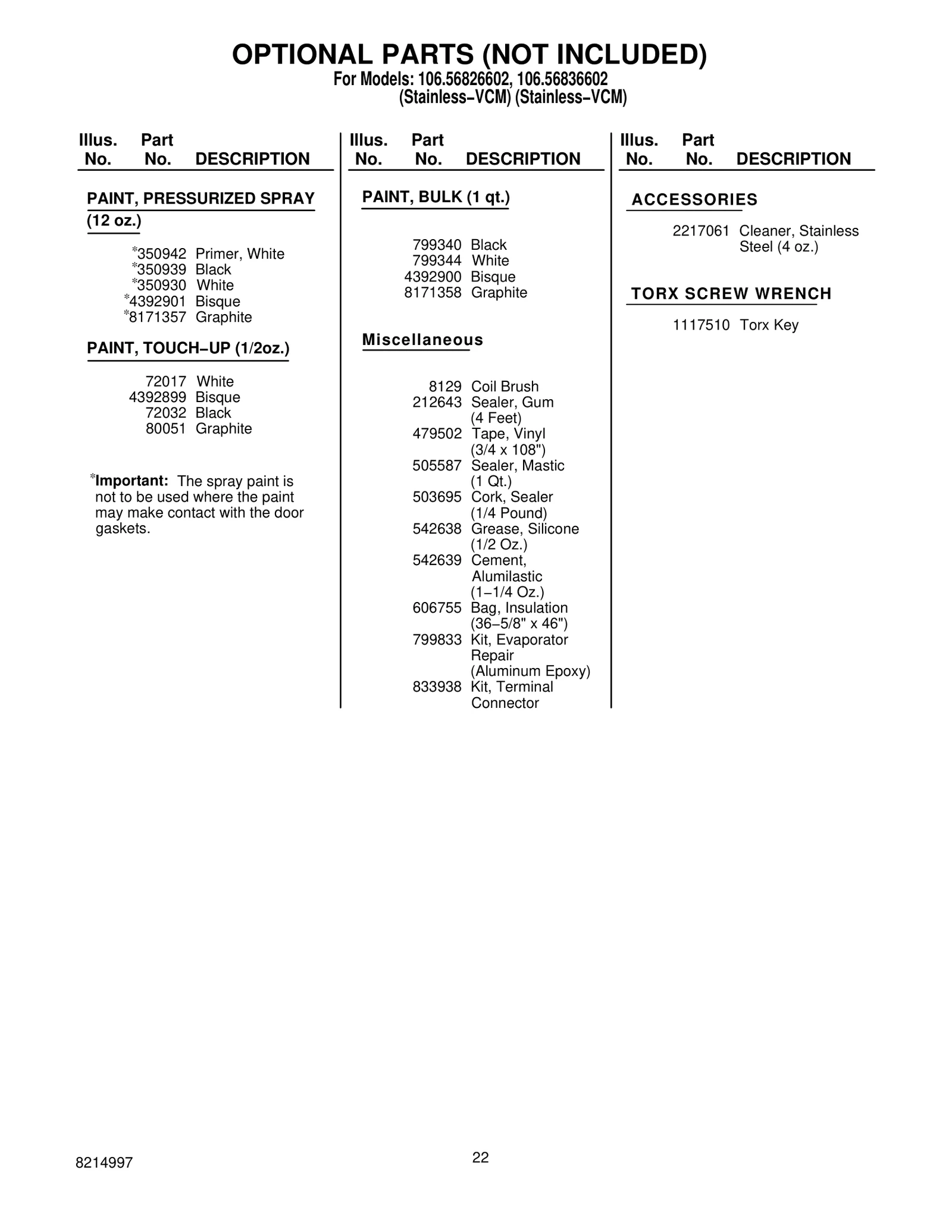

OPT-14

4210463RW Whirlpool Refrigerator Coil Brush In Stock WPL 4210463RW $14.22

OPT-15

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $30.25

OPT-16

Tape, Vinyl WPL 479502 Contact Us For Availability

OPT-17

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $64.36

OPT-18

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $43.61

OPT-19

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $24.56

OPT-20

Cement, WPL 542639 Contact Us For Availability

OPT-21

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $29.17

OPT-22

Kit, Evaporator WPL 799833 Contact Us For Availability

OPT-23

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

OPT-24

Cleaner, Stainless WPL 2217061 Contact Us For Availability

OPT-25

Torx Key WPL 1117510 Contact Us For Availability
