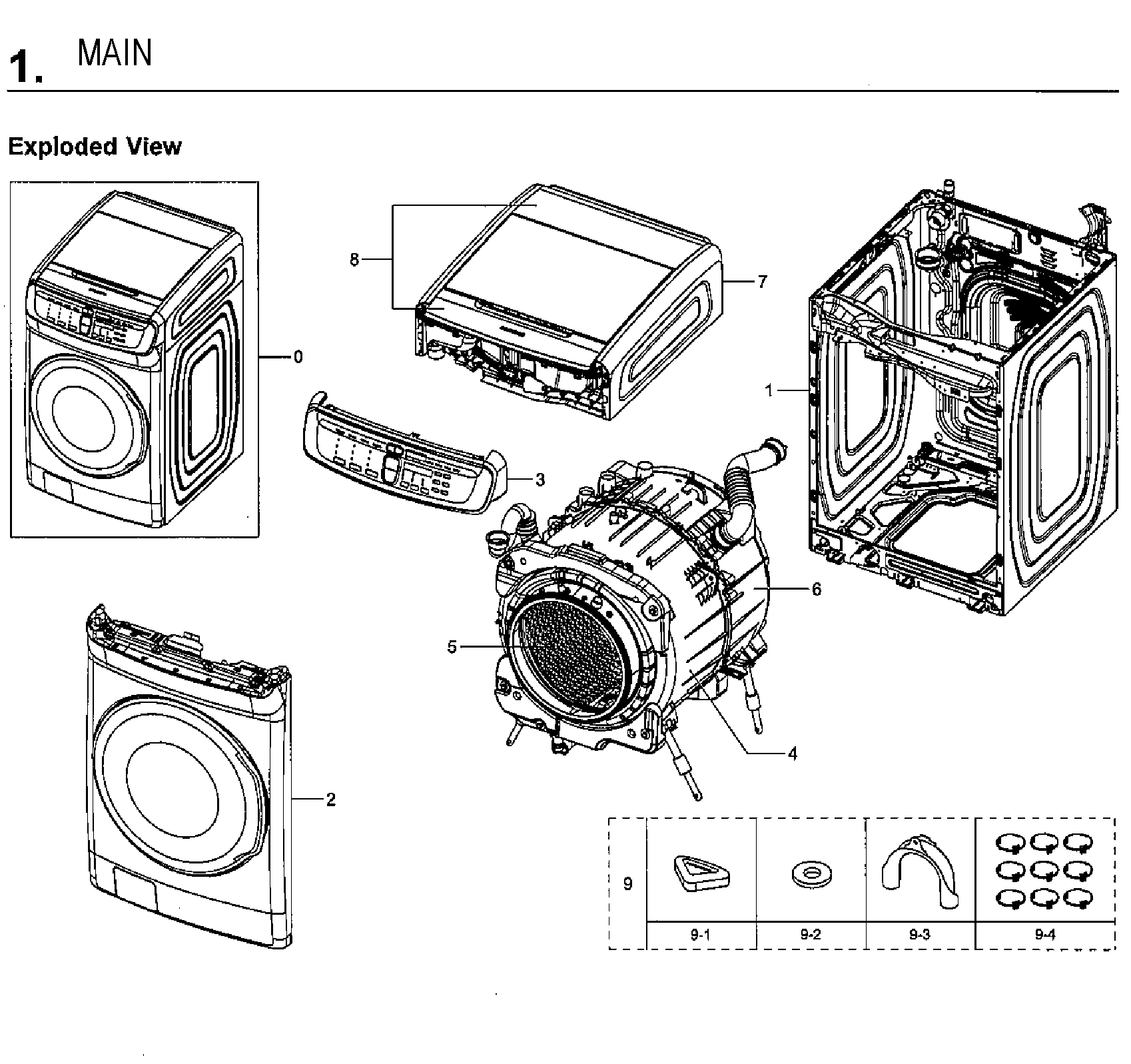

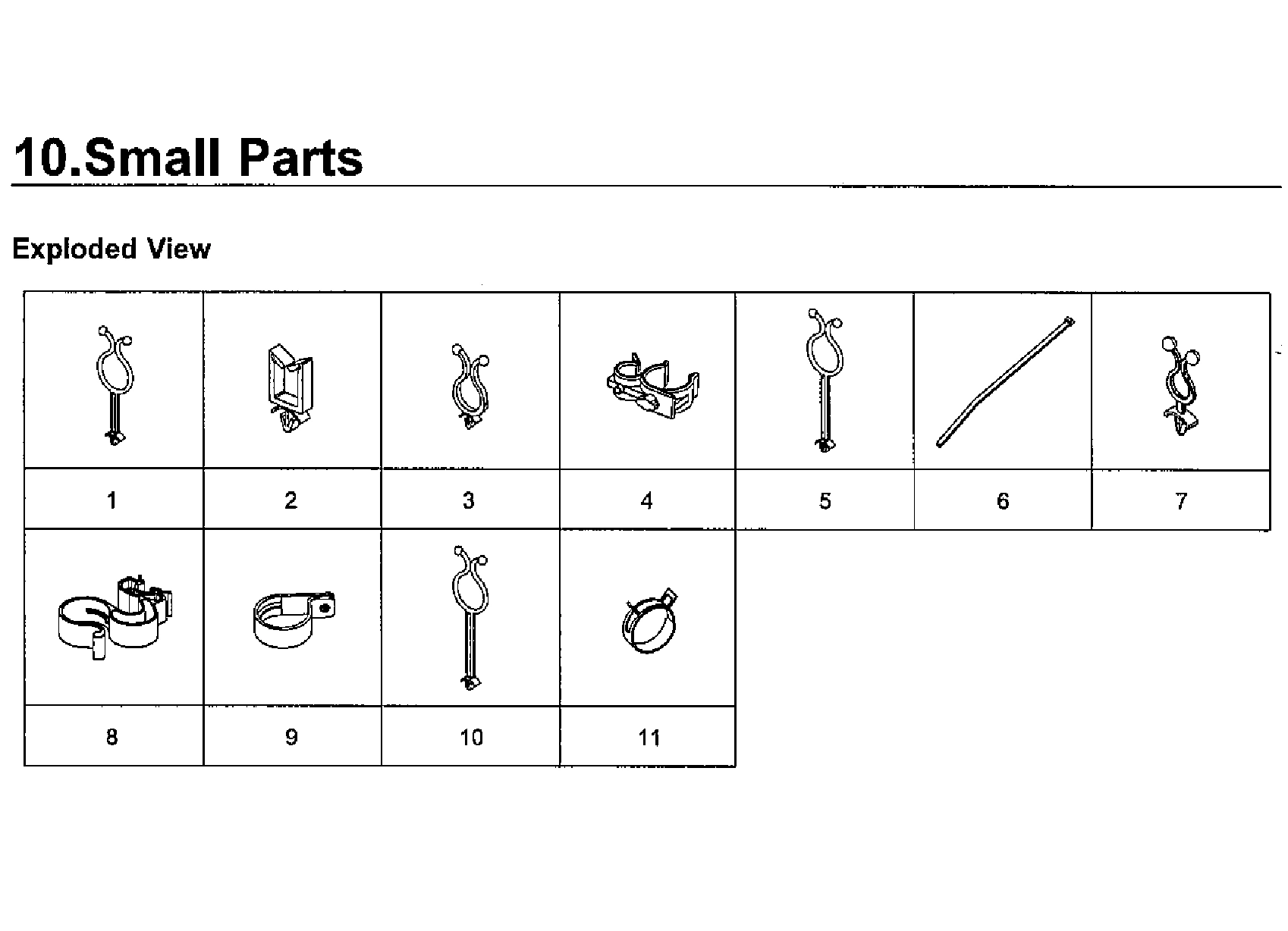

Model Samsung WV55M9600AV/A5-00 Washer – Common Parts &amp; Diagrams

1

DC61-01736B Samsung Wire Holder Backorder SMG DC61-01736B $0.92

1

DC63-01997A Samsung Cover Top WV9900M ABS T2. Backorder SMG DC63-01997A $128.50

1

DC92-01993A Samsung Printed Circuit Board Dis In Stock SMG DC92-01993A $213.51

1

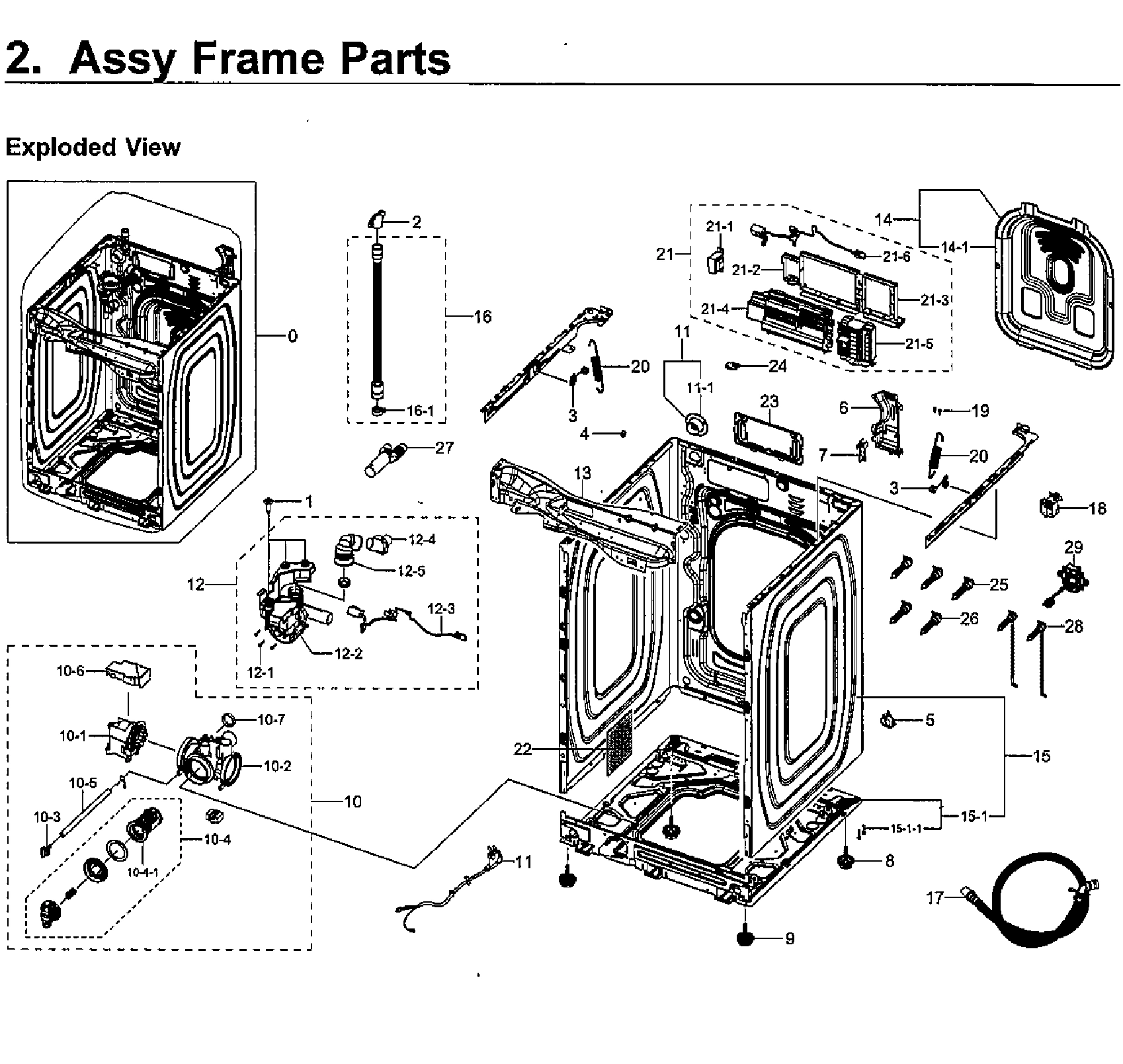

Frame parts SMG DC90-00015M Contact Us For Availability

1

Tub front parts SMG DC90-00006W Contact Us For Availability

1-1

DC67-00560A Samsung Washer Weight Balancer Backorder SMG DC67-00560A $125.56

1-2

DC67-00870B Samsung Weight Balancer In Stock SMG DC67-00870B $125.51

1-2

DC97-20255A Samsung Assembly Filter Flex WASH Backorder SMG DC97-20255A $41.72

1-3

DC47-00006P Samsung Washer Heater Backorder SMG DC47-00006P $143.31

1-4

DC97-02412A Samsung Washer Bolt Assembly In Stock SMG DC97-02412A $11.20

1-4

NLA:RINSE ASSY Backorder SMG DC97-20128A $55.97

1-4

Main pcb SMG DC92-02004B Contact Us For Availability

1-5

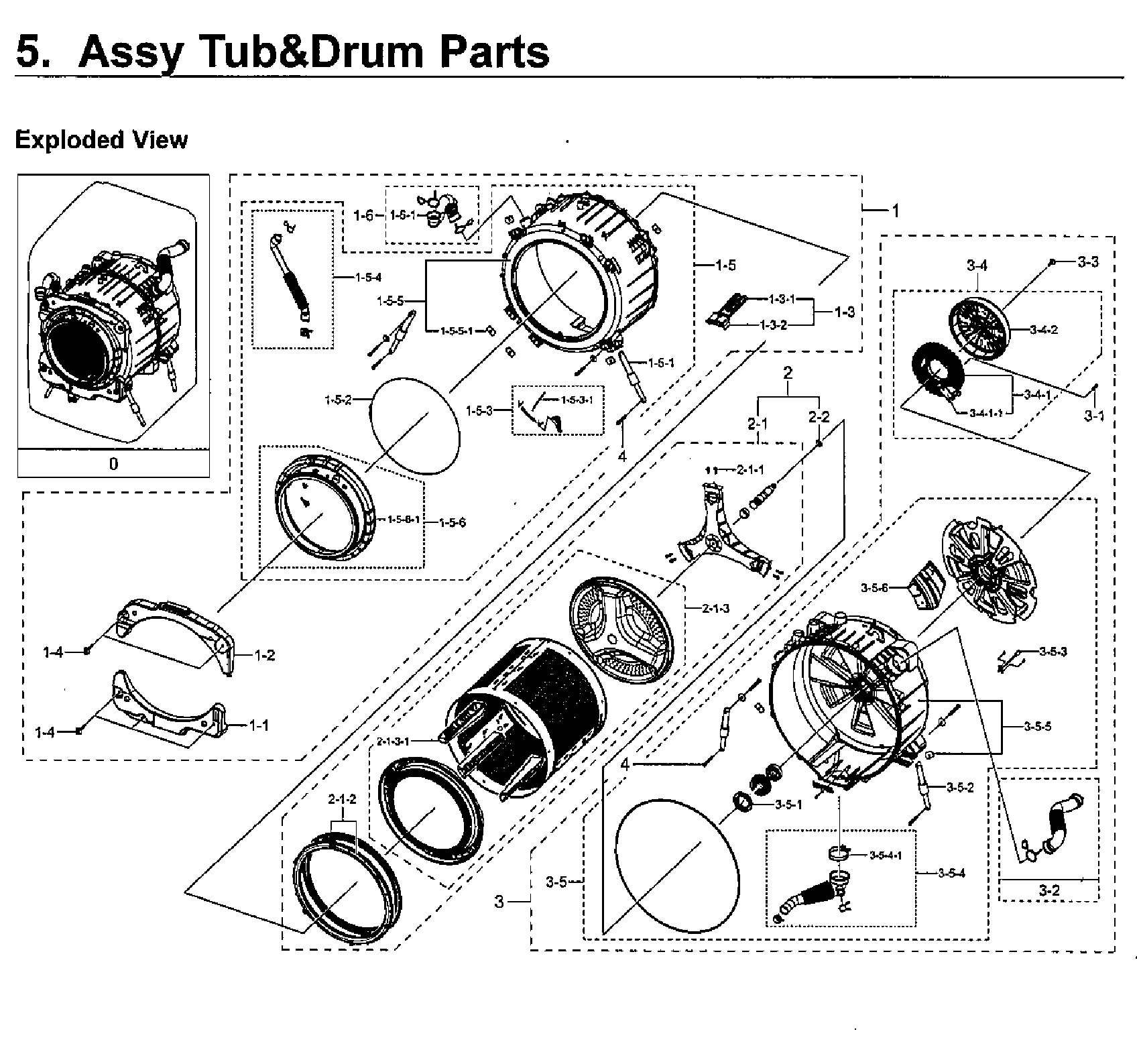

DC97-19642C Samsung Tub Front Assembly WV9600 Backorder SMG DC97-19642C $237.44

1-6

DC97-20042A Samsung Drawer Hose Backorder SMG DC97-20042A $95.66

1-10

DC97-20019A Samsung Semi Top Cover Assembly Backorder SMG DC97-20019A $335.61

1-11

DC97-20004C Samsung Lid Assembly Backorder SMG DC97-20004C $196.73

1-21

DC93-00402B Samsung Wire Harness Backorder SMG DC93-00402B $29.87

1-31

DC47-00006Y Samsung Heater Wash Backorder SMG DC47-00006Y $108.47

1-32

DC63-00820A Samsung Cover Heater WF337AAW PC+ Backorder SMG DC63-00820A $8.71

1-45

DC67-00875A Samsung Cap Liquid ABS WV7500M T1 Backorder SMG DC67-00875A $4.26

1-51

DC66-00470A Samsung Washer Shock Absorber In Stock SMG DC66-00470A $55.37

1-52

DC97-04981F Samsung Washer Door Boot Gasket D In Stock SMG DC97-04981F $16.58

1-53

DC97-14545S Samsung Hose Pressure Assembly Backorder SMG DC97-14545S $40.55

1-54

DC97-16106B Samsung Air Hose Assembly for WF6 Backorder SMG DC97-16106B $40.10

1-55

DC97-19638C Samsung Assembly Semi Tub Front W Backorder SMG DC97-19638C $141.97

1-56

DC97-19755G Samsung Washer Door Boot In Stock SMG DC97-19755G $173.20

1-61

DC67-00878A Samsung Hose Drawer Detergent Ass Backorder SMG DC67-00878A $83.40

2

DC61-00553B Samsung Cable Clamp Assembly Backorder SMG DC61-00553B $0.92

2

DC97-20154A Samsung Door Switch Cover Assembl Backorder SMG DC97-20154A $13.18

2

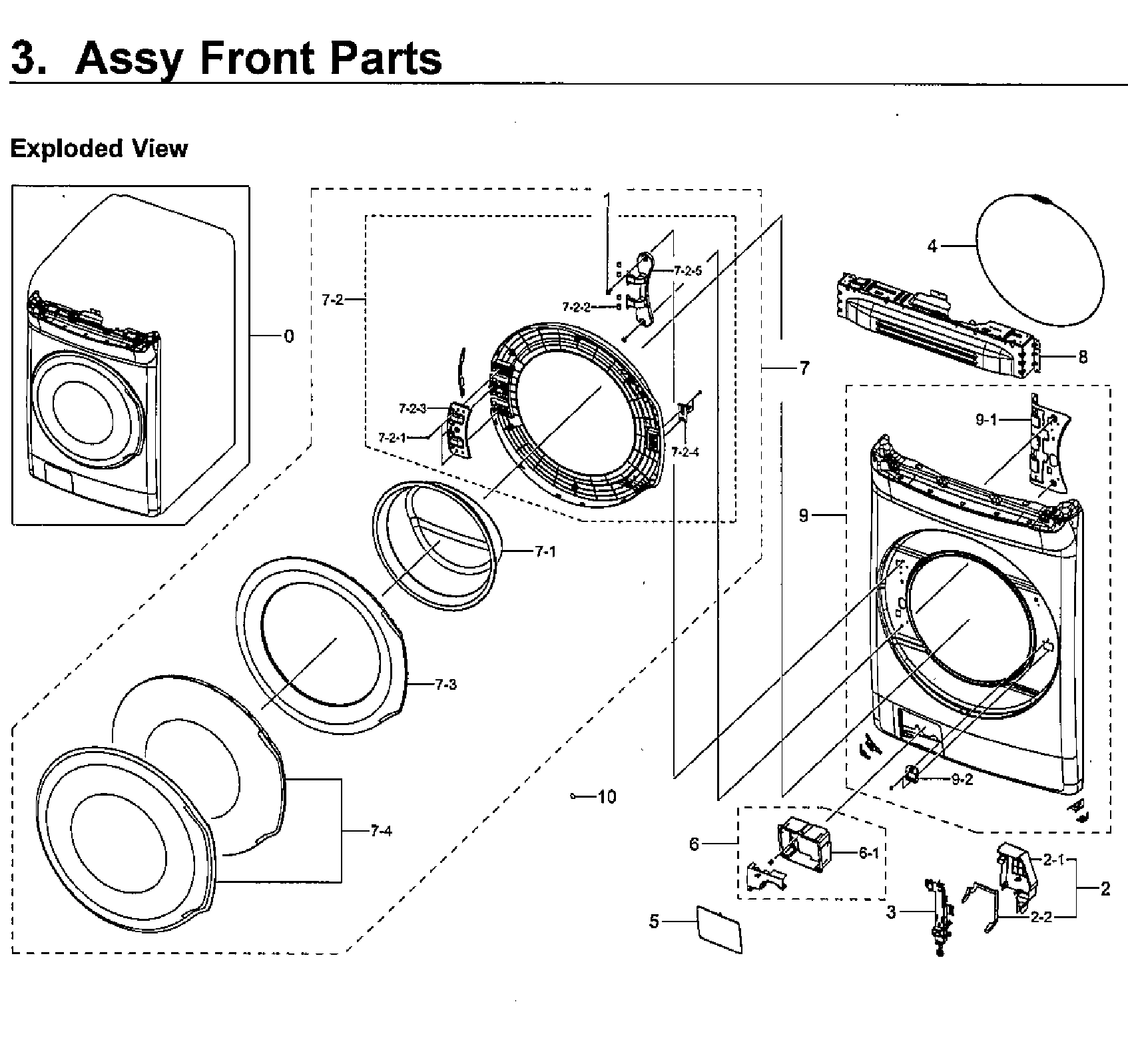

Front parts SMG DC90-00005U Contact Us For Availability

2

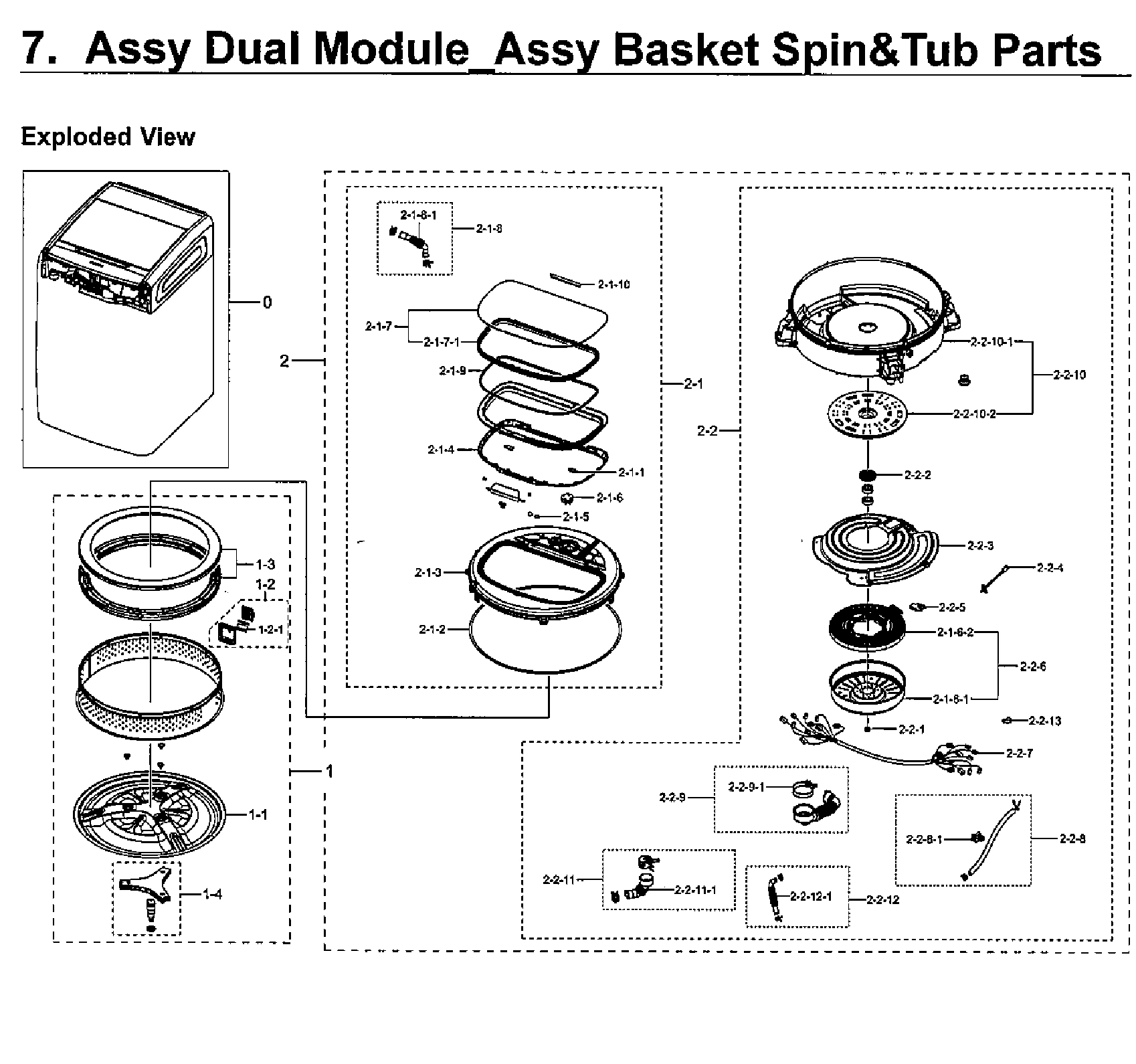

Drum parts SMG DC90-00005H Contact Us For Availability

DC63-01156A Samsung Cover Door Switch Backorder SMG DC63-01156A $26.19

DC92-02046A Samsung WiFi Kit Backorder SMG DC92-02046A $158.76

DC97-16086B Samsung Washer Drum Assembly Backorder SMG DC97-16086B $325.60

DC97-20036C Samsung Assembly Cover Tub WV9600 In Stock SMG DC97-20036C $237.47

2-2

6031-001640 Samsung Washer Spring STS304 ID35 Backorder SMG 6031-001640 $4.56

2-2

DC62-00525A Samsung Seal Rubber Backorder SMG DC62-00525A $33.18

2-2

DC97-20152A Samsung Outer Tub Assembly Backorder SMG DC97-20152A $352.81

2-11

DC60-40137A Samsung Washer Hex Bolt Spider In Stock SMG DC60-40137A $4.98

2-12

DC97-12135A Samsung Front Load Washer Basket Backorder SMG DC97-12135A $183.46

2-13

Washer spin basket SMG DC97-17018A Contact Us For Availability

2-16

DC67-00909A Samsung Barrier Cap WV9900M PP FC Backorder SMG DC67-00909A $1.24

2-17

DC97-20029A Samsung Inner Door Assembly Backorder SMG DC97-20029A $182.74

2-25

DC93-00278B Samsung Washer Vibration MEMS Sen In Stock SMG DC93-00278B $77.94

2-28

DC97-14545Q Samsung Pressure Hose Backorder SMG DC97-14545Q $21.56

3

DC61-02432A Samsung Guide Spring Assembly Backorder SMG DC61-02432A $2.49

3

DC61-40081A Samsung Wire Holder Assembly Backorder SMG DC61-40081A $0.92

3

DC64-00519D Samsung Washer Door Lock and Swit In Stock SMG DC64-00519D $133.13

3

DC97-20095A Samsung Assembly Semi Panel Contr In Stock SMG DC97-20095A $217.68

3

Panel control parts SMG DC90-00006H Contact Us For Availability

3

Tub back parts SMG DC90-00006R Contact Us For Availability

3-1

6011-004782 Samsung Bolt Etc Backorder SMG 6011-004782 $6.22

3-2

DC97-16104B Samsung Assembly Hose O.F. Backorder SMG DC97-16104B $81.11

3-3

DC97-06080C Samsung Washer Mercury PJT Bolt a Backorder SMG DC97-06080C $8.14

3-4

DC93-00168E Samsung Dual Wash BLDC Motor Asse Backorder SMG DC93-00168E $178.18

3-5

DC97-19645C Samsung Tub Back Assembly WV9600 Backorder SMG DC97-19645C $360.94

3-41

DC31-00111A Samsung Washer Drive Motor Stator In Stock SMG DC31-00111A $247.13

3-42

DC97-20192A Samsung Rotor Assembly Backorder SMG DC97-20192A $166.32

3-51

DC62-00156A Samsung Washer Rear Tub Oil Seal In Stock SMG DC62-00156A $26.19

3-52

DC66-00470B Samsung Washer Damper Shock Packa Backorder SMG DC66-00470B $25.46

3-53

DC90-10128N Samsung Washer Water Temperature In Stock SMG DC90-10128N $43.52

3-54

DC97-16105B Samsung Washer Drain Hose Assembl Backorder SMG DC97-16105B $85.12

3-55

Semi tub b SMG DC97-16155P Contact Us For Availability

3-56

DC97-16510A Samsung Assembly Bracket TUB;GRAC Backorder SMG DC97-16510A $22.80

4

6011-001644 Samsung Bolt Hex In Stock SMG 6011-001644 $5.38

4

DC61-00133A Samsung Clamp Hose Backorder SMG DC61-00133A $1.67

4

DC61-03400A Samsung Clip Backorder SMG DC61-03400A $1.67

4

DC97-04973B Samsung Boot Spring Clamp In Stock SMG DC97-04973B $5.33

5

DC61-04462A Samsung Guide Hose Assembly Backorder SMG DC61-04462A $3.09

5

DC97-16018Z Samsung Washer Assembly Filter Co Backorder SMG DC97-16018Z $51.59

6

DC61-04463A Samsung Guide Wire Backorder SMG DC61-04463A $3.50

6

DC97-19494A Samsung WF6000 LATC Filter Case A Backorder SMG DC97-19494A $30.96

6-1

DC61-02621B Samsung Filter Guide Cover Backorder SMG DC61-02621B $19.07

7

HOLDER WIRE;DAWH-3NB,PA66,T1.8 Backorder SMG DC61-40086A $0.92

7

DC97-19957A Samsung Washer Door Assembly Backorder SMG DC97-19957A $208.19

7

Cover wire SMG DC63-02004A Contact Us For Availability

7

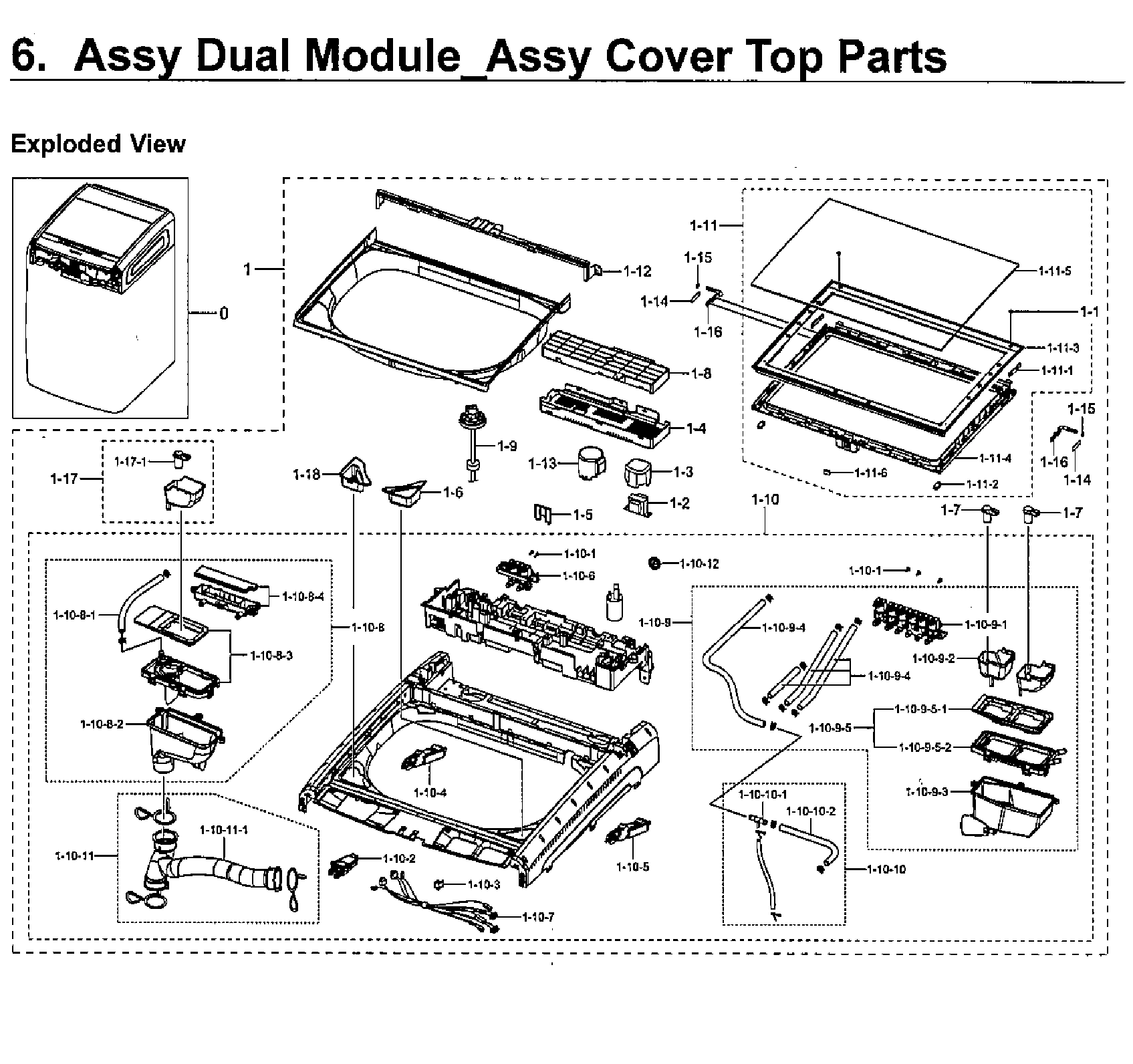

Dual module SMG DC97-20148C Contact Us For Availability

7-1

DC64-00504C Samsung Washer Door Glass Window In Stock SMG DC64-00504C $173.93

7-2

DC97-19997A Samsung Washer Door Glass Holder Backorder SMG DC97-19997A $113.51

7-3

Cover-glass SMG DC63-02022A Contact Us For Availability

7-4

DC97-19996A Samsung Assembly Door Cover WF550 Backorder SMG DC97-19996A $200.27

7-21

6001-001668 Samsung Washer Dryer Machine Scre Backorder SMG 6001-001668 $1.67

7-22

DC61-00891A Samsung Washer Dryer Hinge Guide In Stock SMG DC61-00891A $32.08

7-23

DC61-02635A Samsung Support Hinge Assembly Backorder SMG DC61-02635A $24.71

7-24

DC66-00375A Samsung Washer Door Lock Strike L In Stock SMG DC66-00375A $33.56

7-25

DC61-04342A Samsung Hinge Door WV7500M ALDC T Backorder SMG DC61-04342A $98.48

8

DC61-02706A Samsung Hose Holder Assembly Backorder SMG DC61-02706A $4.15

8

DC97-00920S Samsung Washer Leg Leveling Assem Backorder SMG DC97-00920S $23.97

8

DC97-19992A Samsung Dual WAS Frame Plate Asse Backorder SMG DC97-19992A $77.63

8

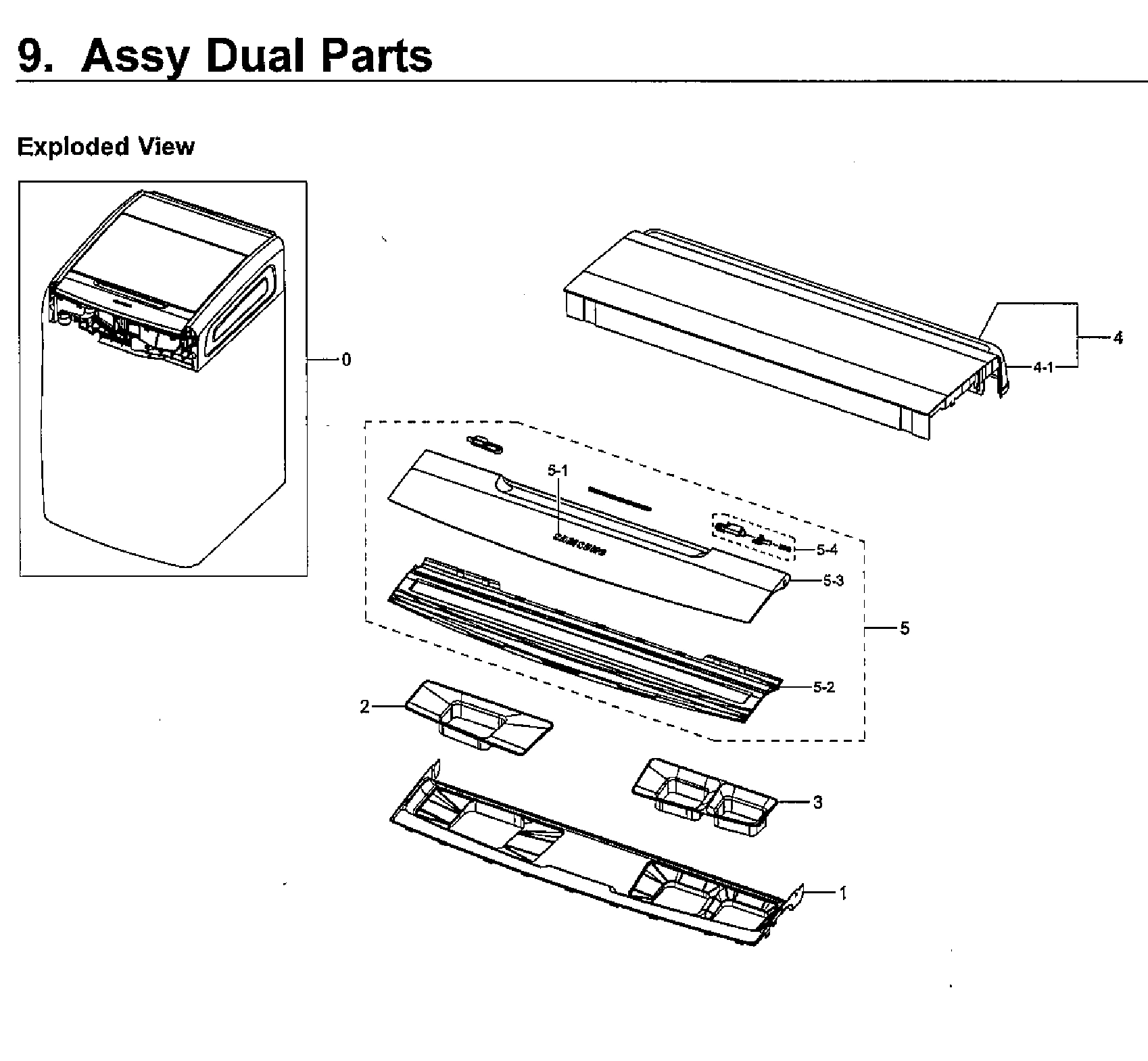

Dual parts SMG DC90-24241A Contact Us For Availability

9

DC61-00118A Samsung Cable Clamp Assembly Backorder SMG DC61-00118A $0.92

9

DC97-14293D Samsung Washer Leveling Leg Assem Backorder SMG DC97-14293D $22.86

9

DC97-20025A Samsung Frame Front Assembly Backorder SMG DC97-20025A $219.72

9

Accessory parts SMG DC90-00015T Contact Us For Availability

9-1

DC61-02615A Samsung Hinge Bracket In Stock SMG DC61-02615A $61.45

9-1

DC61-04468A Samsung Washer Detergent Case Ass Backorder SMG DC61-04468A $29.13

9-2

DC61-04469A Samsung Low Rubber Leg Assembly Backorder SMG DC61-04469A $18.65

9-2

DC63-00960A Samsung Washer Switch Cover Assem In Stock SMG DC63-00960A $2.49

9-3

DC62-10278A Samsung Hose Hanger Assembly In Stock SMG DC62-10278A $4.98

9-4

DC67-00307A Samsung Cap Fixer WF438AAC/XAA PP Backorder SMG DC67-00307A $0.92

10

DC64-03303A Samsung Inlay - Door Backorder SMG DC64-03303A $0.92

10

DC97-17999Q Samsung Drain Pump Backorder SMG DC97-17999Q $140.25

10-2

Pump case SMG DC61-02017H Contact Us For Availability

10-3

DC61-10673A Samsung Washer Drain Cap Assembly Backorder SMG DC61-10673A $0.92

10-4

DC97-16991B Samsung Washer Drum Drain Pump Fi In Stock SMG DC97-16991B $23.63

10-5

DC67-00244K Samsung Washer Drain Hose Backorder SMG DC67-00244K $5.80

10-6

Pump cover SMG DC63-01375B Contact Us For Availability

10-7

DC62-00299A Samsung Washer Check Valve In Stock SMG DC62-00299A $4.15

11

DC61-00219F Samsung Clamper Hose Backorder SMG DC61-00219F $4.56

11

DC97-18301C Samsung Assembly Cap O.F. In Stock SMG DC97-18301C $4.56

11-1

DC67-00316A Samsung Cap Over Flow Backorder SMG DC67-00316A $3.73

12

DC97-20020A Samsung Drain Pump Assembly Backorder SMG DC97-20020A $156.14

12-1

Dryer screw SMG 6002-000524 Contact Us For Availability

12-3

DC93-00688A Samsung Assembly Wire Harness - P Backorder SMG DC93-00688A $43.52

12-4

DC67-00866A Samsung Hose Connector Assembly W Backorder SMG DC67-00866A $4.56

12-5

DC67-00244P Samsung Drain Hose Dualwash EPDM Backorder SMG DC67-00244P $8.29

13

DC97-20021A Samsung Assembly Frame Plate-Up Backorder SMG DC97-20021A $76.36

14

ASSY COVER BACK;WV9900M,WV60M9 Backorder SMG DC97-20022A $59.01

14-1

COVER BACK;WV7500M,GI-SGCC,T0. Backorder SMG DC63-02026A $54.88

15

Frame SMG DC97-20023C Contact Us For Availability

15-1

Bottom plate assembly SMG DC97-19367B Contact Us For Availability

16

DC97-12534K Samsung Washer Drain Hose Assembl In Stock SMG DC97-12534K $54.61

16-1

DC61-01679A Samsung Clamping Hose Backorder SMG DC61-01679A $7.47

17

DC97-20151A Samsung Washer Drain Hose Assembl Backorder SMG DC97-20151A $44.21

18

DC96-01703G Samsung Washer Water Level Pressu In Stock SMG DC96-01703G $60.22

19

6002-001431 Samsung Hex Tapping Screw + M5 L1 Backorder SMG 6002-001431 $0.92

20

DC61-01257N Samsung Spring ETC Hanger In Stock SMG DC61-01257N $37.24

21

Washer electronic control board assembly SMG DC92-02076A Contact Us For Availability

21-1

DC26-00009T Samsung Coil Harmonic Backorder SMG DC26-00009T $94.16

21-2

DC92-01989B Samsung Assembly Main Printed Cir Backorder SMG DC92-01989B $233.18

21-3

DC93-00689B Samsung Twin Main Wire Harness As Backorder SMG DC93-00689B $242.25

21-4

DC92-02007A Samsung PCB Cover Assembly WV9900 Backorder SMG DC92-02007A $82.52

21-5

DC63-01571A Samsung Cover PBA Inverter Backorder SMG DC63-01571A $43.04

21-6

DC92-01531C Samsung Washer Inverter Board Kit In Stock SMG DC92-01531C $275.99

22

DC63-10002D Samsung Sponge Absorber Backorder SMG DC63-10002D $1.94

23

Plate back SMG DC61-04344A Contact Us For Availability

24

DC93-00278A Samsung Washer Vibration Sensor M In Stock SMG DC93-00278A $64.78

25

DC97-14489G Samsung Tub Fixer Backorder SMG DC97-14489G $53.56

26

DC97-14489J Samsung Tub Fixer Backorder SMG DC97-14489J $34.11

27

DC62-00498A Samsung Washer Flexwash Pipe Conn Backorder SMG DC62-00498A $12.44

28

Fixer tub SMG DC97-14489K Contact Us For Availability

29

DC39-00057A Samsung Wire Harness Leakage 4 UL Backorder SMG DC39-00057A $26.92

101

DC62-00176A Samsung Washer Pipe Connector Ass Backorder SMG DC62-00176A $2.91

1011

DC97-20050A Samsung Hose Assembly Backorder SMG DC97-20050A $108.26

1041

DC63-00909A Samsung Washer Pump Filter Backorder SMG DC63-00909A $3.73

1084

DC97-20108A Samsung Washer Dual Hose Connecto Backorder SMG DC97-20108A $37.24

1091

DC33-01002A Samsung Water Valve In Stock SMG DC33-01002A $226.00

1102

DC34-00025E Samsung Washer Door Lid Switch La In Stock SMG DC34-00025E $134.55

1106

DC62-00311Q Samsung Water Valve In Stock SMG DC62-00311Q $112.14

1108

DC97-20040A Samsung Assembly Drawer Housing Backorder SMG DC97-20040A $171.11

1109

DC97-20041A Samsung Drawer Housing Assembly f Backorder SMG DC97-20041A $212.15

1116

DC61-03184A Samsung Washer/Dishwasher R.S. Ma Backorder SMG DC61-03184A $6.62

1531

Cable tie push mount SMG 6051-000017 Contact Us For Availability

1551

DC61-00201A Samsung Bracket Nut Assembly In Stock SMG DC61-00201A $2.91

1561

DC64-02792D Samsung Door Diaphragm Assembly f Backorder SMG DC64-02792D $139.45

2131

DC66-00598A Samsung Drum Lifter Assembly Backorder SMG DC66-00598A $24.05

2162

DC97-19994A Samsung Stator Assembly Backorder SMG DC97-19994A $196.63

3411

DC31-00098A Samsung Washer Motor Rotor Positi In Stock SMG DC31-00098A $66.61

3541

DC65-00014E Samsung Clamper Hose Joint Backorder SMG DC65-00014E $32.81

6011-001565 Samsung Hex Bolt Backorder SMG 6011-001565 $5.38

DC31-00187A Samsung Washer AC Pump Motor Asse In Stock SMG DC31-00187A $161.09

DC61-00995A Samsung Wire Holder Backorder SMG DC61-00995A $0.92

DC67-00051F Samsung Washer Drawer Hose Backorder SMG DC67-00051F $31.35

DC67-00876A Samsung Cap Liquid Dual Wash Backorder SMG DC67-00876A $4.56

Own manual SMG DC68-03768B Contact Us For Availability
