Model Samsung RF217ACRS/XAA-00 Refrigerator – Common Parts &amp; Diagrams

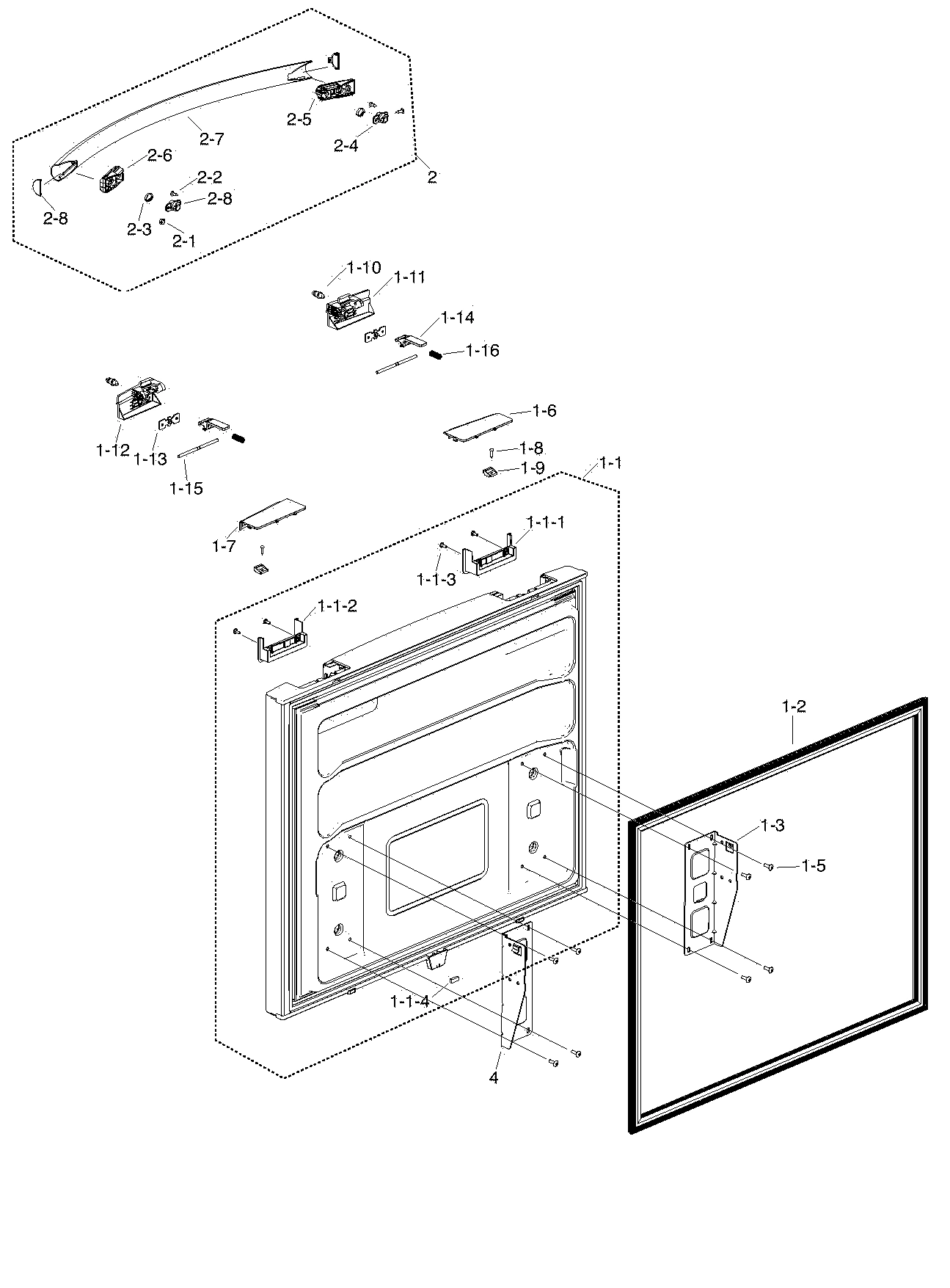

1

DA91-03420D Samsung Door Foam Assembly for Re Backorder SMG DA91-03420D $194.15

1-1

DA34-00043A Samsung Refrigerator Switch Reed- Backorder SMG DA34-00043A $24.47

1-2

6001-001377 Samsung Refrigerator Machine Scre Backorder SMG 6001-001377 $0.92

6002-001120 Samsung Refrigerator Tapping Scre Backorder SMG 6002-001120 $0.92

DA61-03153B Samsung Refrigerator Front Hanger Backorder SMG DA61-03153B $75.95

DA61-05316A Samsung Refrigerator Case PCB Dis Backorder SMG DA61-05316A $13.27

DA63-05359A Samsung Refrigerator Upper Tray N Backorder SMG DA63-05359A $106.80

6009-001475 Samsung Refrigerator Special Scre Backorder SMG 6009-001475 $0.92

DA61-03155B Samsung Refrigerator Hanger Rail Backorder SMG DA61-03155B $84.55

DA61-04154A Samsung Refrigerator Upper Freeze Backorder SMG DA61-04154A $7.47

DA64-02960C Samsung Refrigerator Top Table Ne Backorder SMG DA64-02960C $131.03

1-5

DA61-02383E Samsung Refrigerator Door Closing Backorder SMG DA61-02383E $4.65

1-6

DA61-03211A Samsung Refrigerator Door Stopper Backorder SMG DA61-03211A $23.22

1-6

DA61-03212A Samsung Refrigerator Door Stopper Backorder SMG DA61-03212A $23.97

1-6

DA63-05034C Samsung Refrigerator Fridge and F Backorder SMG DA63-05034C $17.40

DA63-05033C Samsung Refrigerator Freezer Door Backorder SMG DA63-05033C $18.65

DA63-05184A Samsung Refrigerator Ice Cover Backorder SMG DA63-05184A $5.42

DA63-40294A Samsung Refrigerator Stopper Grom Backorder SMG DA63-40294A $0.92

DA64-02981C Samsung Refrigerator Display Inla Backorder SMG DA64-02981C $22.86

1-8

DA61-05186A Samsung Refrigerator Upper Tray G Backorder SMG DA61-05186A $14.93

1-9

DA66-00554A Samsung Refrigerator Upper Freeze Backorder SMG DA66-00554A $4.56

1-10

Refrigerator door handle mounting bolt SMG DA61-05327A Contact Us For Availability

1-11

DA67-02639A Samsung Refrigerator Freezer Door Backorder SMG DA67-02639A $15.12

1-12

Refrigerator freezer door handle mounting cap SMG DA67-02638A Contact Us For Availability

1-13

DA61-05215A Samsung Refrigerator Freezer Door Backorder SMG DA61-05215A $3.73

1-14

DA61-04474A Samsung Refrigerator Handle Slide Backorder SMG DA61-04474A $2.49

1-16

DA61-04335B Samsung E Assembly Handle Spring Backorder SMG DA61-04335B $2.07

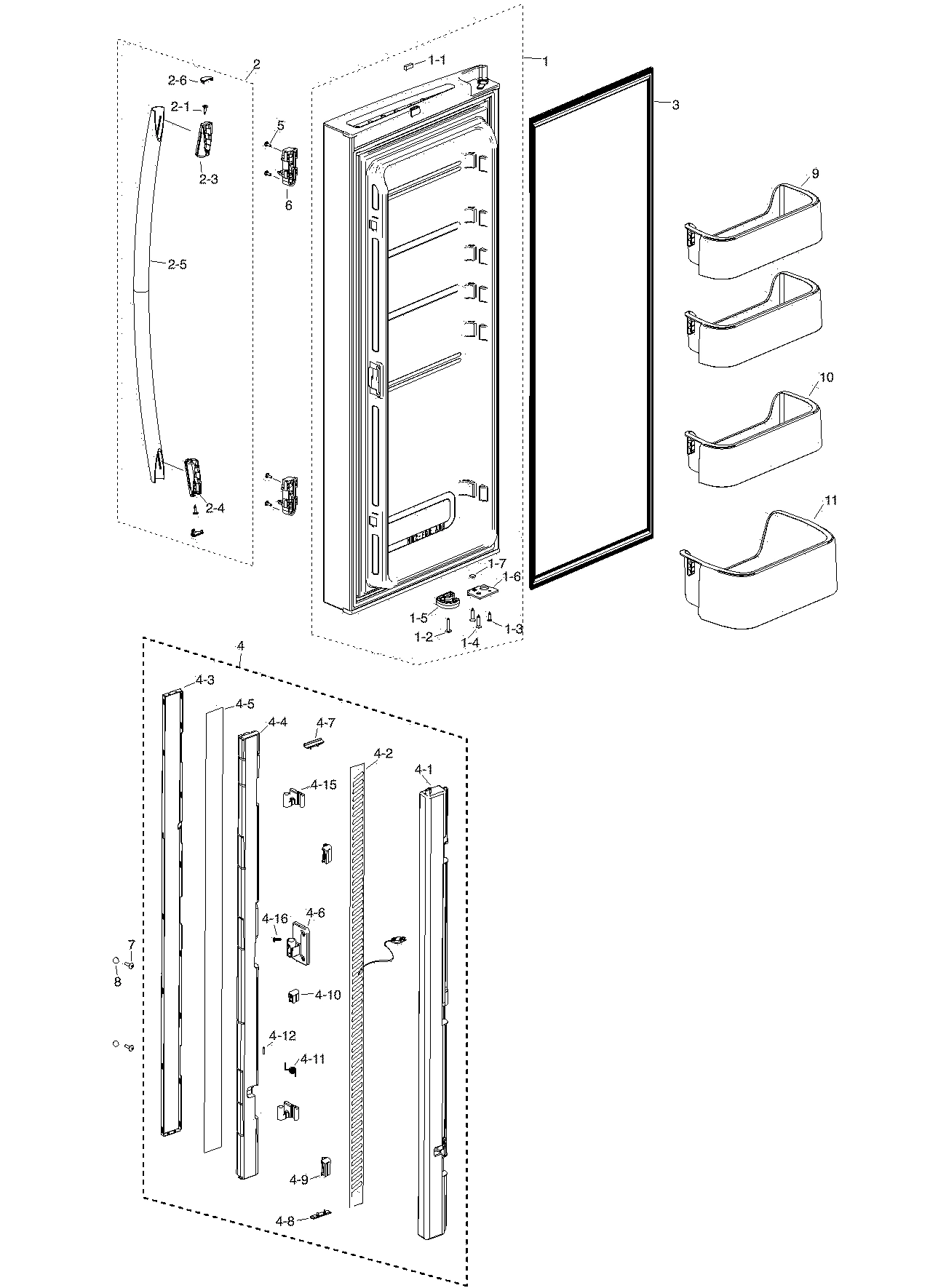

2

DA97-06715C Samsung Refrigerator Door Hinge A Backorder SMG DA97-06715C $54.22

2

DA97-08879C Samsung Handle Bar Assembly Backorder SMG DA97-08879C $120.79

2-1

6002-001364 Samsung Refrigerator Tapping Scre Backorder SMG 6002-001364 $0.92

2-1

DA61-03189A Samsung Refrigerator Ice Cube Buc Backorder SMG DA61-03189A $42.40

2-1

DA61-04475B Samsung Refrigerator Upper Hinge Backorder SMG DA61-04475B $44.52

2-3

Refrigerator support SMG DA61-06253A Contact Us For Availability

2-4

DA61-06254A Samsung Refrigerator Handle Suppo Backorder SMG DA61-06254A $14.51

2-5

DA61-06215A Samsung Refrigerator Freezer Door Backorder SMG DA61-06215A $5.80

2-5

Nsp-handle SMG DA64-03342C Contact Us For Availability

2-6

DA61-06216A Samsung Refrigerator Door Handle Backorder SMG DA61-06216A $5.38

2-6

DA67-02673A Samsung Refrigerator Handle Cap Backorder SMG DA67-02673A $12.00

2-8

DA67-02633A Samsung Refrigerator Freezer Hand Backorder SMG DA67-02633A $33.56

2B

DA63-02284B Samsung Refrigerator Ice Cube Tra In Stock SMG DA63-02284B $28.77

2C

DA63-02183A Samsung Refrigerator Sensor Cover In Stock SMG DA63-02183A $2.07

2D

DA61-01800A Samsung Refrigerator Ice Maker Fi In Stock SMG DA61-01800A $27.65

2E

DA61-00954B Samsung Refrigerator Full Ice Gui In Stock SMG DA61-00954B $2.07

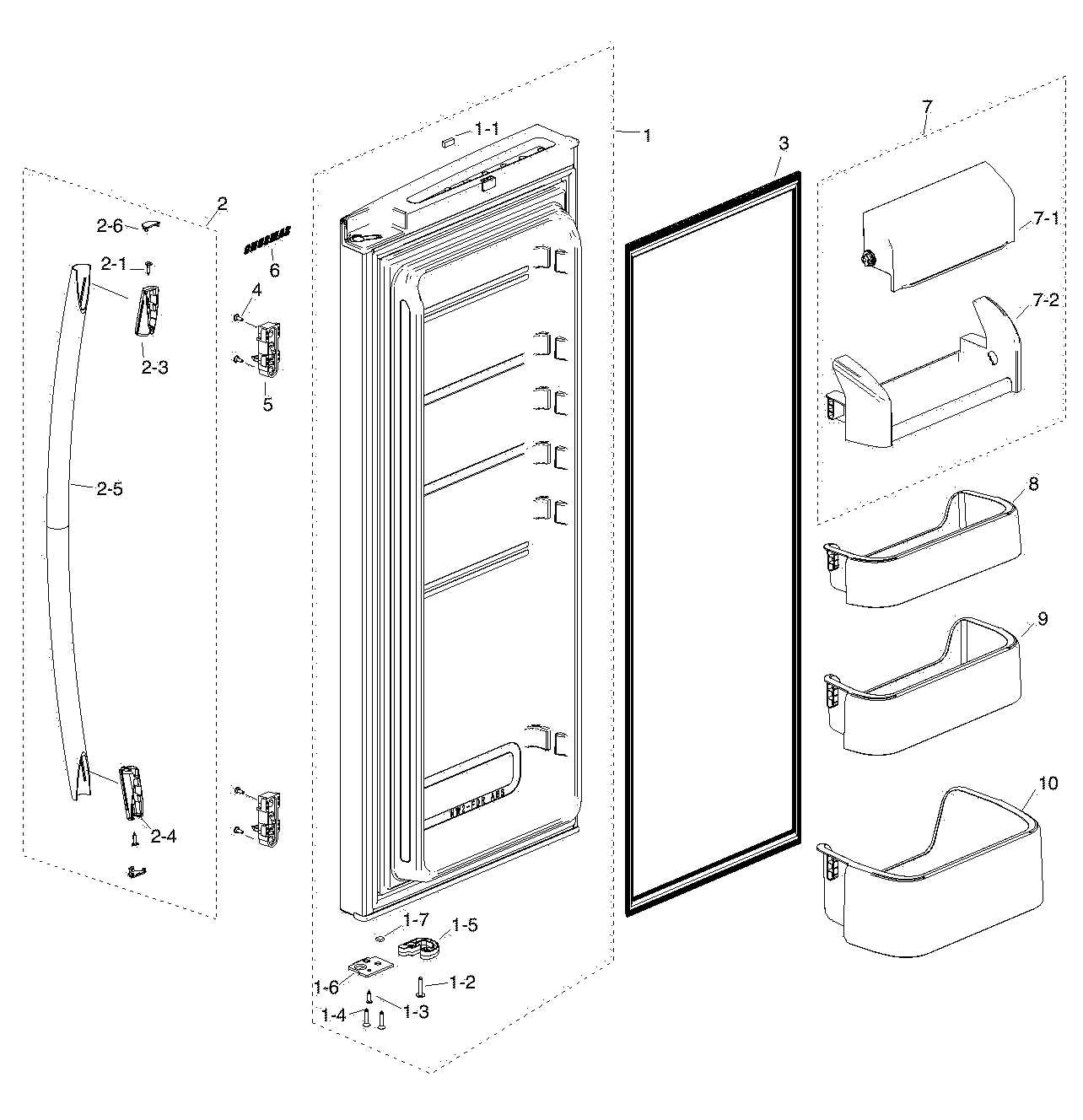

3

DA97-06716D Samsung Refrigerator Upper Door H Backorder SMG DA97-06716D $54.55

3

DA97-07668B Samsung Refrigerator Door Gasket Backorder SMG DA97-07668B $101.36

3-1

DA61-04476B Samsung Refrigerator Upper Right Backorder SMG DA61-04476B $29.30

4

DA97-07514C Samsung Refrigerator Left Mid Hin Backorder SMG DA97-07514C $68.31

4

DA97-07661C Samsung Refrigerator French Door In Stock SMG DA97-07661C $145.36

4-1

Refrigerator flipper housing SMG DA61-05315A Contact Us For Availability

4-2

DA47-00245E Samsung Refrigerator French Heate Backorder SMG DA47-00245E $45.75

4-3

Plate,frnc SMG DA61-05291C Contact Us For Availability

4-4

Refrigerator insulation SMG DA62-02212A Contact Us For Availability

4-5

DA62-02294A Samsung Refrigerator Cut-French S Backorder SMG DA62-02294A $18.65

4-6

DA63-03454B Samsung Refrigerator Center Hinge Backorder SMG DA63-03454B $6.22

4-7

DA63-03508B Samsung Refrigerator French Gaske Backorder SMG DA63-03508B $3.31

4-8

DA63-05158B Samsung Refrigerator French Gaske Backorder SMG DA63-05158B $7.05

4-9

DA67-01650A Samsung Refrigerator French End C Backorder SMG DA67-01650A $4.15

4-10

DA67-01701A Samsung Refrigerator Cap Case Fre Backorder SMG DA67-01701A $4.15

4-11

DA81-01345A Samsung Refrigerator French Sprin Backorder SMG DA81-01345A $1.94

4-12

DA81-01346A Samsung Refrigerator French Sprin In Stock SMG DA81-01346A $0.92

4-13

DA67-02306A Samsung Refrigerator French Door Backorder SMG DA67-02306A $0.92

4-14

6002-000630 Samsung Refrigerator Tapping Scre Backorder SMG 6002-000630 $0.92

4-15

DA61-03230B Samsung Refrigerator French Door In Stock SMG DA61-03230B $2.49

5

6002-000468 Samsung Refrigerator Tapping Scre Backorder SMG 6002-000468 $0.92

5

DA61-02901A Samsung Refrigerator Evaporator S In Stock SMG DA61-02901A $1.24

5

Fixer ss SMG DA61-04440A Contact Us For Availability

6

Refrigerator nameplate SMG DA64-01985A Contact Us For Availability

7

DA97-07681A Samsung Refrigerator Dairy Guard Backorder SMG DA97-07681A $39.77

7-1

DA63-05042A Samsung Dairy Guard Backorder SMG DA63-05042A $35.76

7-2

DA63-05050A Samsung Dairy Guard Cover Backorder SMG DA63-05050A $17.00

8

DA67-30218R Samsung Cap Screw Backorder SMG DA67-30218R $0.92

9

DA63-02017A Samsung Refrigerator Compressor G Backorder SMG DA63-02017A $3.31

9

DA63-05131A Samsung Refrigerator Upper Guard Backorder SMG DA63-05131A $23.63

9

DA97-06703B Samsung Refrigerator Low Slide Ra Backorder SMG DA97-06703B $147.53

9-2

Refrigerator crisper drawer front SMG DA63-04445B Contact Us For Availability

9-3

DA64-00656A Samsung Refrigerator Humidity Kno Backorder SMG DA64-00656A $1.67

10

DA61-04507A Samsung Refrigerator Low Support Backorder SMG DA61-04507A $57.49

10

DA63-05035A Samsung Refrigerator Mid Guard As Backorder SMG DA63-05035A $24.05

10

DA63-05036A Samsung Refrigerator Low Shelf Gu Backorder SMG DA63-05036A $40.74

10-3

Refrigerator evaporator fan blade SMG DA31-00124A Contact Us For Availability

10-5

DA32-10105X Samsung Refrigerator Temperature In Stock SMG DA32-10105X $18.65

10-6

DA61-03181A Samsung Refrigerator Bubble Pjt A Backorder SMG DA61-03181A $12.02

10-9

DA61-03599A Samsung Refrigerator Galvanized H Backorder SMG DA61-03599A $1.67

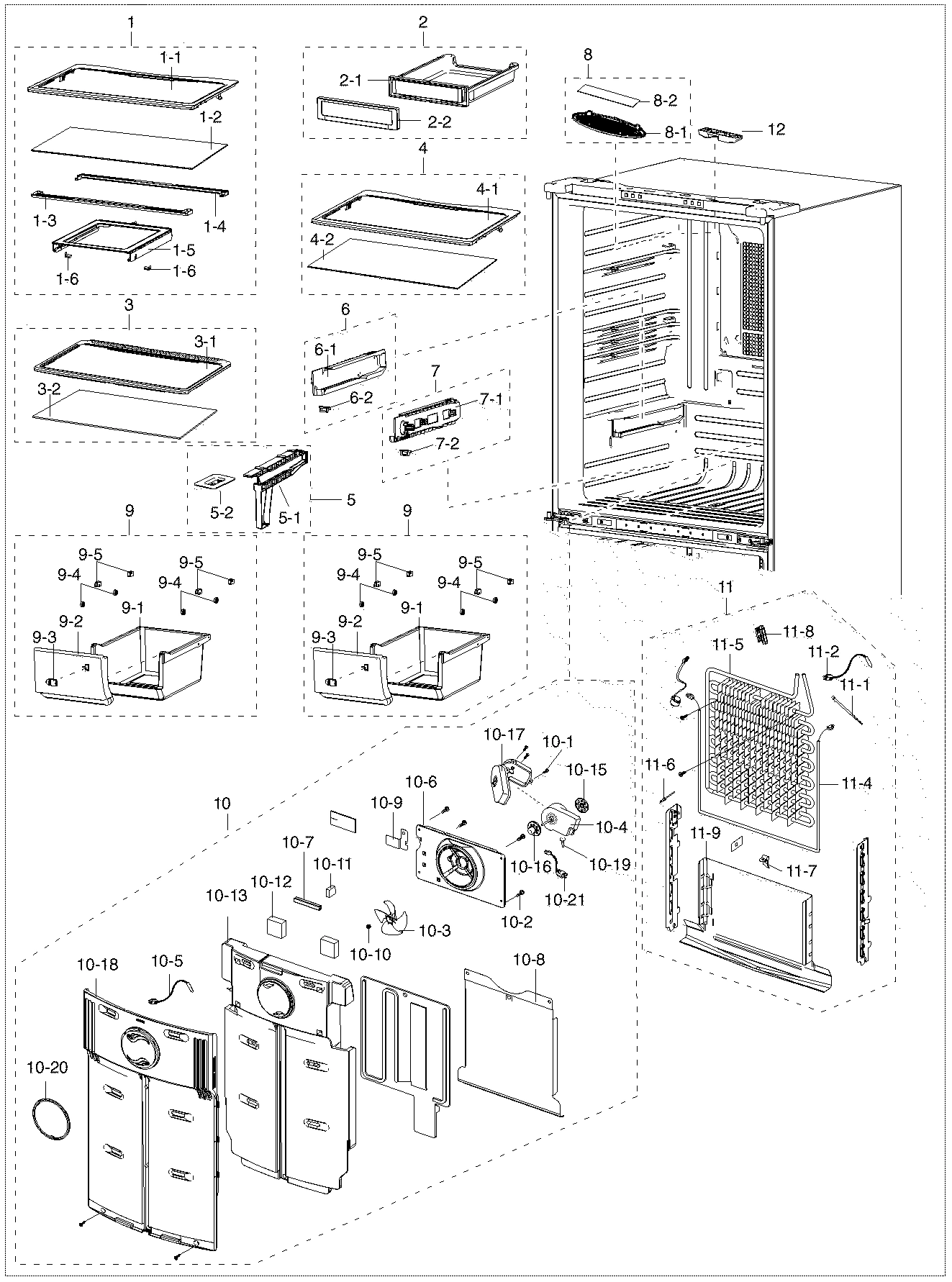

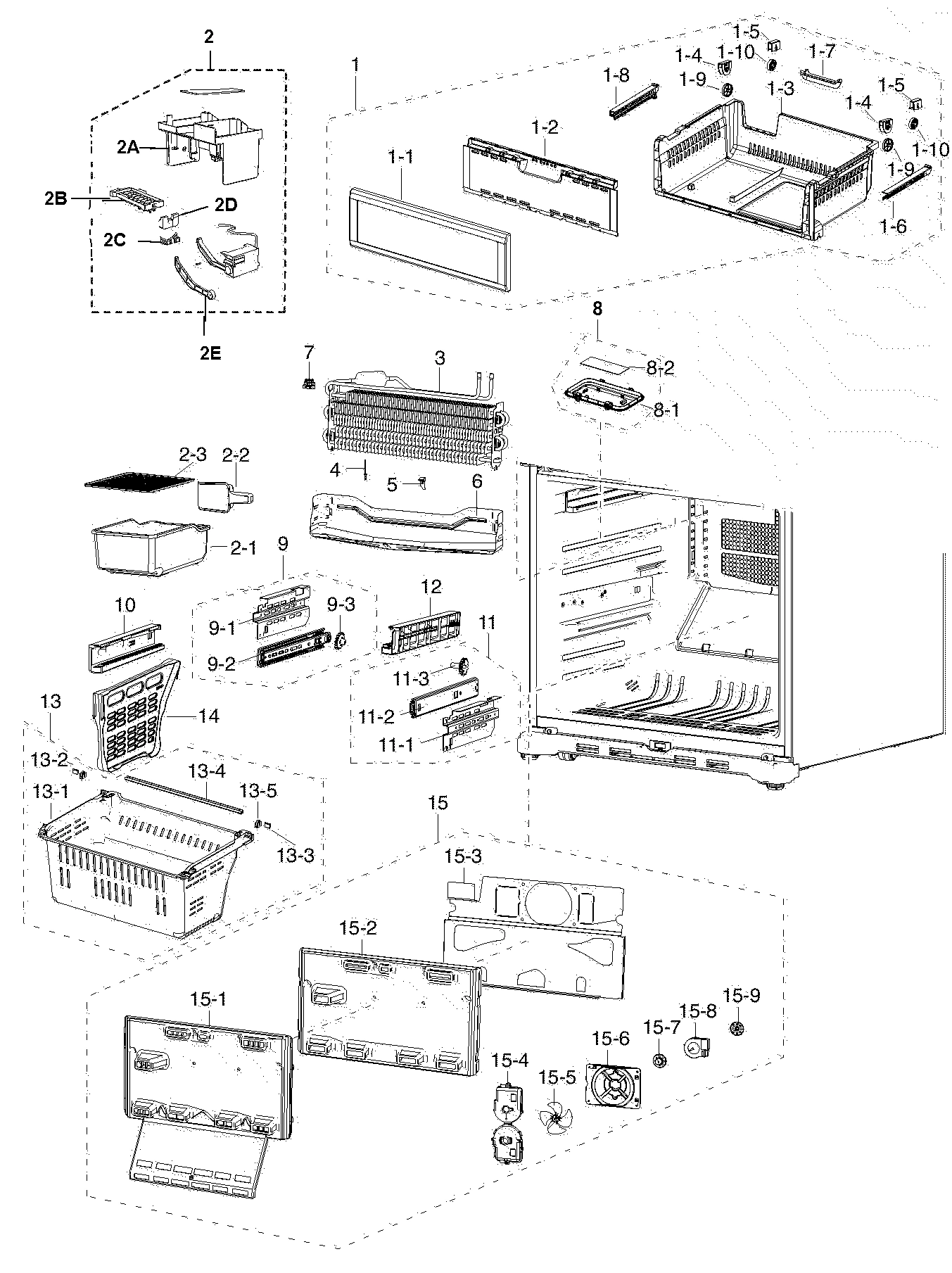

11

DA96-00461C Samsung Refrigerator Evaporator A Backorder SMG DA96-00461C $164.10

11-2

DA32-00006S Samsung Refrigerator Freezer Defr In Stock SMG DA32-00006S $22.38

11-3

DA66-00435A Samsung Refrigerator Gear Assembl Backorder SMG DA66-00435A $4.15

11-4

DA47-00244B Samsung Refrigerator Defrost Heat In Stock SMG DA47-00244B $80.26

11-5

Refrigerator evaporator SMG DA59-00357B Contact Us For Availability

11-6

DA60-90005A Samsung Refrigerator Rivet Fasten Backorder SMG DA60-90005A $0.92

11-7

DA61-03644A Samsung Refrigerator Defrost Evap Backorder SMG DA61-03644A $7.87

11-8

DA61-03683A Samsung Refrigerator Sensor Fixer Backorder SMG DA61-03683A $1.24

11-9

DA61-04148A Samsung Refrigerator Drain Plate Backorder SMG DA61-04148A $24.87

12

DA61-04506A Samsung Refrigerator Low Support Backorder SMG DA61-04506A $43.13

12

DA61-05292A Samsung Refrigerator French Door Backorder SMG DA61-05292A $35.76

13-4

DA61-06159A Samsung Refrigerator Drawer Box R Backorder SMG DA61-06159A $42.07

14-2

DA63-04466B Samsung Refrigerator Water Drain Backorder SMG DA63-04466B $9.97

14-5

DA31-00010D Samsung Refrigerator Fan Blade In Stock SMG DA31-00010D $14.09

15-1

DA63-04444A Samsung Refrigerator Evaporator C Backorder SMG DA63-04444A $85.47

15-1

DA66-00649A Samsung Refrigerator Caster Shaft In Stock SMG DA66-00649A $3.09

15-2

DA61-04703A Samsung Refrigerator Rear Caster In Stock SMG DA61-04703A $5.80

15-4

DA63-01809A Samsung Refrigerator BLDC Motor C Backorder SMG DA63-01809A $10.78

15-7

DA63-01808A Samsung Refrigerator Front Motor Backorder SMG DA63-01808A $3.31

15-8

DA31-00146H Samsung Refrigerator Freezer Evap In Stock SMG DA31-00146H $117.25

17-1

DA61-04977A Samsung Refrigerator Front Foot A Backorder SMG DA61-04977A $4.15

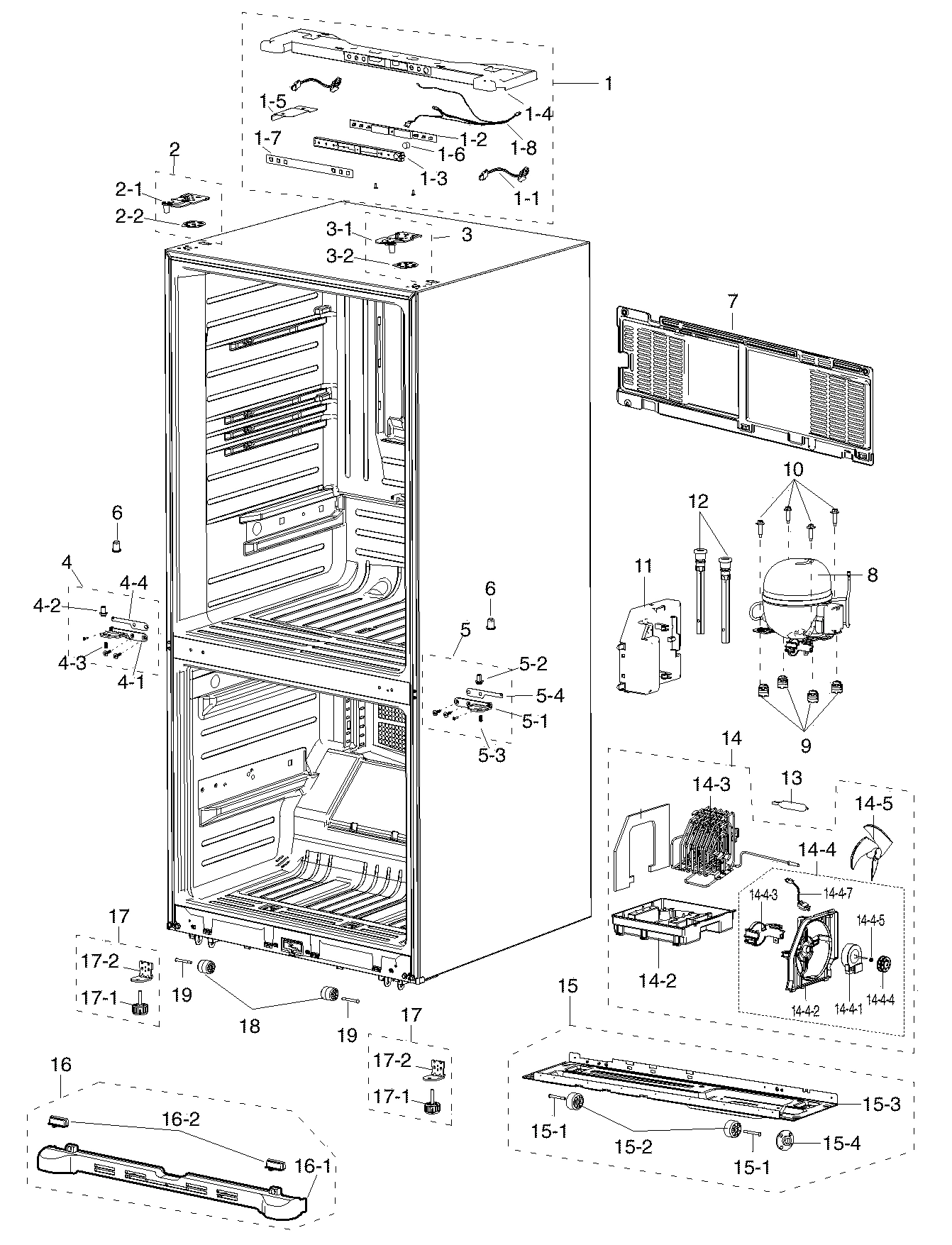

18

DA61-04702A Samsung Refrigerator Front Caster In Stock SMG DA61-04702A $7.05

19

DA61-01920A Samsung Refrigerator Front Caster In Stock SMG DA61-01920A $3.31

113

6002-001122 Samsung Refrigerator Tapping Scre In Stock SMG 6002-001122 $0.92

114

DA61-03769A Samsung Refrigerator Door Magnet Backorder SMG DA61-03769A $2.07

1010

DA61-20128A Samsung Refrigerator Spring and F Backorder SMG DA61-20128A $0.92

1011

DA62-01383A Samsung Refrigerator Evaporator I Backorder SMG DA62-01383A $0.92

1012

DA62-01423A Samsung Refrigerator Insulation E Backorder SMG DA62-01423A $0.92

1013

Insulation evaporator SMG DA62-01941A Contact Us For Availability

1014

Insulation evaporator SMG DA62-01969A Contact Us For Availability

1018

Refrigerator fresh food evaporator cover SMG DA63-04439A Contact Us For Availability

1019

DA63-40167A Samsung Refrigerator Grommet Cove Backorder SMG DA63-40167A $1.24

1020

DA64-02065A Samsung Refrigerator Evaporator C Backorder SMG DA64-02065A $16.65

1021

DA96-00042P Samsung Refrigerator Motor Harnes Backorder SMG DA96-00042P $37.22

1441

DA31-00146B Samsung Refrigerator Condenser Fa In Stock SMG DA31-00146B $89.38

1444

DA63-01146A Samsung Refrigerator Rear Motor G Backorder SMG DA63-01146A $3.73

3903-000400 Samsung Power Cord Refrigerator In Stock SMG 3903-000400 $71.48

6002-000213 Samsung Air Conditioner Tapping S In Stock SMG 6002-000213 $0.92

6011-001442 Samsung Refrigerator Socket Bolt Backorder SMG 6011-001442 $1.24

DA32-10105B Samsung Refrigerator Temperature In Stock SMG DA32-10105B $15.76

DA35-00043U Samsung Refrigerator Overload Rel Backorder SMG DA35-00043U $24.47

DA35-00103B Samsung Refrigerator PTC Thermist Backorder SMG DA35-00103B $80.40

DA39-00060K Samsung Refrigerator Motor with H Backorder SMG DA39-00060K $119.35

DA41-00695A Samsung Refrigerator Main PCB Ass Backorder SMG DA41-00695A $208.45

Refrigerator glass shelf SMG DA64-02647A Contact Us For Availability

Refrigerator shelf trim SMG DA64-02645A Contact Us For Availability

Refrigerator grommet SMG DA63-40006A Contact Us For Availability
