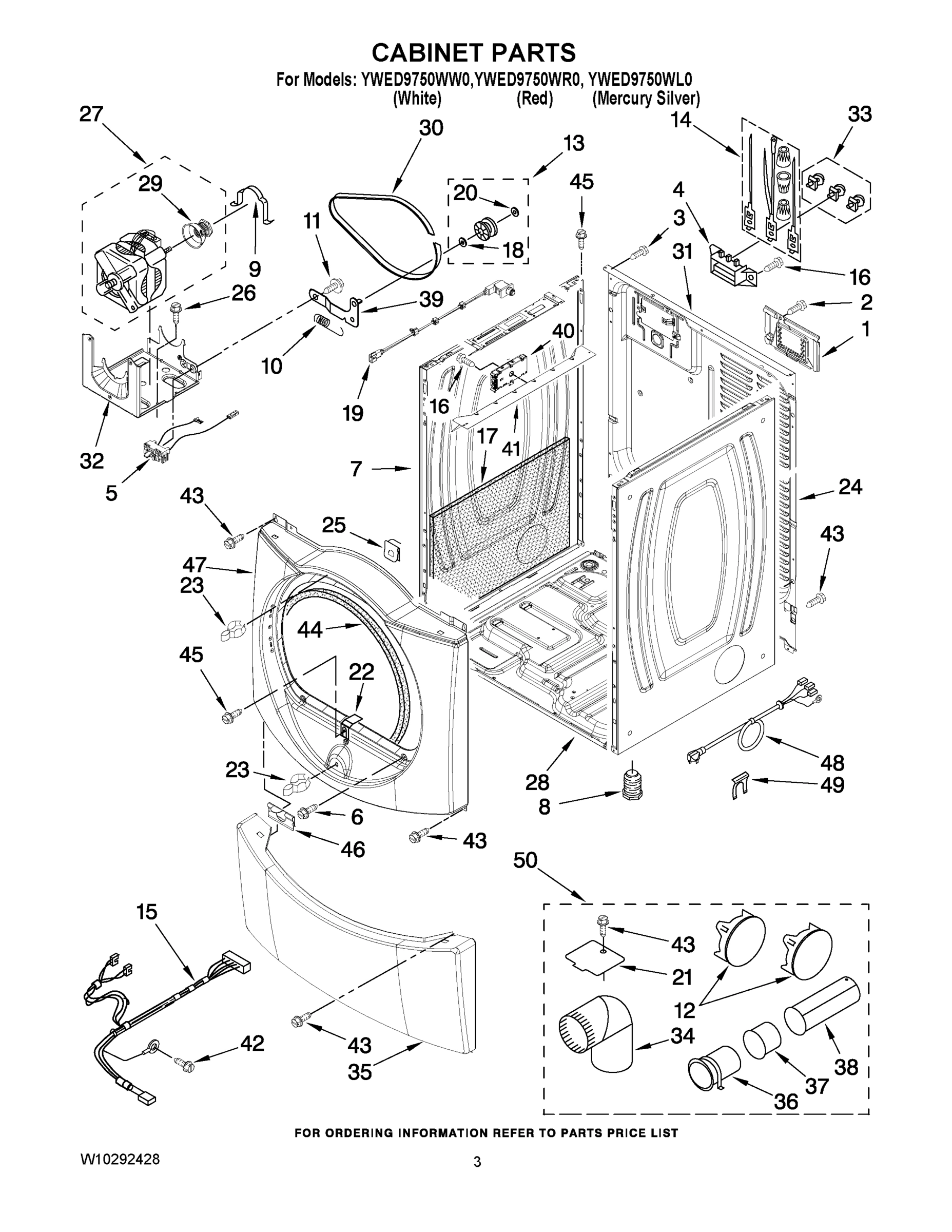

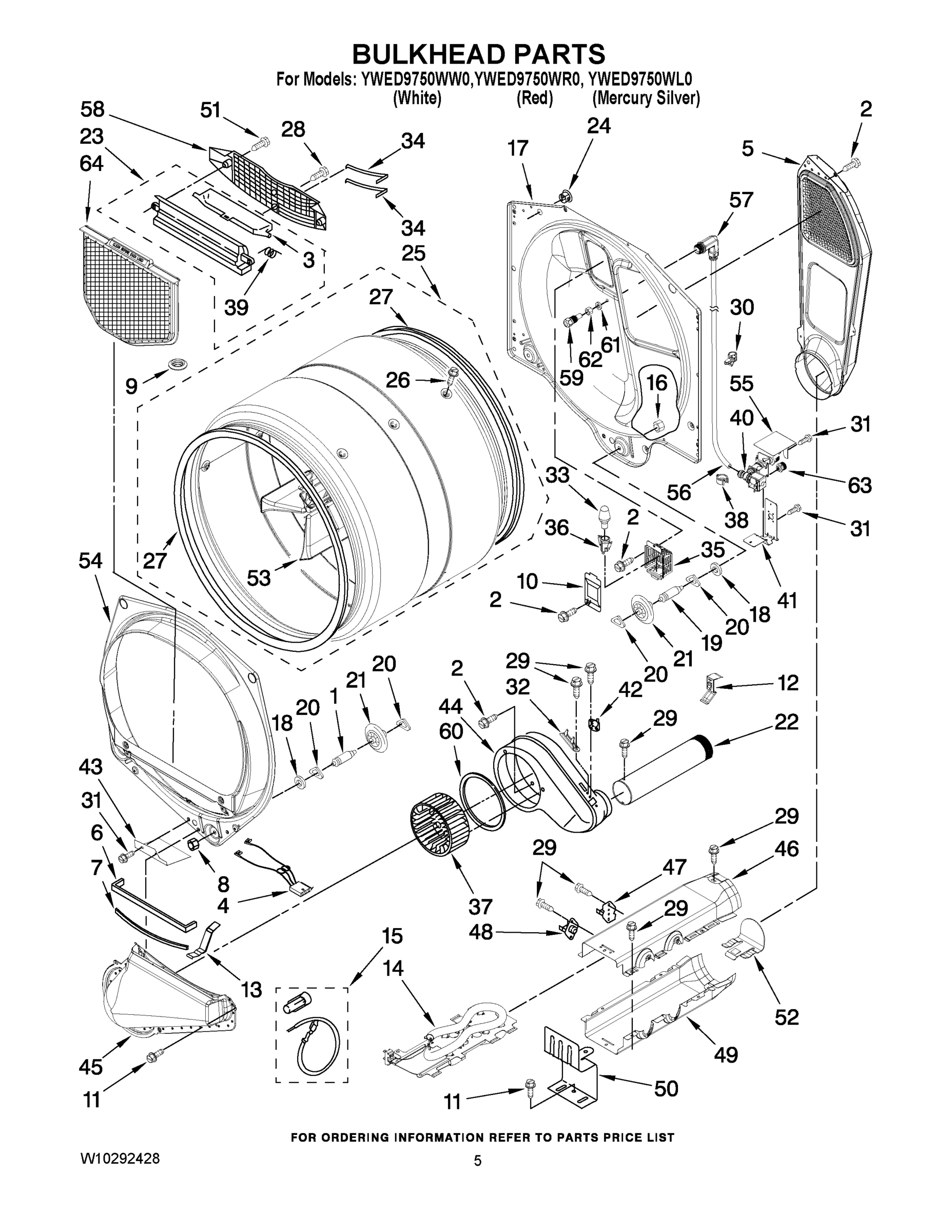

Model Whirlpool YWED9750WL0 27`` ELECTRIC DRYER – Common Parts &amp; Diagrams

1

WPW10119283 Whirlpool Terminal Cover Backorder WPL WPW10119283 $39.97

2

WP90767 Whirlpool Screw In Stock WPL WP90767 $2.51

3

W10850756 Whirlpool Screw Backorder WPL W10850756 $2.51

3

WPW10159996 Whirlpool Screw Backorder WPL WPW10159996 $2.51

4

WP3397659 Whirlpool Terminal Block In Stock WPL WP3397659 $8.51

4

WP3406653 Whirlpool Wire Harness In Stock WPL WP3406653 $56.58

4

Screw, 8-18 x 5/8 WPL 9742177 Contact Us For Availability

4

PANEL, CONSOLE (INCLUDE ITEMS,20,21,22,27,28 WPL W10287715 Contact Us For Availability

5

WPW10411937 Whirlpool Switch In Stock WPL WPW10411937 $13.21

5

Cover-Hinge (R.H.) WPL W10181197 Contact Us For Availability

6

WP308685 Whirlpool Microwave Screw In Stock WPL WP308685 $2.51

6

WP697813 Whirlpool Seal In Stock WPL WP697813 $3.70

6

WPW10139457 Whirlpool Door Seal In Stock WPL WPW10139457 $37.41

7

W11233548 Whirlpool Panel In Stock WPL W11233548 $91.13

7

PANEL, SIDE (L.H.) (SILVER) WPL W10249727 Contact Us For Availability

7

PANEL, SIDE (L.H.) (RED) WPL W10249768 Contact Us For Availability

8

49621 Whirlpool Leveling Feet In Stock WPL 49621 $2.29

8

WP94614 Whirlpool Terminal Backorder WPL WP94614 $2.51

9

3936144 Whirlpool Connector Backorder WPL 3936144 $10.76

9

WP660658 Whirlpool Clamp In Stock WPL WP660658 $3.70

10

WPW10446781 Whirlpool Spring In Stock WPL WPW10446781 $7.74

10

DOOR ASSEMBLY (INNER) (INCLUDE, ITEMS. 12 ) WPL 8578229 Contact Us For Availability

11

WP3389420 Whirlpool Screw In Stock WPL WP3389420 $2.51

11

WP489463 Whirlpool Refrigerator Screw In Stock WPL WP489463 $2.51

12

WPW10404617 Whirlpool Plug Assembly Backorder WPL WPW10404617 $37.46

13

279640 Whirlpool Dryer Idler Pulley Kit In Stock WPL 279640 $10.79

13

WP8066208 Whirlpool Clip Backorder WPL WP8066208 $3.70

14

279318 Whirlpool Terminal In Stock WPL 279318 $39.58

14

WP8544771 Whirlpool Dryer Heating Element In Stock WPL WP8544771 $64.18

279457 Whirlpool Dryer Heating Element Wide S In Stock WPL 279457 $3.93

3395683 Whirlpool Connector Backorder WPL 3395683 $32.06

8579662 Whirlpool Seal Backorder WPL 8579662 $40.35

W10242904 Whirlpool Wire Harness Backorder WPL W10242904 $59.39

16

Screw-Plug WPL W10048910 Contact Us For Availability

17

W10123956 Whirlpool Sound Absorber Backorder WPL W10123956 $14.26

17

WP8566254 Whirlpool Window Assembly Backorder WPL WP8566254 $92.47

18

WPW10121334 Whirlpool Washer In Stock WPL WPW10121334 $2.51

19

W10128087 Whirlpool Door Switch Backorder WPL W10128087 $26.77

20

WPW10512946 Whirlpool Dryer Tri-Ring Drum Rol In Stock WPL WPW10512946 $4.52

20

Door Shield WPL W10180120 Contact Us For Availability

21

WPW10354249 Whirlpool Cover In Stock WPL WPW10354249 $3.70

21

Door, Intermediate WPL W10180118 Contact Us For Availability

21

Retainer-Snap WPL W10012440 Contact Us For Availability

22

Ramp, Door WPL 8529053 Contact Us For Availability

22

KNOB, LIGHT RING (INCLUDE, ITEM. 21 ) WPL W10012410 Contact Us For Availability

23

279570 Whirlpool Dryer Door Latch Kit In Stock WPL 279570 $1.66

24

WPW10249725 Whirlpool Panel Backorder WPL WPW10249725 $185.49

24

PANEL, SIDE (R.H.) (RED) WPL W10249769 Contact Us For Availability

25

W10242906 Whirlpool Wire Harness Backorder WPL W10242906 $60.29

25

Clip-S Type WPL 62825 Contact Us For Availability

26

W10853898 Whirlpool Screw In Stock WPL W10853898 $2.51

26

WP681414 Whirlpool Screw In Stock WPL WP681414 $2.51

27

279787 Whirlpool Dryer Drive Motor In Stock WPL 279787 $109.35

27

W10190685 Whirlpool Knob Assembly Backorder WPL W10190685 $38.01

28

ENCODER, WHEEL KIT (INCLUDE ITEMS, 23, 24 & 2 WPL 280230 Contact Us For Availability

28

BASE, CABINET WPL W10239098 Contact Us For Availability

29

W10837625 Whirlpool Dryer Motor Pulley In Stock WPL W10837625 $45.53

30

661570V Whirlpool Dryer Drum Belt In Stock WPL 661570V $10.71

31

W10487430 Whirlpool Rear Panel Backorder WPL W10487430 $135.74

32

W11481730 Whirlpool Bracket In Stock WPL W11481730 $31.07

32

WP3392519 Whirlpool Dryer Thermal Fuse In Stock WPL WP3392519 $7.30

33

279393 Whirlpool Terminal Block Screw and Nut In Stock WPL 279393 $15.35

34

WP3387223 Whirlpool Electrode Assembly In Stock WPL WP3387223 $3.39

34

WPW10416072 Whirlpool Elbow Backorder WPL WPW10416072 $11.44

8578825 Whirlpool Bracket Backorder WPL 8578825 $7.98

TOE-PANEL (WHITE) WPL W10246269 Contact Us For Availability

TOE, PANEL (SILVER) WPL W10259606 Contact Us For Availability

TOE, PANEL (RED) WPL W10259607 Contact Us For Availability

36

W11222979 Whirlpool Socket Backorder WPL W11222979 $43.76

36

WP8563747 Whirlpool Exhaust Pipe Backorder WPL WP8563747 $29.43

37

WP697772 Whirlpool Dryer Blower Wheel In Stock WPL WP697772 $29.83

37

WPW10331278 Whirlpool Exhaust Pipe Backorder WPL WPW10331278 $28.80

38

WP8563749 Whirlpool Exhaust Pipe Backorder WPL WP8563749 $30.96

39

W10837240 Whirlpool Dryer Idler Pulley In Stock WPL W10837240 $10.83

39

WP3394986 Whirlpool Spring Backorder WPL WP3394986 $29.06

40

CONTROL BOARD WPL W10256719 Contact Us For Availability

41

WP8563727 Whirlpool Bracket Backorder WPL WP8563727 $67.84

42

WP693995 Whirlpool Screw In Stock WPL WP693995 $1.92

42

WP8577274 Whirlpool Dryer Thermistor In Stock WPL WP8577274 $17.55

43

W11257251 Whirlpool Shield Backorder WPL W11257251 $25.58

43

WP488729 Whirlpool Refrigerator Door Screw In Stock WPL WP488729 $2.51

44

WP3387242 Whirlpool Seal In Stock WPL WP3387242 $9.17

46

W11295573 Whirlpool Clip Backorder WPL W11295573 $10.76

46

WP8544769 Whirlpool Box Backorder WPL WP8544769 $66.39

47

WPL W10180423 WPL W10180423 Contact Us For Availability

47

WPL W10249726 WPL W10249726 Contact Us For Availability

47

WPL W10250670 WPL W10250670 Contact Us For Availability

48

W11729831 Whirlpool Power Cord Backorder WPL W11729831 $47.12

48

WP3391914 Whirlpool Thermostat In Stock WPL WP3391914 $63.24

49

W11712577 Whirlpool Clip Backorder WPL W11712577 $2.43

49

HOUSING TAB, HEATER BOX WPL 8544770 Contact Us For Availability

50

8066099 Whirlpool Bracket Backorder WPL 8066099 $8.16

50

W10470674 Whirlpool Dryer Side Vent Exhaust K In Stock WPL W10470674 $53.07

51

WP3387230 Whirlpool Screw In Stock WPL WP3387230 $2.51

52

8544776 Whirlpool Clip Assembly Backorder WPL 8544776 $8.00

58

W11086603 Whirlpool Dryer Link Screen Air Gri In Stock WPL W11086603 $13.56

59

WPW10277503 Whirlpool Nozzle Backorder WPL WPW10277503 $95.04

60

WP697770 Whirlpool Blower Cover Plate Seal In Stock WPL WP697770 $3.70

61

W10044579 Whirlpool Washer Backorder WPL W10044579 $5.65

62

W10044628 Whirlpool Nut Backorder WPL W10044628 $28.80

63

W10859554 Whirlpool Coupler Backorder WPL W10859554 $26.75

64

W10120998 Whirlpool Dryer Lint Screen Filter In Stock WPL W10120998 $23.21

DC4-30-4 USD Products Dryer Cord, 4' 4 Wire, In Stock USD DC4-30-4 $12.60

DC4-30-6 USD Products Dryer 6' 4-Wire Cord 30 In Stock USD DC4-30-6 $17.81

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350938 Whirlpool Spray Gun In Stock WPL 350938 $32.57

4392067 Whirlpool Dryer Repair Kit In Stock WPL 4392067 $18.78

49586 Whirlpool Mixer In Stock WPL 49586 $5.03

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

8212450A Whirlpool Dryer Rack Assembly Backorder WPL 8212450A $53.07

8541503 Whirlpool Stacking Kit In Stock WPL 8541503 $25.02

8579666ARP Whirlpool Door Kit Backorder WPL 8579666ARP $23.97

PT220L Whirlpool Dryer Power Cord In Stock WPL PT220L $13.23

W10044609A Whirlpool Steam Dryer Hose Install In Stock WPL W10044609A $19.97

W10218247 Whirlpool Touch-Up Backorder WPL W10218247 $10.07

W10268217 Whirlpool Touch Up Backorder WPL W10268217 $6.50

WP89503 Whirlpool Washer Fill Hose In Stock WPL WP89503 $3.62

HOSE, INLET (2` HOSE) WPL 350027 Contact Us For Availability

Kit, Hold Down WPL 8529894 Contact Us For Availability
