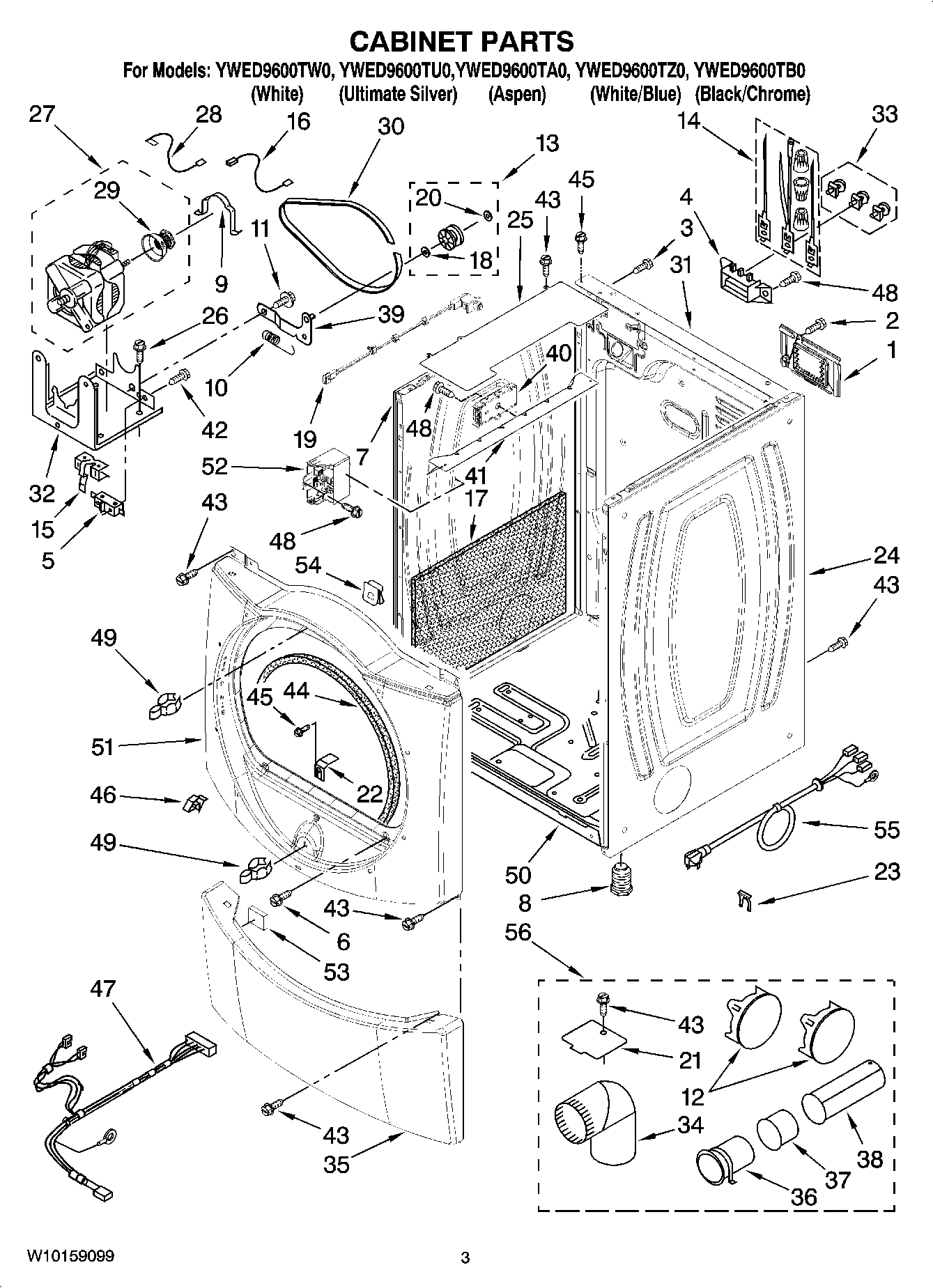

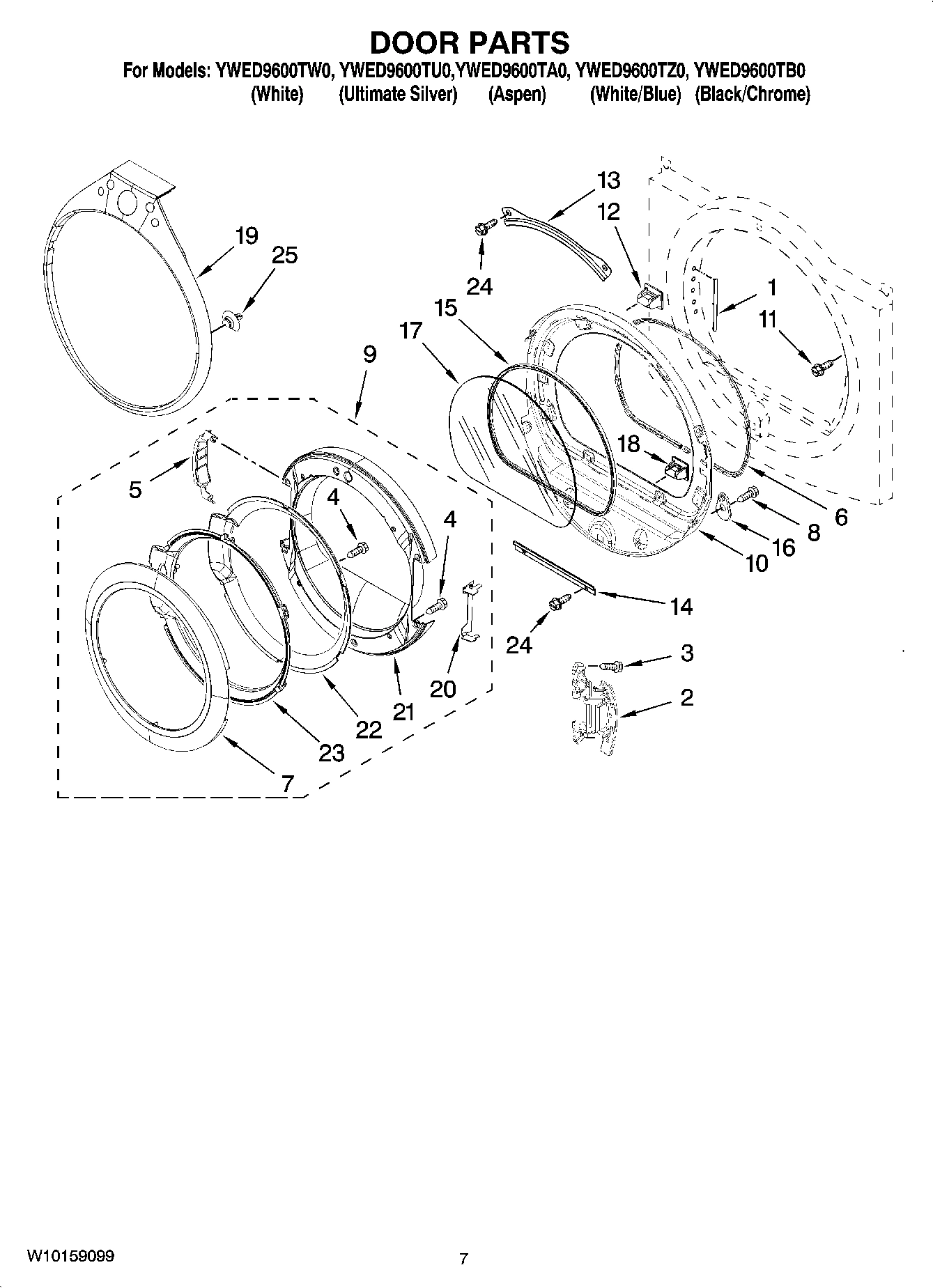

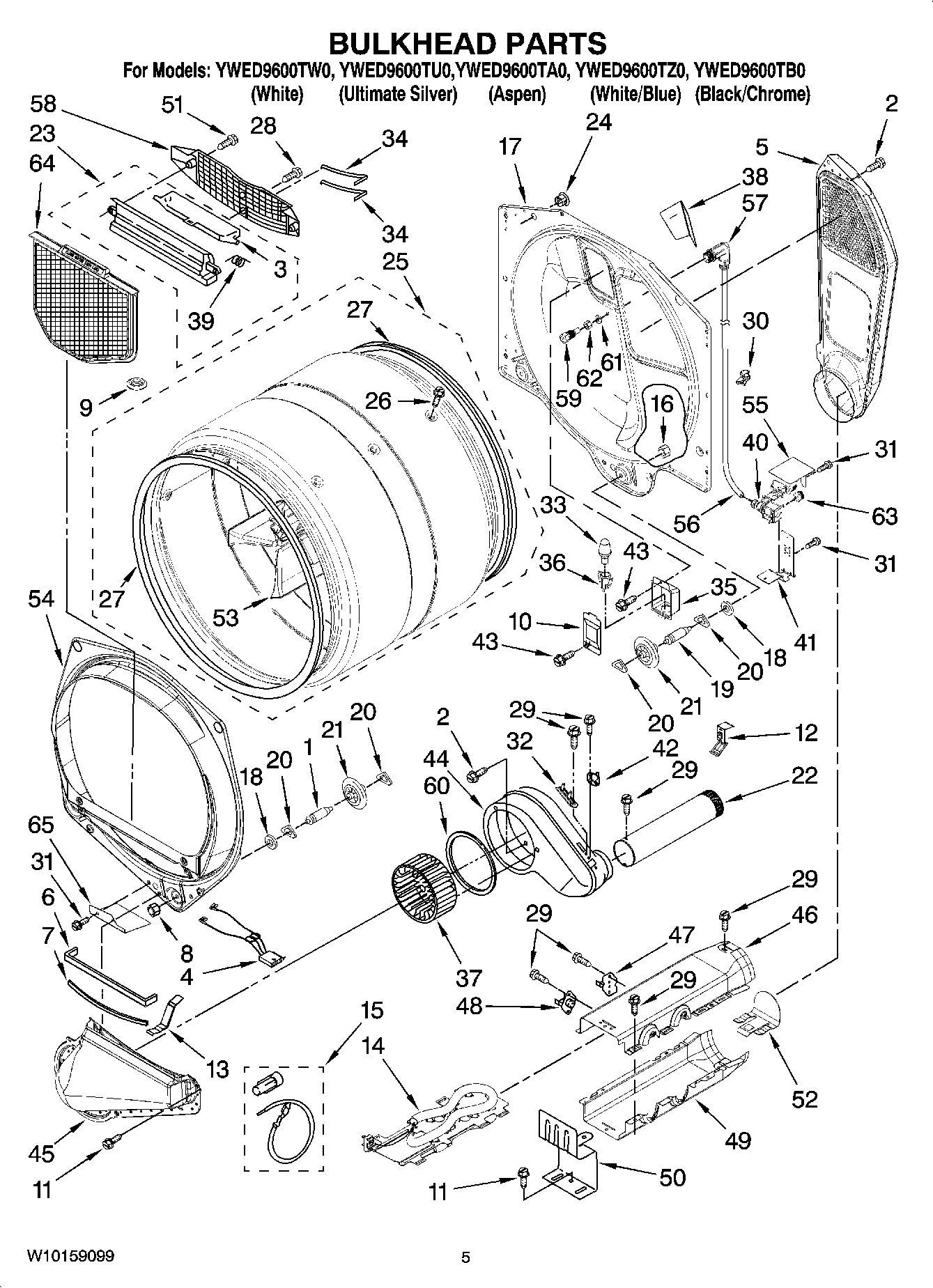

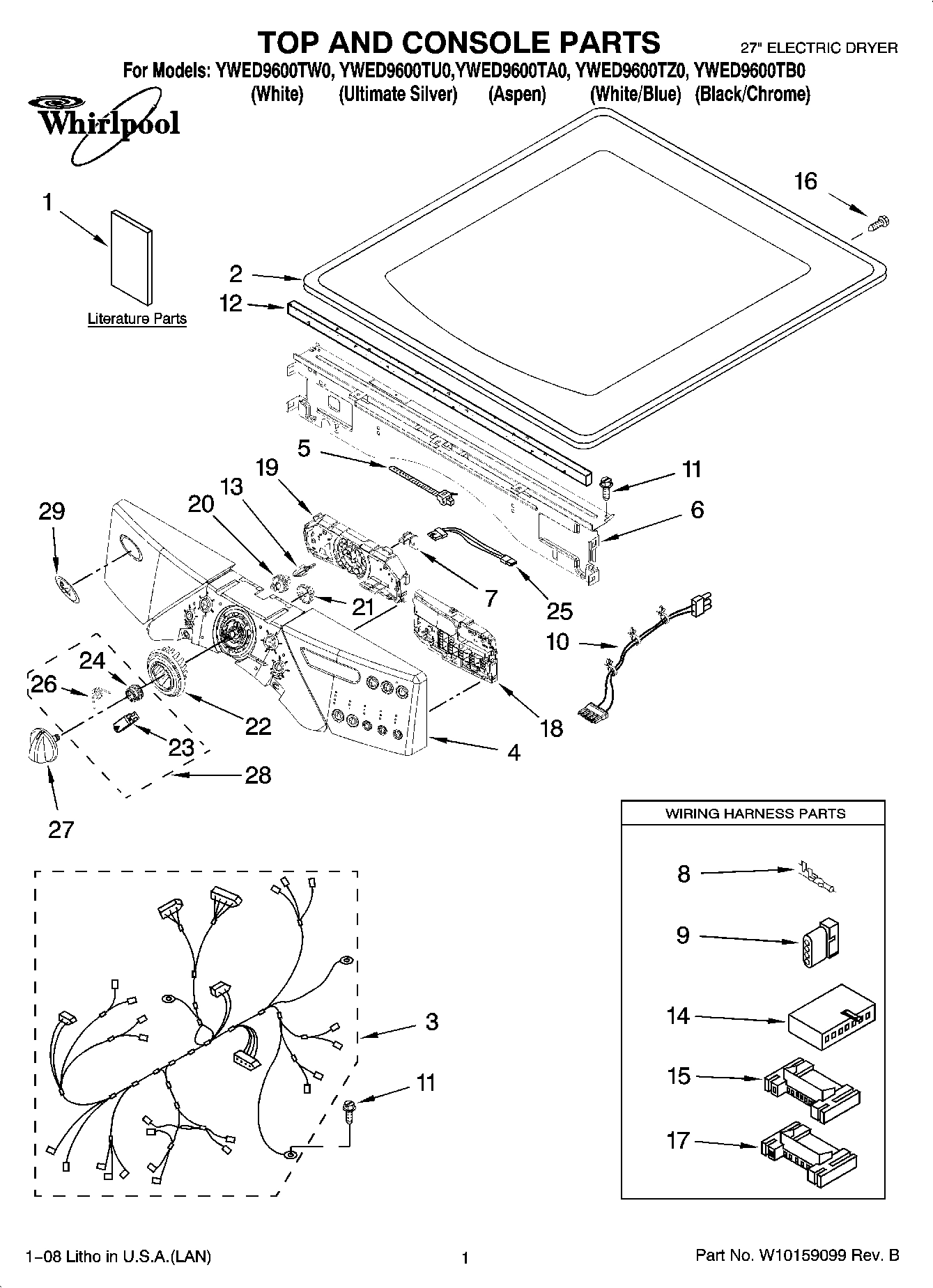

Model Whirlpool YWED9600TZ0 27`` ELECTRIC DRYER – Common Parts &amp; Diagrams

350938 Whirlpool Spray Gun In Stock WPL 350938 $32.57

4392067 Whirlpool Dryer Repair Kit In Stock WPL 4392067 $18.78

49586 Whirlpool Mixer In Stock WPL 49586 $5.03

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $5.60

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

8212450A Whirlpool Dryer Rack Assembly Backorder WPL 8212450A $53.07

8541503 Whirlpool Stacking Kit In Stock WPL 8541503 $25.02

8579666ARP Whirlpool Door Kit Backorder WPL 8579666ARP $23.97

WP16123 Whirlpool Washer In Stock WPL WP16123 $2.51

WP76314 Whirlpool Fill Hose Backorder WPL WP76314 $15.65

WPL 8212605 WPL 8212605 Contact Us For Availability

WPL W10044603 WPL W10044603 Contact Us For Availability

WPL W10157756 WPL W10157756 Contact Us For Availability

WPL 8529894 WPL 8529894 Contact Us For Availability

WPL ARI166993A WPL ARI166993A Contact Us For Availability

WPL ARI166994A WPL ARI166994A Contact Us For Availability

1

W10085210 Whirlpool Label Backorder WPL W10085210 $29.06

2

WPW10310366 Whirlpool Hinge In Stock WPL WPW10310366 $84.03

3

WPW10159996 Whirlpool Screw Backorder WPL WPW10159996 $2.51

4

WP3406653 Whirlpool Wire Harness In Stock WPL WP3406653 $56.58

4

Screw, 8-18 x 5/8 WPL 9742177 Contact Us For Availability

5

Cover-Hinge (R.H.) WPL 8578152 Contact Us For Availability

5

Cover-Hinge (L.H.) WPL 8578153 Contact Us For Availability

5

(Following Parts Not Included) WPL ARI166992A Contact Us For Availability

6

WP697813 Whirlpool Seal In Stock WPL WP697813 $3.70

6

WPW10139457 Whirlpool Door Seal In Stock WPL WPW10139457 $37.41

7

Handle, Ring (Blue) WPL 8579496 Contact Us For Availability

7

Panel, Side (L.H.) (Ultimate Silver) WPL W10138995 Contact Us For Availability

7

Panel, Side (L.H.) (Black/Chrome) WPL W10138996 Contact Us For Availability

7

Panel, Side (L.H.) (Aspen) WPL W10138999 Contact Us For Availability

7

Handle, Ring (Silver) WPL 8579502 Contact Us For Availability

8

49621 Whirlpool Leveling Feet In Stock WPL 49621 $2.29

8

WP94614 Whirlpool Terminal Backorder WPL WP94614 $2.51

8

Screw, 10-16 x 1/2 WPL 3400224 Contact Us For Availability

9

3936144 Whirlpool Connector Backorder WPL 3936144 $10.76

9

WP660658 Whirlpool Clamp In Stock WPL WP660658 $3.70

9

Door Assembly (Outer) (Blue) WPL 8579514 Contact Us For Availability

9

Door Assembly (Outer) (Silver) WPL 8579520 Contact Us For Availability

10

WPW10446781 Whirlpool Spring In Stock WPL WPW10446781 $7.74

10

Door Assembly (Inner) (Includes Illus. 12 & 2 WPL 8578229 Contact Us For Availability

11

WP3389420 Whirlpool Screw In Stock WPL WP3389420 $2.51

11

WP355515 Whirlpool Screw Backorder WPL WP355515 $2.51

11

WP489463 Whirlpool Refrigerator Screw In Stock WPL WP489463 $2.51

12

279570 Whirlpool Dryer Door Latch Kit In Stock WPL 279570 $1.66

12

WPW10404617 Whirlpool Plug Assembly Backorder WPL WPW10404617 $37.46

13

279640 Whirlpool Dryer Idler Pulley Kit In Stock WPL 279640 $10.79

13

8519356 Whirlpool Retainer Backorder WPL 8519356 $7.50

13

WP8066208 Whirlpool Clip Backorder WPL WP8066208 $3.70

14

279318 Whirlpool Terminal In Stock WPL 279318 $39.58

14

W10822054 Whirlpool Retainer Backorder WPL W10822054 $6.19

14

WP8544771 Whirlpool Dryer Heating Element In Stock WPL WP8544771 $64.18

279457 Whirlpool Dryer Heating Element Wide S In Stock WPL 279457 $3.93

3395683 Whirlpool Connector Backorder WPL 3395683 $32.06

8579662 Whirlpool Seal Backorder WPL 8579662 $40.35

WP8066120 Whirlpool Lever Assembly Backorder WPL WP8066120 $11.73

16

Wire, Belt Switch WPL 3394081 Contact Us For Availability

16

Screw-Plug WPL W10048910 Contact Us For Availability

17

WP8566254 Whirlpool Window Assembly Backorder WPL WP8566254 $92.47

17

Sound Panel WPL W10128772 Contact Us For Availability

18

WPW10121334 Whirlpool Washer In Stock WPL WPW10121334 $2.51

W10128087 Whirlpool Door Switch Backorder WPL W10128087 $26.77

WPW10180500 Whirlpool Trim Backorder WPL WPW10180500 $129.76

Tear-Drop Trim & Clip Assembly (Black/Chrome) WPL W10133737 Contact Us For Availability

Tear-Drop Trim & Clip Assembly (Ultimate Silv WPL W10133739 Contact Us For Availability

Tear-Drop Trim & Clip Assembly (White/Blue) WPL W10133741 Contact Us For Availability

20

Door Shield WPL W10074630 Contact Us For Availability

21

WPW10354249 Whirlpool Cover In Stock WPL WPW10354249 $3.70

21

Retainer-Snap WPL W10012440 Contact Us For Availability

21

Door-Intermediate WPL 8578157 Contact Us For Availability

22

Door Mask WPL 8578156 Contact Us For Availability

22

Ramp, Door WPL 8529053 Contact Us For Availability

22

KNOB, LIGHT RING (INCLUDES: ITEM 21) WPL W10012410 Contact Us For Availability

23

W11712577 Whirlpool Clip Backorder WPL W11712577 $2.43

23

Door Screen WPL 8578155 Contact Us For Availability

WP3373329 Whirlpool Dishwasher Screw Backorder WPL WP3373329 $2.51

Panel, Side (R.H.) (White) WPL W10139003 Contact Us For Availability

Panel, Side (R.H.) (Ultimate Silver) WPL W10139009 Contact Us For Availability

Panel, Side (R.H.) (Black/Chrome) WPL W10139010 Contact Us For Availability

Panel, Side (R.H.) (Aspen) WPL W10139013 Contact Us For Availability

WPW10129065 Whirlpool Clip Backorder WPL WPW10129065 $4.78

Harness, Communication WPL W10095960 Contact Us For Availability

Complete Drum Assembly WPL W10138031 Contact Us For Availability

Cover, Bracket Control WPL W10118470 Contact Us For Availability

26

WP681414 Whirlpool Screw In Stock WPL WP681414 $2.51

26

WPW10109200 Whirlpool Screw In Stock WPL WPW10109200 $2.51

27

279787 Whirlpool Dryer Drive Motor In Stock WPL 279787 $109.35

27

WPL W10153663 WPL W10153663 Contact Us For Availability

27

Kno WPL W10116702 Contact Us For Availability

28

3398948 Whirlpool Wire Backorder WPL 3398948 $38.06

29

W10837625 Whirlpool Dryer Motor Pulley In Stock WPL W10837625 $45.53

30

661570V Whirlpool Dryer Drum Belt In Stock WPL 661570V $10.71

31

W10487430 Whirlpool Rear Panel Backorder WPL W10487430 $135.74

32

WP3387118 Whirlpool Base Assembly Backorder WPL WP3387118 $44.84

32

WP3392519 Whirlpool Dryer Thermal Fuse In Stock WPL WP3392519 $7.30

33

279393 Whirlpool Terminal Block Screw and Nut In Stock WPL 279393 $15.35

34

WP3387223 Whirlpool Electrode Assembly In Stock WPL WP3387223 $3.39

34

WPW10416072 Whirlpool Elbow Backorder WPL WPW10416072 $11.44

3977373 Whirlpool Bracket Backorder WPL 3977373 $66.93

Toe, Panel (Whi WPL W10116271 Contact Us For Availability

WPL W10116273 WPL W10116273 Contact Us For Availability

WPL W10116277 WPL W10116277 Contact Us For Availability

WPL W10140572 WPL W10140572 Contact Us For Availability

36

W11700522 Whirlpool Socket Backorder WPL W11700522 $28.07

36

WP8563747 Whirlpool Exhaust Pipe Backorder WPL WP8563747 $29.43

37

WP697772 Whirlpool Dryer Blower Wheel In Stock WPL WP697772 $29.83

37

WPW10331278 Whirlpool Exhaust Pipe Backorder WPL WPW10331278 $28.80

38

WP8563749 Whirlpool Exhaust Pipe Backorder WPL WP8563749 $30.96

39

W10837240 Whirlpool Dryer Idler Pulley In Stock WPL W10837240 $10.83

39

WP3394986 Whirlpool Spring Backorder WPL WP3394986 $29.06

40

WPL W10141671 WPL W10141671 Contact Us For Availability

41

WP8563727 Whirlpool Bracket Backorder WPL WP8563727 $67.84

42

WP8577274 Whirlpool Dryer Thermistor In Stock WPL WP8577274 $17.55

42

WP98129 Whirlpool Screw Backorder WPL WP98129 $2.51

43

WP488729 Whirlpool Refrigerator Door Screw In Stock WPL WP488729 $2.51

44

WP3387242 Whirlpool Seal In Stock WPL WP3387242 $9.17

46

W11295573 Whirlpool Clip Backorder WPL W11295573 $10.76

46

WP8544769 Whirlpool Box Backorder WPL WP8544769 $66.39

47

WPL W10110990 WPL W10110990 Contact Us For Availability

48

WP3391914 Whirlpool Thermostat In Stock WPL WP3391914 $63.24

49

HOUSING TAB, HEATER BOX WPL 8544770 Contact Us For Availability

50

8066099 Whirlpool Bracket Backorder WPL 8066099 $8.16

50

WPL 8519207 WPL 8519207 Contact Us For Availability

WP3387230 Whirlpool Screw In Stock WPL WP3387230 $2.51

WPL 8578388 WPL 8578388 Contact Us For Availability

WPL 8578936 WPL 8578936 Contact Us For Availability

WPL 8578940 WPL 8578940 Contact Us For Availability

WPL W10140574 WPL W10140574 Contact Us For Availability

52

8544776 Whirlpool Clip Assembly Backorder WPL 8544776 $8.00

52

WPL 3407228 WPL 3407228 Contact Us For Availability

53

3389682 Whirlpool Spacer Backorder WPL 3389682 $5.65

53

WPW10113136 Whirlpool Drum Baffle Backorder WPL WPW10113136 $53.93

54

WPL 62825 WPL 62825 Contact Us For Availability

55

W11729831 Whirlpool Power Cord Backorder WPL W11729831 $47.12

55

WPL ARI166991A WPL ARI166991A Contact Us For Availability

56

W10470674 Whirlpool Dryer Side Vent Exhaust K In Stock WPL W10470674 $53.07

57

WPL W10179730 WPL W10179730 Contact Us For Availability

58

W11086603 Whirlpool Dryer Link Screen Air Gri In Stock WPL W11086603 $13.56

59

WPL W10044629 WPL W10044629 Contact Us For Availability

60

WP697770 Whirlpool Blower Cover Plate Seal In Stock WPL WP697770 $3.70

61

W10044579 Whirlpool Washer Backorder WPL W10044579 $5.65

63

W10859554 Whirlpool Coupler Backorder WPL W10859554 $26.75

65

W11257251 Whirlpool Shield Backorder WPL W11257251 $25.58
