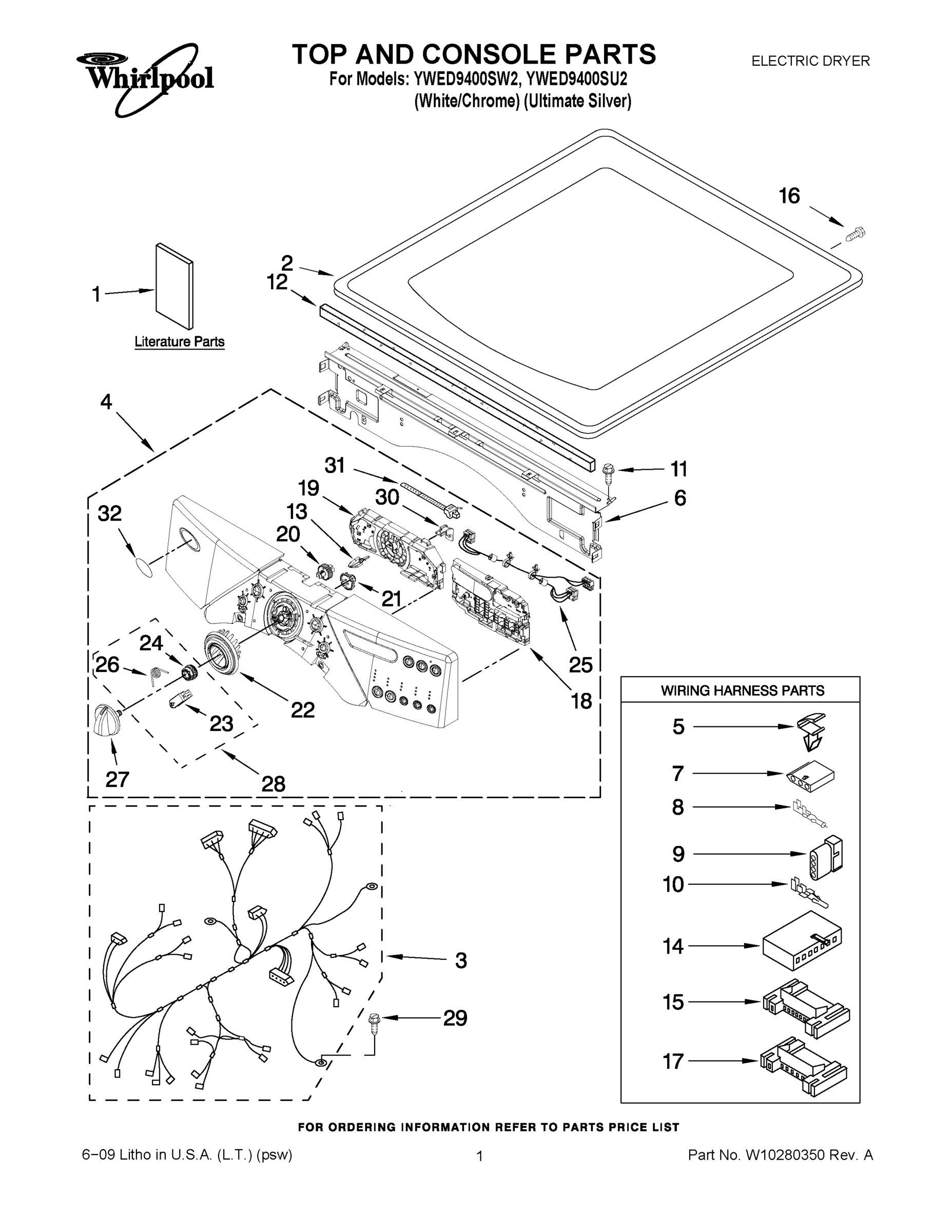

Model Whirlpool YWED9400SW2 ELECTRIC DRYER – Common Parts &amp; Diagrams

1

WPW10085230 Whirlpool Label Assembly Backorder WPL WPW10085230 $9.13

2

WPW10310366 Whirlpool Hinge In Stock WPL WPW10310366 $84.03

3

WPW10159996 Whirlpool Screw In Stock WPL WPW10159996 $2.51

4

WP3406653 Whirlpool Wire Harness In Stock WPL WP3406653 $46.96

4

Screw, 8-18 x 5/8 WPL 9742177 Contact Us For Availability

5

WP3394427 Whirlpool Clip In Stock WPL WP3394427 $3.70

5

Cover-Hinge (R.H.) WPL W10181197 Contact Us For Availability

5

COVER-HINGE (L.H.) (FOLLOWING PARTS NOT INCLU WPL W10180119 Contact Us For Availability

6

WP697813 Whirlpool Seal In Stock WPL WP697813 $4.70

6

WPW10139457 Whirlpool Door Seal In Stock WPL WPW10139457 $40.10

7

353424 Whirlpool Connector Backorder WPL 353424 $10.76

7

HANDLE, RING & PAD ASSEMBLY WPL 8579502 Contact Us For Availability

8

49621 Whirlpool Leveling Feet In Stock WPL 49621 $3.22

8

WP94614 Whirlpool Terminal Backorder WPL WP94614 $2.51

9

3936144 Whirlpool Connector Backorder WPL 3936144 $10.76

9

WP3392519 Whirlpool Dryer Thermal Fuse In Stock WPL WP3392519 $8.49

9

WPW10121316 Whirlpool Clamp In Stock WPL WPW10121316 $11.71

9

Door Assembly (Outer) WPL W10180115 Contact Us For Availability

10

DOOR ASSEMBLY (INNER) (INCLUDES ITEM 12.) WPL 8578229 Contact Us For Availability

11

WP3389420 Whirlpool Screw In Stock WPL WP3389420 $3.33

11

WP355515 Whirlpool Screw Backorder WPL WP355515 $2.51

11

WP489463 Whirlpool Refrigerator Screw In Stock WPL WP489463 $3.33

12

279570 Whirlpool Dryer Door Latch Kit In Stock WPL 279570 $3.10

12

WPW10404617 Whirlpool Plug Assembly Backorder WPL WPW10404617 $39.33

13

8519356 Whirlpool Retainer Backorder WPL 8519356 $7.50

13

WP8066208 Whirlpool Clip Backorder WPL WP8066208 $3.70

14

279318 Whirlpool Terminal In Stock WPL 279318 $42.38

14

W10822054 Whirlpool Retainer Backorder WPL W10822054 $6.19

14

WP8544771 Whirlpool Dryer Heating Element In Stock WPL WP8544771 $68.08

279457 Whirlpool Dryer Heating Element Wide S In Stock WPL 279457 $4.76

3395683 Whirlpool Connector Backorder WPL 3395683 $33.67

Gasket, Window WPL 8579662 Contact Us For Availability

Clip-S Type WPL 62825 Contact Us For Availability

16

Screw-Plug WPL W10048910 Contact Us For Availability

17

W10123956 Whirlpool Sound Absorber Backorder WPL W10123956 $14.26

17

WP8566254 Whirlpool Window Assembly Backorder WPL WP8566254 $97.09

18

WP3373329 Whirlpool Dishwasher Screw Backorder WPL WP3373329 $2.51

18

WPW10121334 Whirlpool Washer In Stock WPL WPW10121334 $3.33

19

Tear-Drop Trim & Clip Assembly (White) WPL W10180492 Contact Us For Availability

19

Tear-Drop Trim & Clip Assembly (Silver) WPL W10180498 Contact Us For Availability

20

Door Shield WPL W10180120 Contact Us For Availability

21

Door, Intermediate WPL W10180118 Contact Us For Availability

21

Retainer-Snap WPL W10012440 Contact Us For Availability

22

Ramp, Door WPL 8529053 Contact Us For Availability

22

KNOB, LIGHT RING (INCLUDES: ITEM 21) WPL W10012410 Contact Us For Availability

22

Door Mask WPL W10180117 Contact Us For Availability

23

BOARD, CONTROL WPL W10174745 Contact Us For Availability

23

Door Screen WPL 8578155 Contact Us For Availability

25

W10242906 Whirlpool Wire Harness Backorder WPL W10242906 $63.31

26

W10853898 Whirlpool Screw Backorder WPL W10853898 $2.51

26

WP8563727 Whirlpool Bracket Backorder WPL WP8563727 $71.22

27

Knob, Control (Includes: Item. 21) (White) WPL W10116702 Contact Us For Availability

28

Encoder, Wheel Kit (Includes Items: 23, 24, & WPL 280230 Contact Us For Availability

30

661570V Whirlpool Dryer Drum Belt In Stock WPL 661570V $12.06

30

8544776 Whirlpool Clip Assembly Backorder WPL 8544776 $8.00

31

WP3387230 Whirlpool Screw In Stock WPL WP3387230 $3.46

31

Power Cord WPL 8529008 Contact Us For Availability

32

W11481730 Whirlpool Bracket In Stock WPL W11481730 $33.45

33

279393 Whirlpool Terminal Block Screw and Nut In Stock WPL 279393 $16.18

34

WP3387223 Whirlpool Electrode Assembly In Stock WPL WP3387223 $4.21

34

WPW10416072 Whirlpool Elbow Backorder WPL WPW10416072 $11.44

35

8578825 Whirlpool Bracket Backorder WPL 8578825 $7.98

36

W11222979 Whirlpool Socket In Stock WPL W11222979 $43.76

36

WP8563747 Whirlpool Exhaust Pipe In Stock WPL WP8563747 $30.89

37

WP697772 Whirlpool Dryer Blower Wheel In Stock WPL WP697772 $32.15

37

WPW10331278 Whirlpool Exhaust Pipe Backorder WPL WPW10331278 $30.25

38

W11086603 Whirlpool Dryer Link Screen Air Gri In Stock WPL W11086603 $15.06

38

WP8563749 Whirlpool Exhaust Pipe Backorder WPL WP8563749 $32.52

39

W10837240 Whirlpool Dryer Idler Pulley In Stock WPL W10837240 $20.49

39

WP3394986 Whirlpool Spring Backorder WPL WP3394986 $30.51

40

WP697770 Whirlpool Blower Cover Plate Seal In Stock WPL WP697770 $4.70

40

Panel, Rear WPL W10180481 Contact Us For Availability

41

W10242904 Whirlpool Wire Harness Backorder WPL W10242904 $62.35

42

WP693995 Whirlpool Screw In Stock WPL WP693995 $1.92

42

WP8577274 Whirlpool Dryer Thermistor In Stock WPL WP8577274 $19.25

43

8066099 Whirlpool Bracket Backorder WPL 8066099 $8.16

43

WP488729 Whirlpool Refrigerator Door Screw In Stock WPL WP488729 $3.46

44

WP3387242 Whirlpool Seal In Stock WPL WP3387242 $9.99

46

W11295573 Whirlpool Clip Backorder WPL W11295573 $10.76

46

WP8544769 Whirlpool Box Backorder WPL WP8544769 $69.70

47

PANEL, TOE (WHITE) WPL W10246269 Contact Us For Availability

47

PANEL, TOE ( WPL W10246275 Contact Us For Availability

48

WP3391914 Whirlpool Thermostat In Stock WPL WP3391914 $64.06

48

WPL W10180423 WPL W10180423 Contact Us For Availability

48

WPL W10180429 WPL W10180429 Contact Us For Availability

49

W10470674 Whirlpool Dryer Side Vent Exhaust K In Stock WPL W10470674 $55.93

49

HOUSING TAB, HEATER BOX WPL 8544770 Contact Us For Availability

DC4-30-4 USD Products Dryer Cord, 4' 4 Wire, In Stock USD DC4-30-4 $13.30

DC4-30-6 USD Products Dryer 6' 4-Wire Cord 30 In Stock USD DC4-30-6 $18.83

350930 Whirlpool White Spray Paint In Stock WPL 350930 $13.94

350938 Whirlpool Spray Gun Backorder WPL 350938 $32.57

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.25

8541503 Whirlpool Stacking Kit In Stock WPL 8541503 $27.08

PT220L Whirlpool Dryer Power Cord In Stock WPL PT220L $14.71

PAINT, TOUCH-UP (1/2oz.) (Ultimate Silver) WPL 8212605 Contact Us For Availability

PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability
