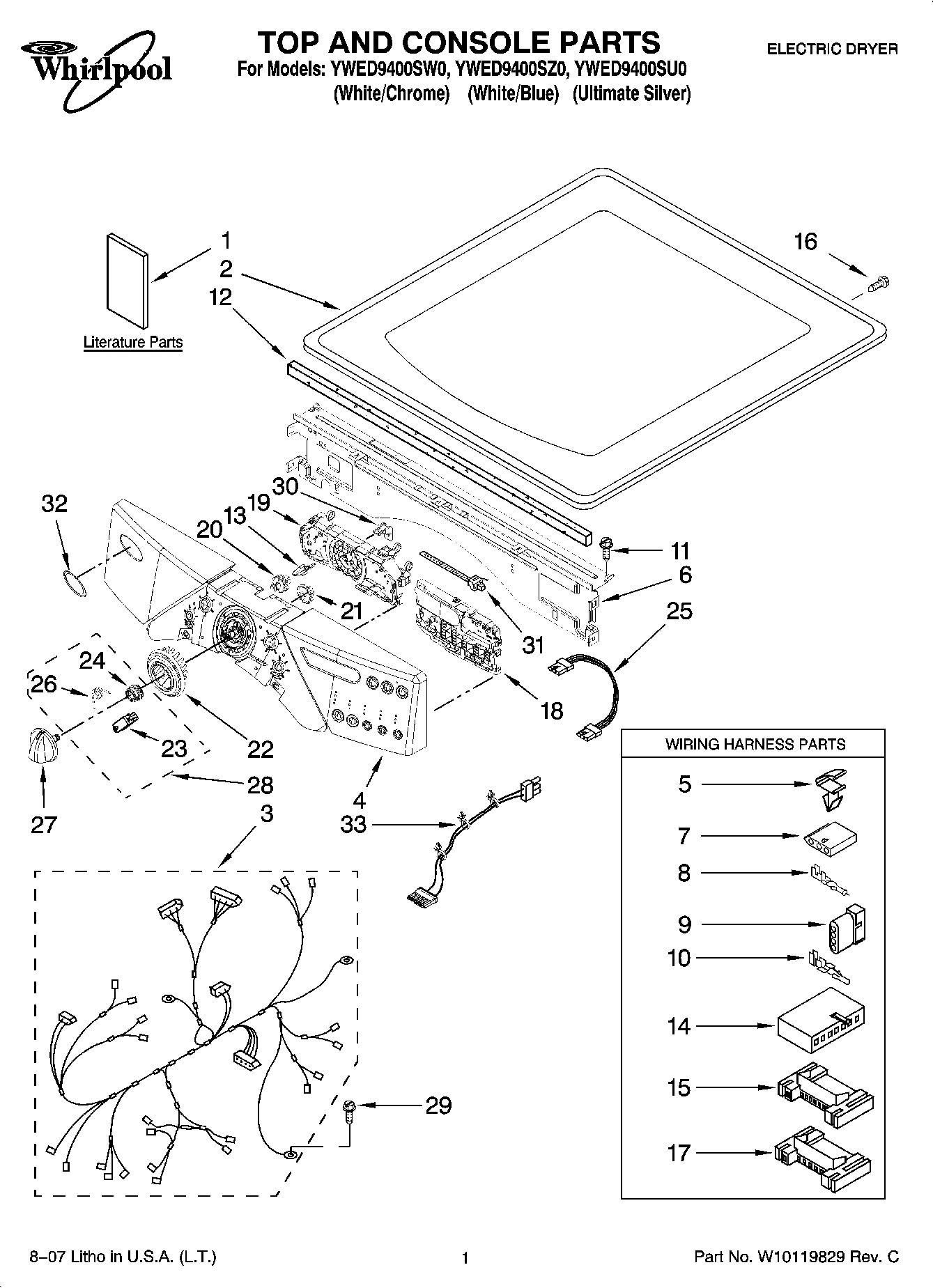

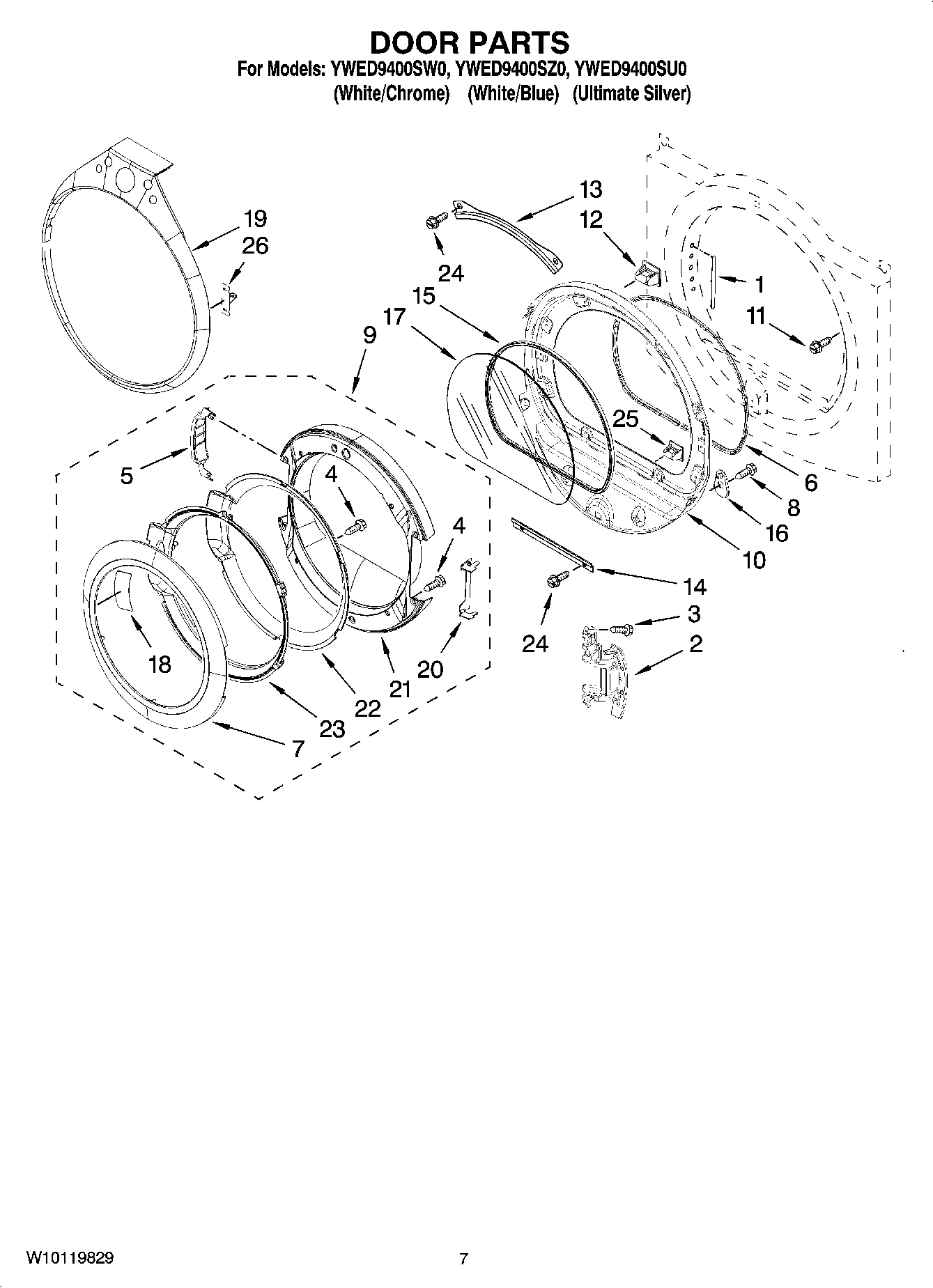

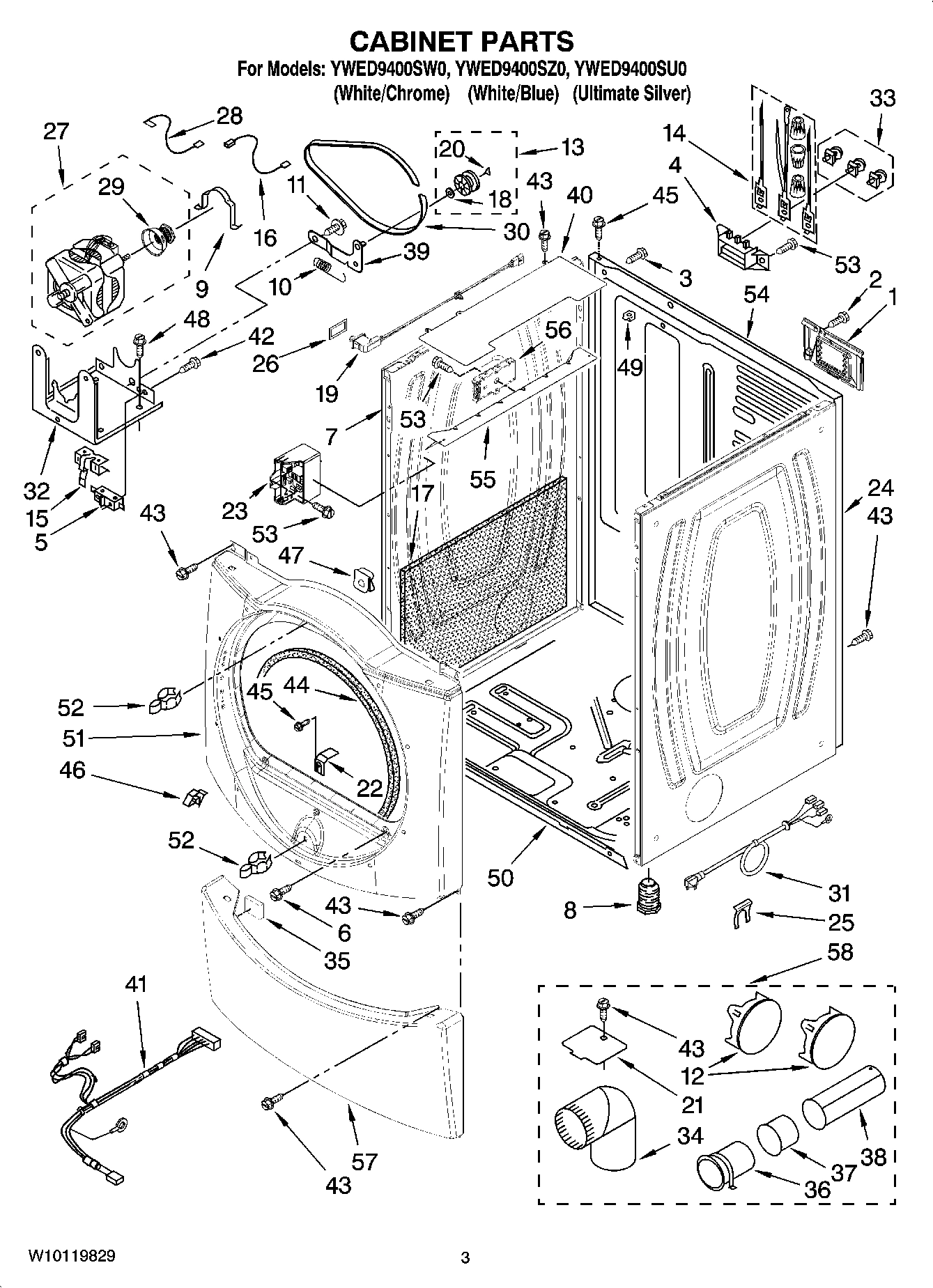

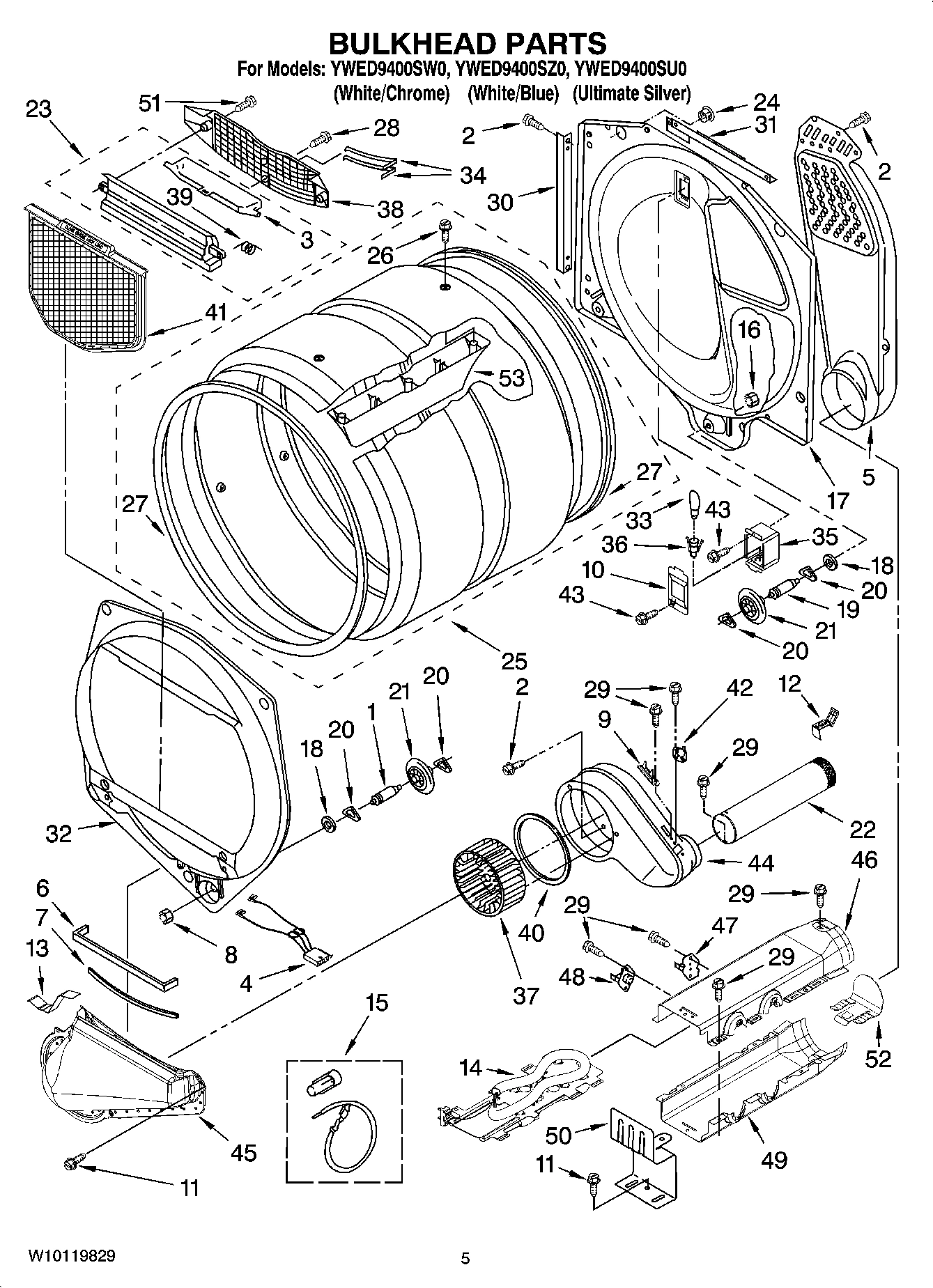

Model Whirlpool YWED9400SU0 ELECTRIC DRYER – Common Parts &amp; Diagrams

350938 Whirlpool Spray Gun In Stock WPL 350938 $32.57

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

8541503 Whirlpool Stacking Kit In Stock WPL 8541503 $25.02

WPL 8212605 WPL 8212605 Contact Us For Availability

1

W10085210 Whirlpool Label Backorder WPL W10085210 $29.06

1

WPW10119283 Whirlpool Terminal Cover Backorder WPL WPW10119283 $39.97

2

WP90767 Whirlpool Screw In Stock WPL WP90767 $2.51

3

W10850756 Whirlpool Screw Backorder WPL W10850756 $2.51

4

WP3397659 Whirlpool Terminal Block In Stock WPL WP3397659 $8.51

4

WP3406653 Whirlpool Wire Harness In Stock WPL WP3406653 $56.58

4

Screw, 8-18 x 5/8 WPL 9742177 Contact Us For Availability

4

Panel, Console (Includes Items: 20,21,22,27,2 WPL W10116699 Contact Us For Availability

5

279782 Whirlpool Lid Switch In Stock WPL 279782 $30.85

5

WP3394427 Whirlpool Clip In Stock WPL WP3394427 $3.70

6

WP308685 Whirlpool Microwave Screw In Stock WPL WP308685 $2.51

6

WP697813 Whirlpool Seal In Stock WPL WP697813 $3.70

6

WPW10139457 Whirlpool Door Seal In Stock WPL WPW10139457 $37.41

6

Bracket, Console (Includes No.12) WPL W10006840 Contact Us For Availability

7

353424 Whirlpool Connector Backorder WPL 353424 $10.76

7

Panel, Side (L.H.) (White) WPL W10138989 Contact Us For Availability

7

Panel, Side (L.H.) (Silver) WPL W10138995 Contact Us For Availability

8

49621 Whirlpool Leveling Feet In Stock WPL 49621 $2.29

8

WP94614 Whirlpool Terminal Backorder WPL WP94614 $2.51

9

3936144 Whirlpool Connector Backorder WPL 3936144 $10.76

9

WP3392519 Whirlpool Dryer Thermal Fuse In Stock WPL WP3392519 $7.30

9

WP660658 Whirlpool Clamp In Stock WPL WP660658 $3.70

10

WP596797 Whirlpool Terminal Backorder WPL WP596797 $2.51

10

WPW10446781 Whirlpool Spring In Stock WPL WPW10446781 $7.74

10

Door Assembly (Inner) (Includes Illus. 12 & 2 WPL 8578229 Contact Us For Availability

11

WP3389420 Whirlpool Screw In Stock WPL WP3389420 $2.51

11

WP489463 Whirlpool Refrigerator Screw In Stock WPL WP489463 $2.51

12

W10112267 Whirlpool Seal Assembly Backorder WPL W10112267 $32.08

12

WPW10404617 Whirlpool Plug Assembly Backorder WPL WPW10404617 $37.46

13

279640 Whirlpool Dryer Idler Pulley Kit In Stock WPL 279640 $10.79

13

W10012480 Whirlpool WP Dishwasher Encoder Ada Backorder WPL W10012480 $9.96

13

WP8066208 Whirlpool Clip Backorder WPL WP8066208 $3.70

14

279318 Whirlpool Terminal In Stock WPL 279318 $39.58

14

3936150 Whirlpool Connector Backorder WPL 3936150 $28.80

14

WP8544771 Whirlpool Dryer Heating Element In Stock WPL WP8544771 $64.18

279457 Whirlpool Dryer Heating Element Wide S In Stock WPL 279457 $3.93

3395683 Whirlpool Connector Backorder WPL 3395683 $32.06

8579662 Whirlpool Seal Backorder WPL 8579662 $40.35

WP8066120 Whirlpool Lever Assembly Backorder WPL WP8066120 $11.73

16

Wire, Belt Switch WPL 3394081 Contact Us For Availability

16

Screw-Plug WPL W10048910 Contact Us For Availability

16

Screw, 8-18 x 1/2 WPL 8281225 Contact Us For Availability

2203186 Whirlpool Connector Backorder WPL 2203186 $7.61

W11299301 Whirlpool Bulkhead Assembly Backorder WPL W11299301 $93.12

WP8566254 Whirlpool Window Assembly Backorder WPL WP8566254 $92.47

Sound Panel WPL W10128772 Contact Us For Availability

18

WPW10121334 Whirlpool Washer In Stock WPL WPW10121334 $2.51

18

User Interface (Right) WPL W10031430 Contact Us For Availability

19

User Interface (Center) (Includes: Illus. 13) WPL W10121375 Contact Us For Availability

19

Assembly, Door Switch WPL 8574875 Contact Us For Availability

20

Encoder-Wheel WPL W10012430 Contact Us For Availability

21

WPW10354249 Whirlpool Cover In Stock WPL WPW10354249 $3.70

21

Retainer-Snap WPL W10012440 Contact Us For Availability

22

Door Mask WPL 8578156 Contact Us For Availability

22

Ramp, Door WPL 8529053 Contact Us For Availability

22

KNOB, LIGHT RING (INCLUDES: ITEM 21) WPL W10012410 Contact Us For Availability

23

Power Cube WPL 3407228 Contact Us For Availability

23

Rast, Wheel Assy. (Service Only With Item. 28 WPL W10012810 Contact Us For Availability

24

Detent Wheel (Service Only With Illus. 28) WPL W10012460 Contact Us For Availability

24

Panel, Side (R.H.) (White) WPL W10139003 Contact Us For Availability

24

Panel, Side (R.H.) (Silver) WPL W10139009 Contact Us For Availability

25

W11712577 Whirlpool Clip Backorder WPL W11712577 $2.43

25

Harness, Communication WPL W10095960 Contact Us For Availability

WPW10109200 Whirlpool Screw In Stock WPL WPW10109200 $2.51

WPW10129065 Whirlpool Clip Backorder WPL WPW10129065 $4.78

Knob, Spring (2) (Service Only With Item 28) WPL W10012820 Contact Us For Availability

Seal, Door Switch WPL W10118614 Contact Us For Availability

279787 Whirlpool Dryer Drive Motor In Stock WPL 279787 $109.35

Knob, Control (Includes: Item. 21) (White) WPL W10116702 Contact Us For Availability

Knob, Control (Includes: Item. 21) (Ultimate WPL W10116704 Contact Us For Availability

Knob, Control (Includes: Item 21) (Blue) WPL W10116706 Contact Us For Availability

28

3398948 Whirlpool Wire Backorder WPL 3398948 $38.06

28

Encoder, Wheel Kit (Includes Items: 23, 24, & WPL 280230 Contact Us For Availability

29

W10837625 Whirlpool Dryer Motor Pulley In Stock WPL W10837625 $45.53

29

W11693756 Whirlpool Screw Assembly Backorder WPL W11693756 $8.11

30

661570V Whirlpool Dryer Drum Belt In Stock WPL 661570V $10.71

30

W10112268 Whirlpool Clip Backorder WPL W10112268 $8.00

31

WP3391018 Whirlpool Wire Tie Backorder WPL WP3391018 $14.48

31

Power Cord WPL 8529008 Contact Us For Availability

32

WP3387118 Whirlpool Base Assembly Backorder WPL WP3387118 $44.84

32

Badg WPL W10117943 Contact Us For Availability

33

279393 Whirlpool Terminal Block Screw and Nut In Stock WPL 279393 $15.35

33

WPL W10110976 WPL W10110976 Contact Us For Availability

34

WP3387223 Whirlpool Electrode Assembly In Stock WPL WP3387223 $3.39

34

WPW10416072 Whirlpool Elbow Backorder WPL WPW10416072 $11.44

35

3389682 Whirlpool Spacer Backorder WPL 3389682 $5.65

35

3977373 Whirlpool Bracket Backorder WPL 3977373 $66.93

36

WP8563747 Whirlpool Exhaust Pipe Backorder WPL WP8563747 $29.43

37

WP697772 Whirlpool Dryer Blower Wheel In Stock WPL WP697772 $29.83

37

WPW10331278 Whirlpool Exhaust Pipe Backorder WPL WPW10331278 $28.80

38

W11086603 Whirlpool Dryer Link Screen Air Gri In Stock WPL W11086603 $13.56

38

WP8563749 Whirlpool Exhaust Pipe Backorder WPL WP8563749 $30.96

39

W10837240 Whirlpool Dryer Idler Pulley In Stock WPL W10837240 $10.83

39

WP3394986 Whirlpool Spring Backorder WPL WP3394986 $29.06

40

WP697770 Whirlpool Blower Cover Plate Seal In Stock WPL WP697770 $3.70

40

Cover, Control Bracket WPL W10118470 Contact Us For Availability

41

Harness, Digital Interface WPL W10110990 Contact Us For Availability

42

WP8577274 Whirlpool Dryer Thermistor In Stock WPL WP8577274 $17.55

42

WP98129 Whirlpool Screw Backorder WPL WP98129 $2.51

43

WP488729 Whirlpool Refrigerator Door Screw In Stock WPL WP488729 $2.51

44

WP3387242 Whirlpool Seal In Stock WPL WP3387242 $9.17

46

W11295573 Whirlpool Clip Backorder WPL W11295573 $10.76

46

WP8544769 Whirlpool Box Backorder WPL WP8544769 $66.39

47

280148 Whirlpool Dryer Thermal Cut-Off Fuse K In Stock WPL 280148 $30.27

47

WPL 62825 WPL 62825 Contact Us For Availability

48

WP681414 Whirlpool Screw In Stock WPL WP681414 $2.51

48

WP8557403 Whirlpool Thermostat In Stock WPL WP8557403 $54.42

49

WP692400 Whirlpool Nut In Stock WPL WP692400 $3.70

49

HOUSING TAB, HEATER BOX WPL 8544770 Contact Us For Availability

50

8066099 Whirlpool Bracket Backorder WPL 8066099 $8.16

50

WPL 8519207 WPL 8519207 Contact Us For Availability

51

WP3387230 Whirlpool Screw In Stock WPL WP3387230 $2.51

51

WPL 8578388 WPL 8578388 Contact Us For Availability

51

WPL 8578940 WPL 8578940 Contact Us For Availability

52

279570 Whirlpool Dryer Door Latch Kit In Stock WPL 279570 $1.66

52

8544776 Whirlpool Clip Assembly Backorder WPL 8544776 $8.00

53

WPW10113136 Whirlpool Drum Baffle Backorder WPL WPW10113136 $53.93

54

WPL W10133207 WPL W10133207 Contact Us For Availability

55

WP8563727 Whirlpool Bracket Backorder WPL WP8563727 $67.84

56

WPL W10110641 WPL W10110641 Contact Us For Availability

57

WPL W10116271 WPL W10116271 Contact Us For Availability

57

WPL W10116277 WPL W10116277 Contact Us For Availability

58

W10470674 Whirlpool Dryer Side Vent Exhaust K In Stock WPL W10470674 $53.07
