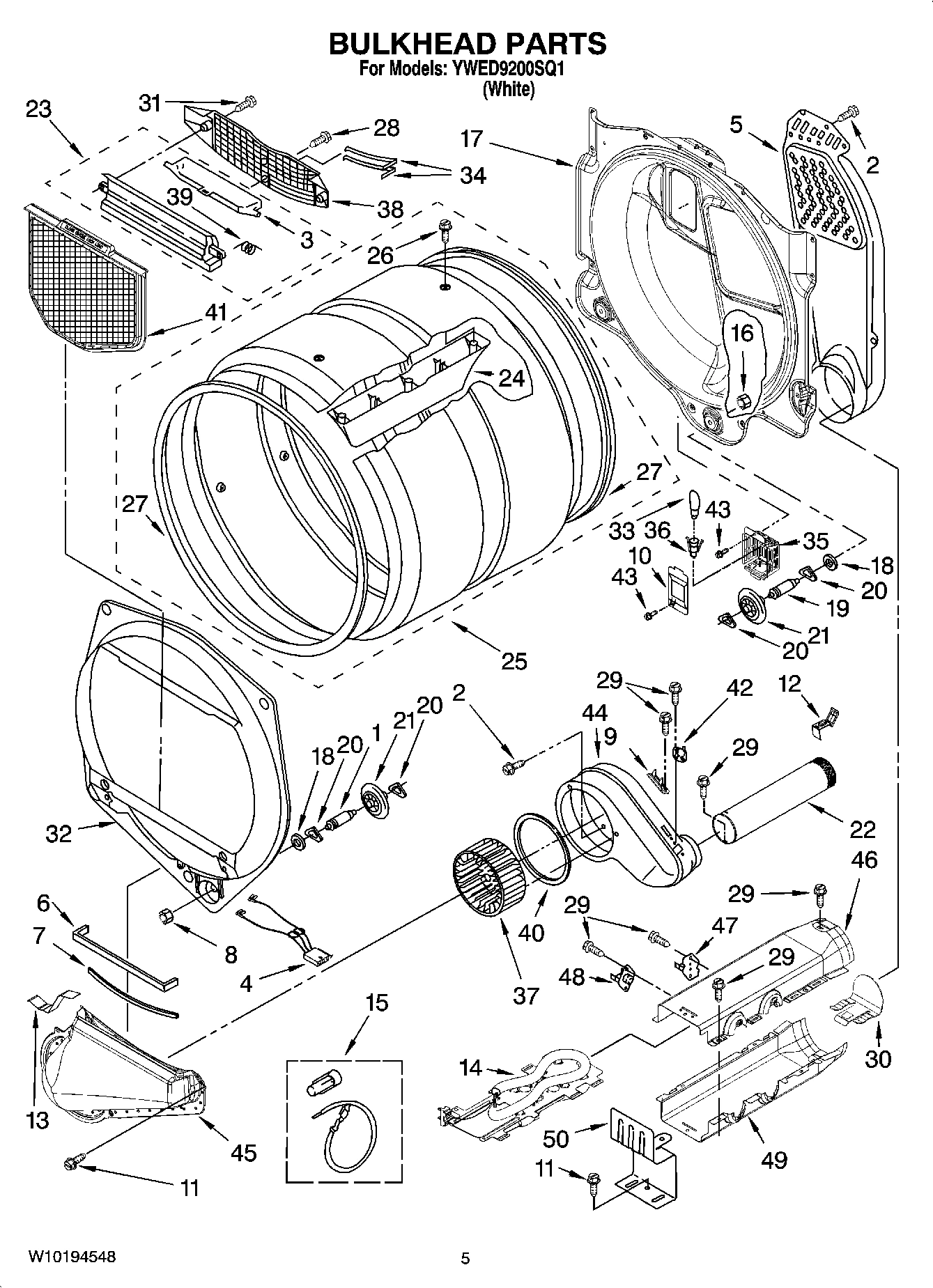

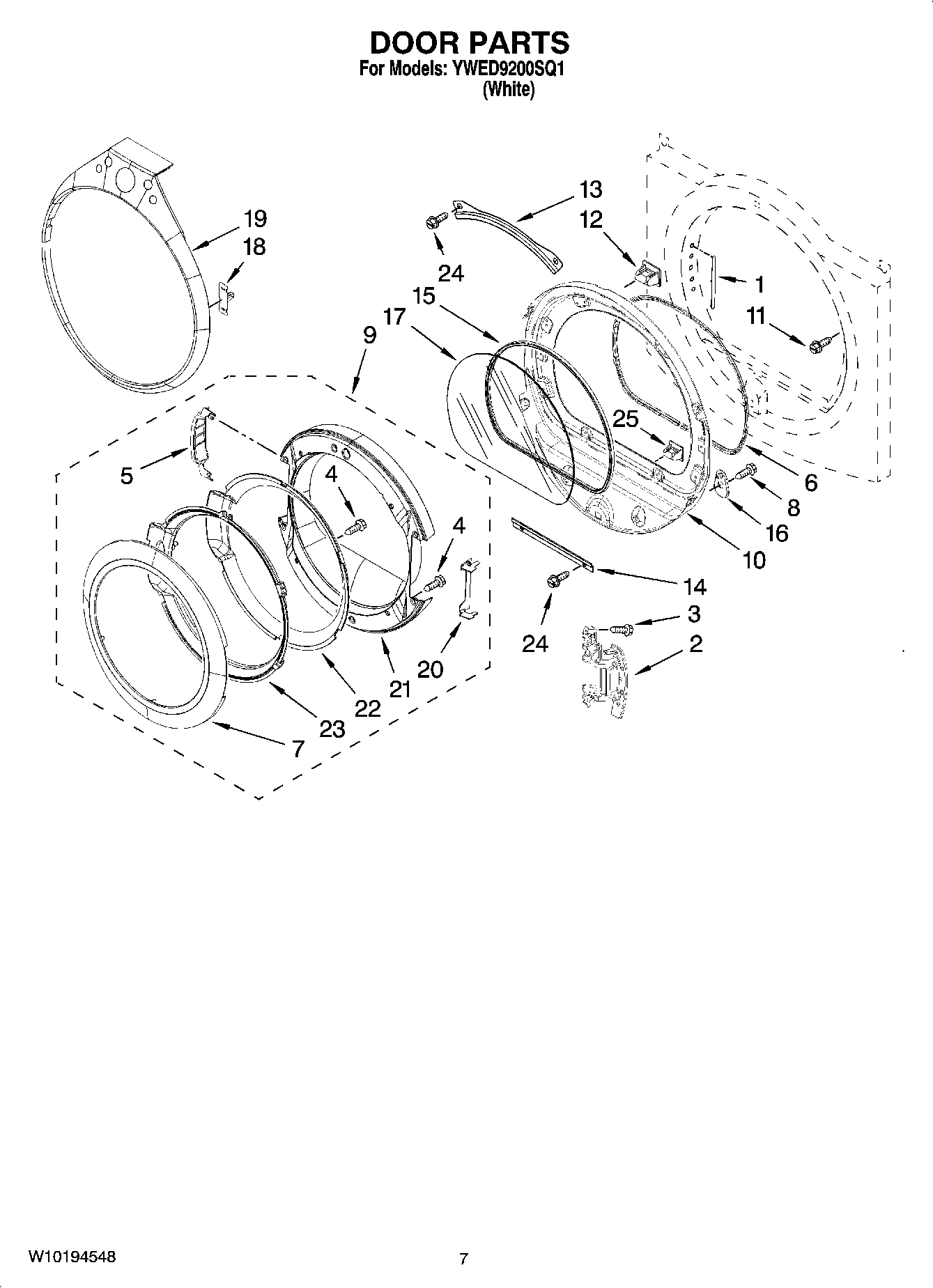

Whirlpool YWED9200SQ1 ELECTRIC DRYER Parts List

350930 Whirlpool White Spray Paint In Stock WPL 350930 $13.12

View on Model

350938 Whirlpool Spray Gun Backorder WPL 350938 $32.57

View on Model

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.41

View on Model

8541503 Whirlpool Stacking Kit In Stock WPL 8541503 $26.26

View on Model

PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability

View on Model

1

W10085210 Whirlpool Label Backorder WPL W10085210 $30.51

View on Model

1

Guide, Quick Start WPL W10111226 Contact Us For Availability

View on Model

1

Installation, Diagnostic Guide WPL W10134980 Contact Us For Availability

View on Model

1

Use & Care Guide WPL W10151591 Contact Us For Availability

View on Model

1

Tech Sheet WPL W10177461 Contact Us For Availability

View on Model

2

Top WPL 3980634 Contact Us For Availability

View on Model

3

WPW10159996 Whirlpool Screw In Stock WPL WPW10159996 $2.51

View on Model

3

Harness, Main WPL W10111013 Contact Us For Availability

View on Model

4

WP3406653 Whirlpool Wire Harness In Stock WPL WP3406653 $46.96

View on Model

4

Screw, 8-18 x 5/8 WPL 9742177 Contact Us For Availability

View on Model

4

Panel, Console (Includes Items: 20,21,22,27,2 WPL W10116694 Contact Us For Availability

View on Model

5

WP3394427 Whirlpool Clip In Stock WPL WP3394427 $3.70

View on Model

5

Cover-Hinge (R.H.) WPL W10181197 Contact Us For Availability

View on Model

6

WP697813 Whirlpool Seal In Stock WPL WP697813 $3.88

View on Model

6

WPW10139457 Whirlpool Door Seal In Stock WPL WPW10139457 $39.27

View on Model

6

Bracket, Console (Includes No.12) WPL W10006840 Contact Us For Availability

View on Model

7

353424 Whirlpool Connector Backorder WPL 353424 $10.76

View on Model

8

49621 Whirlpool Leveling Feet In Stock WPL 49621 $2.40

View on Model

8

WP94614 Whirlpool Terminal Backorder WPL WP94614 $2.51

View on Model

9

3936144 Whirlpool Connector Backorder WPL 3936144 $10.76

View on Model

9

WP3392519 Whirlpool Dryer Thermal Fuse In Stock WPL WP3392519 $7.67

View on Model

9

WP660658 Whirlpool Clamp In Stock WPL WP660658 $3.18

View on Model

10

Door Assembly (Inner) (Includes Illus. 12 & 2 WPL 8578229 Contact Us For Availability

View on Model

11

WP3389420 Whirlpool Screw In Stock WPL WP3389420 $2.51

View on Model

11

WP488729 Whirlpool Refrigerator Door Screw In Stock WPL WP488729 $2.64

View on Model

11

WP489463 Whirlpool Refrigerator Screw In Stock WPL WP489463 $2.51

View on Model

12

W10112267 Whirlpool Seal Assembly Backorder WPL W10112267 $33.69

View on Model

13

W10012480 Whirlpool WP Dryer Encoder Adapt Wh Backorder WPL W10012480 $9.96

View on Model

13

WP8066208 Whirlpool Clip Backorder WPL WP8066208 $3.70

View on Model

14

279318 Whirlpool Terminal In Stock WPL 279318 $41.56

View on Model

14

WP8544771 Whirlpool Dryer Heating Element In Stock WPL WP8544771 $67.38

View on Model

14

Connector, 7-Circuit WPL 3936150 Contact Us For Availability

View on Model

15

279457 Whirlpool Dryer Heating Element Wide S In Stock WPL 279457 $3.93

View on Model

15

3395683 Whirlpool Connector Backorder WPL 3395683 $33.67

View on Model

15

WP8066120 Whirlpool Lever Assembly Backorder WPL WP8066120 $11.73

View on Model

15

Gasket, Window WPL 8579662 Contact Us For Availability

View on Model

16

303776 Whirlpool Dishwasher Screw Backorder WPL 303776 $4.65

View on Model

16

Screw-Plug WPL W10048910 Contact Us For Availability

View on Model

17

2203186 Whirlpool Connector Backorder WPL 2203186 $7.61

View on Model

17

Window WPL 8566254 Contact Us For Availability

View on Model

18

WPW10121334 Whirlpool Washer In Stock WPL WPW10121334 $2.51

View on Model

18

WPW10129065 Whirlpool Clip Backorder WPL WPW10129065 $4.78

View on Model

18

User Interface (Right) WPL W10172191 Contact Us For Availability

View on Model

19

Tear-Drop Trim & Clip Assembly WPL W10180493 Contact Us For Availability

View on Model

19

User Interface (Center) (Includes Item 13) WPL W10031410 Contact Us For Availability

View on Model

20

Door Shield WPL W10180120 Contact Us For Availability

View on Model

20

Encoder-Wheel WPL W10012430 Contact Us For Availability

View on Model

21

Door, Intermediate WPL W10180118 Contact Us For Availability

View on Model

21

Retainer-Snap WPL W10012440 Contact Us For Availability

View on Model

22

Ramp, Door WPL 8529053 Contact Us For Availability

View on Model

22

KNOB, LIGHT RING (INCLUDES: ITEM 21) WPL W10012410 Contact Us For Availability

View on Model

23

Rast, Wheel Assy. (Service Only With Item. 28 WPL W10012810 Contact Us For Availability

View on Model

24

Detent Wheel (Service Only With Illus. 28) WPL W10012450 Contact Us For Availability

View on Model

25

Harness, Communication WPL W10095960 Contact Us For Availability

View on Model

26

WPW10109200 Whirlpool Screw In Stock WPL WPW10109200 $2.51

View on Model

26

Knob, Spring (2) (Service Only With Item 28) WPL W10012820 Contact Us For Availability

View on Model

27

Knob, Control WPL W10116701 Contact Us For Availability

View on Model

28

3398948 Whirlpool Wire Backorder WPL 3398948 $39.97

View on Model

28

Encoder, Wheel Kit (Includes Items: 23, 24, & WPL 280230 Contact Us For Availability

View on Model

29

W10112268 Whirlpool Clip Backorder WPL W10112268 $8.00

View on Model

30

8544776 Whirlpool Clip Assembly Backorder WPL 8544776 $8.00

View on Model

30

WP3391018 Whirlpool Wire Tie Backorder WPL WP3391018 $14.48

View on Model

31

WP3387230 Whirlpool Screw In Stock WPL WP3387230 $2.64

View on Model

31

WP8563727 Whirlpool Bracket Backorder WPL WP8563727 $71.22

View on Model

31

Badge WPL W10117943 Contact Us For Availability

View on Model

32

WP3387118 Whirlpool Base Assembly Backorder WPL WP3387118 $47.09

View on Model

32

Cube, Cable WPL W10111020 Contact Us For Availability

View on Model

33

279393 Whirlpool Terminal Block Screw and Nut In Stock WPL 279393 $15.35

View on Model

34

WP3387223 Whirlpool Electrode Assembly In Stock WPL WP3387223 $3.39

View on Model

35

8578825 Whirlpool Bracket Backorder WPL 8578825 $7.98

View on Model

36

W11700522 Whirlpool Socket Backorder WPL W11700522 $29.48

View on Model

36

WP8563747 Whirlpool Exhaust Pipe Backorder WPL WP8563747 $30.89

View on Model

37

WP697772 Whirlpool Dryer Blower Wheel In Stock WPL WP697772 $31.33

View on Model

37

WPW10331278 Whirlpool Exhaust Pipe Backorder WPL WPW10331278 $30.25

View on Model

38

W11086603 Whirlpool Dryer Link Screen Air Gri In Stock WPL W11086603 $14.24

View on Model

38

WP8563749 Whirlpool Exhaust Pipe Backorder WPL WP8563749 $32.52

View on Model

39

W10837240 Whirlpool Dryer Idler Pulley In Stock WPL W10837240 $11.37

View on Model

39

WP3394986 Whirlpool Spring Backorder WPL WP3394986 $30.51

View on Model

40

WP697770 Whirlpool Blower Cover Plate Seal In Stock WPL WP697770 $3.88

View on Model

40

Panel, Toe WPL W10116271 Contact Us For Availability

View on Model

41

Harness, Digital Interface WPL W10181463 Contact Us For Availability

View on Model

42

WP8577274 Whirlpool Dryer Thermistor In Stock WPL WP8577274 $18.43

View on Model

42

WP98129 Whirlpool Screw Backorder WPL WP98129 $2.51

View on Model

44

WP3387242 Whirlpool Seal In Stock WPL WP3387242 $9.17

View on Model

46

W11295573 Whirlpool Clip Backorder WPL W11295573 $10.76

View on Model

46

WP8544769 Whirlpool Box Backorder WPL WP8544769 $69.70

View on Model

47

280148 Whirlpool Dryer Thermal Cut-Off Fuse K In Stock WPL 280148 $31.79

View on Model

47

Clip-S Type WPL 62825 Contact Us For Availability

View on Model

48

WP681414 Whirlpool Screw Backorder WPL WP681414 $2.51

View on Model

48

WP8557403 Whirlpool Thermostat In Stock WPL WP8557403 $54.42

View on Model

49

WP692400 Whirlpool Nut In Stock WPL WP692400 $3.70

View on Model

49

HOUSING TAB, HEATER BOX WPL 8544770 Contact Us For Availability

View on Model

50

8066099 Whirlpool Bracket Backorder WPL 8066099 $8.16

View on Model

50

Base, Cabinet WPL 8519207 Contact Us For Availability

View on Model

51

Front Panel WPL W10180423 Contact Us For Availability

View on Model

52

279570 Whirlpool Dryer Door Latch Kit In Stock WPL 279570 $2.36

View on Model

54

WPL ARI166932A WPL ARI166932A Contact Us For Availability

View on Model

54

WPL W10180481 WPL W10180481 Contact Us For Availability

View on Model

55

W10470674 Whirlpool Dryer Side Vent Exhaust K In Stock WPL W10470674 $55.11

View on Model
