Model Maytag YMER7685BS0 ELECTRIC RANGE – Common Parts & Diagrams

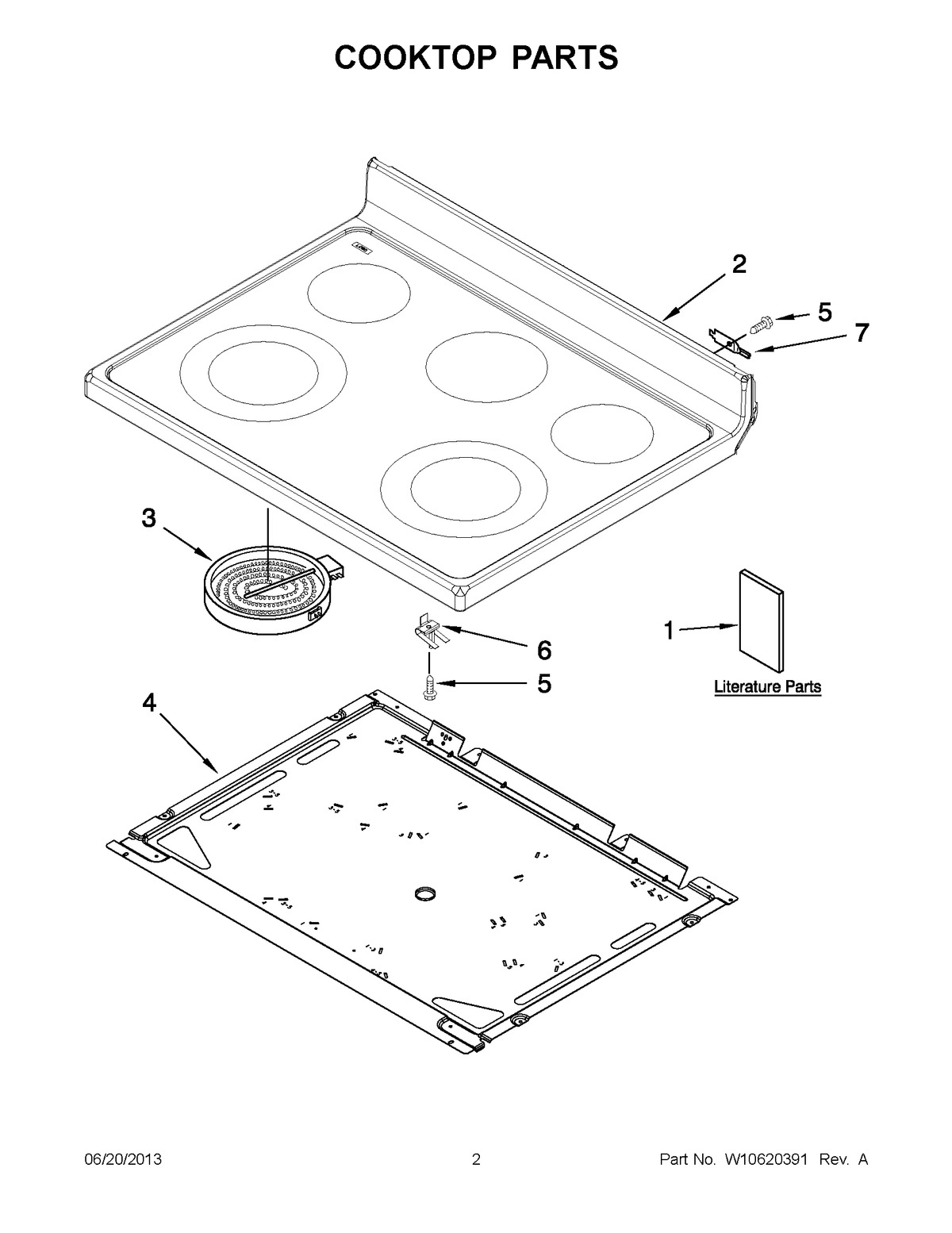

01 - COOKTOP PARTS

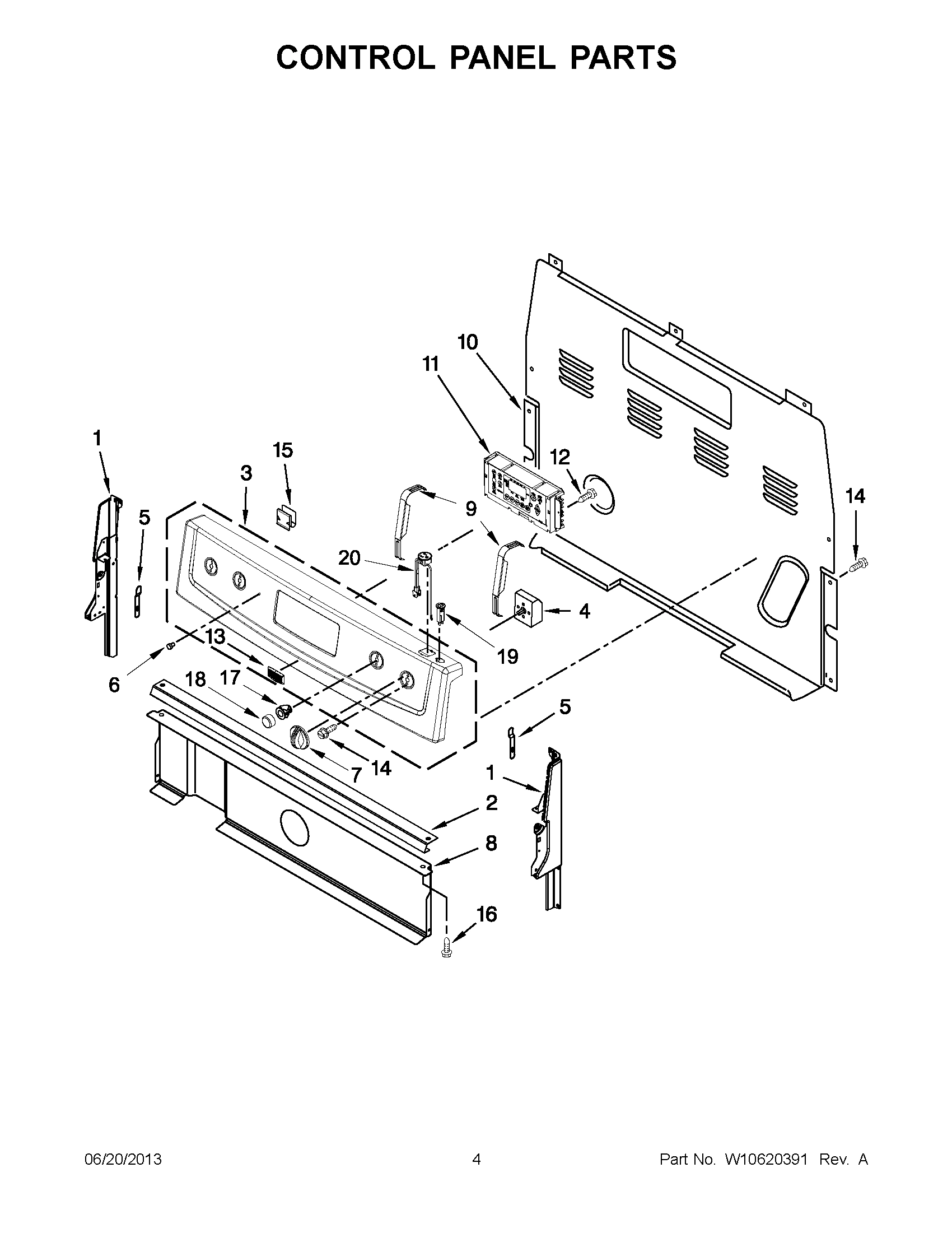

02 - CONTROL PANEL PARTS

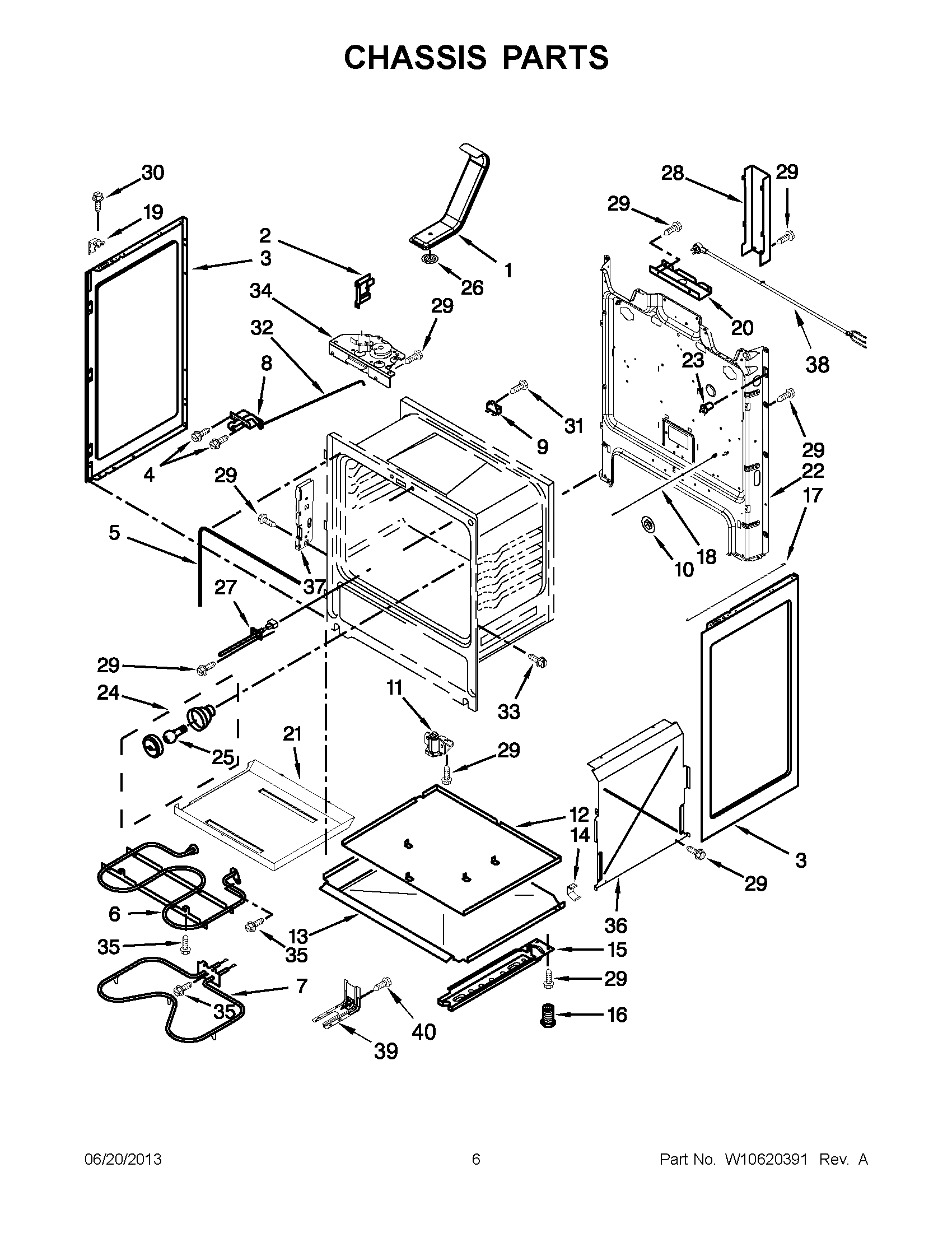

03 - CHASSIS PARTS

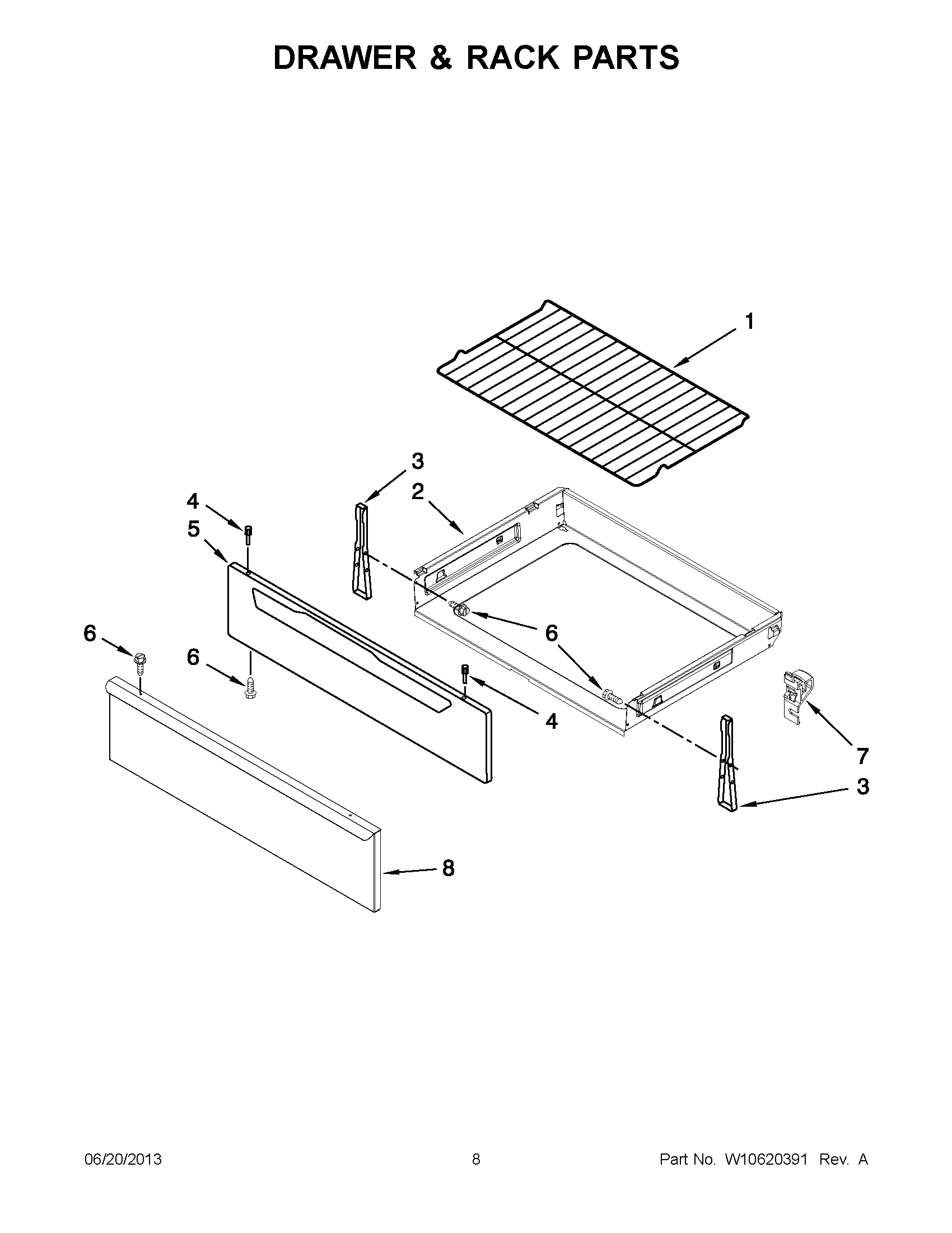

04 - DRAWER & RACK PARTS

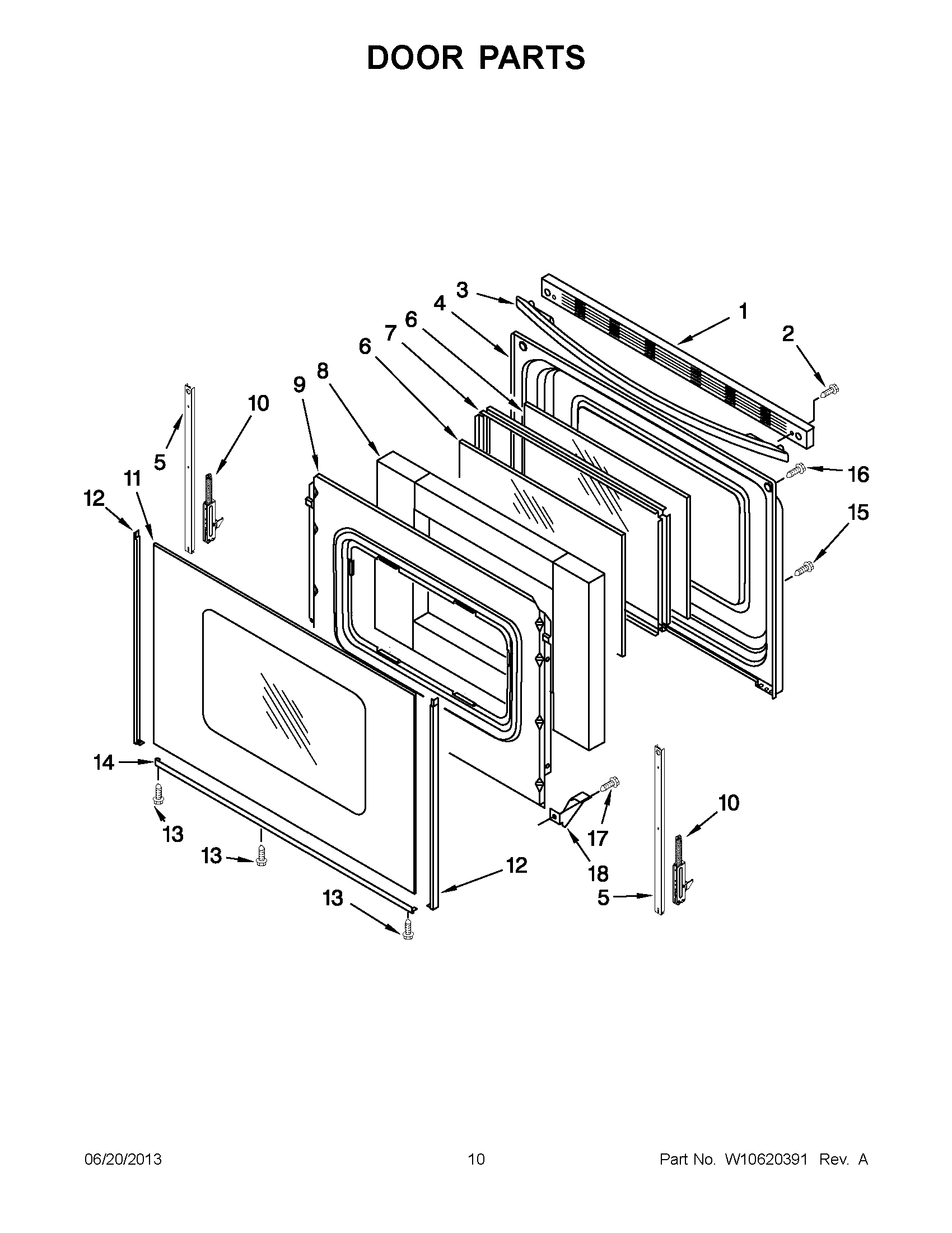

05 - DOOR PARTS
06 - OPTIONAL PARTS
Common parts from model Maytag YMER7685BS0 ELECTRIC RANGE
1
MAY 9757142 MAY 9757142 Contact Us For Availability
1
Template, Anti-Tip (English/French) MAY 9757143 Contact Us For Availability
1
MAY 9762761 MAY 9762761 Contact Us For Availability
1
TIPS, SAFE COOKING (FRENCH) MAY W10065852 Contact Us For Availability
1
MAY W10403812 MAY W10403812 Contact Us For Availability
1
USER INSTRUCTIONS MAY W10419390 Contact Us For Availability
1
MAY W10577062 MAY W10577062 Contact Us For Availability
1
MAY W10579182 MAY W10579182 Contact Us For Availability
1
MAY W10184433 MAY W10184433 Contact Us For Availability
1
MAY W10184434 MAY W10184434 Contact Us For Availability
1
ENDCAP (BLACK (LEFT HAND)) MAY W10184437 Contact Us For Availability
1
ENDCAP (BLACK (RIGHT HAND)) MAY W10184438 Contact Us For Availability
1
MAY W10134285 MAY W10134285 Contact Us For Availability
1
MAY W10268578 MAY W10268578 Contact Us For Availability
1
TRIM, TOP (WHITE) MAY W10310920 Contact Us For Availability
1
MAY W10310922 MAY W10310922 Contact Us For Availability
2
MAY W10575147 MAY W10575147 Contact Us For Availability
2
MAY W10575148 MAY W10575148 Contact Us For Availability
2
MAY W10525121 MAY W10525121 Contact Us For Availability
2
BRACKET, OVEN SUPPORT MAY W10355173 Contact Us For Availability
2
MAY W10300032 MAY W10300032 Contact Us For Availability
2
MAY W10168559 MAY W10168559 Contact Us For Availability
3
MAY 8273994 MAY 8273994 Contact Us For Availability
3
ELEMENT (1400W) (LEFT FRONT AND RIGHT FRONT) MAY W10275048 Contact Us For Availability
3
ELEMENT, WARM ZONE (CENTER) MAY W10388271 Contact Us For Availability
3
MAY W10575158 MAY W10575158 Contact Us For Availability
3
MAY W10575160 MAY W10575160 Contact Us For Availability
3
MAY W10575162 MAY W10575162 Contact Us For Availability
3
MAY W10322769 MAY W10322769 Contact Us For Availability
3
MAY W10322770 MAY W10322770 Contact Us For Availability
3
BRACKET, DRAWER MOUNTING MAY W10462912 Contact Us For Availability
3
MAY W10171750 MAY W10171750 Contact Us For Availability
3
MAY W10323581 MAY W10323581 Contact Us For Availability
3
MAY W10323584 MAY W10323584 Contact Us For Availability
4
PAN, RADIANT ELEMENT MAY W10106409 Contact Us For Availability
4
MAY 3148951 MAY 3148951 Contact Us For Availability
4
SWITCH, INFINITE DUAL (LEFT FRONT AND RIGHT F MAY W10434452 Contact Us For Availability
4
MAY 3196560 MAY 3196560 Contact Us For Availability
4
MAY 3196813 MAY 3196813 Contact Us For Availability
4
MAY 3196814 MAY 3196814 Contact Us For Availability
4
MAY 9761344 MAY 9761344 Contact Us For Availability
5
MAY 3196200 MAY 3196200 Contact Us For Availability
5
MAY 8522416 MAY 8522416 Contact Us For Availability
5
MAY 8053339 MAY 8053339 Contact Us For Availability
5
MAY 8053341 MAY 8053341 Contact Us For Availability
5
MAY W10544179 MAY W10544179 Contact Us For Availability
6
MAY W10225448 MAY W10225448 Contact Us For Availability
6
MAY 3196068 MAY 3196068 Contact Us For Availability
6
MAY 3196165 MAY 3196165 Contact Us For Availability
6
MAY W10308476 MAY W10308476 Contact Us For Availability
6
MAY 9758162 MAY 9758162 Contact Us For Availability
7
MAY 3195060 MAY 3195060 Contact Us For Availability
7
KNOB, INFINITE (WHITE) MAY W10211371 Contact Us For Availability
7
MAY W10211372 MAY W10211372 Contact Us For Availability
7
ELEMENT, BAKE (HIDDEN) MAY W10308474 Contact Us For Availability
7
GLIDE, DRAWER (FRONT) MAY W10317898 Contact Us For Availability
7
GLIDE, DRAWER (REAR) MAY W10317899 Contact Us For Availability
7
MAY W10316950 MAY W10316950 Contact Us For Availability
8
MAY W10134247 MAY W10134247 Contact Us For Availability
8
MAY 9761013 MAY 9761013 Contact Us For Availability
8
PANEL, DRAWER (SS MODEL) MAY W10237657 Contact Us For Availability
8
MAY W10278991 MAY W10278991 Contact Us For Availability
9
MAY W10324410 MAY W10324410 Contact Us For Availability
9
MAY 3196548 MAY 3196548 Contact Us For Availability
9
MAY 9761357 MAY 9761357 Contact Us For Availability
10
MAY 8272473 MAY 8272473 Contact Us For Availability
10
MAY 3400968 MAY 3400968 Contact Us For Availability
10
HINGE, DOOR ACTIVE MAY W10299224 Contact Us For Availability
10
HINGE, DOOR PASSIVE MAY W10299227 Contact Us For Availability
11
CONTROL, RANGE (LCC95) (WHITE) MAY W10558201 Contact Us For Availability
11
CONTROL, RANGE (LCC95) (BLACK) MAY W10558202 Contact Us For Availability
11
MAY W10341186 MAY W10341186 Contact Us For Availability
11
GLASS, OUTER (WHITE) MAY W10106404 Contact Us For Availability
11
MAY W10106405 MAY W10106405 Contact Us For Availability
11
GLASS, OUTER (STAINLESS) MAY W10181749 Contact Us For Availability
12
MAY W10134125 MAY W10134125 Contact Us For Availability
12
TRIM, SIDE (BLACK, RIGHT HAND) MAY 8523165 Contact Us For Availability
12
TRIM, SIDE (WHITE, RIGHT HAND) MAY 8523166 Contact Us For Availability
12
TRIM, SIDE (BLACK, LEFT HAND) MAY 8523171 Contact Us For Availability
12
TRIM, SIDE (WHITE, LEFT HAND) MAY 8523172 Contact Us For Availability
13
MAY W10199708 MAY W10199708 Contact Us For Availability
13
MAY W10134121 MAY W10134121 Contact Us For Availability
13
MAY 3196160 MAY 3196160 Contact Us For Availability
14
MAY 3400882 MAY 3400882 Contact Us For Availability
14
Trim, Lower (White) MAY 8523175 Contact Us For Availability
14
Trim, Lower (Black) MAY 8523177 Contact Us For Availability
15
MAY 8273564 MAY 8273564 Contact Us For Availability
15
ASSEMBLY, BASE RAIL (RIGHT) MAY W10390007 Contact Us For Availability
15
ASSEMBLY, BASE RAIL (LEFT) MAY W10390008 Contact Us For Availability
15
MAY W10031790 MAY W10031790 Contact Us For Availability
16
MAY W10058460 MAY W10058460 Contact Us For Availability
16
MAY W10031780 MAY W10031780 Contact Us For Availability
17
MAY W10217758 MAY W10217758 Contact Us For Availability
17
BEZEL, KEEP WARM (WHITE) MAY W10217760 Contact Us For Availability
17
MAY W10465685 MAY W10465685 Contact Us For Availability
17
MAY W10200660 MAY W10200660 Contact Us For Availability
18
MAY 9757492 MAY 9757492 Contact Us For Availability
18
BUTTON, KEEP WARM (BLACK) MAY 9758491 Contact Us For Availability
18
CLIP, GLASS MAY W10137382 Contact Us For Availability
18
MAY 9757239 MAY 9757239 Contact Us For Availability
19
RECEPTACLE (BLACK) MAY W10203475 Contact Us For Availability
19
RECEPTACLE (WHITE) MAY W10203476 Contact Us For Availability
19
MAY W10183541 MAY W10183541 Contact Us For Availability
20
CIRCUIT BREAKER (WHITE) MAY 9757601 Contact Us For Availability
20
CIRCUIT BREAKER (BLACK) MAY 9757602 Contact Us For Availability
20
MAY 3186034 MAY 3186034 Contact Us For Availability
21
MAY W10183712 MAY W10183712 Contact Us For Availability
22
MAY W10289149 MAY W10289149 Contact Us For Availability
23
MAY 9757262 MAY 9757262 Contact Us For Availability
24
MAY W10454648 MAY W10454648 Contact Us For Availability
25
MAY 311255 MAY 311255 Contact Us For Availability
26
MAY 9761301 MAY 9761301 Contact Us For Availability
27
MAY W10181986 MAY W10181986 Contact Us For Availability
28
MAY W10326122 MAY W10326122 Contact Us For Availability
29
MAY 3196169 MAY 3196169 Contact Us For Availability
30
MAY 3400016 MAY 3400016 Contact Us For Availability
31
MAY 3196172 MAY 3196172 Contact Us For Availability
32
MAY W10078380 MAY W10078380 Contact Us For Availability
33
MAY W10067840 MAY W10067840 Contact Us For Availability
34
ASSEMBLY, LATCH (REAR) MAY W10107840 Contact Us For Availability
35
MAY 3196174 MAY 3196174 Contact Us For Availability
36
MAY W10450380 MAY W10450380 Contact Us For Availability
37
MAY W10289077 MAY W10289077 Contact Us For Availability
38
CORD, POWER MAY W10244925 Contact Us For Availability
39
KIT, ANTI-TIP MAY W10017440 Contact Us For Availability
40
SCREW, ANTI TIP MAY 7101P485-60 Contact Us For Availability
NI
MAY 9759689 MAY 9759689 Contact Us For Availability
NI
MAY W10208653 MAY W10208653 Contact Us For Availability
NI
MAY W10326347 MAY W10326347 Contact Us For Availability
NI
MAY W10333344 MAY W10333344 Contact Us For Availability
NI
INSULATION (2-1/2`` X 22`` X 120``) MAY 240132 Contact Us For Availability
NI
ACCESSORY PARTS, ALUMINUM FOIL MAY 241430 Contact Us For Availability
NI
MAY 242756 MAY 242756 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12OZ. BLACK) MAY 285006 Contact Us For Availability
NI
MAY 3184478 MAY 3184478 Contact Us For Availability
NI
MAY 3196154 MAY 3196154 Contact Us For Availability
NI
Screw MAY 3196173 Contact Us For Availability
NI
MAY 3196520 MAY 3196520 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (WHITE) MAY 350930 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. BISCUIT/BISQUE) MAY 4392899 Contact Us For Availability
NI
PAINT, BULK (1 QT. BISCUIT/BISQUE) MAY 4392900 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12OZ. BISCUIT/BISQU MAY 4392901 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE PORCELAIN (2 MAY 511873 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, BULK (1 qt.) (White) MAY 799344 Contact Us For Availability
NI
MAY W10084660 MAY W10084660 Contact Us For Availability
NI
MAY W10278580 MAY W10278580 Contact Us For Availability
NI
KIT, BARE WIRE ADAPTER BLOCK MAY W10281322 Contact Us For Availability
NI
HARNESS, COOKTOP RIGHT MAY W10349654 Contact Us For Availability
NI
MAY W10349708 MAY W10349708 Contact Us For Availability
NI
MAY W10465644 MAY W10465644 Contact Us For Availability
NI
MAY W10576054 MAY W10576054 Contact Us For Availability
× ![]()
