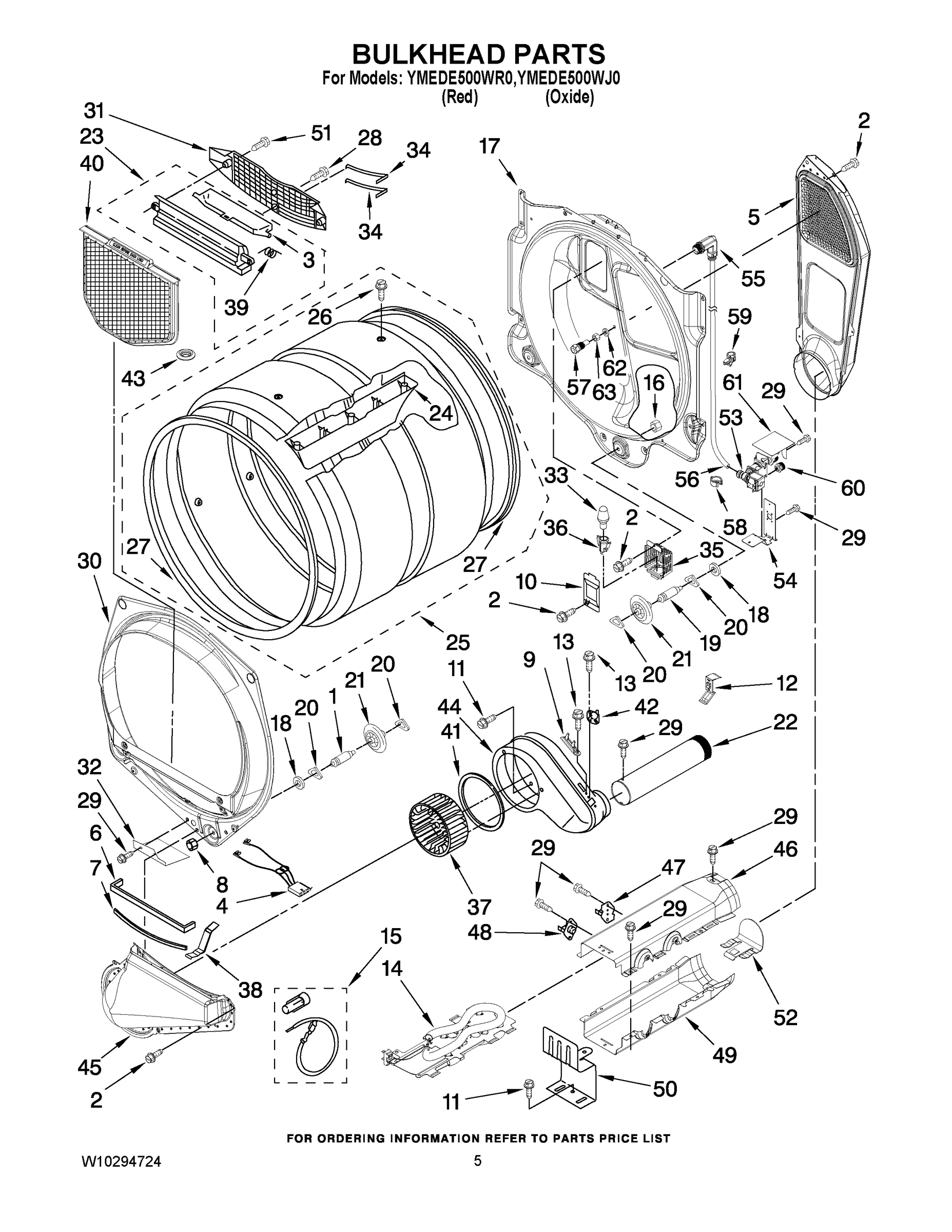

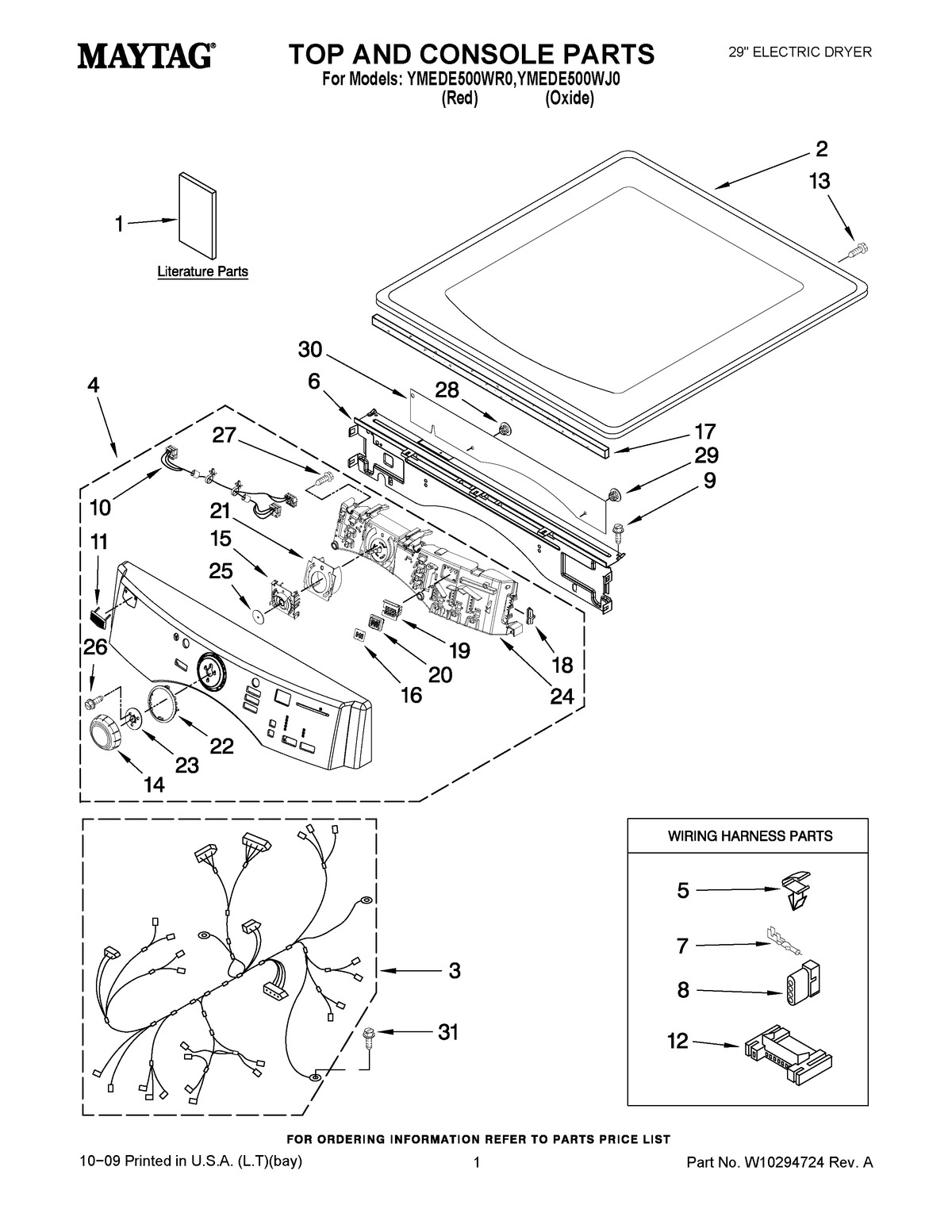

Model Whirlpool YMEDE500WR0 ELECTRIC DRYER – Common Parts &amp; Diagrams

2

WPW10310366 Whirlpool Hinge In Stock WPL WPW10310366 $113.79

3

W11222846 Whirlpool Door Backorder WPL W11222846 $85.90

3

Cover, Door Hinge WPL W10180119 Contact Us For Availability

4

WP3406653 Whirlpool Wire Harness In Stock WPL WP3406653 $65.41

4

Screw, 8-18 x 5/8 WPL 9742177 Contact Us For Availability

4

PANEL, CONSOLE (INCLUDES BUTTONS & CONTROL BO WPL W10269246 Contact Us For Availability

5

WP3394427 Whirlpool Clip In Stock WPL WP3394427 $3.84

5

Screw-Plug WPL W10048910 Contact Us For Availability

6

WP697813 Whirlpool Seal In Stock WPL WP697813 $4.03

6

WP8563727 Whirlpool Bracket Backorder WPL WP8563727 $78.41

6

Door-Intermediate WPL W10180118 Contact Us For Availability

7

WP94614 Whirlpool Terminal Backorder WPL WP94614 $2.60

7

Handle Ring WPL W10193522 Contact Us For Availability

8

279570 Whirlpool Dryer Door Latch Kit In Stock WPL 279570 $3.29

8

3936144 Whirlpool Connector Backorder WPL 3936144 $11.17

9

WP3392519 Whirlpool Dryer Thermal Fuse In Stock WPL WP3392519 $7.96

9

WP660658 Whirlpool Clamp In Stock WPL WP660658 $3.84

9

WPW10159996 Whirlpool Screw Backorder WPL WPW10159996 $2.60

10

DOOR ASSEMBLY (INNER) (INCLUDE, ITEM. 8 ) WPL 8578229 Contact Us For Availability

11

WP3389420 Whirlpool Screw In Stock WPL WP3389420 $2.60

11

WP355515 Whirlpool Screw Backorder WPL WP355515 $2.60

11

WP489463 Whirlpool Refrigerator Screw In Stock WPL WP489463 $2.60

12

3395683 Whirlpool Connector Backorder WPL 3395683 $37.05

12

WPW10404617 Whirlpool Plug Assembly Backorder WPL WPW10404617 $43.28

12

Door, Outer Assembly WPL W10193530 Contact Us For Availability

13

Door Mask WPL W10180117 Contact Us For Availability

279318 Whirlpool Terminal In Stock WPL 279318 $45.73

WP8544771 Whirlpool Dryer Heating Element In Stock WPL WP8544771 $65.23

Knob, Assembly WPL W10164576 Contact Us For Availability

Screen, Door WPL W10171571 Contact Us For Availability

15

279457 Whirlpool Dryer Heating Element Wide S In Stock WPL 279457 $4.09

16

Door-Shield WPL W10180120 Contact Us For Availability

17

W10123956 Whirlpool Sound Absorber Backorder WPL W10123956 $14.80

17

W10822054 Whirlpool Retainer Backorder WPL W10822054 $6.42

17

Bulkhead, Rear WPL W10133857 Contact Us For Availability

18

8519356 Whirlpool Retainer Backorder WPL 8519356 $7.79

18

WPW10121334 Whirlpool Washer In Stock WPL WPW10121334 $2.60

19

WP3373329 Whirlpool Dishwasher Screw Backorder WPL WP3373329 $2.60

20

Seal-Window WPL 8579662 Contact Us For Availability

21

Glass-Window WPL 8566254 Contact Us For Availability

22

Ramp, Door WPL 8529053 Contact Us For Availability

23

W10242904 Whirlpool Wire Harness Backorder WPL W10242904 $68.66

23

W11219327 Whirlpool Grille Outlet In Stock WPL W11219327 $36.33

23

WPW10139457 Whirlpool Door Seal In Stock WPL WPW10139457 $43.23

24

USER-INTERFACE WPL W10269025 Contact Us For Availability

25

Control Board WPL W10174746 Contact Us For Availability

26

W10853898 Whirlpool Screw Backorder WPL W10853898 $2.60

26

W11230114 Whirlpool Screw Assembly In Stock WPL W11230114 $9.96

26

TRIM-RING ASSEMBLY (INCLUDE, ITEM. 48 ) (RED) WPL W10271928 Contact Us For Availability

27

279787 Whirlpool Dryer Drive Motor In Stock WPL 279787 $127.12

27

WP8540282 Whirlpool Screw In Stock WPL WP8540282 $4.16

29

W10837625 Whirlpool Dryer Motor Pulley In Stock WPL W10837625 $7.70

30

WPW10112954 Whirlpool Belt In Stock WPL WPW10112954 $18.91

31

8541503 Whirlpool Stacking Kit In Stock WPL 8541503 $27.27

31

W11086603 Whirlpool Dryer Link Screen Air Gri In Stock WPL W11086603 $14.78

32

W11257251 Whirlpool Shield Backorder WPL W11257251 $29.56

32

W11481730 Whirlpool Bracket In Stock WPL W11481730 $35.91

33

279393 Whirlpool Terminal Block Screw and Nut In Stock WPL 279393 $15.94

34

WP3387223 Whirlpool Electrode Assembly In Stock WPL WP3387223 $3.72

34

WPW10416072 Whirlpool Elbow Backorder WPL WPW10416072 $11.88

35

8578825 Whirlpool Bracket Backorder WPL 8578825 $8.28

35

Clip, S-Type (3) WPL 62825 Contact Us For Availability

36

W11222979 Whirlpool Socket Backorder WPL W11222979 $48.15

36

WP8563747 Whirlpool Exhaust Pipe Backorder WPL WP8563747 $33.99

37

WP697772 Whirlpool Dryer Blower Wheel In Stock WPL WP697772 $32.53

37

WPW10331278 Whirlpool Exhaust Pipe Backorder WPL WPW10331278 $33.29

38

WP8066208 Whirlpool Clip Backorder WPL WP8066208 $3.84

38

WP8563749 Whirlpool Exhaust Pipe Backorder WPL WP8563749 $35.80

39

W10837240 Whirlpool Dryer Idler Pulley In Stock WPL W10837240 $13.17

39

WP3394986 Whirlpool Spring Backorder WPL WP3394986 $33.57

40

PANEL, TOE (OXIDE) WPL W10246285 Contact Us For Availability

40

PANEL, TOE (RED) WPL W10259607 Contact Us For Availability

41

WP697770 Whirlpool Blower Cover Plate Seal In Stock WPL WP697770 $4.03

41

PANEL, REAR WPL W10244142 Contact Us For Availability

42

WP8577274 Whirlpool Dryer Thermistor In Stock WPL WP8577274 $15.29

43

WP488729 Whirlpool Refrigerator Door Screw In Stock WPL WP488729 $2.74

44

WP3387242 Whirlpool Seal In Stock WPL WP3387242 $9.52

45

W11712577 Whirlpool Clip Backorder WPL W11712577 $2.68

46

W11295573 Whirlpool Clip Backorder WPL W11295573 $11.17

46

WP8544769 Whirlpool Box Backorder WPL WP8544769 $76.74

47

WP681414 Whirlpool Screw Backorder WPL WP681414 $2.60

48

WP3391914 Whirlpool Thermostat In Stock WPL WP3391914 $69.64

48

WPW10129065 Whirlpool Clip Backorder WPL WPW10129065 $4.96

49

WP693995 Whirlpool Screw In Stock WPL WP693995 $2.60

49

HOUSING TAB, HEATER BOX WPL 8544770 Contact Us For Availability

50

8066099 Whirlpool Bracket Backorder WPL 8066099 $8.47

50

WPL W10239098 WPL W10239098 Contact Us For Availability

51

WP3387230 Whirlpool Screw In Stock WPL WP3387230 $2.74

51

WPL W10164915 WPL W10164915 Contact Us For Availability

51

WPL W10250671 WPL W10250671 Contact Us For Availability

52

8544776 Whirlpool Clip Assembly Backorder WPL 8544776 $8.30

52

W10470674 Whirlpool Dryer Side Vent Exhaust K In Stock WPL W10470674 $57.25

57

WPW10277503 Whirlpool Nozzle Backorder WPL WPW10277503 $109.89

60

W10859554 Whirlpool Coupler Backorder WPL W10859554 $30.91

62

W10044579 Whirlpool Dryer Backorder WPL W10044579 $5.87

63

W10044628 Whirlpool Nut Backorder WPL W10044628 $33.29

DC4-30-4 USD Products Dryer Cord, 4' 4 Wire, In Stock USD DC4-30-4 $16.44

DC4-30-6 USD Products Dryer 6' 4-Wire Cord 30 In Stock USD DC4-30-6 $23.25

350930 Whirlpool White Spray Paint In Stock WPL 350930 $22.23

350938 Whirlpool Spray Gun Backorder WPL 350938 $52.25

49621 Whirlpool Leveling Feet In Stock WPL 49621 $2.49

PT220L Whirlpool Dryer Power Cord In Stock WPL PT220L $14.42

W10202939 Whirlpool Touch Up Backorder WPL W10202939 $12.83

W11224254 Whirlpool Test Kit In Stock WPL W11224254 $5.23

WP89503 Whirlpool Washer Fill Hose In Stock WPL WP89503 $8.61

PAINT, BULK (1 QT.) (WHITE UNCUT) WPL 799344 Contact Us For Availability

PAINT, TOUCH-UP (1/2OZ.) (MAGEN RED METALLIC) WPL W10218245 Contact Us For Availability

SCREW, 14-20 X 1/2 WPL 3400224 Contact Us For Availability
