Model Maytag YMEDE500VP0 ELECTRIC DRYER – Common Parts & Diagrams
01 - TOP AND CONSOLE PARTS
02 - CABINET PARTS

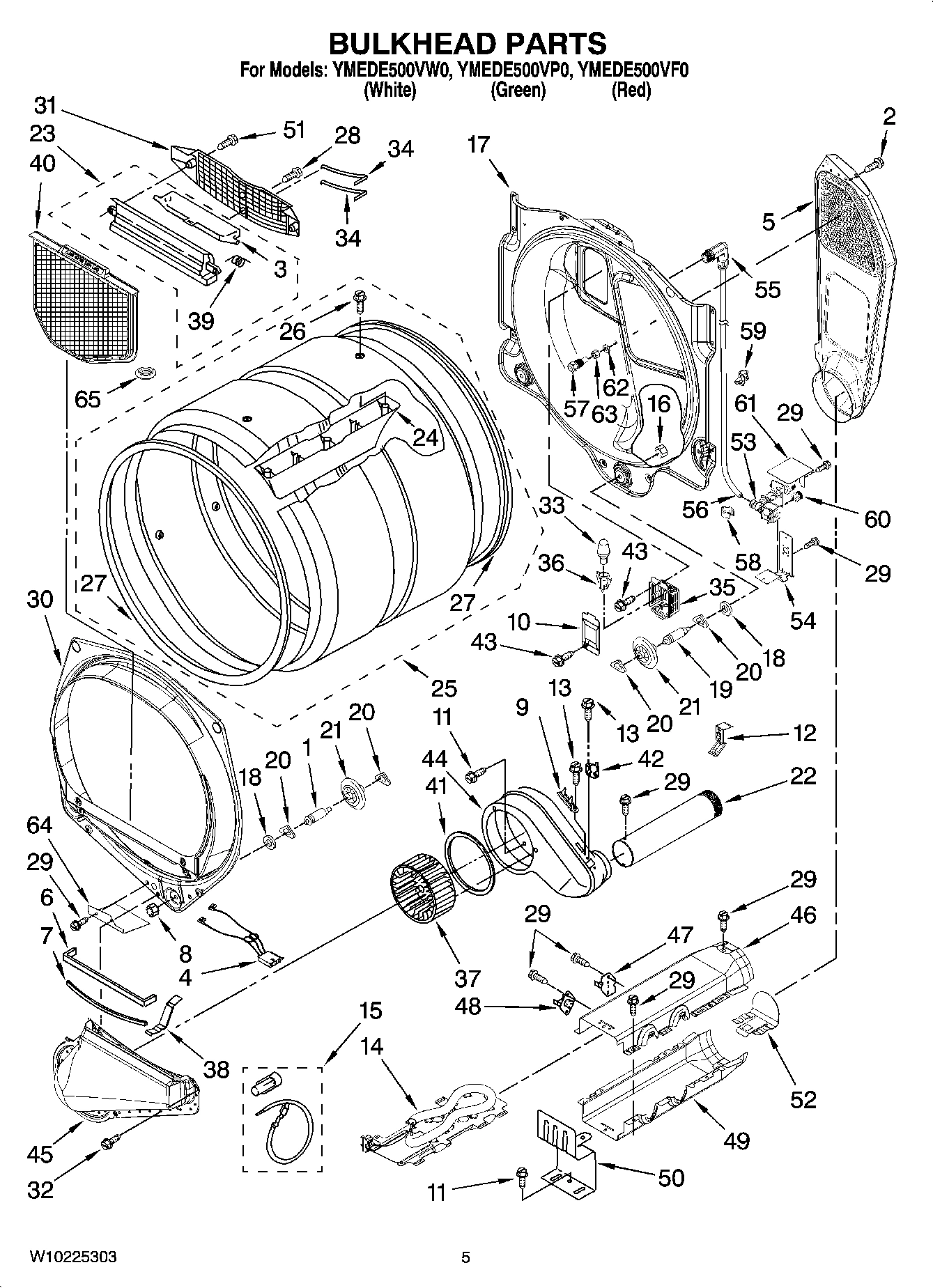

03 - BULKHEAD PARTS

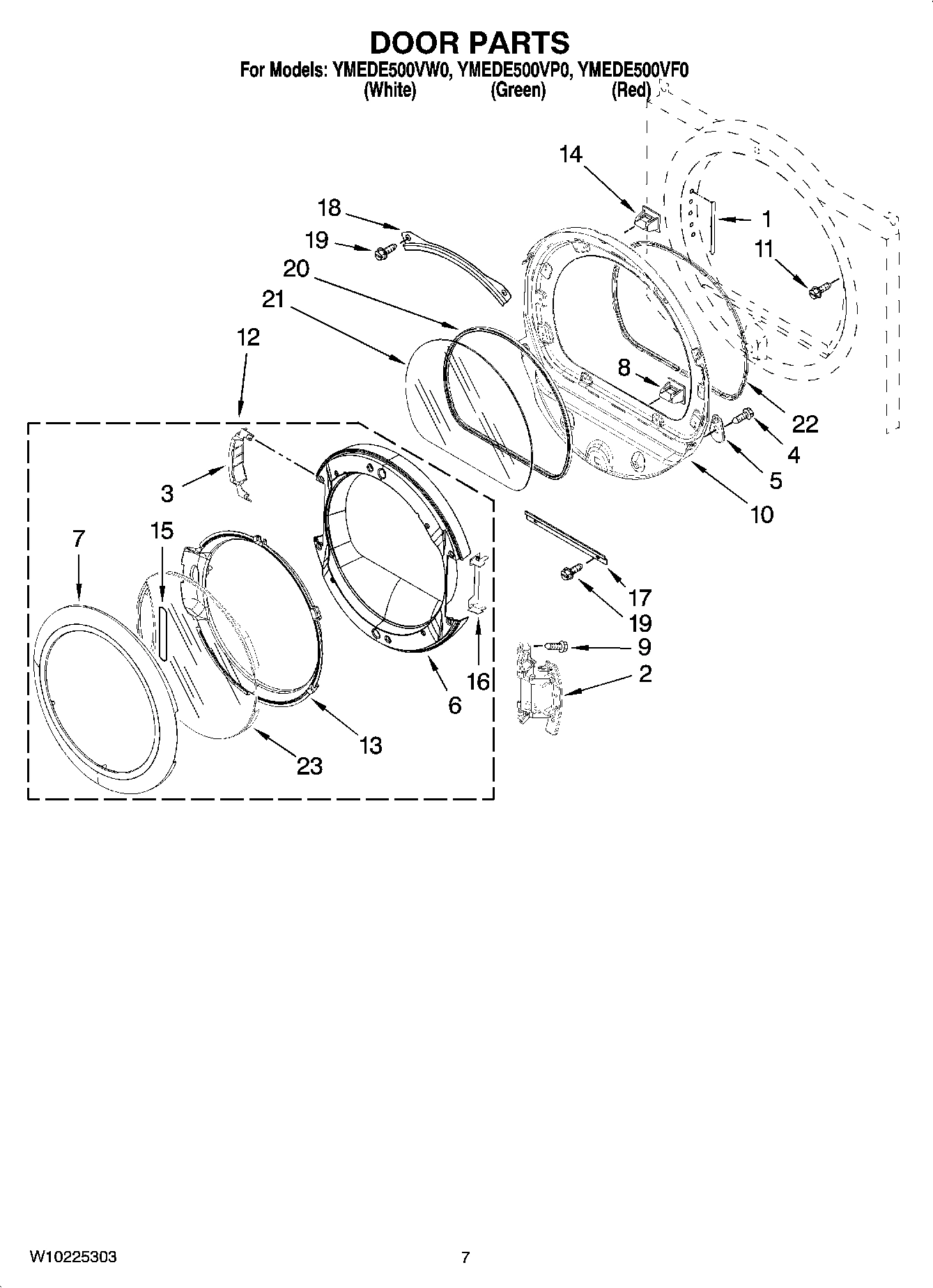

04 - DOOR PARTS
05 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag YMEDE500VP0 ELECTRIC DRYER
1
MAY W10057351 MAY W10057351 Contact Us For Availability
1
Quick Start Guide MAY W10057356 Contact Us For Availability
1
MAY W10057361 MAY W10057361 Contact Us For Availability
1
Installation, Instructions MAY W10134980 Contact Us For Availability
1
MAY 8576583 MAY 8576583 Contact Us For Availability
1
MAY 8575324 MAY 8575324 Contact Us For Availability
1
Label, Hinge Hole (White) MAY W10085210 Contact Us For Availability
1
Label, Hinge Hole (Silver) MAY W10085230 Contact Us For Availability
2
Top (White) MAY 3980634 Contact Us For Availability
2
MAY W10193964 MAY W10193964 Contact Us For Availability
2
MAY W10193965 MAY W10193965 Contact Us For Availability
2
SCREW,8-18 X 1/2 MAY 3390647 Contact Us For Availability
2
Screw, 8-18 x 3/8 MAY 3390814 Contact Us For Availability
2
MAY W10139920 MAY W10139920 Contact Us For Availability
3
MAY W10111016 MAY W10111016 Contact Us For Availability
3
Screw, 10-32 x 5/8 (Ground) MAY 8533974 Contact Us For Availability
3
MAY W10153413 MAY W10153413 Contact Us For Availability
3
Cover, Door Hinge MAY W10180119 Contact Us For Availability
4
MAY W10164452 MAY W10164452 Contact Us For Availability
4
MAY W10191140 MAY W10191140 Contact Us For Availability
4
MAY W10237639 MAY W10237639 Contact Us For Availability
4
MAY 3397659 MAY 3397659 Contact Us For Availability
4
MAY 3406653 MAY 3406653 Contact Us For Availability
4
Screw, 8-18 x 5/8 MAY 9742177 Contact Us For Availability
5
CLIP, HARNESS MAY 3394427 Contact Us For Availability
5
MAY 3394881 MAY 3394881 Contact Us For Availability
5
MAY 697354 MAY 697354 Contact Us For Availability
5
MAY W10048910 MAY W10048910 Contact Us For Availability
6
Bracket, Console (Includes Items: 21.) MAY W10215656 Contact Us For Availability
6
Bracket, Control MAY 8563727 Contact Us For Availability
6
MAY 697813 MAY 697813 Contact Us For Availability
6
Door-Intermediate MAY W10180118 Contact Us For Availability
7
Terminal MAY 94614 Contact Us For Availability
7
Panel, Side (L.H.) (White) MAY W10192435 Contact Us For Availability
7
MAY W10193954 MAY W10193954 Contact Us For Availability
7
MAY W10193955 MAY W10193955 Contact Us For Availability
7
MAY 697814 MAY 697814 Contact Us For Availability
7
Handle Ring MAY W10193522 Contact Us For Availability
8
Plug, Terminal MAY 3936144 Contact Us For Availability
8
MAY 279810 MAY 279810 Contact Us For Availability
8
MAY 3392100 MAY 3392100 Contact Us For Availability
8
NUT,3/8 X 16(R.H.) MAY 3934666 Contact Us For Availability
8
Door Catch Assembly (Lower) MAY 690081 Contact Us For Availability
9
Clamp, Motor (2) MAY 660658 Contact Us For Availability
9
THERMAL FUSE (91°C) MAY 3392519 Contact Us For Availability
9
MAY W10159996 MAY W10159996 Contact Us For Availability
10
MAY W10185550 MAY W10185550 Contact Us For Availability
10
MAY 3387374 MAY 3387374 Contact Us For Availability
10
MAY 3402841 MAY 3402841 Contact Us For Availability
10
Door Assembly (Inner) (Includes Illus. 8 & 14 MAY 8578229 Contact Us For Availability
11
MAY W10177245 MAY W10177245 Contact Us For Availability
11
MAY 3389420 MAY 3389420 Contact Us For Availability
11
MAY 489463 MAY 489463 Contact Us For Availability
11
MAY 355515 MAY 355515 Contact Us For Availability
12
CONNECTOR (MOTOR) MAY 3395683 Contact Us For Availability
12
MAY 697750 MAY 697750 Contact Us For Availability
12
MAY W10151499 MAY W10151499 Contact Us For Availability
12
MAY 8572105 MAY 8572105 Contact Us For Availability
12
Door, Outer Assembly MAY W10193530 Contact Us For Availability
13
Screw, 8-32 x 1/32 MAY 98139 Contact Us For Availability
13
MAY 3388672 MAY 3388672 Contact Us For Availability
13
MAY 8533971 MAY 8533971 Contact Us For Availability
13
MAY W10180117 MAY W10180117 Contact Us For Availability
14
MAY W10164576 MAY W10164576 Contact Us For Availability
14
Terminal, Brass & Tinned (3) (Includes Illus. MAY 279318 Contact Us For Availability
14
Heater Element MAY 8544771 Contact Us For Availability
14
Door Catch Assembly (Upper) MAY 3398175 Contact Us For Availability
15
MAY W10170293 MAY W10170293 Contact Us For Availability
15
MAY 8066120 MAY 8066120 Contact Us For Availability
15
MAY 279457 MAY 279457 Contact Us For Availability
15
Pad,Foam-Frame MAY W10153281 Contact Us For Availability
16
MAY W10171504 MAY W10171504 Contact Us For Availability
16
MAY W10167612 MAY W10167612 Contact Us For Availability
16
MAY W10001120 MAY W10001120 Contact Us For Availability
16
Door-Shield MAY W10180120 Contact Us For Availability
17
Foam Seal MAY W10112267 Contact Us For Availability
17
MAY W10128772 MAY W10128772 Contact Us For Availability
17
MAY W10133857 MAY W10133857 Contact Us For Availability
17
Retainer-Window Lower MAY 8519354 Contact Us For Availability
18
MAY W10185548 MAY W10185548 Contact Us For Availability
18
MAY W10121334 MAY W10121334 Contact Us For Availability
18
MAY 3387459 MAY 3387459 Contact Us For Availability
18
Retainer-Window Upper MAY 8519356 Contact Us For Availability
19
MAY W10171502 MAY W10171502 Contact Us For Availability
19
MAY W10128087 MAY W10128087 Contact Us For Availability
19
MAY 8575325 MAY 8575325 Contact Us For Availability
19
Screw MAY 3393258 Contact Us For Availability
20
MAY W10164578 MAY W10164578 Contact Us For Availability
20
MAY 690997 MAY 690997 Contact Us For Availability
20
MAY 8579662 MAY 8579662 Contact Us For Availability
21
MAY W10170295 MAY W10170295 Contact Us For Availability
21
MAY 8066115 MAY 8066115 Contact Us For Availability
21
MAY 8536973 MAY 8536973 Contact Us For Availability
21
Glass-Window MAY 8566254 Contact Us For Availability
22
MAY W10164567 MAY W10164567 Contact Us For Availability
22
MAY 8529053 MAY 8529053 Contact Us For Availability
22
MAY 8563745 MAY 8563745 Contact Us For Availability
22
MAY W10139457 MAY W10139457 Contact Us For Availability
23
MAY W10172298 MAY W10172298 Contact Us For Availability
23
MAY W10181463 MAY W10181463 Contact Us For Availability
23
Housing, Outlet MAY W10153423 Contact Us For Availability
23
Screen, Door MAY W10171571 Contact Us For Availability
24
MAY W10164610 MAY W10164610 Contact Us For Availability
24
Panel, Side (R.H.) (White) MAY W10192446 Contact Us For Availability
24
MAY W10193957 MAY W10193957 Contact Us For Availability
24
MAY W10193958 MAY W10193958 Contact Us For Availability
24
Baffle, Drum MAY 697693 Contact Us For Availability
25
MAY 8572039 MAY 8572039 Contact Us For Availability
25
MAY W10177388 MAY W10177388 Contact Us For Availability
25
MAY W10181466 MAY W10181466 Contact Us For Availability
26
MAY 8540513 MAY 8540513 Contact Us For Availability
26
MAY W10164746 MAY W10164746 Contact Us For Availability
26
MAY W10190564 MAY W10190564 Contact Us For Availability
26
MAY W10221448 MAY W10221448 Contact Us For Availability
26
MAY W10109200 MAY W10109200 Contact Us For Availability
27
MAY 8540282 MAY 8540282 Contact Us For Availability
27
Motor Assembly 60 HZ. MAY 8538263 Contact Us For Availability
27
MAY W10166807 MAY W10166807 Contact Us For Availability
28
MAY W10216201 MAY W10216201 Contact Us For Availability
28
Wire, Jumper (Broken Belt Switch) MAY 3398948 Contact Us For Availability
28
Screw, 8-18 x 1/2 MAY 695240 Contact Us For Availability
29
MAY W10216202 MAY W10216202 Contact Us For Availability
29
Pulley 60 HZ. MAY 8578220 Contact Us For Availability
29
SCREW,8-18 X 3/8 MAY 90767 Contact Us For Availability
30
MAY W10215674 MAY W10215674 Contact Us For Availability
30
MAY W10112954 MAY W10112954 Contact Us For Availability
30
MAY 8519245 MAY 8519245 Contact Us For Availability
31
MAY 8541503 MAY 8541503 Contact Us For Availability
31
MAY W10153412 MAY W10153412 Contact Us For Availability
32
MAY 3387118 MAY 3387118 Contact Us For Availability
32
Screw, 8-18 x 1/2 MAY 359625 Contact Us For Availability
33
TERMINAL BLOCK SCREW KIT (FOR TERMINAL BLOCK MAY 279393 Contact Us For Availability
33
MAY 3406124 MAY 3406124 Contact Us For Availability
34
MAY 49026 MAY 49026 Contact Us For Availability
34
MAY 3387223 MAY 3387223 Contact Us For Availability
35
Clip, S-Type (3) MAY 62825 Contact Us For Availability
35
MAY 8578825 MAY 8578825 Contact Us For Availability
36
MAY 8563747 MAY 8563747 Contact Us For Availability
36
MAY W10136369 MAY W10136369 Contact Us For Availability
37
MAY 8563750 MAY 8563750 Contact Us For Availability
37
MAY 697772 MAY 697772 Contact Us For Availability
38
MAY 8563749 MAY 8563749 Contact Us For Availability
38
CLIP-SPRING MAY 8066208 Contact Us For Availability
39
Idler Bracket MAY 3388674 Contact Us For Availability
39
Spring, Lint Screen Door MAY 3394986 Contact Us For Availability
40
Panel, Toe (White) MAY W10116271 Contact Us For Availability
40
Panel, Toe (Red) MAY W10193962 Contact Us For Availability
40
MAY W10193963 MAY W10193963 Contact Us For Availability
40
MAY W10049370 MAY W10049370 Contact Us For Availability
41
MAY W10181460 MAY W10181460 Contact Us For Availability
41
MAY 697770 MAY 697770 Contact Us For Availability
42
Screw, 6-20 x 1-1/16 MAY 98129 Contact Us For Availability
42
THERMISTOR MAY 8577274 Contact Us For Availability
43
MAY 487909 MAY 487909 Contact Us For Availability
44
MAY 3387242 MAY 3387242 Contact Us For Availability
44
MAY 8544362 MAY 8544362 Contact Us For Availability
45
STRAIN-RELIEF CLIP MAY 694415 Contact Us For Availability
45
Lint Duct Assembly MAY 8066168 Contact Us For Availability
46
MAY 8519459 MAY 8519459 Contact Us For Availability
46
MAY 8544769 MAY 8544769 Contact Us For Availability
47
MAY 343641 MAY 343641 Contact Us For Availability
47
Thermal Cut-Off (Includes Illus. No. 48) MAY 280148 Contact Us For Availability
48
Trim-Clip Metal MAY W10129065 Contact Us For Availability
48
Thermostat 295 F (146 C) MAY 8557403 Contact Us For Availability
49
MAY 8544770 MAY 8544770 Contact Us For Availability
50
MAY 8519207 MAY 8519207 Contact Us For Availability
50
MAY 8066099 MAY 8066099 Contact Us For Availability
51
Front Panel (Includes Illus. 44) (White) MAY W10153275 Contact Us For Availability
51
MAY W10193967 MAY W10193967 Contact Us For Availability
51
MAY W10193970 MAY W10193970 Contact Us For Availability
51
Screw, 10-16 x 1 MAY 3387230 Contact Us For Availability
52
Strike, Door (2) MAY 696144 Contact Us For Availability
52
MAY 8544776 MAY 8544776 Contact Us For Availability
53
Valve, Water Inlet (Includes Items, 29, 54, 6 MAY W10044596 Contact Us For Availability
54
MAY 3357011 MAY 3357011 Contact Us For Availability
54
Bracket, Valve MAY W10044597 Contact Us For Availability
55
Power Cord MAY 8529008 Contact Us For Availability
55
Nozzle & Hose Assembly (Includes Items, 57, 5 MAY W10044606 Contact Us For Availability
56
MAY 279818 MAY 279818 Contact Us For Availability
56
DRYER EXHAUST KIT (FOR SIDE & BOTTOMVENTING) MAY W10186596 Contact Us For Availability
56
Hose, (Not Servicable) Includes With Item 55. MAY W10044598 Contact Us For Availability
57
MAY W10044629 MAY W10044629 Contact Us For Availability
58
Clip, Push-To-Connect MAY W10044615 Contact Us For Availability
59
CABLE, TIE MAY 3391018 Contact Us For Availability
60
MAY W10044605 MAY W10044605 Contact Us For Availability
61
MAY W10184825 MAY W10184825 Contact Us For Availability
62
MAY W10044579 MAY W10044579 Contact Us For Availability
63
Nut, Brass MAY W10044628 Contact Us For Availability
64
Shield, Blower Housing (Includes, Item 29 ). MAY W10128629 Contact Us For Availability
65
MAY W10128544 MAY W10128544 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (WHITE) MAY 350930 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 oz.) (Primer, Gr MAY 350938 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE) MAY 72017 Contact Us For Availability
NI
(Hose Inlet) 6`Hose With Elbow MAY 76314 Contact Us For Availability
NI
PAINT, BULK (1 QT.) (WHITE UNCUT) MAY 799344 Contact Us For Availability
NI
MAY 80047 MAY 80047 Contact Us For Availability
NI
MAY 8522199 MAY 8522199 Contact Us For Availability
NI
MAY 8529894 MAY 8529894 Contact Us For Availability
NI
MAY 8579666A MAY 8579666A Contact Us For Availability
NI
(Hose Inlet) 1`Hose MAY W10044603 Contact Us For Availability
NI
Connector, Hose MAY W10044604 Contact Us For Availability
NI
MAY W10044609 MAY W10044609 Contact Us For Availability
NI
Washer MAY W10194033 Contact Us For Availability
NI
MAY W10218148 MAY W10218148 Contact Us For Availability
× ![]()
