Model Maytag YMEDC200XW3 ELECTRIC DRYER – Common Parts & Diagrams
01 - CABINET PARTS
02 - TOP AND CONSOLE PARTS

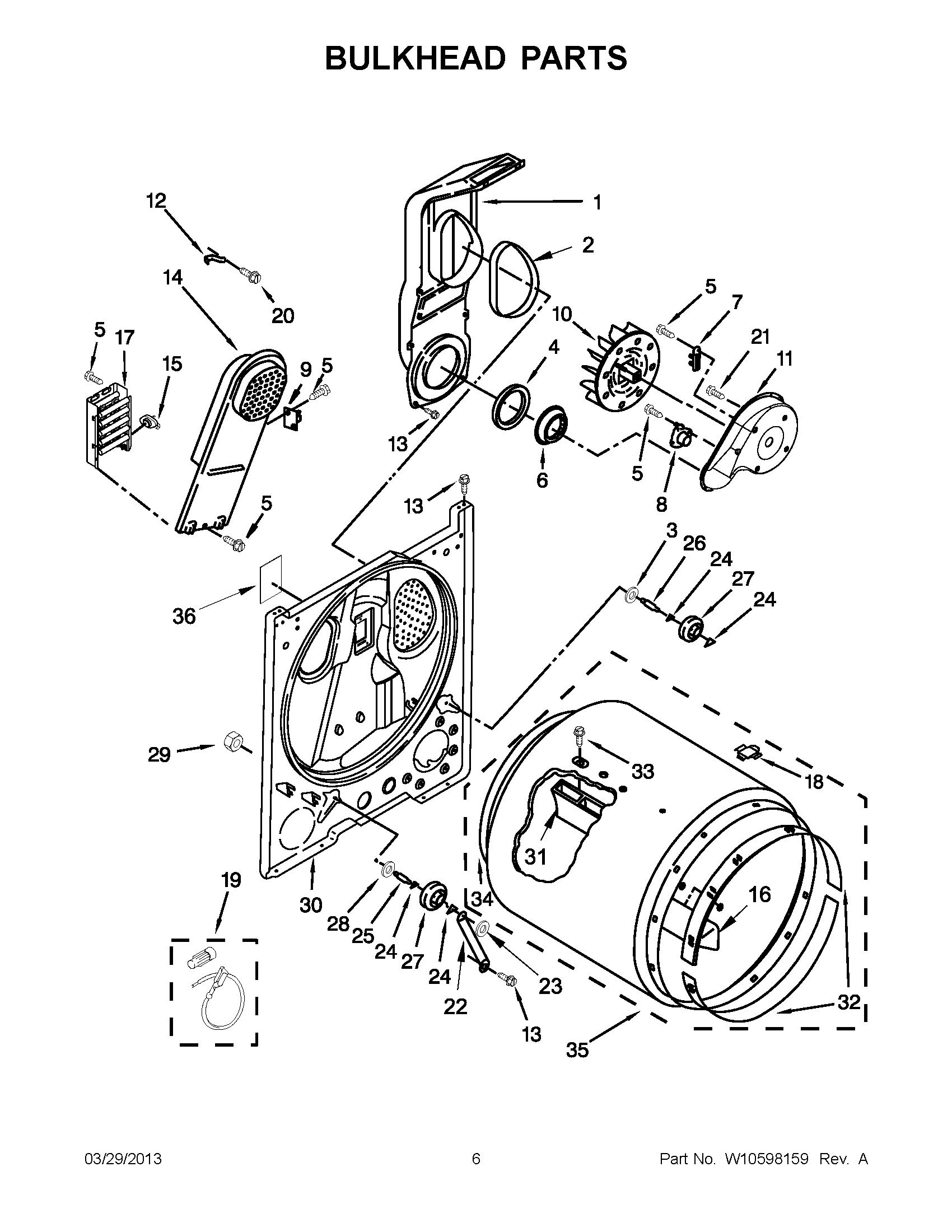

03 - BULKHEAD PARTS
04 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag YMEDC200XW3 ELECTRIC DRYER
1
MAY W10096990 MAY W10096990 Contact Us For Availability
1
MAY W10311472 MAY W10311472 Contact Us For Availability
1
MAY W10514185 MAY W10514185 Contact Us For Availability
1
MAY W10103406 MAY W10103406 Contact Us For Availability
1
ASSEMBLY, LINT CHUTE MAY 348368 Contact Us For Availability
2
MAY 3348629 MAY 3348629 Contact Us For Availability
2
MAY 339956 MAY 339956 Contact Us For Availability
3
Screw MAY 693995 Contact Us For Availability
3
WASHER MAY 3388703 Contact Us For Availability
4
MAY W10236073 MAY W10236073 Contact Us For Availability
4
ASSEMBLY, CONSOLE PANEL & BRACKET MAY W10115474 Contact Us For Availability
4
MAY 347139 MAY 347139 Contact Us For Availability
5
MAY W10571619 MAY W10571619 Contact Us For Availability
5
MAY W10323734 MAY W10323734 Contact Us For Availability
5
SCREW MAY 90767 Contact Us For Availability
6
MAY W10567345 MAY W10567345 Contact Us For Availability
6
MAY 8312709 MAY 8312709 Contact Us For Availability
6
MAY W10389567 MAY W10389567 Contact Us For Availability
7
MAY W10571724 MAY W10571724 Contact Us For Availability
7
MAY 694419 MAY 694419 Contact Us For Availability
7
Fuse, Thermal (91 C) MAY 3392519 Contact Us For Availability
8
MAY 8066092 MAY 8066092 Contact Us For Availability
8
Screw MAY 8533971 Contact Us For Availability
8
THERMOSTAT MAY 3387134 Contact Us For Availability
9
Clip, Ground MAY 98234 Contact Us For Availability
9
MAY 3404233 MAY 3404233 Contact Us For Availability
9
MAY 3977393 MAY 3977393 Contact Us For Availability
10
Switch, Door MAY 3406109 Contact Us For Availability
10
CLIP, SPRING MAY 688805 Contact Us For Availability
10
Wheel, Blower MAY 694089 Contact Us For Availability
11
SCREW MAY 697773 Contact Us For Availability
11
MAY 8299779 MAY 8299779 Contact Us For Availability
11
MAY 8577230 MAY 8577230 Contact Us For Availability
12
PLUG, HOLE MAY 3404413 Contact Us For Availability
12
Screen, Lint MAY 8565972 Contact Us For Availability
12
CLIP HEATER BOX MAY 3398161 Contact Us For Availability
13
Clip, Felt Pad MAY 685203 Contact Us For Availability
13
MAY W10225059 MAY W10225059 Contact Us For Availability
13
SCREW MAY 343641 Contact Us For Availability
14
SCREW MAY 3390631 Contact Us For Availability
14
ASSEMBLY, KNOB & DIAL (GREY) MAY W10317454 Contact Us For Availability
14
MAY 8541818 MAY 8541818 Contact Us For Availability
15
MAY 3394083 MAY 3394083 Contact Us For Availability
15
SCREW MAY 688983 Contact Us For Availability
15
MAY 3977767 MAY 3977767 Contact Us For Availability
16
MAY 3392100 MAY 3392100 Contact Us For Availability
16
ASSEMBLY, CONTROL KNOB (GREY) MAY W10317455 Contact Us For Availability
16
BAFFLE, DRUM (SHORT) MAY 3403636 Contact Us For Availability
17
TERMINAL, BRASS & TINNED (INCLUDES TERMINAL B MAY 279318 Contact Us For Availability
17
END CAP (RIGHT) (WHITE) MAY W10193821 Contact Us For Availability
17
MAY 3403590 MAY 3403590 Contact Us For Availability
18
CABINET (WHITE) MAY 8530603 Contact Us For Availability
18
END CAP (LEFT) (WHITE) MAY W10193824 Contact Us For Availability
18
Plug, Drum Hole MAY 8066086 Contact Us For Availability
19
PANEL, FRONT (WHITE) MAY W10224853 Contact Us For Availability
19
HARNESS, MAIN MAY W10346391 Contact Us For Availability
19
MAY 279457 MAY 279457 Contact Us For Availability
20
Strike, Door MAY 3403431 Contact Us For Availability
20
MAY W10316616 MAY W10316616 Contact Us For Availability
20
Screw MAY 489463 Contact Us For Availability
21
ASSEMBLY, SEAL & BEARING MAY W10568603 Contact Us For Availability
21
CLIP, SPRING MAY 8536939 Contact Us For Availability
21
SCREW MAY 3390647 Contact Us For Availability
22
MAY W10529190 MAY W10529190 Contact Us For Availability
22
MAY 3976434 MAY 3976434 Contact Us For Availability
23
MAY 342055 MAY 342055 Contact Us For Availability
23
NUT, PUSH ON MAY 90296 Contact Us For Availability
24
ASSEMBLY, HINGE & PIN MAY W10362431 Contact Us For Availability
24
MAY W10512946 MAY W10512946 Contact Us For Availability
25
MAY W10389572 MAY W10389572 Contact Us For Availability
25
MAY W10359270 MAY W10359270 Contact Us For Availability
26
ASSEMBLY, INNER DOOR MAY W10463967 Contact Us For Availability
26
MAY W10359269 MAY W10359269 Contact Us For Availability
27
DOOR, OUTER (WHITE) MAY 3402335 Contact Us For Availability
27
MAY W10314171 MAY W10314171 Contact Us For Availability
28
MAY 8565970 MAY 8565970 Contact Us For Availability
28
WASHER MAY 348197 Contact Us For Availability
29
MAY 279393 MAY 279393 Contact Us For Availability
29
MAY W10298789 MAY W10298789 Contact Us For Availability
30
MAY 8533974 MAY 8533974 Contact Us For Availability
30
MAY 3403410 MAY 3403410 Contact Us For Availability
31
MAY 3397659 MAY 3397659 Contact Us For Availability
31
BAFFLE, DRUM (LONG) MAY 692490 Contact Us For Availability
32
Clamp, Motor (With Shield) MAY 3404162 Contact Us For Availability
32
Bearing, Ring MAY 692526 Contact Us For Availability
33
CLAMP, MOTOR MOUNT MAY W10121316 Contact Us For Availability
33
MAY W10219342 MAY W10219342 Contact Us For Availability
34
MAY W10396032 MAY W10396032 Contact Us For Availability
34
MAY W10389561 MAY W10389561 Contact Us For Availability
35
Pulley, Motor MAY 8066184 Contact Us For Availability
35
MAY W10389436 MAY W10389436 Contact Us For Availability
36
ASSEMBLY, PULLEY & BEARING MAY 691362 Contact Us For Availability
36
MAY W10504381 MAY W10504381 Contact Us For Availability
37
MAY W10198086 MAY W10198086 Contact Us For Availability
38
MAY 348780 MAY 348780 Contact Us For Availability
39
BOLT MAY 3400500 Contact Us For Availability
40
Hinge, Top MAY 8066217 Contact Us For Availability
41
SEAL-SPILL GUARD MAY W10224934 Contact Us For Availability
42
MAY W10316619 MAY W10316619 Contact Us For Availability
43
MAY W10316529 MAY W10316529 Contact Us For Availability
44
MAY 3394208 MAY 3394208 Contact Us For Availability
45
MAY 694415 MAY 694415 Contact Us For Availability
46
MAY 3405248 MAY 3405248 Contact Us For Availability
47
MAY W10532676 MAY W10532676 Contact Us For Availability
48
MAY W10529197 MAY W10529197 Contact Us For Availability
49
MAY W10529198 MAY W10529198 Contact Us For Availability
50
MAY W10567977 MAY W10567977 Contact Us For Availability
NI
MAY 279810 MAY 279810 Contact Us For Availability
NI
ACCESSORY PARTS, KIT, DRYER REPAIR MAY 279948 Contact Us For Availability
NI
MAY 3406839 MAY 3406839 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (WHITE) MAY 350930 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (GRAY PRIME MAY 350938 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, BULK (1 qt.) (White) MAY 799344 Contact Us For Availability
NI
ACCESSORY PARTS (KIT, DRYER VENT TESTING) MAY 8522199 Contact Us For Availability
NI
POWER CORD, 4`, 30 AMP, 4 WIRE, DRYER CORD MAY PT220L Contact Us For Availability
NI
POWER CORD, 4`, 30 AMP, 4 WIRE, DRYER CORD MAY PT400L Contact Us For Availability
NI
POWER CORD, 6`, 30 AMP, 4 WIRE, DRYER CORD MAY PT600L Contact Us For Availability
× ![]()
