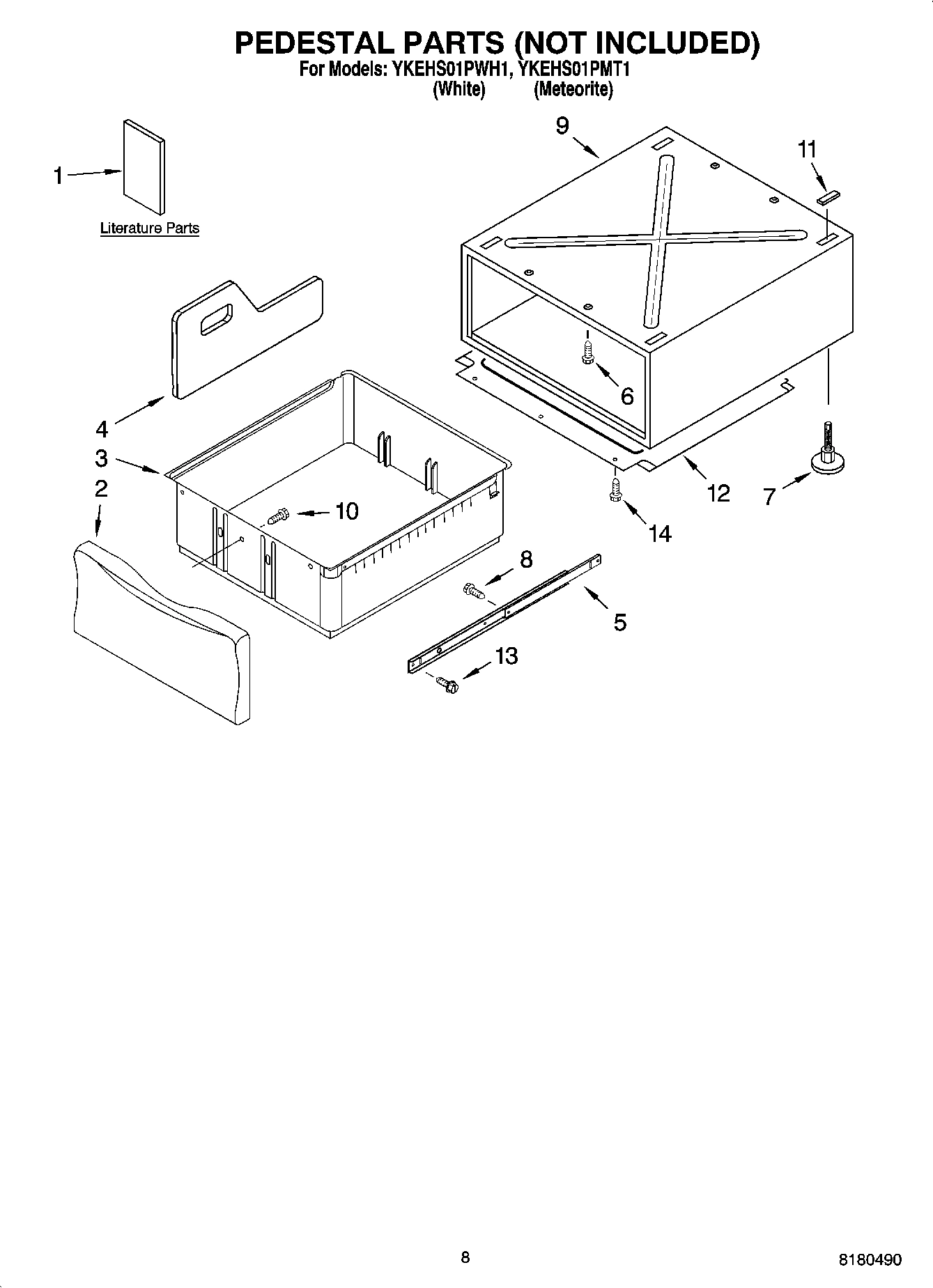

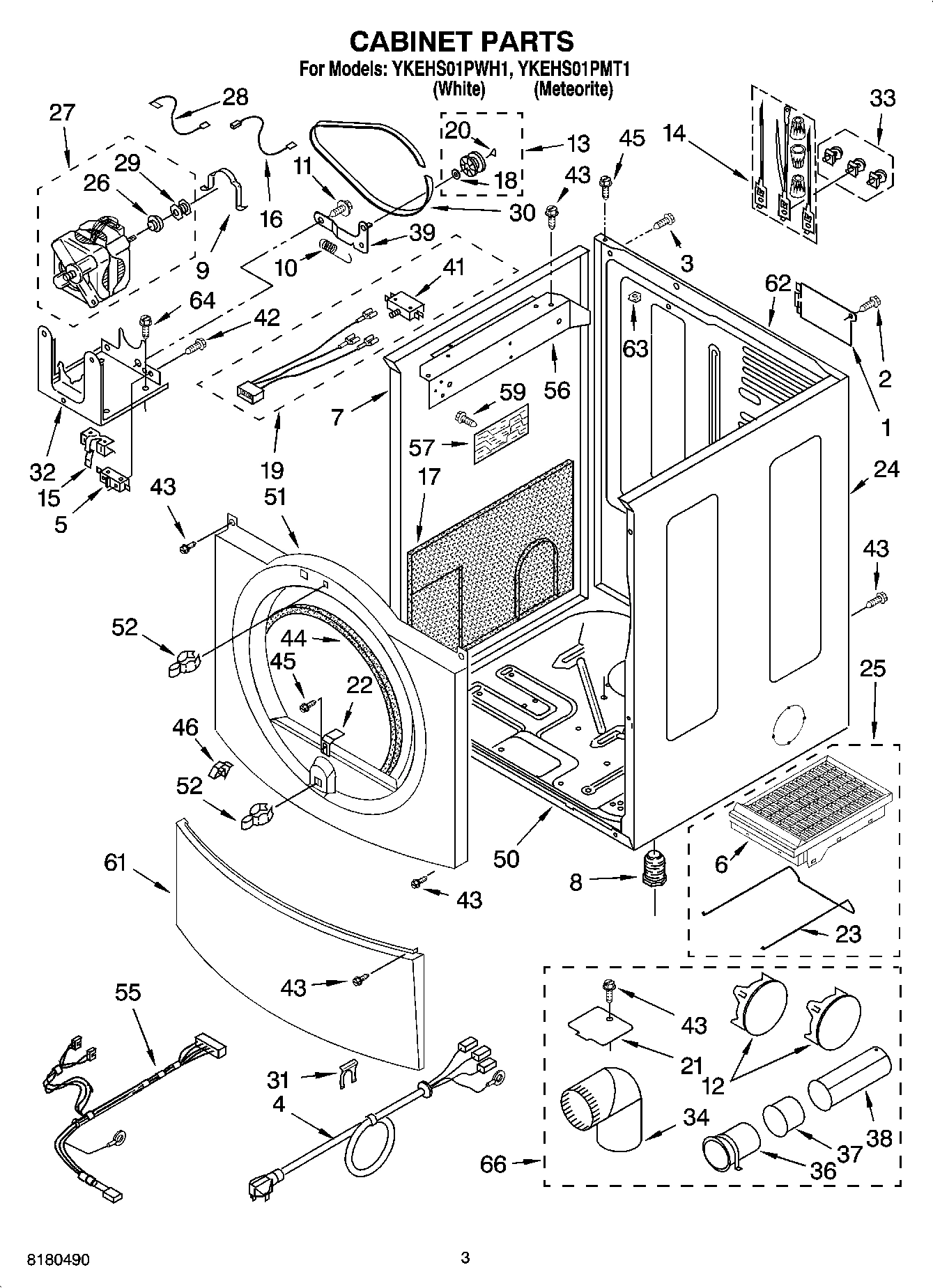

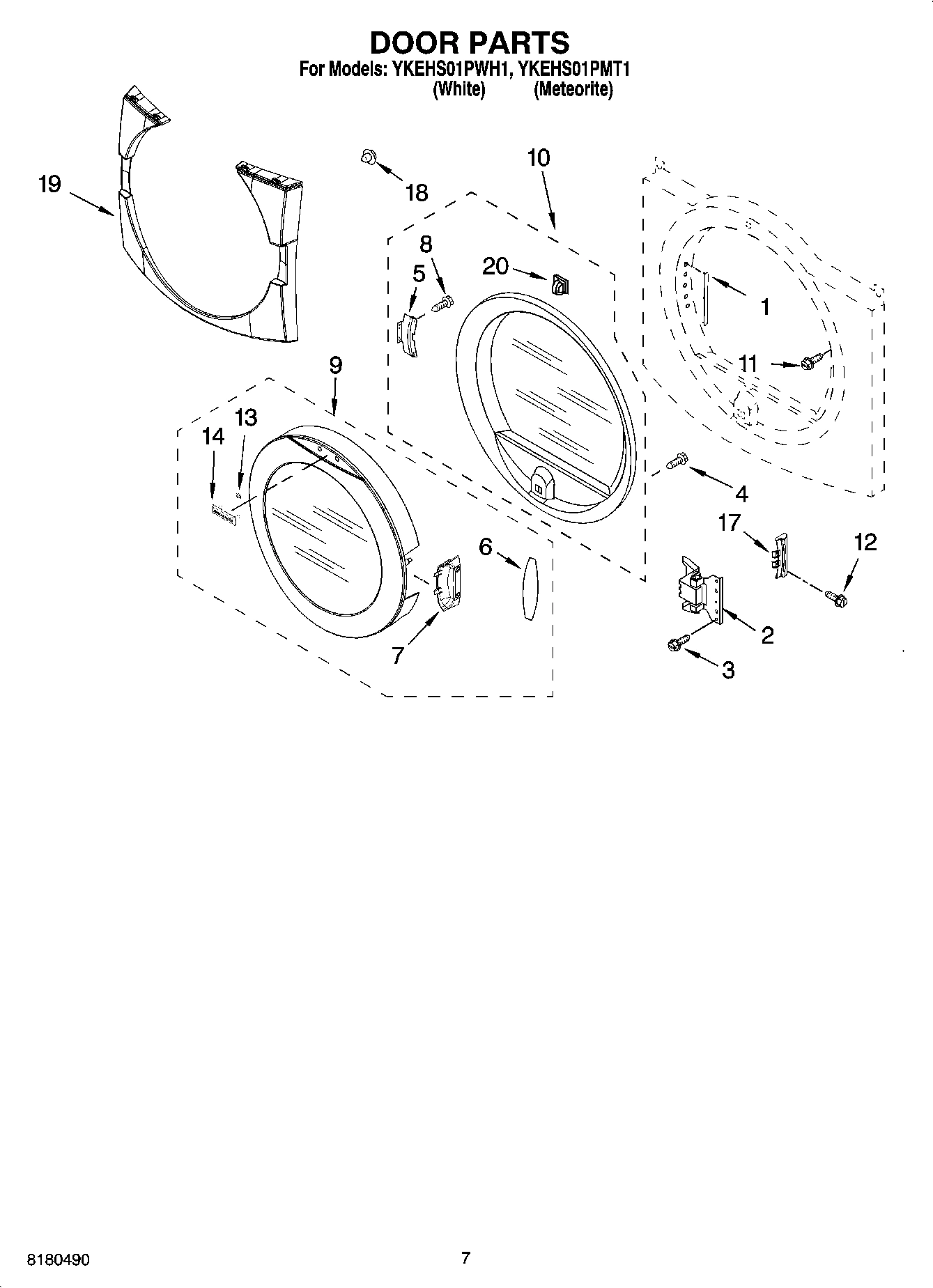

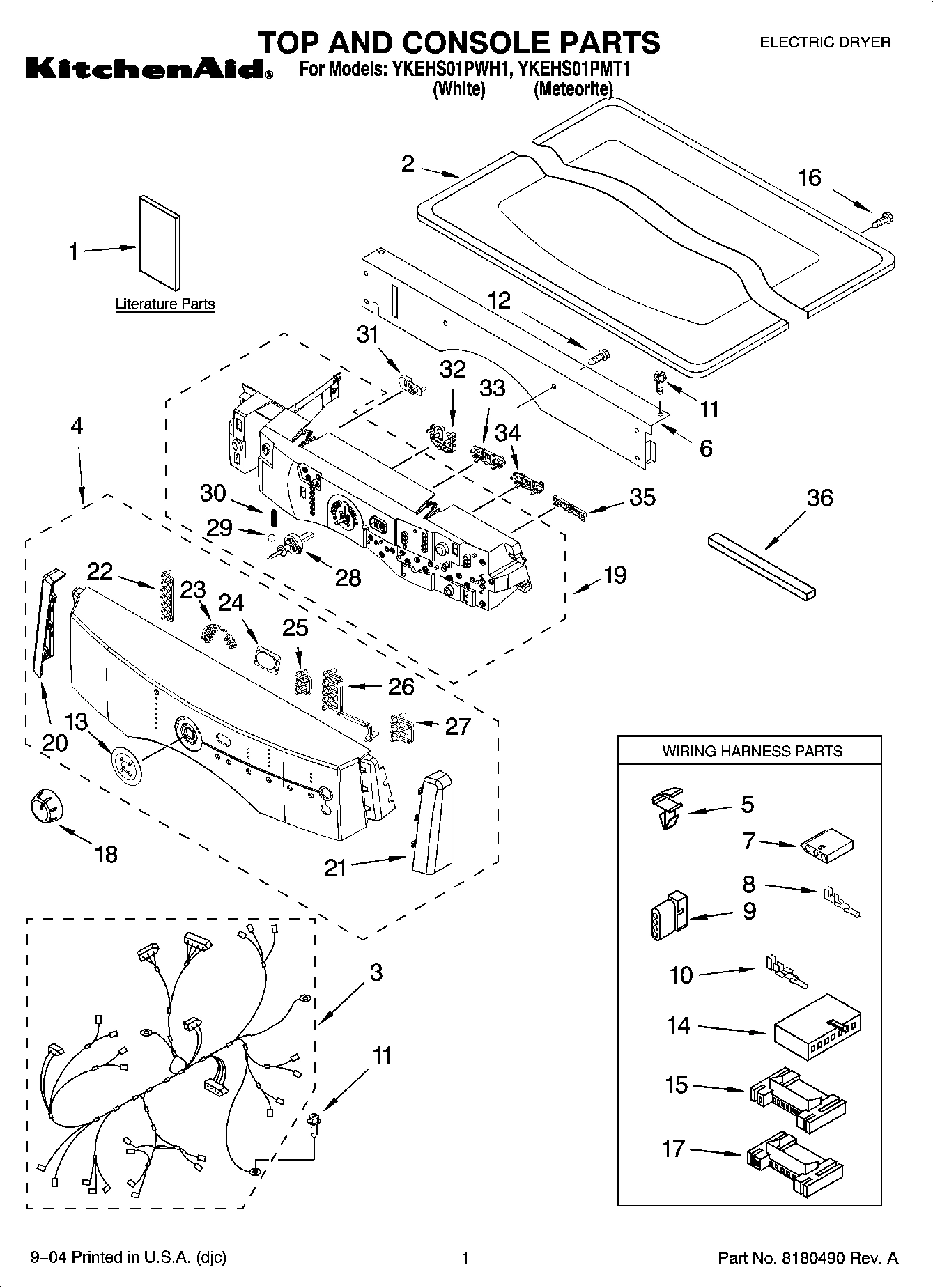

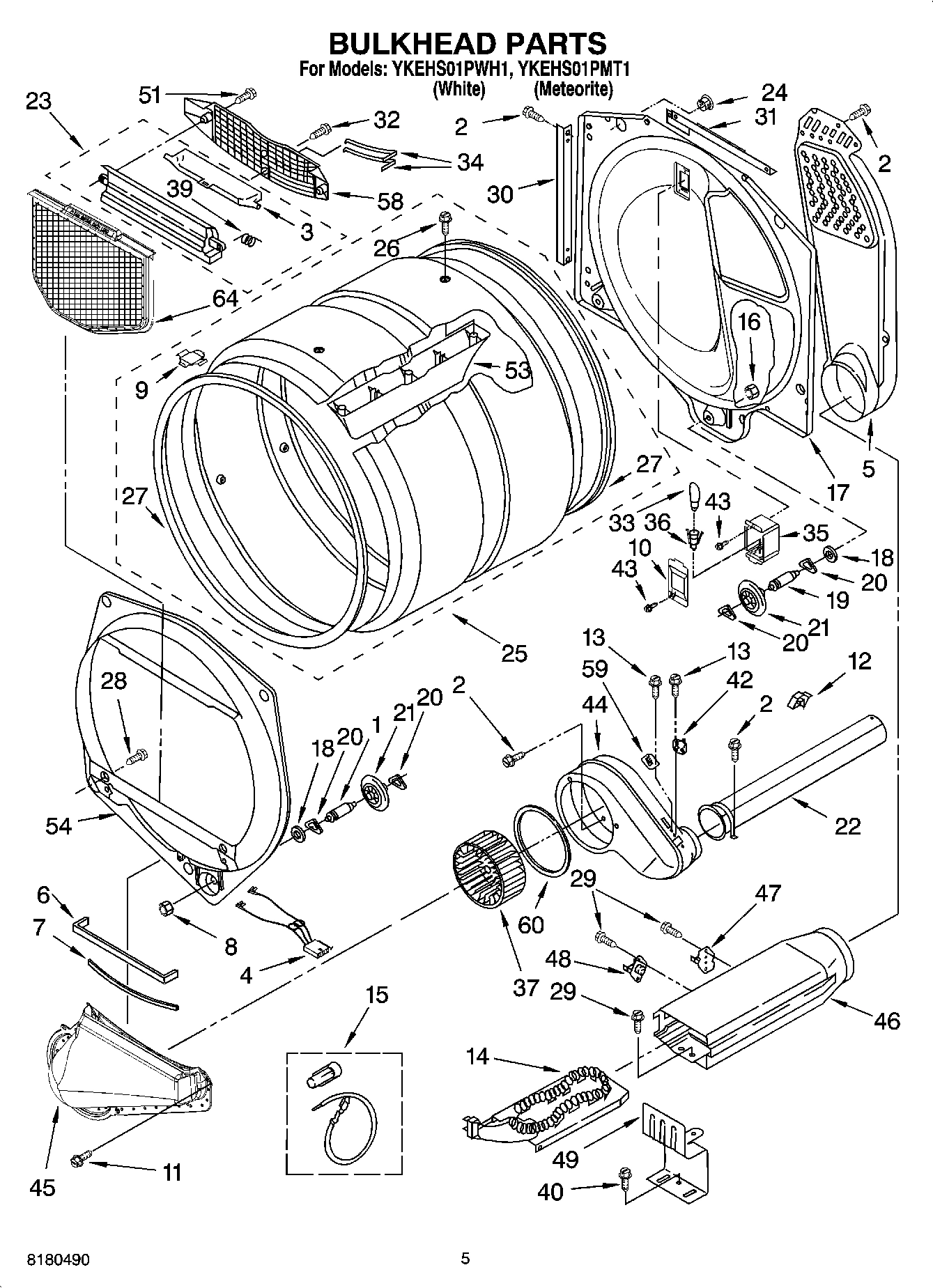

Model Whirlpool YKEHS01PMT1 ELECTRIC DRYER – Common Parts &amp; Diagrams

350938 Whirlpool Spray Gun In Stock WPL 350938 $32.57

4392067 Whirlpool Dryer Repair Kit In Stock WPL 4392067 $18.78

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

8541503 Whirlpool Stacking Kit In Stock WPL 8541503 $25.02

W10202939 Whirlpool Touch Up Backorder WPL W10202939 $9.15

W11224254 Whirlpool Test Kit In Stock WPL W11224254 $4.76

Kit, Hold Down WPL 8529894 Contact Us For Availability

ACCESSORY PARTS WPL ARI166535A Contact Us For Availability

1

WPW10119283 Whirlpool Terminal Cover Backorder WPL WPW10119283 $39.97

1

Literature Parts (Installation Instructions) WPL LIT8537141 Contact Us For Availability

1

Literature Parts (Parts List) WPL LIT8537342 Contact Us For Availability

1

Plug, Strip WPL 8563855 Contact Us For Availability

2

WP90767 Whirlpool Screw In Stock WPL WP90767 $2.51

2

Drawer Front Assembly (White) WPL 8537870 Contact Us For Availability

2

Drawer Front Assembly (Biscuit) WPL 8537871 Contact Us For Availability

2

Drawer Front Assembly (Graphite) WPL 8537872 Contact Us For Availability

2

Drawer Front Assembly (Pewter) WPL 8537908 Contact Us For Availability

2

Drawer Front Assembly (Meteorite) WPL 8537931 Contact Us For Availability

2

Door Hinge Assembly WPL 8546349 Contact Us For Availability

3

W10850756 Whirlpool Screw Backorder WPL W10850756 $2.51

3

Drawer Bin (For Model Numbers LAB2700MQ, LAB2 WPL 8537883 Contact Us For Availability

3

Drawer Bin (For LAB2700PMT) WPL 8537934 Contact Us For Availability

3

Screw, 10-32 x 3/8 WPL 342043 Contact Us For Availability

4

WP3406653 Whirlpool Wire Harness In Stock WPL WP3406653 $56.58

4

Screw, 8-18 x 5/8 WPL 9742177 Contact Us For Availability

4

Cord, Power WPL 8529008 Contact Us For Availability

4

Divider, Drawer (Set Of 2) (For Model Numbers WPL 8537875 Contact Us For Availability

4

Divider, Drawer (Set Of 2) (For LAB2700PMT) WPL 8537935 Contact Us For Availability

5

279782 Whirlpool Lid Switch In Stock WPL 279782 $30.85

5

WP3394427 Whirlpool Clip In Stock WPL WP3394427 $3.70

5

WP8578394 Whirlpool Slide Assembly Backorder WPL WP8578394 $34.18

5

Bracket, Handle WPL 8529539 Contact Us For Availability

6

WP697813 Whirlpool Seal In Stock WPL WP697813 $3.70

6

WPW10346892 Whirlpool Screw In Stock WPL WPW10346892 $2.51

6

Pad, Door Handle WPL 8541011 Contact Us For Availability

7

353424 Whirlpool Connector Backorder WPL 353424 $10.76

7

WP8563585 Whirlpool Foot Assembly In Stock WPL WP8563585 $7.06

7

Handle, Door WPL 8557268 Contact Us For Availability

7

Panel, Side (L.H.) (White) WPL 8519209 Contact Us For Availability

7

Panel, Side (L.H.) (Meteorite) WPL 8542719 Contact Us For Availability

8

49621 Whirlpool Leveling Feet In Stock WPL 49621 $2.29

8

WP308685 Whirlpool Microwave Screw In Stock WPL WP308685 $2.51

8

WP3359452 Whirlpool Nut In Stock WPL WP3359452 $2.51

8

WP3388228 Whirlpool Screw In Stock WPL WP3388228 $2.51

8

WP94614 Whirlpool Terminal Backorder WPL WP94614 $2.51

9

3936144 Whirlpool Connector Backorder WPL 3936144 $10.76

9

8066086 Whirlpool Plug Backorder WPL 8066086 $4.76

9

WP660658 Whirlpool Clamp In Stock WPL WP660658 $3.70

9

Cabinet (Not Serviced) WPL ARI166534A Contact Us For Availability

9

Door & Window Assembly (Includes Illus. 6, 7, WPL 8542697 Contact Us For Availability

10

WP1163283 Whirlpool Air Conditioner Screw Backorder WPL WP1163283 $2.51

10

WPW10446781 Whirlpool Spring In Stock WPL WPW10446781 $7.74

10

Inner Door Assembly (Includes Illus. 5, 8 & 2 WPL 8546200 Contact Us For Availability

WP3389420 Whirlpool Screw In Stock WPL WP3389420 $2.51

WP355515 Whirlpool Screw Backorder WPL WP355515 $2.51

WP489463 Whirlpool Refrigerator Screw In Stock WPL WP489463 $2.51

Pad (4) WPL 8537863 Contact Us For Availability

12

WP3388229 Whirlpool Dryer Spring Clip In Stock WPL WP3388229 $3.70

12

WPW10404617 Whirlpool Plug Assembly Backorder WPL WPW10404617 $37.46

12

Pan, Bottom WPL 8537853 Contact Us For Availability

13

279640 Whirlpool Dryer Idler Pulley Kit In Stock WPL 279640 $10.79

13

WP2004333 Whirlpool Refrigerator Nut Backorder WPL WP2004333 $4.59

13

WP9740848 Whirlpool Dishwasher Screw Backorder WPL WP9740848 $2.51

14

279318 Whirlpool Terminal In Stock WPL 279318 $39.58

14

WP3387747 Whirlpool Dryer Heating Element In Stock WPL WP3387747 $37.55

14

Medallion WPL 9707516 Contact Us For Availability

15

279457 Whirlpool Dryer Heating Element Wide S In Stock WPL 279457 $3.93

15

3395683 Whirlpool Connector Backorder WPL 3395683 $32.06

15

WP8066120 Whirlpool Lever Assembly Backorder WPL WP8066120 $11.73

16

Wire, Belt Switch WPL 3394081 Contact Us For Availability

W11299301 Whirlpool Bulkhead Assembly Backorder WPL W11299301 $93.12

Sound Panel WPL 8564132 Contact Us For Availability

Cover-Hinge, Rotating (Cashmere Metallic) WPL 8542704 Contact Us For Availability

Cover-Hinge, Rotating (White) WPL 8562607 Contact Us For Availability

18

WPW10121334 Whirlpool Washer In Stock WPL WPW10121334 $2.51

18

Knob, Assembly WPL 8542701 Contact Us For Availability

18

Clip, Trim Panel WPL 8547091 Contact Us For Availability

WP8283288 Whirlpool Door Switch In Stock WPL WP8283288 $66.25

User Interface (Includes Illus. 28, 29 & 30) WPL 8558455 Contact Us For Availability

Trim & Clip Assembly (Cashmere Metallic) WPL 8542698 Contact Us For Availability

Trim & Clip Assembly (White) WPL 8562596 Contact Us For Availability

20

WP3389441 Whirlpool Door Catch In Stock WPL WP3389441 $3.70

20

WPW10512946 Whirlpool Dryer Tri-Ring Drum Rol In Stock WPL WPW10512946 $4.52

21

WPW10354249 Whirlpool Cover In Stock WPL WPW10354249 $3.70

22

Ramp, Door WPL 8529053 Contact Us For Availability

23

Dry Rack Support WPL 8521961 Contact Us For Availability

24

Panel, Side (R.H.) (White) WPL 8519213 Contact Us For Availability

24

Panel, Side (R.H.) (Meteorite) WPL 8542720 Contact Us For Availability

25

8212450A Whirlpool Dryer Rack Assembly Backorder WPL 8212450A $53.07

26

WP3393657 Whirlpool Belt Retainer Backorder WPL WP3393657 $51.66

27

279787 Whirlpool Dryer Drive Motor In Stock WPL 279787 $109.35

28

3398948 Whirlpool Wire Backorder WPL 3398948 $38.06

28

Shaft, Cycle Selector WPL 8542717 Contact Us For Availability

29

W10837625 Whirlpool Dryer Motor Pulley In Stock WPL W10837625 $45.53

30

661570V Whirlpool Dryer Drum Belt In Stock WPL 661570V $10.71

31

W11712577 Whirlpool Clip Backorder WPL W11712577 $2.43

32

WP3387118 Whirlpool Base Assembly Backorder WPL WP3387118 $44.84

33

279393 Whirlpool Terminal Block Screw and Nut In Stock WPL 279393 $15.35

34

WP3387223 Whirlpool Electrode Assembly In Stock WPL WP3387223 $3.39

34

WPW10416072 Whirlpool Elbow Backorder WPL WPW10416072 $11.44

35

3977373 Whirlpool Bracket Backorder WPL 3977373 $66.93

36

WP8563747 Whirlpool Exhaust Pipe Backorder WPL WP8563747 $29.43

37

WP697772 Whirlpool Dryer Blower Wheel In Stock WPL WP697772 $29.83

37

WPW10331278 Whirlpool Exhaust Pipe Backorder WPL WPW10331278 $28.80

38

WP8563749 Whirlpool Exhaust Pipe Backorder WPL WP8563749 $30.96

39

W10837240 Whirlpool Dryer Idler Pulley In Stock WPL W10837240 $10.83

39

WP3394986 Whirlpool Spring Backorder WPL WP3394986 $29.06

40

W11693756 Whirlpool Screw Assembly Backorder WPL W11693756 $8.11

42

WP8577274 Whirlpool Dryer Thermistor In Stock WPL WP8577274 $17.55

42

WP98129 Whirlpool Screw Backorder WPL WP98129 $2.51

43

WP488729 Whirlpool Refrigerator Door Screw In Stock WPL WP488729 $2.51

44

W10888146 Whirlpool Housing In Stock WPL W10888146 $34.18

44

WP3387242 Whirlpool Seal In Stock WPL WP3387242 $9.17

45

WPW10128606 Whirlpool Lint Duct Backorder WPL WPW10128606 $70.75

46

W10802681 Whirlpool Box Assembly In Stock WPL W10802681 $69.36

46

W11295573 Whirlpool Clip Backorder WPL W11295573 $10.76

47

279973 Whirlpool Dryer Thermal Cut-Off and Hi In Stock WPL 279973 $27.61

48

WP3391914 Whirlpool Thermostat In Stock WPL WP3391914 $63.24

49

8066099 Whirlpool Bracket Backorder WPL 8066099 $8.16

50

Base, Cabi WPL 8519207 Contact Us For Availability

51

WP3387230 Whirlpool Screw In Stock WPL WP3387230 $2.51

51

WPL 8562173 WPL 8562173 Contact Us For Availability

51

WPL 8565907 WPL 8565907 Contact Us For Availability

52

279570 Whirlpool Dryer Door Latch Kit In Stock WPL 279570 $1.66

53

WPW10113136 Whirlpool Drum Baffle Backorder WPL WPW10113136 $53.93

54

Bulkhead, Front WPL 8519245 Contact Us For Availability

55

WPL 8299925 WPL 8299925 Contact Us For Availability

56

WPL 8519273 WPL 8519273 Contact Us For Availability

57

WPL 8546219 WPL 8546219 Contact Us For Availability

58

W11086603 Whirlpool Dryer Link Screen Air Gri In Stock WPL W11086603 $13.56

59

3400826 Whirlpool Screw Backorder WPL 3400826 $5.38

59

WP3392519 Whirlpool Dryer Thermal Fuse In Stock WPL WP3392519 $7.30

60

WP697770 Whirlpool Blower Cover Plate Seal In Stock WPL WP697770 $3.70

61

WPL 8519233 WPL 8519233 Contact Us For Availability

61

WPL 8539265 WPL 8539265 Contact Us For Availability

62

WPL 8519219 WPL 8519219 Contact Us For Availability

63

WP692400 Whirlpool Nut In Stock WPL WP692400 $3.70

64

W10120998 Whirlpool Dryer Lint Screen Filter In Stock WPL W10120998 $23.21

64

WP681414 Whirlpool Screw In Stock WPL WP681414 $2.51

64

WPL ARI166533A WPL ARI166533A Contact Us For Availability

66

W10470674 Whirlpool Dryer Side Vent Exhaust K In Stock WPL W10470674 $53.07
