Model GE XFE26JSMBFSS Refrigerator – Common Parts & Diagrams

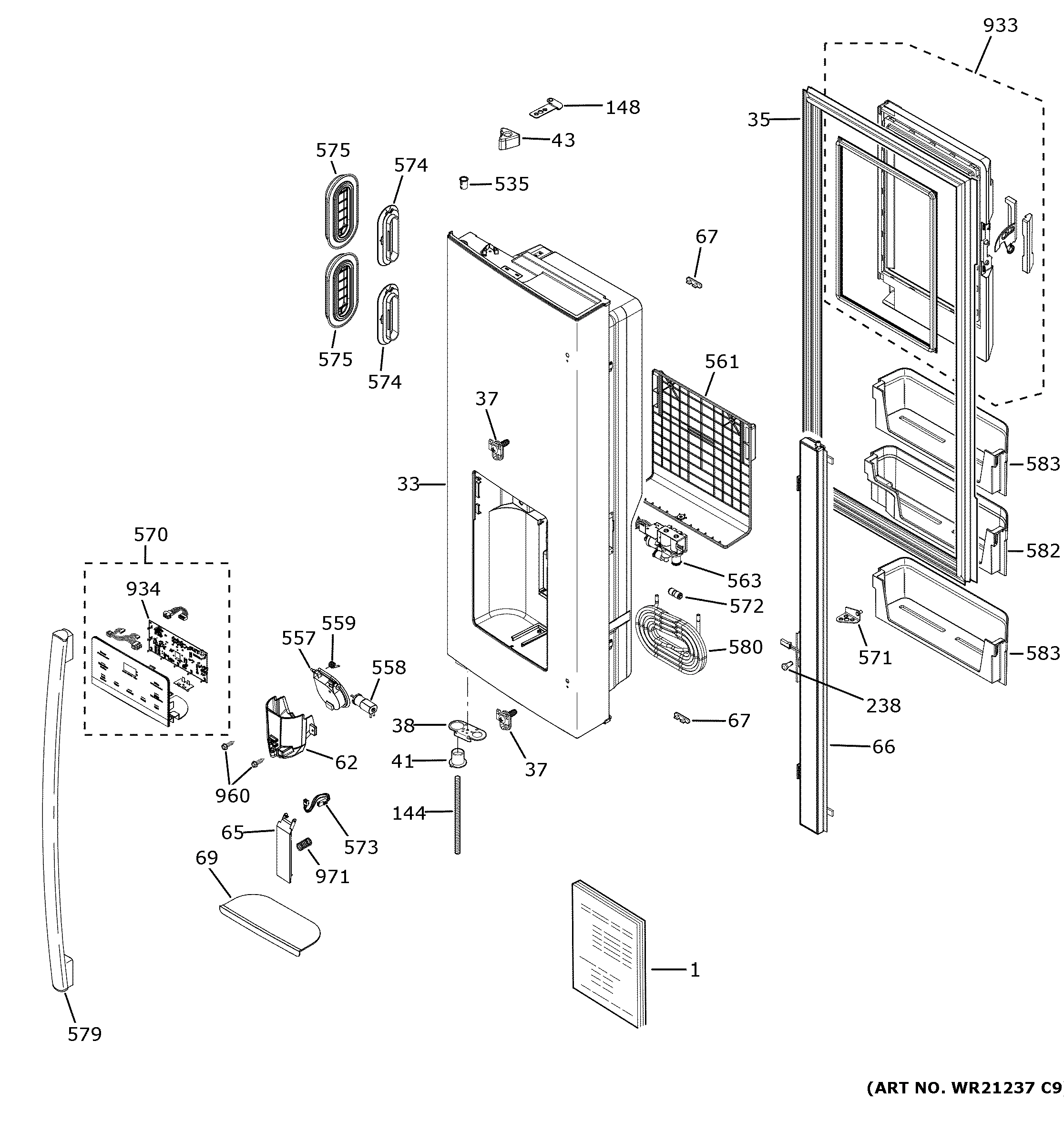

DISPENSER DOOR
FREEZER DOOR

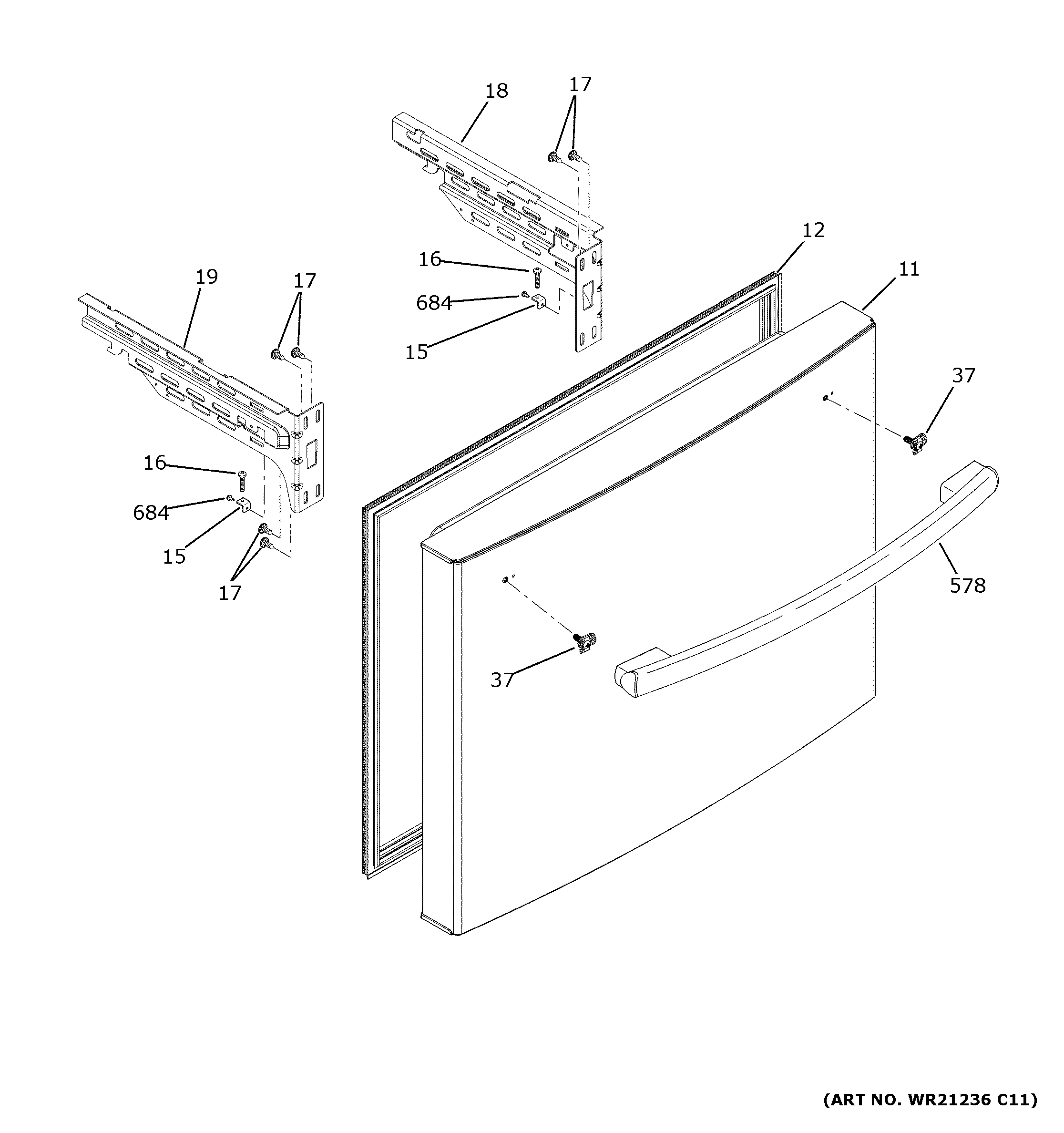

FRESH FOOD DOOR - RH
FREEZER SECTION
FREEZER SHELVES
ICE MAKER & DISPENSER
FRESH FOOD SECTION
FRESH FOOD SHELVES
CASE PARTS
MACHINE COMPARTMENT
Common parts from model GE XFE26JSMBFSS Refrigerator
11
REFRIGERATOR - FREEZER DOOR STAINLESS ST GEN WR78X30143 Contact Us For Availability
12
FREEZER DOOR GASKET DORIAN GRAY GEN WR14X30142 Contact Us For Availability
32
REFRIGERATOR - FRESH FOOD DOOR STAINLESS GEN WR78X30118 Contact Us For Availability
33
REFRIGERATOR - DISPENSER DOOR STAINLESS GEN WR78X30119 Contact Us For Availability
35
REFRIGERATOR - FRESH FOOD DOOR SLATE GEN WR14X30117 Contact Us For Availability
38
STOP DOOR GEN WR02X24874 Contact Us For Availability
41
HINGE BUSHING BB GEN WR02X24875 Contact Us For Availability
43
CAM CLOSURE FF DG GEN WR02X24998 Contact Us For Availability
62
FUNNEL ICE SS GEN WR17X25058 Contact Us For Availability
65
PADDLE AND SKIN ASM GEN WR17X26164 Contact Us For Availability
66
ARTICULATING MULLION ASM GEN WR17X25027 Contact Us For Availability
69
DRIP TRAY GEN WR17X30120 Contact Us For Availability
80
LIGHT HOUSING GEN WR55X30124 Contact Us For Availability
102
SUPPORT PIN GEN WR02X30289 Contact Us For Availability
124
HINGE CENTER GEN WR13X29171 Contact Us For Availability
125
SCR 12-24 HXT20 .90 S GEN WR01X27994 Contact Us For Availability
133
STEEL PIN HINGE GEN WR02X24905 Contact Us For Availability
134
SPRING CLUSRE GEN WR02X25443 Contact Us For Availability
204
FOAM STRIP SE ADH GEN WR14X24804 Contact Us For Availability
215
STAND OFF GEN WR02X10663 Contact Us For Availability
217
FF AIR TOWER ASM 33 GEN WR14X26408 Contact Us For Availability
227
HARNESS EVAPORATOR GEN WR55X28649 Contact Us For Availability
228
EVAPORATOR GEN WR87X30157 Contact Us For Availability
230
COVER HINGE TOP RH DG GEN WR13X24930 Contact Us For Availability
231
COVER HINGE TOP LH DG GEN WR13X24931 Contact Us For Availability
238
SCREW 10-32 GXTT FLP 595 GEN WR01X10065 Contact Us For Availability
243
SCR 8-18 AB HXW 5/4 S GEN WR01X10626 Contact Us For Availability
249
HINGE TOP ASM RH GB GEN WR13X24928 Contact Us For Availability
260
HINGE TOP ASM LH GB GEN WR13X24929 Contact Us For Availability
261
DEFROST HEATER GEN WR51X30141 Contact Us For Availability
263
DOOR FILTER XWF GEN WR17X30148 Contact Us For Availability
274
STRIKER TOP MULLION GEN WR02X24944 Contact Us For Availability
276
BOARD LED LIGHT ASM GEN WR55X24870 Contact Us For Availability
315
MOBILITY WHEEL GEN WR02X30159 Contact Us For Availability
316
MOBILITY WHEEL PIN GEN WR02X30160 Contact Us For Availability
336
SENSOR TEMP FF GEN WR55X10025 Contact Us For Availability
500
HINGE BUSHING BB GEN WR02X24876 Contact Us For Availability
506
FRESH FOOD AIR TOWER GRILL GEN WR14X29199 Contact Us For Availability
511
GASKET TOWER FF GEN WR14X24747 Contact Us For Availability
513
TRACK CENTER ASM GEN WR14X26167 Contact Us For Availability
520
SLIDE BASKET LOWER FZ GEN WR72X24815 Contact Us For Availability
535
HINGE BUSHING BB GEN WR02X24999 Contact Us For Availability
540
GLASS SHELF RIGHT HAND GEN WR71X30137 Contact Us For Availability
541
GLASS SHELF LEFT HAND GEN WR71X30138 Contact Us For Availability
542
QUICK SPACE SHELF GEN WR71X30139 Contact Us For Availability
557
DUCT DOOR ASM GEN WR17X25006 Contact Us For Availability
559
SPRING DUCT DOOR GEN WR01X25007 Contact Us For Availability
560
AUGER MOTOR ASM GEN WR60X24993 Contact Us For Availability
563
WATER VALVE GEN WR57X25054 Contact Us For Availability
570
CONTROL DISPLAY STAINLESS STEEL GEN WR55X30121 Contact Us For Availability
573
SWITCH PADDLE ASM GEN WR14X25057 Contact Us For Availability
574
COLLAR GASKET GEN WR14X25061 Contact Us For Availability
575
GASKET PORT GEN WR14X25060 Contact Us For Availability
578
SS FREEZER DOOR HANDLE GEN WR12X34312 Contact Us For Availability
579
SS DOOR HANDLE GEN WR12X34305 Contact Us For Availability
580
TANK COLD WATER GEN WR17X25028 Contact Us For Availability
616
COVER ACCESS ASM GEN WR82X22767 Contact Us For Availability
626
POWER CORD GEN WR23X30131 Contact Us For Availability
670
UNION CONNECTOR 1/4 GEN WR02X25048 Contact Us For Availability
684
SCR 8-32 AB IHWS 3/8 S GEN WR01X10844 Contact Us For Availability
734
CLIP RETAINER MEI GEN WR02X26735 Contact Us For Availability
735
OVERLOAD PTCR COMBO GEN WR08X26736 Contact Us For Availability
736
CLIP GEN WR2X8203 Contact Us For Availability
775
COVER WATER LINE GEN WR17X13124 Contact Us For Availability
878
SCR 10-14 PL FLT20 3/4 S GEN WR01X10939 Contact Us For Availability
900
FREEZER LOWER BASKET GEN WR71X30122 Contact Us For Availability
908
HOLDER SLIDE FZ RH GEN WR72X24767 Contact Us For Availability
909
HOLDER SLIDE FZ LH GEN WR72X24768 Contact Us For Availability
911
DIVIDER BASKET LOWER FZ GEN WR02X24849 Contact Us For Availability
912
SLIDE BASKET UPPER RH GEN WR72X24868 Contact Us For Availability
913
SLIDE BASKET UPPER LH GEN WR72X24869 Contact Us For Availability
914
DIVIDER GEN WR02X27906 Contact Us For Availability
933
DOOR ICE BOX ASM GEN WR17X25244 Contact Us For Availability
934
BOARD MAIN COMBINED HMI GEN WR55X30493 Contact Us For Availability
937
FREEZER UPPER BASKET GEN WR71X30132 Contact Us For Availability
943
SCR 10-16 B HXW 1/4 S GEN WR01X25308 Contact Us For Availability
971
SPRING PADDLE GEN WR01X25538 Contact Us For Availability
980
CONDENSER FAN & HOUSING GEN WR60X29573 Contact Us For Availability
× ![]()
