Model Whirlpool WSF26D2EXW01 REFRIGERATOR – Common Parts & Diagrams

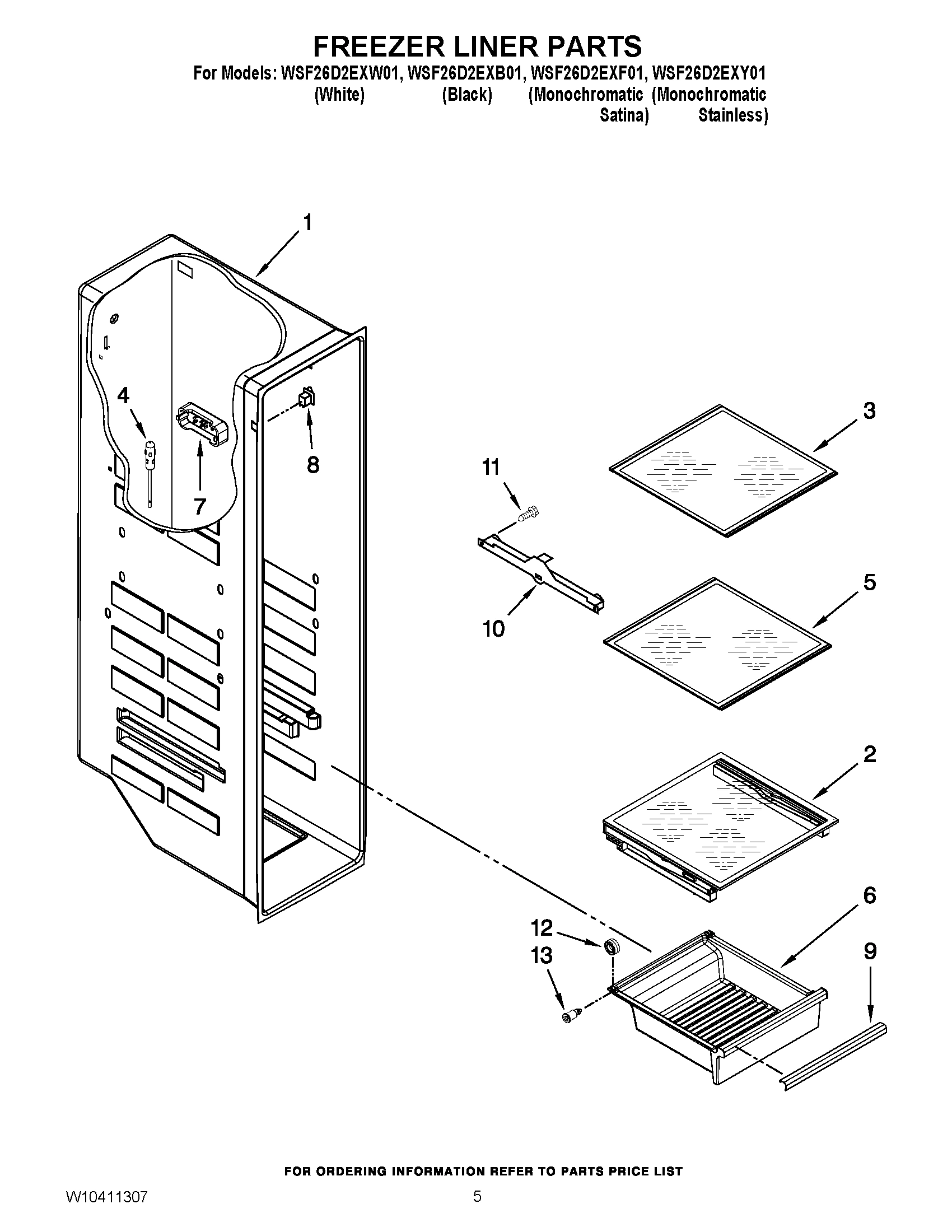

04 - FREEZER LINER PARTS

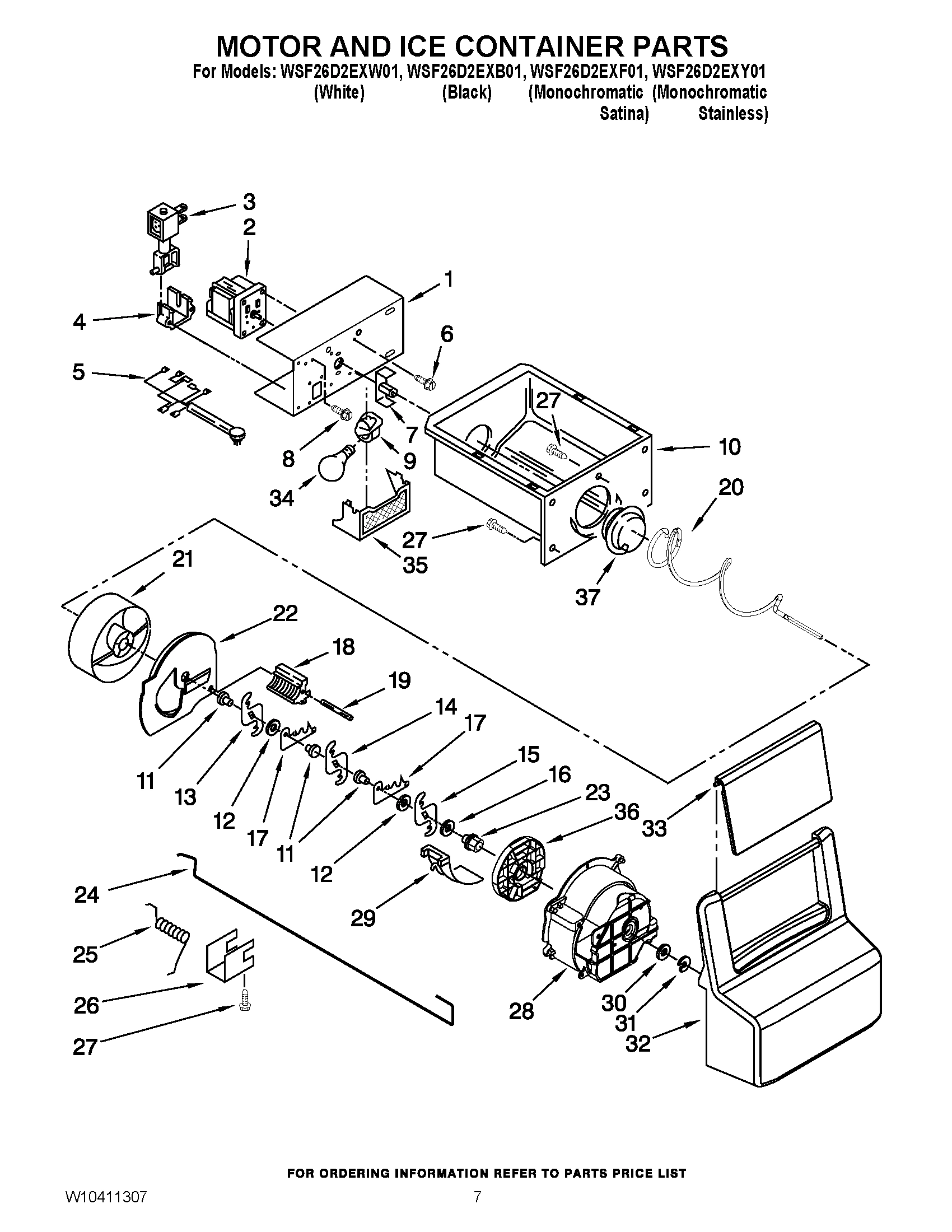

05 - MOTOR AND ICE CONTAINER PARTS

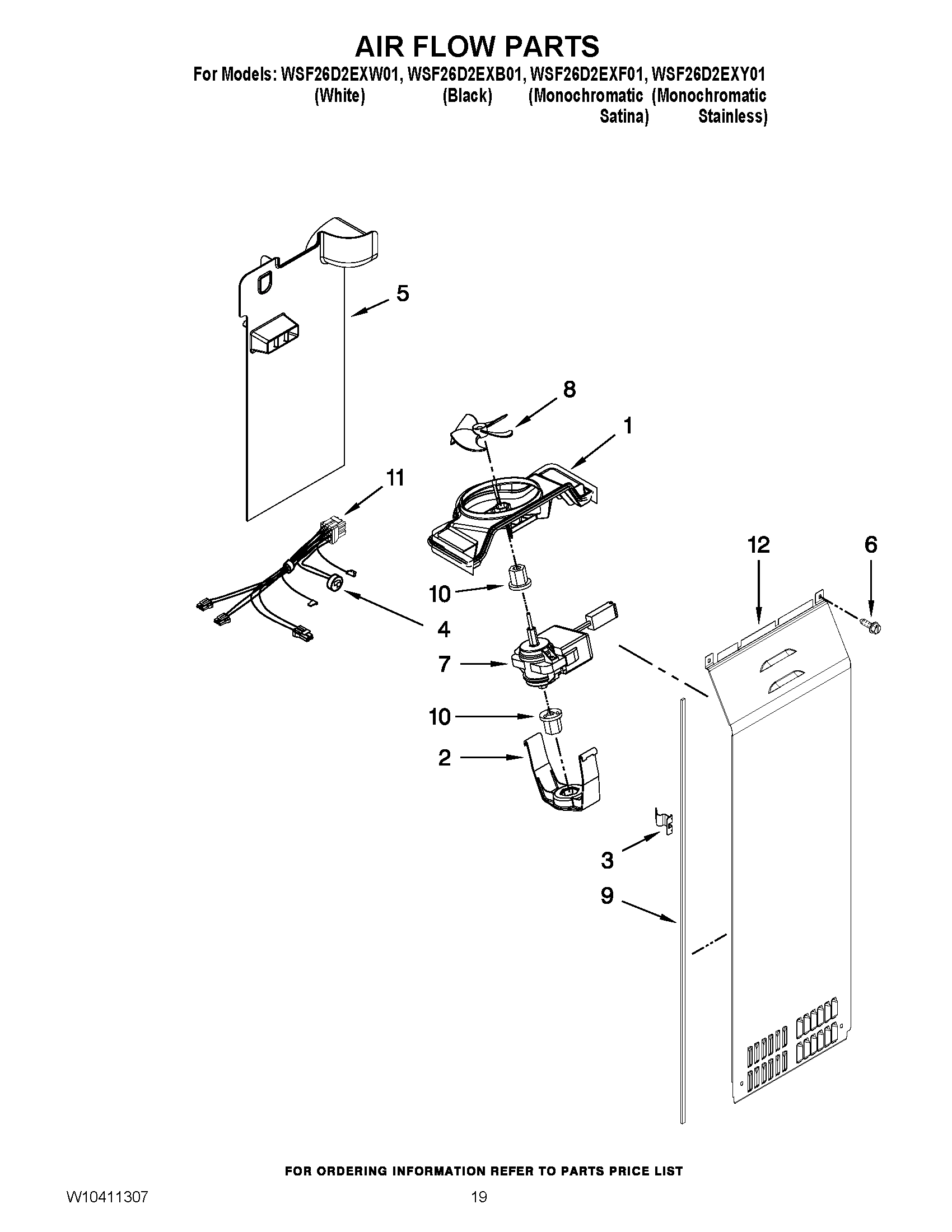

11 - AIR FLOW PARTS

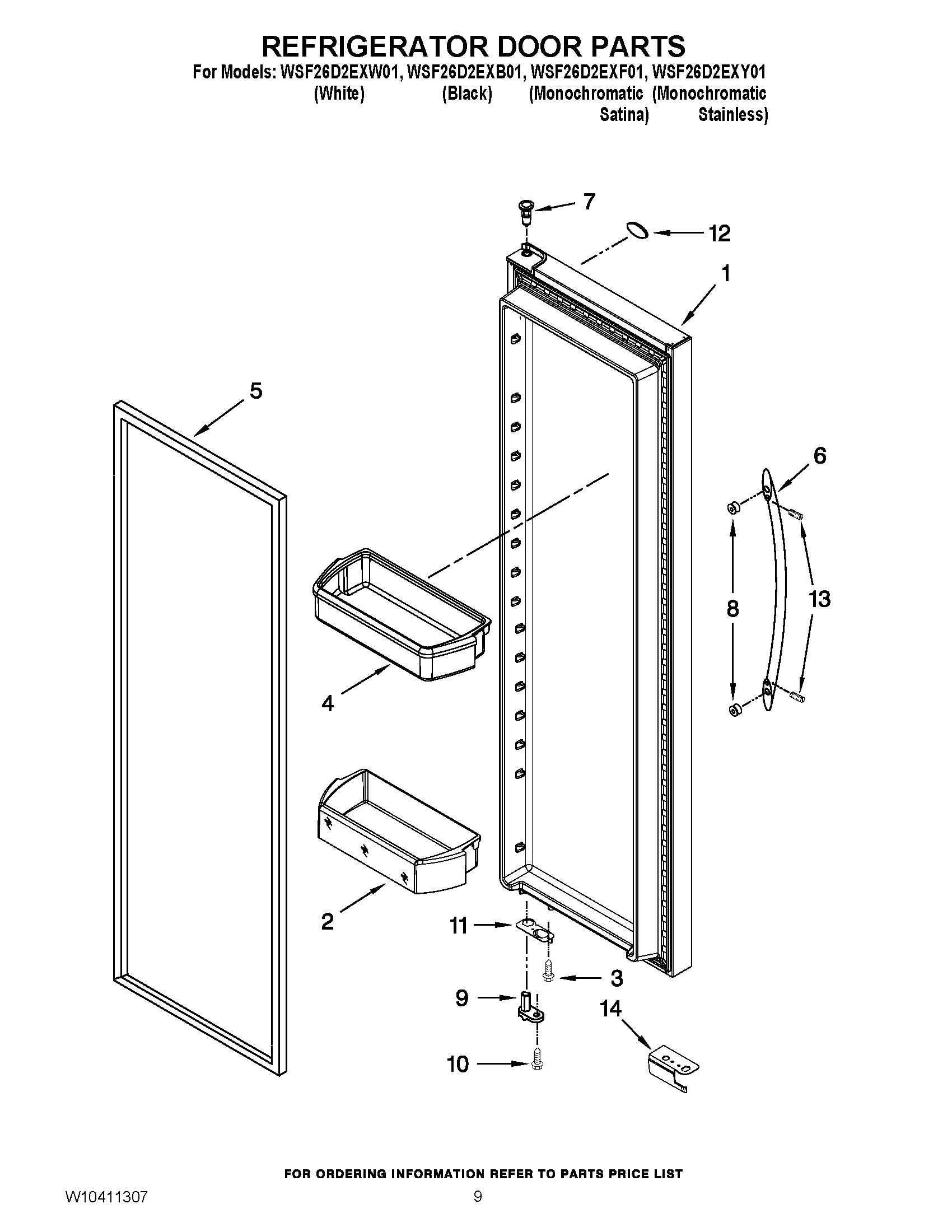

06 - REFRIGERATOR DOOR PARTS

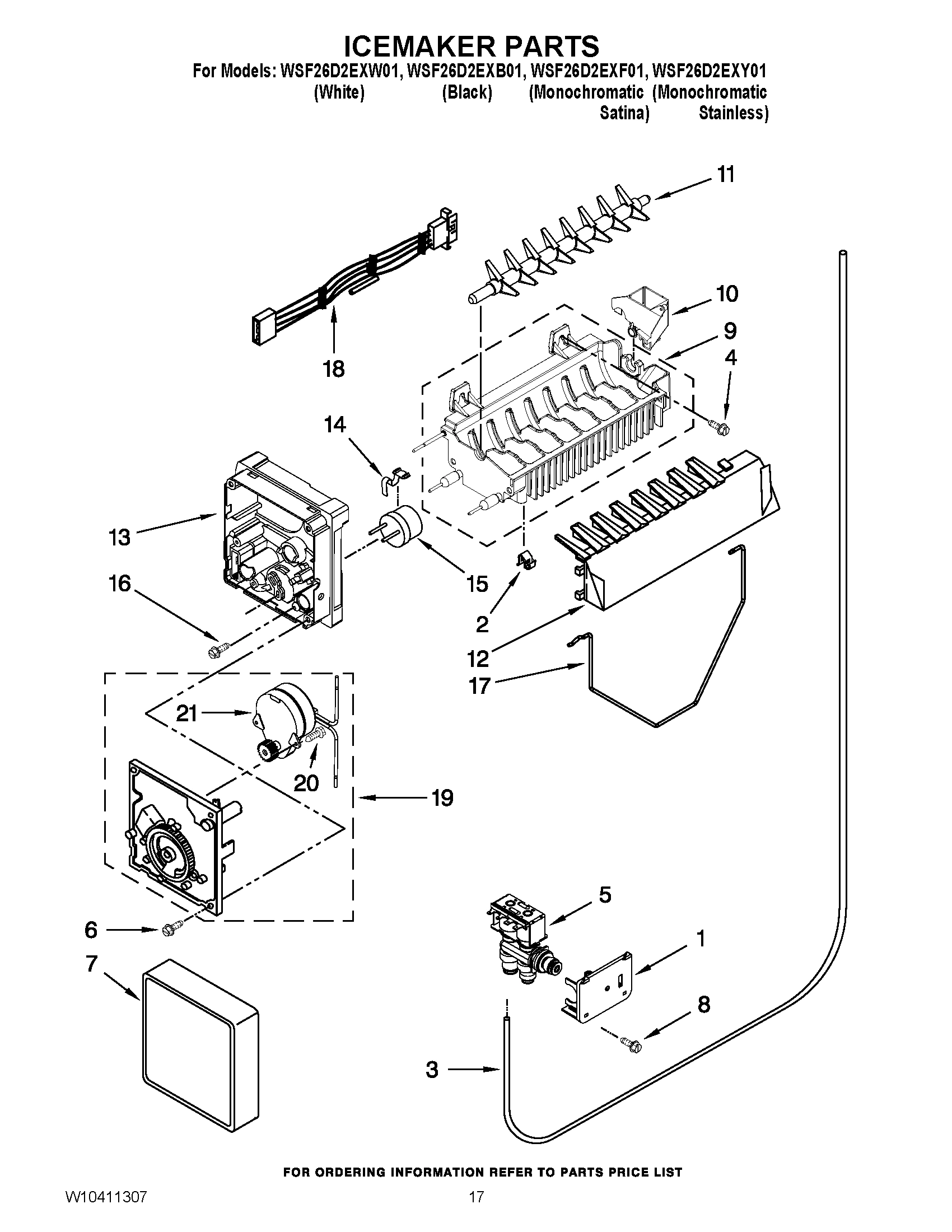

10 - ICEMAKER PARTS

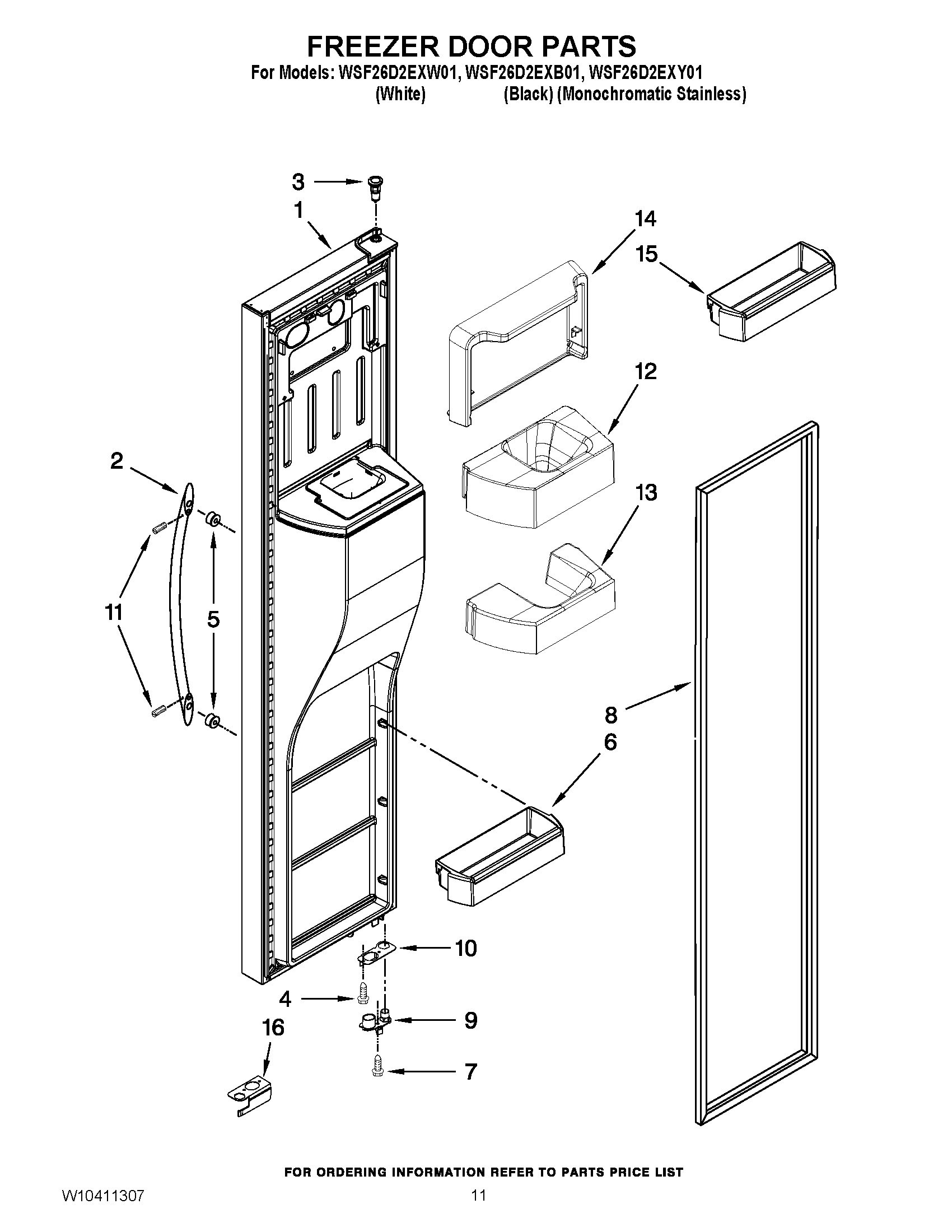

07 - FREEZER DOOR PARTS

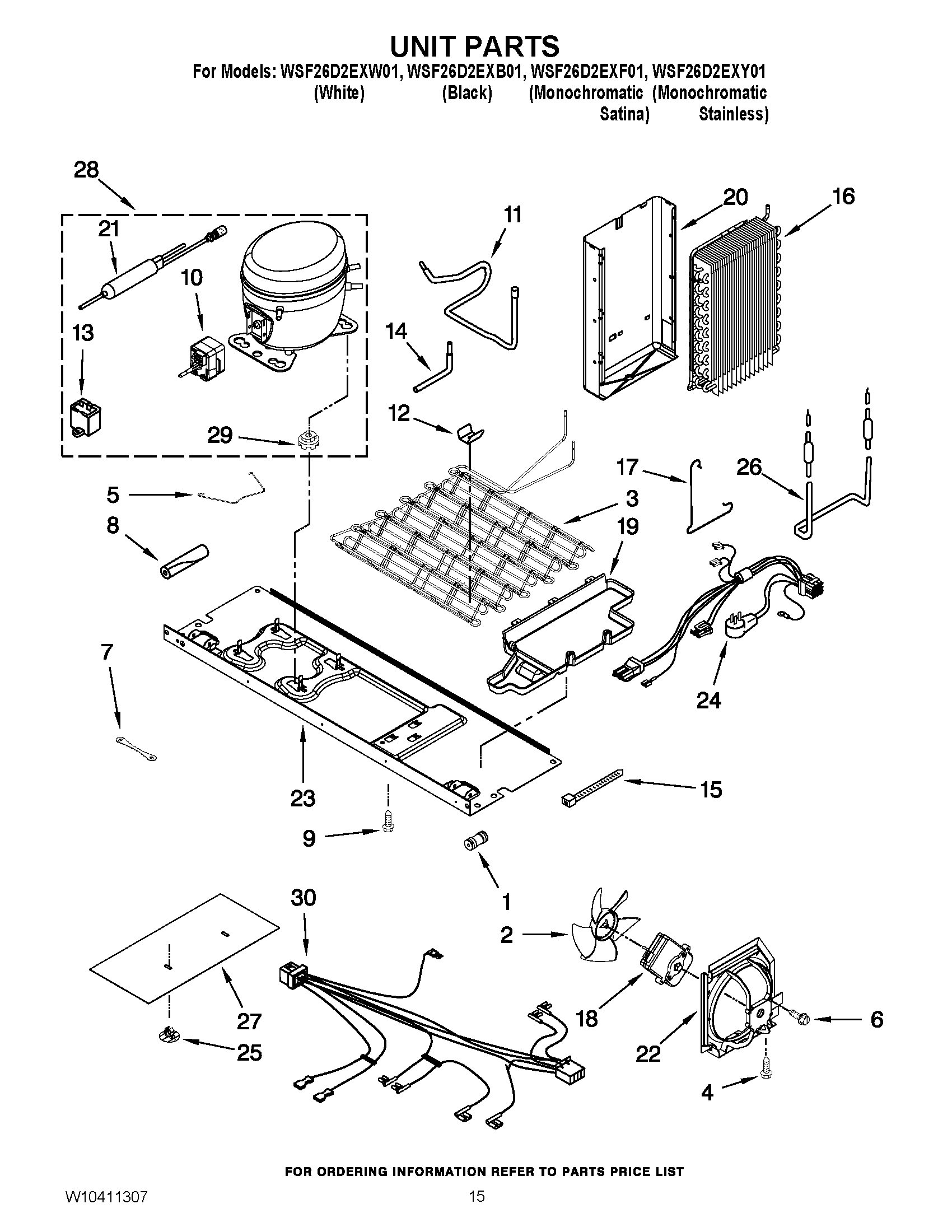

09 - UNIT PARTS
12 - OPTIONAL PARTS (NOT INCLUDED)

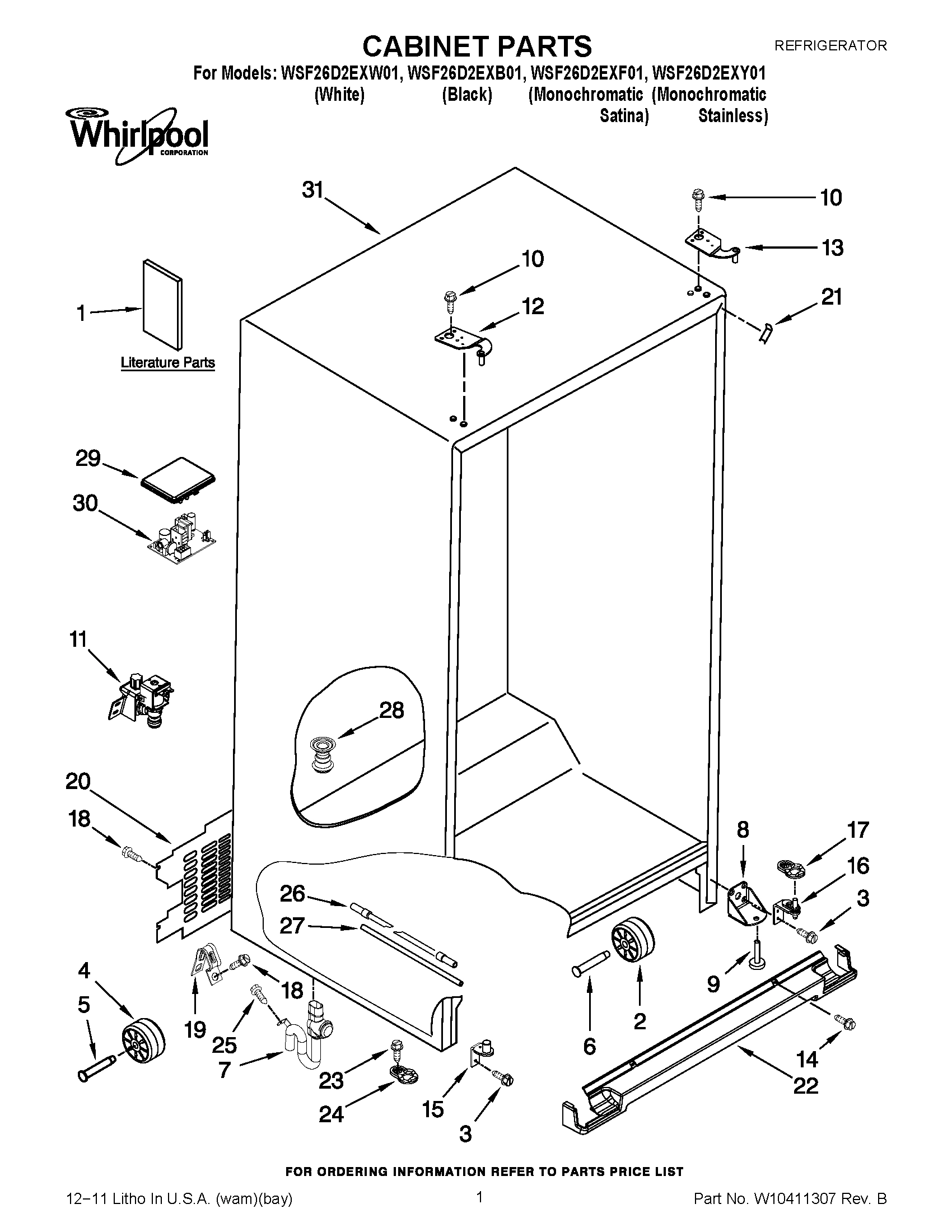

01 - CABINET PARTS

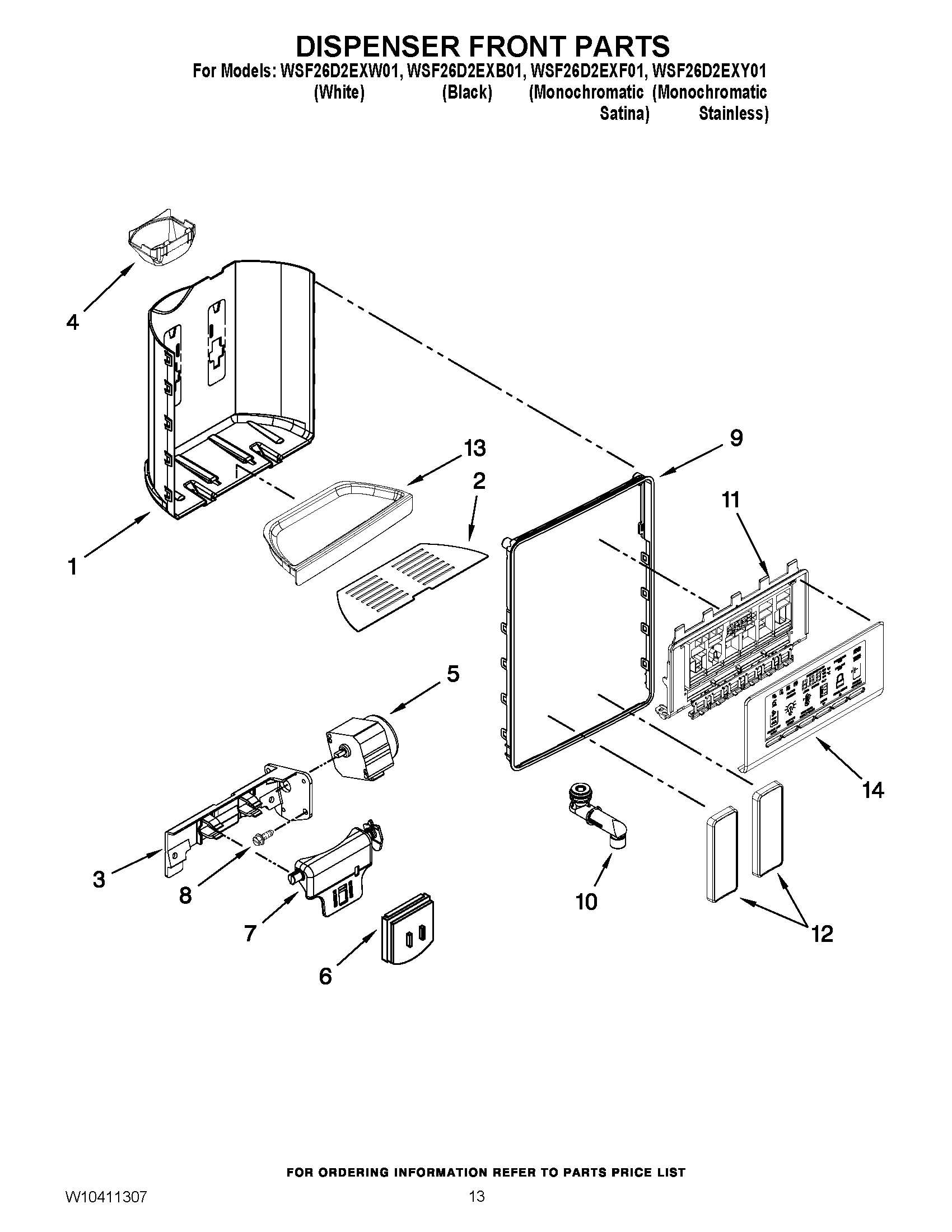

08 - DISPENSER FRONT PARTS

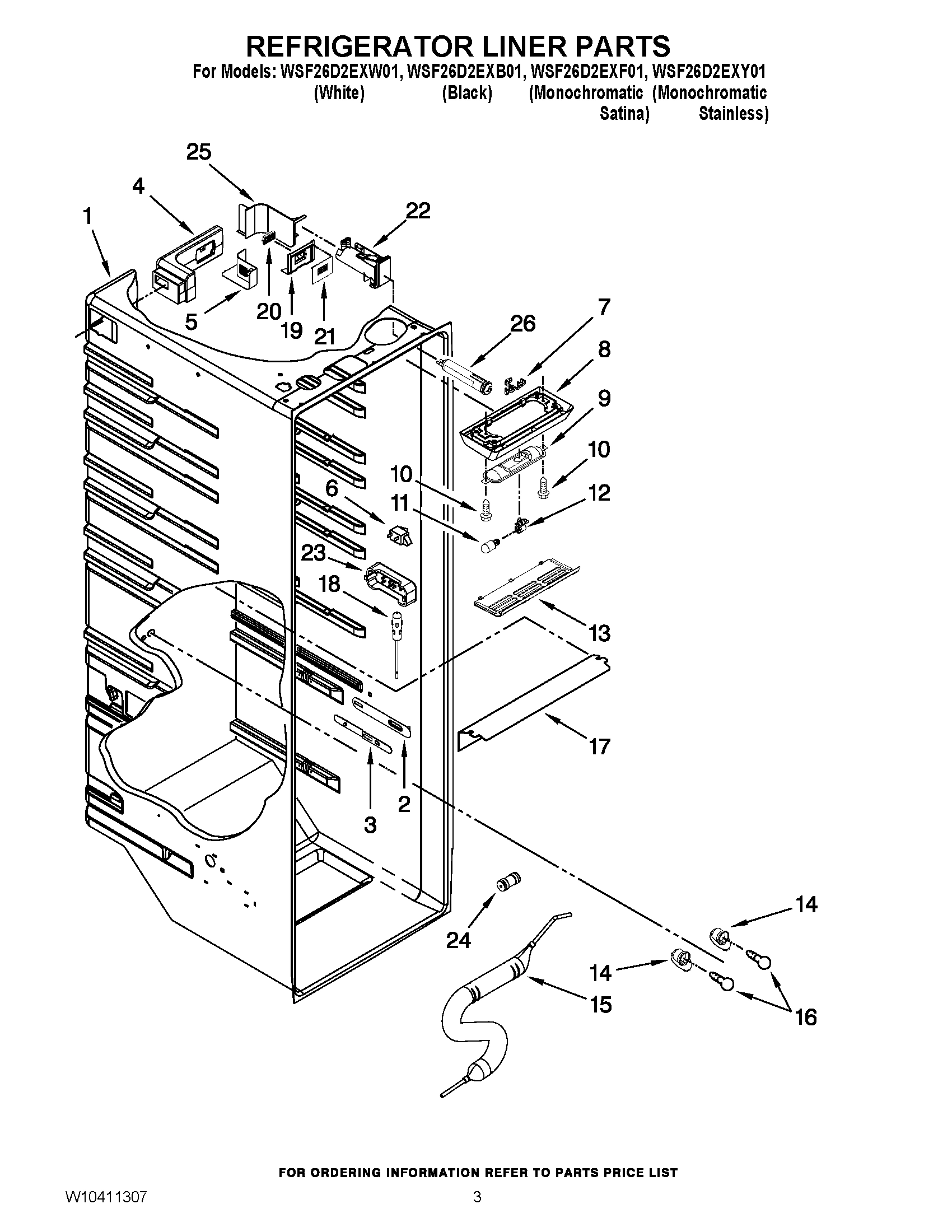

02 - REFRIGERATOR LINER PARTS

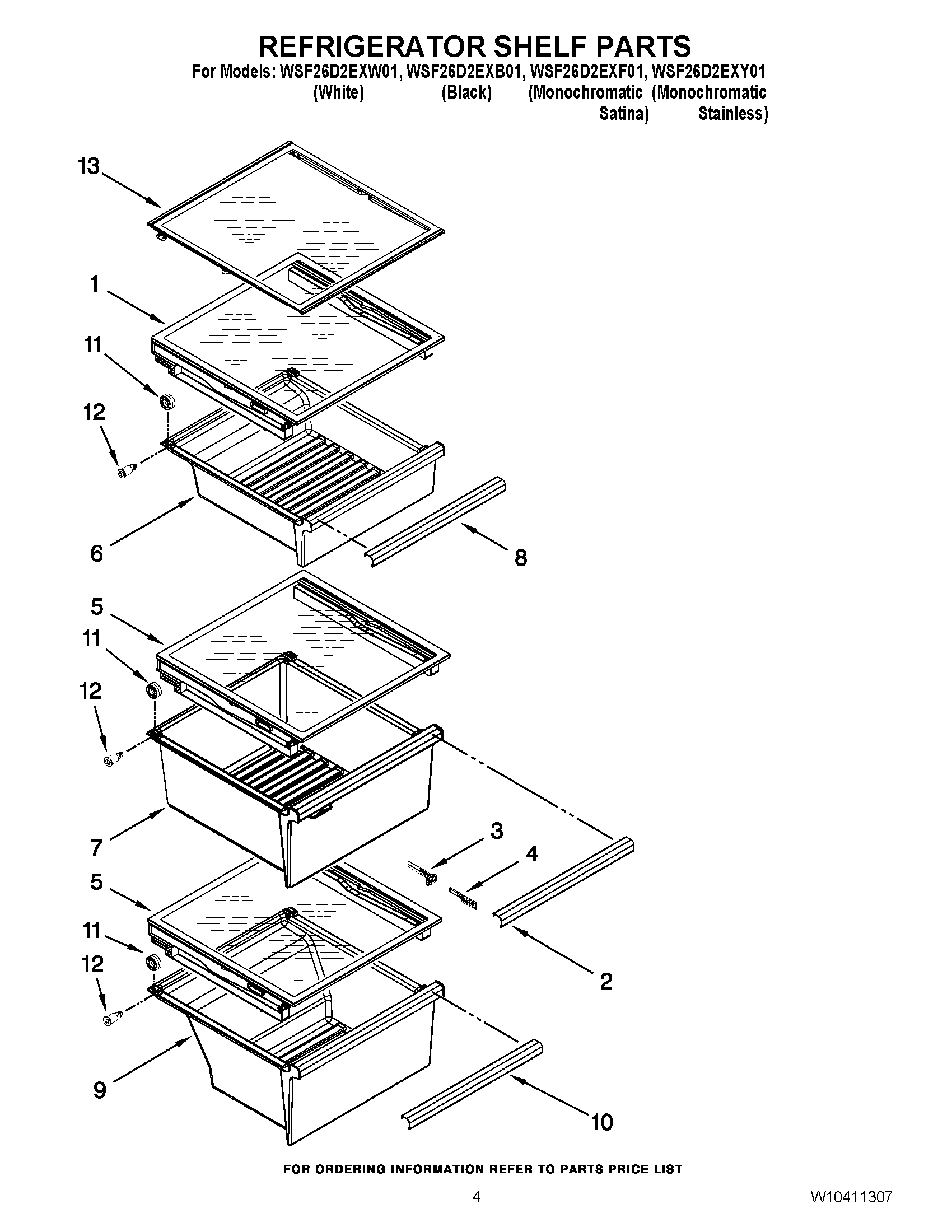

03 - REFRIGERATOR SHELF PARTS
Common parts from model Whirlpool WSF26D2EXW01 REFRIGERATOR
3
BRACKET, ICE DOOR WPL W10174827 Contact Us For Availability
3
SHELF, GLASS UPPER WPL W10238483 Contact Us For Availability
5
SHELF, GLASS LOWER WPL W10269145 Contact Us For Availability
5
AIR DUCT FREEZER WPL W10251474 Contact Us For Availability
5
WIRING ASSEMBLY, ICE DISPENSER WPL W10298085 Contact Us For Availability
6
Screw WPL W10001240 Contact Us For Availability
7
STRAP, COMPRESSOR WPL W10236396 Contact Us For Availability
9
TRIM RING (MIDNIGHT GREY) WPL W10276227 Contact Us For Availability
9
GASKET, EVAPORATOR COVER WPL W10240370 Contact Us For Availability
9
TRIM RING (BLACK) WPL W10276187 Contact Us For Availability
10
Cup, Water Fill WPL W10122561 Contact Us For Availability
11
EJECTOR WPL W10318914 Contact Us For Availability
12
COVER, EVAPORATOR (INCLUDES No.9) WPL W10239739 Contact Us For Availability
13
BLADE, ROTARY WPL W10278731 Contact Us For Availability
13
TRAY, HOUSING (WHITE) WPL W10276193 Contact Us For Availability
13
TRAY, HOUSING (BLACK) WPL W10276194 Contact Us For Availability
13
SHELF ASSY WPL W10269136 Contact Us For Availability
13
LENS, TOP LIGHT WPL W10280420 Contact Us For Availability
14
FRONT COVER (BLACK) WPL W10276229 Contact Us For Availability
14
BLADE, ROTARY WPL W10278732 Contact Us For Availability
14
COVER, DOOR STOP (BLACK) WPL W10257216 Contact Us For Availability
15
BLADE, ROTARY WPL W10278733 Contact Us For Availability
15
BOTTOM HINGE (FC) (BLACK) WPL W10249941 Contact Us For Availability
15
THERMOSTAT (ALSO ORDER 542369 CEMENT ALUMILAS WPL 628532 Contact Us For Availability
15
BIN, UPPER WPL W10316652 Contact Us For Availability
16
Screw WPL 8533917 Contact Us For Availability
16
WASHER, PLAIN WPL W10189660 Contact Us For Availability
17
Clamp WPL 2161324 Contact Us For Availability
18
HARNESS, WIRING WPL W10242433 Contact Us For Availability
19
Roll Pin WPL 489229 Contact Us For Availability
19
AIR FILTER HOUSING WPL W10342986 Contact Us For Availability
20
SCREW WPL 489136 Contact Us For Availability
21
FILLER, WRAPPER (WHITE) WPL 12587703W Contact Us For Availability
23
SUPPORT PLATE, COMPRESSOR WPL W10277704 Contact Us For Availability
25
Spring, Return WPL 1119020 Contact Us For Availability
26
Retainer Clip, Rod WPL 1119021 Contact Us For Availability
27
UNIT COVER, BOTTOM WPL W10278140 Contact Us For Availability
28
DRAIN FITTING WPL W10370680 Contact Us For Availability
30
Washer, Plain WPL 489234 Contact Us For Availability
100
ICE CONTAINER (COMPLETE) WPL W10332460 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. WHITE) WPL 72017 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. WHITE) WPL 350930 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. BLACK) WPL 72032 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2oz.) (Biscuit) WPL 4392899 Contact Us For Availability
NI
VALVE, ACCESS (3/16``) WPL 876764 Contact Us For Availability
NI
SEALER, GUM (4 FEET) WPL 212643 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (BISCUIT) WPL 4392901 Contact Us For Availability
NI
Valve, Access (5/16``) WPL 978026 Contact Us For Availability
NI
Valve, Access (3/8``) WPL 978027 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2oz.) (Graphite) WPL 80051 Contact Us For Availability
NI
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
NI
VALVE, ACCESS (3/4``) WPL 978030 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 oz.) (Graphite) WPL 8171357 Contact Us For Availability
NI
Kit, Terminal Connector WPL 833938 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (PRIMER, WH WPL 350942 Contact Us For Availability
NI
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
NI
PAINT, BULK (1 QT. WHITE) WPL 799344 Contact Us For Availability
NI
Torx Key WPL 1117510 Contact Us For Availability
× ![]()
