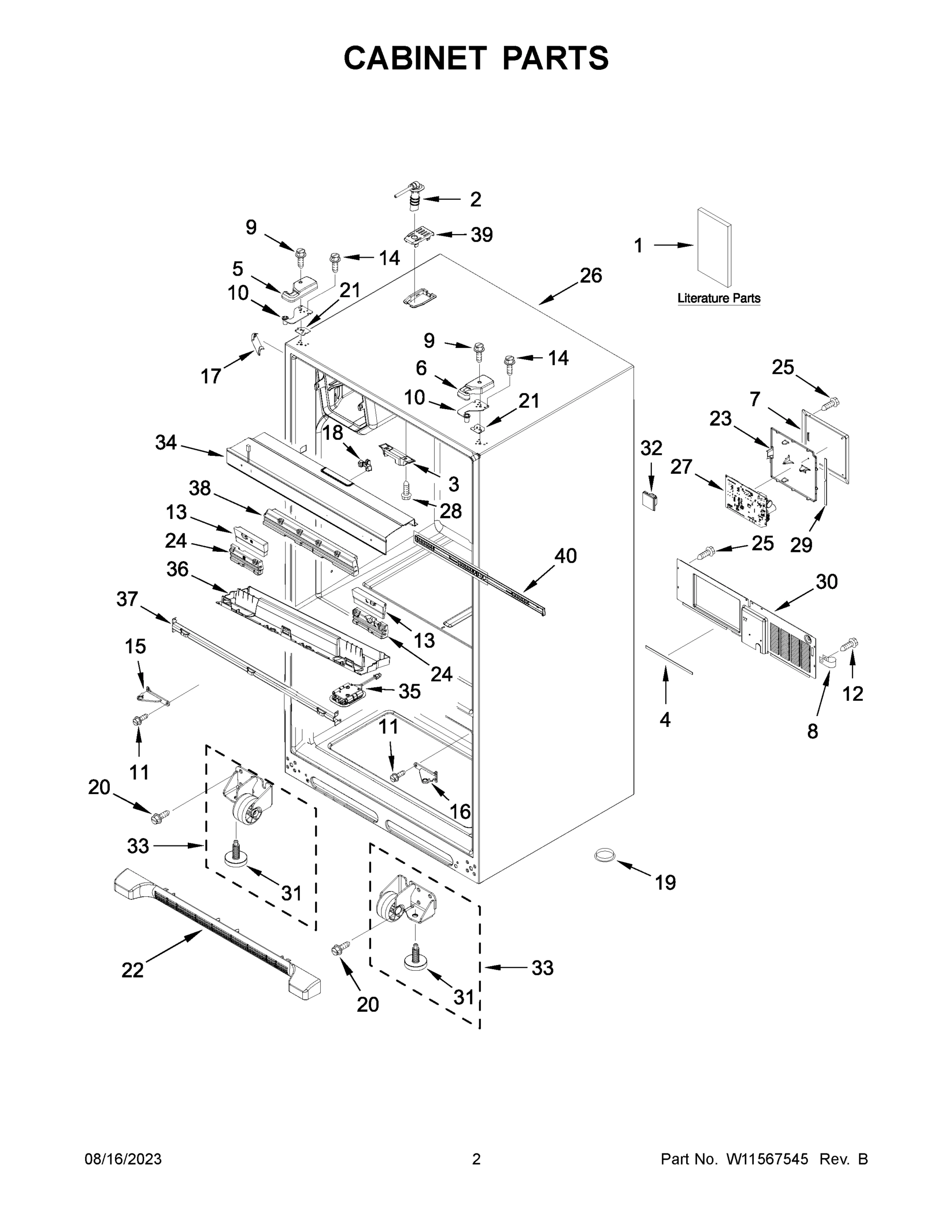

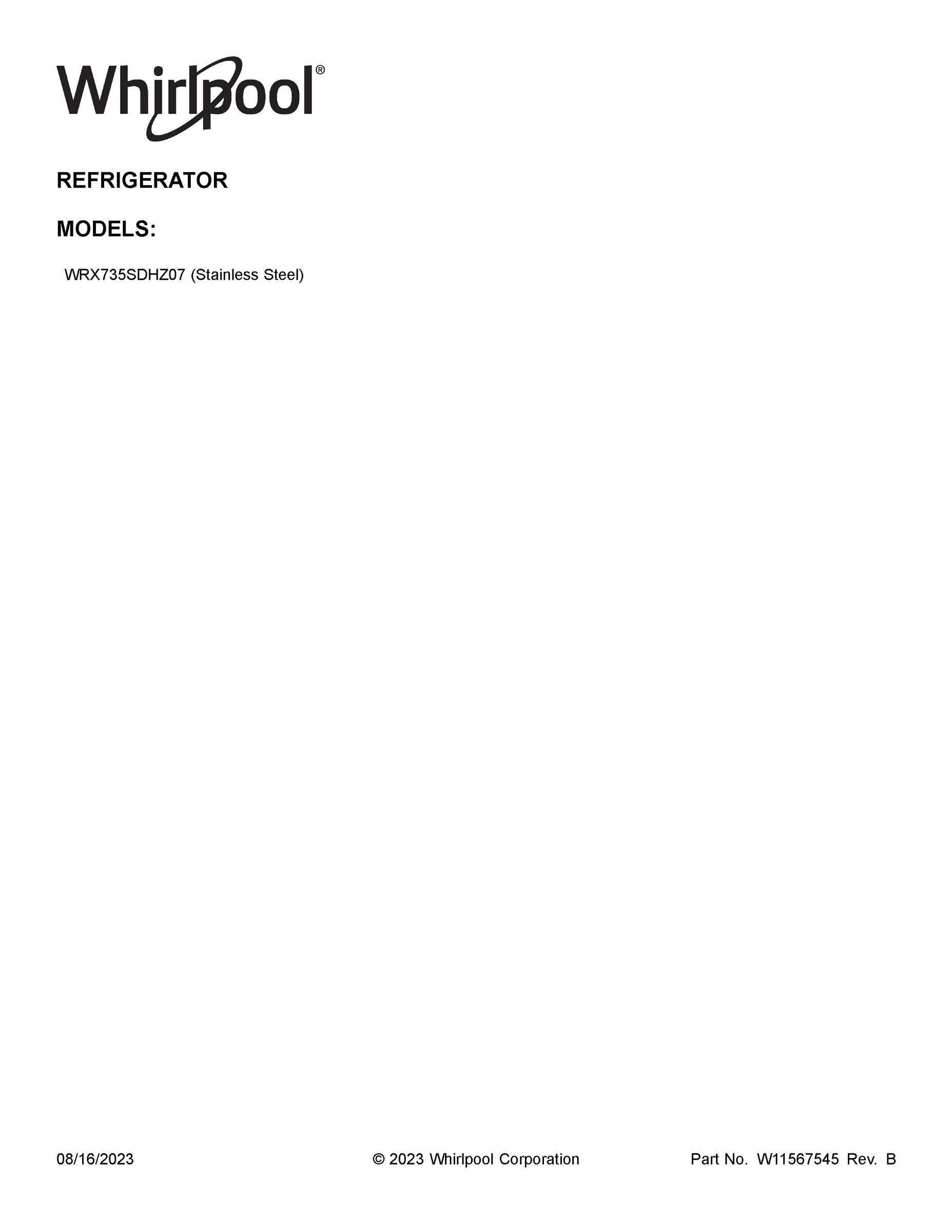

Model Whirlpool WRX735SDHZ07 REFRIGERATOR, ALL – Common Parts &amp; Diagrams

1

W11185686 Whirlpool Ice Bucket Assembly In Stock WPL W11185686 $191.59

1

HOUSING, DISPENSER (NOT SERVICED) WPL ARI0820F7799426DB23CC858392159B72FE Contact Us For Availability

2

W10121282 Whirlpool Refrigerator Insert Backorder WPL W10121282 $10.16

2

W11415785 Whirlpool Refrigerator Water Fill T In Stock WPL W11415785 $40.44

2

W11556911 Whirlpool Refrigerator UI Panel Backorder WPL W11556911 $140.16

2

WP12825803 Whirlpool Refrigerator Fan Blade In Stock WPL WP12825803 $35.43

2

WPW10346891 Whirlpool Refrigerator Slide Backorder WPL WPW10346891 $95.19

2

WPW10714545 Whirlpool Refrigerator Freezer Do In Stock WPL WPW10714545 $101.59

2A

WPW10346890 Whirlpool Refrigerator Slide Backorder WPL WPW10346890 $95.24

3

12002497 Whirlpool Refrigerator Drawer Gear K In Stock WPL 12002497 $8.86

3

W10309863 Whirlpool Refrigerator Scroll Fan Backorder WPL W10309863 $32.83

3

W11045978 Whirlpool Refrigerator Shield Backorder WPL W11045978 $46.65

3

W11379148 Whirlpool Refrigerator Cantilever B Backorder WPL W11379148 $94.30

3

W11727651 Whirlpool Plate Assembly Backorder WPL W11727651 $39.55

3

WP8281136 Whirlpool Screw Backorder WPL WP8281136 $2.51

3

WPW10293682 Whirlpool Refrigerator Freezer Bi Backorder WPL WPW10293682 $97.11

4

W11395888 Whirlpool Refrigerator Bypass Filte In Stock WPL W11395888 $24.32

4

W11529245 Whirlpool Refrigerator Evaporator M In Stock WPL W11529245 $71.86

4

WPW10353848 Whirlpool Refrigerator Pad In Stock WPL WPW10353848 $125.28

4

PAN, DELI WPL W10366647 Contact Us For Availability

5

W10555984 Whirlpool Refrigerator Grille Backorder WPL W10555984 $14.60

5

W10852725 Whirlpool Refrigerator Grommet In Stock WPL W10852725 $3.70

5

W11028221 Whirlpool Refrigerator Shaft In Stock WPL W11028221 $11.31

5

W11290115 Whirlpool Refrigerator Light In Stock WPL W11290115 $31.09

5

W11706640 Whirlpool Bin Containment Lever In Stock WPL W11706640 $37.02

5

WPW10123444K Whirlpool Refrigerator Wheel Backorder WPL WPW10123444K $30.40

5

WPW10337648 Whirlpool Refrigerator Cover Backorder WPL WPW10337648 $12.22

5

WPW10396909 Whirlpool Refrigerator Front Pan Backorder WPL WPW10396909 $48.13

6

W10146439 Whirlpool Refrigerator Divider Backorder WPL W10146439 $15.90

6

W10165970 Whirlpool Refrigerator Clip Backorder WPL W10165970 $28.80

6

WPW10353552 Whirlpool Refrigerator Separator In Stock WPL WPW10353552 $97.61

7

12961602 Whirlpool Refrigerator Wire Cover Backorder WPL 12961602 $39.14

7

W11227371 Whirlpool Refrigerator Spigot Backorder WPL W11227371 $47.31

7

WPW10309869 Whirlpool Refrigerator Cover Backorder WPL WPW10309869 $39.13

7

WPW10474716 Whirlpool Refrigerator Gear Backorder WPL WPW10474716 $10.87

7

GROMMET, FAN MOTOR WPL W10151687 Contact Us For Availability

7A

WPW10474715 Whirlpool Refrigerator Gear Backorder WPL WPW10474715 $10.96

8

W10830274 Whirlpool Door Gasket In Stock WPL W10830274 $112.05

8

WPW10309864 Whirlpool Refrigerator Divider In Stock WPL WPW10309864 $41.85

8

WPW10435760 Whirlpool Refrigerator Ice Guide In Stock WPL WPW10435760 $8.45

8

WPW10443326 Whirlpool Refrigerator FIP Gasket In Stock WPL WPW10443326 $121.95

8

WPW10655368 Whirlpool Refrigerator Drip Pan In Stock WPL WPW10655368 $54.66

9

W10348259 Whirlpool Refrigerator Bracket Asse Backorder WPL W10348259 $30.38

9

W11192301 Whirlpool Refrigerator Drip Tray Backorder WPL W11192301 $34.66

9

WP67006341 Whirlpool Refrigerator Gasket In Stock WPL WP67006341 $3.70

9A

W10348260 Whirlpool Refrigerator Bracket Backorder WPL W10348260 $30.38

W11093713 Whirlpool Refrigerator Adapter Backorder WPL W11093713 $72.53

W11223753 Whirlpool Refrigerator Nameplate In Stock WPL W11223753 $39.33

W11592375 Whirlpool Door Hinge Backorder WPL W11592375 $10.07

W11666461 Whirlpool Water Tube Backorder WPL W11666461 $31.44

W11671282 Whirlpool Refrigerator Ice Auger Mo In Stock WPL W11671282 $65.49

WPW10267863 Whirlpool Refrigerator Drip Tray Backorder WPL WPW10267863 $34.73

10A

W11093714 Whirlpool Refrigerator Adapter Backorder WPL W11093714 $71.75

10A

W11592374 Whirlpool Refrigerator Top Door Hin Backorder WPL W11592374 $10.07

W10254277 Whirlpool Cover Assembly Backorder WPL W10254277 $26.21

W10308421 Whirlpool Refrigerator Evaporator C Backorder WPL W10308421 $102.86

WPW10196393 Whirlpool Control Damper In Stock WPL WPW10196393 $74.68

GEAR, SPUR WPL W10277360 Contact Us For Availability

W10284709 Whirlpool Refrigerator Cover Backorder WPL W10284709 $26.21

WPW10205979 Whirlpool Refrigerator Ice Door M In Stock WPL WPW10205979 $37.17

WPW10287601 Whirlpool Seal In Stock WPL WPW10287601 $14.38

WPW10309866 Whirlpool Refrigerator Solenoid In Stock WPL WPW10309866 $68.93

12A

W10294414 Whirlpool Refrigerator Cover Backorder WPL W10294414 $30.14

2006254 Whirlpool Refrigerator Screw Backorder WPL 2006254 $8.09

W11676504 Whirlpool Insert Assembly Backorder WPL W11676504 $12.77

WPW10272364 Whirlpool Refrigerator Screw In Stock WPL WPW10272364 $4.56

WPW10311757 Whirlpool Door Guide In Stock WPL WPW10311757 $70.61

WPW10330991 Whirlpool Refrigerator Bracket In Stock WPL WPW10330991 $42.00

WEDGE, SPACER (LEFT HAND & RIGHT HAND) WPL W10316403 Contact Us For Availability

13A

WPW10330993 Whirlpool Refrigerator Bracket Backorder WPL WPW10330993 $56.13

14

67006425 Whirlpool Refrigerator Screw In Stock WPL 67006425 $2.51

14

W11449276 Whirlpool Handle Support In Stock WPL W11449276 $9.59

14

WP12028505AP Whirlpool Closing Cam In Stock WPL WP12028505AP $29.12

15

W10346971 Whirlpool Refrigerator Bracket Backorder WPL W10346971 $29.48

15

W10802341 Whirlpool Refrigerator Shaft Backorder WPL W10802341 $34.26

16

12996601 Whirlpool Refrigerator Bushing Clip Backorder WPL 12996601 $6.92

16

W11378860 Whirlpool Refrigerator Spacer In Stock WPL W11378860 $6.19

17

WP12587703AP Whirlpool Refrigerator Filler Backorder WPL WP12587703AP $3.70

17

WP63052-2 Whirlpool Refrigerator Impeller In Stock WPL WP63052-2 $28.80

17

WPW10277361 Whirlpool Refrigerator Collar Backorder WPL WPW10277361 $4.28

18

W10827867 Whirlpool Refrigerator Knob Backorder WPL W10827867 $27.94

18

W11548539 Whirlpool Air Baffle Backorder WPL W11548539 $21.76

18A

W11506623 Whirlpool Refrigerator Coupler In Stock WPL W11506623 $11.51

18B

W11504432 Whirlpool Refrigerator Coupler In Stock WPL W11504432 $13.58

19

W10273464 Whirlpool Refrigerator Ladder Backorder WPL W10273464 $11.03

19

W10355269 Whirlpool Cantilever Bin Backorder WPL W10355269 $39.73

19

W11548540 Whirlpool Refrigerator Icemaker In Stock WPL W11548540 $124.03

20

W10316760 Whirlpool Thermistor Kit In Stock WPL W10316760 $32.54

20

W11159728 Whirlpool Refrigerator Gasket In Stock WPL W11159728 $10.10

12999501 Whirlpool Refrigerator Hinge Shim In Stock WPL 12999501 $33.89

W11548538 Whirlpool Refrigerator Wire Harness In Stock WPL W11548538 $46.35

W11686675 Whirlpool Screw Backorder WPL W11686675 $8.11

WPW10284682 Whirlpool Refrigerator Bracket Backorder WPL WPW10284682 $47.84

21A

12999502 Whirlpool Refrigerator Hinge Shim Backorder WPL 12999502 $34.28

21A

WPW10284683 Whirlpool Refrigerator Bracket In Stock WPL WPW10284683 $72.92

22

WPW10534155 Whirlpool Refrigerator Gray Kickp In Stock WPL WPW10534155 $52.43

22A

W11504423 Whirlpool Refrigerator Coupler In Stock WPL W11504423 $15.90

22B

W11504415 Whirlpool Refrigerator Coupler In Stock WPL W11504415 $13.69

23

W10296541 Whirlpool Refrigerator Wire Cover Backorder WPL W10296541 $13.60

24

W10316401 Whirlpool Refrigerator Insulation Backorder WPL W10316401 $26.21

24

WPW10296571 Whirlpool Glass Shelf Assembly Backorder WPL WPW10296571 $115.33

26

W10311723 Whirlpool Refrigerator Rail Backorder WPL W10311723 $48.73

26A

W11715934 Whirlpool Rail Backorder WPL W11715934 $15.87

27A

W11504445 Whirlpool Refrigerator Coupler In Stock WPL W11504445 $15.56

27B

W11504447 Whirlpool Refrigerator Coupler In Stock WPL W11504447 $23.61

28A

W11504416 Whirlpool Refrigerator Coupler In Stock WPL W11504416 $14.57

28B

W11504431 Whirlpool Microwave Coupler In Stock WPL W11504431 $14.24

28C

W11506621 Whirlpool Refrigerator Coupler In Stock WPL W11506621 $11.51

28D

W11506635 Whirlpool Refrigerator Valve Couple In Stock WPL W11506635 $20.70

29

WP98165 Whirlpool Screw Backorder WPL WP98165 $2.51

30

W10311725 Whirlpool Refrigerator Cover Backorder WPL W10311725 $9.88

30

WPW10270394 Whirlpool Refrigerator Back Cover Backorder WPL WPW10270394 $77.72

31

WPW10141622 Whirlpool Leveler In Stock WPL WPW10141622 $3.70

32

WPW10350564 Whirlpool Refrigerator Freezer Ca In Stock WPL WPW10350564 $42.93

33

W10236396 Whirlpool Refrigerator Strap Backorder WPL W10236396 $7.81

33

WPW10515763 Whirlpool Refrigerator Cabinet Ro In Stock WPL WPW10515763 $37.73

33A

WPW10515762 Whirlpool Refrigerator Cabinet Ro In Stock WPL WPW10515762 $37.39

35

W11683243 Whirlpool Module In Stock WPL W11683243 $104.46

37

W10492234 Whirlpool Refrigerator Brace Backorder WPL W10492234 $46.52

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $27.18

8003RP Whirlpool Refrigerator 25' 1/4" Copper In Stock WPL 8003RP $21.98

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

876370 Whirlpool Refrigerator Insulation Backorder WPL 876370 $96.00

W10134625 Whirlpool Refrigerator Touch-Up Pai In Stock WPL W10134625 $7.48

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $39.18

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $57.83

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $22.07

TOUCH-UP PAINT (MIDNIGHT GREY) WPL W10917540 Contact Us For Availability

MISCELLANEOUS, KIT, FOAM SLAB (30" X 32 1/2" WPL 876029 Contact Us For Availability

MISCELLANEOUS, TAPE, VINYL (3/4 X 108") WPL 479502 Contact Us For Availability

TORX SCREW WRENCH, TORX KEY WPL 1117510 Contact Us For Availability

MISCELLANEOUS, CEMENT, ALUMILASTIC (1 1/4 OZ. WPL 542639 Contact Us For Availability
