Model Whirlpool WRT519SZDG08 REFRIGERATOR – Common Parts & Diagrams
Common parts from model Whirlpool WRT519SZDG08 REFRIGERATOR

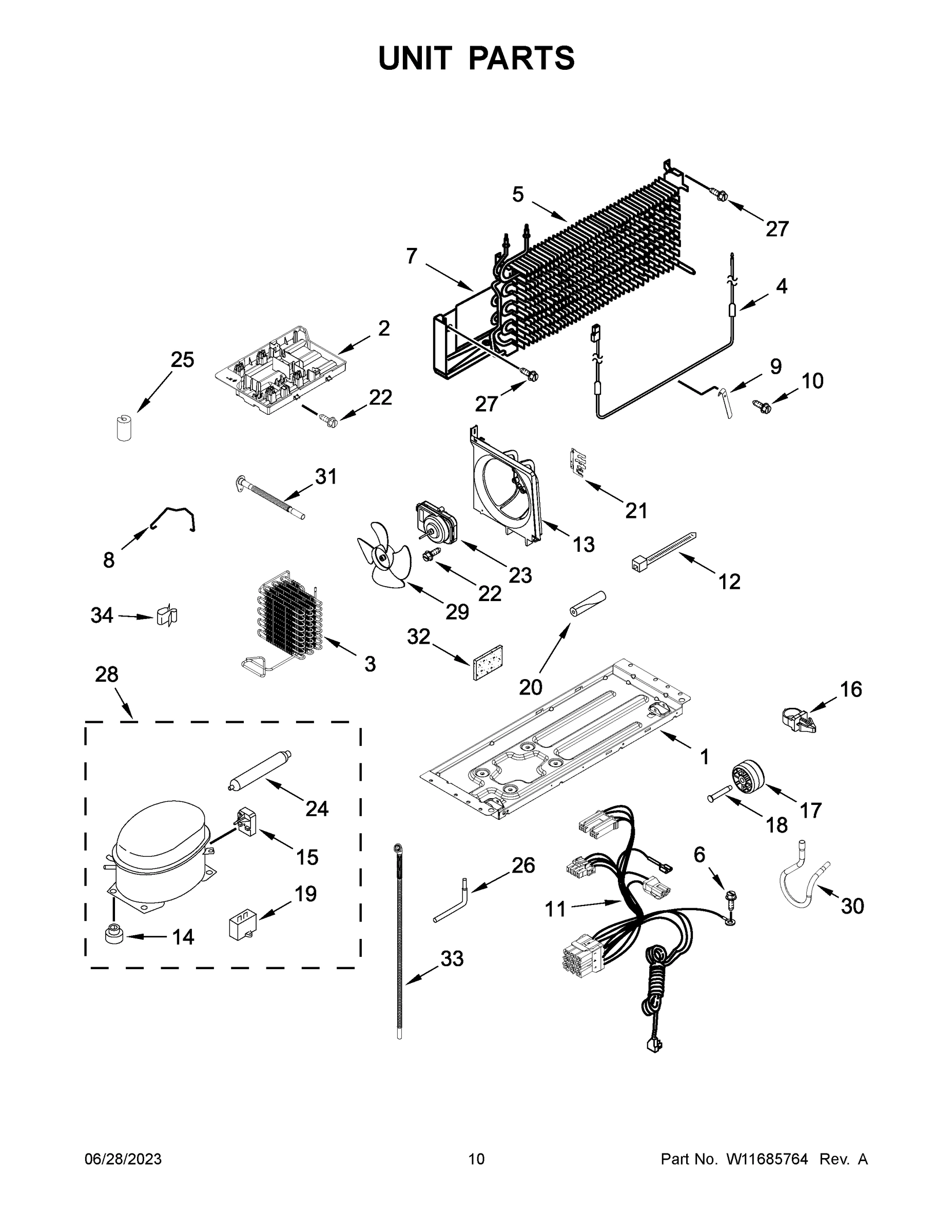

3B

5 NK MS 00 (SUCTION LINE TO CONDENSER) WPL W11506623 Contact Us For Availability
5A

(8/7 NR AL 00) (SUCTION LINE TO EVAPORATOR) WPL W11504419 Contact Us For Availability

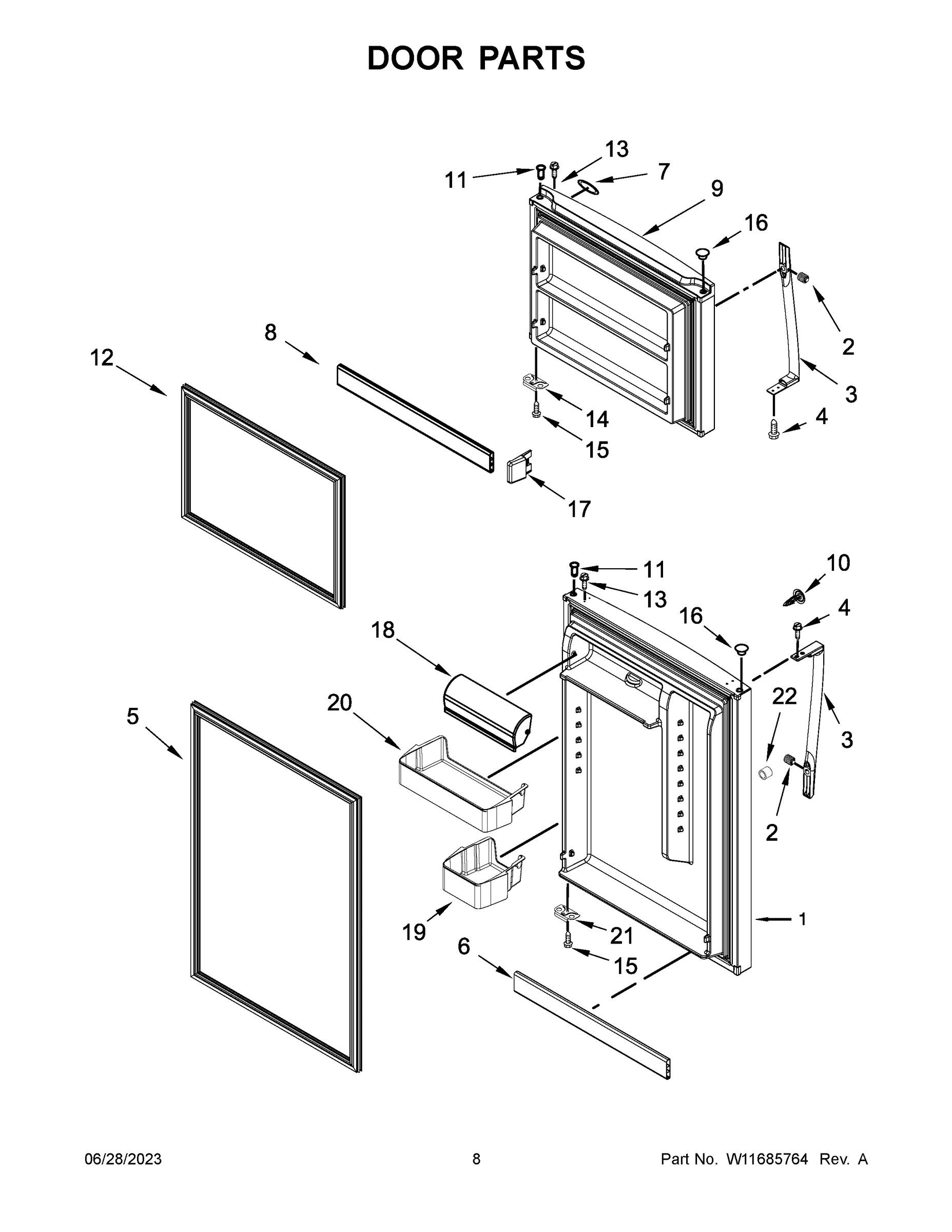

6

TRIM, DOOR WPL W10592149 Contact Us For Availability
8

TRIM, DOOR WPL W10592151 Contact Us For Availability
16

SHIM, TOP HINGE WPL W10883637 Contact Us For Availability
16

PLUG, HOLE (GREY) WPL 2254517 Contact Us For Availability
24A

5/4 NR MS 00 (HIGH SIDE TO CONDENSER) WPL W11504445 Contact Us For Availability
24B

4/2 NR AL 00 (CAPILLARY TUBE TO EVAPORATOR) WPL W11504449 Contact Us For Availability
28A

8.5/8 NR MS 00 (SUCTION TUBE TO COMPRESSOR) WPL W11504415 Contact Us For Availability
28B

7/5 NR MS 00 (HIGH PRESSURE SIDE TO COMPRESSO WPL W11504431 Contact Us For Availability
28C

8 NK MS 00 (PROCESS TUBE TO COMPRESSOR) WPL W11506619 Contact Us For Availability
NI

SEALER, GUM (4 FEET) WPL 212643 Contact Us For Availability
NI

PAINT, TOUCH-UP (1/2OZ. WHITE PORCELAIN (2 OZ WPL 511873 Contact Us For Availability
NI

INSULATION (2 PIECES, 3" X 24" X 48") WPL 876370 Contact Us For Availability
NI

KIT, FOAM SLAB (30" X 32 1/2" X 1 1/2") WPL 876029 Contact Us For Availability
NI

KIT, TERMINAL CONNECTOR WPL 833938 Contact Us For Availability
NI

DOOR REVERSAL KIT STAINLESS MODEL WPL W10676240 Contact Us For Availability
NI

TAPE, VINYL (3/4 X 108") WPL 479502 Contact Us For Availability
NI

DOOR REVERSAL KIT, BISCUIT MODEL WPL W10691128 Contact Us For Availability
× ![]()
