Model Whirlpool WRS331FDDB02 REFRIGERATOR, SIDE-BY-SIDE – Common Parts & Diagrams

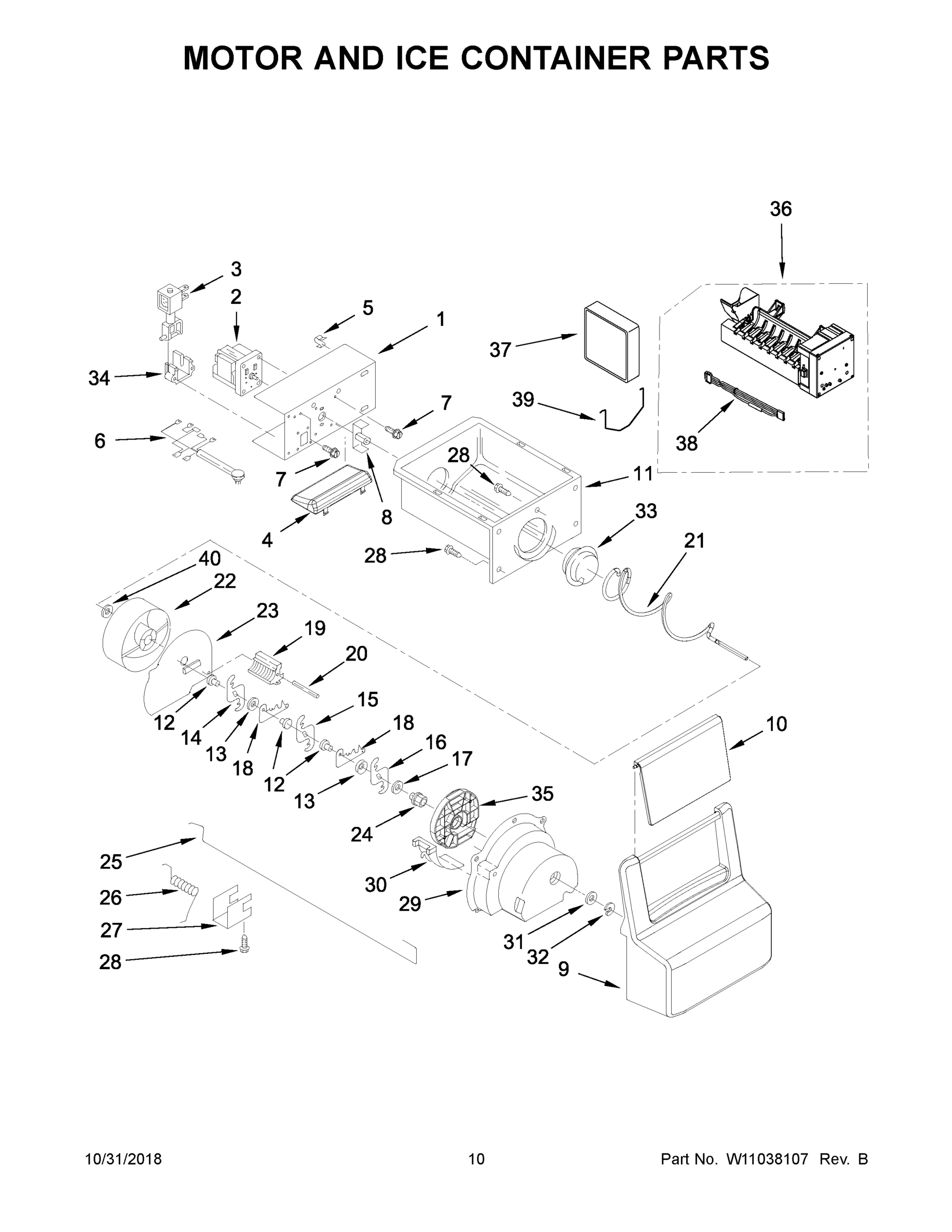

06 - MOTOR AND ICE CONTAINER PARTS

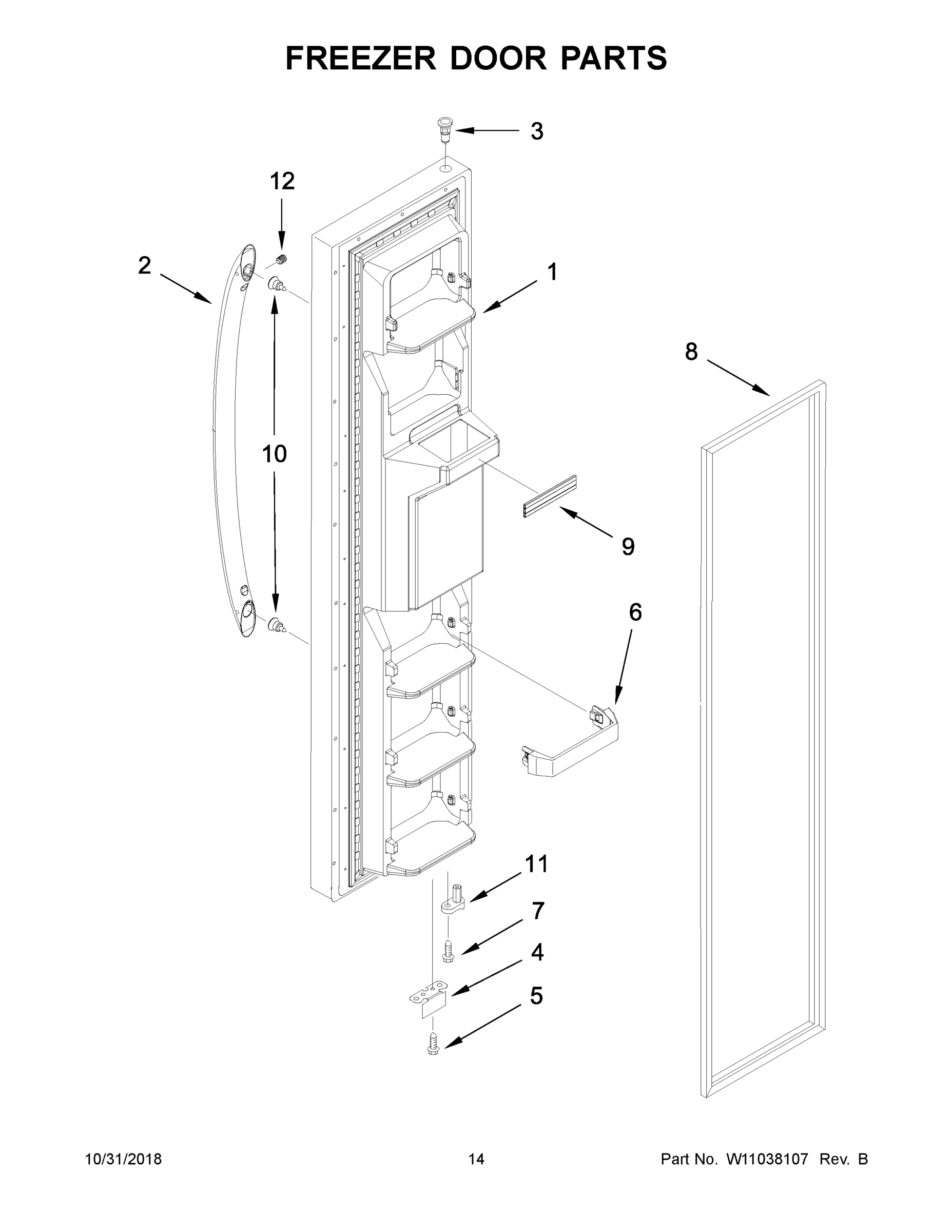

08 - FREEZER DOOR PARTS

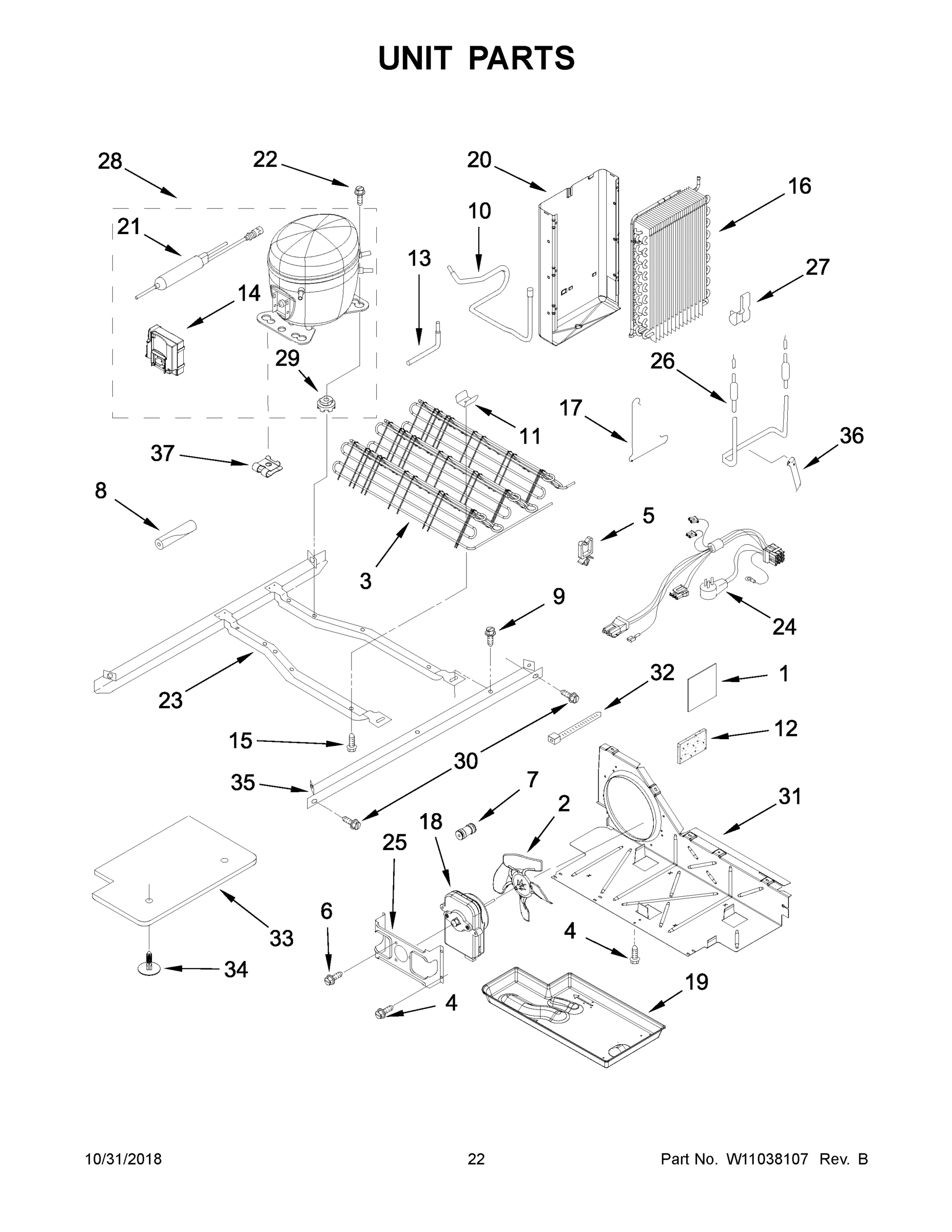

12 - UNIT PARTS
13 - OPTIONAL PARTS

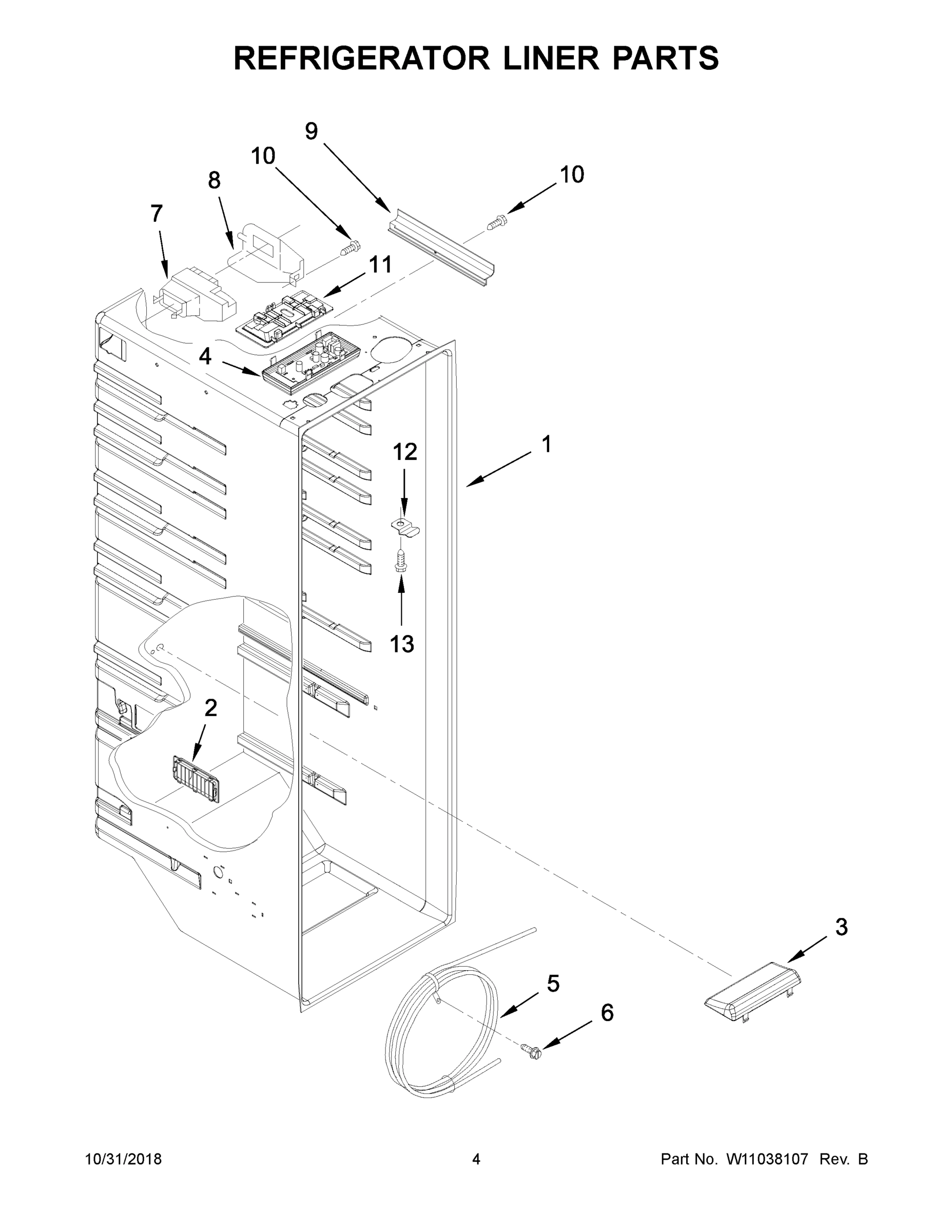

03 - REFRIGERATOR LINER PARTS

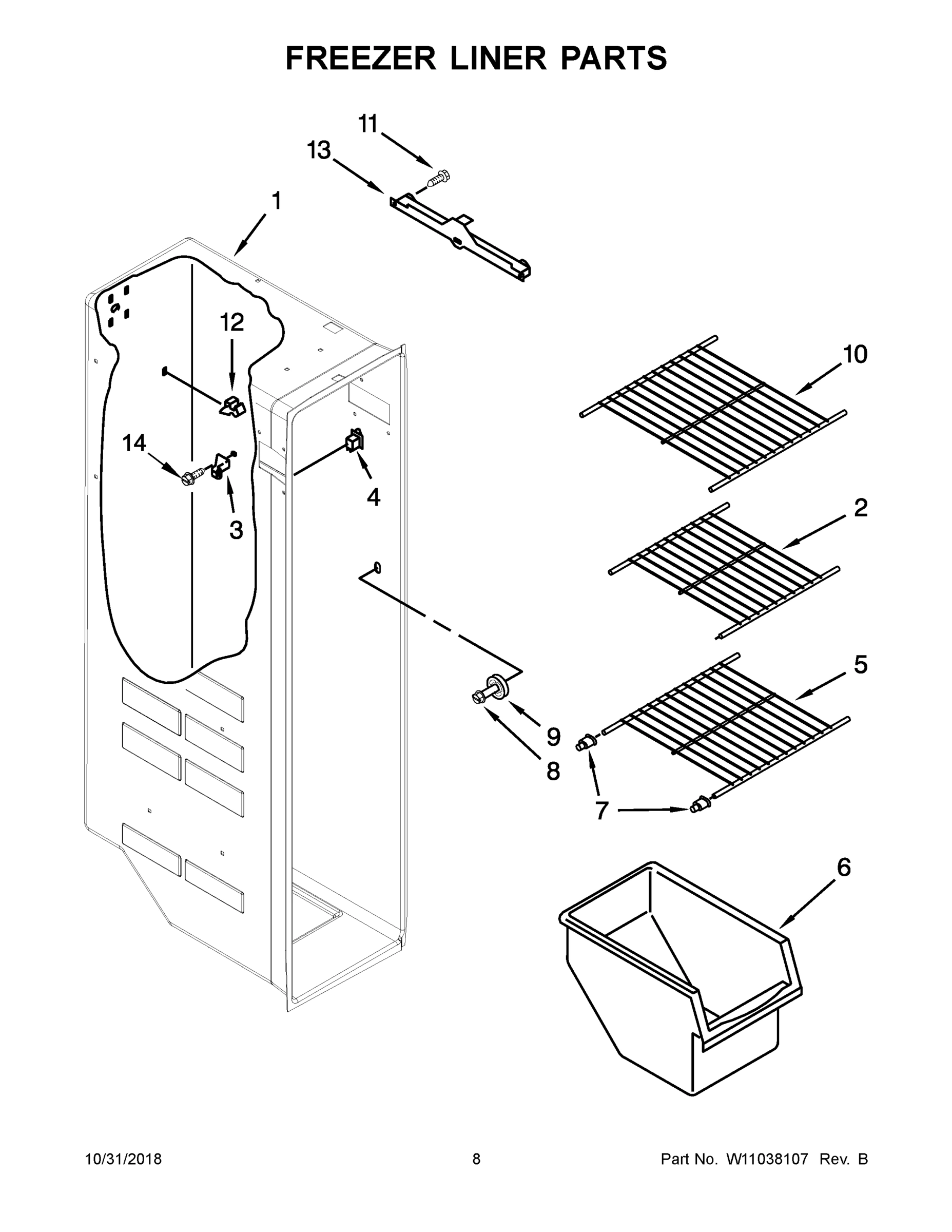

05 - FREEZER LINER PARTS

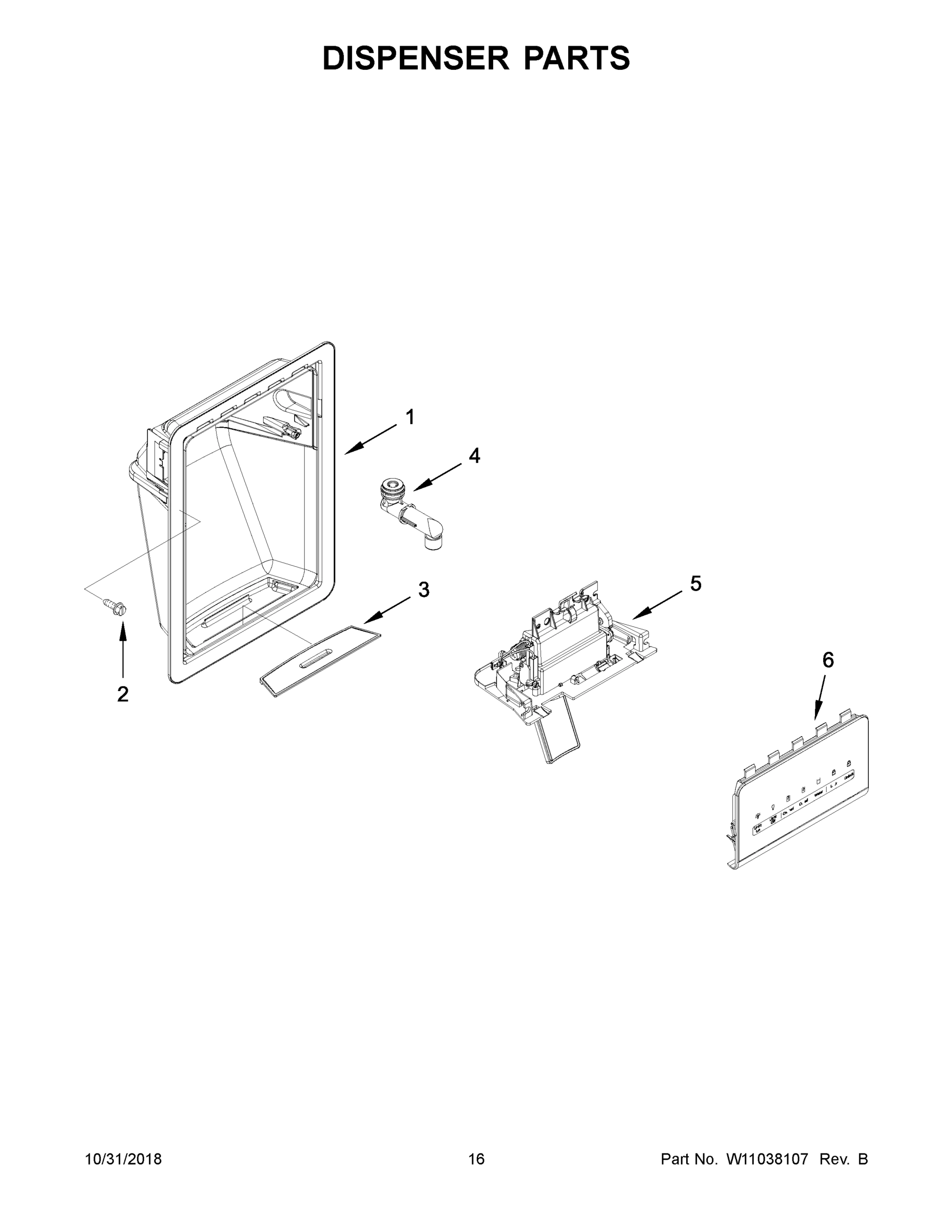

09 - DISPENSER PARTS

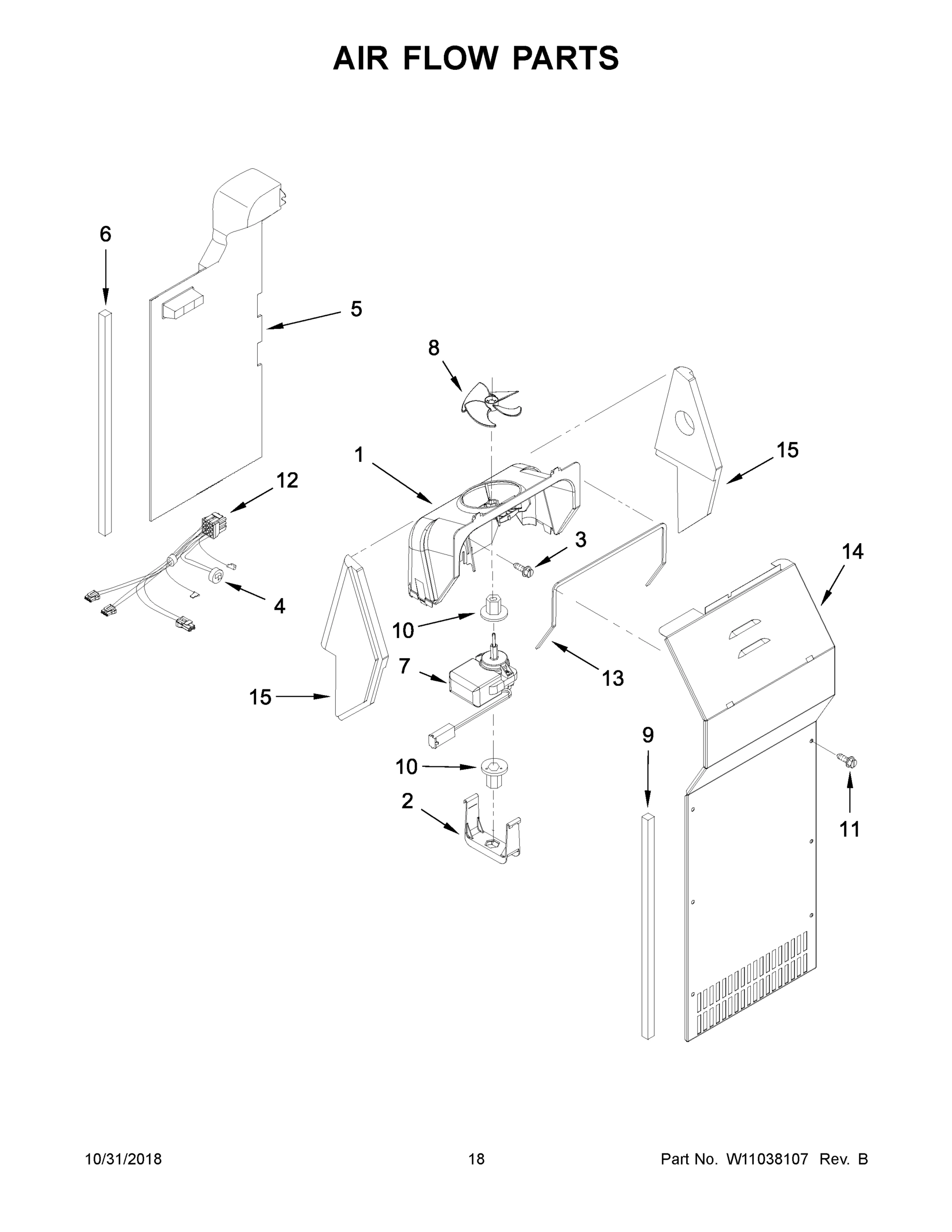

10 - AIR FLOW PARTS

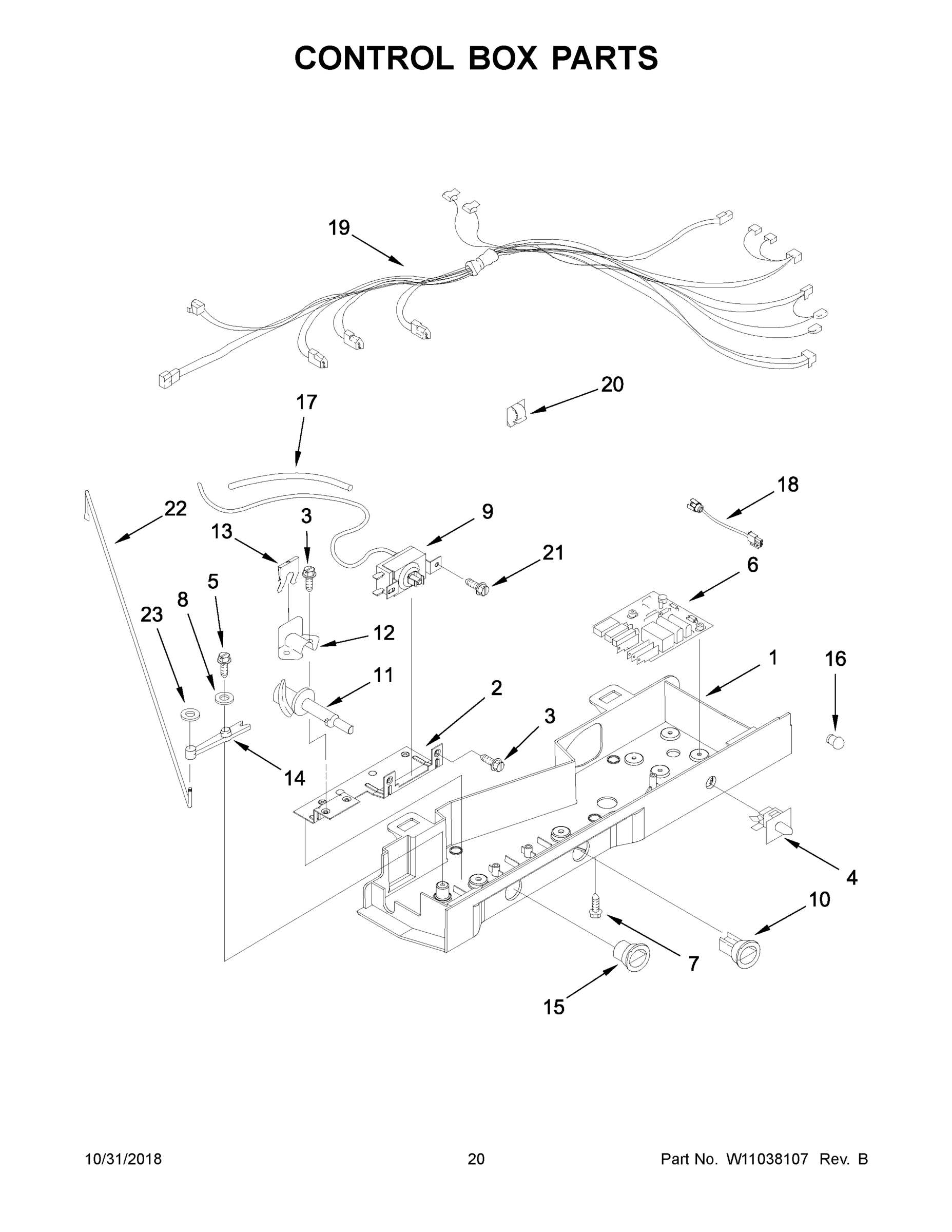

11 - CONTROL BOX PARTS

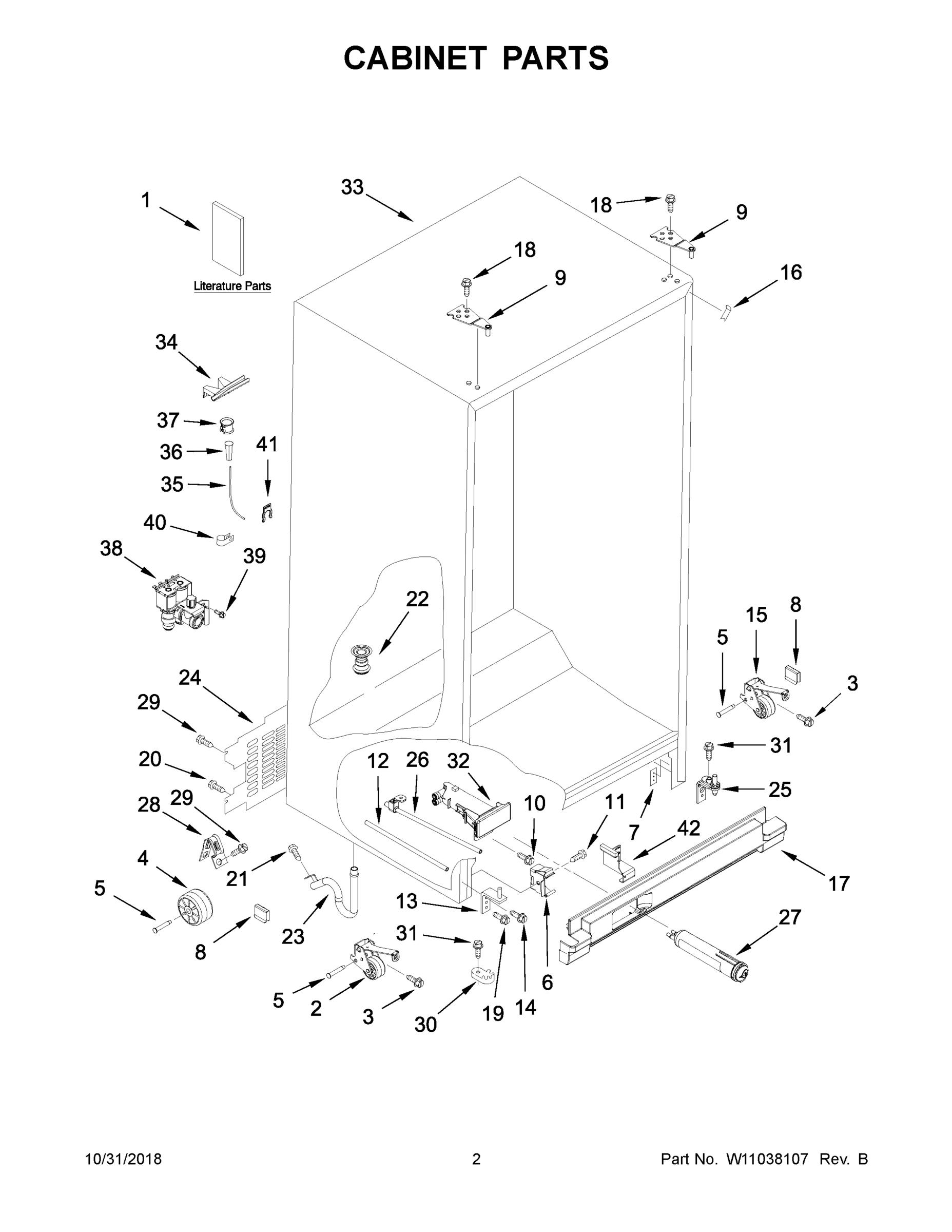

02 - CABINET PARTS

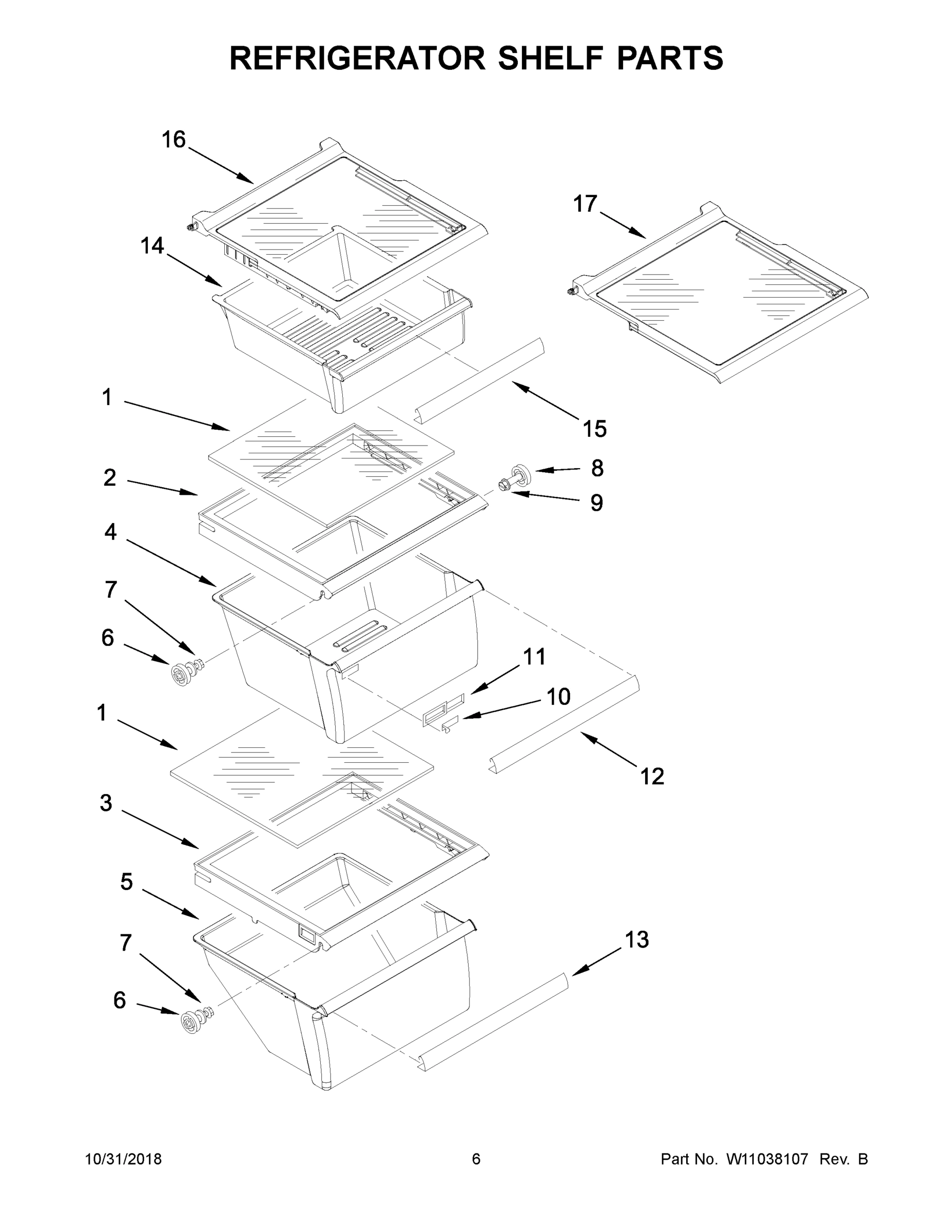

04 - REFRIGERATOR SHELF PARTS

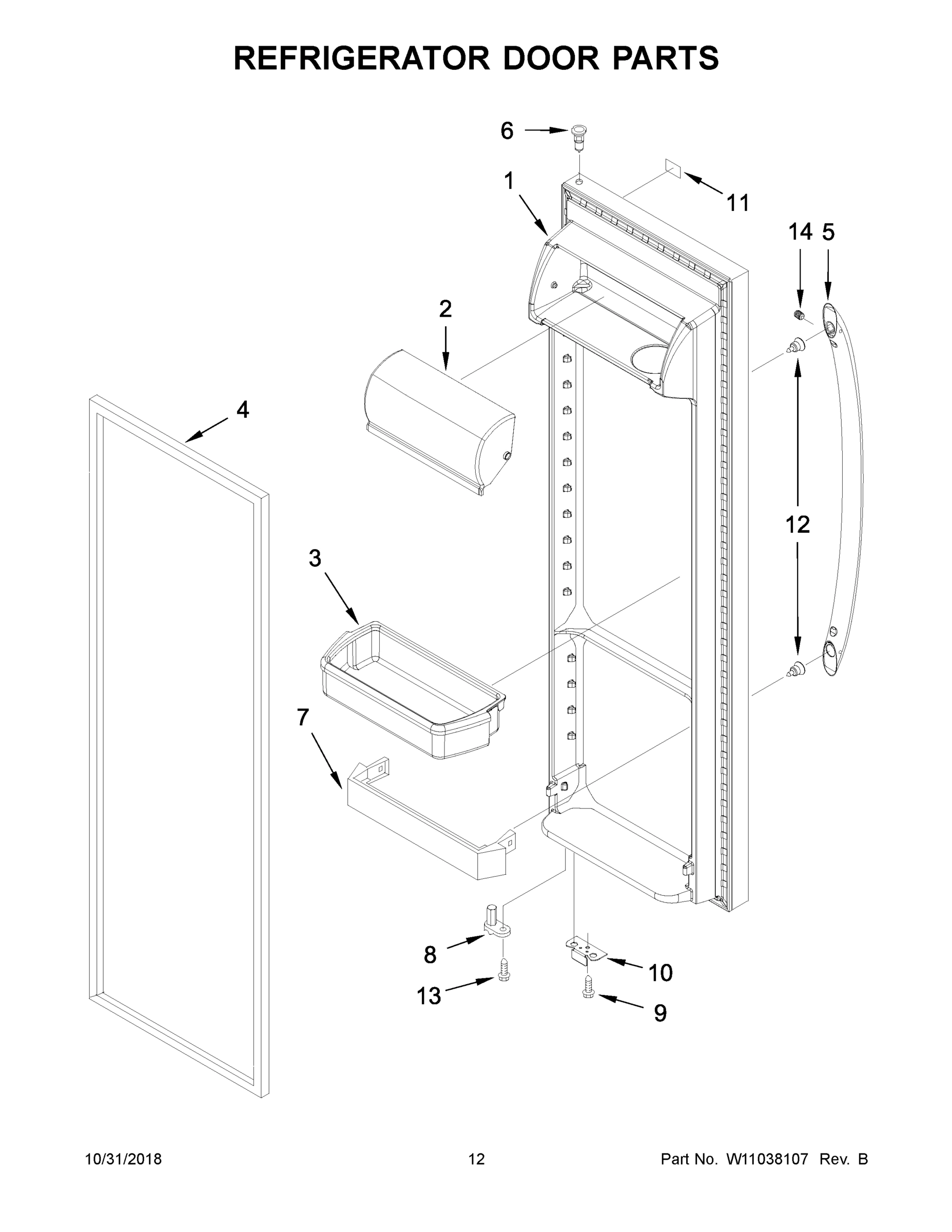

07 - REFRIGERATOR DOOR PARTS

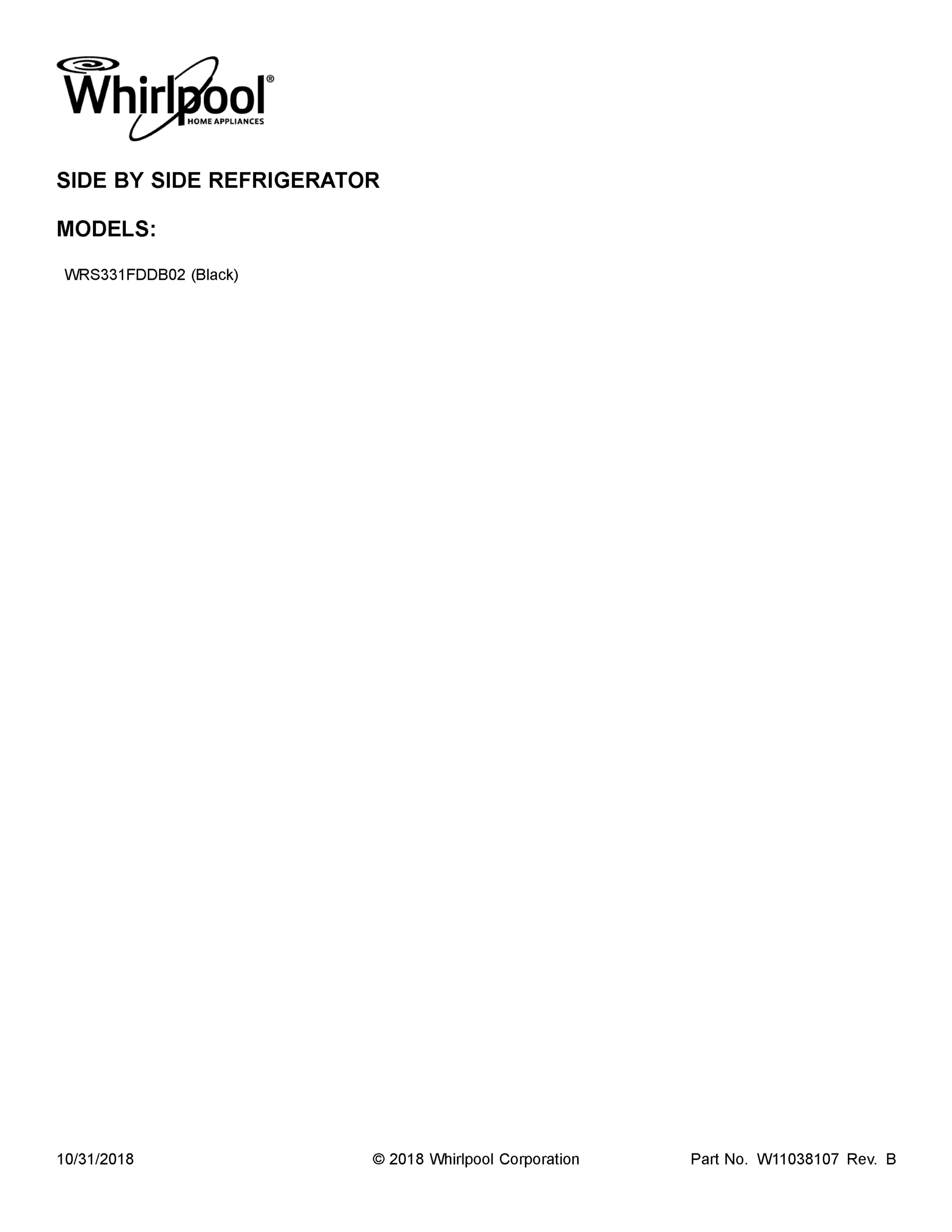

01 - COVER SHEET
Common parts from model Whirlpool WRS331FDDB02 REFRIGERATOR, SIDE-BY-SIDE
1

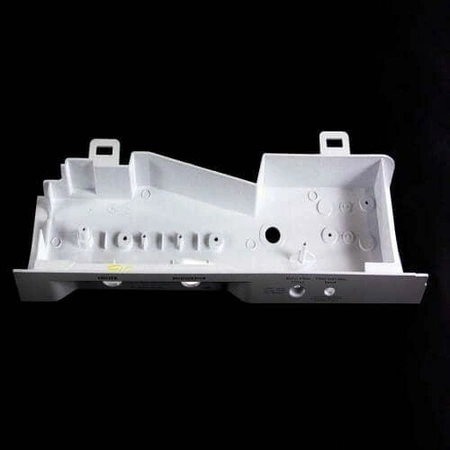

BOX, CONTROL WPL W10553058 Contact Us For Availability
2
BRACKET, MOUNTING WPL 2311611 Contact Us For Availability
3
ASSEMBLY, CONDENSER WPL 2324712 Contact Us For Availability
3
COVER, PAN WPL W10485332 Contact Us For Availability
5
DUCT, FREEZER AIR WPL W10166220 Contact Us For Availability
6
UI ASSEMBLY CONTROL (BLACK) WPL W10397957 Contact Us For Availability
6

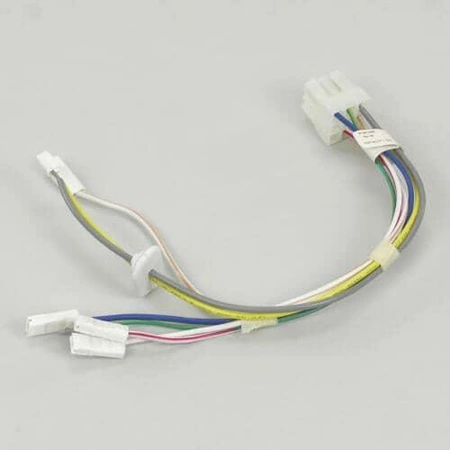

ASSEMBLY, ICE DISPENSER WIRING WPL W10871583 Contact Us For Availability
6
SCREW WPL W10141518 Contact Us For Availability
7
FAN MOTOR, EVAPORATOR WPL W10687326 Contact Us For Availability
8
COVER, AIR DIFFUSER WPL 2152019 Contact Us For Availability
8
SCREW WPL W10191952 Contact Us For Availability
9
COVER, ICE CONTAINER FRONT WPL W10189274 Contact Us For Availability
9
COVER, WIRING WPL W10252495 Contact Us For Availability
10
KNOB, THERMOSTAT WPL W10723843 Contact Us For Availability
10

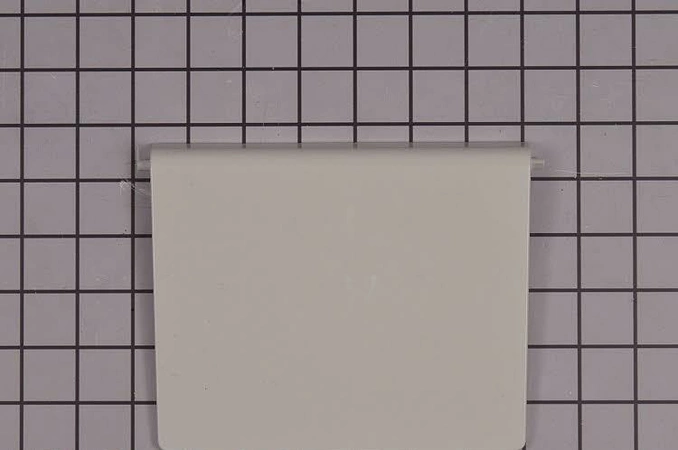

DOOR, ICE WPL W10406979 Contact Us For Availability
10
BRACKET, DOOR STOP (SILVER) WPL W10219801 Contact Us For Availability
11
THIMBLE, CAM WPL W10846219 Contact Us For Availability
12
SPACER, STEP WPL W11032812 Contact Us For Availability
12
BODY, BEARING WPL W10891600 Contact Us For Availability
12
CLIP, CONTROL BOX WPL 2311612 Contact Us For Availability
13
SLIDE, ICE CONTAINER (LEFT) WPL W10845585 Contact Us For Availability
13
SPACER, FLAT WPL W11032808 Contact Us For Availability
13A
SLIDE, ICE CONTAINER (RIGHT) WPL W10845583 Contact Us For Availability
14
BLADE, ROTARY A WPL W10278731 Contact Us For Availability
14
ARM, PIVOT WPL W10891599 Contact Us For Availability
15
BLADE, ROTARY B WPL W10278732 Contact Us For Availability
16
BLADE, ROTARY C WPL W10278733 Contact Us For Availability
16
LENS, LIGHT WPL 2200096 Contact Us For Availability
17
GRILLE (BLACK) WPL W10393045 Contact Us For Availability
17
CLIP, DEFROST HEATER WPL 2161324 Contact Us For Availability
19

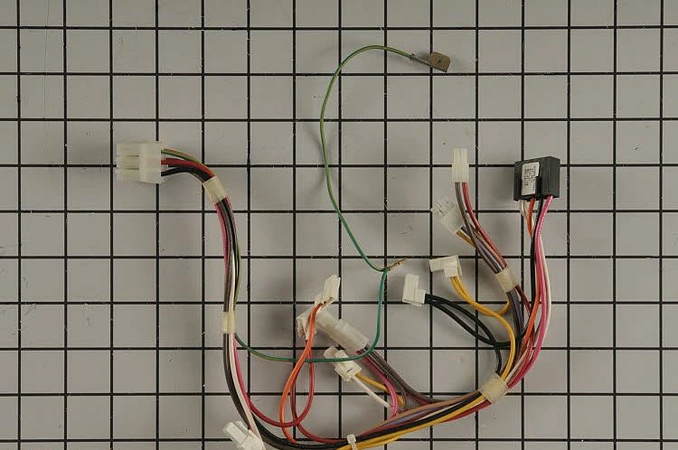

HARNESS, CONTROL BOX WPL W10667067 Contact Us For Availability
20
PIN, ROLL WPL 489229 Contact Us For Availability
22
SCREW WPL W10476309 Contact Us For Availability
22
ROD, CONNECTING WPL W10804348 Contact Us For Availability
26
SPRING, RETURN WPL 1119020 Contact Us For Availability
27
CLIP, RETAINER (DISPENSER ROD) WPL 1119021 Contact Us For Availability
28
COMPRESSOR WPL W11305045 Contact Us For Availability
30
CLOSER, DOOR (FREEZER) WPL W10846218 Contact Us For Availability
31
WASHER, PLAIN UPPER CAM WPL 489234 Contact Us For Availability
31
BAFFLE, AIR WPL W10332806 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. WHITE) WPL 72017 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. WHITE) WPL 350930 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. BLACK) WPL 72032 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. BISCUIT/BISQUE) WPL 4392899 Contact Us For Availability
NI
VALVE, ACCESS (3/16") WPL 876764 Contact Us For Availability
NI
MISCELLANEOUS, SEALER, GUM (4 FEET) WPL 212643 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12OZ. BISCUIT/BISQU WPL 4392901 Contact Us For Availability
NI
VALVE, ACCESS (5/16") WPL 978026 Contact Us For Availability
NI
VALVE, ACCESS (3/8") WPL 978027 Contact Us For Availability
NI
VALVE, ACCESS (5/8") WPL 978029 Contact Us For Availability
NI
VALVE, ACCESS (3/4") WPL 978030 Contact Us For Availability
NI
MISCELLANEOUS, KIT, TERMINAL CONNECTOR WPL 833938 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12OZ. WHITE PRIMER) WPL 350942 Contact Us For Availability
NI
MISCELLANEOUS, TAPE, VINYL (3/4 X 108") WPL 479502 Contact Us For Availability
NI
PAINT, BULK (1 QT. WHITE (UNCUT)) WPL 799344 Contact Us For Availability
NI
TORX SCREW WRENCH, TORX KEY WPL 1117510 Contact Us For Availability
× ![]()
