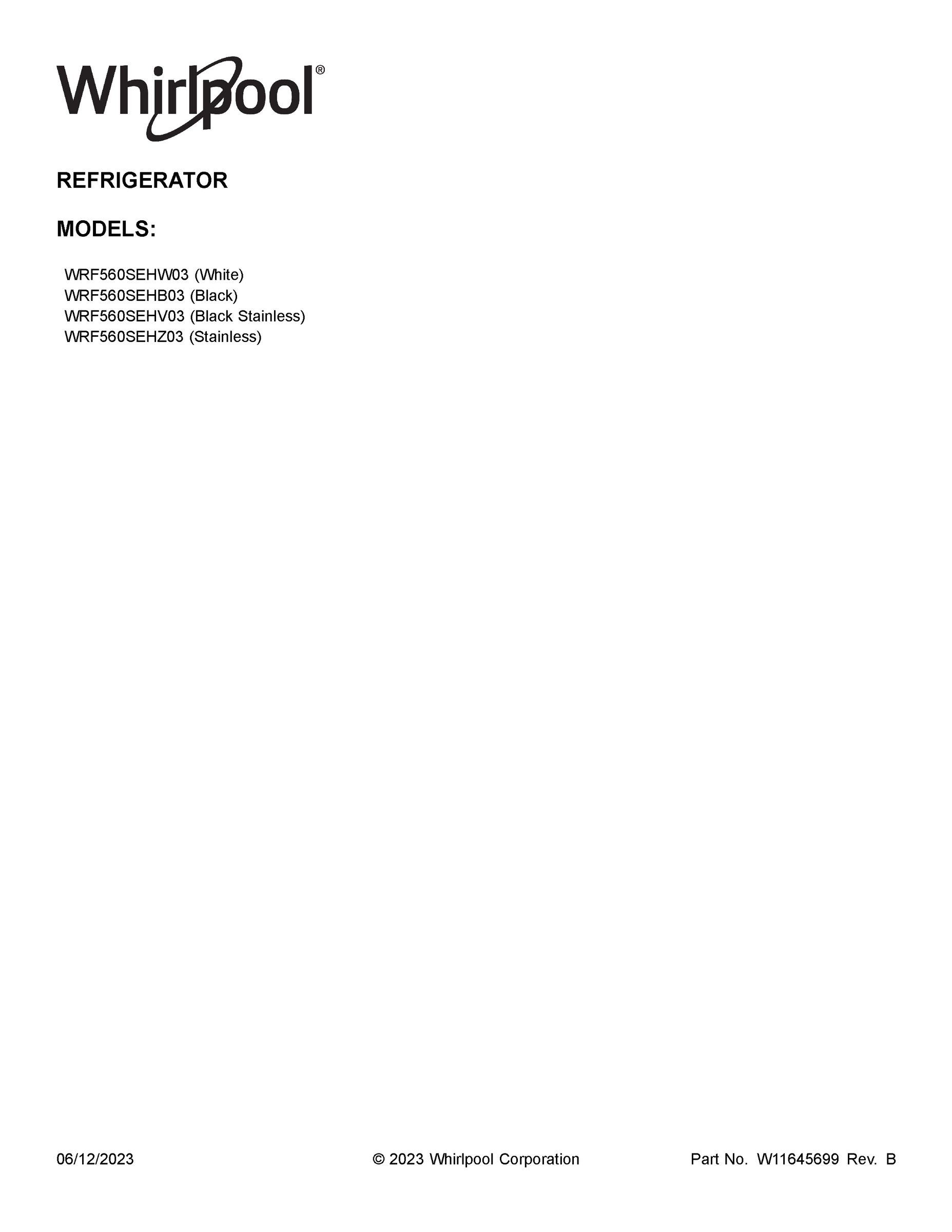

Model Whirlpool WRF560SEHW03 REFRIGERATOR, ALL – Common Parts &amp; Diagrams

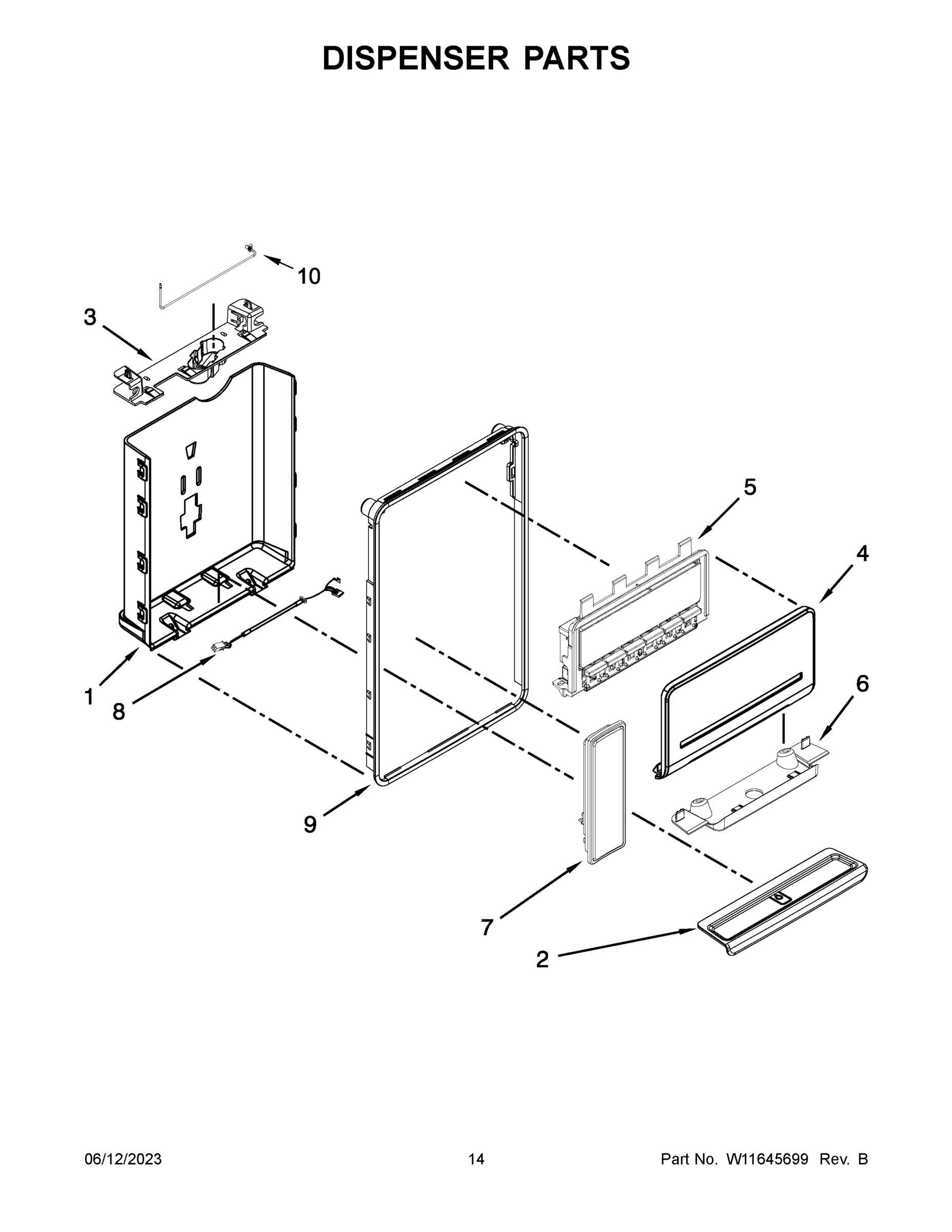

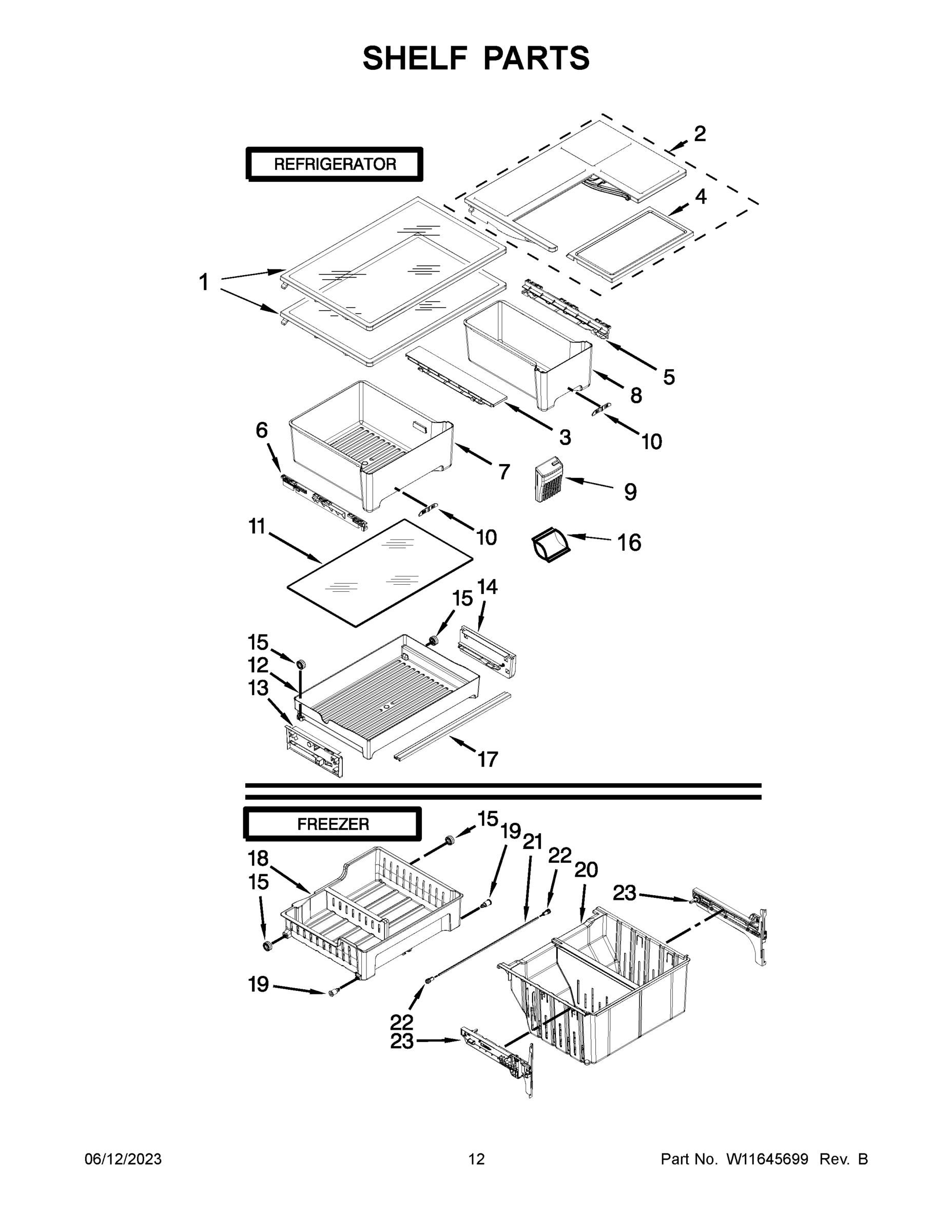

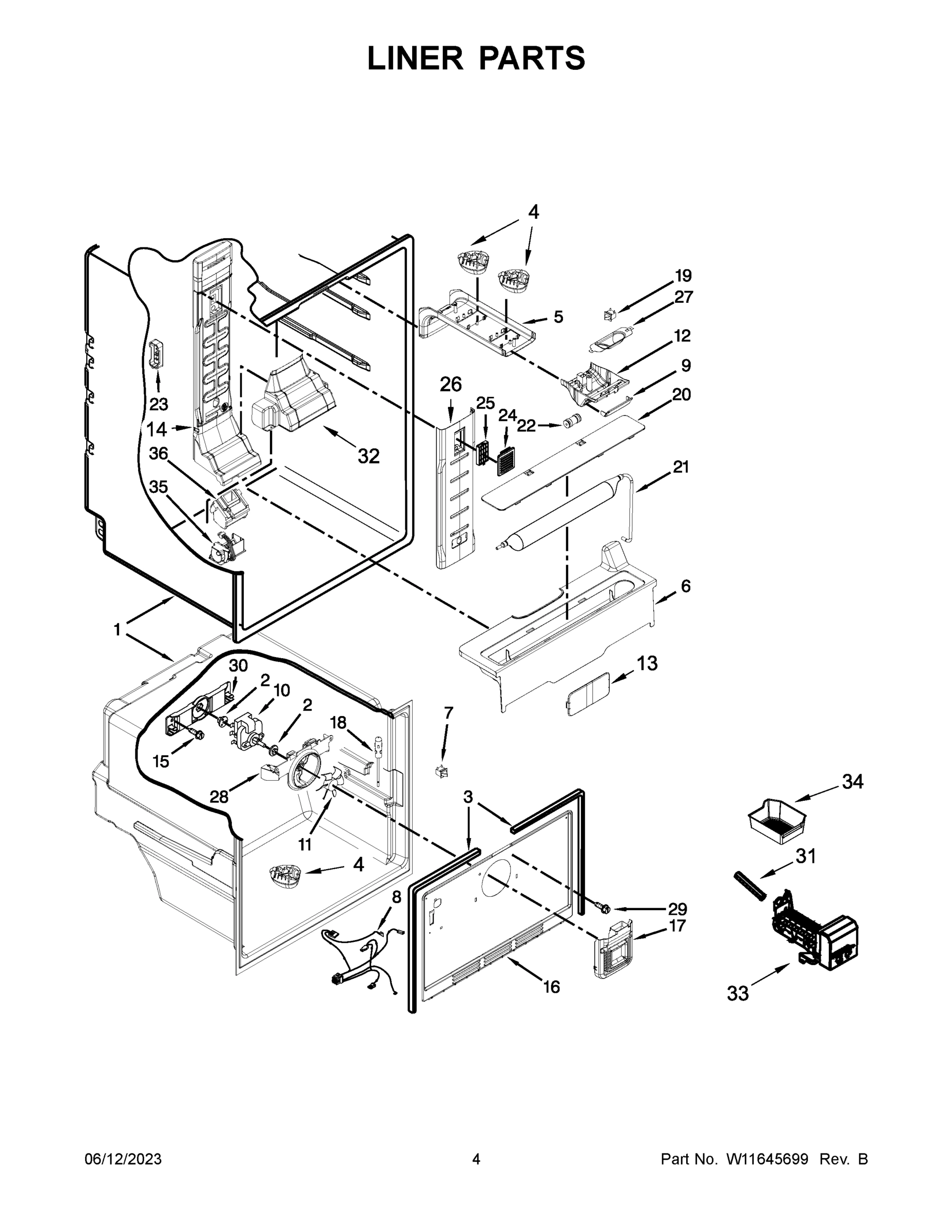

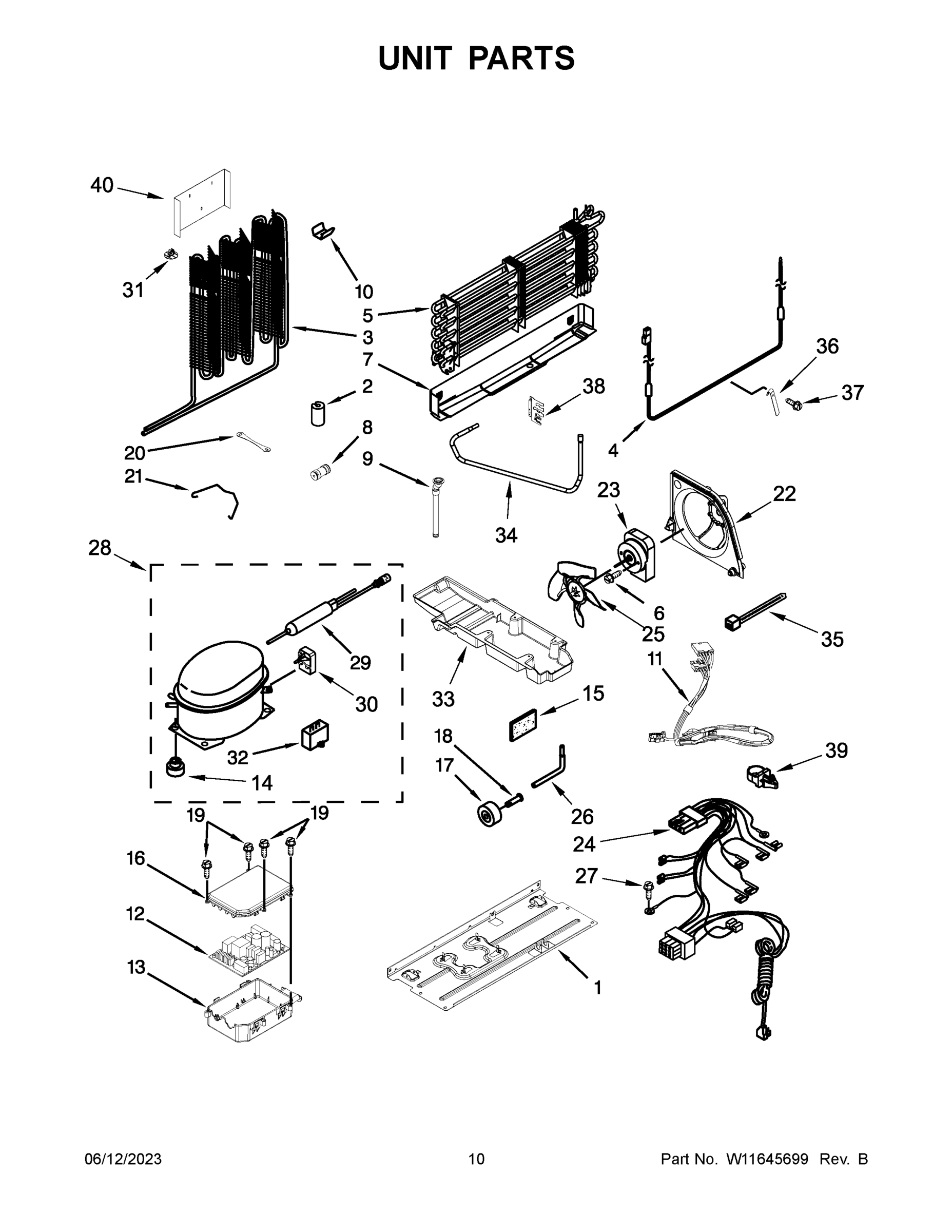

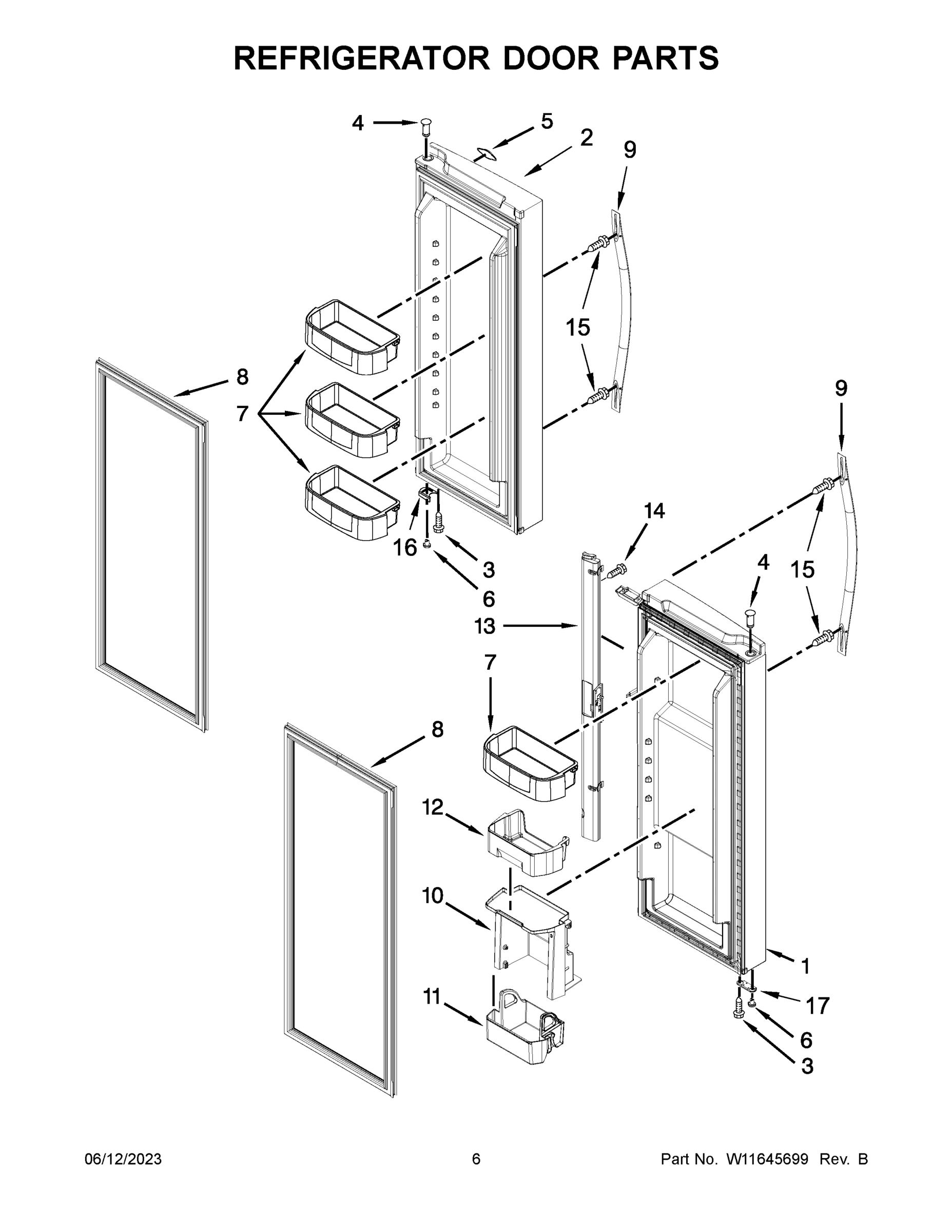

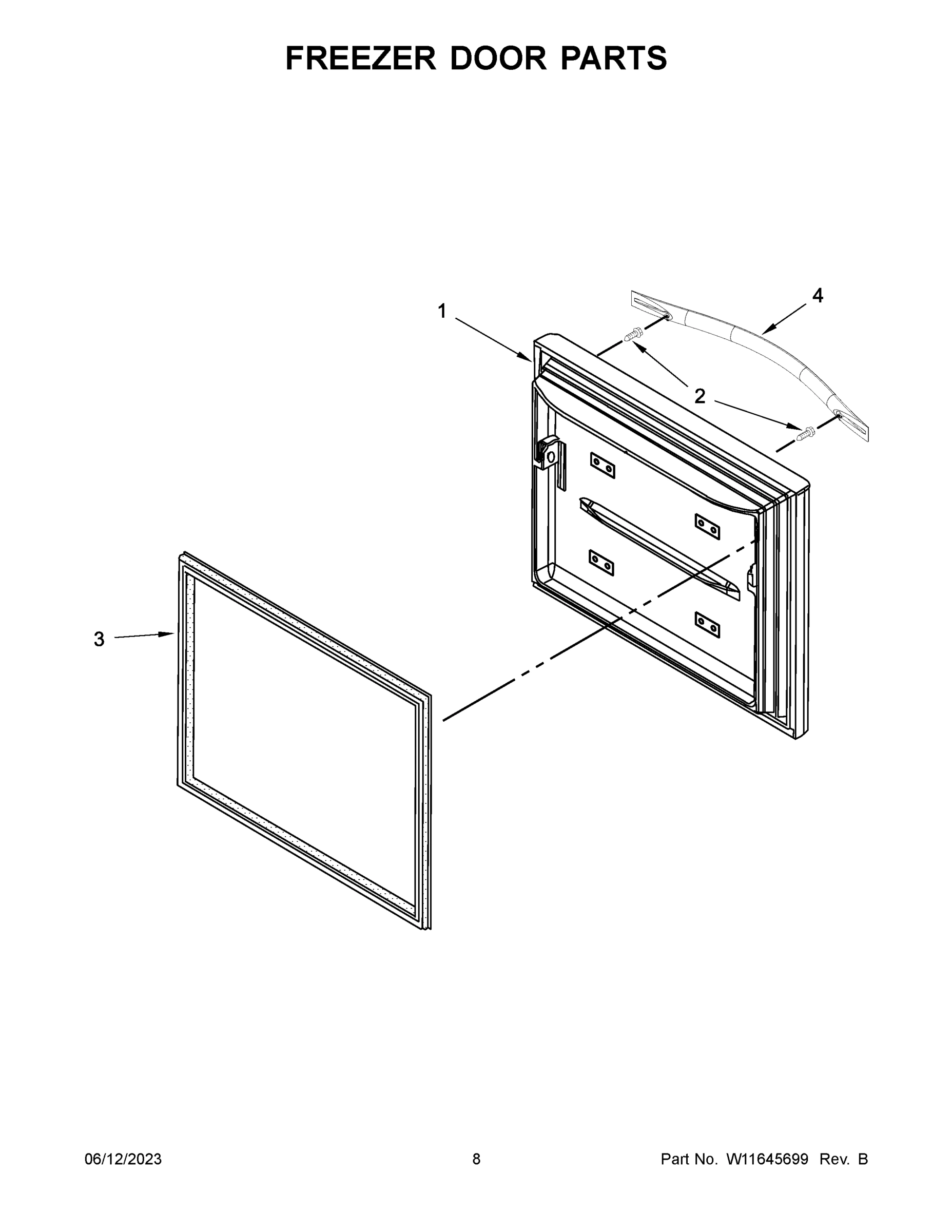

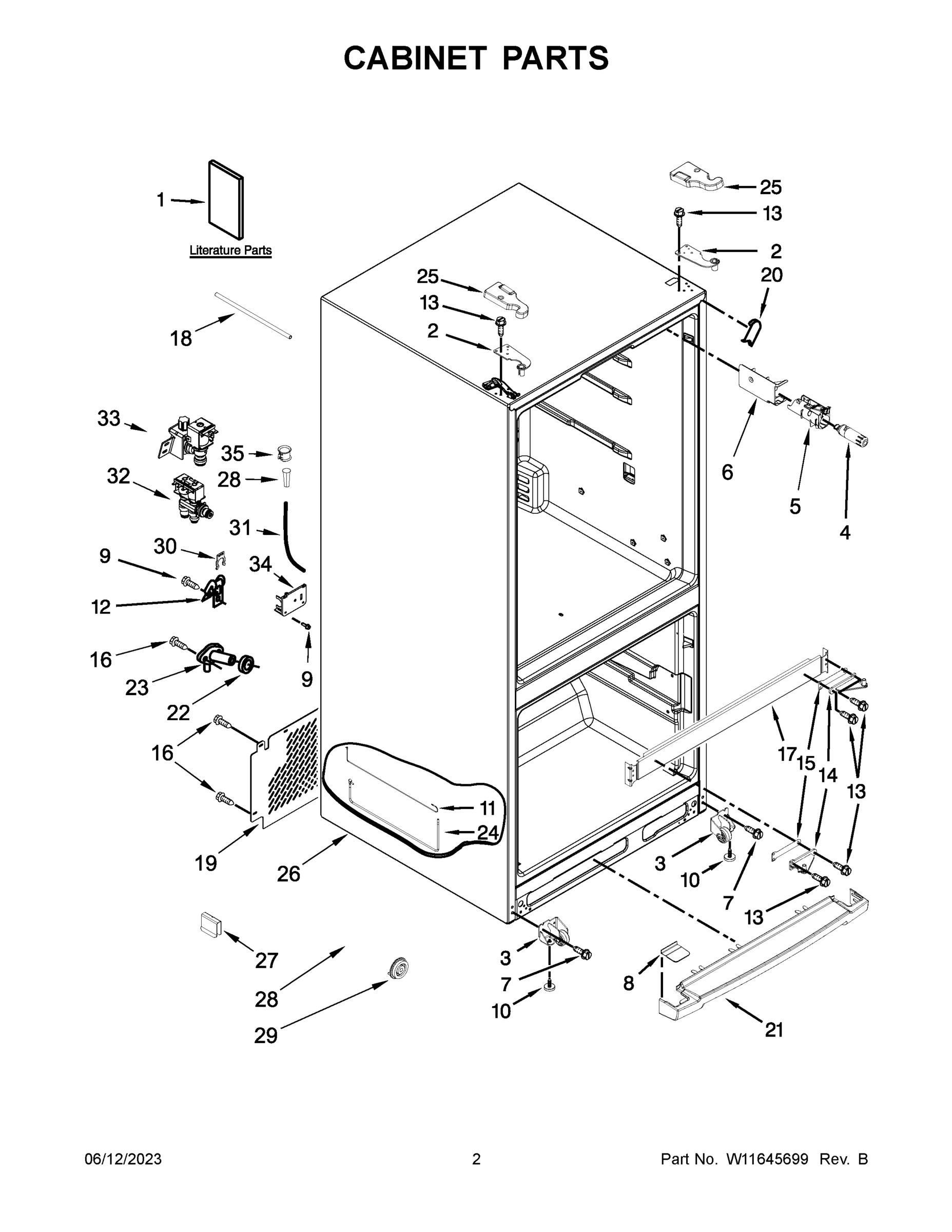

1

WPW10486290 Whirlpool Refrigerator Glass Shel Backorder WPL WPW10486290 $112.03

2

W10546298 Whirlpool Refrigerator Door Hinge Backorder WPL W10546298 $25.91

2

W10852725 Whirlpool Refrigerator Grommet In Stock WPL W10852725 $3.70

2

WPW10300448 Whirlpool Refrigerator Drip Tray Backorder WPL WPW10300448 $29.66

2

WPW10502933 Whirlpool Refrigerator Shelf - Ca Backorder WPL WPW10502933 $219.38

2A

WPW10356018 Whirlpool Refrigerator Drip Tray Backorder WPL WPW10356018 $29.48

2B

WPW10356019 Whirlpool Drip Tray In Stock WPL WPW10356019 $32.90

3

WPW10359256 Whirlpool Cabinet Roller Backorder WPL WPW10359256 $30.63

3

WPW10468557 Whirlpool Refrigerator Crisper Dr Backorder WPL WPW10468557 $16.78

3A

WPW10359255 Whirlpool Cabinet Wheel Backorder WPL WPW10359255 $35.56

4

W10435575 Whirlpool Refrigerator Fascia Spa Backorder WPL W10435575 $62.34

4

WPW10313893 Whirlpool Refrigerator Glass Shel Backorder WPL WPW10313893 $80.18

4

ASSEMBLY, HANDLE (WHITE) WPL W11125499 Contact Us For Availability

4A

W10435576 Whirlpool Refrigerator Escutcheon Backorder WPL W10435576 $66.45

4A

ASSEMBLY, HANDLE (BLACK) WPL W11125500 Contact Us For Availability

5

WPW10468556 Whirlpool Refrigerator Track In Stock WPL WPW10468556 $9.28

5A

8.5/8 NR MS 00 (SUCTION LINE TO EVAPORATOR) WPL W11504415 Contact Us For Availability

6

W10356029 Whirlpool Refrigerator Separator Backorder WPL W10356029 $25.58

6

WPW10468555 Whirlpool Refrigerator Track In Stock WPL WPW10468555 $6.84

6

WPW10470155 Whirlpool Refrigerator Door Closi In Stock WPL WPW10470155 $5.10

6

CONTAINER, WATER RESERVOIR WPL W10798439 Contact Us For Availability

7

W10433547 Whirlpool Refrigerator Pad Backorder WPL W10433547 $117.25

7

WPW10308869 Whirlpool Door Bin In Stock WPL WPW10308869 $36.13

7

WPW10370327 Whirlpool Refrigerator Crisper Pa Backorder WPL WPW10370327 $85.29

7A

W10433546 Whirlpool Refrigerator Pad Backorder WPL W10433546 $118.58

8

WPW10339257 Whirlpool Refrigerator Toe Grille Backorder WPL WPW10339257 $31.92

8

ASSEMBLY, DISPENSER WIRE WPL W10735841 Contact Us For Availability

8A

W10353930 Whirlpool Refrigerator Grill End Ca Backorder WPL W10353930 $31.82

8B

WPW10353932 Whirlpool Refrigerator Grille End Backorder WPL WPW10353932 $31.95

9

W10356017 Whirlpool Refrigerator Dispenser Tr Backorder WPL W10356017 $34.26

9

WP489442 Whirlpool Refrigerator Screw Backorder WPL WP489442 $4.56

10

WPW10141622 Whirlpool Leveler In Stock WPL WPW10141622 $3.88

10

WPW10464673 Whirlpool Evaporator Fan Motor In Stock WPL WPW10464673 $93.98

11

WPW10513681 Whirlpool Glass Shelf Backorder WPL WPW10513681 $107.10

12

WPW10397907 Whirlpool Refrigerator Meat Pan Backorder WPL WPW10397907 $89.70

12

WPW10453580 Whirlpool Refrigerator Housing Backorder WPL WPW10453580 $40.21

2323186 Whirlpool Refrigerator Housing Backorder WPL 2323186 $35.67

W10336009 Whirlpool Refrigerator Cover Backorder WPL W10336009 $27.30

WP489497 Whirlpool Screw In Stock WPL WP489497 $4.58

WPW10624451 Whirlpool Refrigerator Mullion Ra In Stock WPL WPW10624451 $83.60

13B

WPW10624450 Whirlpool Refrigerator Mullion Ra In Stock WPL WPW10624450 $147.47

14

HINGE, CENTER (LEFT HAND) WPL W10770878 Contact Us For Availability

15

WPW10170540 Whirlpool Screw In Stock WPL WPW10170540 $4.58

15

WPW10450363 Whirlpool Refrigerator Shim Backorder WPL WPW10450363 $13.40

16

WPW10397055 Whirlpool Refrigerator Hinge Brac In Stock WPL WPW10397055 $12.66

16

COVER, EVAPORATOR WPL W10300900 Contact Us For Availability

16

COVER, ELECTRONIC CONTROL WPL W10313215 Contact Us For Availability

17

WPW10475495 Whirlpool Roller Assembly In Stock WPL WPW10475495 $11.53

18

WPW10384183 Whirlpool Thermistor In Stock WPL WPW10384183 $47.62

20

W10236396 Whirlpool Refrigerator Strap In Stock WPL W10236396 $7.81

20

W10413160 Whirlpool Refrigerator Cover Backorder WPL W10413160 $48.26

21

SHAFT, RACK WPL W10802342 Contact Us For Availability

21A

WPW10353933 Whirlpool Refrigerator Grille In Stock WPL WPW10353933 $57.94

21B

WPW10353935 Whirlpool Refrigerator Grille Backorder WPL WPW10353935 $58.06

22

WP1106508 Whirlpool Refrigerator Gasket Backorder WPL WP1106508 $4.14

22

WPW10277361 Whirlpool Refrigerator Collar Backorder WPL WPW10277361 $4.28

23

WPW10397636 Whirlpool Refrigerator Left Hand In Stock WPL WPW10397636 $141.71

23

WPW10425252 Whirlpool Refrigerator Cover In Stock WPL WPW10425252 $32.23

23A

WPW10397635 Whirlpool Refrigerator Slide In Stock WPL WPW10397635 $123.50

25

W10465765 Whirlpool Refrigerator Cover Backorder WPL W10465765 $12.88

25A

W10465764 Whirlpool Refrigerator Cover Backorder WPL W10465764 $7.81

25B

W10465771 Whirlpool Refrigerator Cover Backorder WPL W10465771 $12.77

25C

COVER, HINGE (RIGHT HAND (BLACK)) WPL W10465770 Contact Us For Availability

25D

COVER, HINGE (LEFT HAND (GREY)) WPL W10465768 Contact Us For Availability

25E

W10465767 Whirlpool Refrigerator Cover Backorder WPL W10465767 $11.60

27

WP2174706 Whirlpool Refrigerator Pin Hitch Backorder WPL WP2174706 $4.63

28

W10850162 Whirlpool Refrigerator Orifice Backorder WPL W10850162 $11.44

28A

6/5 NR MS 00 (HEAT LOOP TO CONDENSER) WPL W11504432 Contact Us For Availability

28B

8 NK MS 00 (SUCTION LINE TO EVAPORATOR) WPL W11506619 Contact Us For Availability

29

W10331226 Whirlpool Refrigerator Clip Backorder WPL W10331226 $28.05

29A

5/4 NR MS 00 (HEAT LOOP TO DRIER) WPL W11504445 Contact Us For Availability

29B

5/1.8 NR AL 00 (CAPILLARY TUBE TO DRIER) WPL W11504448 Contact Us For Availability

30

2254454 Whirlpool Refrigerator Bracket Backorder WPL 2254454 $33.38

31

WPW10496649 Whirlpool Refrigerator Water Tube In Stock WPL WPW10496649 $43.48

31

CLIP, BOTTOM COVER WPL W10815861 Contact Us For Availability

32

WPW10279866 Whirlpool Refrigerator Inlet Valv In Stock WPL WPW10279866 $100.47

32

WPW10314204 Whirlpool Refrigerator Housing Backorder WPL WPW10314204 $36.05

34

WPW10378263 Whirlpool Refrigerator Ice Pan In Stock WPL WPW10378263 $23.79

35

W11087463 Whirlpool Refrigerator Damper In Stock WPL W11087463 $70.37

37

WP489478 Whirlpool Refrigerator Screw Backorder WPL WP489478 $2.51

40

W10349514 Whirlpool Refrigerator Air Baffle Backorder WPL W10349514 $27.52

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $27.52

W10134625 Whirlpool Refrigerator Touch-Up Pai In Stock WPL W10134625 $7.85

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $41.14

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $60.73

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $23.17

DRAIN HOSE (WHITE) WPL 72017 Contact Us For Availability

PAINT, PRESSURIZED SPRAY (12 OZ. WHITE) WPL 350930 Contact Us For Availability

DRAIN HOSE (BLACK) WPL 72032 Contact Us For Availability

PAINT, TOUCH-UP (1/2OZ. BISCUIT AND BISQUE) WPL 4392899 Contact Us For Availability

MISCELLANEOUS, SEALER, GUM (4 FEET) WPL 212643 Contact Us For Availability

PAINT, PRESSURIZED SPRAY (12 OZ. BISCUIT AND WPL 4392901 Contact Us For Availability

PAINT, TOUCH-UP (1/2OZ. WHITE PORCELAIN (2 OZ WPL 511873 Contact Us For Availability

MISCELLANEOUS, INSULATION (2 PIECES, 3" X 24" WPL 876370 Contact Us For Availability

MISCELLANEOUS, KIT, FOAM SLAB (30" X 32 1/2" WPL 876029 Contact Us For Availability

PAINT, PRESSURIZED SPRAY (12 OZ. WHITE PRIMER WPL 350942 Contact Us For Availability

MISCELLANEOUS, TAPE, VINYL (3/4 X 108") WPL 479502 Contact Us For Availability

PAINT, BULK (1 QT. WHITE (UNCUT)) WPL 799344 Contact Us For Availability

TORX SCREW WRENCH, TORX KEY WPL 1117510 Contact Us For Availability
