Model Whirlpool WRF560SEHB02 REFRIGERATOR, FRENCH DOOR, BOTTOM MOUNT – Common Parts & Diagrams
01 - COVER SHEET

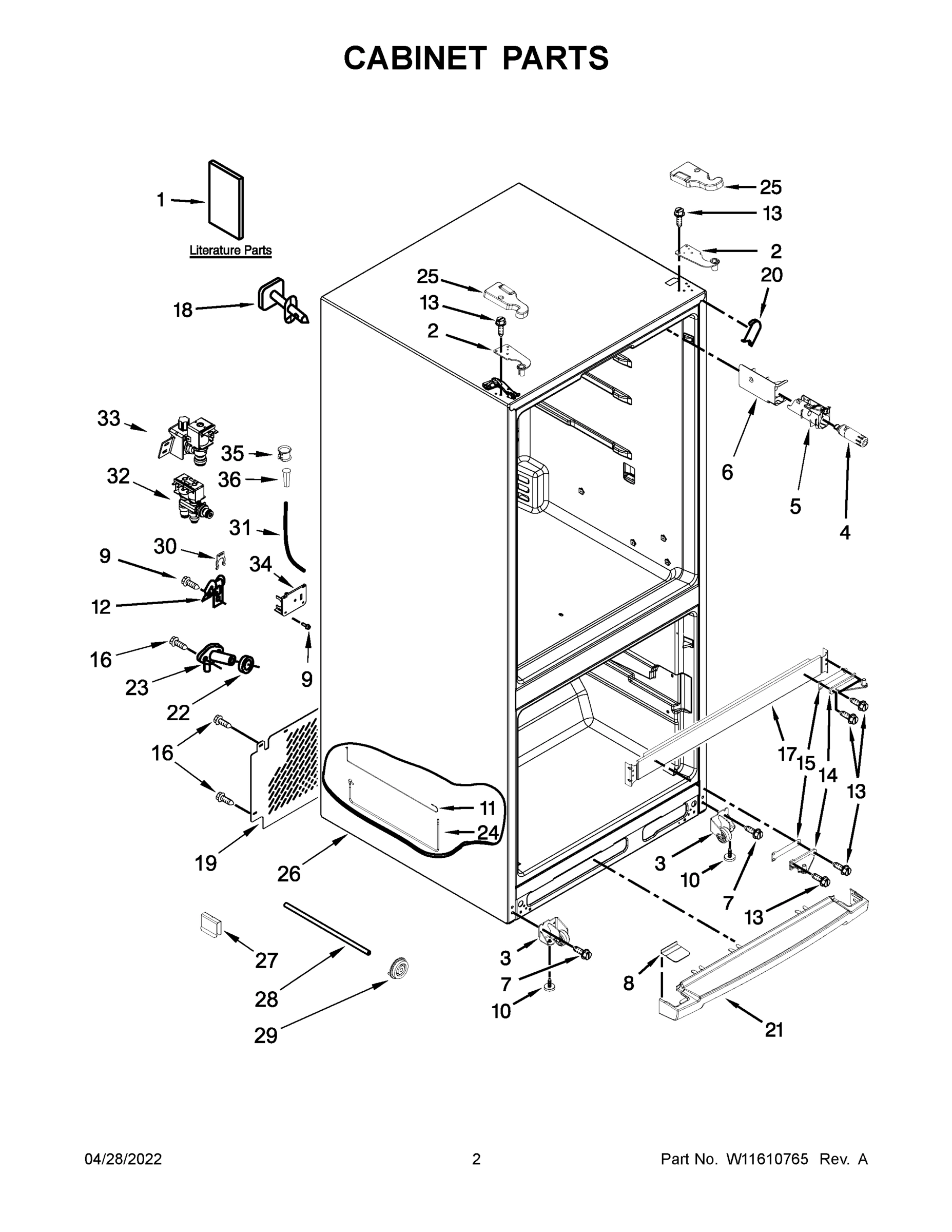

02 - CABINET PARTS
03 - LINER PARTS
04 - REFRIGERATOR DOOR PARTS
05 - FREEZER DOOR PARTS
06 - UNIT PARTS
07 - SHELF PARTS
08 - DISPENSER PARTS
09 - OPTIONAL PARTS
Common parts from model Whirlpool WRF560SEHB02 REFRIGERATOR, FRENCH DOOR, BOTTOM MOUNT
1
BASEPLATE WPL W10300116 Contact Us For Availability
2
HINGE, TOP (LEFT HAND) WPL W10546298 Contact Us For Availability
4
FASCIA, SPARSH (SILVER MIRROR) WPL W10435575 Contact Us For Availability
4
HANDLE ASSEMBLY (WHITE) WPL W11125499 Contact Us For Availability
4A
FASCIA, SPARSH (BLACK) WPL W10435576 Contact Us For Availability
4A
HANDLE ASSEMBLY (BLACK) WPL W11125500 Contact Us For Availability
5A
8.5/8 NR MS 00 (SUCTION TUBE TO COMPRESSOR) WPL W11504415 Contact Us For Availability
6
COVER, SEPARATOR (CHROMIUM FROST) WPL W10356029 Contact Us For Availability
6
CONTAINER, WATER RESERVOIR WPL W10798439 Contact Us For Availability
7
ASSEMBLY, SINGLE PAD (WHITE) WPL W10433547 Contact Us For Availability
7A
ASSEMBLY, SINGLE PAD (BLACK) WPL W10433546 Contact Us For Availability
8
ASSEMBLY, DISPENSER WIRE WPL W10735841 Contact Us For Availability
8A
COVER, TOE GRILLE (BLACK) WPL W10353930 Contact Us For Availability
9
RING, TRIM WPL W10356017 Contact Us For Availability
11
TUBE, WATER DISPENSER WPL W10445080 Contact Us For Availability
13
BOX, CONTROL WPL 2323186 Contact Us For Availability
13
CUP, SCREW WPL W10336009 Contact Us For Availability
14
HINGE, CENTER (LEFT HAND) WPL W10770878 Contact Us For Availability
16
COVER, EVAPORATOR WPL W10300900 Contact Us For Availability
16
COVER, ELECTRONIC CONTROL WPL W10313215 Contact Us For Availability
20
COVER, WATER RESERVOIR WPL W10413160 Contact Us For Availability
20
STRAP, COMPRESSOR WPL W10236396 Contact Us For Availability
21
SHAFT, RACK WPL W10802342 Contact Us For Availability
25
COVER, HINGE (LEFT HAND (WHITE)) WPL W10465765 Contact Us For Availability
25A
COVER, HINGE (RIGHT HAND (WHITE)) WPL W10465764 Contact Us For Availability
25B
COVER, HINGE (LEFT HAND (BLACK)) WPL W10465771 Contact Us For Availability
25C
COVER, HINGE (RIGHT HAND (BLACK)) WPL W10465770 Contact Us For Availability
25D
COVER, HINGE (LEFT HAND (GREY)) WPL W10465768 Contact Us For Availability
25E
COVER, HINGE (RIGHT HAND (GREY)) WPL W10465767 Contact Us For Availability
28A
6/5 NR MS 00 (HEAT LOOP TO CONDENSER) WPL W11504432 Contact Us For Availability
28B
8 NK MS 00 (CHARGING TUBE TO COMPRESSOR) WPL W11506619 Contact Us For Availability
29
DRUM, TOE GRILLE WPL W10331226 Contact Us For Availability
29A
5/4 NR MS 00 (HEAT LOOP TO CONDENSER) WPL W11504445 Contact Us For Availability
29B
5/1.8 NR AL 00 (CAPILLARY TUBE TO EVAPORATOR) WPL W11504448 Contact Us For Availability
30
BRACKET, EVAPORATOR FAN REAR WPL 2254454 Contact Us For Availability
31
CLIP, BOTTOM COV WPL W10815861 Contact Us For Availability
40
WPL W10349514 WPL W10349514 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. WHITE) WPL 350930 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. BISCUIT AND BISQUE) WPL 4392899 Contact Us For Availability
NI
SEALER, GUM (4 FEET) WPL 212643 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. BISCUIT AND WPL 4392901 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. APOLLO GREY) WPL W10134625 Contact Us For Availability
NI
WHITE PORCELAIN (2 OZ.) WPL 511873 Contact Us For Availability
NI
INSULATION (2 PIECES, 3" X 24" X 48") WPL 876370 Contact Us For Availability
NI
KIT, FOAM SLAB (30" X 32 1/2" X 1 1/2") WPL 876029 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. WHITE PRIMER WPL 350942 Contact Us For Availability
NI
BAG WPL 606755 Contact Us For Availability
NI
TAPE, VINYL (3/4 X 108") WPL 479502 Contact Us For Availability
NI
PAINT, BULK (1 QT. WHITE (UNCUT)) WPL 799344 Contact Us For Availability
NI
TORX SCREW WRENCH, TORX KEY WPL 1117510 Contact Us For Availability
× ![]()
