Model LG WM4200HBA.ABLEEUS 5.0 cu. ft. Mega Capacity Smart wi-fi Enabled Front Load Washer with TurboWash 360° and Built-In Int – Common Parts & Diagrams

Common parts from model LG WM4200HBA.ABLEEUS 5.0 cu. ft. Mega Capacity Smart wi-fi Enabled Front Load Washer with TurboWash 360° and Built-In Int

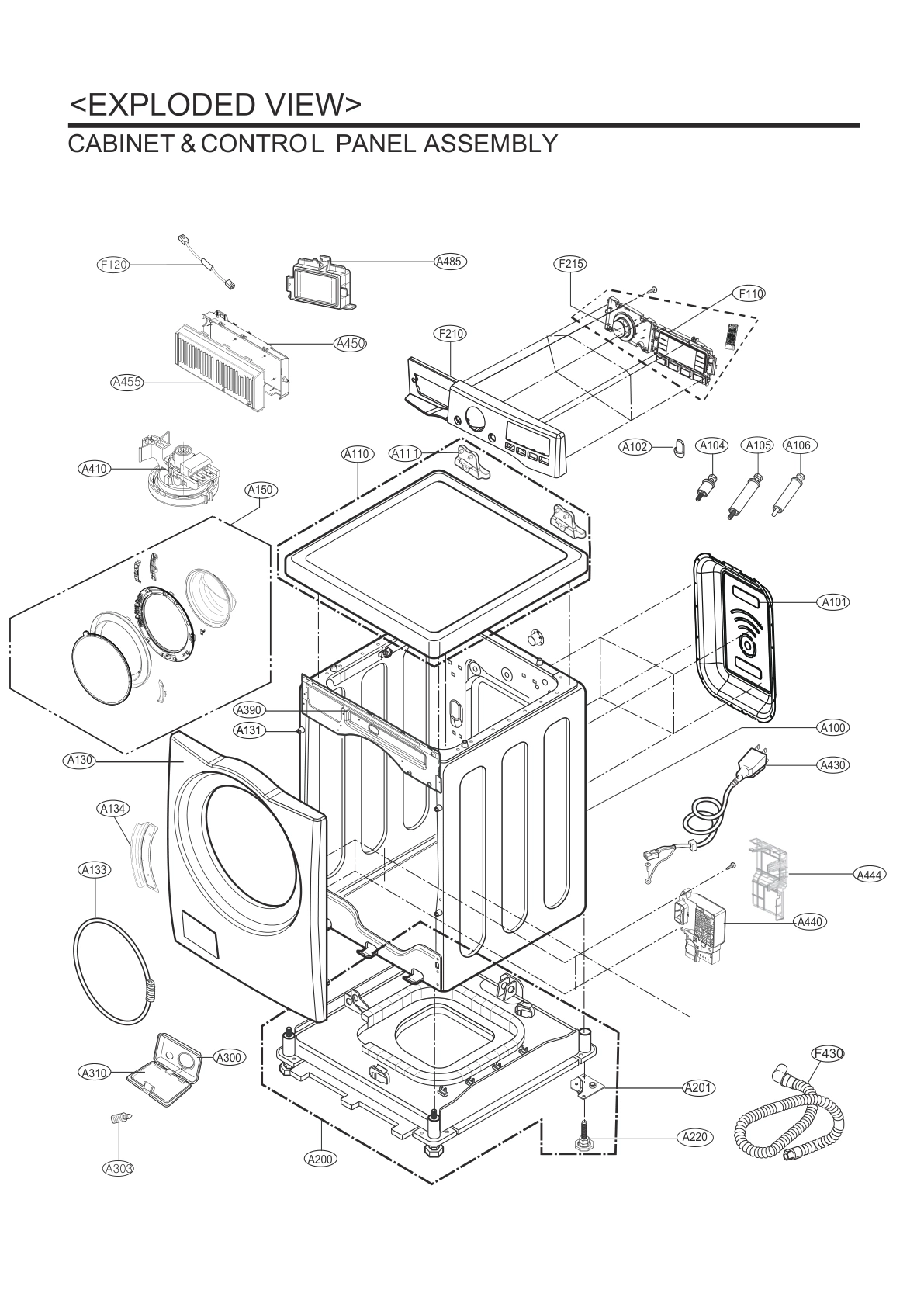

CABINET & CONTROL PANEL ASSEMBLY

Print

• This Diagram
• All Diagrams

540K

3504ER3002A LG Washer Pressure Switch Air Cha In Stock LGE 3504ER3002A View Details $9.86

View on Model

A104

FAA31690704 LG Short Washer Bolt Backorder LGE FAA31690704 View Details $8.00

View on Model

A105

FAA31690703 LG Washer Long Bolt Backorder LGE FAA31690703 View Details $8.45

View on Model

A106

FAA31690705 LG Washer Bolt Assembly Backorder LGE FAA31690705 View Details $20.35

View on Model

A111

4810ER3021C LG Washer Hinge Bracket Backorder LGE 4810ER3021C View Details $91.26

View on Model

A130

MCK58110518 LG Cabinet Cover Backorder LGE MCK58110518 View Details $188.43

View on Model

A131

AEJ33026601 LG Holder Assembly Backorder LGE AEJ33026601 View Details $6.19

View on Model

A133

ACA56078801 LG Washer Front Boot Seal Gasket In Stock LGE ACA56078801 View Details $9.86

View on Model

A158

MEJ64124901 LG Inlet Hose Backorder LGE MEJ64124901 View Details $20.35

View on Model

A410

EBF63534901 LG Washer Pressure Switch Assembl In Stock LGE EBF63534901 View Details $33.69

View on Model

A440

EBF61315802 LG Washer Lid Lock Switch Assembl In Stock LGE EBF61315802 View Details $95.44

View on Model

A455

MCK69784901 LG Cover Protection Backorder LGE MCK69784901 View Details $41.23

View on Model

A485

EAM63891317 LG Filter Assembly Backorder LGE EAM63891317 View Details $82.70

View on Model

F102

AHA75853803 LG Pump Drain Assembly Backorder LGE AHA75853803 View Details $153.83

View on Model

F110

EBR85194757 LG Washer Display PCB Assembly Backorder LGE EBR85194757 View Details $255.48

View on Model

F160

5221ER1003S LG Inlet Valve Assembly In Stock LGE 5221ER1003S View Details $68.06

View on Model

F170

5220FR2006Z LG Inlet Valve Assembly In Stock LGE 5220FR2006Z View Details $49.19

View on Model

F215

AEZ73913415 LG Washer Dryer Knob Assembly In Stock LGE AEZ73913415 View Details $33.69

View on Model

F227

AAZ75735901 LG Washer Detergent Box Assembly In Stock LGE AAZ75735901 View Details $20.35

View on Model

F315

4738ER2002A LG Washer Drain Bellows In Stock LGE 4738ER2002A View Details $26.26

View on Model

F322

MEJ61841803 LG Hose Connector In Stock LGE MEJ61841803 View Details $26.26

View on Model

F430

AEM74772904 LG Washer Drain Hose Assembly In Stock LGE AEM74772904 View Details $41.23

View on Model

F432

3W50712A LG Washer Pivot Hanger Assembly Backorder LGE 3W50712A View Details $6.19

View on Model

F462

4861FR3068A LG Washer Hose Clamp In Stock LGE 4861FR3068A View Details $6.19

View on Model

F464

4860FR3092C LG Clamp Backorder LGE 4860FR3092C View Details $9.86

View on Model

F468

4861FR3068E LG Clamp Assembly Backorder LGE 4861FR3068E View Details $9.86

View on Model

K121

4280FR4048N LG Washer Tub Ball Bearing Set In Stock LGE 4280FR4048N View Details $49.19

View on Model

K122

4280FR4048Z LG Washer Tub Bearing Seal In Stock LGE 4280FR4048Z View Details $82.70

View on Model

K123

4040FR4051C LG Washer Bolt Assembly In Stock LGE 4040FR4051C View Details $9.86

View on Model

K125

MDS62058301 LG Washer Rear Tub Gasket Seal In Stock LGE MDS62058301 View Details $26.26

View on Model

K130

383EEL3003H LG Assembly Parts Backorder LGE 383EEL3003H View Details $153.83

View on Model

K135

383EEL3003G LG Balance Weight and Bolt In Stock LGE 383EEL3003G View Details $153.83

View on Model

K143

4011FA4353B LG Washer Bolt In Stock LGE 4011FA4353B View Details $6.19

View on Model

K190

4769ER4001B LG Washer Float Assembly In Stock LGE 4769ER4001B View Details $14.79

View on Model

K320

AEG33121501 LG Washer Heater Assembly In Stock LGE AEG33121501 View Details $107.42

View on Model

K320

AEG73309907 LG Heater Assembly In Stock LGE AEG73309907 View Details $92.89

View on Model

K360

AHL72914401 LG Washer Rotor Assembly In Stock LGE AHL72914401 View Details $182.23

View on Model

K361

MBF62845201 LG Rotor Bushing Backorder LGE MBF62845201 View Details $98.99

View on Model

K410

MHY65223701 LG Hinge Spring Backorder LGE MHY65223701 View Details $33.69

View on Model

K512

MCD62387102 LG Nozzle Connector Backorder LGE MCD62387102 View Details $9.86

View on Model

K516

4974ER3008A LG Water Guide Backorder LGE 4974ER3008A View Details $9.86

View on Model

K572

4861FR3068C LG Clamp Backorder LGE 4861FR3068C View Details $6.19

View on Model

K610

ACV72909503 LG Washer Shock Absorber Damper A Backorder LGE ACV72909503 View Details $34.40

View on Model

K611

4774FR3118B LG Washer Shock Absorber Locking Backorder LGE 4774FR3118B View Details $9.86

View on Model

K616

MCD64327001 LG Nozzle Connector Backorder LGE MCD64327001 View Details $9.86

View on Model

×
