WJXR2080T2WW

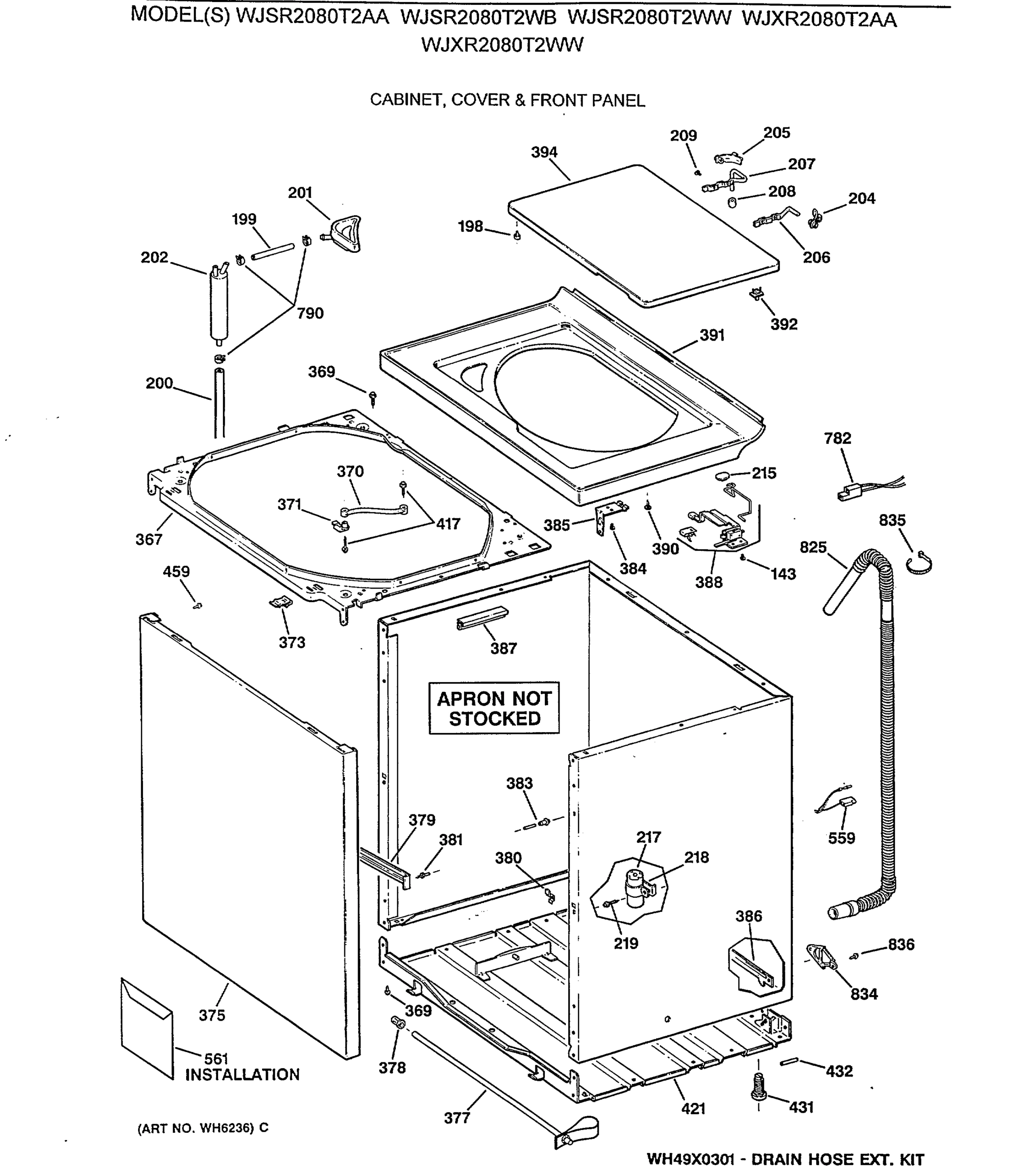

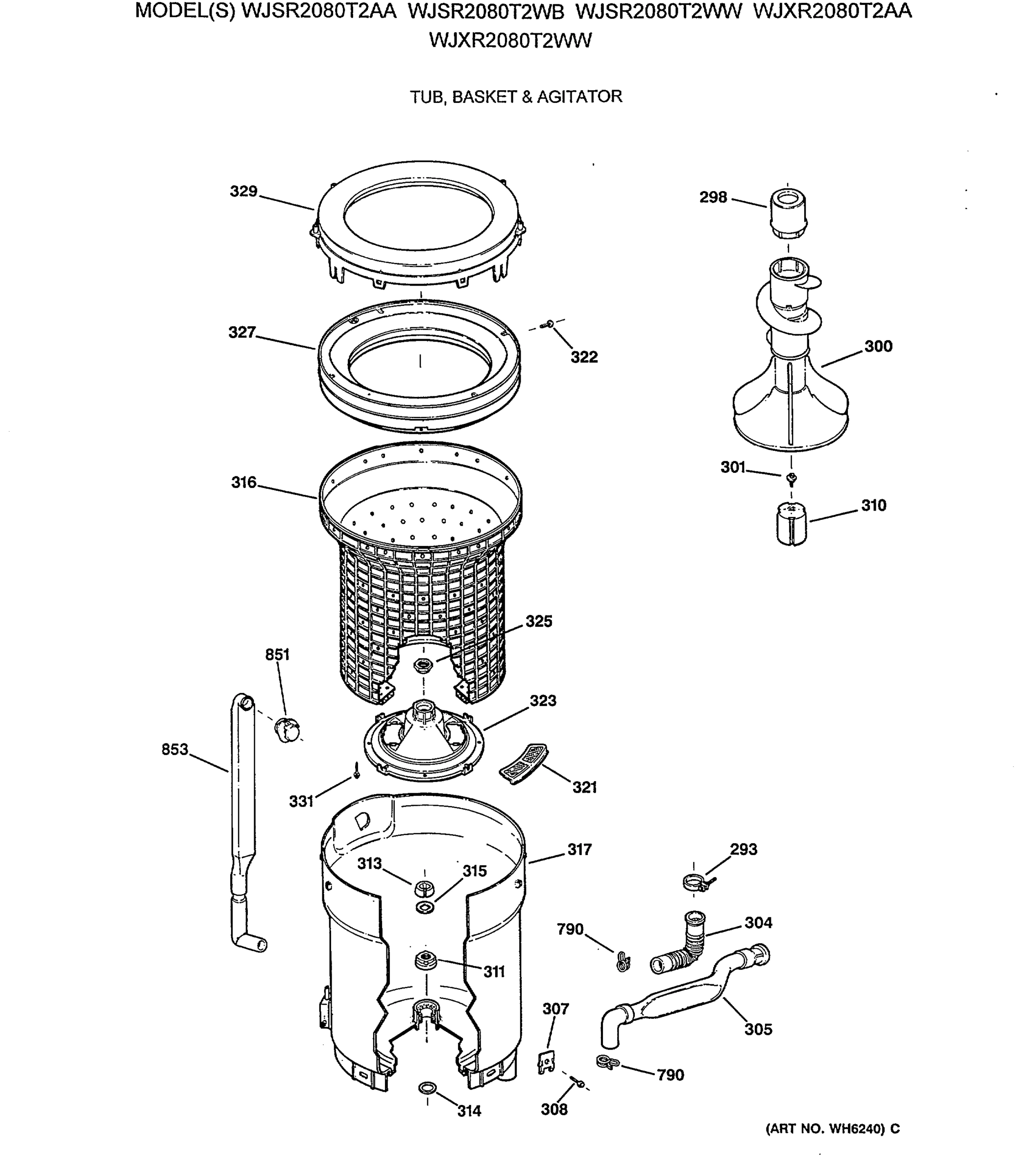

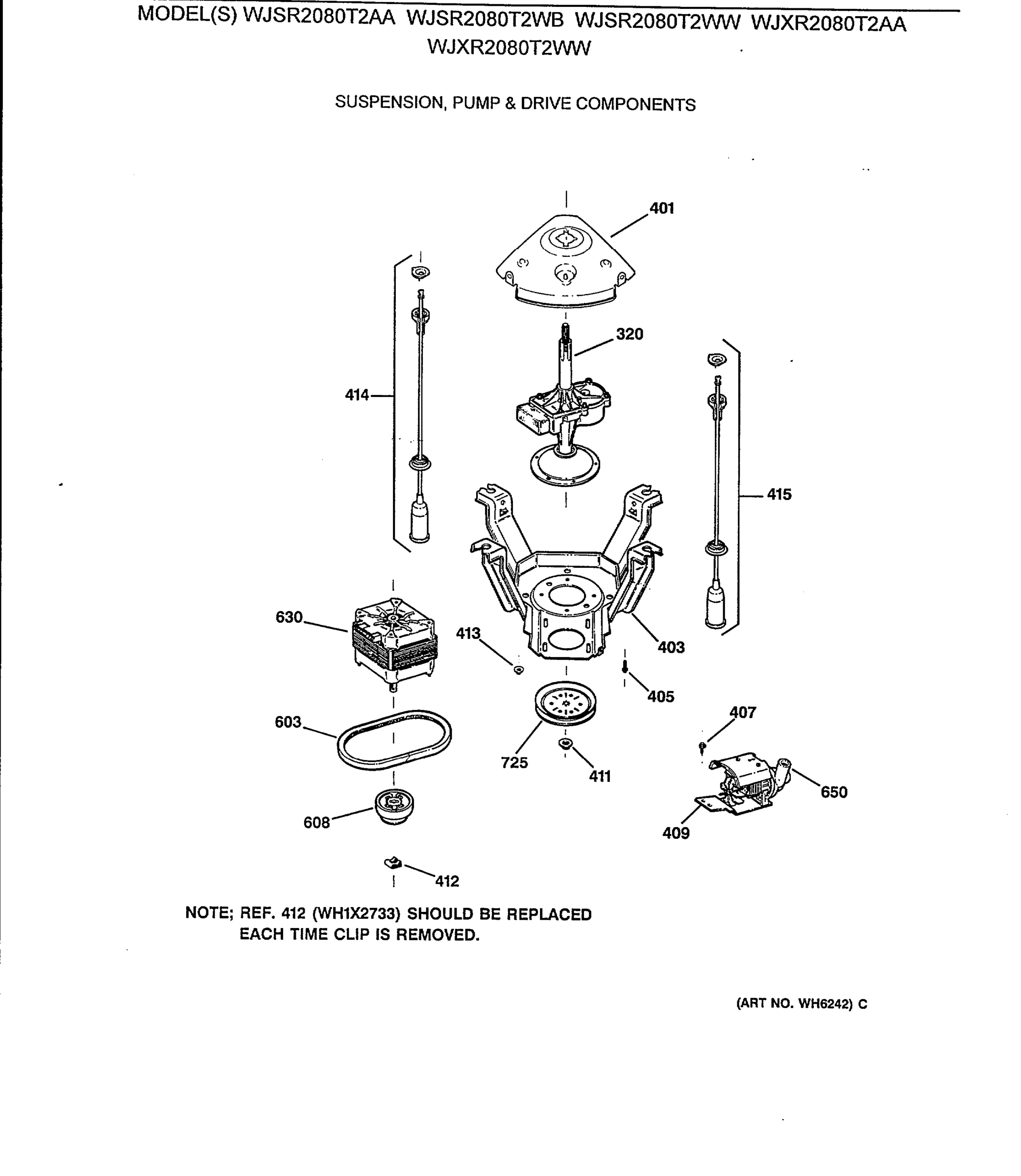

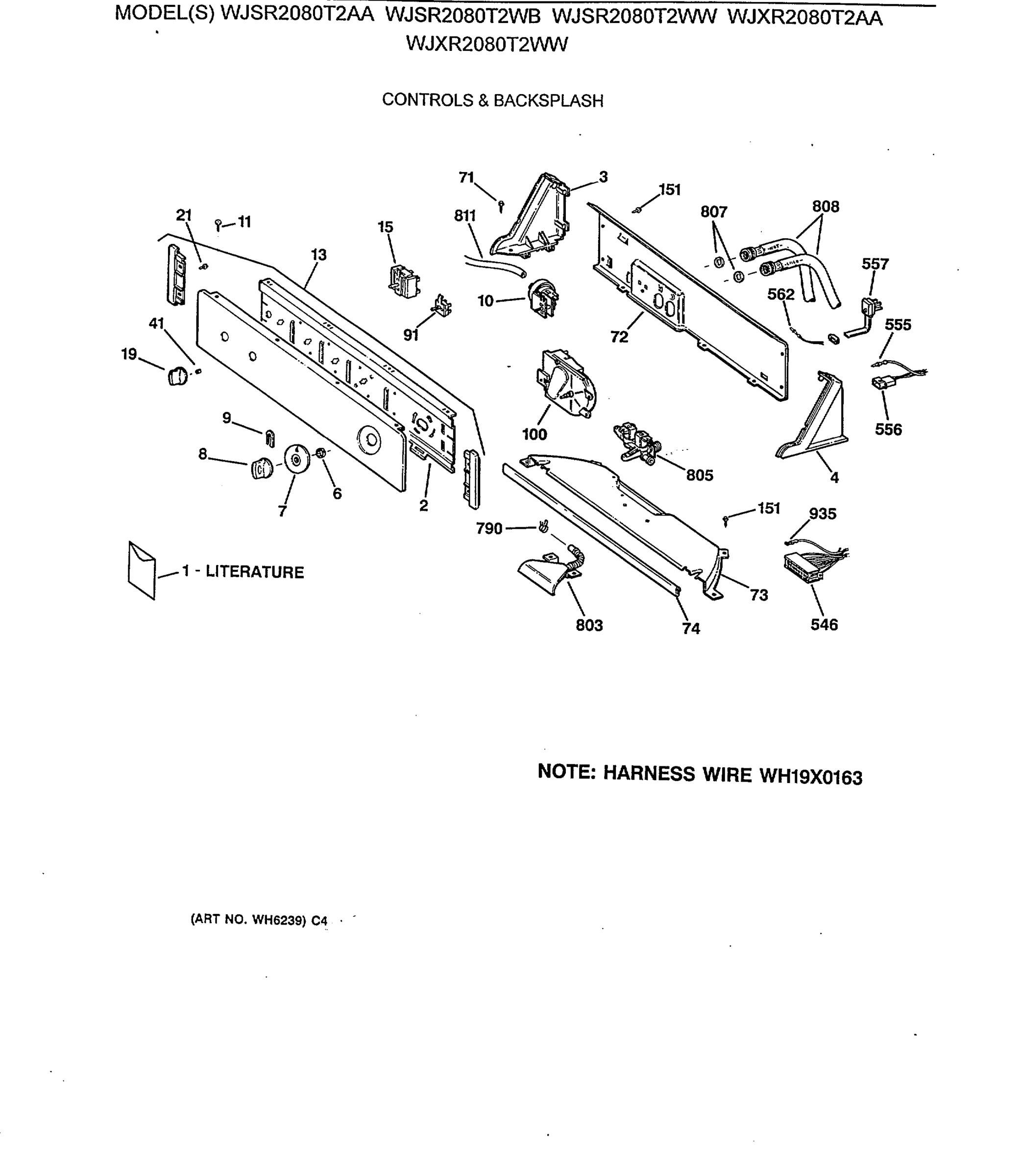

Model WJXR2080T2WW – Common Parts & Diagrams

Common parts from model WJXR2080T2WW

WH11X10015 GE Timer Dial

WH11X10015 GE Timer Dial Out of Stock GEN WH11X10015 $24.19

WH1X2754 GE Dryer GE Timer Control Knob

WH1X2754 GE Dryer GE Timer Control Knob In Stock GEN WH1X2754 $6.86

WH1X2117 GE Timer Knob Spring Clip

WH1X2117 GE Timer Knob Spring Clip In Stock GEN WH1X2117 $5.11

WH12X10065 GE Washer Water Level Pressure Swi

WH12X10065 GE Washer Water Level Pressure Swi In Stock GEN WH12X10065 $39.96

WH1X2721 GE Dryer Control Knob

WH1X2721 GE Dryer Control Knob In Stock GEN WH1X2721 $9.88

WH2X1205 GE Screw 8-18 B

WH2X1205 GE Screw 8-18 B Out of Stock GEN WH2X1205 $5.11

WH12X10498 GE Washer Rotary Switch

WH12X10498 GE Washer Rotary Switch In Stock GEN WH12X10498 $13.81

WH49X10010 GE Kit Tub Cover

WH49X10010 GE Kit Tub Cover Out of Stock GEN WH49X10010 $116.79

WH1X2741 GE Hinge BSHNG

WH1X2741 GE Hinge BSHNG Out of Stock GEN WH1X2741 $5.11

WH01X10025 GE Bushing Hinge

WH01X10025 GE Bushing Hinge Out of Stock GEN WH01X10025 $12.47

WH2X1211 GE Screw

WH2X1211 GE Screw Out of Stock GEN WH2X1211 $5.11

WH43X139 GE Fabric Softener Dispenser

WH43X139 GE Fabric Softener Dispenser In Stock GEN WH43X139 $17.39

WH43X10034 GE Washer Agitator Assembly

WH43X10034 GE Washer Agitator Assembly In Stock GEN WH43X10034 $39.96

WH49X10042 GE Agitator Coupling Kit

WH49X10042 GE Agitator Coupling Kit In Stock GEN WH49X10042 $22.55

WH41X22935 GE Washer Tub To Pump Drain Hose

WH41X22935 GE Washer Tub To Pump Drain Hose In Stock GEN WH41X22935 $10.04

WH1X2730 GE Clamp Tub

WH1X2730 GE Clamp Tub Out of Stock GEN WH1X2730 $5.11

WH02X10267 GE Screw 5/16-18 TPT IHW S N

WH02X10267 GE Screw 5/16-18 TPT IHW S N Out of Stock GEN WH02X10267 $5.11

WH02X10383 GE Washer Tub Seal Gasket

WH02X10383 GE Washer Tub Seal Gasket In Stock GEN WH02X10383 $7.51

WH02X10265 GE Washer Bearing Split Ring

WH02X10265 GE Washer Bearing Split Ring In Stock GEN WH02X10265 $5.26

WH2X1199 GE Washer Flat Hub

WH2X1199 GE Washer Flat Hub In Stock GEN WH2X1199 $5.27

WH2X1194 GE Screw 10-18 PL

WH2X1194 GE Screw 10-18 PL Out of Stock GEN WH2X1194 $5.11

WH2X1193 GE Dryer Dryer GE Dryer Hub Nut

WH2X1193 GE Dryer Dryer GE Dryer Hub Nut In Stock GEN WH2X1193 $9.99

WH1X2727 GE Dryer GE Tub Support Strap

WH1X2727 GE Dryer GE Tub Support Strap In Stock GEN WH1X2727 $8.66

WH1X2726 GE Retain Strap

WH1X2726 GE Retain Strap Out of Stock GEN WH1X2726 $8.32

WH02X10279 GE Washer Locking Clip

WH02X10279 GE Washer Locking Clip In Stock GEN WH02X10279 $5.11

WH1X2745 GE Button Plug

WH1X2745 GE Button Plug Out of Stock GEN WH1X2745 $5.11

WH16X514 GE Brace

WH16X514 GE Brace Out of Stock GEN WH16X514 $57.05

WH2X1190 GE Stud Ground

WH2X1190 GE Stud Ground Out of Stock GEN WH2X1190 $4.73

WH2X1189 GE Pin ALIGNMNT

WH2X1189 GE Pin ALIGNMNT Out of Stock GEN WH2X1189 $4.86

WH01X10423 GE Screw 6-20 B TRT 3/8 S

WH01X10423 GE Screw 6-20 B TRT 3/8 S Out of Stock GEN WH01X10423 $5.11

WH01X10422 GE Cover Clip

WH01X10422 GE Cover Clip Out of Stock GEN WH01X10422 $5.11

WH41X10036 GE Conduit PRES

WH41X10036 GE Conduit PRES Out of Stock GEN WH41X10036 $5.11

WH44X21834 GE Cover Assembly Finished

WH44X21834 GE Cover Assembly Finished Out of Stock GEN WH44X21834 $50.09

WH45X10046 GE Shield Tub

WH45X10046 GE Shield Tub Out of Stock GEN WH45X10046 $20.41

WH2X1201 GE Screw 1/4-20 B

WH2X1201 GE Screw 1/4-20 B Out of Stock GEN WH2X1201 $5.11

WH2X1203 GE Nut Pulley

WH2X1203 GE Nut Pulley Out of Stock GEN WH2X1203 $6.62

WH2X1187 GE LEY Levelling

WH2X1187 GE LEY Levelling Out of Stock GEN WH2X1187 $13.81

WZ5X158D GE Screw Package of 12

WZ5X158D GE Screw Package of 12 Out of Stock GEN WZ5X158D $19.48

WH1X2026 GE Washer Drive Belt

WH1X2026 GE Washer Drive Belt In Stock GEN WH1X2026 $5.15

WH49X10035 GE Washer Drive Motor Kit

WH49X10035 GE Washer Drive Motor Kit Out of Stock GEN WH49X10035 $441.68

WH23X10030 GE Washer Drain Pump

WH23X10030 GE Washer Drain Pump In Stock GEN WH23X10030 $44.73

WB1X500D GE Oven Screw Package 12

WB1X500D GE Oven Screw Package 12 Out of Stock GEN WB1X500D $4.91

WB17X5060 GE Oven Block Assembly

WB17X5060 GE Oven Block Assembly Out of Stock GEN WB17X5060 $42.66

WH1X2036 GE UNIX Clamp

WH1X2036 GE UNIX Clamp Out of Stock GEN WH1X2036 $9.83

WH41X10077 GE Hose and Water Inlet

WH41X10077 GE Hose and Water Inlet In Stock GEN WH41X10077 $9.27

WH13X10024 GE Washer Water Inlet Fill Valve

WH13X10024 GE Washer Water Inlet Fill Valve In Stock GEN WH13X10024 $62.56

WH2X42D GE Washer Pack of 12

WH2X42D GE Washer Pack of 12 Out of Stock GEN WH2X42D $5.11

WH41X10207 GE Washer 2 Pack Rubber Inlet Hose

WH41X10207 GE Washer 2 Pack Rubber Inlet Hose In Stock GEN WH41X10207 $9.90

WH41X365 GE Washer Water Level Pressure Switc

WH41X365 GE Washer Water Level Pressure Switc In Stock GEN WH41X365 $9.07

WH41X10096 GE Washer Drain Hose

WH41X10096 GE Washer Drain Hose In Stock GEN WH41X10096 $13.48

WH16X513 GE Washer Drain Hose Clip

WH16X513 GE Washer Drain Hose Clip In Stock GEN WH16X513 $5.11

WH2X1186 GE Screw

WH2X1186 GE Screw Out of Stock GEN WH2X1186 $5.11

WH1X2729 GE Gasket FL HD

WH1X2729 GE Gasket FL HD Out of Stock GEN WH1X2729 $25.33
