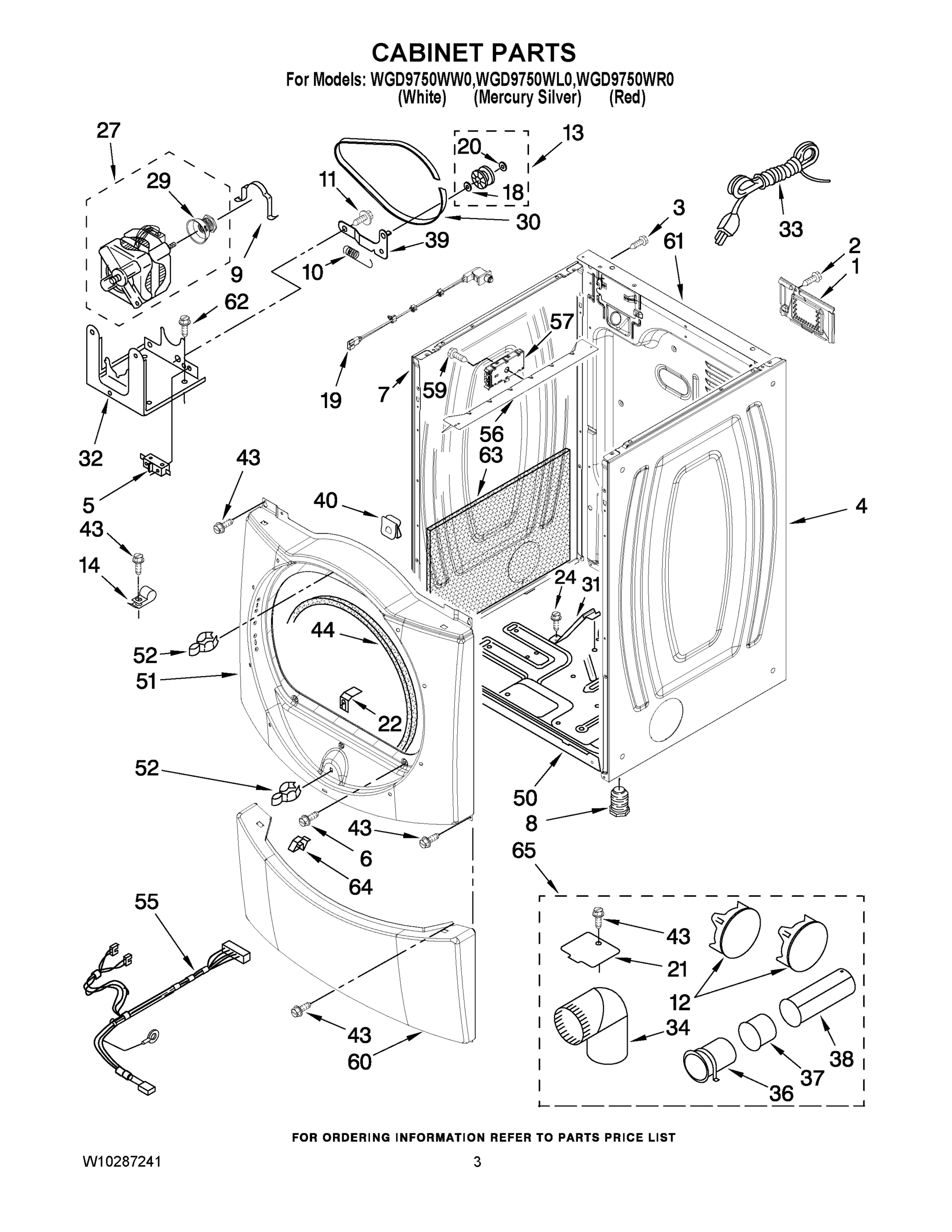

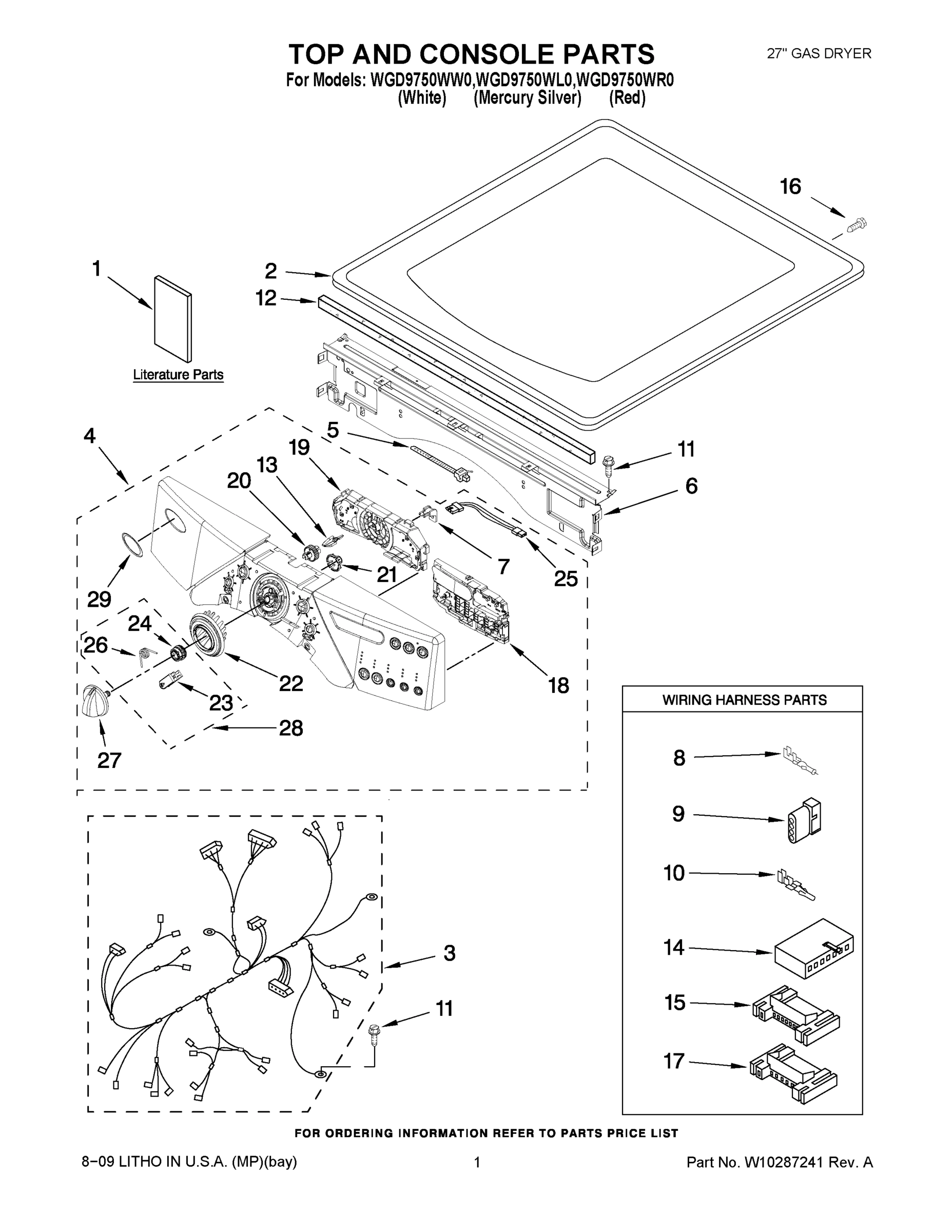

Model Whirlpool WGD9750WW0 27`` GAS DRYER – Common Parts &amp; Diagrams

1

WPW10085230 Whirlpool Label Assembly Backorder WPL WPW10085230 $9.13

1

WPW10359271 Whirlpool Drum Roller Shaft In Stock WPL WPW10359271 $30.25

2

WP8066208 Whirlpool Clip Backorder WPL WP8066208 $3.70

2

WPW10310366 Whirlpool Hinge In Stock WPL WPW10310366 $84.03

3

W10111069 Whirlpool Wire Harness Backorder WPL W10111069 $150.34

3

W11222846 Whirlpool Door Backorder WPL W11222846 $74.30

3

WPW10159996 Whirlpool Screw Backorder WPL WPW10159996 $2.51

4

WP3406653 Whirlpool Wire Harness In Stock WPL WP3406653 $56.58

4

Screw, 8-18 x 5/8 WPL 9742177 Contact Us For Availability

4

PANEL, CONSOLE ASSEMBLY (WHITE) WPL W10287715 Contact Us For Availability

5

W11168650 Whirlpool Air Duct Backorder WPL W11168650 $58.41

5

Screw-Plug WPL W10048910 Contact Us For Availability

6

WP697813 Whirlpool Seal In Stock WPL WP697813 $3.70

6

WPW10139457 Whirlpool Door Seal In Stock WPL WPW10139457 $37.41

7

DOOR FRAME ASSEMBLY (INCLUDES ITEM 28) WPL W10193522 Contact Us For Availability

8

WP94614 Whirlpool Terminal Backorder WPL WP94614 $2.51

8

WPW10080210 Whirlpool Nut Backorder WPL WPW10080210 $2.51

8

Screw, 10-16 x 1/2 WPL 3400224 Contact Us For Availability

9

3936144 Whirlpool Connector Backorder WPL 3936144 $10.76

9

W10665050 Whirlpool Plug Backorder WPL W10665050 $7.32

9

WP15418 Whirlpool Gas Orifice In Stock WPL WP15418 $12.08

9

WPW10121316 Whirlpool Clamp In Stock WPL WPW10121316 $10.89

9

DOOR ASSEMBLY (OUTER) WPL W10193530 Contact Us For Availability

10

W11226088 Whirlpool Lens Assembly In Stock WPL W11226088 $11.86

10

WPW10118347 Whirlpool Gas Valve In Stock WPL WPW10118347 $168.63

10

DOOR ASSEMBLY (INNER) WPL 8577819 Contact Us For Availability

11

WP3389420 Whirlpool Screw In Stock WPL WP3389420 $2.51

11

WP355515 Whirlpool Screw Backorder WPL WP355515 $2.51

12

W11684573 Whirlpool Clip Assembly Backorder WPL W11684573 $2.40

12

WPW10404617 Whirlpool Plug Assembly Backorder WPL WPW10404617 $37.46

13

8519356 Whirlpool Retainer Backorder WPL 8519356 $7.50

13

WP90767 Whirlpool Screw In Stock WPL WP90767 $2.51

14

279834 Whirlpool Dryer Gas Valve Solenoid Coi In Stock WPL 279834 $12.01

14

8529007 Whirlpool Plug Backorder WPL 8529007 $26.21

14

W10822054 Whirlpool Retainer Backorder WPL W10822054 $6.19

15

3395683 Whirlpool Connector Backorder WPL 3395683 $32.06

15

8579662 Whirlpool Seal Backorder WPL 8579662 $40.35

15

WP694424 Whirlpool Limiter In Stock WPL WP694424 $12.57

16

WP694423 Whirlpool Regulator Backorder WPL WP694423 $3.70

16

WPW10080190 Whirlpool Nut In Stock WPL WPW10080190 $2.51

16

Cover-Hinge, Stationary (LH) WPL W10180119 Contact Us For Availability

17

WP694422 Whirlpool Spring Backorder WPL WP694422 $9.42

17

WP8566254 Whirlpool Window Assembly Backorder WPL WP8566254 $92.47

17

Bulkhead, Rear WPL W10124071 Contact Us For Availability

18

279570 Whirlpool Dryer Door Latch Kit In Stock WPL 279570 $1.66

18

W11236646 Whirlpool Washer Assembly In Stock WPL W11236646 $9.59

18

WPW10121334 Whirlpool Washer In Stock WPL WPW10121334 $2.51

WPW10359272 Whirlpool Dryer Drum Support Roll In Stock WPL WPW10359272 $29.96

TEAR-DROP TRIM & CLIP ASSEMBLY (WHITE) WPL W10240356 Contact Us For Availability

TEAR-DROP TRIM & CLIP ASSEMBLY (SILVER) WPL W10249740 Contact Us For Availability

TEAR-DROP TRIM & CLIP ASSEMBLY (RED) WPL W10249766 Contact Us For Availability

20

W10295523 Whirlpool Plug Backorder WPL W10295523 $10.76

20

WPW10512946 Whirlpool Dryer Tri-Ring Drum Rol In Stock WPL WPW10512946 $4.52

20

Door Shield WPL W10180120 Contact Us For Availability

21

WPW10314173 Whirlpool Dryer Drum Support Whee In Stock WPL WPW10314173 $7.12

21

Door, Intermediate WPL W10180118 Contact Us For Availability

21

Retainer-Snap WPL W10012440 Contact Us For Availability

279936 Whirlpool Exhaust Pipe Backorder WPL 279936 $47.27

W10250089 Whirlpool Ring Backorder WPL W10250089 $9.13

RAMP, DOOR DOOR SWITCH WPL 8529053 Contact Us For Availability

Door Mask WPL W10180117 Contact Us For Availability

23

W10253353 Whirlpool Outer Housing Backorder WPL W10253353 $101.31

23

DOOR SCREEN WPL W10171571 Contact Us For Availability

24

WP3373329 Whirlpool Dishwasher Screw Backorder WPL WP3373329 $2.51

24

WP693995 Whirlpool Screw In Stock WPL WP693995 $1.92

24

WP8573713 Whirlpool Thermal Fuse In Stock WPL WP8573713 $32.46

25

3387561 Whirlpool Clamp Backorder WPL 3387561 $10.25

25

W10242906 Whirlpool Wire Harness Backorder WPL W10242906 $60.29

25

W10545923 Whirlpool Drum Assembly Backorder WPL W10545923 $229.26

26

W10853898 Whirlpool Screw In Stock WPL W10853898 $2.51

26

WPW10129065 Whirlpool Clip Backorder WPL WPW10129065 $4.78

26

Bracket, Support WPL 3389889 Contact Us For Availability

27

280114 Whirlpool Dryer Drum Seal In Stock WPL 280114 $25.42

27

W10190685 Whirlpool Knob Assembly Backorder WPL W10190685 $38.01

27

INNER DOOR (INCLUDES ITEM 18) WPL 8578229 Contact Us For Availability

28

W10121607 Whirlpool Cushion Backorder WPL W10121607 $33.29

28

W11257251 Whirlpool Shield Backorder WPL W11257251 $25.58

30

W10120998 Whirlpool Dryer Lint Screen Filter In Stock WPL W10120998 $23.21

31

W10859554 Whirlpool Coupler Backorder WPL W10859554 $26.75

32

W11481730 Whirlpool Bracket In Stock WPL W11481730 $31.07

32

WP488729 Whirlpool Refrigerator Door Screw In Stock WPL WP488729 $2.51

33

WP22002263 Whirlpool Dryer 10W Light Bulb In Stock WPL WP22002263 $7.83

34

WP3387223 Whirlpool Electrode Assembly In Stock WPL WP3387223 $3.39

35

8578825 Whirlpool Bracket Backorder WPL 8578825 $7.98

36

W11222979 Whirlpool Socket Backorder WPL W11222979 $43.76

37

WP697772 Whirlpool Dryer Blower Wheel In Stock WPL WP697772 $29.83

39

WP3394986 Whirlpool Spring Backorder WPL WP3394986 $29.06

40

CLIP-S TYPE 6-20 X 1 1/16 WPL 62825 Contact Us For Availability

40

Valve, Water Inlet (Includes Illus. 29,31,52, WPL W10044596 Contact Us For Availability

42

WP8577274 Whirlpool Dryer Thermistor In Stock WPL WP8577274 $17.55

44

W10888146 Whirlpool Housing In Stock WPL W10888146 $34.18

44

WP3387242 Whirlpool Seal In Stock WPL WP3387242 $9.17

45

WPW10128606 Whirlpool Lint Duct Backorder WPL WPW10128606 $70.75

46

WP8573824 Whirlpool Funnel Backorder WPL WP8573824 $69.14

47

WP8573028 Whirlpool Thermostat Assembly In Stock WPL WP8573028 $34.18

48

WP338906 Whirlpool Dryer Gas Sensor In Stock WPL WP338906 $17.97

49

WP489463 Whirlpool Refrigerator Screw In Stock WPL WP489463 $2.51

50

JUMPER, TCO HI-LIMIT WPL 3401710 Contact Us For Availability

51

WP3387230 Whirlpool Screw In Stock WPL WP3387230 $2.51

52

W10184825 Whirlpool Cover Backorder WPL W10184825 $28.80

53

WPW10113136 Whirlpool Drum Baffle Backorder WPL WPW10113136 $53.93

54

BULKHEAD, FRONT (INCLUDES ILLUS. 28 & 32) WPL W10252304 Contact Us For Availability

55

HARNESS, DIGITAL INTERFACE WPL W10242903 Contact Us For Availability

55

Bracket-Valve WPL W10044597 Contact Us For Availability

56

WP8563727 Whirlpool Bracket Backorder WPL WP8563727 $67.84

56

HOSE WPL W10044598 Contact Us For Availability

57

W11129408 Whirlpool Out Housing In Stock WPL W11129408 $29.06

57

CONTROL BOARD WPL W10256719 Contact Us For Availability

58

W11086603 Whirlpool Dryer Link Screen Air Gri In Stock WPL W11086603 $13.56

59

WP3391018 Whirlpool Wire Tie Backorder WPL WP3391018 $14.48

60

WP697770 Whirlpool Blower Cover Plate Seal In Stock WPL WP697770 $3.70

61

W10044579 Whirlpool Washer Backorder WPL W10044579 $5.65

62

W10044628 Whirlpool Nut Backorder WPL W10044628 $28.80

63

W10123956 Whirlpool Sound Absorber Backorder WPL W10123956 $14.26

63

WPW10277503 Whirlpool Nozzle Backorder WPL WPW10277503 $95.04

64

WP3392519 Whirlpool Dryer Thermal Fuse In Stock WPL WP3392519 $7.30

65

W10044599 Whirlpool Clip Backorder WPL W10044599 $8.73

285452A Whirlpool Hose Seal and Screen In Stock WPL 285452A $2.51

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350938 Whirlpool Spray Gun In Stock WPL 350938 $32.57

4392067 Whirlpool Dryer Repair Kit In Stock WPL 4392067 $18.78

49586 Whirlpool Mixer In Stock WPL 49586 $5.03

49621 Whirlpool Leveling Feet In Stock WPL 49621 $2.29

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

8212450A Whirlpool Dryer Rack Assembly Backorder WPL 8212450A $53.07

8541503 Whirlpool Stacking Kit In Stock WPL 8541503 $25.02

8579666ARP Whirlpool Door Kit Backorder WPL 8579666ARP $23.97

W10044609A Whirlpool Steam Dryer Hose Install In Stock WPL W10044609A $19.97

W10268217 Whirlpool Touch Up Backorder WPL W10268217 $6.50

W11581317 Whirlpool LP Gas Connector In Stock WPL W11581317 $42.09

WP16123 Whirlpool Washer In Stock WPL WP16123 $2.51

WP89503 Whirlpool Washer Fill Hose In Stock WPL WP89503 $3.62

PAINT, TOUCH-UP (1/2OZ. MAGNA RED) WPL W10218245 Contact Us For Availability

HOSE, INLET (2` HOSE) WPL 350027 Contact Us For Availability

PAINT, BULK (1 qt.) (Black (Uncut)) WPL 786032 Contact Us For Availability

Kit, Hold Down WPL 8529894 Contact Us For Availability
