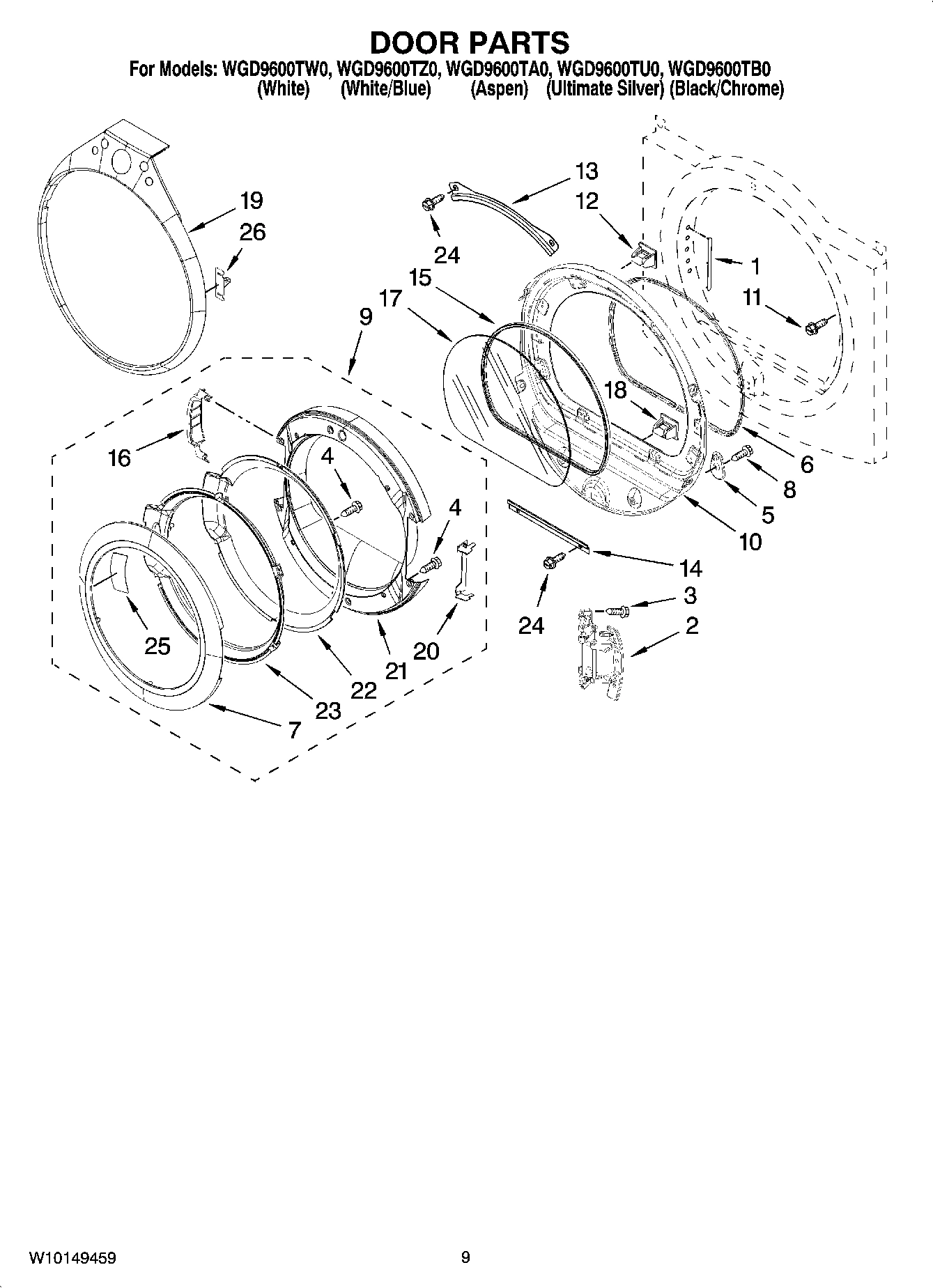

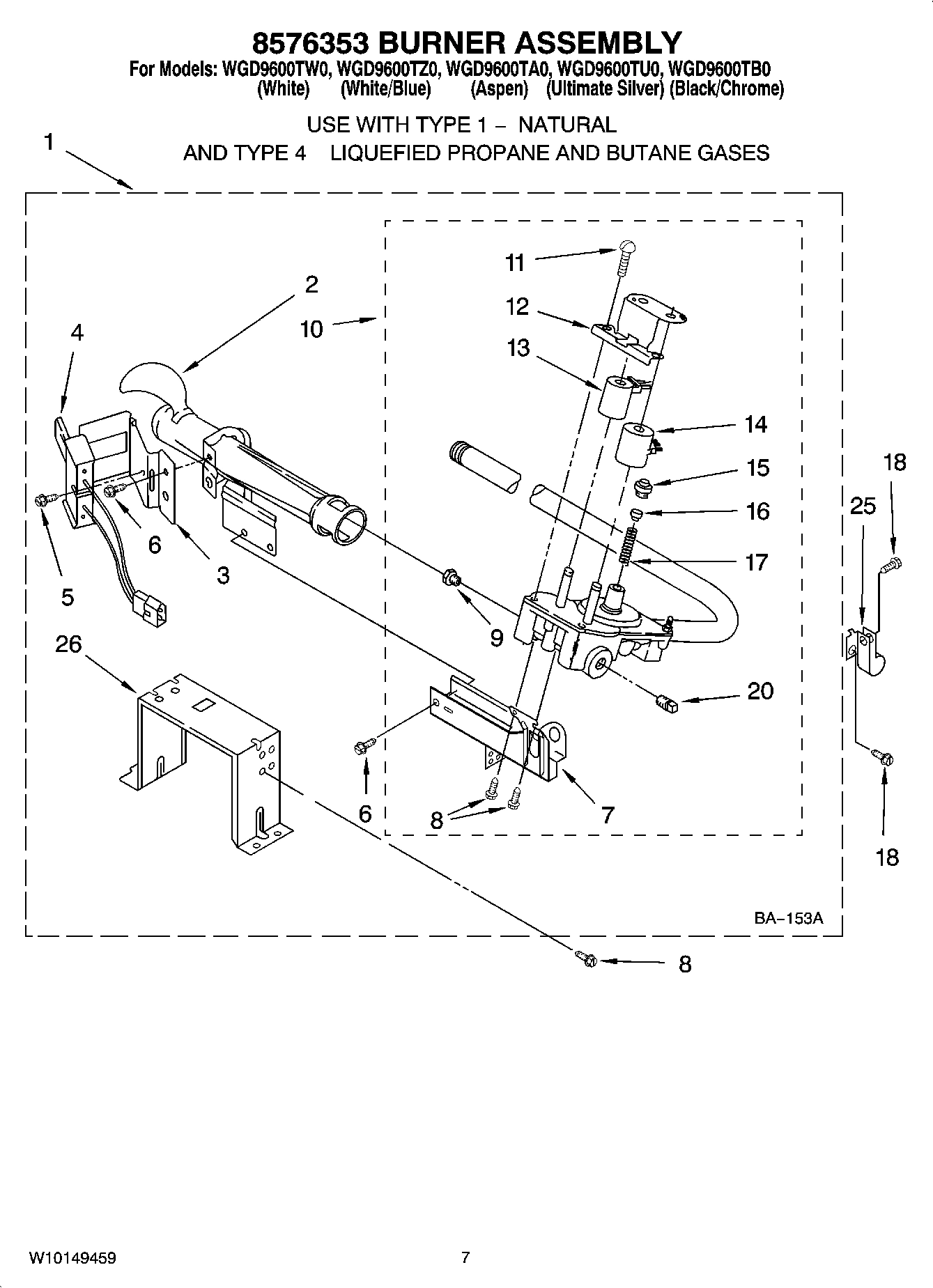

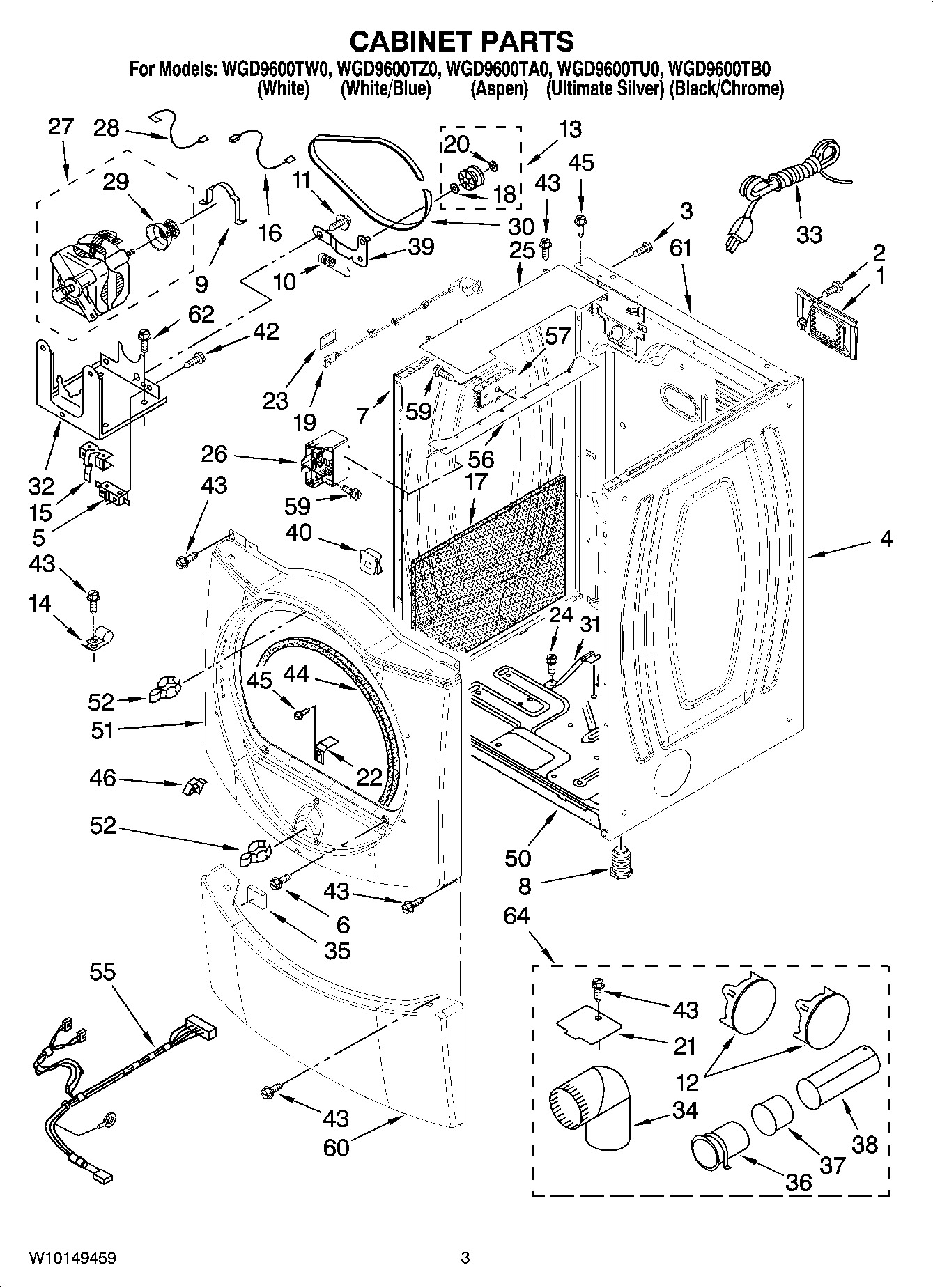

Model Whirlpool WGD9600TW0 27`` GAS DRYER – Common Parts &amp; Diagrams

350938 Whirlpool Spray Gun In Stock WPL 350938 $32.57

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

8541503 Whirlpool Stacking Kit In Stock WPL 8541503 $25.02

WP76314 Whirlpool Fill Hose Backorder WPL WP76314 $15.65

WPL 8212605 WPL 8212605 Contact Us For Availability

WPL W10044603 WPL W10044603 Contact Us For Availability

WPL W10157756 WPL W10157756 Contact Us For Availability

WPL 786032 WPL 786032 Contact Us For Availability

WPL 8529894 WPL 8529894 Contact Us For Availability

WPL ARI165863A WPL ARI165863A Contact Us For Availability

WPL ARI165864A WPL ARI165864A Contact Us For Availability

1

280119 Whirlpool Gas Burner In Stock WPL 280119 $214.30

1

W10085210 Whirlpool Label Backorder WPL W10085210 $29.06

1

W10819767 Whirlpool Cover Backorder WPL W10819767 $41.03

1

WPW10085230 Whirlpool Label Assembly Backorder WPL WPW10085230 $9.13

2

WP693140 Whirlpool Burner Backorder WPL WP693140 $68.85

2

WP8066208 Whirlpool Clip Backorder WPL WP8066208 $3.70

2

WP90767 Whirlpool Screw In Stock WPL WP90767 $2.51

2

WPW10310366 Whirlpool Hinge In Stock WPL WPW10310366 $84.03

3

W10850756 Whirlpool Screw Backorder WPL W10850756 $2.51

3

WP694298 Whirlpool Bracket Backorder WPL WP694298 $9.46

3

Screw, 10-24 x 3/64 WPL W10017850 Contact Us For Availability

4

279311 Whirlpool Dryer Flat Igniter Assembly In Stock WPL 279311 $15.72

4

WP3406653 Whirlpool Wire Harness In Stock WPL WP3406653 $56.58

4

Screw, 8-18 x 5/8 WPL 9742177 Contact Us For Availability

4

Panel, Side (R.H.) (Ultimate Silver) WPL W10095480 Contact Us For Availability

4

Panel, Side (R.H.) (White) WPL W10139003 Contact Us For Availability

4

Panel, Side (R.H.) (Ultimate Silver) WPL W10139009 Contact Us For Availability

4

Panel, Side (R.H.) (Black/Chrome) WPL W10139010 Contact Us For Availability

4

Panel, Side (R.H.) (Aspen) WPL W10139013 Contact Us For Availability

5

279782 Whirlpool Lid Switch In Stock WPL 279782 $30.85

5

W11168650 Whirlpool Air Duct Backorder WPL W11168650 $58.41

5

WPW10366705 Whirlpool Screw In Stock WPL WPW10366705 $2.51

5

Screw-Plug WPL W10048910 Contact Us For Availability

6

WP308685 Whirlpool Microwave Screw In Stock WPL WP308685 $2.51

6

WP681414 Whirlpool Screw In Stock WPL WP681414 $2.51

6

WP697813 Whirlpool Seal In Stock WPL WP697813 $3.70

6

WPW10139457 Whirlpool Door Seal In Stock WPL WPW10139457 $37.41

7

Handle, Ring & Pad Assembly (Gold) WPL W10048010 Contact Us For Availability

7

Handle, Ring & Pad Assembly (Silver) WPL W10048070 Contact Us For Availability

7

Panel, Side (L.H.) (White) WPL W10138989 Contact Us For Availability

7

Panel, Side (L.H.) (Ultimate Silver) WPL W10138995 Contact Us For Availability

7

Panel, Side (L.H.) (Black/Chrome) WPL W10138996 Contact Us For Availability

7

Panel, Side (L.H.) (Aspen) WPL W10138999 Contact Us For Availability

7

Base, Burner WPL 3389871 Contact Us For Availability

8

49621 Whirlpool Leveling Feet In Stock WPL 49621 $2.29

8

WP693995 Whirlpool Screw In Stock WPL WP693995 $1.92

8

WP94614 Whirlpool Terminal Backorder WPL WP94614 $2.51

9

3936144 Whirlpool Connector Backorder WPL 3936144 $10.76

9

WP15418 Whirlpool Gas Orifice In Stock WPL WP15418 $12.08

9

WP229742 Whirlpool Gas Orifice Backorder WPL WP229742 $12.08

9

WP660658 Whirlpool Clamp In Stock WPL WP660658 $3.70

9

Door Assembly (Outer) WPL 8579520 Contact Us For Availability

9

ORIFICE, BURNER (TYPE 4) (BUTANE) WPL 15422 Contact Us For Availability

10

WPW10118347 Whirlpool Gas Valve In Stock WPL WPW10118347 $168.63

10

WPW10446781 Whirlpool Spring In Stock WPL WPW10446781 $7.74

10

Door Assembly (Inner) (Includes Illus. 12 & 1 WPL 8578229 Contact Us For Availability

11

694421 Whirlpool Screw Assembly Backorder WPL 694421 $7.58

11

WP3389420 Whirlpool Screw In Stock WPL WP3389420 $2.51

11

WP355515 Whirlpool Screw Backorder WPL WP355515 $2.51

12

279570 Whirlpool Dryer Door Latch Kit In Stock WPL 279570 $1.66

12

694538 Whirlpool Bracket Backorder WPL 694538 $40.00

12

WPW10404617 Whirlpool Plug Assembly Backorder WPL WPW10404617 $37.46

13

279640 Whirlpool Dryer Idler Pulley Kit In Stock WPL 279640 $10.79

13

8519356 Whirlpool Retainer Backorder WPL 8519356 $7.50

14

279834 Whirlpool Dryer Gas Valve Solenoid Coi In Stock WPL 279834 $12.01

14

3978776 Whirlpool Bracket Backorder WPL 3978776 $28.80

14

W10822054 Whirlpool Retainer Backorder WPL W10822054 $6.19

3395683 Whirlpool Connector Backorder WPL 3395683 $32.06

8579662 Whirlpool Seal Backorder WPL 8579662 $40.35

WP694424 Whirlpool Limiter In Stock WPL WP694424 $12.57

WP8066120 Whirlpool Lever Assembly Backorder WPL WP8066120 $11.73

WP694423 Whirlpool Regulator Backorder WPL WP694423 $3.70

Wire, Belt Switch WPL 3394081 Contact Us For Availability

Cover-Hinge, Stationary (RH) WPL 8578152 Contact Us For Availability

Cover-Hinge, Stationary (LH) WPL 8578153 Contact Us For Availability

(Following Parts Not Included) WPL ARI165862A Contact Us For Availability

17

WP694422 Whirlpool Spring Backorder WPL WP694422 $9.42

17

WP8566254 Whirlpool Window Assembly Backorder WPL WP8566254 $92.47

17

Sound Panel WPL W10128772 Contact Us For Availability

18

WP488729 Whirlpool Refrigerator Door Screw In Stock WPL WP488729 $2.51

18

WPW10121334 Whirlpool Washer In Stock WPL WPW10121334 $2.51

W10128087 Whirlpool Door Switch Backorder WPL W10128087 $26.77

WPW10180500 Whirlpool Trim Backorder WPL WPW10180500 $129.76

Tear-Drop Trim & Clip Assembly (Black/Chrome) WPL W10133737 Contact Us For Availability

Tear-Drop Trim & Clip Assembly (Ultimate Silv WPL W10133739 Contact Us For Availability

Tear-Drop Trim & Clip Assembly (White/Blue) WPL W10133741 Contact Us For Availability

20

W10295523 Whirlpool Plug Backorder WPL W10295523 $10.76

20

Door Shield WPL W10074630 Contact Us For Availability

21

WPW10354249 Whirlpool Cover In Stock WPL WPW10354249 $3.70

21

Retainer-Snap WPL W10012440 Contact Us For Availability

21

Door-Intermediate WPL 8578157 Contact Us For Availability

22

Door Mask WPL 8578156 Contact Us For Availability

22

Ramp, Door WPL 8529053 Contact Us For Availability

22

KNOB, LIGHT RING (INCLUDES: ITEM 21) WPL W10012410 Contact Us For Availability

23

Door Screen WPL 8578155 Contact Us For Availability

23

Seal, Door Switch WPL W10118614 Contact Us For Availability

24

WP3373329 Whirlpool Dishwasher Screw Backorder WPL WP3373329 $2.51

24

WP8573713 Whirlpool Thermal Fuse In Stock WPL WP8573713 $32.46

3387561 Whirlpool Clamp Backorder WPL 3387561 $10.25

W10121607 Whirlpool Cushion Backorder WPL W10121607 $33.29

Harness, Communication WPL W10095960 Contact Us For Availability

Complete Drum Assembly WPL W10138031 Contact Us For Availability

Cover, Control Bracket WPL W10118470 Contact Us For Availability

W11581317 Whirlpool LP Gas Connector In Stock WPL W11581317 $42.09

WPW10109200 Whirlpool Screw In Stock WPL WPW10109200 $2.51

WPW10129065 Whirlpool Clip Backorder WPL WPW10129065 $4.78

Power Cube WPL 3407228 Contact Us For Availability

Bracket, Support WPL 3389889 Contact Us For Availability

Following Parts Not Illustrated WPL ARI165861A Contact Us For Availability

27

279787 Whirlpool Dryer Drive Motor In Stock WPL 279787 $109.35

27

WPL W10153663 WPL W10153663 Contact Us For Availability

27

Knob, Control (White) WPL W10116702 Contact Us For Availability

28

3398948 Whirlpool Wire Backorder WPL 3398948 $38.06

28

W11257251 Whirlpool Shield Backorder WPL W11257251 $25.58

28

WPL 280230 WPL 280230 Contact Us For Availability

29

W10837625 Whirlpool Dryer Motor Pulley In Stock WPL W10837625 $45.53

30

661570V Whirlpool Dryer Drum Belt In Stock WPL 661570V $10.71

31

W10181903 Whirlpool Bracket Backorder WPL W10181903 $9.83

31

W10859554 Whirlpool Coupler Backorder WPL W10859554 $26.75

32

WP3387118 Whirlpool Base Assembly Backorder WPL WP3387118 $44.84

33

W11628810 Whirlpool Power Cord Backorder WPL W11628810 $36.97

34

WP3387223 Whirlpool Electrode Assembly In Stock WPL WP3387223 $3.39

34

WPW10416072 Whirlpool Elbow Backorder WPL WPW10416072 $11.44

35

3389682 Whirlpool Spacer Backorder WPL 3389682 $5.65

35

3977373 Whirlpool Bracket Backorder WPL 3977373 $66.93

36

W11700522 Whirlpool Socket Backorder WPL W11700522 $28.07

36

WP8563747 Whirlpool Exhaust Pipe Backorder WPL WP8563747 $29.43

37

WP697772 Whirlpool Dryer Blower Wheel In Stock WPL WP697772 $29.83

37

WPW10331278 Whirlpool Exhaust Pipe Backorder WPL WPW10331278 $28.80

38

WP8563749 Whirlpool Exhaust Pipe Backorder WPL WP8563749 $30.96

39

W10837240 Whirlpool Dryer Idler Pulley In Stock WPL W10837240 $10.83

39

WP3394986 Whirlpool Spring Backorder WPL WP3394986 $29.06

40

WPL 62825 WPL 62825 Contact Us For Availability

42

WP8577274 Whirlpool Dryer Thermistor In Stock WPL WP8577274 $17.55

42

WP98129 Whirlpool Screw Backorder WPL WP98129 $2.51

44

WP3387242 Whirlpool Seal In Stock WPL WP3387242 $9.17

46

W11295573 Whirlpool Clip Backorder WPL W11295573 $10.76

46

WP8573824 Whirlpool Funnel Backorder WPL WP8573824 $69.14

47

WP8573028 Whirlpool Thermostat Assembly In Stock WPL WP8573028 $34.18

48

WP338906 Whirlpool Dryer Gas Sensor In Stock WPL WP338906 $17.97

49

WP489463 Whirlpool Refrigerator Screw In Stock WPL WP489463 $2.51

50

WPL 8519207 WPL 8519207 Contact Us For Availability

WP3387230 Whirlpool Screw In Stock WPL WP3387230 $2.51

WPL 8578388 WPL 8578388 Contact Us For Availability

WPL 8578936 WPL 8578936 Contact Us For Availability

WPL 8578940 WPL 8578940 Contact Us For Availability

WPL W10140574 WPL W10140574 Contact Us For Availability

53

WPW10113136 Whirlpool Drum Baffle Backorder WPL WPW10113136 $53.93

55

W10181464 Whirlpool Wire Harness Backorder WPL W10181464 $45.62

56

WP8563727 Whirlpool Bracket Backorder WPL WP8563727 $67.84

57

WPL W10141671 WPL W10141671 Contact Us For Availability

58

W11086603 Whirlpool Dryer Link Screen Air Gri In Stock WPL W11086603 $13.56

WP697770 Whirlpool Blower Cover Plate Seal In Stock WPL WP697770 $3.70

WPL W10116271 WPL W10116271 Contact Us For Availability

WPL W10116273 WPL W10116273 Contact Us For Availability

WPL W10116277 WPL W10116277 Contact Us For Availability

WPL W10140572 WPL W10140572 Contact Us For Availability

61

W10044579 Whirlpool Washer Backorder WPL W10044579 $5.65

61

W10487430 Whirlpool Rear Panel Backorder WPL W10487430 $135.74

62

WPL ARI165860A WPL ARI165860A Contact Us For Availability

63

WPL W10044629 WPL W10044629 Contact Us For Availability

64

W10470674 Whirlpool Dryer Side Vent Exhaust K In Stock WPL W10470674 $53.07

64

WP3392519 Whirlpool Dryer Thermal Fuse In Stock WPL WP3392519 $7.30
