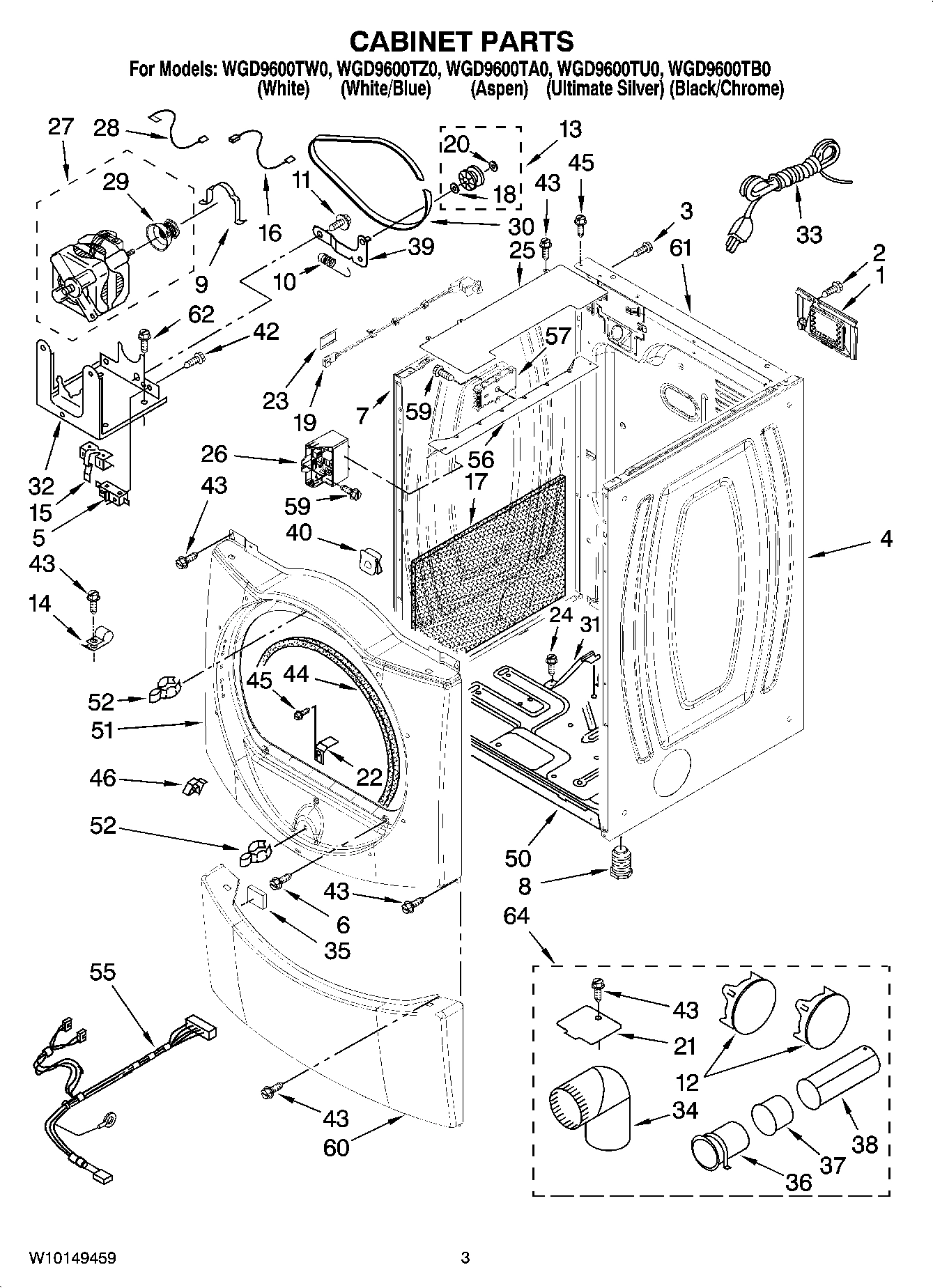

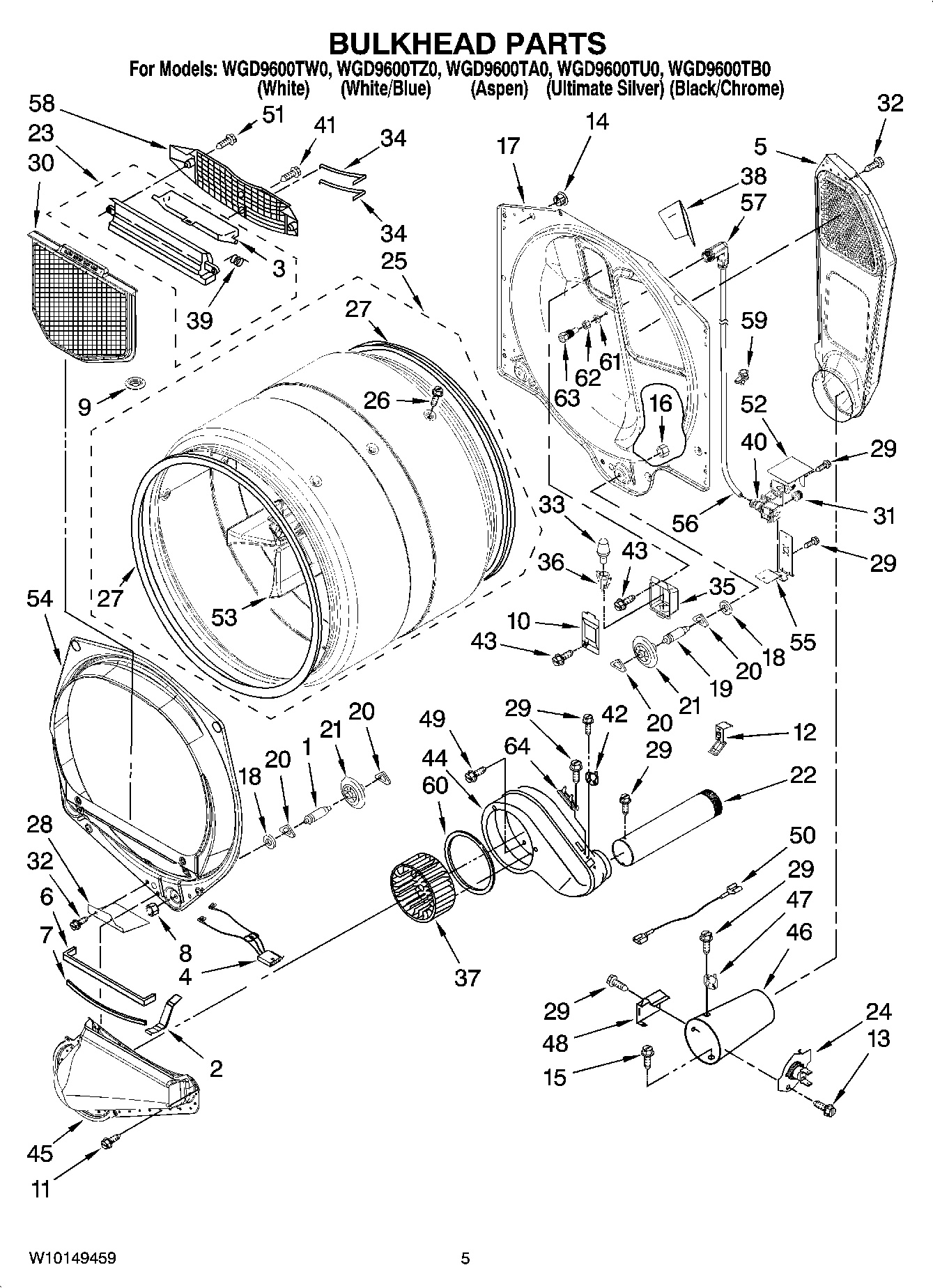

Model Whirlpool WGD9600TU0 27`` GAS DRYER – Common Parts &amp; Diagrams

350938 Whirlpool Spray Gun Backorder WPL 350938 $32.57

4392067 Whirlpool Dryer Repair Kit In Stock WPL 4392067 $33.72

49586 Whirlpool Mixer In Stock WPL 49586 $5.03

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.51

8212450A Whirlpool Dryer Rack Assembly Backorder WPL 8212450A $55.11

8541503 Whirlpool Stacking Kit In Stock WPL 8541503 $26.26

8579666ARP Whirlpool Door Kit In Stock WPL 8579666ARP $23.97

WP16123 Whirlpool Washer In Stock WPL WP16123 $2.51

WP76314 Whirlpool Fill Hose Backorder WPL WP76314 $16.43

WPL 8212605 WPL 8212605 Contact Us For Availability

WPL 799344 WPL 799344 Contact Us For Availability

WPL W10044603 WPL W10044603 Contact Us For Availability

WPL W10157756 WPL W10157756 Contact Us For Availability

PAINT, TOUCH-UP (1/2oz.) (Black) WPL 72302 Contact Us For Availability

WPL 786020 WPL 786020 Contact Us For Availability

WPL 786032 WPL 786032 Contact Us For Availability

WPL 8529894 WPL 8529894 Contact Us For Availability

WPL ARI165854A WPL ARI165854A Contact Us For Availability

WPL ARI165855A WPL ARI165855A Contact Us For Availability

1

280119 Whirlpool Gas Burner In Stock WPL 280119 $183.79

1

W10085210 Whirlpool Label Backorder WPL W10085210 $30.51

1

WPW10085230 Whirlpool Label Assembly Backorder WPL WPW10085230 $9.13

1

Use & Care Guide WPL W10136970 Contact Us For Availability

1

Sheet, Tip Steam Dry WPL W10139322 Contact Us For Availability

1

Guide, Quick Start WPL W10139791 Contact Us For Availability

1

Tech Sheet WPL W10143265 Contact Us For Availability

2

WP693140 Whirlpool Burner Backorder WPL WP693140 $72.29

2

WP8066208 Whirlpool Clip Backorder WPL WP8066208 $3.70

2

WPW10310366 Whirlpool Hinge In Stock WPL WPW10310366 $84.03

2

Top (White) WPL 8519251 Contact Us For Availability

2

Top (Black/Chrome) WPL 8579997 Contact Us For Availability

2

Top (Ultimate Silver) WPL W10114785 Contact Us For Availability

2

Top (Aspen) WPL W10140290 Contact Us For Availability

3

WP694298 Whirlpool Bracket Backorder WPL WP694298 $9.46

3

Screw, 10-24 x 3/64 WPL W10017850 Contact Us For Availability

3

Harness, Main WPL W10110989 Contact Us For Availability

4

279311 Whirlpool Dryer Flat Igniter Assembly In Stock WPL 279311 $22.79

4

WP3406653 Whirlpool Wire Harness In Stock WPL WP3406653 $46.96

4

Screw, 8-18 x 5/8 WPL 9742177 Contact Us For Availability

4

Panel, Console (Includes Illus: 20,21,22,27,2 WPL W10153650 Contact Us For Availability

4

Panel, Console (Includes Illus: 20,21,22,27,2 WPL W10153652 Contact Us For Availability

4

Panel, Console (Includes Illus: 20,21,22,27,2 WPL W10153653 Contact Us For Availability

4

Panel, Console (Includes Illus: 20,21,22,27,2 WPL W10153654 Contact Us For Availability

4

Panel, Console (Includes Illus: 20,21,22,27,2 WPL W10153655 Contact Us For Availability

5

W11168650 Whirlpool Air Duct Backorder WPL W11168650 $58.41

5

WP3391018 Whirlpool Wire Tie Backorder WPL WP3391018 $14.48

5

WPW10366705 Whirlpool Screw In Stock WPL WPW10366705 $2.51

5

Screw-Plug WPL W10048910 Contact Us For Availability

6

WP681414 Whirlpool Screw In Stock WPL WP681414 $2.51

6

WP697813 Whirlpool Seal In Stock WPL WP697813 $3.88

6

WPW10139457 Whirlpool Door Seal In Stock WPL WPW10139457 $39.27

6

Bracket, Console (Includes No.12) WPL W10006840 Contact Us For Availability

7

W10112268 Whirlpool Clip Backorder WPL W10112268 $8.00

7

Handle, Ring & Pad Assembly (Gold) WPL W10048010 Contact Us For Availability

7

Handle, Ring & Pad Assembly (Silver) WPL W10048070 Contact Us For Availability

7

Base, Burner WPL 3389871 Contact Us For Availability

8

49621 Whirlpool Leveling Feet In Stock WPL 49621 $2.40

8

WP308685 Whirlpool Microwave Screw In Stock WPL WP308685 $2.51

8

WP693995 Whirlpool Screw In Stock WPL WP693995 $1.92

8

WP94614 Whirlpool Terminal Backorder WPL WP94614 $2.51

9

3936144 Whirlpool Connector Backorder WPL 3936144 $10.76

9

WP15418 Whirlpool Gas Orifice In Stock WPL WP15418 $12.08

9

WP229742 Whirlpool Gas Orifice Backorder WPL WP229742 $12.08

9

WP660658 Whirlpool Clamp In Stock WPL WP660658 $3.18

9

Door Assembly (Outer) WPL 8579520 Contact Us For Availability

9

ORIFICE, BURNER (TYPE 4) (BUTANE) WPL 15422 Contact Us For Availability

10

WPW10118347 Whirlpool Gas Valve In Stock WPL WPW10118347 $168.63

10

Door Assembly (Inner) (Includes Illus. 12 & 1 WPL 8578229 Contact Us For Availability

11

694421 Whirlpool Screw Assembly Backorder WPL 694421 $7.58

11

WP3389420 Whirlpool Screw In Stock WPL WP3389420 $2.51

11

WP355515 Whirlpool Screw Backorder WPL WP355515 $2.51

12

279570 Whirlpool Dryer Door Latch Kit In Stock WPL 279570 $2.36

12

694538 Whirlpool Bracket Backorder WPL 694538 $42.00

12

W10112267 Whirlpool Seal Assembly Backorder WPL W10112267 $33.69

13

8519356 Whirlpool Retainer Backorder WPL 8519356 $7.50

13

W10012480 Whirlpool WP Dryer Encoder Adapt Wh Backorder WPL W10012480 $9.96

14

279834 Whirlpool Dryer Gas Valve Solenoid Coi In Stock WPL 279834 $17.78

14

3936150 Whirlpool Connector Backorder WPL 3936150 $30.25

14

W10822054 Whirlpool Retainer Backorder WPL W10822054 $6.19

3395683 Whirlpool Connector Backorder WPL 3395683 $33.67

WP694424 Whirlpool Limiter In Stock WPL WP694424 $12.57

WP8066120 Whirlpool Lever Assembly Backorder WPL WP8066120 $11.73

Gasket, Window WPL 8579662 Contact Us For Availability

WP694423 Whirlpool Regulator Backorder WPL WP694423 $3.70

Wire, Belt Switch WPL 3394081 Contact Us For Availability

Cover-Hinge, Stationary (RH) WPL 8578152 Contact Us For Availability

Cover-Hinge, Stationary (LH) WPL 8578153 Contact Us For Availability

(Following Parts Not Included) WPL ARI165853A Contact Us For Availability

Screw, 8-18 x 1/2 WPL 8281225 Contact Us For Availability

17

2203186 Whirlpool Connector Backorder WPL 2203186 $7.61

17

WP694422 Whirlpool Spring Backorder WPL WP694422 $9.42

17

WP8566254 Whirlpool Window Assembly Backorder WPL WP8566254 $97.09

18

WP488729 Whirlpool Refrigerator Door Screw In Stock WPL WP488729 $2.64

18

WPW10121334 Whirlpool Washer In Stock WPL WPW10121334 $2.51

18

User Interface (Right) WPL W10110659 Contact Us For Availability

W10110658 Whirlpool Electronic Control Board Backorder WPL W10110658 $130.51

WPW10180500 Whirlpool Trim Backorder WPL WPW10180500 $129.76

Tear-Drop Trim & Clip Assembly (Black/Chrome) WPL W10133737 Contact Us For Availability

Tear-Drop Trim & Clip Assembly (Ultimate Silv WPL W10133739 Contact Us For Availability

Tear-Drop Trim & Clip Assembly (White/Blue) WPL W10133741 Contact Us For Availability

20

W10295523 Whirlpool Plug Backorder WPL W10295523 $10.76

20

Door Shield WPL W10074630 Contact Us For Availability

20

Encoder-Wheel WPL W10012430 Contact Us For Availability

21

Retainer-Snap WPL W10012440 Contact Us For Availability

21

Door-Intermediate WPL 8578157 Contact Us For Availability

22

Door Mask WPL 8578156 Contact Us For Availability

22

Ramp, Door WPL 8529053 Contact Us For Availability

22

KNOB, LIGHT RING (INCLUDES: ITEM 21) WPL W10012410 Contact Us For Availability

23

Door Screen WPL 8578155 Contact Us For Availability

23

Rast, Wheel Assy. (Service Only With Item. 28 WPL W10012810 Contact Us For Availability

24

WP3373329 Whirlpool Dishwasher Screw Backorder WPL WP3373329 $2.51

24

WP8573713 Whirlpool Thermal Fuse In Stock WPL WP8573713 $32.46

24

Detent Wheel (Service Only With Illus. 28) WPL W10012460 Contact Us For Availability

25

3387561 Whirlpool Clamp Backorder WPL 3387561 $10.25

25

Harness, Communication WPL W10095960 Contact Us For Availability

25

Complete Drum Assembly WPL W10138031 Contact Us For Availability

W11581317 Whirlpool LP Gas Connector In Stock WPL W11581317 $44.19

WPW10109200 Whirlpool Screw In Stock WPL WPW10109200 $2.51

WPW10129065 Whirlpool Clip Backorder WPL WPW10129065 $4.78

Power Cube WPL 3407228 Contact Us For Availability

Knob, Spring (Service Only With Item 28) WPL W10012820 Contact Us For Availability

Bracket, Support WPL 3389889 Contact Us For Availability

Following Parts Not Illustrated WPL ARI165852A Contact Us For Availability

WPL W10153663 WPL W10153663 Contact Us For Availability

Knob, Control (White) WPL W10116702 Contact Us For Availability

Knob, Control (Ulti WPL W10116704 Contact Us For Availability

WPL W10116705 WPL W10116705 Contact Us For Availability

WPL W10116706 WPL W10116706 Contact Us For Availability

28

3398948 Whirlpool Wire Backorder WPL 3398948 $39.97

28

W11257251 Whirlpool Shield Backorder WPL W11257251 $26.86

28

WPL 280230 WPL 280230 Contact Us For Availability

29

WPL W10117943 WPL W10117943 Contact Us For Availability

30

WPL W10110976 WPL W10110976 Contact Us For Availability

31

W10859554 Whirlpool Coupler Backorder WPL W10859554 $28.09

32

WP3387118 Whirlpool Base Assembly Backorder WPL WP3387118 $47.09

34

WP3387223 Whirlpool Electrode Assembly In Stock WPL WP3387223 $3.39

35

3977373 Whirlpool Bracket Backorder WPL 3977373 $70.28

36

W11700522 Whirlpool Socket Backorder WPL W11700522 $29.48

37

WP697772 Whirlpool Dryer Blower Wheel In Stock WPL WP697772 $31.33

39

WP3394986 Whirlpool Spring Backorder WPL WP3394986 $30.51

40

WPL 62825 WPL 62825 Contact Us For Availability

42

WP8577274 Whirlpool Dryer Thermistor In Stock WPL WP8577274 $18.43

44

W10888146 Whirlpool Housing In Stock WPL W10888146 $35.89

44

WP3387242 Whirlpool Seal In Stock WPL WP3387242 $9.17

45

WPW10128606 Whirlpool Lint Duct Backorder WPL WPW10128606 $74.28

46

WP8573824 Whirlpool Funnel Backorder WPL WP8573824 $72.60

47

WP8573028 Whirlpool Thermostat Assembly In Stock WPL WP8573028 $40.46

48

WP338906 Whirlpool Dryer Gas Sensor In Stock WPL WP338906 $31.76

49

WP489463 Whirlpool Refrigerator Screw In Stock WPL WP489463 $2.51

50

JUMPER, TCO HI-LIMIT WPL 3401710 Contact Us For Availability

51

WP3387230 Whirlpool Screw In Stock WPL WP3387230 $2.64

52

W10815373 Whirlpool Valve In Stock WPL W10815373 $91.04

53

Baffle, Drum WPL W10113136 Contact Us For Availability

54

Bulkhead, Front (Includes Il WPL 8519245 Contact Us For Availability

55

WPL W10044597 WPL W10044597 Contact Us For Availability

56

WP8563727 Whirlpool Bracket Backorder WPL WP8563727 $71.22

56

WPL W10044598 WPL W10044598 Contact Us For Availability

57

WPL W10141671 WPL W10141671 Contact Us For Availability

57

WPL W10044606 WPL W10044606 Contact Us For Availability

58

W11086603 Whirlpool Dryer Link Screen Air Gri In Stock WPL W11086603 $14.24

60

WP697770 Whirlpool Blower Cover Plate Seal In Stock WPL WP697770 $3.88

61

W10044579 Whirlpool Dryer Backorder WPL W10044579 $5.65

62

W10044628 Whirlpool Nut Backorder WPL W10044628 $30.25

63

WPL W10044629 WPL W10044629 Contact Us For Availability

64

WP3392519 Whirlpool Dryer Thermal Fuse In Stock WPL WP3392519 $7.67
