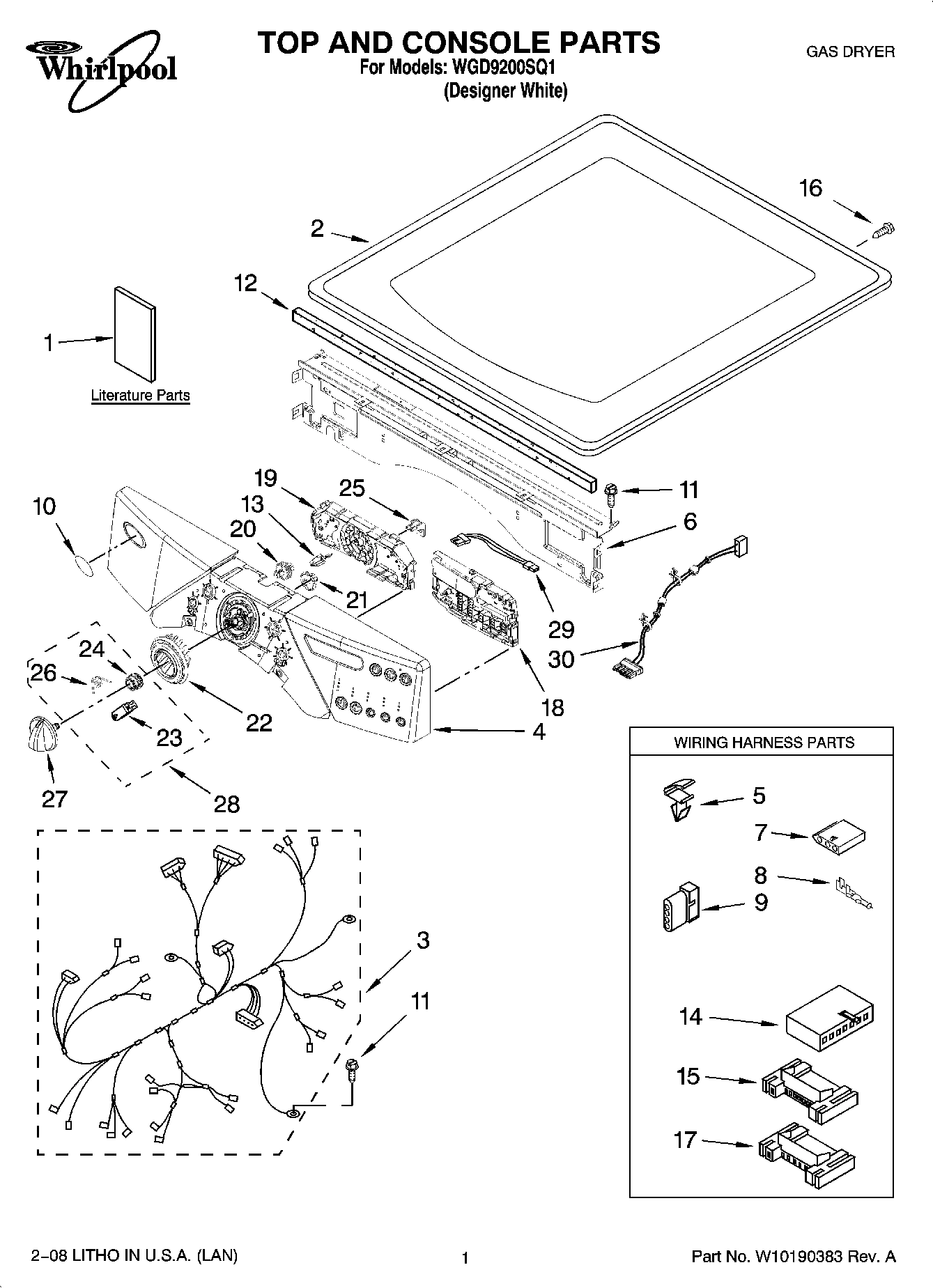

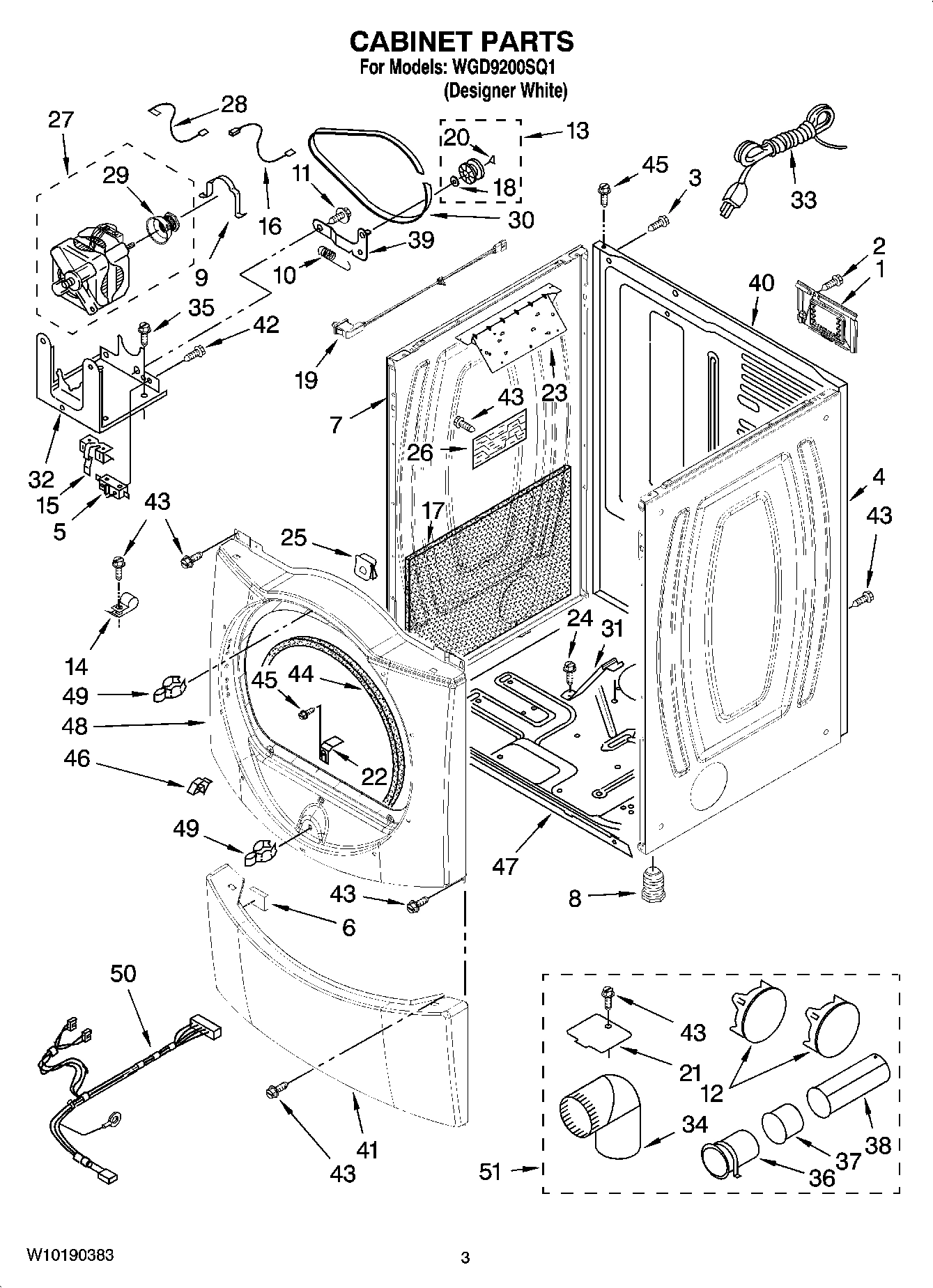

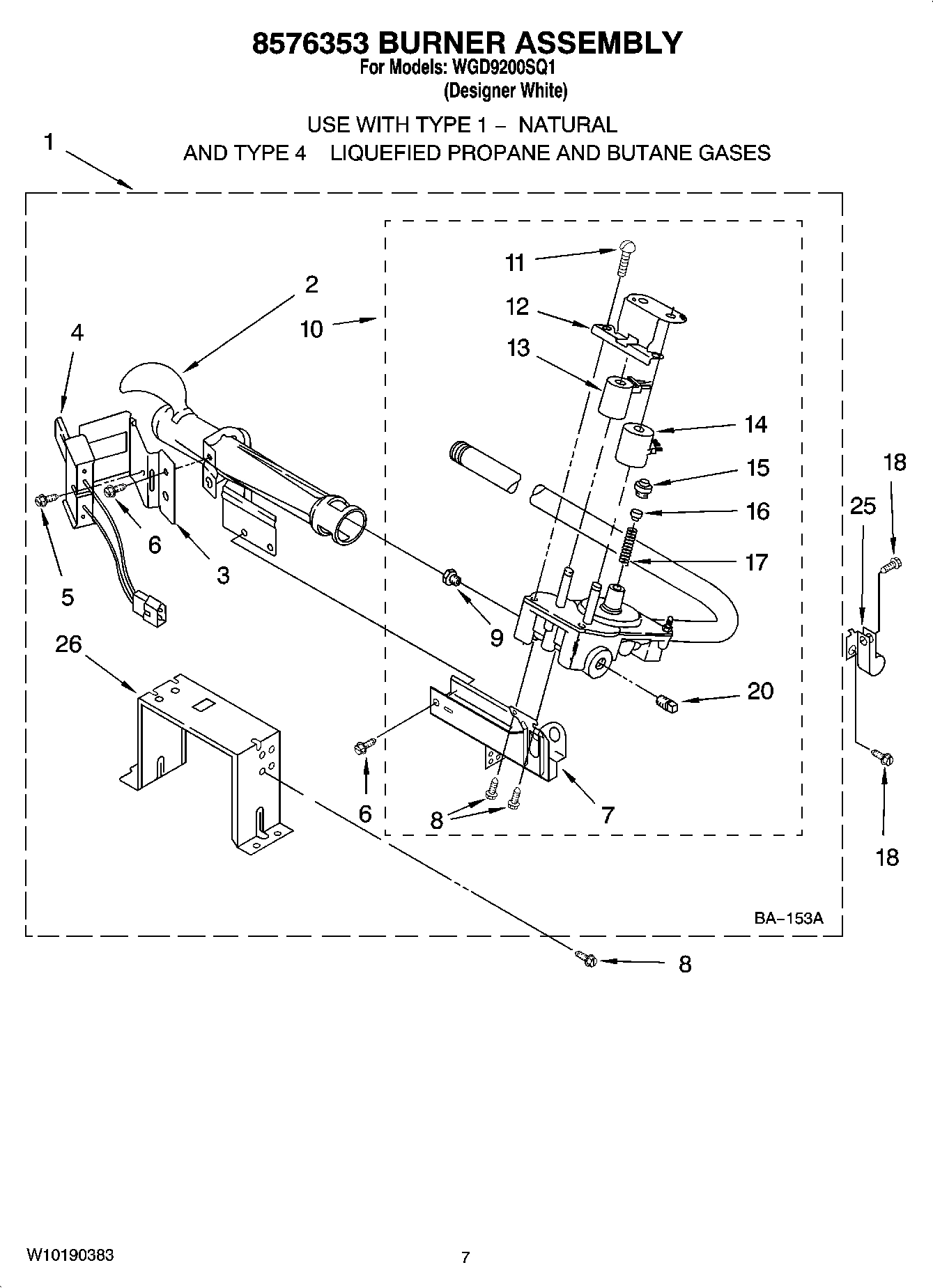

Model Whirlpool WGD9200SQ1 GAS DRYER – Common Parts &amp; Diagrams

350938 Whirlpool Spray Gun In Stock WPL 350938 $32.57

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

8541503 Whirlpool Stacking Kit In Stock WPL 8541503 $25.02

W11581317 Whirlpool LP Gas Connector In Stock WPL W11581317 $42.09

Following Parts Not Illustrated WPL ARI165748A Contact Us For Availability

1

280119 Whirlpool Gas Burner In Stock WPL 280119 $214.30

1

W10085210 Whirlpool Label Backorder WPL W10085210 $29.06

1

Guide, Quick Start WPL W10111226 Contact Us For Availability

1

Use & Care Guide WPL W10151593 Contact Us For Availability

1

Tech Sheet WPL W10177461 Contact Us For Availability

2

WP693140 Whirlpool Burner Backorder WPL WP693140 $68.85

2

WP8066208 Whirlpool Clip Backorder WPL WP8066208 $3.70

2

Top WPL 3980634 Contact Us For Availability

3

W10111011 Whirlpool Wire Harness Backorder WPL W10111011 $192.76

3

WP694298 Whirlpool Bracket Backorder WPL WP694298 $9.46

3

WPW10159996 Whirlpool Screw Backorder WPL WPW10159996 $2.51

4

279311 Whirlpool Dryer Flat Igniter Assembly In Stock WPL 279311 $15.72

4

WP3406653 Whirlpool Wire Harness In Stock WPL WP3406653 $56.58

4

Screw, 8-18 x 5/8 WPL 9742177 Contact Us For Availability

4

Panel, Console (Includes Item: 20,21.22,27,28 WPL W10116694 Contact Us For Availability

5

W11168650 Whirlpool Air Duct Backorder WPL W11168650 $58.41

5

WP3394427 Whirlpool Clip In Stock WPL WP3394427 $3.70

5

WPW10366705 Whirlpool Screw In Stock WPL WPW10366705 $2.51

5

Screw-Plug WPL W10048910 Contact Us For Availability

6

WP681414 Whirlpool Screw In Stock WPL WP681414 $2.51

6

WP697813 Whirlpool Seal In Stock WPL WP697813 $3.70

6

WPW10139457 Whirlpool Door Seal In Stock WPL WPW10139457 $37.41

6

Bracket, Console (Includes Item.12) WPL W10006840 Contact Us For Availability

7

353424 Whirlpool Connector Backorder WPL 353424 $10.76

7

Base, Burner WPL 3389871 Contact Us For Availability

8

49621 Whirlpool Leveling Feet In Stock WPL 49621 $2.29

8

WP693995 Whirlpool Screw In Stock WPL WP693995 $1.92

8

WP94614 Whirlpool Terminal Backorder WPL WP94614 $2.51

9

3936144 Whirlpool Connector Backorder WPL 3936144 $10.76

9

WP15418 Whirlpool Gas Orifice In Stock WPL WP15418 $12.08

9

WP229742 Whirlpool Gas Orifice Backorder WPL WP229742 $12.08

9

WP660658 Whirlpool Clamp In Stock WPL WP660658 $3.70

9

ORIFICE, BURNER (TYPE 4) (BUTANE) WPL 15422 Contact Us For Availability

10

WPW10118347 Whirlpool Gas Valve In Stock WPL WPW10118347 $168.63

10

Door Assembly (Inner) (Includes Illus. 12) WPL 8578229 Contact Us For Availability

10

Badge WPL W10117943 Contact Us For Availability

11

694421 Whirlpool Screw Assembly Backorder WPL 694421 $7.58

11

WP3389420 Whirlpool Screw In Stock WPL WP3389420 $2.51

12

694538 Whirlpool Bracket Backorder WPL 694538 $40.00

12

W10112267 Whirlpool Seal Assembly Backorder WPL W10112267 $32.08

13

W10012480 Whirlpool WP Dishwasher Encoder Ada Backorder WPL W10012480 $9.96

14

279834 Whirlpool Dryer Gas Valve Solenoid Coi In Stock WPL 279834 $12.01

14

3936150 Whirlpool Connector Backorder WPL 3936150 $28.80

14

WP3387230 Whirlpool Screw In Stock WPL WP3387230 $2.51

3395683 Whirlpool Connector Backorder WPL 3395683 $32.06

8579662 Whirlpool Seal Backorder WPL 8579662 $40.35

WP694424 Whirlpool Limiter In Stock WPL WP694424 $12.57

WP8066120 Whirlpool Lever Assembly Backorder WPL WP8066120 $11.73

16

WP488729 Whirlpool Refrigerator Door Screw In Stock WPL WP488729 $2.51

16

WP694423 Whirlpool Regulator Backorder WPL WP694423 $3.70

16

COVER HINGE (STATIONARY (RH)) WPL W10181197 Contact Us For Availability

17

2203186 Whirlpool Connector Backorder WPL 2203186 $7.61

17

WP694422 Whirlpool Spring Backorder WPL WP694422 $9.42

17

WP8566254 Whirlpool Window Assembly Backorder WPL WP8566254 $92.47

18

WPW10121334 Whirlpool Washer In Stock WPL WPW10121334 $2.51

18

User Interface (Right) WPL W10031420 Contact Us For Availability

19

Tear-Drop Trim & Clip Assembly WPL W10180493 Contact Us For Availability

19

User Interface (Center) (Includes Item 13) WPL W10031410 Contact Us For Availability

20

W10295523 Whirlpool Plug Backorder WPL W10295523 $10.76

20

Door Shield WPL W10180120 Contact Us For Availability

20

Encoder-Wheel WPL W10012430 Contact Us For Availability

21

Door, Intermediate WPL W10180118 Contact Us For Availability

21

Retainer-Snap WPL W10012440 Contact Us For Availability

22

Ramp, Door WPL 8529053 Contact Us For Availability

22

KNOB, LIGHT RING (INCLUDES: ITEM 21) WPL W10012410 Contact Us For Availability

23

WP8563727 Whirlpool Bracket Backorder WPL WP8563727 $67.84

23

Rast, Wheel Assy. (Service Only With Item. 28 WPL W10012810 Contact Us For Availability

24

WP8573713 Whirlpool Thermal Fuse In Stock WPL WP8573713 $32.46

24

Detent Wheel (Service Only With Illus. 28) WPL W10012450 Contact Us For Availability

3387561 Whirlpool Clamp Backorder WPL 3387561 $10.25

W10112268 Whirlpool Clip Backorder WPL W10112268 $8.00

WPW10129065 Whirlpool Clip Backorder WPL WPW10129065 $4.78

Clip-S Type WPL 62825 Contact Us For Availability

26

WPW10109200 Whirlpool Screw In Stock WPL WPW10109200 $2.51

26

Bracket, Support WPL 3389889 Contact Us For Availability

26

Knob, Spring (2) (Service Only With Item 28) WPL W10012820 Contact Us For Availability

27

Knob, Control WPL W10116701 Contact Us For Availability

28

3398948 Whirlpool Wire Backorder WPL 3398948 $38.06

28

Encoder, Wheel Kit (Includes Items: 23, 24, & WPL 280230 Contact Us For Availability

29

Harness, Communication WPL W10095960 Contact Us For Availability

30

Power Cable, User-Interface WPL W10111020 Contact Us For Availability

32

W11086603 Whirlpool Dryer Link Screen Air Gri In Stock WPL W11086603 $13.56

32

WP3387118 Whirlpool Base Assembly Backorder WPL WP3387118 $44.84

34

WP3387223 Whirlpool Electrode Assembly In Stock WPL WP3387223 $3.39

35

8578825 Whirlpool Bracket Backorder WPL 8578825 $7.98

36

W11700522 Whirlpool Socket Backorder WPL W11700522 $28.07

37

WP697772 Whirlpool Dryer Blower Wheel In Stock WPL WP697772 $29.83

38

WP697770 Whirlpool Blower Cover Plate Seal In Stock WPL WP697770 $3.70

38

WP8563749 Whirlpool Exhaust Pipe Backorder WPL WP8563749 $30.96

39

W10837240 Whirlpool Dryer Idler Pulley In Stock WPL W10837240 $10.83

39

WP3394986 Whirlpool Spring Backorder WPL WP3394986 $29.06

40

Panel, Rear WPL W10133207 Contact Us For Availability

41

Panel, Toe WPL W10116271 Contact Us For Availability

42

WP8577274 Whirlpool Dryer Thermistor In Stock WPL WP8577274 $17.55

42

WP98129 Whirlpool Screw Backorder WPL WP98129 $2.51

44

WP3387242 Whirlpool Seal In Stock WPL WP3387242 $9.17

45

WP308685 Whirlpool Microwave Screw In Stock WPL WP308685 $2.51

46

W11295573 Whirlpool Clip Backorder WPL W11295573 $10.76

46

WP8573824 Whirlpool Funnel Backorder WPL WP8573824 $69.14

47

WP8573028 Whirlpool Thermostat Assembly In Stock WPL WP8573028 $34.18

47

Base, Cabinet WPL 8519207 Contact Us For Availability

48

WP338906 Whirlpool Dryer Gas Sensor In Stock WPL WP338906 $17.97

48

Front Panel (Includes Illus. 44) WPL W10180423 Contact Us For Availability

49

279570 Whirlpool Dryer Door Latch Kit In Stock WPL 279570 $1.66

49

WP489463 Whirlpool Refrigerator Screw In Stock WPL WP489463 $2.51

50

W10181464 Whirlpool Wire Harness Backorder WPL W10181464 $45.62

50

Optional Parts Not Included WPL ARI165747A Contact Us For Availability

51

W10470674 Whirlpool Dryer Side Vent Exhaust K In Stock WPL W10470674 $53.07
