Model Whirlpool WFW8400TB00 AUTOMATIC WASHER – Common Parts &amp; Diagrams

350930 Whirlpool White Spray Paint In Stock WPL 350930 $13.12

350938 Whirlpool Spray Gun Backorder WPL 350938 $32.57

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.51

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $15.46

PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability

1

WP8540108 Whirlpool Boot Spring Clamp In Stock WPL WP8540108 $10.60

1

Valve, Inlet WPL WP8540751 No Longer Available

1

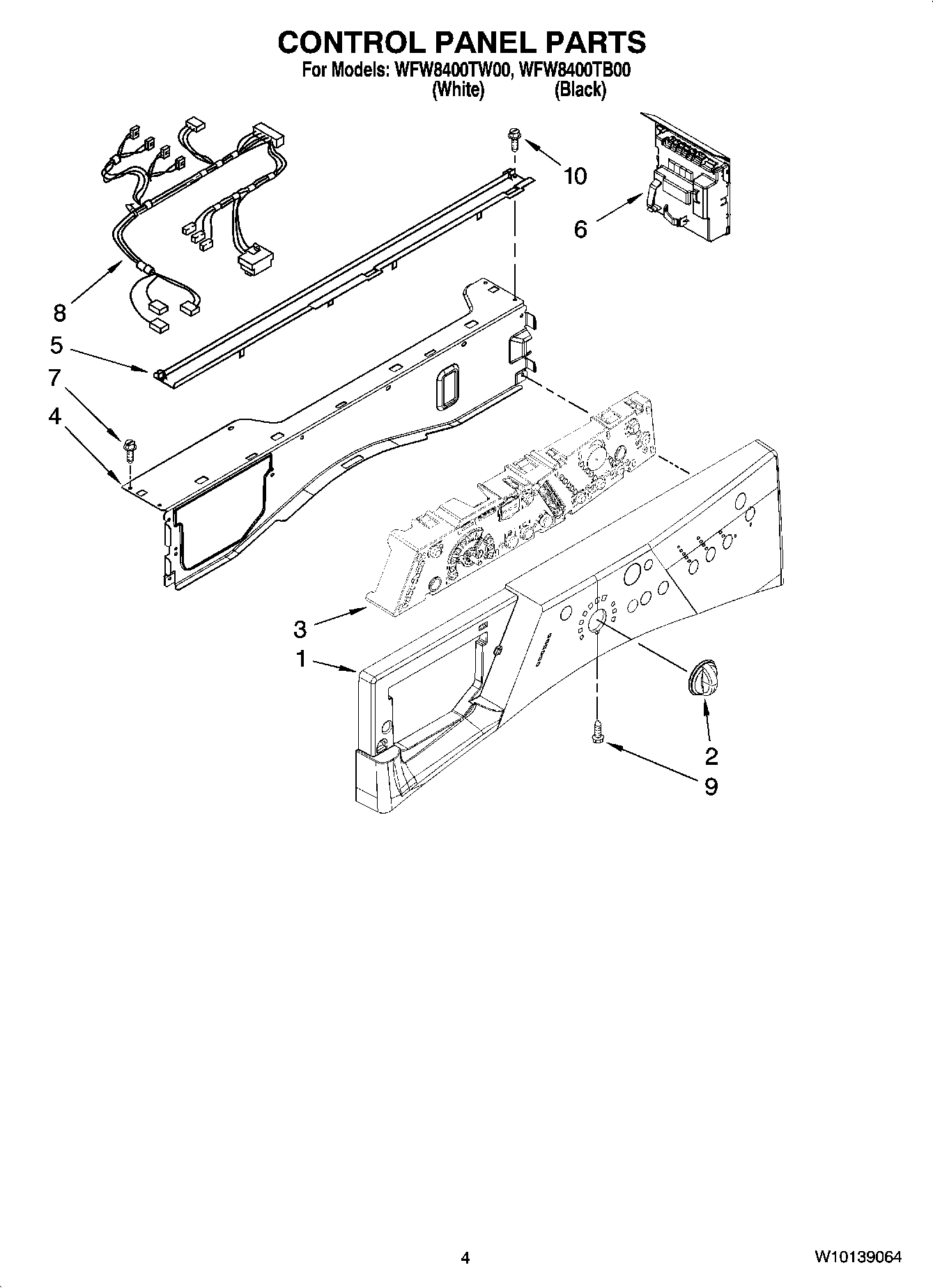

Panel, Control (White) WPL W10132001 Contact Us For Availability

1

Panel, Control (Black) WPL W10131963 Contact Us For Availability

2

8540033 Whirlpool Cap Backorder WPL 8540033 $7.94

2

WP8540088C Whirlpool Pulley Backorder WPL WP8540088C $92.87

2

Knob, Control (Nestle White) WPL 8574963 Contact Us For Availability

2

Knob, Control (Tempest Grey) WPL W10129067 Contact Us For Availability

3

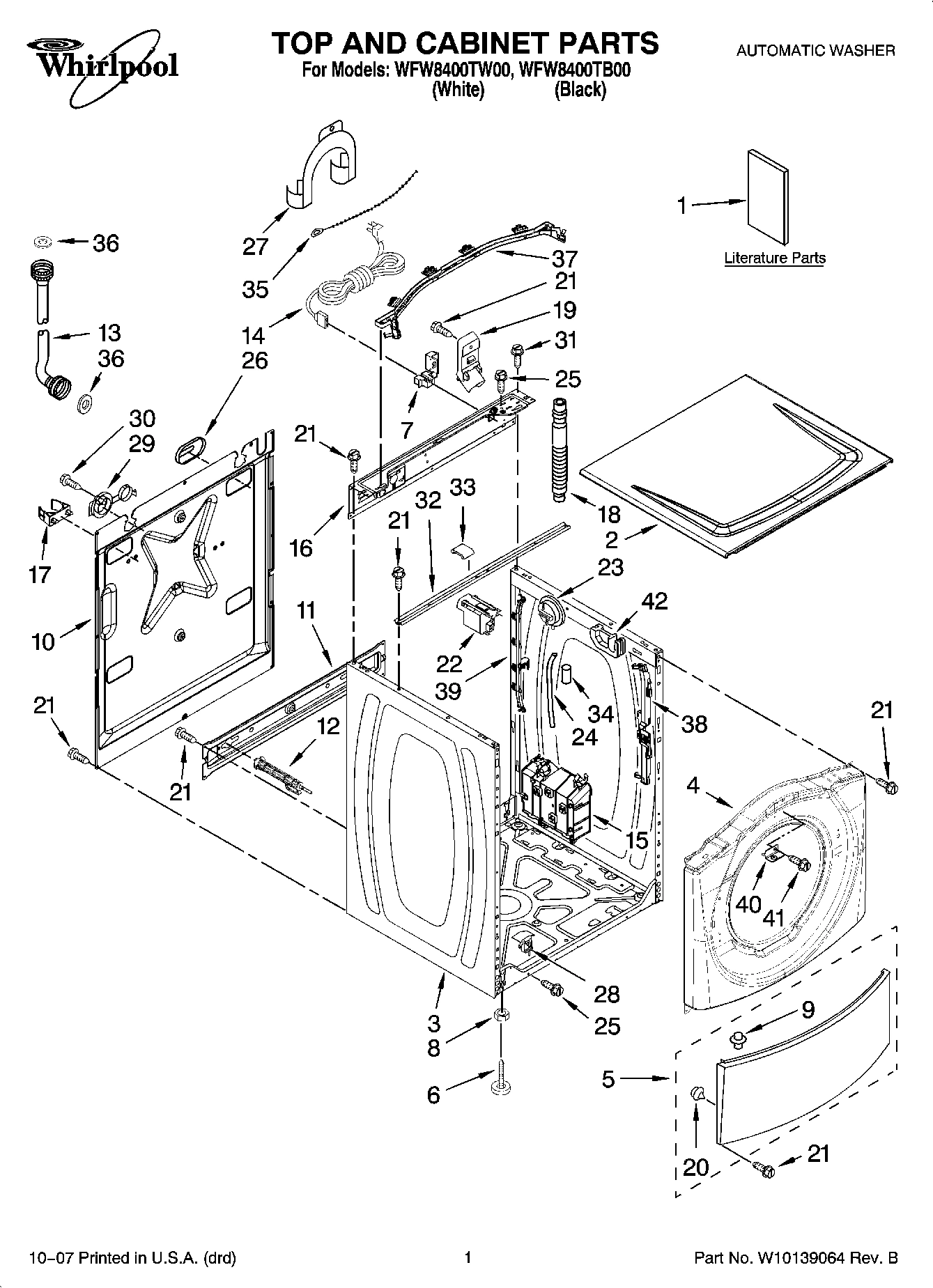

W10410294 Whirlpool Cabinet Backorder WPL W10410294 $225.32

3

WP8540101 Whirlpool Washer Drive Belt In Stock WPL WP8540101 $23.92

3

User Interface (White Model) WPL 8574920 Contact Us For Availability

3

Cabinet (Black) WPL W10117456 Contact Us For Availability

4

WP8540725 Whirlpool Screw Assembly In Stock WPL WP8540725 $2.51

4

BALL WPL 8540013 Contact Us For Availability

4

Panel, Front (White) WPL 8540572 Contact Us For Availability

4

Panel, Front (Black) WPL W10128427 Contact Us For Availability

5

W10112169 Whirlpool Vent Pipe Backorder WPL W10112169 $70.59

5

W10112961 Whirlpool Panel Backorder WPL W10112961 $72.27

5

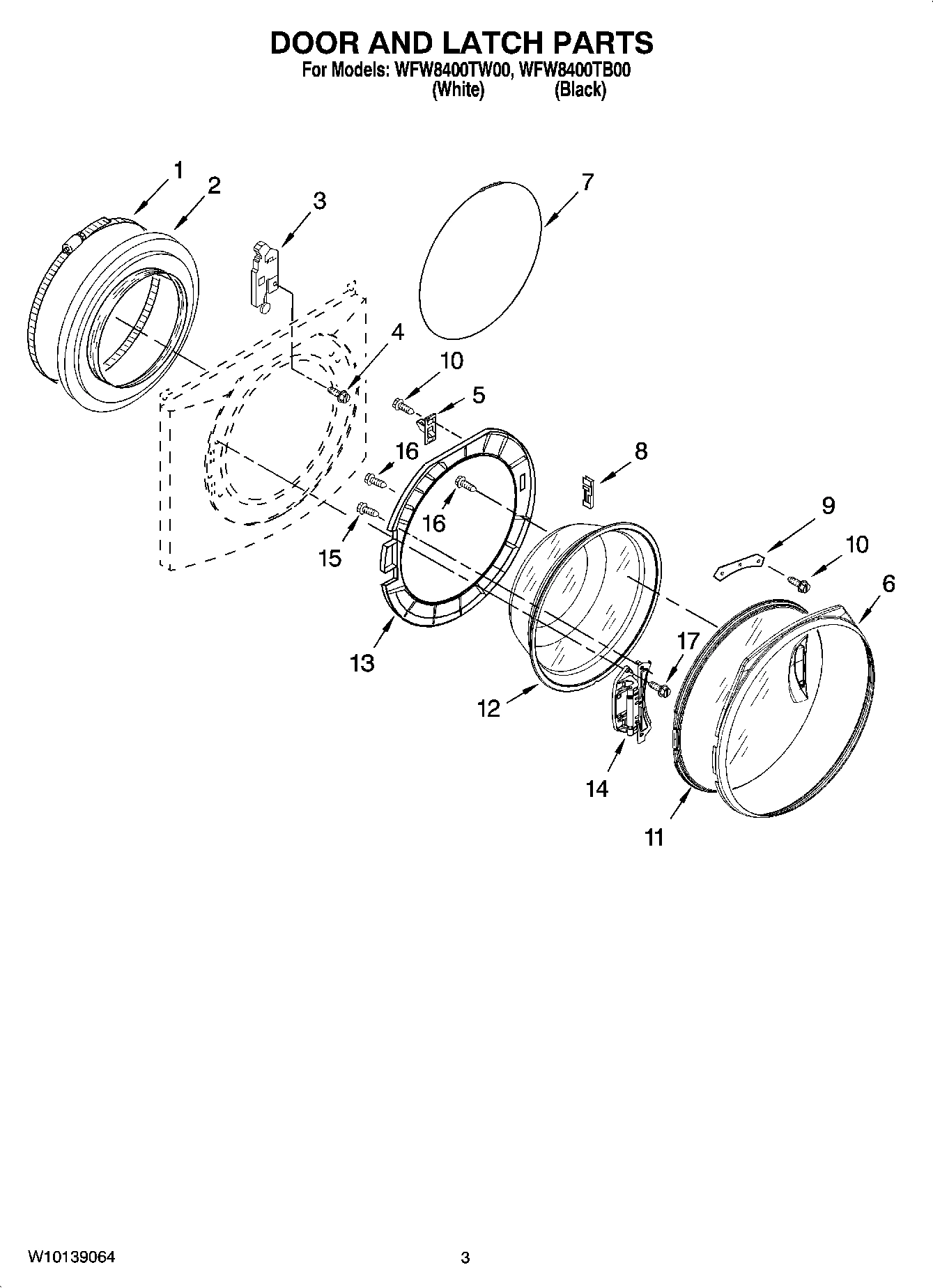

WP8540221 Whirlpool Door Strike Assembly In Stock WPL WP8540221 $4.30

5

WP8540664 Whirlpool Control Panel Backorder WPL WP8540664 $195.27

6

W10862938 Whirlpool Leveling Feet In Stock WPL W10862938 $7.30

6

W11366249 Whirlpool Washer Tub to Pump Hose In Stock WPL W11366249 $15.77

6

WP8540393 Whirlpool Cam Backorder WPL WP8540393 $3.70

6

Trim Ring, Outer Door (Nestle White) WPL 8540533 Contact Us For Availability

7

8182635 Whirlpool Strain Relief Backorder WPL 8182635 $7.34

7

W11398765 Whirlpool Hose Backorder WPL W11398765 $9.55

7

WP8540394 Whirlpool Lever In Stock WPL WP8540394 $3.70

8

W10034820 Whirlpool Grommet Backorder WPL W10034820 $7.89

8

WP3359452 Whirlpool Nut In Stock WPL WP3359452 $1.93

8

WP8540115 Whirlpool Clamp Backorder WPL WP8540115 $2.51

9

8518891 Whirlpool Rivet Backorder WPL 8518891 $9.59

9

W11665946 Whirlpool Clamp Backorder WPL W11665946 $9.53

9

WP356138 Whirlpool Hose Clamp In Stock WPL WP356138 $3.70

10

8540580 Whirlpool Panel Assembly Backorder WPL 8540580 $73.23

10

W11230114 Whirlpool Screw Assembly Backorder WPL W11230114 $9.59

10

W11622908 Whirlpool Dishwasher Clamp Backorder WPL W11622908 $10.76

W10189657 Whirlpool Brace Backorder WPL W10189657 $30.89

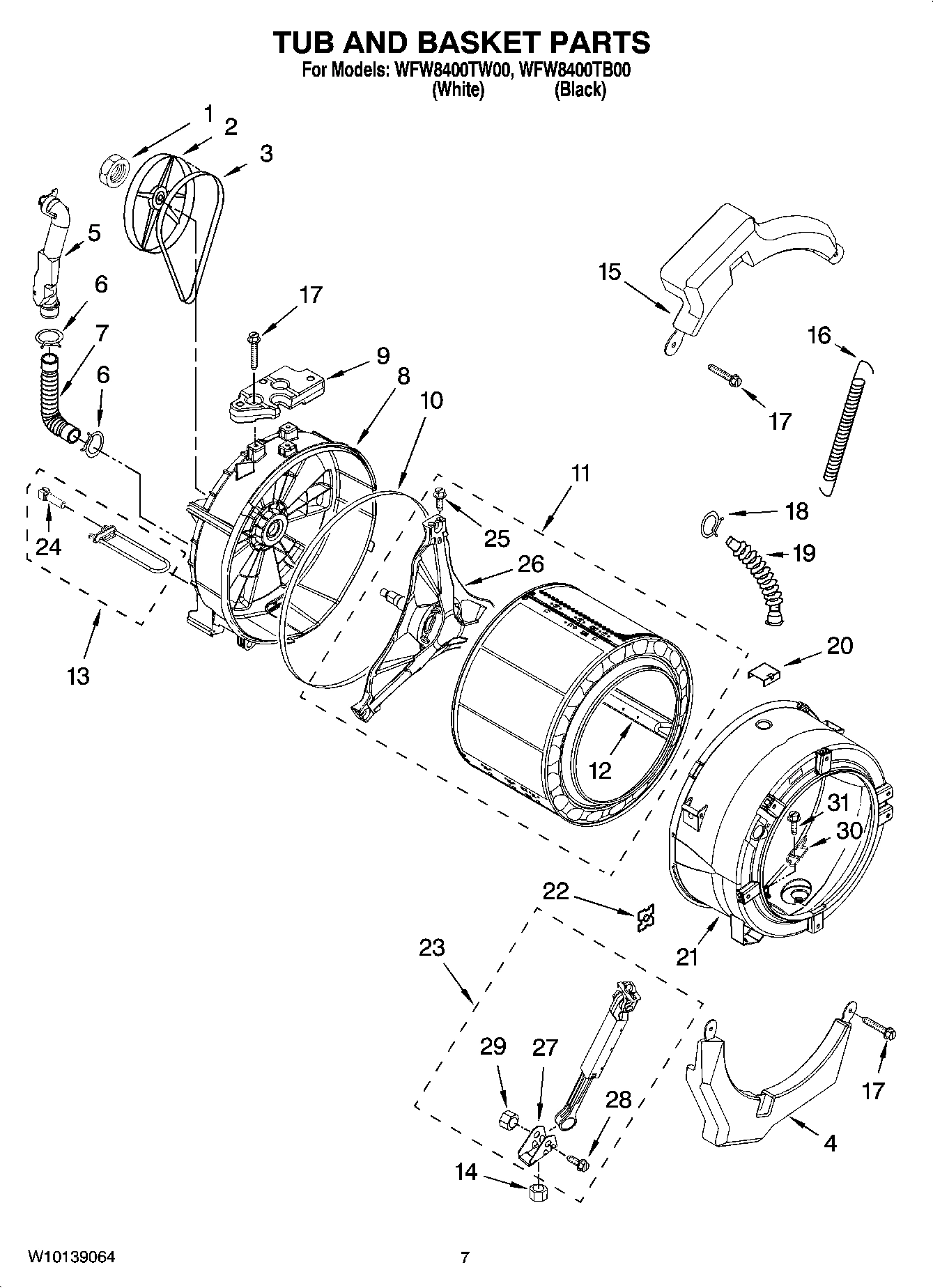

WP8540357 Whirlpool Basket Assembly Backorder WPL WP8540357 $354.85

WP8540395 Whirlpool Lever Assembly In Stock WPL WP8540395 $3.70

Frame, Door Front Assembly (Nestle White) WPL 8540588 Contact Us For Availability

12

W10763471 Whirlpool Bolt In Stock WPL W10763471 $29.96

12

WP8540360 Whirlpool Baffle In Stock WPL WP8540360 $36.31

12

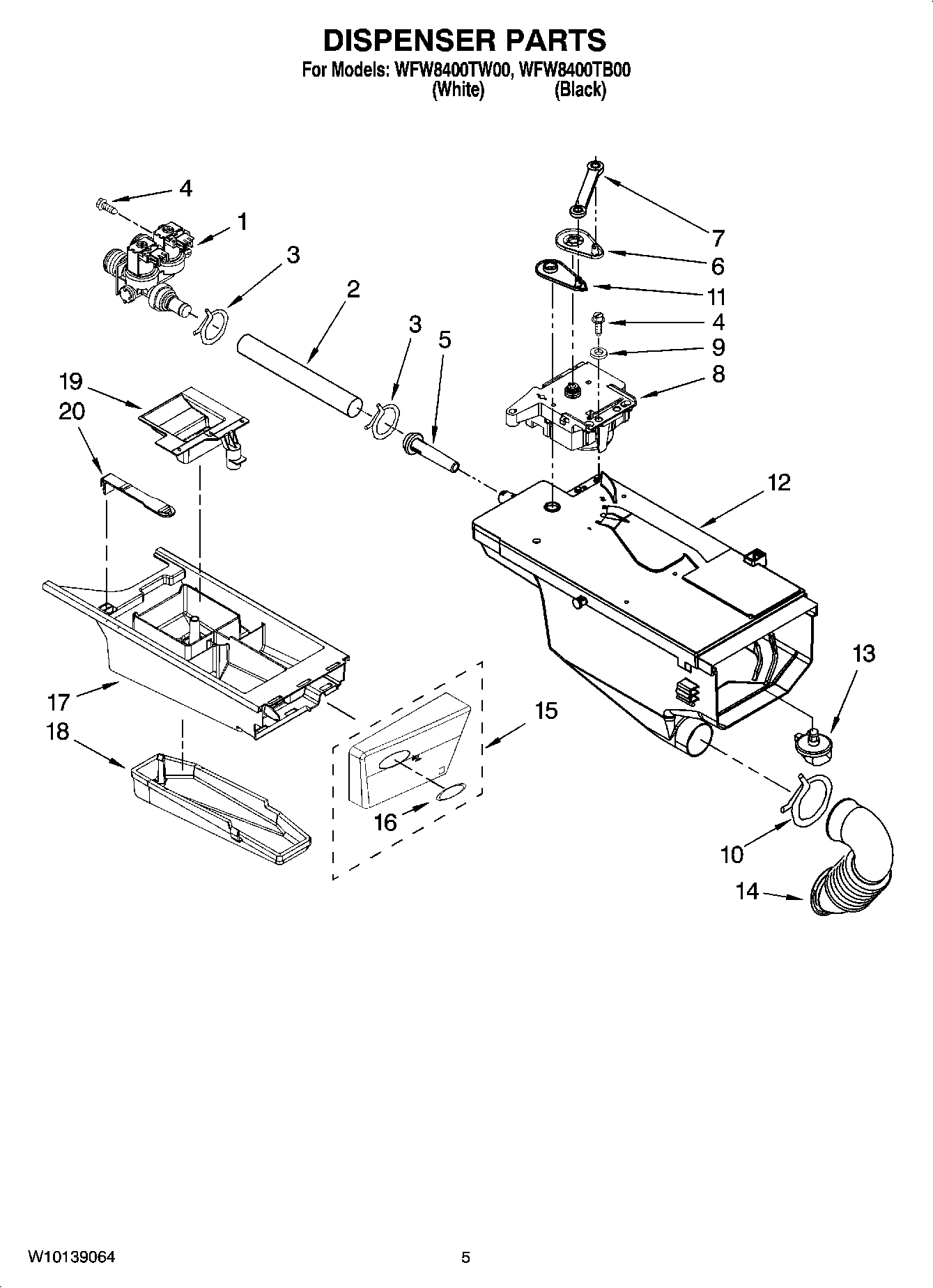

DISPENSER WPL 8540058 Contact Us For Availability

3805FF Supco 5' Reinforced Rubber Washer Fill In Stock SEA 3805FF $5.30

WP8540053 Whirlpool Nozzle Backorder WPL WP8540053 $36.25

WP89503 Whirlpool Washer Fill Hose In Stock WPL WP89503 $4.47

WPW10138523 Whirlpool Frame Backorder WPL WPW10138523 $91.30

14

8534084 Whirlpool Nut Backorder WPL 8534084 $9.59

14

W11366227 Whirlpool Washer Dispenser Hose In Stock WPL W11366227 $10.52

14

Cord, Power WPL W10121405 Contact Us For Availability

15

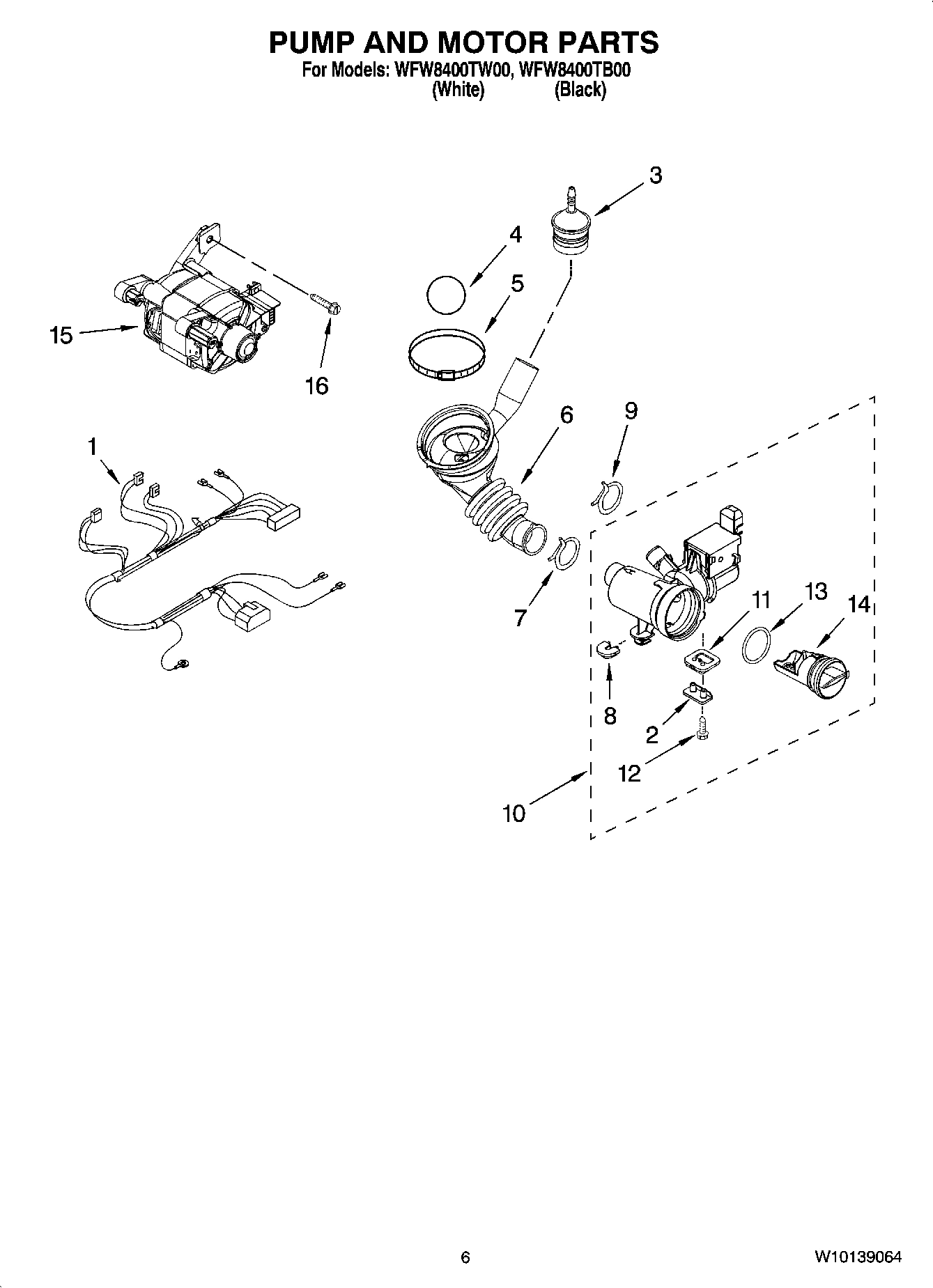

WPW10140581 Whirlpool Drive Motor In Stock WPL WPW10140581 $226.04

15

WPW10163007 Whirlpool Control Board + Core Backorder WPL WPW10163007-includeCORE $292.45

16

W10161694 Whirlpool Brace Backorder WPL W10161694 $44.41

16

WP8540282 Whirlpool Screw Backorder WPL WP8540282 $4.01

17

WP8540402 Whirlpool Washer Detergent Dispense Backorder WPL WP8540402 $81.21

17

Clamp, Tube Transportation WPL 8540093 Contact Us For Availability

18

WP8540399 Whirlpool Cover Assembly Backorder WPL WP8540399 $28.05

18

WPW10114608 Whirlpool Drain Hose In Stock WPL WPW10114608 $31.26

19

WP8540015 Whirlpool Hose Assembly Backorder WPL WP8540015 $16.38

19

WP8540429 Whirlpool Dispenser Assembly Backorder WPL WP8540429 $7.81

19

Retainer, Hose Outlet WPL 8540607 Contact Us For Availability

20

238614 Whirlpool Bumper Hinge Backorder WPL 238614 $71.57

20

WP8540092 Whirlpool Clamp In Stock WPL WP8540092 $3.70

21

WP489442 Whirlpool Refrigerator Screw Backorder WPL WP489442 $4.56

22

WPW10367632 Whirlpool Filter In Stock WPL WPW10367632 $43.79

23

Switch, Pressure WPL 8540224 Contact Us For Availability

24

W11252474 Whirlpool Hose Assembly In Stock WPL W11252474 $10.07

25

8540479 Whirlpool Screw Backorder WPL 8540479 $5.65

25

WP8540382 Whirlpool Screw Backorder WPL WP8540382 $2.51

26

WP8540268 Whirlpool Cover Assembly Backorder WPL WP8540268 $3.70

27

WPW10280024 Whirlpool Retainer Backorder WPL WPW10280024 $30.25

28

8540841 Whirlpool Bolt Backorder WPL 8540841 $7.70

28

WPW10085220 Whirlpool Switch Backorder WPL WPW10085220 $10.58

29

W11116978 Whirlpool Grommet Backorder WPL W11116978 $11.27

30

8182201 Whirlpool Screw Backorder WPL 8182201 $9.59

30

Bracket, Heating Element WPL 8540322 Contact Us For Availability

31

8540329 Whirlpool Screw Backorder WPL 8540329 $2.40

32

WP8540720 Whirlpool Brace Assembly Backorder WPL WP8540720 $30.89

33

WP8283273 Whirlpool Pad Backorder WPL WP8283273 $11.44

34

W11751592 Whirlpool Sleeve In Stock WPL W11751592 $12.17

35

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $2.51

36

WP16123 Whirlpool Washer In Stock WPL WP16123 $2.51

37

W10168548 Whirlpool Retainer Backorder WPL W10168548 $34.92

38

W10200785 Whirlpool Retainer Backorder WPL W10200785 $3.15

39

W10168547 Whirlpool Retainer Backorder WPL W10168547 $12.02

40

Bracket, Console Retainer WPL 8540669 Contact Us For Availability

41

WP98006631 Whirlpool Screw Backorder WPL WP98006631 $2.51

42

8540644 Whirlpool Bracket Backorder WPL 8540644 $29.74
