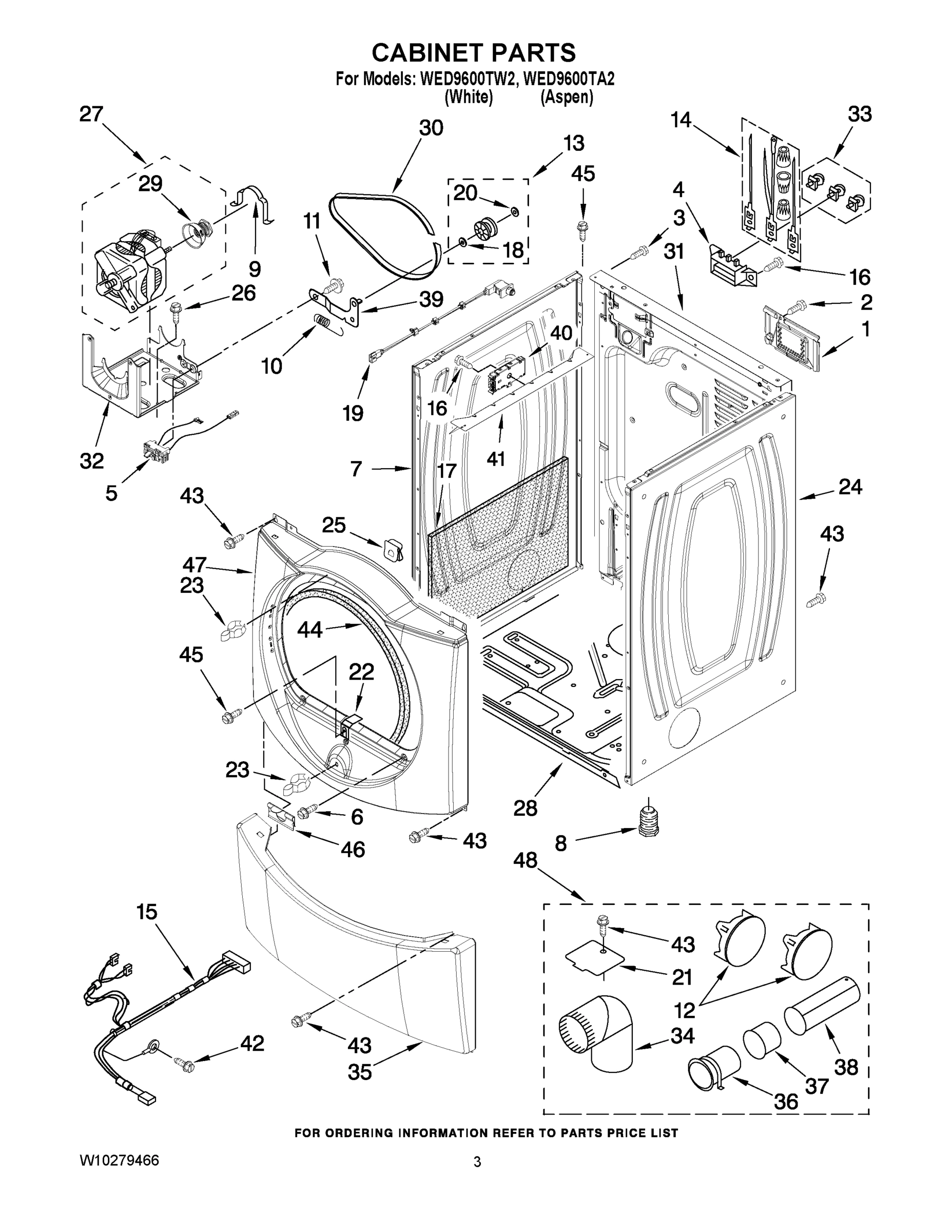

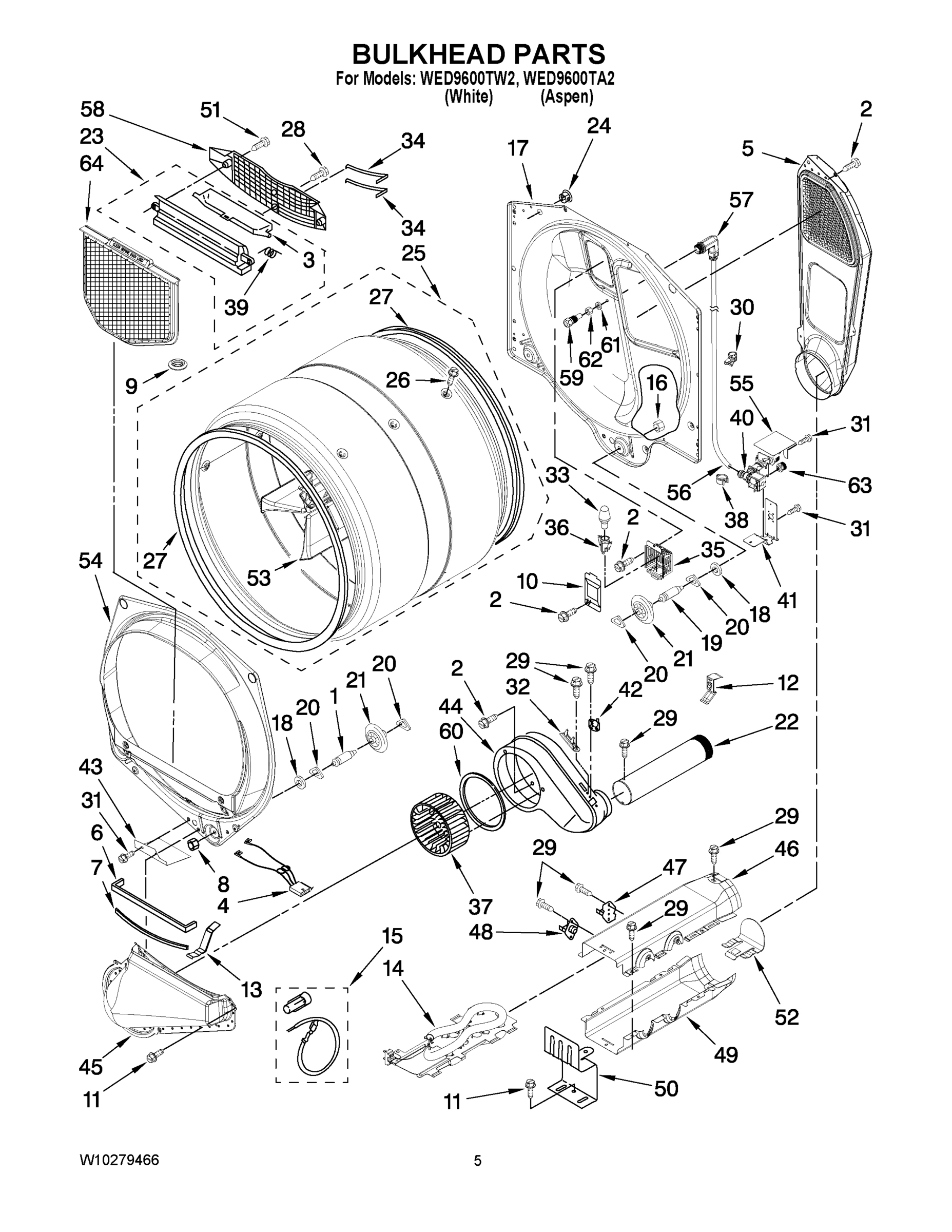

Model Whirlpool WED9600TA2 27`` ELECTRIC DRYER – Common Parts &amp; Diagrams

1

WPW10085230 Whirlpool Label Assembly Backorder WPL WPW10085230 $9.13

2

WPW10310366 Whirlpool Hinge In Stock WPL WPW10310366 $84.03

3

WPW10159996 Whirlpool Screw In Stock WPL WPW10159996 $2.51

3

HARNESS, MAIN WPL W10111068 Contact Us For Availability

4

WP3406653 Whirlpool Wire Harness In Stock WPL WP3406653 $46.96

4

Screw, 8-18 x 5/8 WPL 9742177 Contact Us For Availability

5

Cover-Hinge (R.H.) WPL W10181197 Contact Us For Availability

5

COVER-HINGE (L.H.) (FOLLOWING PARTS NOT INCLU WPL W10180119 Contact Us For Availability

6

WP697813 Whirlpool Seal In Stock WPL WP697813 $3.88

6

WPW10139457 Whirlpool Door Seal In Stock WPL WPW10139457 $39.27

7

Handle-Ring WPL 8579502 Contact Us For Availability

8

49621 Whirlpool Leveling Feet In Stock WPL 49621 $2.40

8

WP308685 Whirlpool Microwave Screw In Stock WPL WP308685 $2.51

8

WP94614 Whirlpool Terminal Backorder WPL WP94614 $2.51

9

3936144 Whirlpool Connector Backorder WPL 3936144 $10.76

9

WPW10121316 Whirlpool Clamp In Stock WPL WPW10121316 $10.89

9

Door Assembly (Outer) WPL W10180115 Contact Us For Availability

10

Door Assembly (Inner) (Includes Illus. 12 & 2 WPL 8578229 Contact Us For Availability

WP3389420 Whirlpool Screw In Stock WPL WP3389420 $2.51

WP355515 Whirlpool Screw Backorder WPL WP355515 $2.51

WP488729 Whirlpool Refrigerator Door Screw In Stock WPL WP488729 $2.64

WP489463 Whirlpool Refrigerator Screw In Stock WPL WP489463 $2.51

12

279570 Whirlpool Dryer Door Latch Kit In Stock WPL 279570 $2.36

12

W10112267 Whirlpool Seal Assembly Backorder WPL W10112267 $33.69

12

WPW10404617 Whirlpool Plug Assembly Backorder WPL WPW10404617 $39.33

13

8519356 Whirlpool Retainer Backorder WPL 8519356 $7.50

13

W10012480 Whirlpool WP Dryer Encoder Adapt Wh Backorder WPL W10012480 $9.96

13

WP8066208 Whirlpool Clip Backorder WPL WP8066208 $3.70

279318 Whirlpool Terminal In Stock WPL 279318 $41.56

3936150 Whirlpool Connector Backorder WPL 3936150 $30.25

W10822054 Whirlpool Retainer Backorder WPL W10822054 $6.19

WP8544771 Whirlpool Dryer Heating Element In Stock WPL WP8544771 $67.38

279457 Whirlpool Dryer Heating Element Wide S In Stock WPL 279457 $3.93

3395683 Whirlpool Connector Backorder WPL 3395683 $33.67

W10242904 Whirlpool Wire Harness Backorder WPL W10242904 $62.35

Gasket, Window WPL 8579662 Contact Us For Availability

16

303776 Whirlpool Dishwasher Screw Backorder WPL 303776 $4.65

16

Screw-Plug WPL W10048910 Contact Us For Availability

17

2203186 Whirlpool Connector Backorder WPL 2203186 $7.61

17

W10123956 Whirlpool Sound Absorber Backorder WPL W10123956 $14.26

17

WP8566254 Whirlpool Window Assembly Backorder WPL WP8566254 $97.09

18

W10294713 Whirlpool Kit Assembly Backorder WPL W10294713 $242.56

18

WPW10121334 Whirlpool Washer In Stock WPL WPW10121334 $2.51

19

W10110658 Whirlpool Electronic Control Board Backorder WPL W10110658 $130.51

19

WPW10180500 Whirlpool Trim Backorder WPL WPW10180500 $129.76

20

Door Shield WPL W10180120 Contact Us For Availability

20

Encoder-Wheel WPL W10012430 Contact Us For Availability

21

Door, Intermediate WPL W10180118 Contact Us For Availability

21

Retainer-Snap WPL W10012440 Contact Us For Availability

22

Ramp, Door WPL 8529053 Contact Us For Availability

22

Knob, Light Ring (Includes: Illus. 21 ) WPL W10012410 Contact Us For Availability

22

Door Mask WPL W10180117 Contact Us For Availability

23

Rast, Wheel Holder (Service Only With Illus. WPL W10012810 Contact Us For Availability

23

Door Screen WPL 8578155 Contact Us For Availability

24

WP3373329 Whirlpool Dishwasher Screw Backorder WPL WP3373329 $2.51

24

Detent Wheel (Service Only With Illus. 28) WPL W10012460 Contact Us For Availability

25

W10242906 Whirlpool Wire Harness Backorder WPL W10242906 $63.31

25

Clip-S Type WPL 62825 Contact Us For Availability

26

W10853898 Whirlpool Screw Backorder WPL W10853898 $2.51

26

Knob, Spring (2) (Service Only With Illus. 28 WPL W10012820 Contact Us For Availability

27

Knob, Control (Includes: Illus. 21) (Aspen) WPL W10153663 Contact Us For Availability

27

Knob, Control (Includes: Illus. 21) (White) WPL W10116702 Contact Us For Availability

28

ENCODER, WHEEL KIT. (INCLUDES ITEM: 23, 24, & WPL 280230 Contact Us For Availability

29

Badge WPL W10117943 Contact Us For Availability

32

W11481730 Whirlpool Bracket In Stock WPL W11481730 $32.63

32

WP3392519 Whirlpool Dryer Thermal Fuse In Stock WPL WP3392519 $7.67

33

279393 Whirlpool Terminal Block Screw and Nut In Stock WPL 279393 $15.35

34

WP3387223 Whirlpool Electrode Assembly In Stock WPL WP3387223 $3.39

35

8578825 Whirlpool Bracket Backorder WPL 8578825 $7.98

36

W11222979 Whirlpool Socket In Stock WPL W11222979 $43.76

37

WP697772 Whirlpool Dryer Blower Wheel In Stock WPL WP697772 $31.33

39

WP3394986 Whirlpool Spring Backorder WPL WP3394986 $30.51

40

CONTROL BOARD WPL W10174746 Contact Us For Availability

41

WP8563727 Whirlpool Bracket Backorder WPL WP8563727 $71.22

42

WP693995 Whirlpool Screw In Stock WPL WP693995 $1.92

42

WP8577274 Whirlpool Dryer Thermistor In Stock WPL WP8577274 $18.43

43

W11257251 Whirlpool Shield Backorder WPL W11257251 $26.86

44

WP3387242 Whirlpool Seal In Stock WPL WP3387242 $9.17

46

WP8544769 Whirlpool Box Backorder WPL WP8544769 $69.70

48

WP3391914 Whirlpool Thermostat In Stock WPL WP3391914 $63.24

49

HOUSING TAB, HEATER BOX WPL 8544770 Contact Us For Availability

50

8066099 Whirlpool Bracket Backorder WPL 8066099 $8.16

51

WP3387230 Whirlpool Screw In Stock WPL WP3387230 $2.64

52

8544776 Whirlpool Clip Assembly Backorder WPL 8544776 $8.00

58

W11086603 Whirlpool Dryer Link Screen Air Gri In Stock WPL W11086603 $14.24

59

WPL W10044629 WPL W10044629 Contact Us For Availability

60

WP697770 Whirlpool Blower Cover Plate Seal In Stock WPL WP697770 $3.88

61

W10044579 Whirlpool Dryer Backorder WPL W10044579 $5.65

62

W10044628 Whirlpool Nut Backorder WPL W10044628 $30.25

63

W10859554 Whirlpool Coupler Backorder WPL W10859554 $28.09

DC4-30-4 USD Products Dryer Cord, 4' 4 Wire, In Stock USD DC4-30-4 $13.30

DC4-30-6 USD Products Dryer 6' 4-Wire Cord 30 In Stock USD DC4-30-6 $18.83

350930 Whirlpool White Spray Paint In Stock WPL 350930 $13.12

350938 Whirlpool Spray Gun Backorder WPL 350938 $32.57

4392067 Whirlpool Dryer Repair Kit In Stock WPL 4392067 $33.72

49586 Whirlpool Mixer In Stock WPL 49586 $5.03

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.51

8212450A Whirlpool Dryer Rack Assembly Backorder WPL 8212450A $55.11

8541503 Whirlpool Stacking Kit In Stock WPL 8541503 $26.26

8579666ARP Whirlpool Door Kit In Stock WPL 8579666ARP $23.97

PT220L Whirlpool Dryer Power Cord In Stock WPL PT220L $13.89

W10044609A Whirlpool Steam Dryer Hose Install In Stock WPL W10044609A $20.97

WP16123 Whirlpool Washer In Stock WPL WP16123 $2.51

WP89503 Whirlpool Washer Fill Hose In Stock WPL WP89503 $4.47

PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability

PAINT, TOUCH-UP (1/2oz.) (New Aspen) WPL W10157756 Contact Us For Availability

HOSE, INLET (2` HOSE) WPL 350027 Contact Us For Availability

Kit, Hold Down WPL 8529894 Contact Us For Availability
