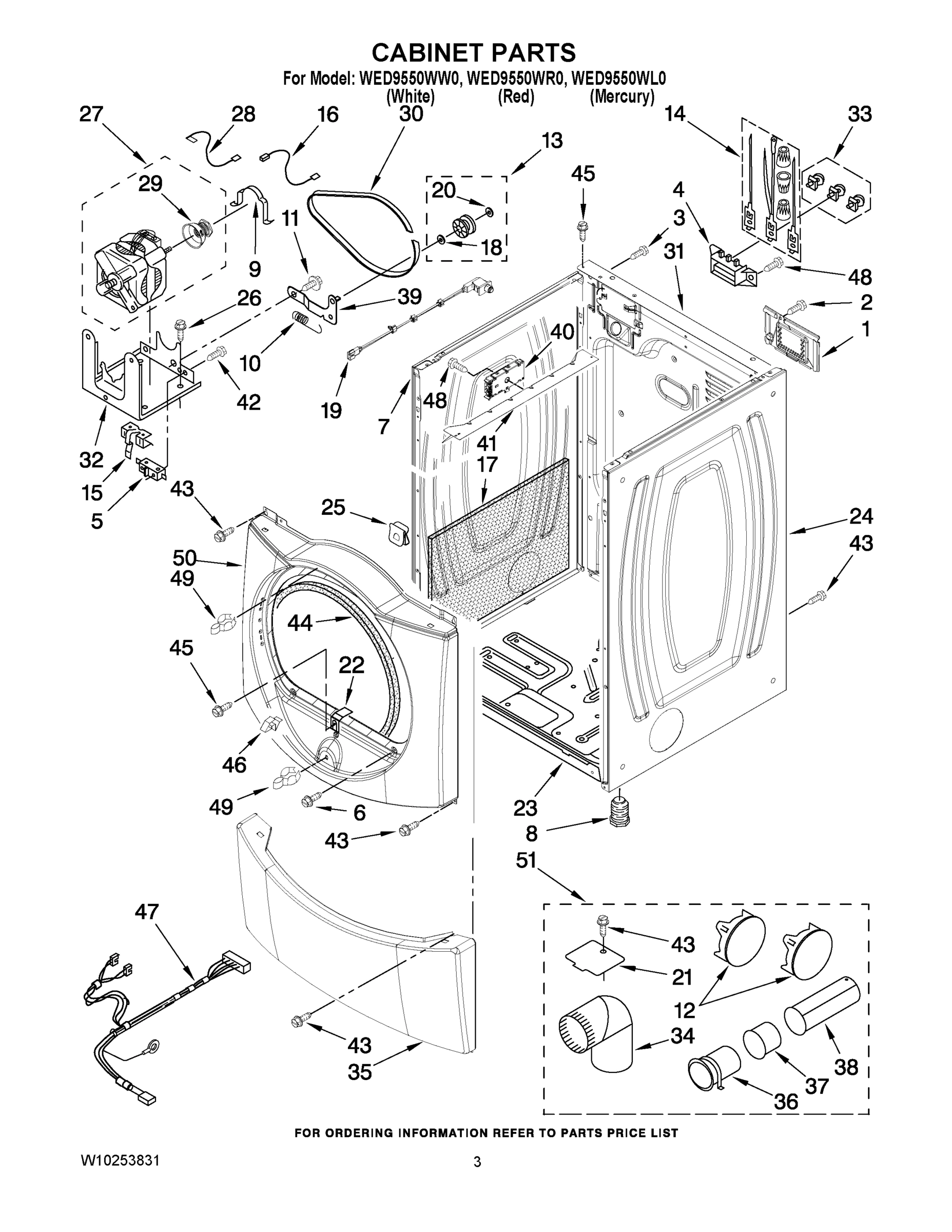

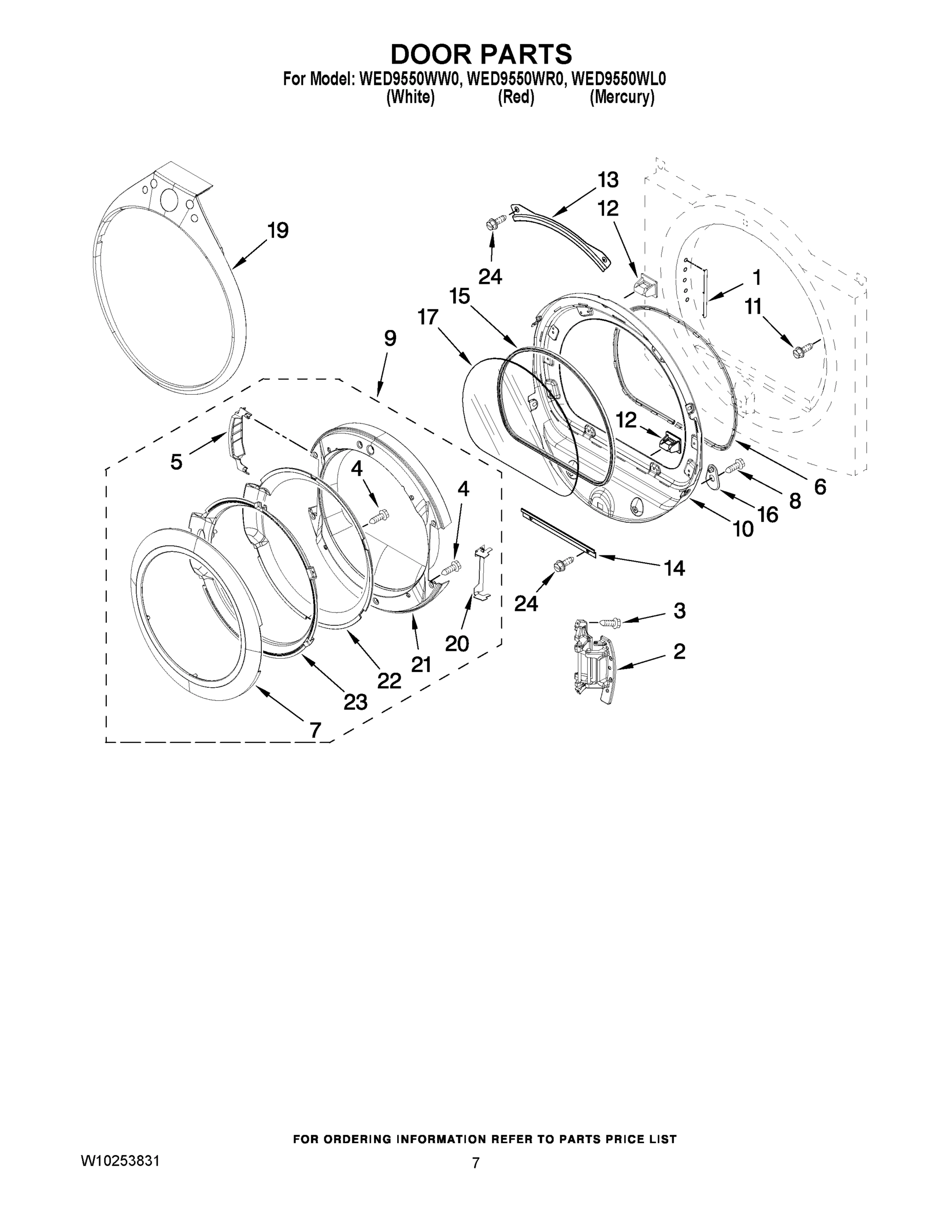

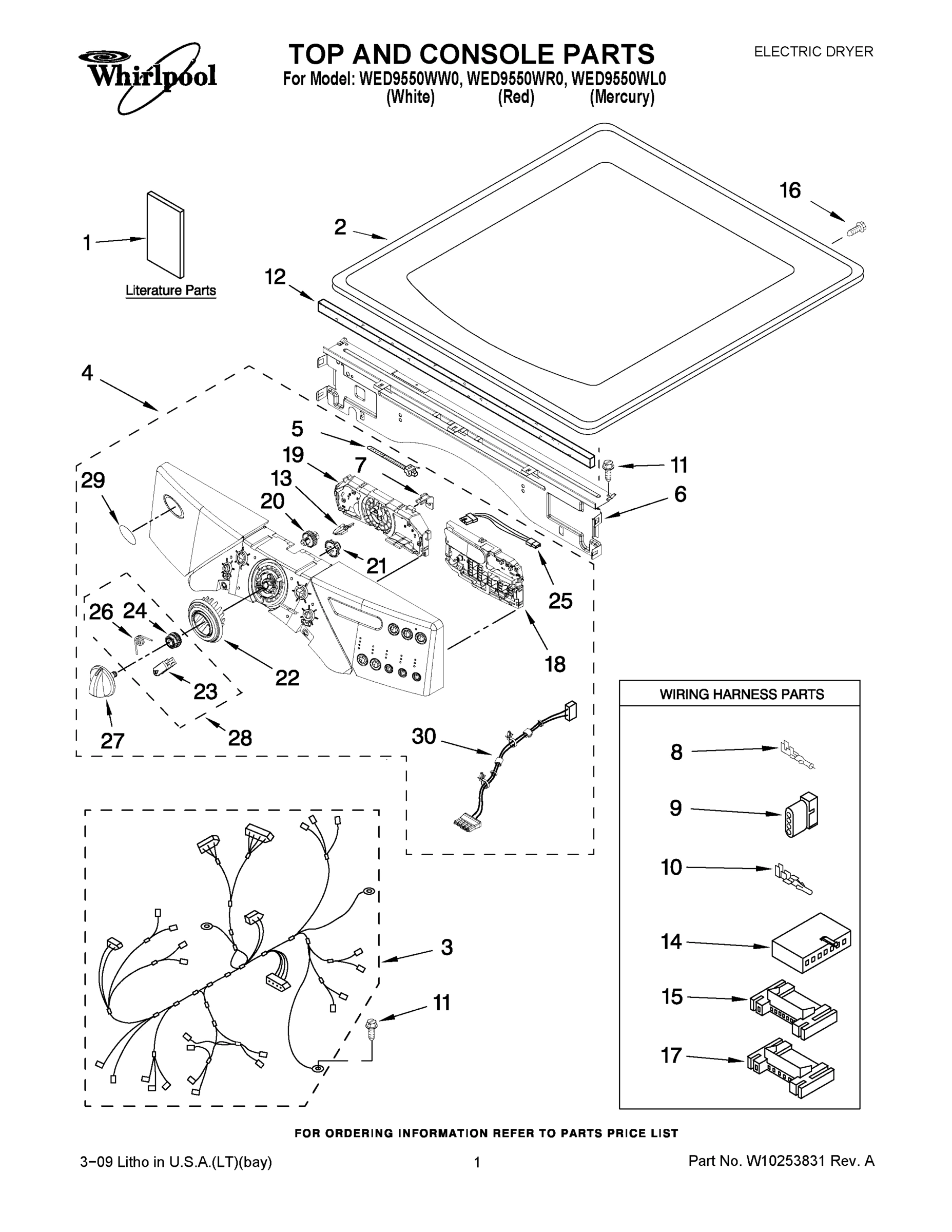

Model Whirlpool WED9550WW0 ELECTRIC DRYER – Common Parts &amp; Diagrams

1

TIP SHEET DRYER STEAM WPL W10139322 Contact Us For Availability

1

INSTALLATION, INSTRUCTION WPL W10224585 Contact Us For Availability

1

USE & CARE GUIDE WPL W10244607 Contact Us For Availability

1

TECH SHEET WPL W10251193 Contact Us For Availability

2

Top (White) WPL 8519251 Contact Us For Availability

2

TOP (RED) WPL W10249738 Contact Us For Availability

2

TOP (MERCURY) WPL W10249739 Contact Us For Availability

3

WPW10159996 Whirlpool Screw Backorder WPL WPW10159996 $2.51

3

HARNESS, MAIN WPL W10238916 Contact Us For Availability

4

WP3406653 Whirlpool Wire Harness In Stock WPL WP3406653 $56.58

4

Screw, 8-18 x 5/8 WPL 9742177 Contact Us For Availability

4

PANEL, CONSOLE (INCLUDES ITEMS: 20,21,22,27,2 WPL W10246596 Contact Us For Availability

4

PANEL, CONSOLE (INCLUDES ITEMS: 20,21,22,27,2 WPL W10251598 Contact Us For Availability

4

PANEL, CONSOLE (INCLUDES ITEMS: 20,21,22,27,2 WPL W10251606 Contact Us For Availability

5

WP3391018 Whirlpool Wire Tie Backorder WPL WP3391018 $14.48

5

Cover-Hinge (R.H.) WPL W10181197 Contact Us For Availability

6

WP697813 Whirlpool Seal In Stock WPL WP697813 $3.70

6

WPW10139457 Whirlpool Door Seal In Stock WPL WPW10139457 $37.41

6

Bracket, Console (Includes No.12) WPL W10215656 Contact Us For Availability

7

W10112268 Whirlpool Clip Backorder WPL W10112268 $8.00

8

49621 Whirlpool Leveling Feet In Stock WPL 49621 $2.29

8

WP94614 Whirlpool Terminal Backorder WPL WP94614 $2.51

9

3936144 Whirlpool Connector Backorder WPL 3936144 $10.76

9

WPW10121316 Whirlpool Clamp In Stock WPL WPW10121316 $10.89

9

Door Assembly (Outer) WPL W10180115 Contact Us For Availability

10

WP596797 Whirlpool Terminal Backorder WPL WP596797 $2.51

10

DOOR ASSEMBLY (INNER) (INCLUDES ITEM 12.) WPL 8578229 Contact Us For Availability

11

WP3389420 Whirlpool Screw In Stock WPL WP3389420 $2.51

11

WP488729 Whirlpool Refrigerator Door Screw In Stock WPL WP488729 $2.51

11

WP489463 Whirlpool Refrigerator Screw In Stock WPL WP489463 $2.51

12

W10112267 Whirlpool Seal Assembly Backorder WPL W10112267 $32.08

13

W10012480 Whirlpool WP Dishwasher Encoder Ada Backorder WPL W10012480 $9.96

13

WP8066208 Whirlpool Clip Backorder WPL WP8066208 $3.70

14

279318 Whirlpool Terminal In Stock WPL 279318 $39.58

14

3936150 Whirlpool Connector Backorder WPL 3936150 $28.80

14

WP8544771 Whirlpool Dryer Heating Element In Stock WPL WP8544771 $64.18

279457 Whirlpool Dryer Heating Element Wide S In Stock WPL 279457 $3.93

3395683 Whirlpool Connector Backorder WPL 3395683 $32.06

8579662 Whirlpool Seal Backorder WPL 8579662 $40.35

WP8066120 Whirlpool Lever Assembly Backorder WPL WP8066120 $11.73

16

303776 Whirlpool Dishwasher Screw Backorder WPL 303776 $4.65

16

Screw-Plug WPL W10048910 Contact Us For Availability

17

2203186 Whirlpool Connector Backorder WPL 2203186 $7.61

17

WP8566254 Whirlpool Window Assembly Backorder WPL WP8566254 $92.47

17

Bulkhead, Rear WPL W10133857 Contact Us For Availability

18

W10294712 Whirlpool Kit Backorder WPL W10294712 $184.20

18

WPW10121334 Whirlpool Washer In Stock WPL WPW10121334 $2.51

W10110658 Whirlpool Electronic Control Board Backorder WPL W10110658 $130.51

TEAR-DROP TRIM & CLIP ASSEMBLY (WHITE) WPL W10246600 Contact Us For Availability

TEAR-DROP TRIM & CLIP ASSEMBLY (RED) WPL W10249767 Contact Us For Availability

TEAR-DROP TRIM & CLIP ASSEMBLY (MERCURY) WPL W10249765 Contact Us For Availability

20

Door Shield WPL W10180120 Contact Us For Availability

20

Encoder-Wheel WPL W10012430 Contact Us For Availability

21

Door, Intermediate WPL W10180118 Contact Us For Availability

21

Retainer-Snap WPL W10012440 Contact Us For Availability

22

W10250089 Whirlpool Ring Backorder WPL W10250089 $9.13

22

Ramp, Door WPL 8529053 Contact Us For Availability

23

Rast, Wheel Holder (Service Only With Illus. WPL W10012810 Contact Us For Availability

24

W11257251 Whirlpool Shield Backorder WPL W11257251 $25.58

24

Detent Wheel (Service Only With Illus. 28) WPL W10012460 Contact Us For Availability

25

Harness, Communication WPL W10095960 Contact Us For Availability

25

Clip-S Type WPL 62825 Contact Us For Availability

26

W10853898 Whirlpool Screw In Stock WPL W10853898 $2.51

26

Knob, Spring (2) (Service Only With Illus. 28 WPL W10012820 Contact Us For Availability

27

W10190685 Whirlpool Knob Assembly Backorder WPL W10190685 $38.01

28

3398948 Whirlpool Wire Backorder WPL 3398948 $38.06

28

ENCODER, WHEEL KIT. (INCLUDES ITEM: 23, 24, & WPL 280230 Contact Us For Availability

29

Badge WPL W10117943 Contact Us For Availability

30

Power Cable, User-Interface WPL W10111020 Contact Us For Availability

31

WP3392519 Whirlpool Dryer Thermal Fuse In Stock WPL WP3392519 $7.30

32

WP3387118 Whirlpool Base Assembly Backorder WPL WP3387118 $44.84

33

279393 Whirlpool Terminal Block Screw and Nut In Stock WPL 279393 $15.35

34

WP3387223 Whirlpool Electrode Assembly In Stock WPL WP3387223 $3.39

35

8578825 Whirlpool Bracket Backorder WPL 8578825 $7.98

35

TOE PANEL (RED) WPL W10250673 Contact Us For Availability

36

W11700522 Whirlpool Socket Backorder WPL W11700522 $28.07

36

WP8563747 Whirlpool Exhaust Pipe Backorder WPL WP8563747 $29.43

37

WP697772 Whirlpool Dryer Blower Wheel In Stock WPL WP697772 $29.83

37

WPW10331278 Whirlpool Exhaust Pipe Backorder WPL WPW10331278 $28.80

38

WP8563749 Whirlpool Exhaust Pipe Backorder WPL WP8563749 $30.96

39

W10837240 Whirlpool Dryer Idler Pulley In Stock WPL W10837240 $10.83

39

WP3394986 Whirlpool Spring Backorder WPL WP3394986 $29.06

40

CONTROL BOARD WPL W10169969 Contact Us For Availability

41

WP8563727 Whirlpool Bracket Backorder WPL WP8563727 $67.84

42

WP8577274 Whirlpool Dryer Thermistor In Stock WPL WP8577274 $17.55

42

WP98129 Whirlpool Screw Backorder WPL WP98129 $2.51

44

WP3387242 Whirlpool Seal In Stock WPL WP3387242 $9.17

46

W11295573 Whirlpool Clip Backorder WPL W11295573 $10.76

46

WP8544769 Whirlpool Box Backorder WPL WP8544769 $66.39

47

280148 Whirlpool Dryer Thermal Cut-Off Fuse K In Stock WPL 280148 $30.27

47

WPL W10181463 WPL W10181463 Contact Us For Availability

48

WP8557403 Whirlpool Thermostat In Stock WPL WP8557403 $54.42

49

279570 Whirlpool Dryer Door Latch Kit In Stock WPL 279570 $1.66

49

HOUSING TAB, HEATER BOX WPL 8544770 Contact Us For Availability

8066099 Whirlpool Bracket Backorder WPL 8066099 $8.16

WPL W10180423 WPL W10180423 Contact Us For Availability

WPL W10249726 WPL W10249726 Contact Us For Availability

WPL W10250670 WPL W10250670 Contact Us For Availability

51

W10470674 Whirlpool Dryer Side Vent Exhaust K In Stock WPL W10470674 $53.07

51

WP3387230 Whirlpool Screw In Stock WPL WP3387230 $2.51

52

8544776 Whirlpool Clip Assembly Backorder WPL 8544776 $8.00

58

W11086603 Whirlpool Dryer Link Screen Air Gri In Stock WPL W11086603 $13.56

59

WPL W10044629 WPL W10044629 Contact Us For Availability

60

WP697770 Whirlpool Blower Cover Plate Seal In Stock WPL WP697770 $3.70

61

W10044579 Whirlpool Washer Backorder WPL W10044579 $5.65

62

W10044628 Whirlpool Nut Backorder WPL W10044628 $28.80

63

W10859554 Whirlpool Coupler Backorder WPL W10859554 $26.75

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350938 Whirlpool Spray Gun In Stock WPL 350938 $32.57

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

8541503 Whirlpool Stacking Kit In Stock WPL 8541503 $25.02

W10218247 Whirlpool Touch-Up Backorder WPL W10218247 $10.07

WP76314 Whirlpool Fill Hose Backorder WPL WP76314 $15.65

Hose Inlet 1` Hose WPL W10044603 Contact Us For Availability
