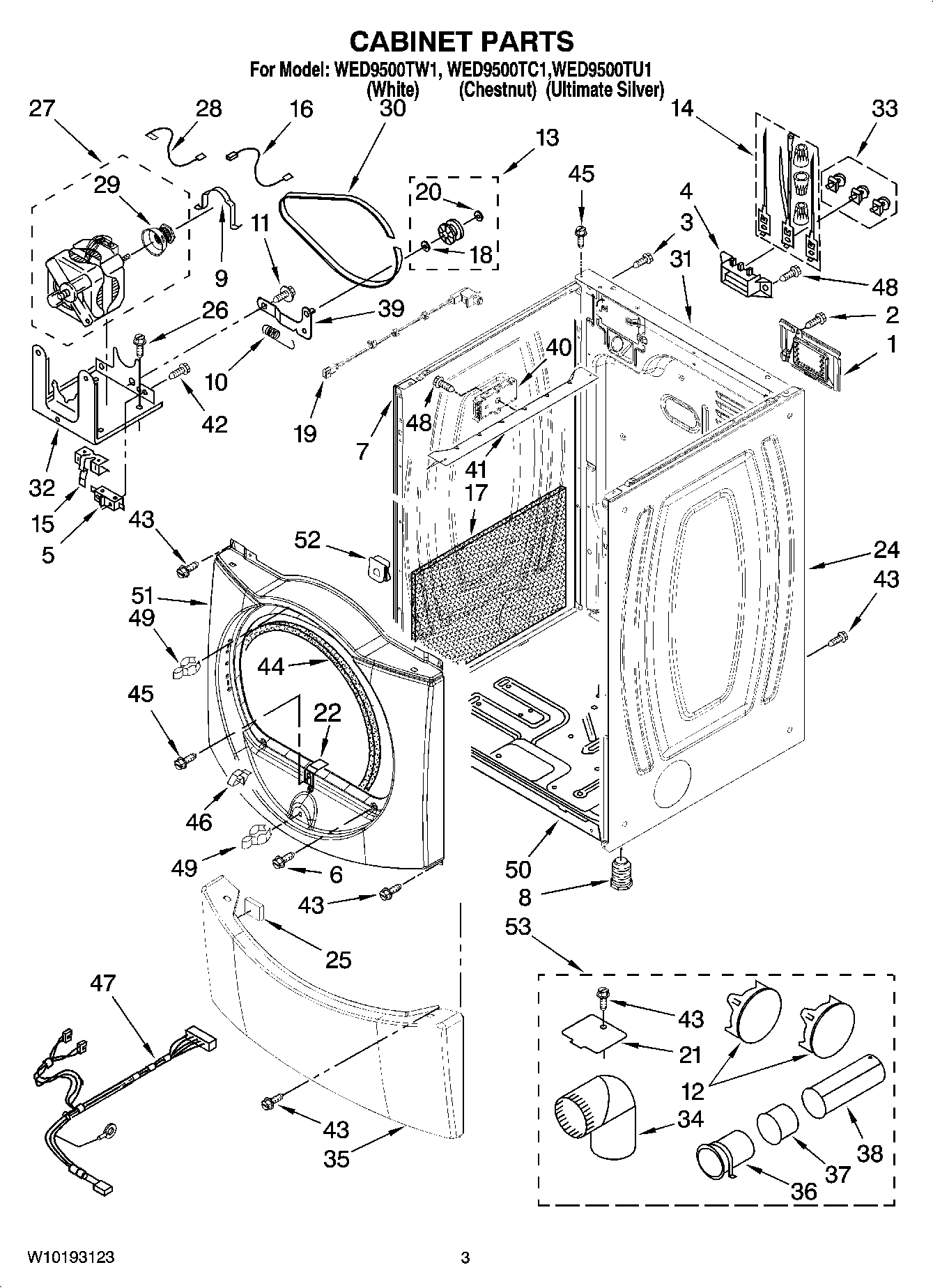

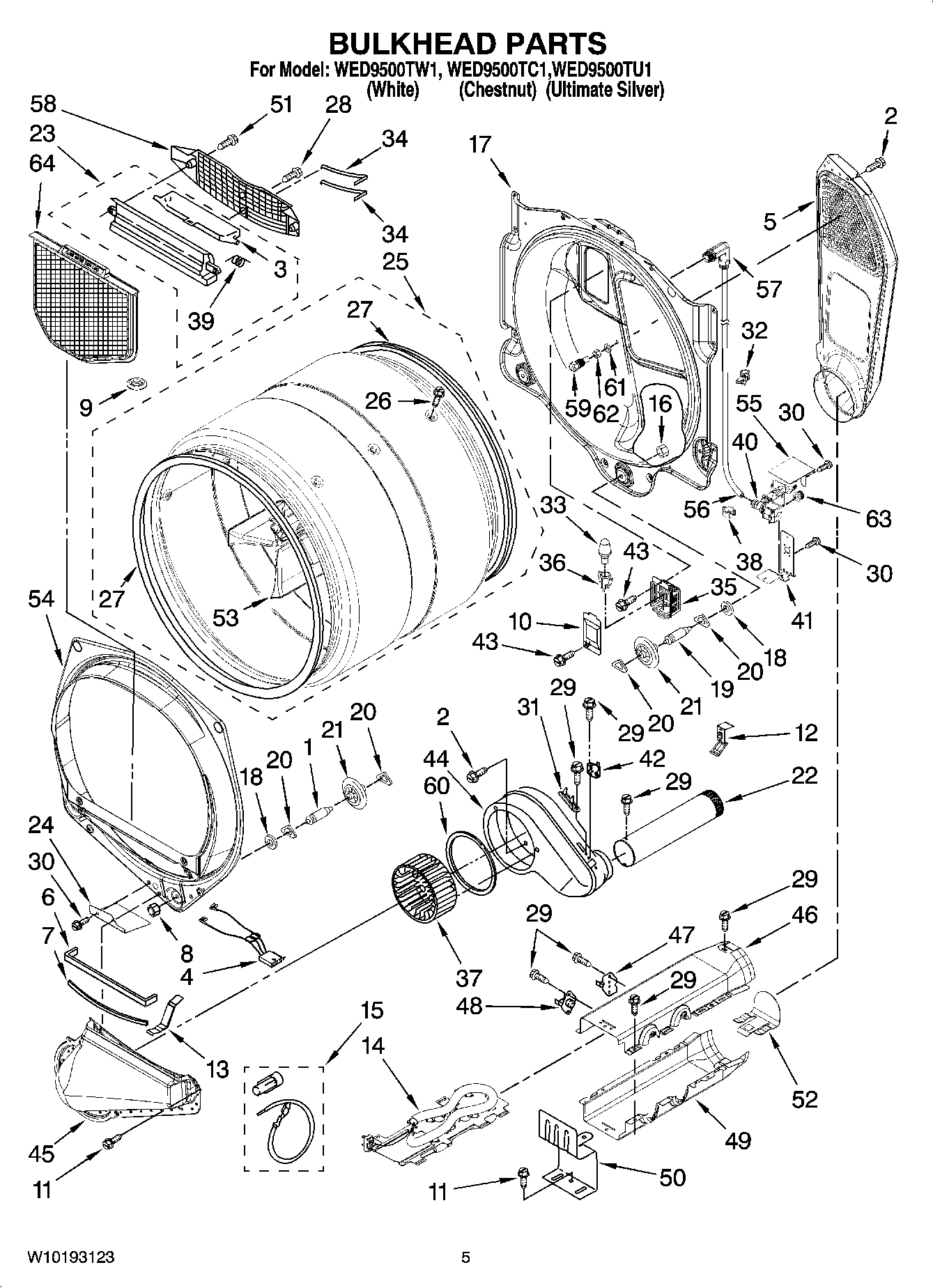

Model Whirlpool WED9500TC1 ELECTRIC DRYER – Common Parts &amp; Diagrams

350938 Whirlpool Spray Gun In Stock WPL 350938 $32.57

4392067 Whirlpool Dryer Repair Kit In Stock WPL 4392067 $18.78

49586 Whirlpool Mixer In Stock WPL 49586 $5.03

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

8212450A Whirlpool Dryer Rack Assembly Backorder WPL 8212450A $53.07

8541503 Whirlpool Stacking Kit In Stock WPL 8541503 $25.02

8579666ARP Whirlpool Door Kit Backorder WPL 8579666ARP $23.97

W10044609A Whirlpool Steam Dryer Hose Install In Stock WPL W10044609A $19.97

WP16123 Whirlpool Washer In Stock WPL WP16123 $2.51

WP76314 Whirlpool Fill Hose Backorder WPL WP76314 $15.65

PAINT, TOUCH-UP (1/2oz.) (Ultimate Silver) WPL 8212605 Contact Us For Availability

WPL W10044603 WPL W10044603 Contact Us For Availability

Kit, WPL 8529894 Contact Us For Availability

WPL ARI164799A WPL ARI164799A Contact Us For Availability

WPL ARI164800A WPL ARI164800A Contact Us For Availability

WPL W10162090 WPL W10162090 Contact Us For Availability

1

W10085210 Whirlpool Label Backorder WPL W10085210 $29.06

1

WPW10085230 Whirlpool Label Assembly Backorder WPL WPW10085230 $9.13

1

Use & Care Guide WPL W10122319 Contact Us For Availability

1

Guide, Quick Start WPL W10122321 Contact Us For Availability

1

Installation, Diagnostic Guide WPL W10134980 Contact Us For Availability

1

Sheet, Tip Steam Dry WPL W10139322 Contact Us For Availability

1

Tech Sheet WPL W10177456 Contact Us For Availability

2

WPW10310366 Whirlpool Hinge In Stock WPL WPW10310366 $84.03

2

Top (White) WPL 8519251 Contact Us For Availability

2

Top (Ultimate Silver) WPL W10114785 Contact Us For Availability

2

Top (Chestnut) WPL W10140291 Contact Us For Availability

3

WPW10159996 Whirlpool Screw Backorder WPL WPW10159996 $2.51

3

Harness, Main WPL W10181774 Contact Us For Availability

4

WP3406653 Whirlpool Wire Harness In Stock WPL WP3406653 $56.58

4

Screw, 8-18 x 5/8 WPL 9742177 Contact Us For Availability

4

Panel, Console (Includes Items: 20,21,22,27,2 WPL W10133748 Contact Us For Availability

4

Panel, Console (Includes Items: 20,21,22,27,2 WPL W10153649 Contact Us For Availability

4

Panel, Console (Includes Items: 20,21,22,27,2 WPL W10177358 Contact Us For Availability

5

WP3391018 Whirlpool Wire Tie Backorder WPL WP3391018 $14.48

5

Cover-Hinge (R.H.) WPL W10181197 Contact Us For Availability

5

(Following Parts Not Included) WPL ARI164798A Contact Us For Availability

5

Cover-Hinge (L.H.) WPL W10180119 Contact Us For Availability

6

WP697813 Whirlpool Seal In Stock WPL WP697813 $3.70

6

WPW10139457 Whirlpool Door Seal In Stock WPL WPW10139457 $37.41

6

Bracket, Console (Includes No.12) WPL W10006840 Contact Us For Availability

7

W10112268 Whirlpool Clip Backorder WPL W10112268 $8.00

7

Handle, Ring Door (Silver) WPL 8579502 Contact Us For Availability

7

Handle, Ring Door (Gold) WPL 8579503 Contact Us For Availability

8

49621 Whirlpool Leveling Feet In Stock WPL 49621 $2.29

8

WP308685 Whirlpool Microwave Screw In Stock WPL WP308685 $2.51

8

WP94614 Whirlpool Terminal Backorder WPL WP94614 $2.51

9

3936144 Whirlpool Connector Backorder WPL 3936144 $10.76

9

WP660658 Whirlpool Clamp In Stock WPL WP660658 $3.70

9

Door Assembly (Outer) (Silver) WPL W10180115 Contact Us For Availability

9

Door Assembly (Outer) (Gold) WPL W10180116 Contact Us For Availability

10

WP596797 Whirlpool Terminal Backorder WPL WP596797 $2.51

10

Door Assembly (Inner) (Includes Items. 12 & 2 WPL 8578229 Contact Us For Availability

WP3389420 Whirlpool Screw In Stock WPL WP3389420 $2.51

WP355515 Whirlpool Screw Backorder WPL WP355515 $2.51

WP488729 Whirlpool Refrigerator Door Screw In Stock WPL WP488729 $2.51

WP489463 Whirlpool Refrigerator Screw In Stock WPL WP489463 $2.51

12

279570 Whirlpool Dryer Door Latch Kit In Stock WPL 279570 $1.66

12

W10112267 Whirlpool Seal Assembly Backorder WPL W10112267 $32.08

13

8519356 Whirlpool Retainer Backorder WPL 8519356 $7.50

13

W10012480 Whirlpool WP Dishwasher Encoder Ada Backorder WPL W10012480 $9.96

13

WP8066208 Whirlpool Clip Backorder WPL WP8066208 $3.70

279318 Whirlpool Terminal In Stock WPL 279318 $39.58

3936150 Whirlpool Connector Backorder WPL 3936150 $28.80

W10822054 Whirlpool Retainer Backorder WPL W10822054 $6.19

WP8544771 Whirlpool Dryer Heating Element In Stock WPL WP8544771 $64.18

279457 Whirlpool Dryer Heating Element Wide S In Stock WPL 279457 $3.93

3395683 Whirlpool Connector Backorder WPL 3395683 $32.06

8579662 Whirlpool Seal Backorder WPL 8579662 $40.35

WP8066120 Whirlpool Lever Assembly Backorder WPL WP8066120 $11.73

16

303776 Whirlpool Dishwasher Screw Backorder WPL 303776 $4.65

16

Screw-Plug WPL W10048910 Contact Us For Availability

17

2203186 Whirlpool Connector Backorder WPL 2203186 $7.61

17

WP8566254 Whirlpool Window Assembly Backorder WPL WP8566254 $92.47

17

Bulkhead, Rear WPL W10133857 Contact Us For Availability

18

WPW10121334 Whirlpool Washer In Stock WPL WPW10121334 $2.51

18

User Interface (Right) WPL W10172211 Contact Us For Availability

Tear-Drop Trim & Clip Assembly (White) WPL W10180488 Contact Us For Availability

Tear-Drop Trim & Clip Assembly (Ultimate Silv WPL W10180499 Contact Us For Availability

Tear-Drop Trim & Clip Assembly (Chestnut) WPL W10180506 Contact Us For Availability

User Interface (Center) (Includes: Illus. 13) WPL W10121375 Contact Us For Availability

20

Door Shield WPL W10180120 Contact Us For Availability

20

Encoder-Wheel WPL W10012430 Contact Us For Availability

21

Door, Intermediate WPL W10180118 Contact Us For Availability

21

Retainer-Snap WPL W10012440 Contact Us For Availability

22

Ramp, Door WPL 8529053 Contact Us For Availability

22

KNOB, LIGHT RING (INCLUDES: ITEM 21) WPL W10012410 Contact Us For Availability

22

Door Mask WPL W10180117 Contact Us For Availability

23

Door Screen WPL 8578155 Contact Us For Availability

23

Rast, Wheel Assy. (Service Only With Item. 28 WPL W10012810 Contact Us For Availability

24

W11257251 Whirlpool Shield Backorder WPL W11257251 $25.58

24

WP3373329 Whirlpool Dishwasher Screw Backorder WPL WP3373329 $2.51

24

Detent Wheel (Service Only With Illus. 28) WPL W10012460 Contact Us For Availability

25

Harness, Communication WPL W10095960 Contact Us For Availability

26

WPW10109200 Whirlpool Screw In Stock WPL WPW10109200 $2.51

26

Knob, Spring (2) (Service Only With Item 28) WPL W10012820 Contact Us For Availability

27

Knob, Control (Includes: Illus. 21) (White) WPL W10116702 Contact Us For Availability

27

Knob, Control (Includes: Item. 21) (Ultimate WPL W10116704 Contact Us For Availability

27

Knob, Control (Includes: Item 21) (Chestnut) WPL W10153664 Contact Us For Availability

28

3398948 Whirlpool Wire Backorder WPL 3398948 $38.06

28

Encoder, WPL 280230 Contact Us For Availability

29

WPL W10117943 WPL W10117943 Contact Us For Availability

30

WPL W10111020 WPL W10111020 Contact Us For Availability

31

WP3392519 Whirlpool Dryer Thermal Fuse In Stock WPL WP3392519 $7.30

32

WP3387118 Whirlpool Base Assembly Backorder WPL WP3387118 $44.84

33

279393 Whirlpool Terminal Block Screw and Nut In Stock WPL 279393 $15.35

34

WP3387223 Whirlpool Electrode Assembly In Stock WPL WP3387223 $3.39

35

8578825 Whirlpool Bracket Backorder WPL 8578825 $7.98

36

W11700522 Whirlpool Socket Backorder WPL W11700522 $28.07

37

WP697772 Whirlpool Dryer Blower Wheel In Stock WPL WP697772 $29.83

39

WP3394986 Whirlpool Spring Backorder WPL WP3394986 $29.06

41

WP8563727 Whirlpool Bracket Backorder WPL WP8563727 $67.84

42

WP8577274 Whirlpool Dryer Thermistor In Stock WPL WP8577274 $17.55

44

WP3387242 Whirlpool Seal In Stock WPL WP3387242 $9.17

46

WP8544769 Whirlpool Box Backorder WPL WP8544769 $66.39

47

280148 Whirlpool Dryer Thermal Cut-Off Fuse K In Stock WPL 280148 $30.27

47

WPL W10181463 WPL W10181463 Contact Us For Availability

48

WP8557403 Whirlpool Thermostat In Stock WPL WP8557403 $54.42

49

HOUSING TAB, HEATER BOX WPL 8544770 Contact Us For Availability

50

8066099 Whirlpool Bracket Backorder WPL 8066099 $8.16

51

WP3387230 Whirlpool Screw In Stock WPL WP3387230 $2.51

52

8544776 Whirlpool Clip Assembly Backorder WPL 8544776 $8.00

52

WPL 62825 WPL 62825 Contact Us For Availability

55

W10184825 Whirlpool Cover Backorder WPL W10184825 $28.80

56

WPL W10044598 WPL W10044598 Contact Us For Availability

57

WPL W10044606 WPL W10044606 Contact Us For Availability

58

W11086603 Whirlpool Dryer Link Screen Air Gri In Stock WPL W11086603 $13.56

59

WPL W10044629 WPL W10044629 Contact Us For Availability

60

WP697770 Whirlpool Blower Cover Plate Seal In Stock WPL WP697770 $3.70

61

W10044579 Whirlpool Washer Backorder WPL W10044579 $5.65

62

W10044628 Whirlpool Nut Backorder WPL W10044628 $28.80

63

W10859554 Whirlpool Coupler Backorder WPL W10859554 $26.75

64

W10120998 Whirlpool Dryer Lint Screen Filter In Stock WPL W10120998 $23.21
