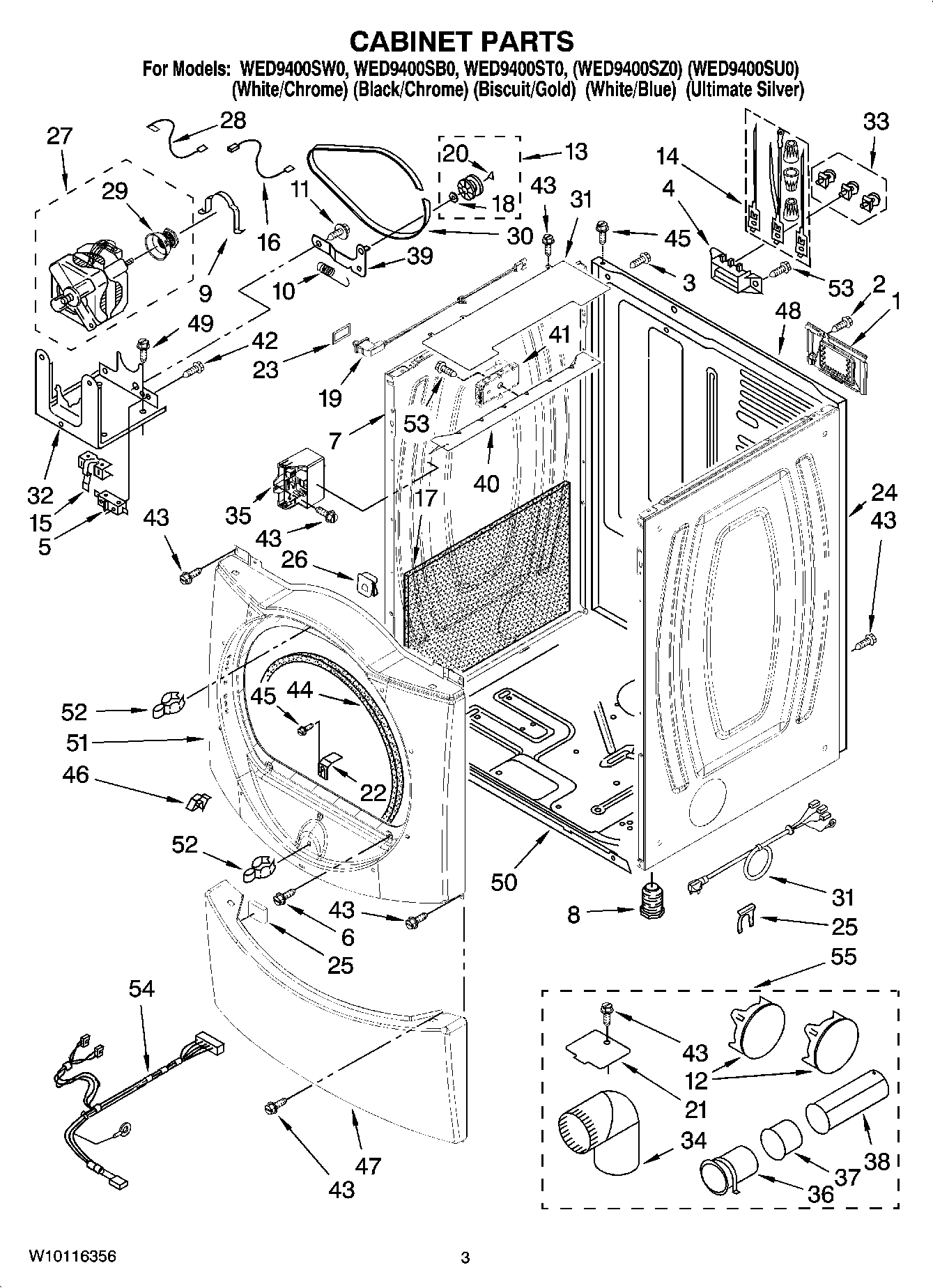

Model Whirlpool WED9400SW0 ELECTRIC DRYER – Common Parts &amp; Diagrams

350938 Whirlpool Spray Gun Backorder WPL 350938 $32.57

4392067 Whirlpool Dryer Repair Kit In Stock WPL 4392067 $33.72

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $7.21

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $27.58

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.51

8212450A Whirlpool Dryer Rack Assembly Backorder WPL 8212450A $55.11

8541503 Whirlpool Stacking Kit In Stock WPL 8541503 $26.26

8579666ARP Whirlpool Door Kit In Stock WPL 8579666ARP $23.97

WPL 8212605 WPL 8212605 Contact Us For Availability

WPL 799344 WPL 799344 Contact Us For Availability

PAINT, WPL 4392900 Contact Us For Availability

WPL 72302 WPL 72302 Contact Us For Availability

WPL 786020 WPL 786020 Contact Us For Availability

WPL 786302 WPL 786302 Contact Us For Availability

WPL 8529894 WPL 8529894 Contact Us For Availability

WPL ARI164786A WPL ARI164786A Contact Us For Availability

1

W10085210 Whirlpool Label Backorder WPL W10085210 $30.51

1

WPW10085230 Whirlpool Label Assembly Backorder WPL WPW10085230 $9.13

2

WPW10310366 Whirlpool Hinge In Stock WPL WPW10310366 $84.03

3

Harness, Main WPL 8579739 Contact Us For Availability

3

Screw, 10-24 x 3/64 WPL W10017850 Contact Us For Availability

4

WP3406653 Whirlpool Wire Harness In Stock WPL WP3406653 $46.96

4

Screw, 8-18 x 5/8 WPL 9742177 Contact Us For Availability

4

Panel, Console (Includes Items: 4,20,21,22,27 WPL W10116696 Contact Us For Availability

5

WP3394427 Whirlpool Clip In Stock WPL WP3394427 $3.70

5

Cover-Hinge (R.H.) WPL 8578152 Contact Us For Availability

5

Cover-Hinge (L.H.) WPL 8578153 Contact Us For Availability

5

(Following Parts Not Included) WPL ARI164785A Contact Us For Availability

6

WP697813 Whirlpool Seal In Stock WPL WP697813 $3.88

6

WPW10139457 Whirlpool Door Seal In Stock WPL WPW10139457 $39.27

7

353424 Whirlpool Connector Backorder WPL 353424 $10.76

7

Handle-Ring & Pad Assembly (Blue) WPL W10048010 Contact Us For Availability

7

Handle-Ring & Pad Assembly (Chrome) WPL W10048070 Contact Us For Availability

7

Handle, Ring & Pad Assembly (Gold) WPL W10048080 Contact Us For Availability

8

49621 Whirlpool Leveling Feet In Stock WPL 49621 $2.40

8

WP308685 Whirlpool Microwave Screw In Stock WPL WP308685 $2.51

8

WP94614 Whirlpool Terminal Backorder WPL WP94614 $2.51

9

3936144 Whirlpool Connector Backorder WPL 3936144 $10.76

9

WP3392519 Whirlpool Dryer Thermal Fuse In Stock WPL WP3392519 $7.67

9

WP660658 Whirlpool Clamp In Stock WPL WP660658 $3.18

9

Door Assembly (Outer) (Blue) WPL 8579514 Contact Us For Availability

9

Door Assembly (Outer) (Chrome) WPL 8579520 Contact Us For Availability

9

Door Assembly (Outer) (Gold) WPL 8579521 Contact Us For Availability

10

Door Assembly (Inner) (Includes Illus. 12 & 2 WPL 8578229 Contact Us For Availability

11

WP3389420 Whirlpool Screw In Stock WPL WP3389420 $2.51

11

WP355515 Whirlpool Screw Backorder WPL WP355515 $2.51

11

WP489463 Whirlpool Refrigerator Screw In Stock WPL WP489463 $2.51

12

279570 Whirlpool Dryer Door Latch Kit In Stock WPL 279570 $2.36

13

8519356 Whirlpool Retainer Backorder WPL 8519356 $7.50

13

WP8066208 Whirlpool Clip Backorder WPL WP8066208 $3.70

14

279318 Whirlpool Terminal In Stock WPL 279318 $41.56

14

W10822054 Whirlpool Retainer Backorder WPL W10822054 $6.19

14

WP8544771 Whirlpool Dryer Heating Element In Stock WPL WP8544771 $67.38

279457 Whirlpool Dryer Heating Element Wide S In Stock WPL 279457 $3.93

3395683 Whirlpool Connector Backorder WPL 3395683 $33.67

WP8066120 Whirlpool Lever Assembly Backorder WPL WP8066120 $11.73

Seal-Window WPL 8579662 Contact Us For Availability

16

Wire, Belt Switch WPL 3394081 Contact Us For Availability

16

Screw-Plug WPL W10048910 Contact Us For Availability

17

W11299301 Whirlpool Bulkhead Assembly Backorder WPL W11299301 $97.78

17

WP8566254 Whirlpool Window Assembly Backorder WPL WP8566254 $97.09

17

Sound Panel WPL W10128772 Contact Us For Availability

18

WPW10121334 Whirlpool Washer In Stock WPL WPW10121334 $2.51

Assembly, Door Switch WPL 8574875 Contact Us For Availability

Tear-Drop Trim & Clip Assembly (White) WPL W10099270 Contact Us For Availability

Tear-Drop Trim & Clip Assembly (White/Blue) WPL W10099280 Contact Us For Availability

Tear-Drop Trim & Clip Assembly (Black) WPL W10099310 Contact Us For Availability

Tear-Drop Trim & Clip Assembly (Biscuit) WPL W10099320 Contact Us For Availability

Tear-Drop Trim & Clip Assembly (Silver) WPL W10099330 Contact Us For Availability

20

WPW10512946 Whirlpool Dryer Tri-Ring Drum Rol In Stock WPL WPW10512946 $4.52

20

Door Shield WPL W10074630 Contact Us For Availability

21

WPW10354249 Whirlpool Cover In Stock WPL WPW10354249 $3.70

21

Retainer-Snap WPL W10012440 Contact Us For Availability

21

Door-Intermediate WPL 8578157 Contact Us For Availability

22

Door Mask WPL 8578156 Contact Us For Availability

22

Ramp, Door WPL 8529053 Contact Us For Availability

22

KNOB, LIGHT RING (INCLUDES: ITEM 21) WPL W10012410 Contact Us For Availability

23

Seal, Door Switch WPL W10118614 Contact Us For Availability

23

Door Screen WPL 8578155 Contact Us For Availability

WP3373329 Whirlpool Dishwasher Screw Backorder WPL WP3373329 $2.51

Panel, Side (R.H.) (White) WPL W10139003 Contact Us For Availability

Panel, Side (R.H.) (Biscuit) WPL W10139004 Contact Us For Availability

Panel, Side (R.H.) (Silver) WPL W10139009 Contact Us For Availability

Panel, Side (R.H.) (Black) WPL W10139010 Contact Us For Availability

25

3389682 Whirlpool Spacer Backorder WPL 3389682 $5.65

25

Harness, Communication WPL W10095960 Contact Us For Availability

26

WPW10109200 Whirlpool Screw In Stock WPL WPW10109200 $2.51

26

Clip-S Type WPL 62825 Contact Us For Availability

27

279787 Whirlpool Dryer Drive Motor In Stock WPL 279787 $109.35

27

Knob, Control (Includes: Illus. 21) (White) WPL W10116702 Contact Us For Availability

28

3398948 Whirlpool Wire Backorder WPL 3398948 $39.97

28

WPL 280230 WPL 280230 Contact Us For Availability

29

W10837625 Whirlpool Dryer Motor Pulley In Stock WPL W10837625 $7.41

30

661570V Whirlpool Dryer Drum Belt In Stock WPL 661570V $11.24

31

Cover, Control Bracket WPL W10118470 Contact Us For Availability

32

WP3387118 Whirlpool Base Assembly Backorder WPL WP3387118 $47.09

32

Baffle, Drum WPL W10113136 Contact Us For Availability

33

279393 Whirlpool Terminal Block Screw and Nut In Stock WPL 279393 $15.35

34

WP3387223 Whirlpool Electrode Assembly In Stock WPL WP3387223 $3.39

34

WPW10416072 Whirlpool Elbow Backorder WPL WPW10416072 $11.44

35

3977373 Whirlpool Bracket Backorder WPL 3977373 $70.28

35

Power Cube WPL 3407228 Contact Us For Availability

36

W11700522 Whirlpool Socket Backorder WPL W11700522 $29.48

36

WP8563747 Whirlpool Exhaust Pipe In Stock WPL WP8563747 $30.89

37

WP697772 Whirlpool Dryer Blower Wheel In Stock WPL WP697772 $31.33

37

WPW10331278 Whirlpool Exhaust Pipe Backorder WPL WPW10331278 $30.25

38

WP8563749 Whirlpool Exhaust Pipe Backorder WPL WP8563749 $32.52

39

W10837240 Whirlpool Dryer Idler Pulley In Stock WPL W10837240 $20.49

39

WP3394986 Whirlpool Spring Backorder WPL WP3394986 $30.51

40

WP697770 Whirlpool Blower Cover Plate Seal In Stock WPL WP697770 $3.88

40

WP8563727 Whirlpool Bracket Backorder WPL WP8563727 $71.22

41

W11086603 Whirlpool Dryer Link Screen Air Gri In Stock WPL W11086603 $14.24

41

WPL W10110641 WPL W10110641 Contact Us For Availability

42

WP8577274 Whirlpool Dryer Thermistor In Stock WPL WP8577274 $18.43

42

WP98129 Whirlpool Screw Backorder WPL WP98129 $2.51

43

WP488729 Whirlpool Refrigerator Door Screw In Stock WPL WP488729 $2.64

44

WP3387242 Whirlpool Seal In Stock WPL WP3387242 $9.17

46

W11295573 Whirlpool Clip Backorder WPL W11295573 $10.76

46

WP8544769 Whirlpool Box Backorder WPL WP8544769 $69.70

280148 Whirlpool Dryer Thermal Cut-Off Fuse K In Stock WPL 280148 $31.79

WPL W10116271 WPL W10116271 Contact Us For Availability

WPL W10116272 WPL W10116272 Contact Us For Availability

WPL W10116273 WPL W10116273 Contact Us For Availability

WPL W10116277 WPL W10116277 Contact Us For Availability

48

WP8557403 Whirlpool Thermostat In Stock WPL WP8557403 $54.42

48

WPL W10133207 WPL W10133207 Contact Us For Availability

49

WP681414 Whirlpool Screw In Stock WPL WP681414 $2.51

49

HOUSING TAB, HEATER BOX WPL 8544770 Contact Us For Availability

50

8066099 Whirlpool Bracket Backorder WPL 8066099 $8.16

50

WPL 8519207 WPL 8519207 Contact Us For Availability

WP3387230 Whirlpool Screw In Stock WPL WP3387230 $2.64

WPL 8577910 WPL 8577910 Contact Us For Availability

WPL 8578388 WPL 8578388 Contact Us For Availability

WPL 8578936 WPL 8578936 Contact Us For Availability

WPL 8578940 WPL 8578940 Contact Us For Availability

52

8544776 Whirlpool Clip Assembly Backorder WPL 8544776 $8.00

54

WPL ARI164784A WPL ARI164784A Contact Us For Availability

54

WPL W10110990 WPL W10110990 Contact Us For Availability

55

W10470674 Whirlpool Dryer Side Vent Exhaust K In Stock WPL W10470674 $55.11
