Model Whirlpool TS25AQXBW00 SIDE BY SIDE REFRIGERATOR – Common Parts & Diagrams
01 - CABINET
05 - MOTOR AND ICE CONTAINER
12 - ICEMAKER, LIT/OPTIONAL

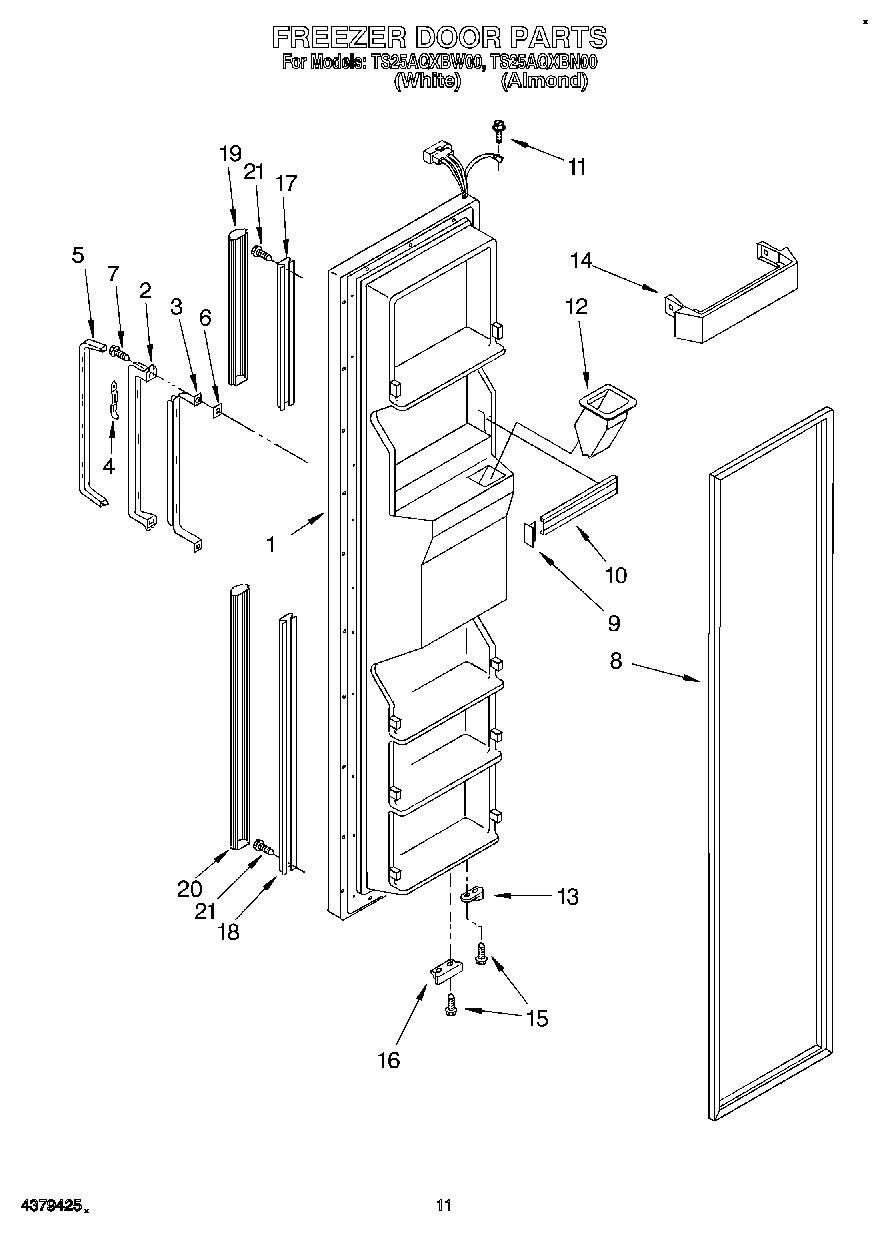

07 - FREEZER DOOR
09 - UNIT
02 - REFRIGERATOR LINER

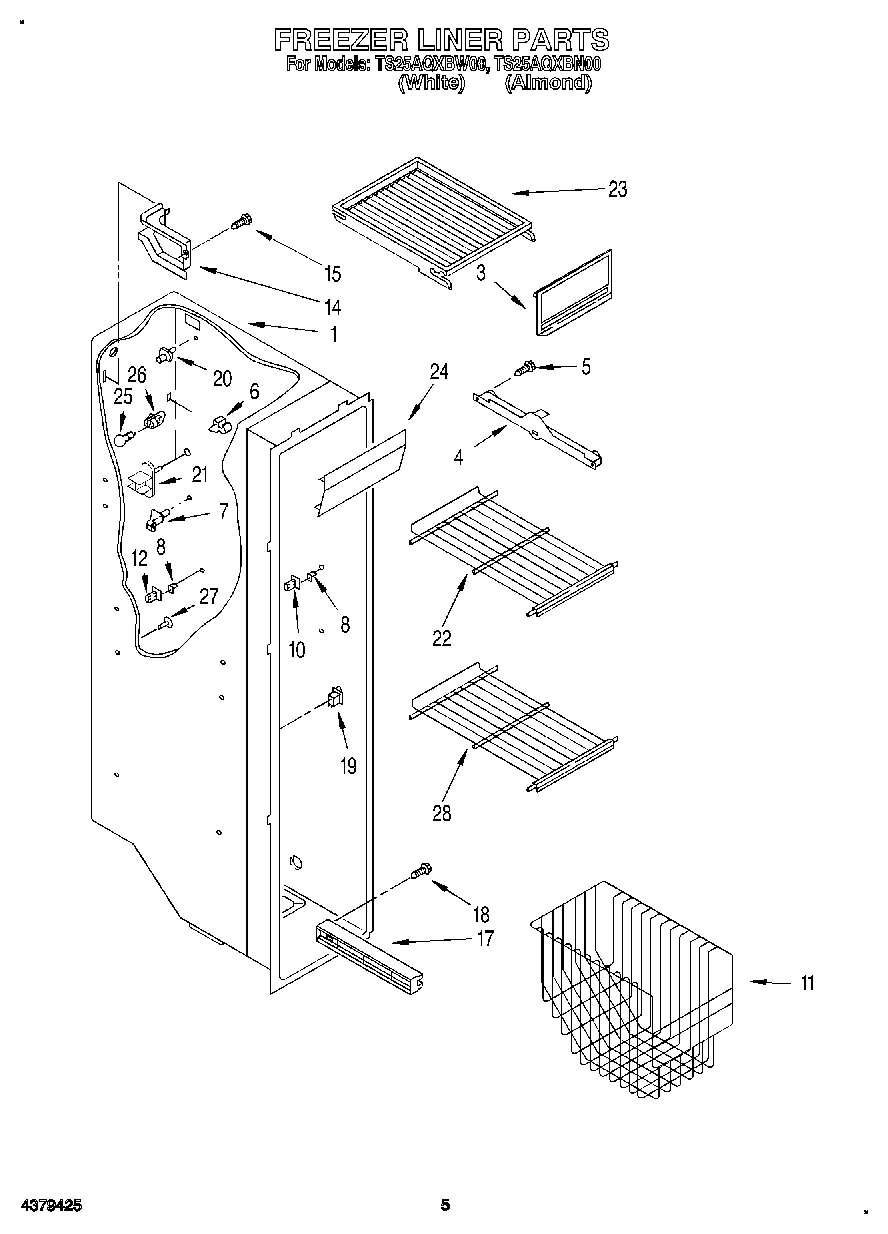

04 - FREEZER LINER

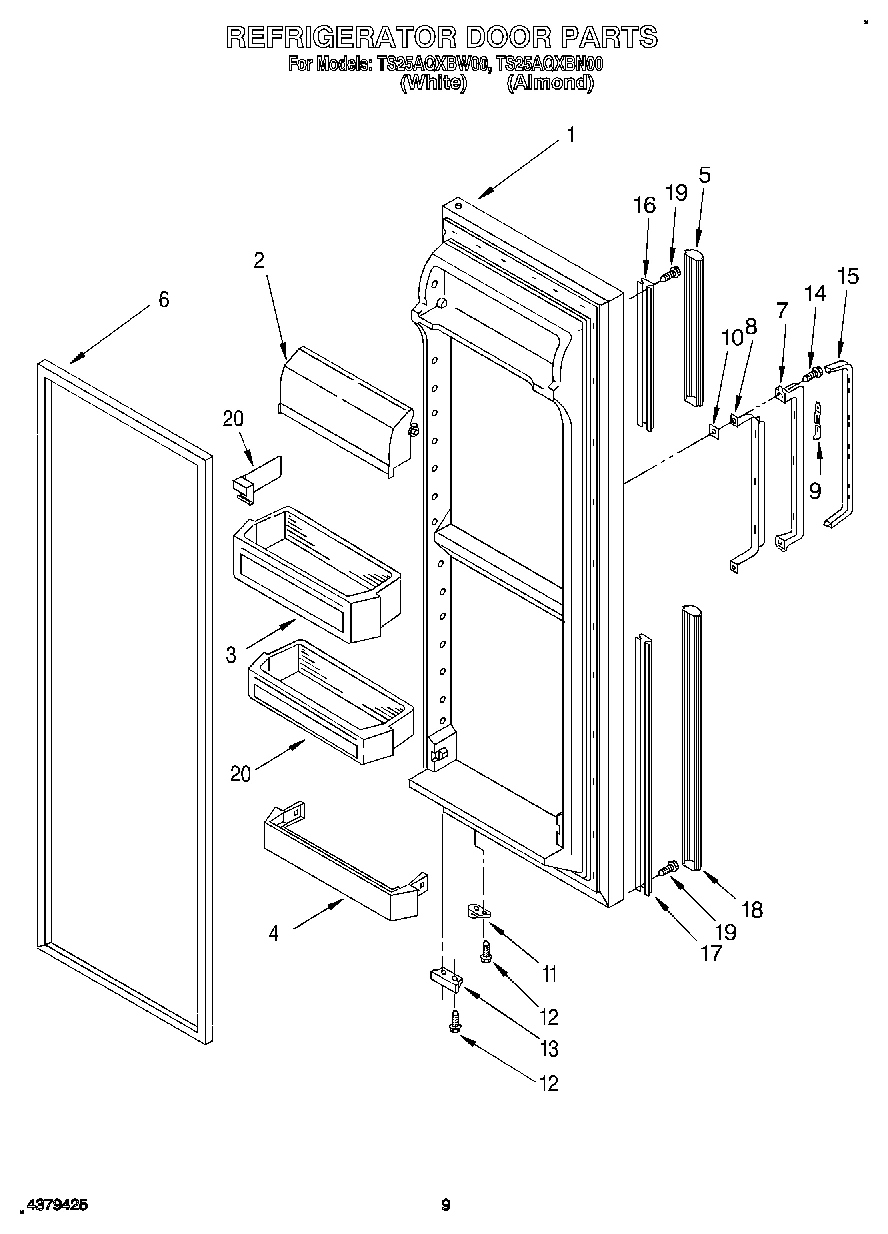

06 - REFRIGERATOR DOOR
08 - DISPENSER FRONT

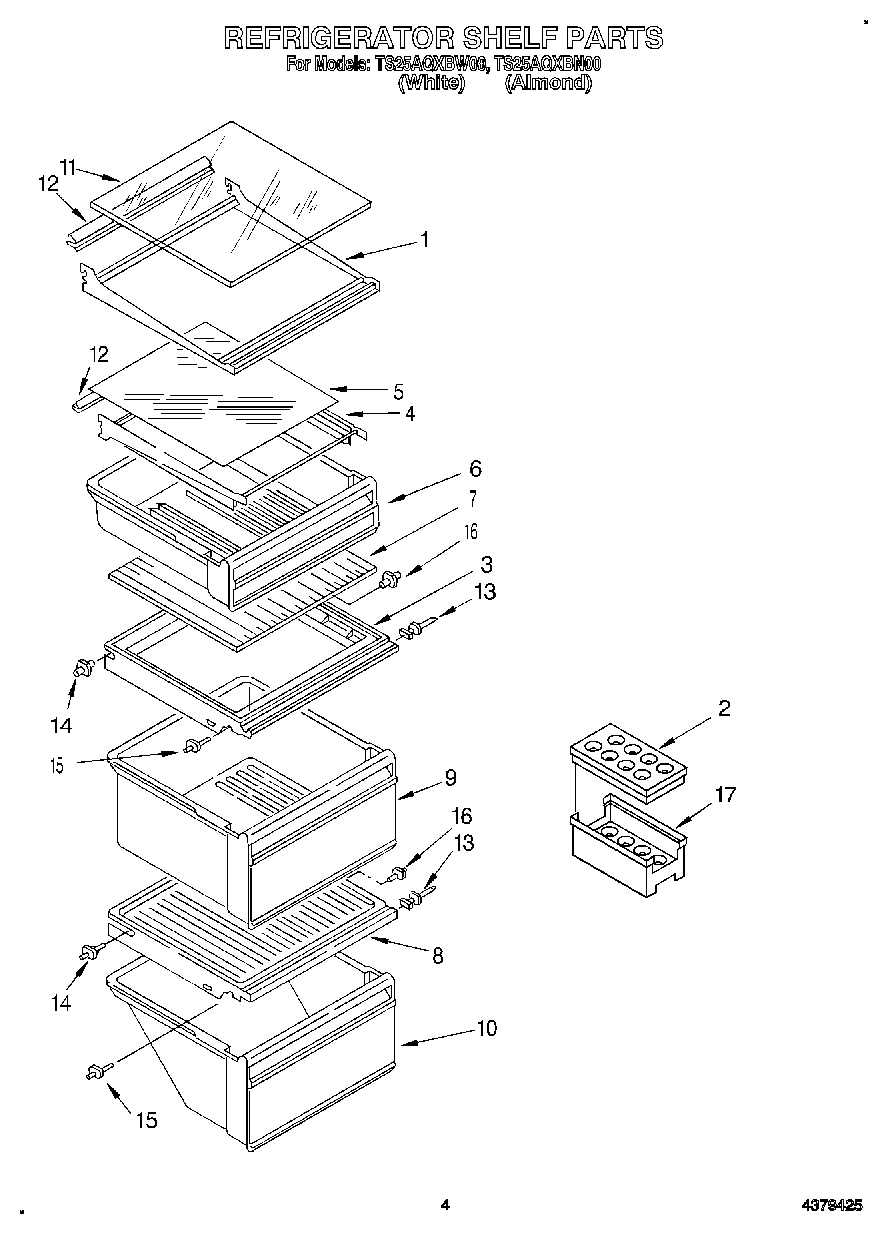

03 - REFRIGERATOR SHELF

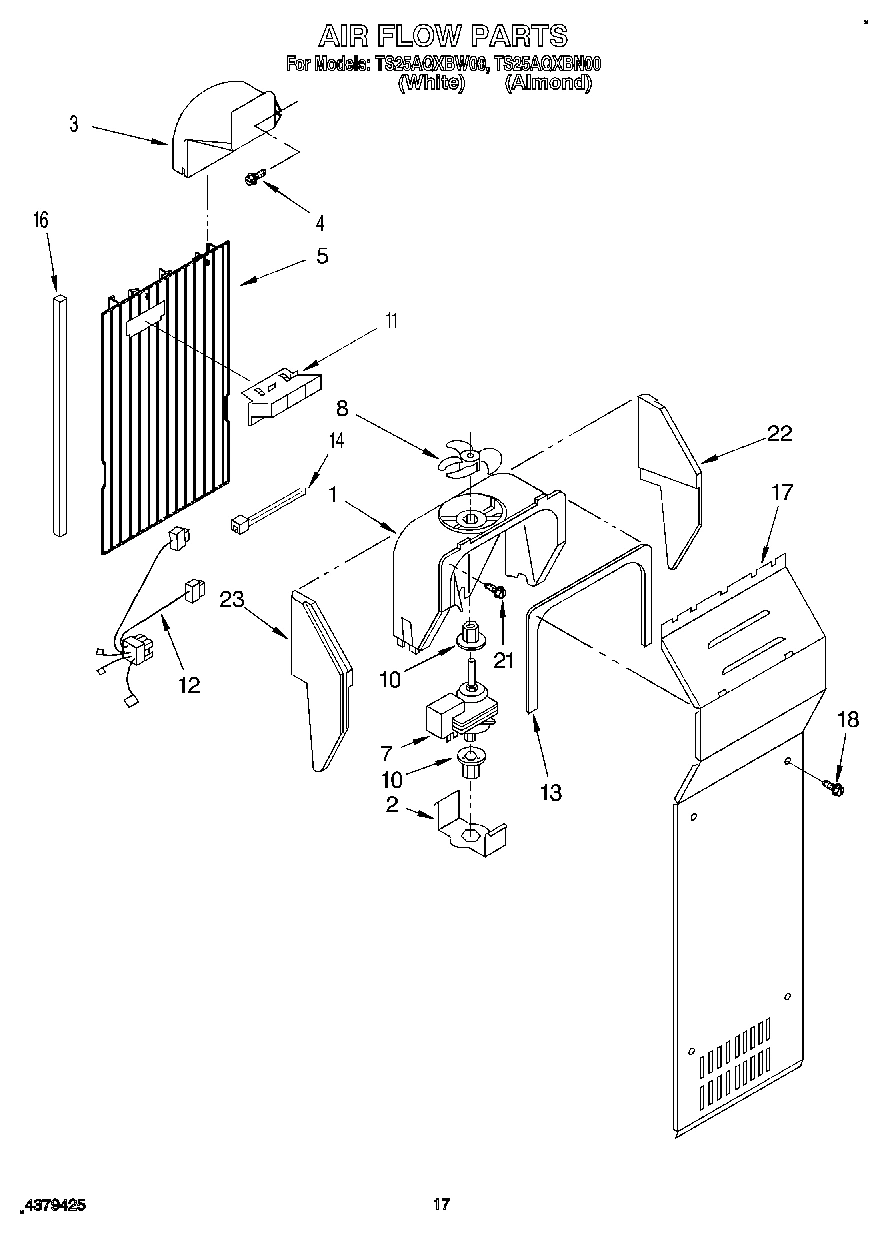

10 - AIR FLOW
11 - CONTROL
Common parts from model Whirlpool TS25AQXBW00 SIDE BY SIDE REFRIGERATOR
WPL 1117510 WPL 1117510 Contact Us For Availability
1
Freezer Door (Includes No.8 And Dispenser Fro WPL 2173226 Contact Us For Availability
1
Freezer Door (Includes No.8 And Dispenser Fro WPL 2173227 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI132355A Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI132356A Contact Us For Availability
1
Refrigerator Door (Includes No.6) (White) WPL 2173268 Contact Us For Availability
1
Refrigerator Door (Includes No.6) (Almond) WPL 2173269 Contact Us For Availability
1
Shelf Assembly, Cantilever (2) WPL 2163572 Contact Us For Availability
1
Control Box WPL 2169147 Contact Us For Availability
2
Fan, Blade WPL 1108179 Contact Us For Availability
2
Mounting Bracket WPL 1110629 Contact Us For Availability
2
Escutcheon, Meat Pan Control WPL 985468 Contact Us For Availability
2
Egg Container, Top WPL 1107388 Contact Us For Availability
3
Condenser Assembly WPL 2164504 Contact Us For Availability
3
Slide, Meat Pan Control WPL 984102 Contact Us For Availability
3
Door, Ice Compartment WPL 2163423 Contact Us For Availability
3
Shelf Bin (2) WPL 2173230 Contact Us For Availability
3
Air Scoop WPL 2161231 Contact Us For Availability
3
Screw (2) WPL 489397 Contact Us For Availability
4
Pad, Foam WPL 992358 Contact Us For Availability
4
Housing, Dispenser (Not a Serviceable Part) WPL ARI132357A Contact Us For Availability
4
Shelf, Cantilever (Snack Bin) WPL 2173125 Contact Us For Availability
5
Extension (Top) (White) WPL 2163432 Contact Us For Availability
5
Extension (Top) (Almond) WPL 2173176 Contact Us For Availability
5
Clip, Wire WPL 2155658 Contact Us For Availability
5
Glass (Snack Bin) WPL 2173126 Contact Us For Availability
5
Air Duct Freezer WPL 2155575 Contact Us For Availability
6
Tube, Water (See Item No.22) WPL ARI132358A Contact Us For Availability
6
Snack Bin WPL 2173211 Contact Us For Availability
6
Defrost Timer WPL 2162046 Contact Us For Availability
7
Handle (White) WPL 2147470 Contact Us For Availability
7
Handle (Almond) WPL 2170066 Contact Us For Availability
7
Clip, Tube (3) WPL 934011 Contact Us For Availability
7
Frame, Slides (White) WPL 2152717 Contact Us For Availability
7
Frame, Slides (Almond) WPL 2152718 Contact Us For Availability
7
Glass, Crisper Cover WPL 2163673 Contact Us For Availability
8
Reinforcement, Handle WPL 1127465 Contact Us For Availability
8
Support, Stud WPL 946355 Contact Us For Availability
8
Slide, Cube/Crush Switch (White) WPL 2152720 Contact Us For Availability
8
Slide, Cube/Crush Switch (Almond) WPL 2152721 Contact Us For Availability
9
Clip, Handle WPL 849445 Contact Us For Availability
10
Shim, Handle WPL 2147097 Contact Us For Availability
10
Trim, Shelf WPL 2163651 Contact Us For Availability
10
Stud, Front WPL 946356 Contact Us For Availability
10
Door Mechanism Assembly (Includes Item 9) WPL 2157650 Contact Us For Availability
10
Pan, Meat WPL 2173213 Contact Us For Availability
10
Grommet, Fan (2) WPL 2155589 Contact Us For Availability
11
Strap (Service) WPL 938384 Contact Us For Availability
11
Strap (Production) WPL 943322 Contact Us For Availability
11
Basket, Slope WPL 2152090 Contact Us For Availability
11
Glass, Shelf WPL 2163573 Contact Us For Availability
11
Cam Assembly WPL 2161250 Contact Us For Availability
12
Chute, Ice WPL 2156146 Contact Us For Availability
12
Cover (Production) WPL 1105055 Contact Us For Availability
12
Cover (Service) WPL 1108115 Contact Us For Availability
12
Stud, Rear WPL 1106982 Contact Us For Availability
12
Retainer, Glass WPL 1125594 Contact Us For Availability
12
Harness, Fan Evaporator, And Heater, Bi-Metal WPL 2161327 Contact Us For Availability
13
Shim, Hinge Top WPL 1123515 Contact Us For Availability
13
Bracket, Door Stop WPL 2155332 Contact Us For Availability
13
Ladder, Shelf (2) WPL 1116794 Contact Us For Availability
13
Grille, Overflow (White) WPL 1126120 Contact Us For Availability
13
Grille, Overflow (Almond) WPL 1126121 Contact Us For Availability
14
Shelf Stud WPL 1115290 Contact Us For Availability
14
Trivet, Shelf WPL 2173175 Contact Us For Availability
14
Cover, Wiring WPL 2155572 Contact Us For Availability
14
Clip, Bearing (2) WPL 987917 Contact Us For Availability
14
Retainer, Damper WPL 938439 Contact Us For Availability
15
Pivot Arm WPL 1110559 Contact Us For Availability
15
Insert, Handle WPL 2147581 Contact Us For Availability
15
Relay (See Overload) WPL ARI132359A Contact Us For Availability
15
Bearing, Lever (3) WPL 983697 Contact Us For Availability
16
Spring, Lever (2) WPL 983696 Contact Us For Availability
16
Retainer (Top) WPL 2147895 Contact Us For Availability
17
Retainer (Bottom) WPL 2147896 Contact Us For Availability
17
Running Capacitor (Service) WPL 2154565 Contact Us For Availability
17
Shelf Track (Right Side) WPL 1126354 Contact Us For Availability
17
Shelf Track (Left Side (4)) WPL 1126355 Contact Us For Availability
17
Shield, Wiring WPL 2147165 Contact Us For Availability
17
Egg Container, Bottom WPL 1107384 Contact Us For Availability
17
Cover, Evaporator WPL 2155612 Contact Us For Availability
18
Extension, Bottom (White) WPL 2147471 Contact Us For Availability
18
Extension, Bottom (Almond) WPL 2170068 Contact Us For Availability
19
Spacer, Switch WPL 625834 Contact Us For Availability
19
Screw Grommet WPL 509812 Contact Us For Availability
20
Shelf Bin WPL 2173229 Contact Us For Availability
20
Control Box Harness WPL 2149186 Contact Us For Availability
21
Stud, Shelf WPL 1115386 Contact Us For Availability
22
Evaporator WPL 2164519 Contact Us For Availability
22
Shelf WPL 2163571 Contact Us For Availability
22
CLIP, WIRING WPL 1115375 Contact Us For Availability
23
Clamp WPL 2161324 Contact Us For Availability
23
Shelf, Top Compartment WPL 1118294 Contact Us For Availability
23
Connecting Rod WPL 1123960 Contact Us For Availability
24
Fastener, Push-On WPL 489285 Contact Us For Availability
24
Light Lens WPL 1115389 Contact Us For Availability
24
Lever Assembly, Ice Dispenser (White) WPL 2155815 Contact Us For Availability
24
Lever Assembly, Ice Dispenser (Almond) WPL 2155816 Contact Us For Availability
25
Guide, Ice (White) WPL 1124730 Contact Us For Availability
25
Tray, Evaporator WPL 1110674 Contact Us For Availability
25
Guide, Ice (Almond) WPL 1126026 Contact Us For Availability
25
Escutcheon, Control Box WPL 2163622 Contact Us For Availability
26
Heat Shield WPL 2149294 Contact Us For Availability
26
Screw WPL 488892 Contact Us For Availability
27
Grommet (8) WPL 1110779 Contact Us For Availability
27
Slide, Light Switch (White) WPL 2152726 Contact Us For Availability
27
Slide, Light Switch (Almond) WPL 2152727 Contact Us For Availability
27
Knob, Air Control WPL 1116853 Contact Us For Availability
28
Compressor (Includes Items 11, 12, 13, 15, 17 WPL 2154562 Contact Us For Availability
28
Shelf (2) WPL 2163570 Contact Us For Availability
28
Knob, Retainer WPL 837444 Contact Us For Availability
29
Lamp Holder WPL 2147131 Contact Us For Availability
31
Unit, Harness WPL 2149199 Contact Us For Availability
31
Screw WPL 488361 Contact Us For Availability
32
Fan, Motor Bracket WPL 2162062 Contact Us For Availability
32
Insulator, Control Bracket WPL 2147164 Contact Us For Availability
33
Heater, Defrost WPL 2161323 Contact Us For Availability
33
Bracket, Control WPL 2147163 Contact Us For Availability
34
Clip WPL 2161330 Contact Us For Availability
34
Light Lens WPL 1118259 Contact Us For Availability
36
Screw, WPL 489155 Contact Us For Availability
37
Screw WPL 489387 Contact Us For Availability
37
Screw WPL 488280 Contact Us For Availability
38
Lever Assembly, Water Dispenser (White) WPL 2159199 Contact Us For Availability
38
Lever Assembly, Water Dispenser (Almond) WPL 2173146 Contact Us For Availability
39
Grommet (4) WPL 2162067 Contact Us For Availability
39
Plaque, Front Cover (White) WPL 2173097 Contact Us For Availability
39
Plaque, Front Cover (Almond) WPL 2173098 Contact Us For Availability
40
Front Cover, Housing (Includes Item 39) (Whit WPL 2173110 Contact Us For Availability
40
Front Cover, Housing (Includes Item 39) (Almo WPL 2173111 Contact Us For Availability
41
WPL 2147172 WPL 2147172 Contact Us For Availability
42
Clip, Heat Shield WPL 2155547 Contact Us For Availability
42
WPL 987049 WPL 987049 Contact Us For Availability
43
Unit Cover, Bottom WPL 2161363 Contact Us For Availability
49
Screw WPL 488624 Contact Us For Availability
50
Guard, Fan WPL 1110663 Contact Us For Availability
54
Wire Connector WPL 227991 Contact Us For Availability
59
Spring-Tube WPL 983659 Contact Us For Availability
63
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
63
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
100
WPL 876029 WPL 876029 Contact Us For Availability
100
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
100
Leveler, Enamel (13 Oz. Spray Can) WPL 350941 Contact Us For Availability
100
Transformer (115-230 Volt) WPL 515393 Contact Us For Availability
100
CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability
100
WPL 799340 WPL 799340 Contact Us For Availability
100
WPL 799833 WPL 799833 Contact Us For Availability
100
WPL 978883 WPL 978883 Contact Us For Availability
× ![]()
