Model Whirlpool TS22AQXEN10 SIDE BY SIDE REFRIGERATOR – Common Parts & Diagrams
02 - REFRIGERATOR LINER
09 - DISPENSER FRONT
05 - AIR FLOW

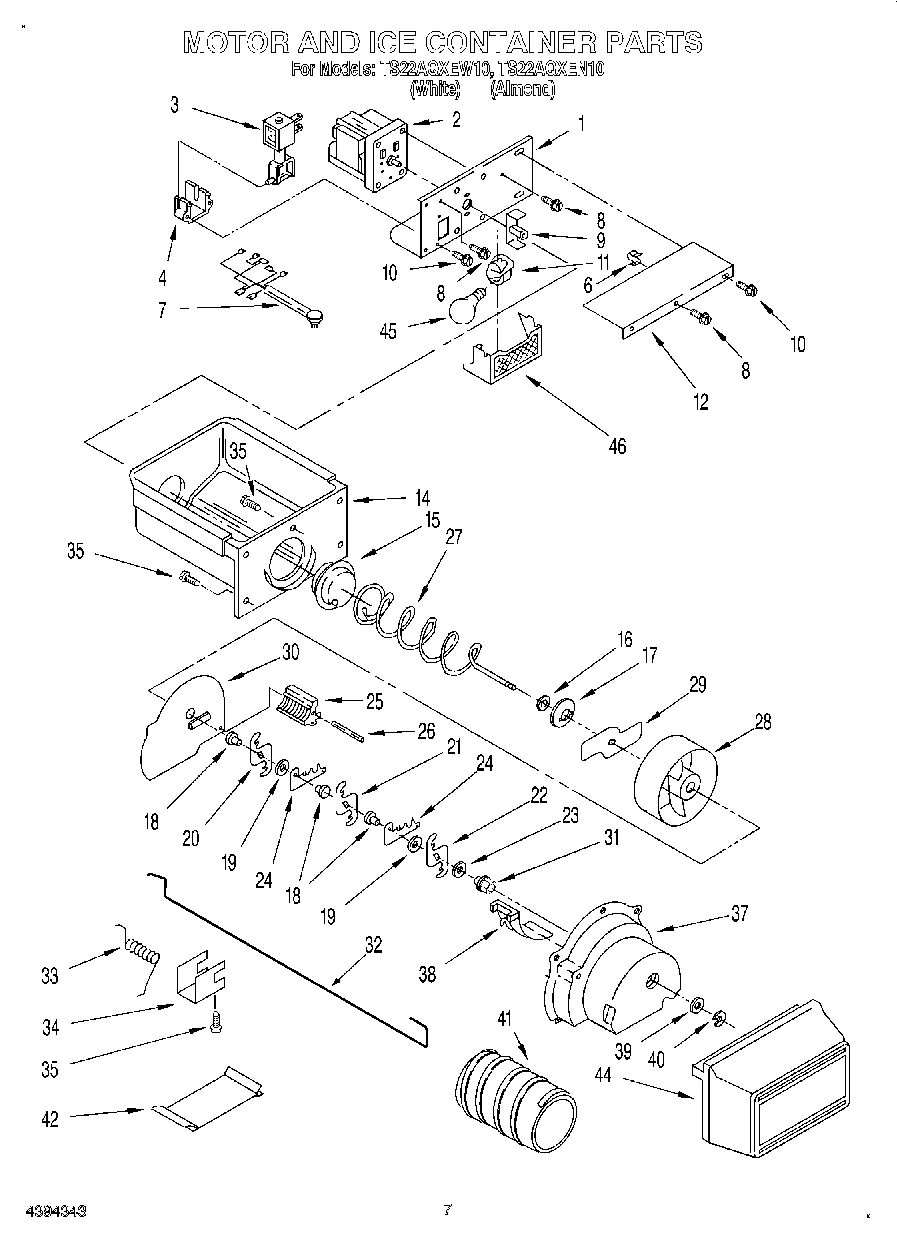

06 - MOTOR AND ICE CONTAINER

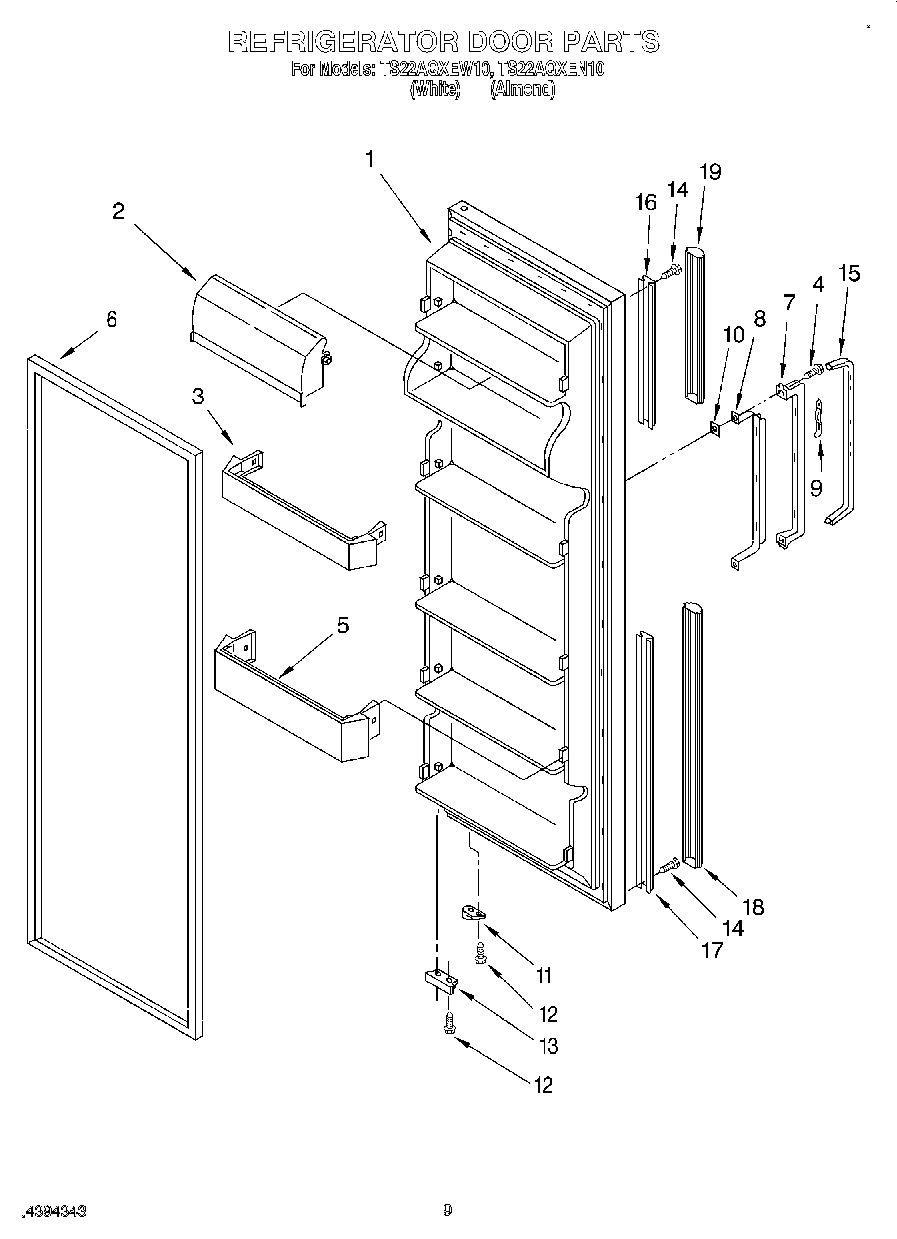

07 - REFRIGERATOR DOOR

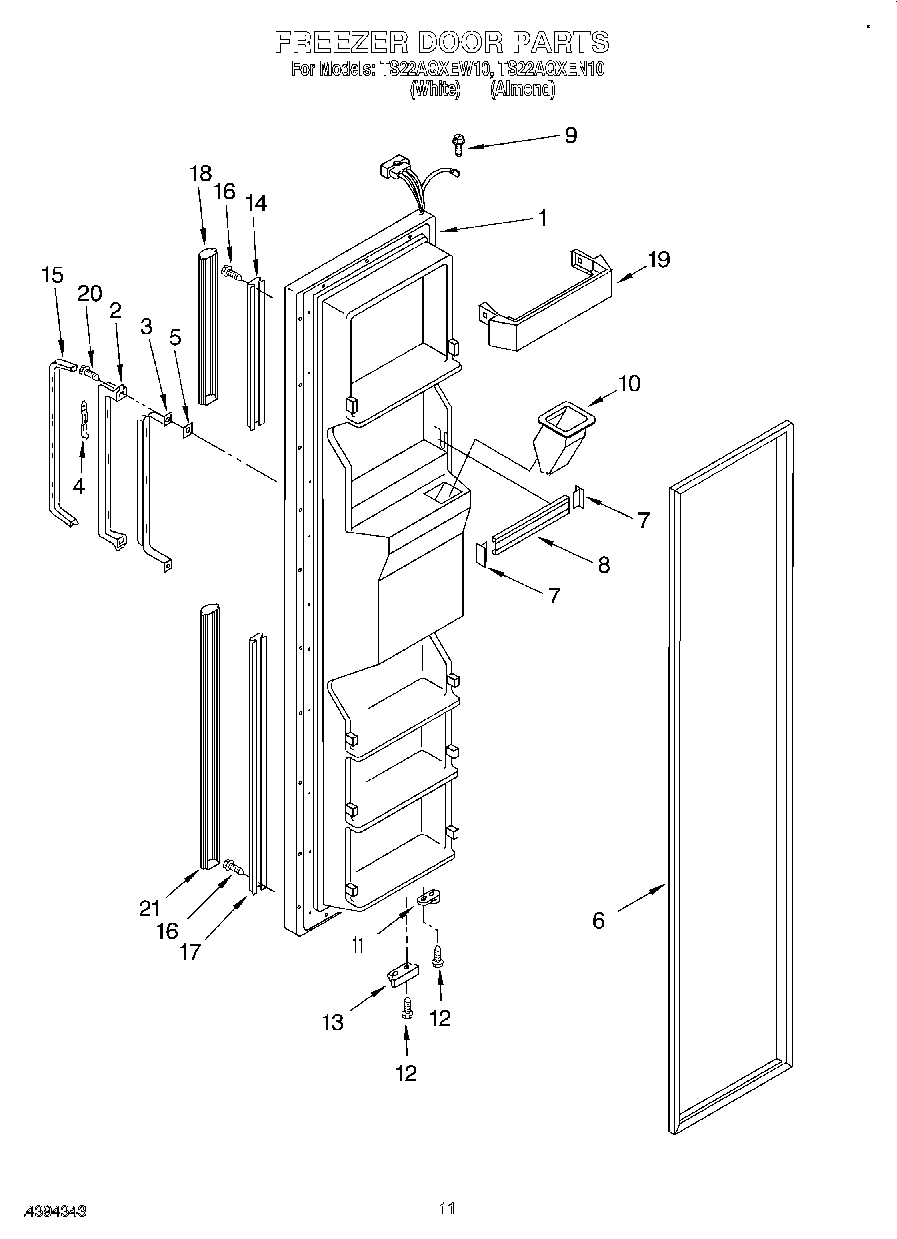

08 - FREEZER DOOR

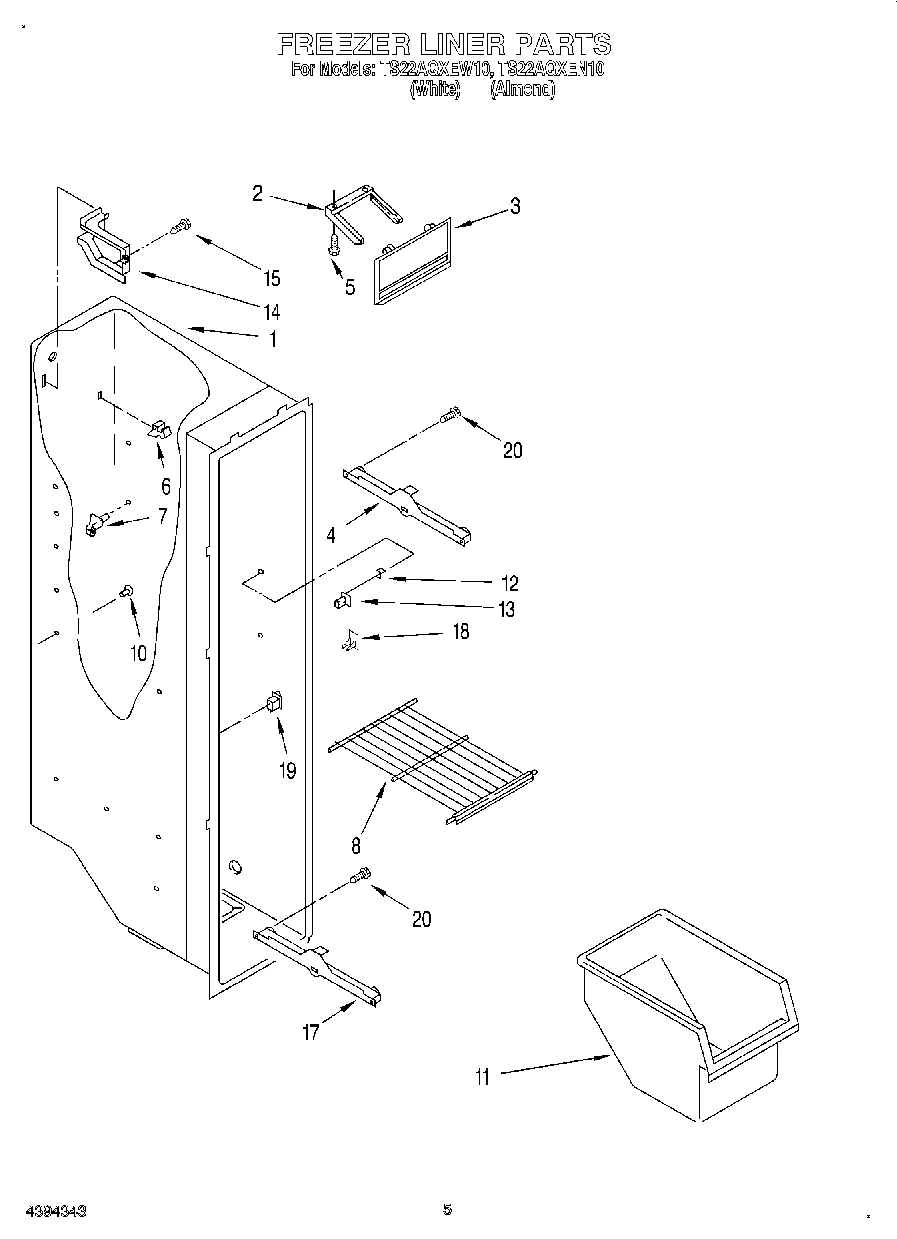

04 - FREEZER LINER
11 - ICEMAKER

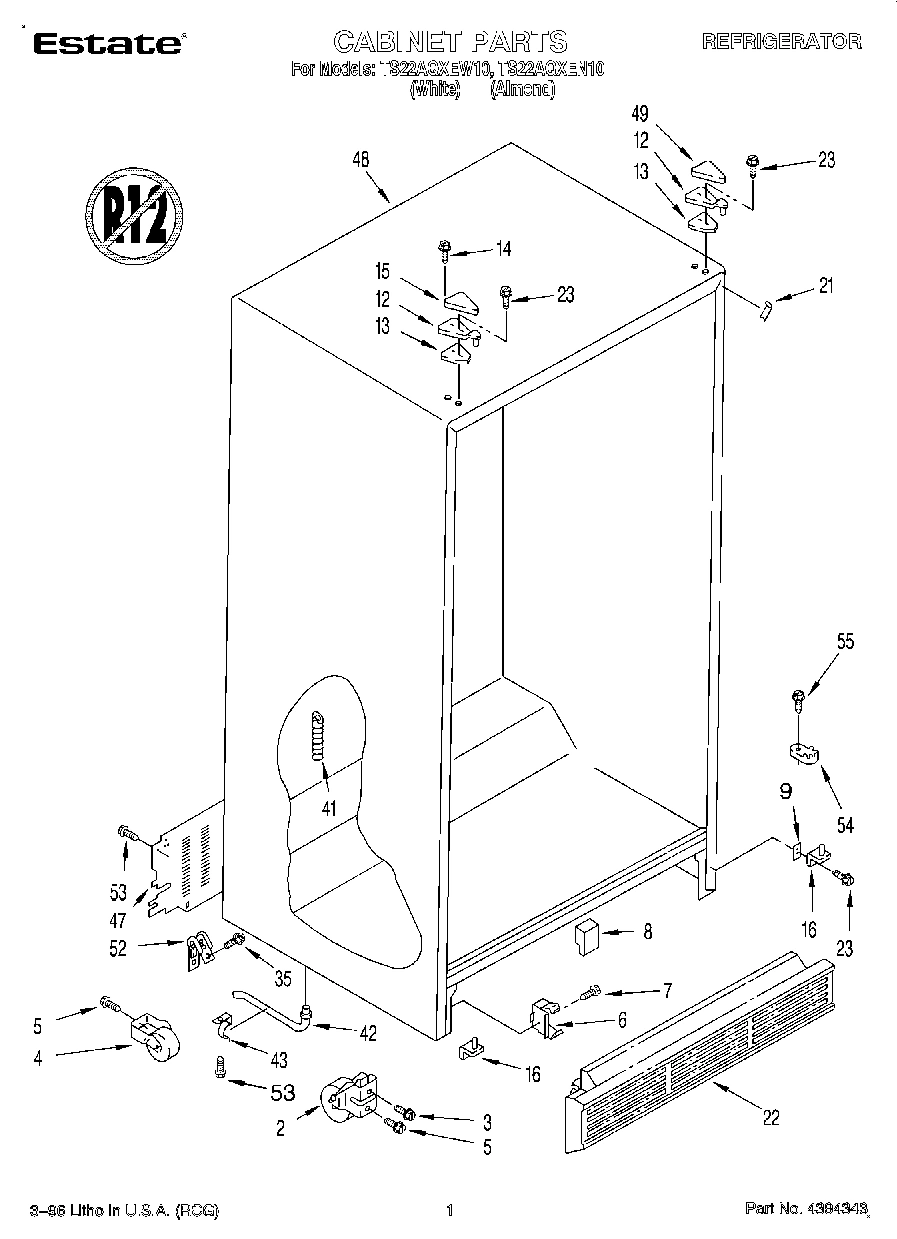

01 - CABINET

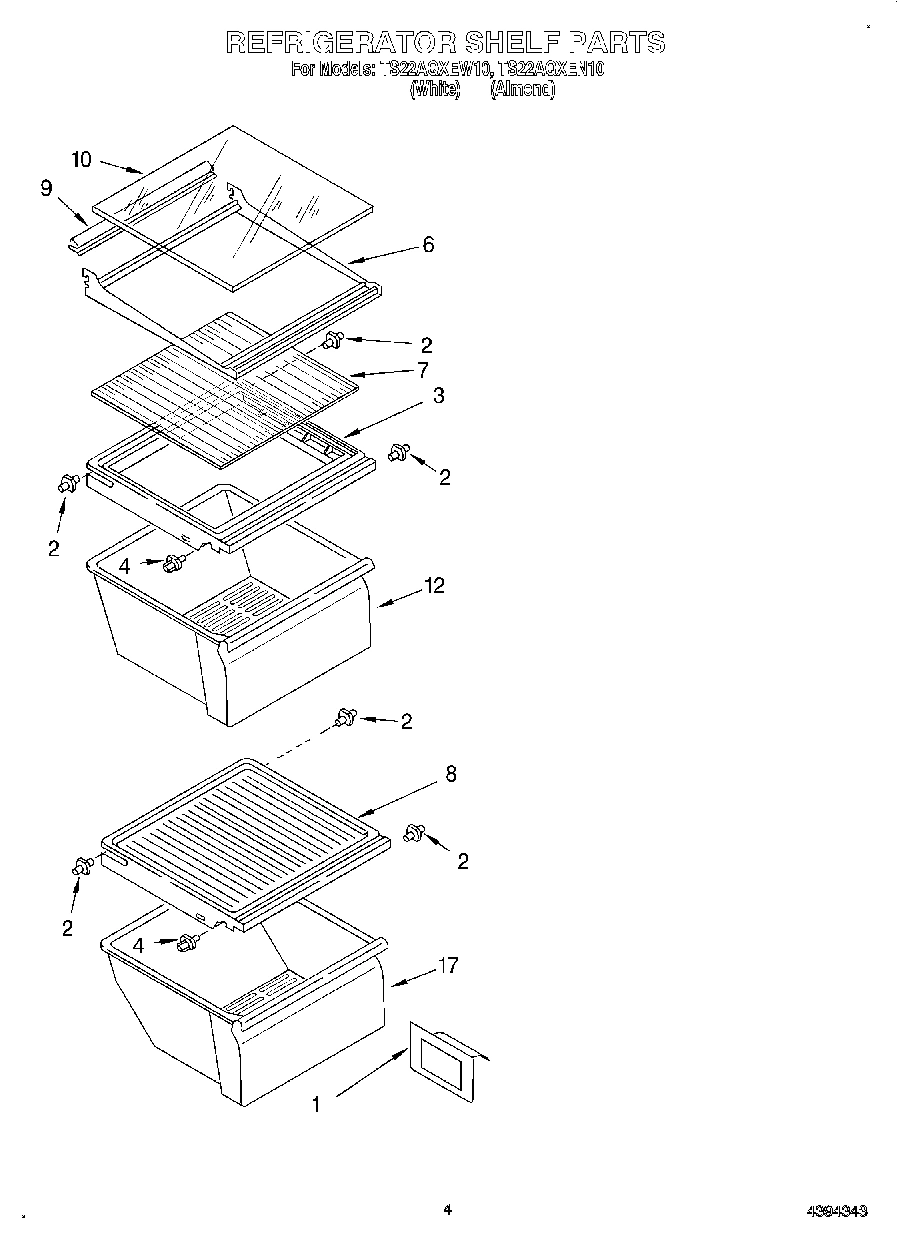

03 - REFRIGERATOR SHELF

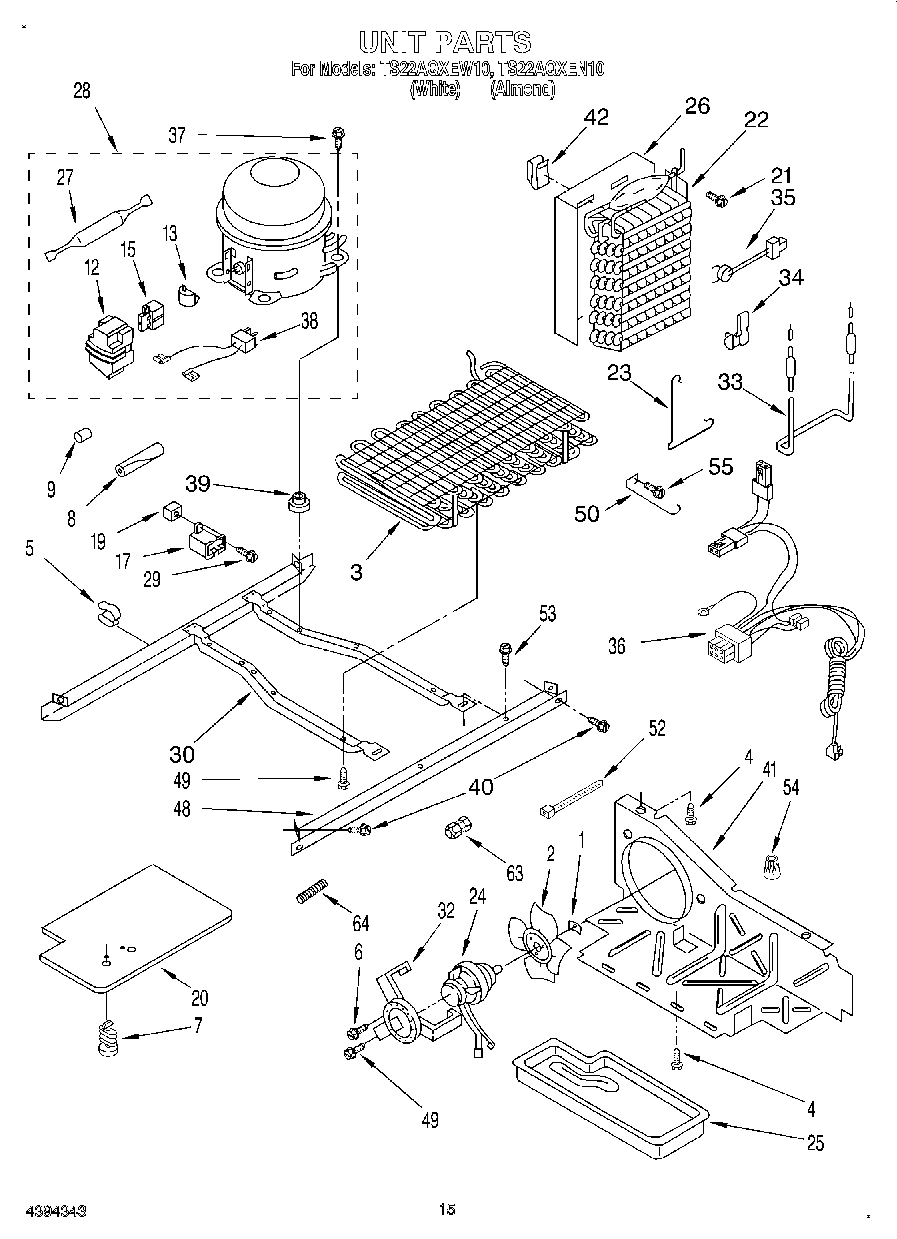

10 - UNIT

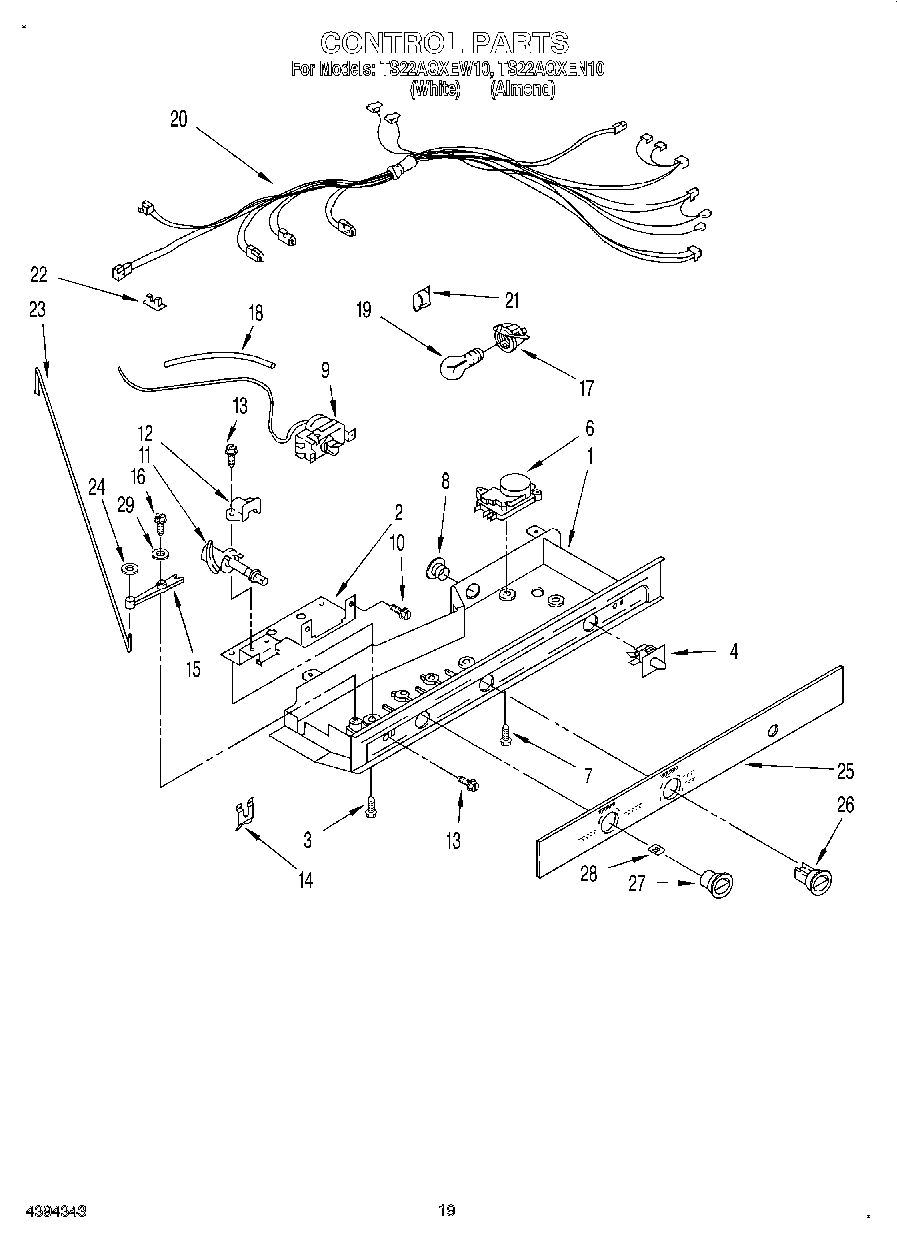

12 - CONTROL, LIT/OPTIONAL
Common parts from model Whirlpool TS22AQXEN10 SIDE BY SIDE REFRIGERATOR
WPL 1117510 WPL 1117510 Contact Us For Availability
WPL LIT2176838 WPL LIT2176838 Contact Us For Availability
WPL LIT2194178 WPL LIT2194178 Contact Us For Availability
WPL LIT2194182 WPL LIT2194182 Contact Us For Availability
WPL LIT628370 WPL LIT628370 Contact Us For Availability
1
Freezer Door (White) WPL 2194176 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI131917A Contact Us For Availability
1
Control Box WPL 2169147 Contact Us For Availability
2
Fan, Blade WPL 1108179 Contact Us For Availability
2
Mounting Bracket WPL 1110629 Contact Us For Availability
2
Handle, Center (White) WPL 2147470 Contact Us For Availability
2
Handle, Center (Almond) WPL 2170066 Contact Us For Availability
2
Slide, Ice Door WPL 1115380 Contact Us For Availability
2
Front Roller (2) WPL 2174748 Contact Us For Availability
3
Reinforcement, Handle WPL 1127465 Contact Us For Availability
3
Condenser Assembly WPL 2164513 Contact Us For Availability
3
Screw (2) WPL 489397 Contact Us For Availability
4
Clip, Handle WPL 849445 Contact Us For Availability
5
Shim WPL 2147097 Contact Us For Availability
5
Clip, Wire WPL 2155658 Contact Us For Availability
6
Shelf Assembly, Cantilever (2) WPL 2163572 Contact Us For Availability
6
Defrost Timer (10 Hr.) WPL 2162046 Contact Us For Availability
8
Shelf, Large (2) WPL 2174265 Contact Us For Availability
8
Insert, Air Baffle WPL 2176796 Contact Us For Availability
9
Retainer, Glass WPL 1125594 Contact Us For Availability
10
Grommet WPL 2176134 Contact Us For Availability
10
Chute, Ice WPL 2156146 Contact Us For Availability
10
Glass (3) WPL 2163573 Contact Us For Availability
11
Bin, Freezer WPL 2171707 Contact Us For Availability
11
Cam Assembly WPL 2182008 Contact Us For Availability
12
Stud, Support WPL 946355 Contact Us For Availability
13
Tube, Water Inlet WPL 2171943 Contact Us For Availability
13
Bracket, Door Stop WPL 2155332 Contact Us For Availability
13
Stud, Front WPL 946356 Contact Us For Availability
13
Shim, Hinge Top WPL 2171868 Contact Us For Availability
14
Retainer, Top WPL 2147898 Contact Us For Availability
14
Cover, Wiring WPL 2155572 Contact Us For Availability
14
Screw WPL 489284 Contact Us For Availability
14
Retainer, Damper WPL 938439 Contact Us For Availability
15
Pivot Arm WPL 1110559 Contact Us For Availability
15
Insert, Handle WPL 2147581 Contact Us For Availability
15
Relay (See Overload) WPL ARI131919A Contact Us For Availability
16
Spring, Lever (2) WPL 983696 Contact Us For Availability
17
Retainer (Bottom) WPL 2147896 Contact Us For Availability
17
Slide, Freezer Bin (Left Side) WPL 1115383 Contact Us For Availability
17
Capacitor (Service Compressor Only) WPL 2169137 Contact Us For Availability
18
Extension, Top (White) WPL 2147472 Contact Us For Availability
18
Extension, Top (Almond) WPL 2170067 Contact Us For Availability
18
Stud, Rear WPL 1106982 Contact Us For Availability
19
Door, Shelf (4) WPL 2171268 Contact Us For Availability
19
Screw Grommet WPL 509812 Contact Us For Availability
20
Unit Cover, Bottom WPL 2182057 Contact Us For Availability
20
Control Box Harness WPL 2149186 Contact Us For Availability
21
Extension, Bottom (White) WPL 2147471 Contact Us For Availability
21
Extension, Bottom (Almond) WPL 2170068 Contact Us For Availability
21
Filler, Wrapper (White) WPL 1110708 Contact Us For Availability
21
Filler, Wrapper (Almond) WPL 1110709 Contact Us For Availability
22
Grille (White) WPL 2155477 Contact Us For Availability
22
Grille (Almond) WPL 2155478 Contact Us For Availability
22
CLIP, WIRING WPL 1115375 Contact Us For Availability
23
Clamp WPL 2161324 Contact Us For Availability
23
Connecting Rod WPL 1123960 Contact Us For Availability
24
Fastener, Push-On WPL 489285 Contact Us For Availability
25
Guide, Ice (White) WPL 1124730 Contact Us For Availability
25
Tray, Evaporator WPL 2154114 Contact Us For Availability
25
Escutcheon, Control Box WPL 2163622 Contact Us For Availability
26
Heat Shield WPL 2149293 Contact Us For Availability
27
Cement Alumilastic) WPL 542369 Contact Us For Availability
27
Knob, Air Control WPL 1116853 Contact Us For Availability
28
Knob, Retainer WPL 837444 Contact Us For Availability
29
KIT, FOAM SLAB (30`` X 32 1/2`` X 1 1/2``) WPL 876029 Contact Us For Availability
29
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
29
CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability
29
Enamel, Black (1 Qt. Uncut) WPL 799340 Contact Us For Availability
29
KIT, EVAPORATOR REPAIR (ALUMINUM EPOXY) WPL 799833 Contact Us For Availability
29
WPL 978883 WPL 978883 Contact Us For Availability
32
Fan, Motor Bracket WPL 548695 Contact Us For Availability
34
Light Lens WPL 2174436 Contact Us For Availability
34
Clip WPL 2161330 Contact Us For Availability
36
Clip, Support (2) WPL 2155021 Contact Us For Availability
36
Unit, Harness WPL 2181709 Contact Us For Availability
40
Nut, Compression WPL 1129179 Contact Us For Availability
42
Clip, Heat Shield WPL 2155547 Contact Us For Availability
44
Front Cover, Ice Container WPL 2171709 Contact Us For Availability
48
Spacer WPL 625834 Contact Us For Availability
48
Cabinet (Not A Serviceable Part) WPL ARI131915A Contact Us For Availability
48
Unit Mounting Rail WPL 2149717 Contact Us For Availability
49
Screw WPL 488624 Contact Us For Availability
52
Strap WPL 851095 Contact Us For Availability
54
Wire Connector WPL 850145 Contact Us For Availability
64
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
64
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
64
Spring-Tube WPL 983659 Contact Us For Availability
× ![]()
