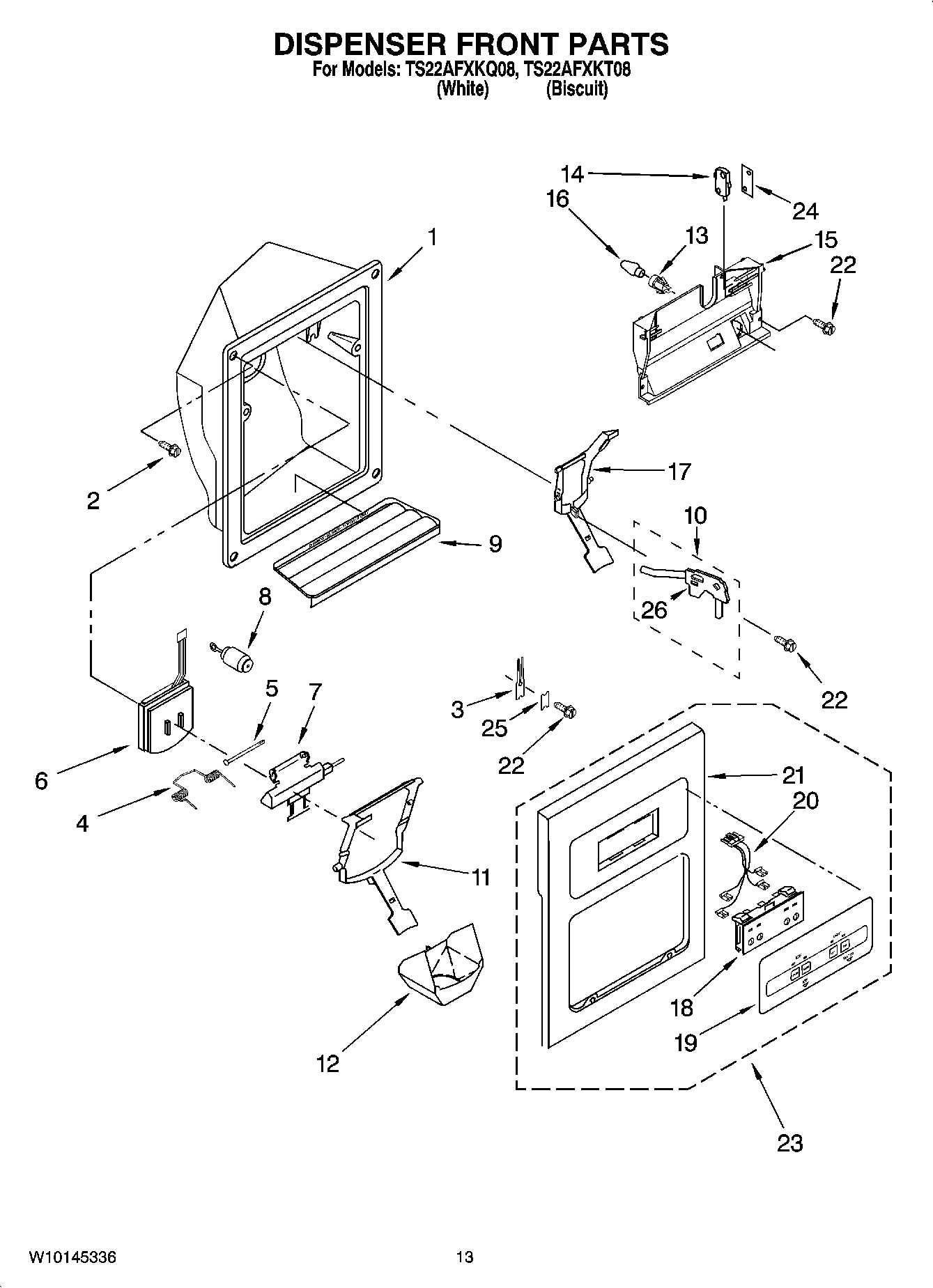

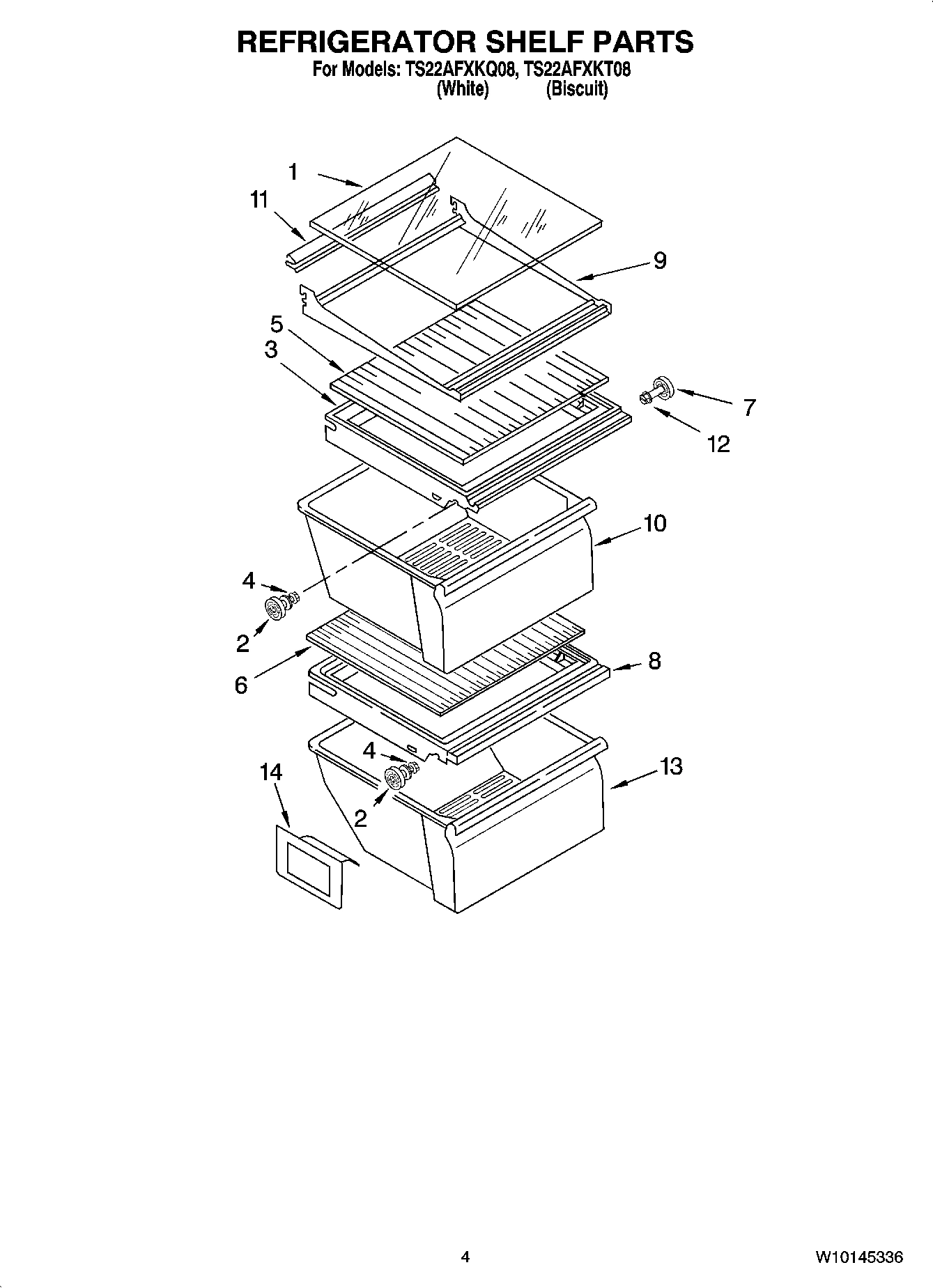

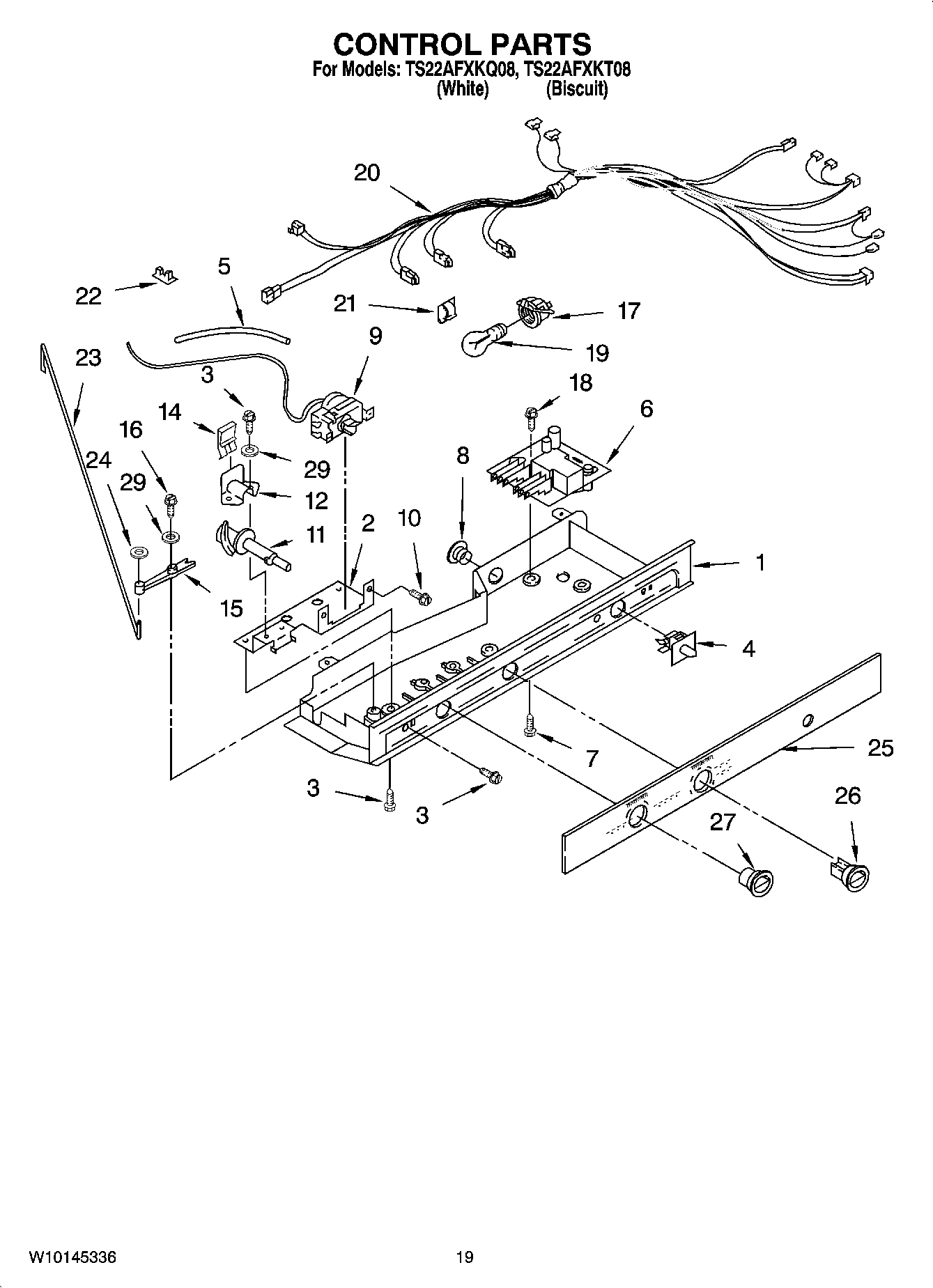

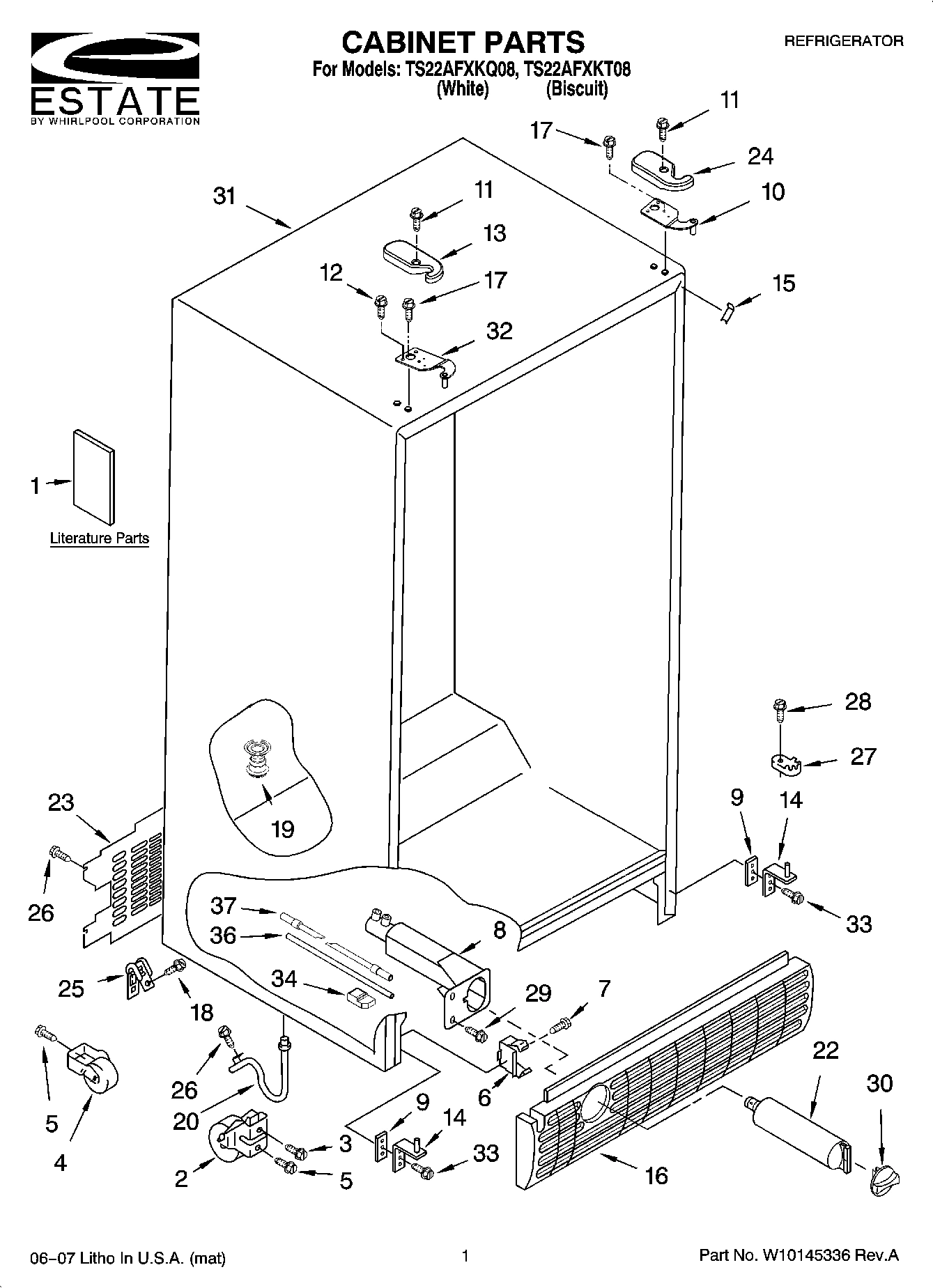

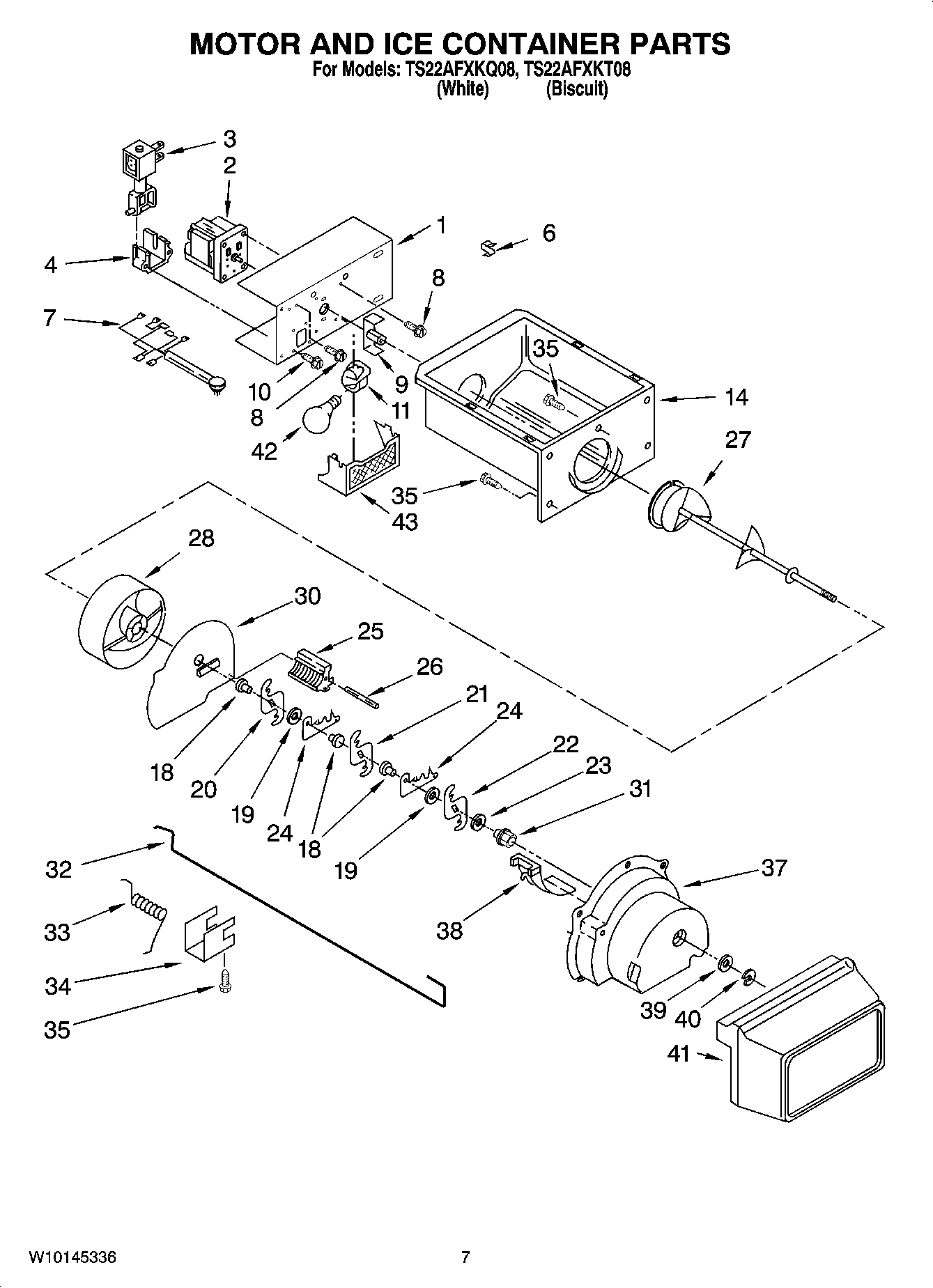

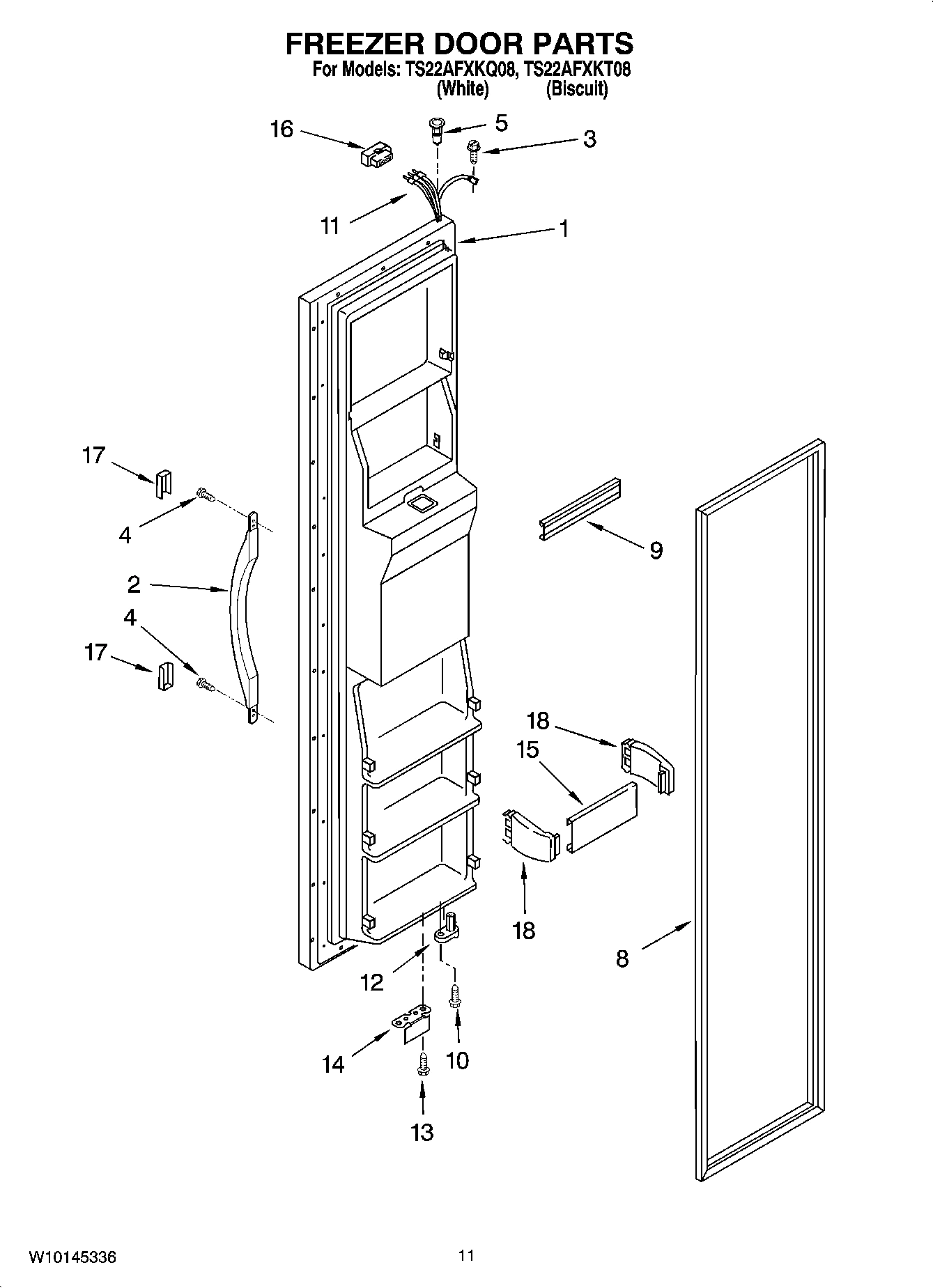

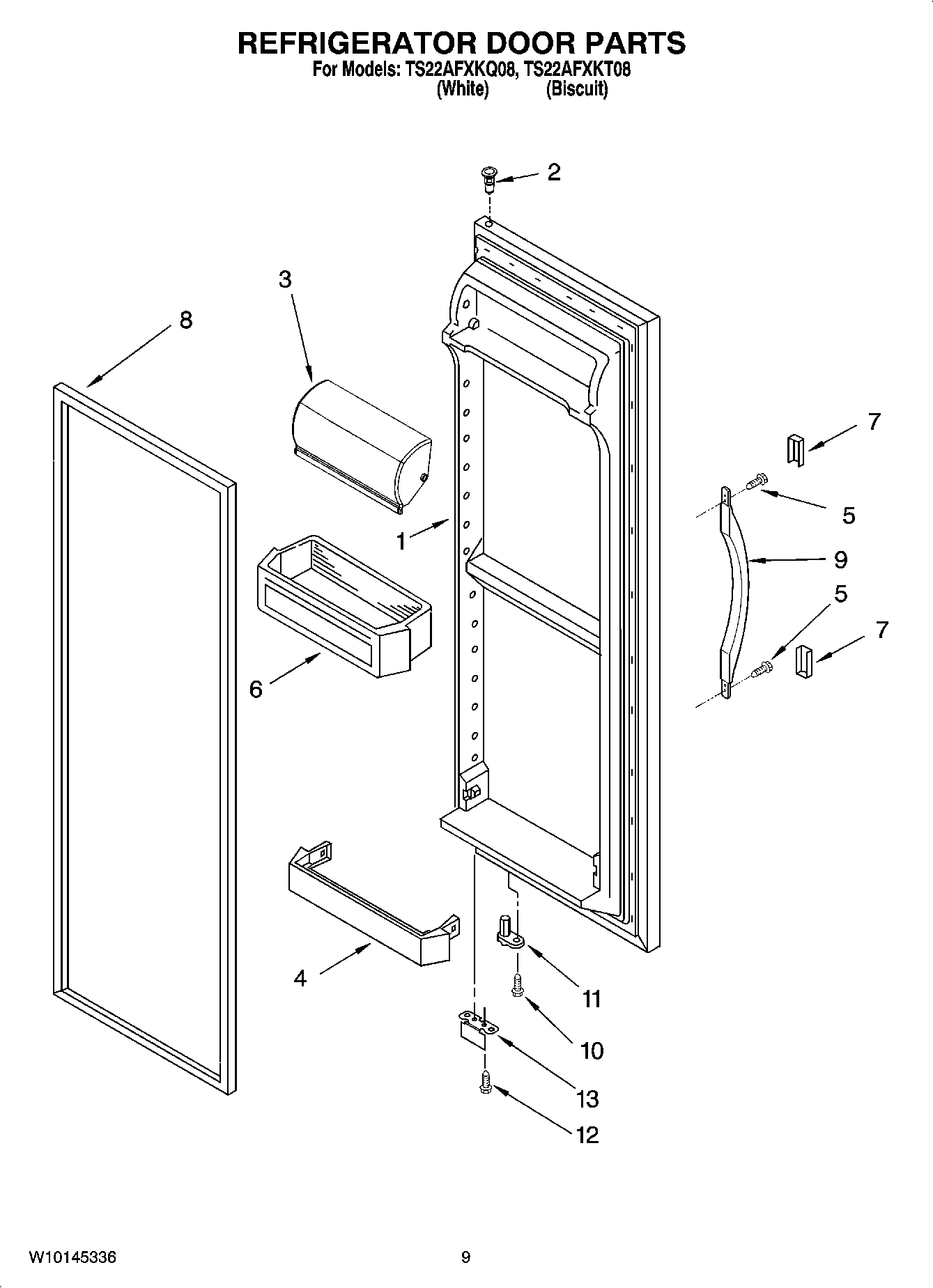

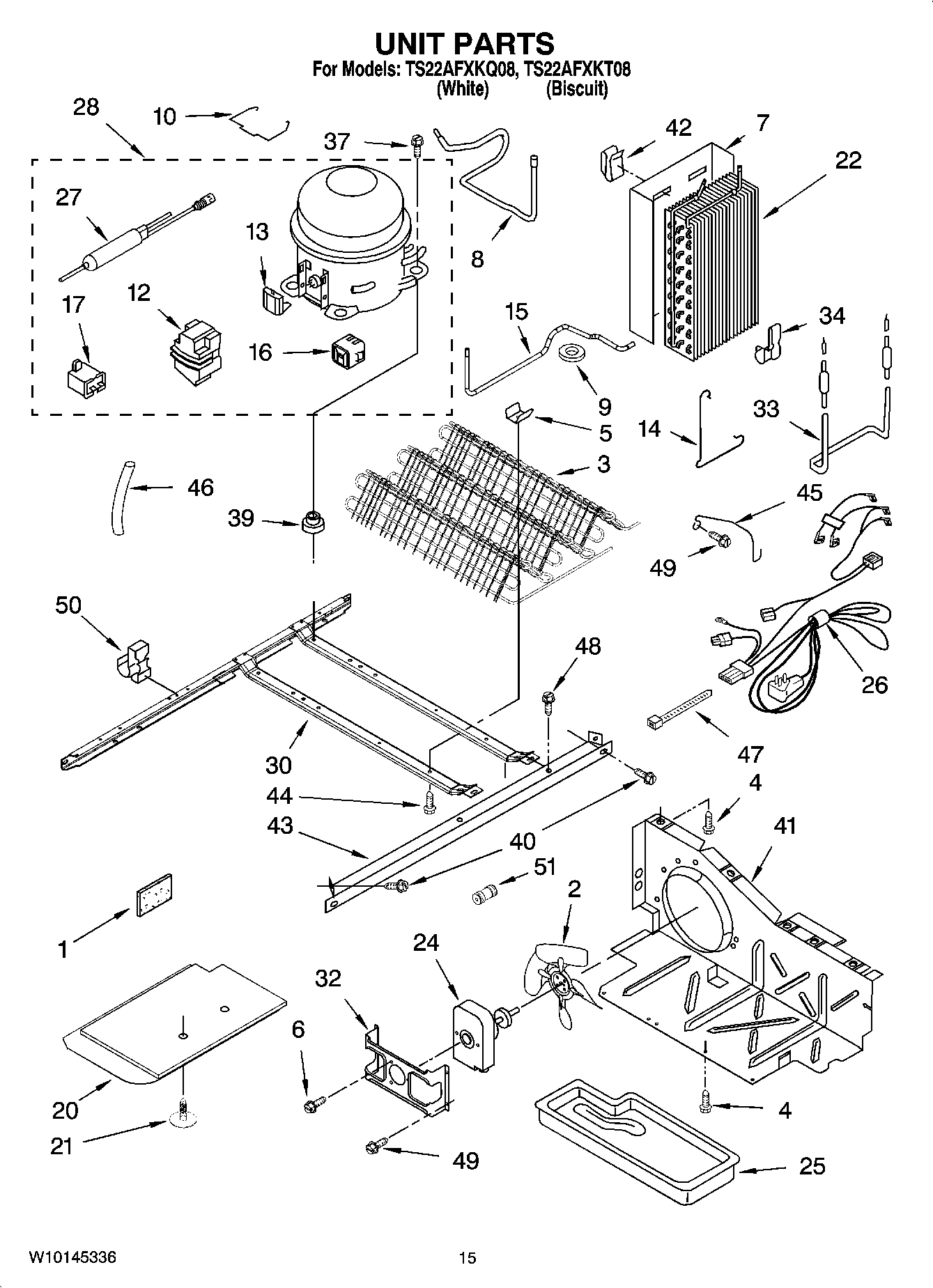

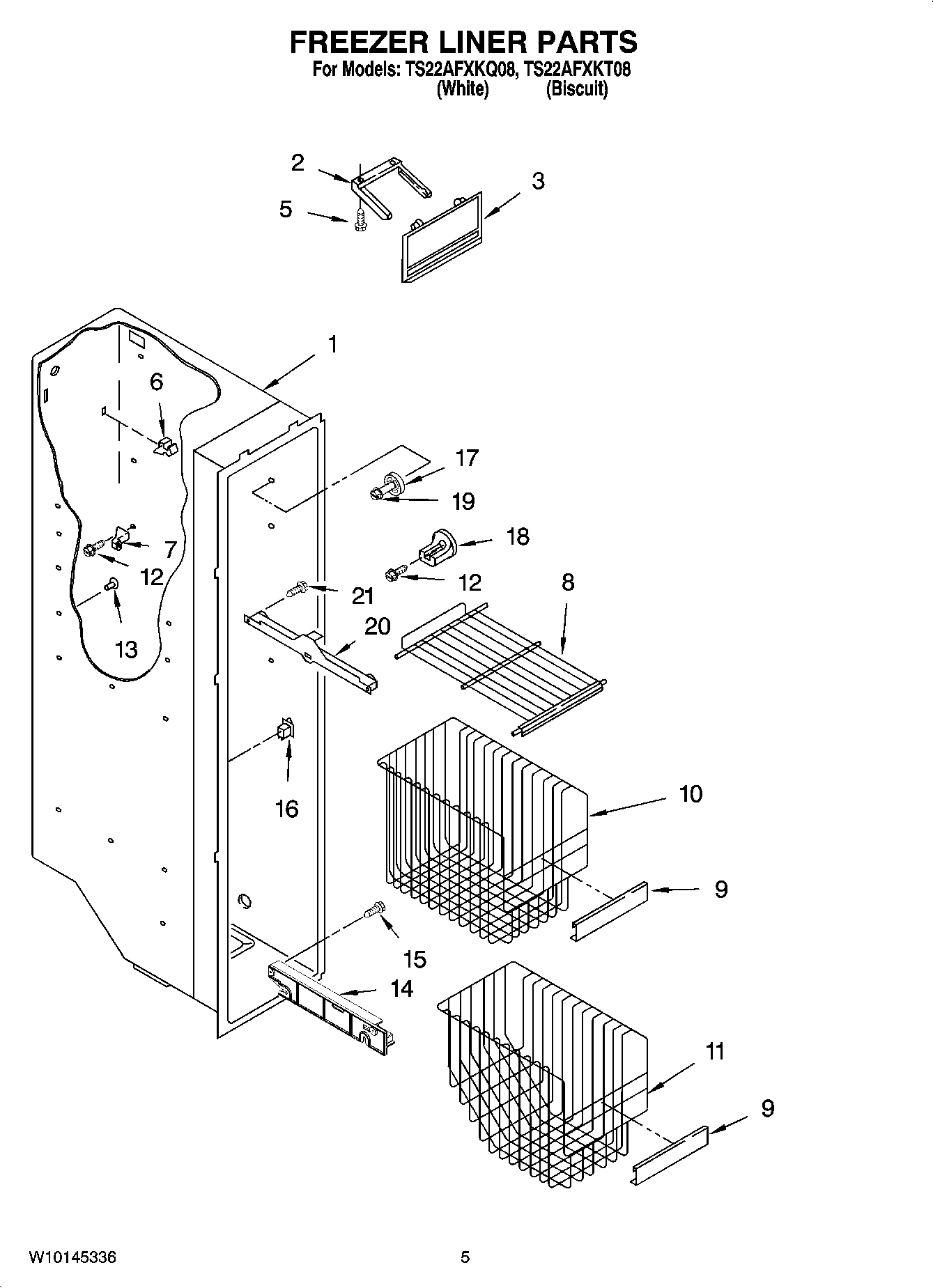

Model Whirlpool TS22AFXKQ08 REFRIGERATOR – Common Parts &amp; Diagrams

285006 Whirlpool Spray In Stock WPL 285006 $27.45

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $6.86

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $26.26

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $19.22

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $26.21

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $5.60

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

876370 Whirlpool Refrigerator Insulation Backorder WPL 876370 $96.00

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $39.18

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $57.83

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $22.07

KIT, FOA WPL 876029 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability

PAINT, BULK (1 QT.) (BISCUIT (UNCUT)) WPL 4392900 Contact Us For Availability

CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability

Enamel, Black (1 Qt. Uncut) WPL 799340 Contact Us For Availability

KIT, EVAPORATOR REPAIR (ALUMINUM EPOXY) WPL 799833 Contact Us For Availability

WPL ARI131777A WPL ARI131777A Contact Us For Availability

WPL ARI131778A WPL ARI131778A Contact Us For Availability

WPL ARI131779A WPL ARI131779A Contact Us For Availability

WPL ARI131780A WPL ARI131780A Contact Us For Availability

WPL ARI131781A WPL ARI131781A Contact Us For Availability

WPL ARI131782A WPL ARI131782A Contact Us For Availability

1

W11254898 Whirlpool Refrigerator Scroll Fan Backorder WPL W11254898 $115.82

1

Bracket, Motor WPL 2254588 Contact Us For Availability

1

Glass (3) WPL 2177986 Contact Us For Availability

1

Control Box WPL 2200137 Contact Us For Availability

2

2194744 Whirlpool Refrigerator Escutcheon Backorder WPL 2194744 $28.80

2

W11505385 Whirlpool Refrigerator Chute In Stock WPL W11505385 $9.89

2

WP2155590 Whirlpool Refrigerator Retainer Backorder WPL WP2155590 $2.51

2

Mounting Bracket WPL 1110629 Contact Us For Availability

2

Handle (White) WPL 2186649W Contact Us For Availability

3

2171712 Whirlpool Refrigerator Ice Door Backorder WPL 2171712 $42.79

3

2182757 Whirlpool Refrigerator Slide Backorder WPL 2182757 $31.55

3

WP2152713 Whirlpool Refrigerator Solenoid In Stock WPL WP2152713 $95.64

3

WP2194719 Whirlpool Refrigerator Clip In Stock WPL WP2194719 $4.13

3

WP2256101 Whirlpool Dairy Door In Stock WPL WP2256101 $51.86

3

WP3196557 Whirlpool Screw In Stock WPL WP3196557 $2.51

3

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $4.61

4

WP2149705 Whirlpool Refrigerator Door Switch In Stock WPL WP2149705 $22.34

4

WPW10250570 Whirlpool Refrigerator Cabinet Ro Backorder WPL WPW10250570 $14.49

5

W10864399 Whirlpool Glass Shelf In Stock WPL W10864399 $108.46

5

WP2182181 Whirlpool Refrigerator Thimble In Stock WPL WP2182181 $3.70

5

WP2196003 Whirlpool Refrigerator Bar Riser Backorder WPL WP2196003 $3.70

5

WP2196195 Whirlpool Refrigerator Door Pin In Stock WPL WP2196195 $7.69

5

WP489491 Whirlpool Refrigerator Screw In Stock WPL WP489491 $2.51

6

W10822278 Whirlpool Defrost Timer In Stock WPL W10822278 $17.41

6

WP2155013 Whirlpool Refrigerator Clip In Stock WPL WP2155013 $3.70

6

WP2180353 Whirlpool Dispenser Door In Stock WPL WP2180353 $7.21

7

W11223328 Whirlpool Refrigerator Shelf Stud Backorder WPL W11223328 $9.59

8

940014 Whirlpool Refrigerator Primary Button Backorder WPL 940014 $10.25

8

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $13.65

8

WP2174249K Whirlpool Refrigerator Wire Shelf Backorder WPL WP2174249K $107.97

8

WP2186443 Whirlpool Water Filter Housing In Stock WPL WP2186443 $40.17

8

WP489399 Whirlpool Refrigerator Screw In Stock WPL WP489399 $2.51

9

WP2198202 Whirlpool Refrigerator Temperature In Stock WPL WP2198202 $45.43

9

WP2206671W Whirlpool Refrigerator Grille In Stock WPL WP2206671W $32.35

9

WP2209697 Whirlpool Refrigerator Shim Backorder WPL WP2209697 $30.80

WP2176759 Whirlpool Refrigerator Grommet In Stock WPL WP2176759 $3.70

WP2188661 Whirlpool Crisper Pan In Stock WPL WP2188661 $90.28

WP2203771 Whirlpool Refrigerator Door Hinge In Stock WPL WP2203771 $32.13

WP3400012 Whirlpool Refrigerator Screw Backorder WPL WP3400012 $2.51

WP965173 Whirlpool Dishwasher Screw Backorder WPL WP965173 $2.64

WPW10141625 Whirlpool Refrigerator Screw Asse Backorder WPL WPW10141625 $9.59

2182146 Whirlpool Refrigerator Duct Backorder WPL 2182146 $32.79

WP2182195 Whirlpool Refrigerator Cam Backorder WPL WP2182195 $5.14

WP8281227 Whirlpool Screw Backorder WPL WP8281227 $4.58

Lever, Ice Dispenser (Biscuit) WPL 2195089T Contact Us For Availability

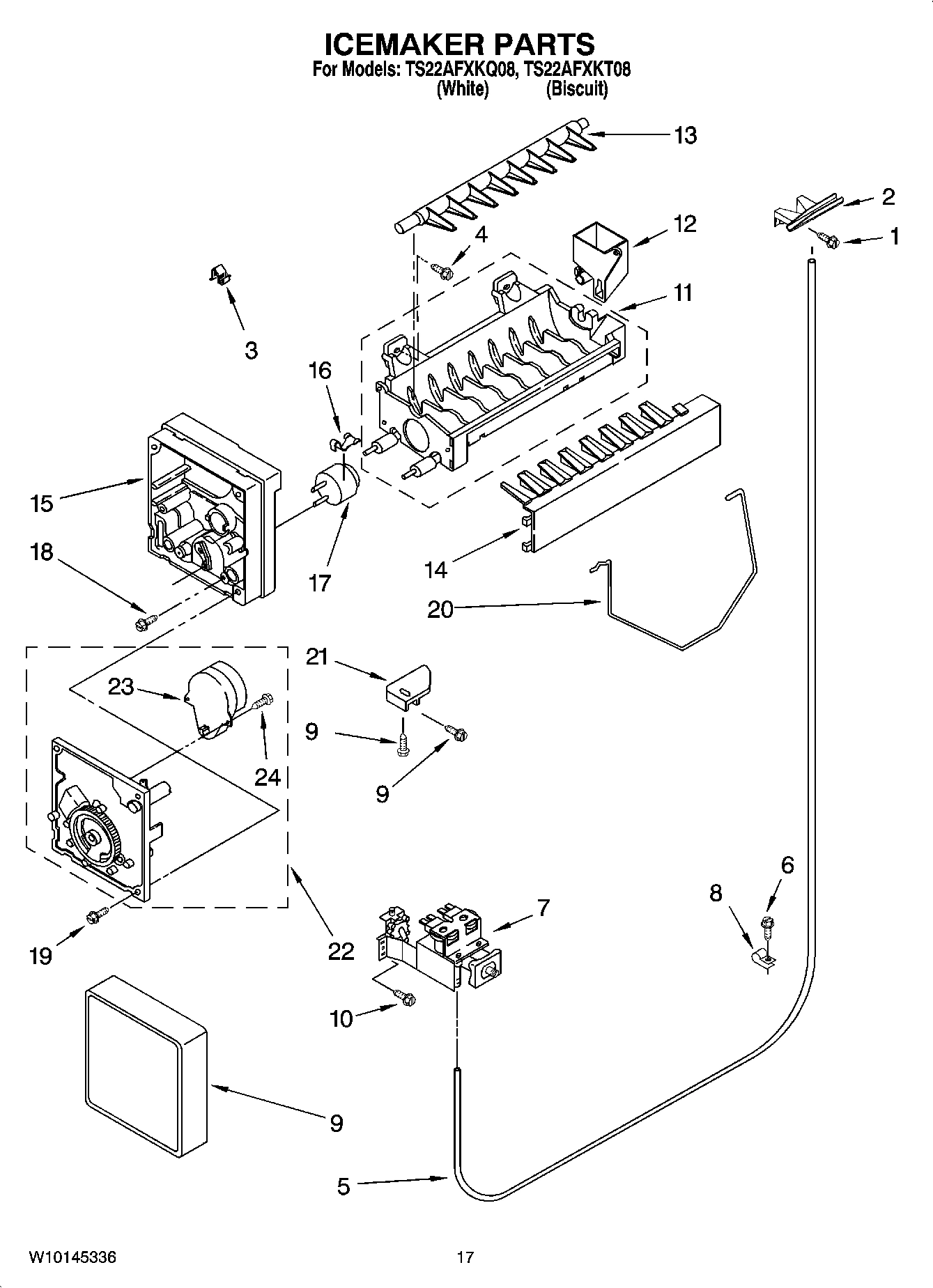

12

1110560 Whirlpool Refrigerator Bearing Backorder WPL 1110560 $4.72

12

WP2180224 Whirlpool Dispenser Funnel Guide In Stock WPL WP2180224 $6.95

12

WP2182179 Whirlpool Cam Closer In Stock WPL WP2182179 $3.39

2152019 Whirlpool Refrigerator Cover Backorder WPL 2152019 $32.98

2180200 Whirlpool Refrigerator Socket Backorder WPL 2180200 $31.40

2203407T Whirlpool Refrigerator Cover Backorder WPL 2203407T $13.83

WP2203407W Whirlpool Refrigerator Cover Backorder WPL WP2203407W $11.51

WP627843 Whirlpool Refrigerator Ejector Arm Backorder WPL WP627843 $28.80

Grommet (4) WPL 2176134 Contact Us For Availability

2150331 Whirlpool Refrigerator Wire Cover Backorder WPL 2150331 $11.11

2179350 Whirlpool Refrigerator Deflector Backorder WPL 2179350 $27.14

WP2162361 Whirlpool Switch In Stock WPL WP2162361 $8.38

WP2182124 Whirlpool Refrigerator Stripper Arm Backorder WPL WP2182124 $26.81

WP2196062 Whirlpool Refrigerator Clip Backorder WPL WP2196062 $4.59

WP2196089 Whirlpool Refrigerator Container In Stock WPL WP2196089 $74.70

WP2206629B Whirlpool Refrigerator Bracket Backorder WPL WP2206629B $13.80

Clip, Defrost Heater WPL 2161324 Contact Us For Availability

15

2261599 Whirlpool Refrigerator Tube Backorder WPL 2261599 $125.38

15

Pivot Arm WPL 1110559 Contact Us For Availability

15

Filler, Wrapper (White) WPL 2304846 Contact Us For Availability

627068 Whirlpool Refrigerator Screw Backorder WPL 627068 $7.52

WP2154473 Whirlpool Refrigerator Connector Backorder WPL WP2154473 $10.76

WP2188831 Whirlpool Refrigerator Start Device Backorder WPL WP2188831 $61.09

WP2256126 Whirlpool Refrigerator Reservoir In Stock WPL WP2256126 $77.94

4387478 Whirlpool Refrigerator Light Socket In Stock WPL 4387478 $30.80

WP2193353W Whirlpool Refrigerator Trim Handle In Stock WPL WP2193353W $3.70

WP2196483 Whirlpool Refrigerator Shelf Stud Backorder WPL WP2196483 $4.34

WP4387764 Whirlpool Run Capacitor Backorder WPL WP4387764 $81.03

Lever, Water Dispenser (Biscuit) WPL 2195090T Contact Us For Availability

489392 Whirlpool Refrigerator Screw Backorder WPL 489392 $9.59

8533917 Whirlpool Refrigerator Screw In Stock WPL 8533917 $9.59

WP1119005 Whirlpool Refrigerator Spacer Backorder WPL WP1119005 $4.67

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $3.70

Stud, Rear WPL 2196207 Contact Us For Availability

19

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $6.56

19

W11566763 Whirlpool Fitting In Stock WPL W11566763 $18.87

19

WP1119007 Whirlpool Refrigerator Spacer Backorder WPL WP1119007 $4.87

2311636 Whirlpool Refrigerator Wire Harness Backorder WPL 2311636 $130.51

W10845583 Whirlpool Refrigerator Track Backorder WPL W10845583 $46.34

W10845585 Whirlpool Refrigerator Track Backorder WPL W10845585 $50.98

W11342242 Whirlpool Refrigerator Ice Level Ar In Stock WPL W11342242 $25.51

Extension Tube WPL 2304937 Contact Us For Availability

489396 Whirlpool Refrigerator Clip Backorder WPL 489396 $4.72

W10278732 Whirlpool Refrigerator Blade Backorder WPL W10278732 $30.30

W11500948 Whirlpool Refrigerator Bracket In Stock WPL W11500948 $12.32

WP1115374 Whirlpool Refrigerator Clip Backorder WPL WP1115374 $2.51

22

WP2188822 Whirlpool Refrigerator Evaporator In Stock WPL WP2188822 $194.99

22

CLIP, WIRING WPL 1115375 Contact Us For Availability

23

WP489235 Whirlpool Refrigerator Washer Backorder WPL WP489235 $4.59

23

Connecting Rod WPL 1123960 Contact Us For Availability

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $4.56

W10124096 Whirlpool Refrigerator Condenser Fa In Stock WPL W10124096 $61.57

WP2203408W Whirlpool Refrigerator Cover Backorder WPL WP2203408W $11.66

Spacer, Switch (2) WPL 625834 Contact Us For Availability

Fastener, Push-On WPL 489285 Contact Us For Availability

2157405 Whirlpool Refrigerator Blade Block Backorder WPL 2157405 $10.76

WP2195051 Whirlpool Refrigerator Clip Backorder WPL WP2195051 $4.81

WPW10614158 Whirlpool Refrigerator Evaporator In Stock WPL WPW10614158 $53.89

Escutcheon, Control Box WPL W10127380 Contact Us For Availability

2182111 Whirlpool Refrigerator Thermal Knob Backorder WPL 2182111 $9.53

489229 Whirlpool Refrigerator Roll Pin Backorder WPL 489229 $27.12

WP2304673 Whirlpool Refrigerator Bracket Backorder WPL WP2304673 $6.35

Harness, Wire WPL 2187510 Contact Us For Availability

27

W10843121 Whirlpool Refrigerator Tube In Stock WPL W10843121 $23.50

27

WPW10143759 Whirlpool Dryer Filter In Stock WPL WPW10143759 $13.98

27

Knob, Air Control WPL 2197871 Contact Us For Availability

28

W10355489 Whirlpool Refrigerator Compressor Backorder WPL W10355489 $420.99

28

WP489483 Whirlpool Screw In Stock WPL WP489483 $4.58

29

489203 Whirlpool Refrigerator Washer Backorder WPL 489203 $4.36

29

WP489500 Whirlpool Refrigerator Screw Backorder WPL WP489500 $2.51

2304903 Whirlpool Refrigerator Frame Backorder WPL 2304903 $95.80

W10852691 Whirlpool Refrigerator Baffle Backorder WPL W10852691 $13.16

WP2186494T Whirlpool Water Filter Cap In Stock WPL WP2186494T $6.15

WP2186494W Whirlpool Water Filter Cap Backorder WPL WP2186494W $29.76

31

WP1119018 Whirlpool Refrigerator Bearing Backorder WPL WP1119018 $3.70

32

W11596045 Whirlpool Refrigerator Control Arm In Stock WPL W11596045 $12.11

32

WP2181929 Whirlpool Refrigerator Bracket Backorder WPL WP2181929 $5.67

32

WP2203770 Whirlpool Refrigerator Door Hinge Backorder WPL WP2203770 $30.16

33

1119020 Whirlpool Refrigerator Spring Backorder WPL 1119020 $6.09

33

WP2323197 Whirlpool Refrigerator Heater Backorder WPL WP2323197 $47.25

34

1119021 Whirlpool Refrigerator Clip Backorder WPL 1119021 $4.63

34

W11623163 Whirlpool Refrigerator Clip Backorder WPL W11623163 $4.39

38

WP1119017 Whirlpool Refrigerator Deflector Backorder WPL WP1119017 $3.70

39

489234 Whirlpool Refrigerator Washer Backorder WPL 489234 $9.59

39

876811 Whirlpool Grommet Backorder WPL 876811 $3.70

39

WP4387558 Whirlpool Refrigerator Compressor G Backorder WPL WP4387558 $3.70

40

489340 Whirlpool Refrigerator Screw Backorder WPL 489340 $4.56

40

WP489236 Whirlpool Refrigerator Ring Backorder WPL WP489236 $5.09

41

W10896764 Whirlpool Refrigerator Air Baffle Backorder WPL W10896764 $36.11

41

Front Cover, Ice Container WPL 2171709 Contact Us For Availability

42

Clip, Heat WPL 2155547 Contact Us For Availability

43

WP2171706 Whirlpool Refrigerator Light Lens Backorder WPL WP2171706 $30.21

43

Unit Mounting Rail WPL 2149718 Contact Us For Availability

44

W11544659 Whirlpool Refrigerator Screw Backorder WPL W11544659 $9.59

45

Guard, Fan WPL 2186496 Contact Us For Availability

46

W11751592 Whirlpool Sleeve In Stock WPL W11751592 $12.17

47

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $2.51

48

WP489427 Whirlpool Refrigerator Screw Backorder WPL WP489427 $3.70

49

WP489478 Whirlpool Refrigerator Screw In Stock WPL WP489478 $2.51

50

Clip, Wire & Tube WPL 2208280 Contact Us For Availability

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $27.18

978026 Whirlpool Refrigerator Primary Valve Backorder WPL 978026 $32.32

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $33.95

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $35.52

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $25.89

WPW10334458 Whirlpool Refrigerator Connector Backorder WPL WPW10334458 $8.62

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability

Following Parts Not Illustrated and Opt WPL ARI131775A Contact Us For Availability

WPL ARI131776A WPL ARI131776A Contact Us For Availability
