Model GE TFX27ZRXFBB Refrigerator – Common Parts & Diagrams
FREEZER DOOR
FREEZER SECTION

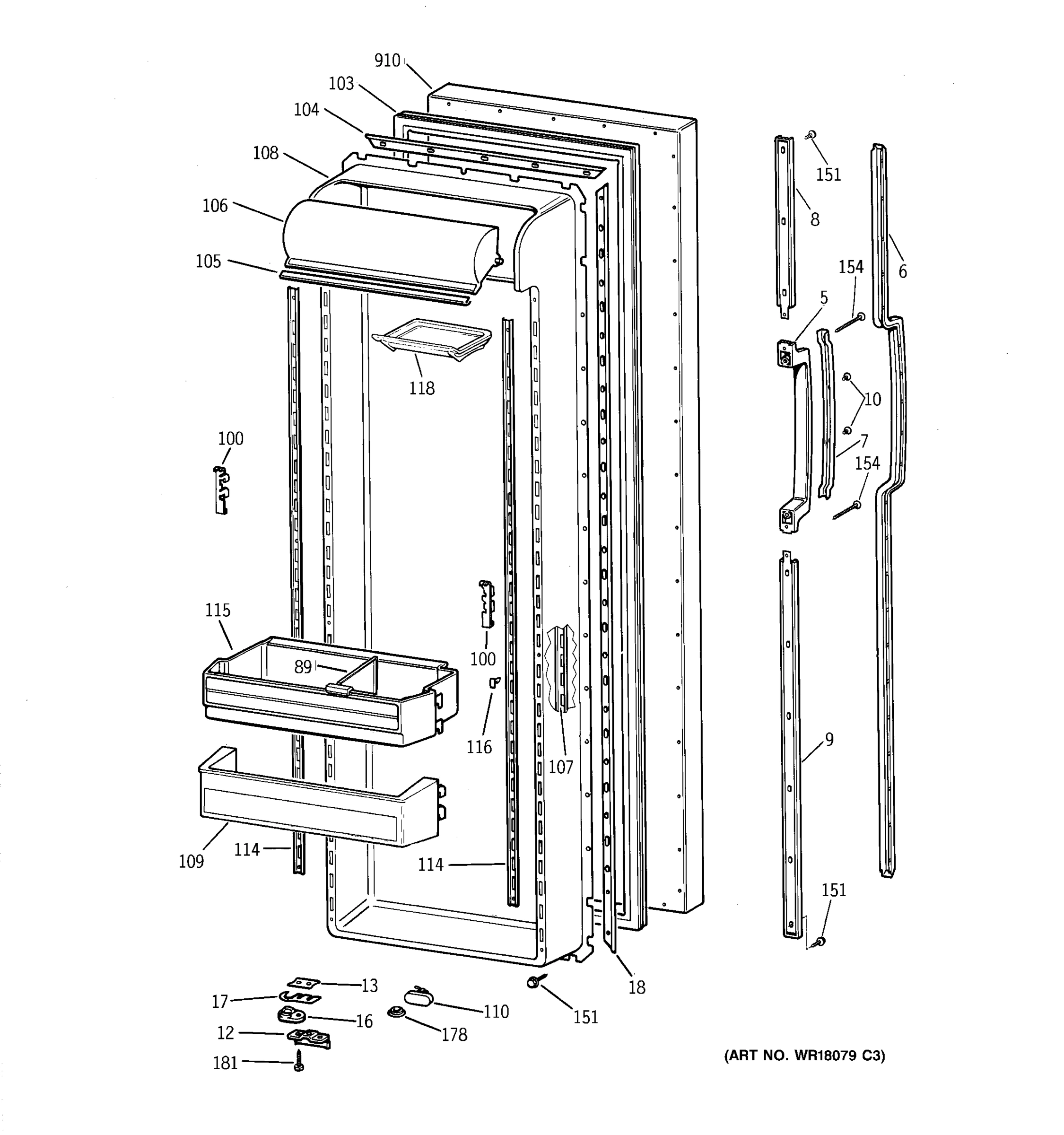

FRESH FOOD DOOR
FRESH FOOD SECTION
UNIT PARTS
Common parts from model GE TFX27ZRXFBB Refrigerator
5
GEN WR12X0618 GEN WR12X0618 Contact Us For Availability
6
GEN WR12X1026 GEN WR12X1026 Contact Us For Availability
7
GEN WR12X0620 GEN WR12X0620 Contact Us For Availability
8
GEN WR12X1062 GEN WR12X1062 Contact Us For Availability
9
CHANNEL HANDLE GEN WR12X1061 Contact Us For Availability
10
GEN WR01X2084 GEN WR01X2084 Contact Us For Availability
12
STOP DOOR BK GEN WR02X7213 Contact Us For Availability
13
GEN WR02X7489 GEN WR02X7489 Contact Us For Availability
13
SHIM CAM DOOR STOP GEN WR02X7490 Contact Us For Availability
16
GEN WR02X7512 GEN WR02X7512 Contact Us For Availability
18
GEN WR17X2092 GEN WR17X2092 Contact Us For Availability
21
GEN WR17X3967 GEN WR17X3967 Contact Us For Availability
39
GEN WR55X0129 GEN WR55X0129 Contact Us For Availability
41
GEN WR17X3493 GEN WR17X3493 Contact Us For Availability
46
GEN WR02X8702 GEN WR02X8702 Contact Us For Availability
47
GEN WR02X8681 GEN WR02X8681 Contact Us For Availability
48
GEN WR02X8723 GEN WR02X8723 Contact Us For Availability
53
GEN WR17X4002 GEN WR17X4002 Contact Us For Availability
54
GEN WR17X4013 GEN WR17X4013 Contact Us For Availability
56
LAMP 7C7 GEN STD372071 Contact Us For Availability
56
GEN WR02X8686 GEN WR02X8686 Contact Us For Availability
58
GEN WR17X3139 GEN WR17X3139 Contact Us For Availability
60
GEN WR02X8685 GEN WR02X8685 Contact Us For Availability
63
GEN WR02X8663 GEN WR02X8663 Contact Us For Availability
69
GEN WR17X3095 GEN WR17X3095 Contact Us For Availability
70
SUPT. FUNNEL GUARD BK GEN WR02X8943 Contact Us For Availability
71
GEN WR17X3478 GEN WR17X3478 Contact Us For Availability
72
GEN WR23X0366 GEN WR23X0366 Contact Us For Availability
73
GEN WR17X3086 GEN WR17X3086 Contact Us For Availability
75
GROMMET TUBE ASM GEN WR17X3611 Contact Us For Availability
76
GEN WR02X8933 GEN WR02X8933 Contact Us For Availability
81
GEN WR01X2077 GEN WR01X2077 Contact Us For Availability
89
GEN WR02X7957 GEN WR02X7957 Contact Us For Availability
100
GEN WR02X8409 GEN WR02X8409 Contact Us For Availability
100
GEN WR02X8410 GEN WR02X8410 Contact Us For Availability
103
GEN WR24X0532 GEN WR24X0532 Contact Us For Availability
104
GEN WR17X1168 GEN WR17X1168 Contact Us For Availability
105
GEN WR38X2213 GEN WR38X2213 Contact Us For Availability
106
GEN WR22X0378 GEN WR22X0378 Contact Us For Availability
107
GEN WR72X0091 GEN WR72X0091 Contact Us For Availability
108
GEN WR77X0506 GEN WR77X0506 Contact Us For Availability
109
GEN WR71X2635 GEN WR71X2635 Contact Us For Availability
110
GEN WR02X8989 GEN WR02X8989 Contact Us For Availability
114
GEN WR72X0092 GEN WR72X0092 Contact Us For Availability
115
GEN WR71X2634 GEN WR71X2634 Contact Us For Availability
116
GEN WR02X7829 GEN WR02X7829 Contact Us For Availability
118
BUTTER DISH GEN WR19X5003 Contact Us For Availability
124
GEN WR71X2632 GEN WR71X2632 Contact Us For Availability
154
GEN WR01X2085 GEN WR01X2085 Contact Us For Availability
154
GEN WR01X2127 GEN WR01X2127 Contact Us For Availability
177
SCREW GEN WR01X5034 Contact Us For Availability
178
GEN WR02X6058 GEN WR02X6058 Contact Us For Availability
181
GEN WZ06X0105 GEN WZ06X0105 Contact Us For Availability
189
SOCKET LAMP GEN WR02X9243 Contact Us For Availability
200
GEN WR40X1730 GEN WR40X1730 Contact Us For Availability
201
GEN WR40X1731 GEN WR40X1731 Contact Us For Availability
202
GEN WR40X1732 GEN WR40X1732 Contact Us For Availability
207
GEN WR02X4676 GEN WR02X4676 Contact Us For Availability
208
GEN WR02X4674 GEN WR02X4674 Contact Us For Availability
209
GEN WR38X2156 GEN WR38X2156 Contact Us For Availability
211
GEN WR21X0190 GEN WR21X0190 Contact Us For Availability
212
GEN WR38X2155 GEN WR38X2155 Contact Us For Availability
214
GEN WR01X2128 GEN WR01X2128 Contact Us For Availability
214
GEN WR14X0456 GEN WR14X0456 Contact Us For Availability
214
GEN WR17X3915 GEN WR17X3915 Contact Us For Availability
216
GEN WR32X1575 GEN WR32X1575 Contact Us For Availability
224
GEN WR02X8657 GEN WR02X8657 Contact Us For Availability
225
GEN WR01X5042 GEN WR01X5042 Contact Us For Availability
225
GEN WR02X8293 GEN WR02X8293 Contact Us For Availability
230
GEN WR02X8647 GEN WR02X8647 Contact Us For Availability
231
GEN WR01X1987 GEN WR01X1987 Contact Us For Availability
231
GEN WR01X2110 GEN WR01X2110 Contact Us For Availability
235
GEN WR38X2181 GEN WR38X2181 Contact Us For Availability
236
GEN WR02X4548 GEN WR02X4548 Contact Us For Availability
237
GEN WR02X7036 GEN WR02X7036 Contact Us For Availability
247
GEN WR17X3488 GEN WR17X3488 Contact Us For Availability
247
GEN WR02X4845 GEN WR02X4845 Contact Us For Availability
248
GEN WR14X0493 GEN WR14X0493 Contact Us For Availability
251
GEN WR02X2880 GEN WR02X2880 Contact Us For Availability
258
GEN WR17X3489 No Longer Available
259
GEN WR17X3909 GEN WR17X3909 Contact Us For Availability
260
GEN WR32X1427 GEN WR32X1427 Contact Us For Availability
261
HINGE BTM PIN CAM ASM GEN WR13X0618 Contact Us For Availability
265
GEN WR02X3595 GEN WR02X3595 Contact Us For Availability
265
GEN WR02X3598 GEN WR02X3598 Contact Us For Availability
265
GEN WR02X4742 GEN WR02X4742 Contact Us For Availability
268
GEN WR23X0312 GEN WR23X0312 Contact Us For Availability
269
GEN WR02X8668 GEN WR02X8668 Contact Us For Availability
276
GEN WR01X1510 GEN WR01X1510 Contact Us For Availability
277
GEN WR17X2113 GEN WR17X2113 Contact Us For Availability
278
WHEEL ASM FRT GEN WR02X4858 Contact Us For Availability
279
GEN WR17X3661 GEN WR17X3661 Contact Us For Availability
280
GEN WR02X8524 GEN WR02X8524 Contact Us For Availability
288
GEN WR74X0198 GEN WR74X0198 Contact Us For Availability
293
GEN WR02X7080 GEN WR02X7080 Contact Us For Availability
303
GEN WD01X1440 GEN WD01X1440 Contact Us For Availability
320
GEN WR01X1585 GEN WR01X1585 Contact Us For Availability
324
GEN WR02X7051 GEN WR02X7051 Contact Us For Availability
324
PLUG BUTTON LG WH GEN WR02X7069 Contact Us For Availability
326
GEN WR01X1366 GEN WR01X1366 Contact Us For Availability
328
DEFLECTOR ICE DISP GEN WR17X2059 Contact Us For Availability
328
GEN WR02X4561 GEN WR02X4561 Contact Us For Availability
329
WIRE ACTUATOR DISP GEN WR17X2060 Contact Us For Availability
330
GEN WR02X4145 GEN WR02X4145 Contact Us For Availability
331
GEN WR02X4251 GEN WR02X4251 Contact Us For Availability
335
SPACER GEN WR02X4139 Contact Us For Availability
336
GEN WR17X1009 GEN WR17X1009 Contact Us For Availability
339
GEN WR02X4141 GEN WR02X4141 Contact Us For Availability
345
PLATE FRONT DISP GEN WR17X2062 Contact Us For Availability
348
GEN WR02X7351 GEN WR02X7351 Contact Us For Availability
350
GEN WR17X4309 GEN WR17X4309 Contact Us For Availability
360
GEN WR02X4566 GEN WR02X4566 Contact Us For Availability
360
GEN WR71X2465 GEN WR71X2465 Contact Us For Availability
361
COVER MOTOR SOLENOID GEN WR71X2353 Contact Us For Availability
362
GEN WR02X8839 GEN WR02X8839 Contact Us For Availability
363
GEN WR02X8952 GEN WR02X8952 Contact Us For Availability
364
GEN WR02X7310 GEN WR02X7310 Contact Us For Availability
365
GEN WR02X4854 GEN WR02X4854 Contact Us For Availability
366
GEN WR01X1547 GEN WR01X1547 Contact Us For Availability
368
GEN WR02X8459 GEN WR02X8459 Contact Us For Availability
375
GEN WR23X0194 GEN WR23X0194 Contact Us For Availability
376
GEN WR23X0189 GEN WR23X0189 Contact Us For Availability
387
GEN WR17X3966 GEN WR17X3966 Contact Us For Availability
388
GEN WR17X2874 GEN WR17X2874 Contact Us For Availability
388
GEN WR38X1524 GEN WR38X1524 Contact Us For Availability
395
GEN WR17X2905 GEN WR17X2905 Contact Us For Availability
400
GEN WR71X2633 GEN WR71X2633 Contact Us For Availability
405
DUCT AIR & GASKET ASM GEN WR17X3890 Contact Us For Availability
408
GEN WR32X1493 GEN WR32X1493 Contact Us For Availability
409
GEN WR32X1500 GEN WR32X1500 Contact Us For Availability
410
GEN WR17X3950 GEN WR17X3950 Contact Us For Availability
411
GEN WR17X3951 GEN WR17X3951 Contact Us For Availability
414
GEN WR14X0431 GEN WR14X0431 Contact Us For Availability
415
GEN WR32X1473 GEN WR32X1473 Contact Us For Availability
417
GEN WR14X0470 GEN WR14X0470 Contact Us For Availability
421
GEN WR17X3954 GEN WR17X3954 Contact Us For Availability
423
GEN WR02X6347 GEN WR02X6347 Contact Us For Availability
424
GEN WR09X0569 GEN WR09X0569 Contact Us For Availability
425
GEN WR02X9320 GEN WR02X9320 Contact Us For Availability
426
GEN WR02X8425 GEN WR02X8425 Contact Us For Availability
426
GEN WR02X8514 GEN WR02X8514 Contact Us For Availability
427
GEN WR23X0316 GEN WR23X0316 Contact Us For Availability
428
GEN WR02X9362 GEN WR02X9362 Contact Us For Availability
429
GEN WR02X9321 GEN WR02X9321 Contact Us For Availability
430
GEN WR17X2209 GEN WR17X2209 Contact Us For Availability
432
GEN WR02X8654 GEN WR02X8654 Contact Us For Availability
434
GEN WR02X9431 GEN WR02X9431 Contact Us For Availability
436
GEN WR02X7736 GEN WR02X7736 Contact Us For Availability
438
GEN WR02X7476 GEN WR02X7476 Contact Us For Availability
438
GEN WR02X8655 GEN WR02X8655 Contact Us For Availability
442
GEN WR02X9430 GEN WR02X9430 Contact Us For Availability
446
GEN WR13X0645 GEN WR13X0645 Contact Us For Availability
447
GEN WR02X8534 GEN WR02X8534 Contact Us For Availability
448
GEN WR13X0644 GEN WR13X0644 Contact Us For Availability
450
GEN WR02X4194 GEN WR02X4194 Contact Us For Availability
451
HINGE BTM PIN CAM ASM GEN WR13X0621 Contact Us For Availability
452
GEN WR02X9443 GEN WR02X9443 Contact Us For Availability
453
GEN WR40X1734 GEN WR40X1734 Contact Us For Availability
454
GEN WR40X1735 GEN WR40X1735 Contact Us For Availability
455
GEN WR40X1736 GEN WR40X1736 Contact Us For Availability
456
GEN WR40X1733 GEN WR40X1733 Contact Us For Availability
457
GEN WR40X1737 GEN WR40X1737 Contact Us For Availability
458
GEN WR02X4739 GEN WR02X4739 Contact Us For Availability
458
GEN WR02X7033 GEN WR02X7033 Contact Us For Availability
458
GEN WR02X9376 GEN WR02X9376 Contact Us For Availability
458
GEN WR40X1739 GEN WR40X1739 Contact Us For Availability
461
GEN WZ06X0136 GEN WZ06X0136 Contact Us For Availability
471
GEN WR32X1339 GEN WR32X1339 Contact Us For Availability
472
GEN WR38X2148 GEN WR38X2148 Contact Us For Availability
473
GEN WR72X0210 GEN WR72X0210 Contact Us For Availability
473
GEN WR72X0211 GEN WR72X0211 Contact Us For Availability
480
GEN WR72X0253 GEN WR72X0253 Contact Us For Availability
481
GEN WR01X2079 GEN WR01X2079 Contact Us For Availability
551
GEN WZ04X0244 GEN WZ04X0244 Contact Us For Availability
556
GEN WH12X0497 GEN WH12X0497 Contact Us For Availability
560
GEN WR01X2140 GEN WR01X2140 Contact Us For Availability
564
GEN WR01X1194 GEN WR01X1194 Contact Us For Availability
578
GEN WZ02 GEN WZ02 Contact Us For Availability
584
GEN WZ02X0509 GEN WZ02X0509 Contact Us For Availability
616
GEN WR82X10013 GEN WR82X10013 Contact Us For Availability
627
GEN WR17X3811 GEN WR17X3811 Contact Us For Availability
630
GEN WR02X8525 GEN WR02X8525 Contact Us For Availability
651
GEN WR01X1515 GEN WR01X1515 Contact Us For Availability
651
GEN WR60X0220 GEN WR60X0220 Contact Us For Availability
652
WASHER COND MTR GEN WR01X1714 Contact Us For Availability
683
SCR 8-32 TT PT 3/8 GEN WR01X1825 Contact Us For Availability
730
GEN WR84X0189 GEN WR84X0189 Contact Us For Availability
731
GEN WR02X8951 GEN WR02X8951 Contact Us For Availability
732
CLAMP-COVER GEN WR02X7226 Contact Us For Availability
733
GEN WR07X0253 GEN WR07X0253 Contact Us For Availability
734
COVER RELAY GEN WR02X7834 Contact Us For Availability
735
GEN WR08X0172 GEN WR08X0172 Contact Us For Availability
737
GEN WR02X7238 GEN WR02X7238 Contact Us For Availability
738
GEN WR84X0168 GEN WR84X0168 Contact Us For Availability
747
GEN WR17X3643 GEN WR17X3643 Contact Us For Availability
749
GEN WR17X4148 GEN WR17X4148 Contact Us For Availability
751
GEN WR17X3645 GEN WR17X3645 Contact Us For Availability
753
GEN WB01K5052 GEN WB01K5052 Contact Us For Availability
765
GEN WR01X1985 GEN WR01X1985 Contact Us For Availability
807
INSERT 5/16 GEN WR02X4046 Contact Us For Availability
900
FZ O. DOOR BK GEN WR78X8507 Contact Us For Availability
910
GEN WR78X8506 GEN WR78X8506 Contact Us For Availability
941
GEN WD01X1391 GEN WD01X1391 Contact Us For Availability
1458
GEN WB17X5061 GEN WB17X5061 Contact Us For Availability
1458
GEN WB17X5062 GEN WB17X5062 Contact Us For Availability
× ![]()
