Model GE TFX25PADAAA Refrigerator – Common Parts & Diagrams
FREEZER DOOR
FREEZER SECTION

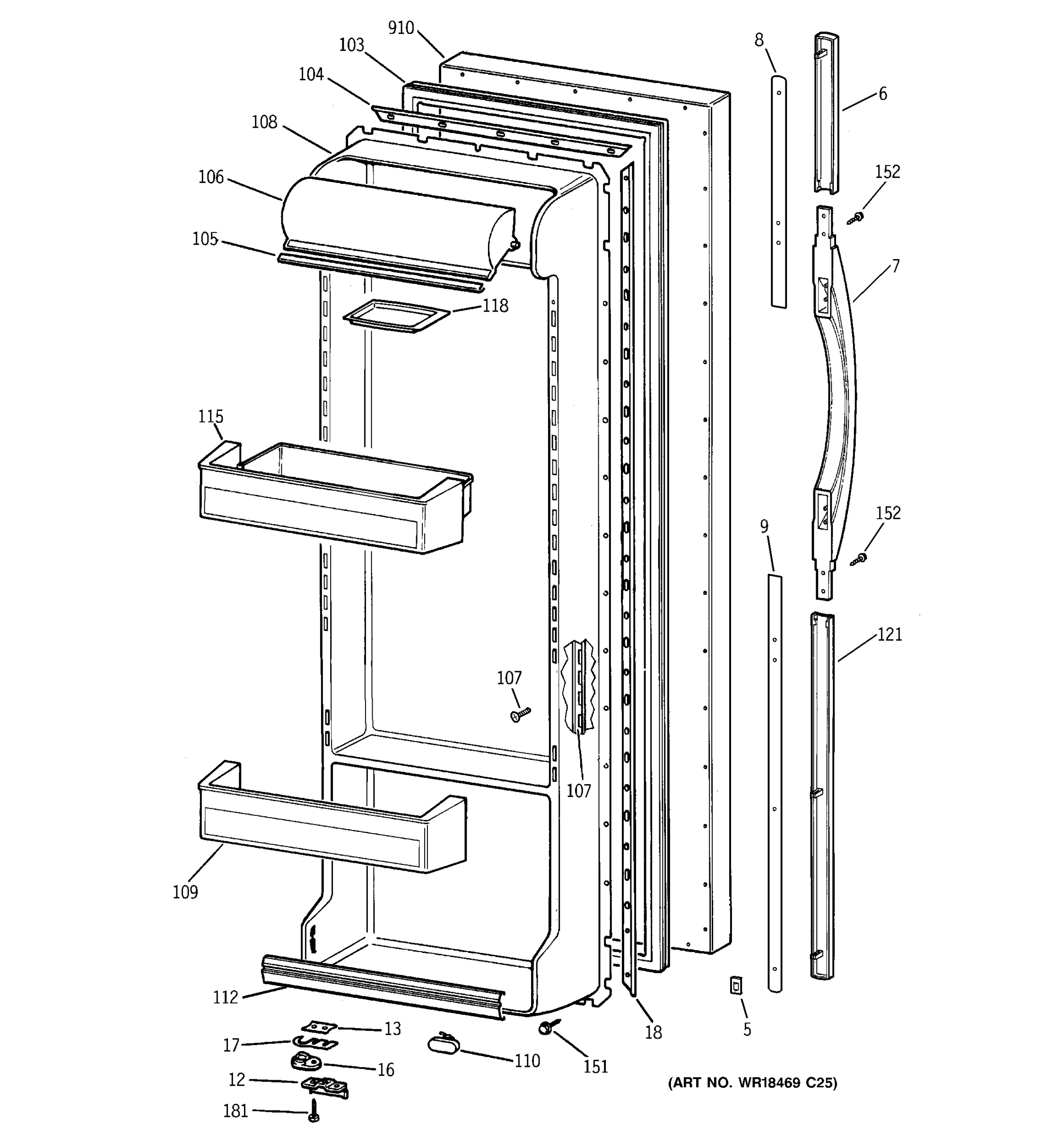

FRESH FOOD DOOR

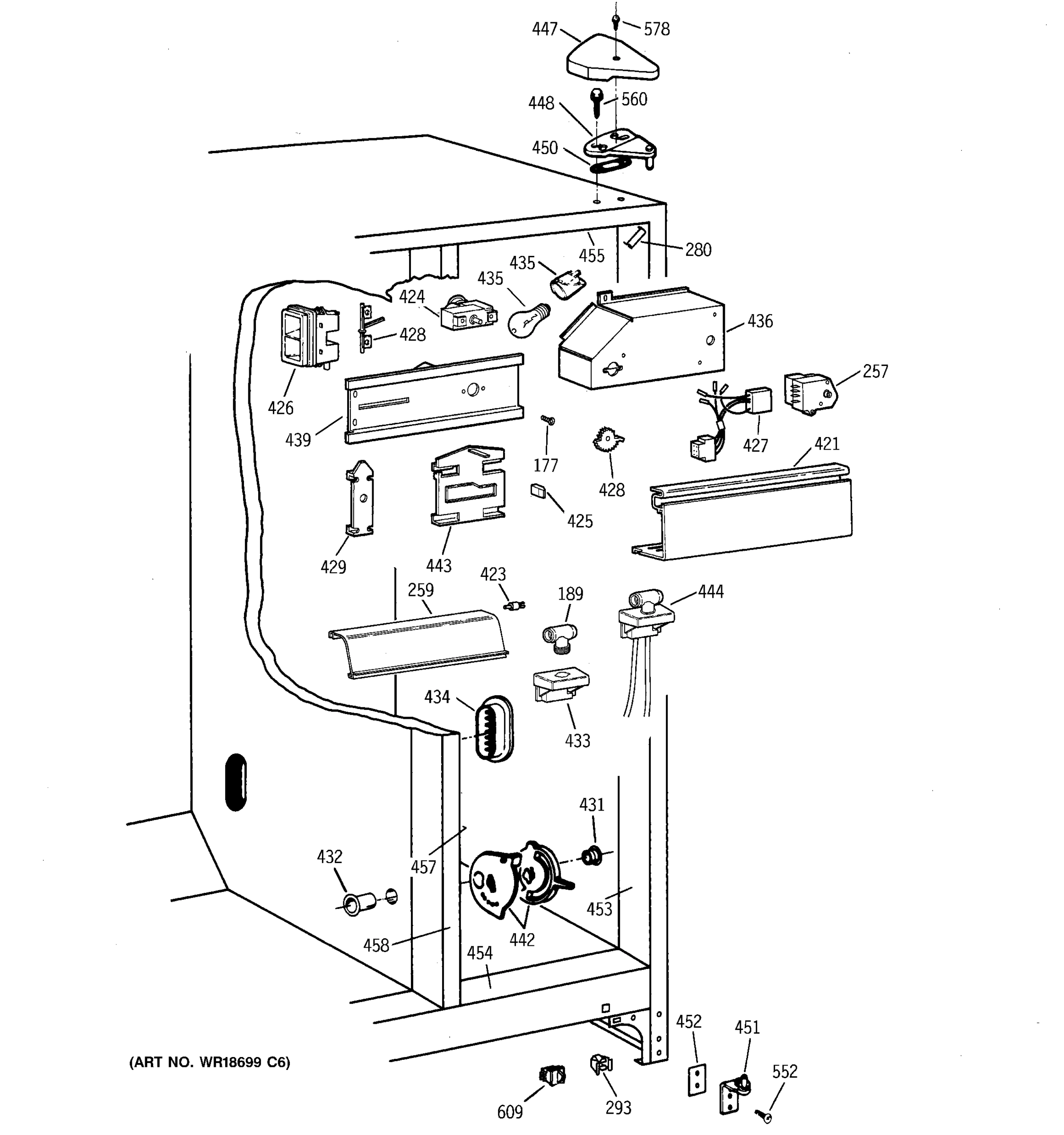

FRESH FOOD SECTION

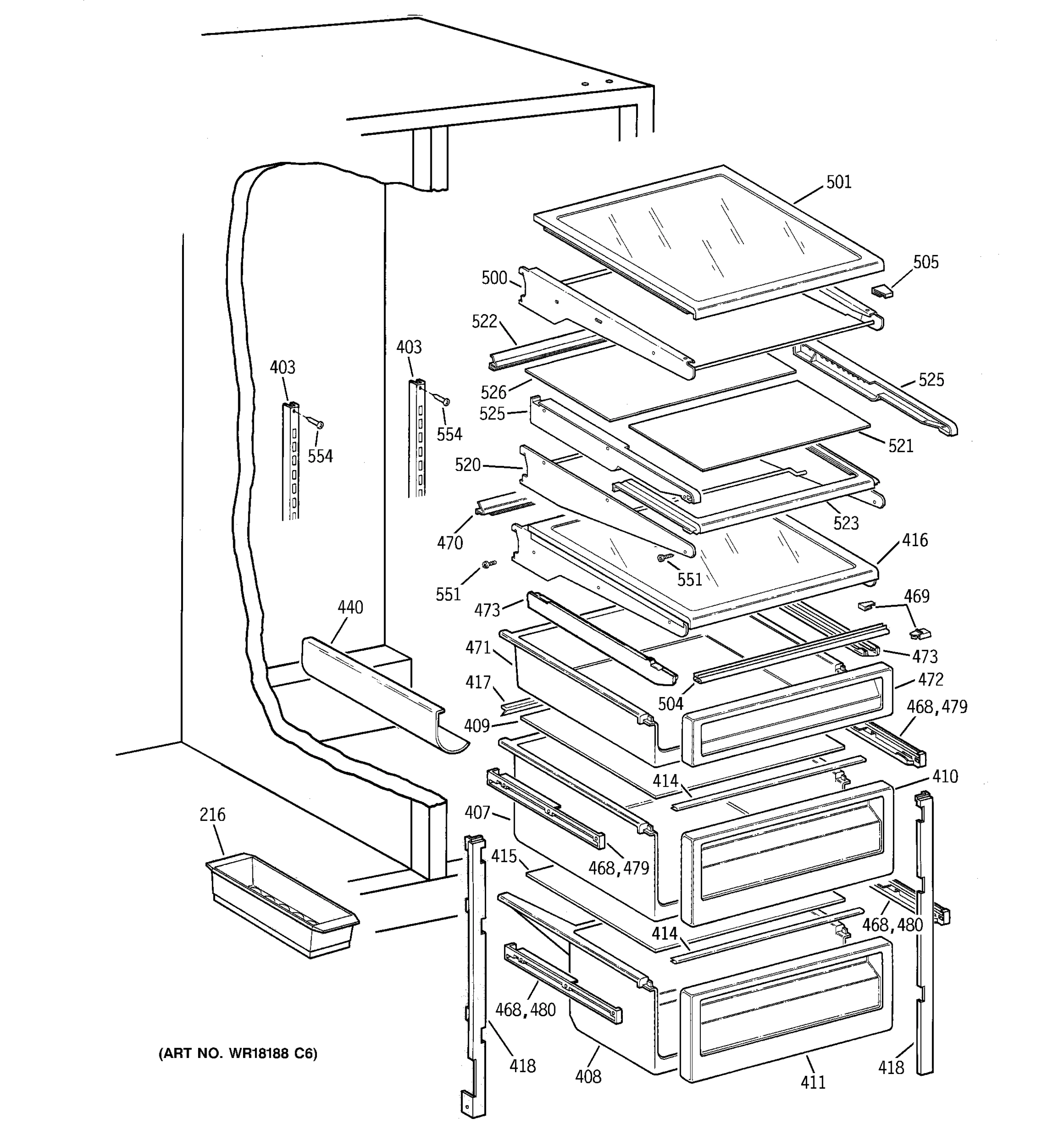

FRESH FOOD SHELVES

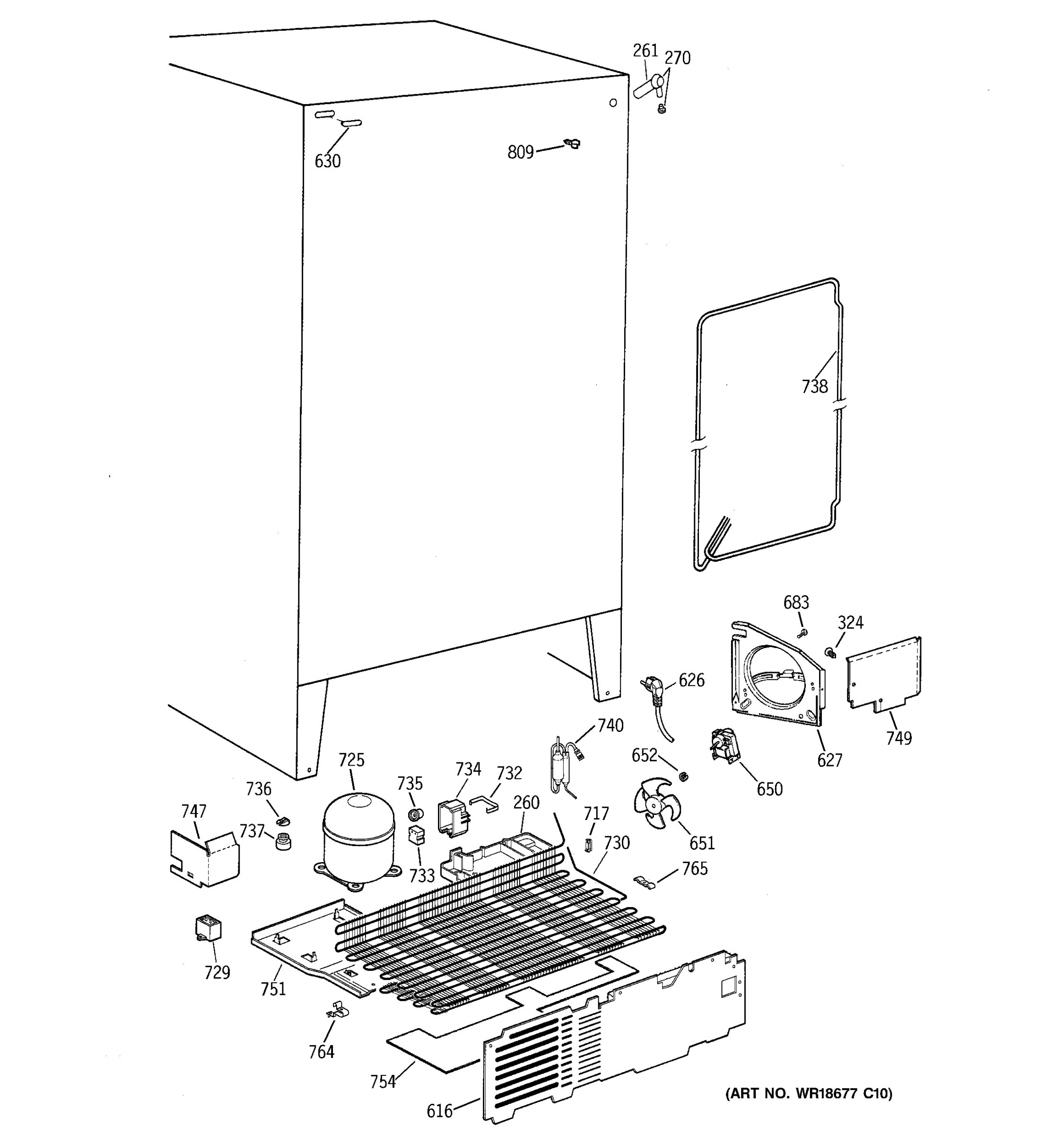

UNIT PARTS
Common parts from model GE TFX25PADAAA Refrigerator
5
GEN WR02X10432 GEN WR02X10432 Contact Us For Availability
6
GEN WR12X10149 GEN WR12X10149 Contact Us For Availability
7
GEN WR12X10116 GEN WR12X10116 Contact Us For Availability
8
GEN WR12X10150 GEN WR12X10150 Contact Us For Availability
9
GEN WR12X10120 GEN WR12X10120 Contact Us For Availability
12
GEN WR02X9302 GEN WR02X9302 Contact Us For Availability
13
SHIM CAM DOOR STOP GEN WR02X7490 Contact Us For Availability
17
SHIM RISER CAM .031 GEN WR02X7491 Contact Us For Availability
17
SHIM RISER CAM .093 GEN WR02X9147 Contact Us For Availability
18
GEN WR17X2092 GEN WR17X2092 Contact Us For Availability
103
GEN WR24X0526 GEN WR24X0526 Contact Us For Availability
104
GEN WR17X1168 GEN WR17X1168 Contact Us For Availability
105
GEN WR38X2037 GEN WR38X2037 Contact Us For Availability
106
GEN WR22X0383 GEN WR22X0383 Contact Us For Availability
107
GEN WR01X10163 GEN WR01X10163 Contact Us For Availability
107
GEN WR72X10036 GEN WR72X10036 Contact Us For Availability
108
GEN WR77X10024 GEN WR77X10024 Contact Us For Availability
109
GEN WR71X10208 GEN WR71X10208 Contact Us For Availability
110
GEN WR02X8989 GEN WR02X8989 Contact Us For Availability
112
GEN WR17X10451 GEN WR17X10451 Contact Us For Availability
115
GEN WR71X10207 GEN WR71X10207 Contact Us For Availability
118
GEN WR19X0037 GEN WR19X0037 Contact Us For Availability
121
GEN WR12X10118 GEN WR12X10118 Contact Us For Availability
152
GEN WR01X10038 GEN WR01X10038 Contact Us For Availability
177
GEN WR01X5034 GEN WR01X5034 Contact Us For Availability
181
GEN WR01X10161 GEN WR01X10161 Contact Us For Availability
189
GEN WR02X9243 GEN WR02X9243 Contact Us For Availability
202
GEN WR40X1732 GEN WR40X1732 Contact Us For Availability
204
GEN WR02X9217 GEN WR02X9217 Contact Us For Availability
207
GEN WR02X4676 GEN WR02X4676 Contact Us For Availability
208
GEN WR02X4674 GEN WR02X4674 Contact Us For Availability
209
GEN WR38X2058 GEN WR38X2058 Contact Us For Availability
211
GEN WR21X0204 GEN WR21X0204 Contact Us For Availability
212
GEN WR17X3103 GEN WR17X3103 Contact Us For Availability
214
GEN WR01X10064 GEN WR01X10064 Contact Us For Availability
214
GEN WR14X0456 GEN WR14X0456 Contact Us For Availability
214
GEN WR17X3915 GEN WR17X3915 Contact Us For Availability
215
GEN WR32X0897 GEN WR32X0897 Contact Us For Availability
220
GEN WR02X9002 GEN WR02X9002 Contact Us For Availability
224
GEN WR02X8657 GEN WR02X8657 Contact Us For Availability
225
GEN WR02X10395 GEN WR02X10395 Contact Us For Availability
225
GEN WR01X5042 GEN WR01X5042 Contact Us For Availability
236
GEN WR02X4548 GEN WR02X4548 Contact Us For Availability
237
GEN WR02X7036 GEN WR02X7036 Contact Us For Availability
246
GEN WR02X10102 GEN WR02X10102 Contact Us For Availability
247
GEN WR17X10226 GEN WR17X10226 Contact Us For Availability
248
GEN WR14X0493 GEN WR14X0493 Contact Us For Availability
251
GEN WR02X2880 GEN WR02X2880 Contact Us For Availability
258
GEN WR17X10246 GEN WR17X10246 Contact Us For Availability
259
GEN WR17X3909 GEN WR17X3909 Contact Us For Availability
260
GEN WR32X1427 GEN WR32X1427 Contact Us For Availability
261
GEN WR02X6087 GEN WR02X6087 Contact Us For Availability
265
AXLE WHEEL FRONT GEN WR02X3595 Contact Us For Availability
265
AXLE WHEEL REAR GEN WR02X4742 Contact Us For Availability
268
IM RECEPTACLE GEN WR23X0312 Contact Us For Availability
270
GEN WR02X3248 GEN WR02X3248 Contact Us For Availability
275
GEN WR02X9004 GEN WR02X9004 Contact Us For Availability
276
GEN WR01X1510 GEN WR01X1510 Contact Us For Availability
277
GEN WR17X2113 GEN WR17X2113 Contact Us For Availability
278
WHEEL ASM FRT GEN WR02X4858 Contact Us For Availability
279
GEN WR17X10434 GEN WR17X10434 Contact Us For Availability
280
GEN WR02X8519 GEN WR02X8519 Contact Us For Availability
288
GEN WR74X0209 GEN WR74X0209 Contact Us For Availability
293
GEN WR02X7080 GEN WR02X7080 Contact Us For Availability
324
GEN WR02X7051 GEN WR02X7051 Contact Us For Availability
324
PLUG BUTTON LG WH GEN WR02X7069 Contact Us For Availability
407
GEN WR32X1461 GEN WR32X1461 Contact Us For Availability
408
GEN WR32X10092 GEN WR32X10092 Contact Us For Availability
409
GEN WR32X1456 GEN WR32X1456 Contact Us For Availability
410
GEN WR17X10542 GEN WR17X10542 Contact Us For Availability
411
GEN WR17X10540 GEN WR17X10540 Contact Us For Availability
414
GEN WR14X0431 GEN WR14X0431 Contact Us For Availability
415
GEN WR32X1457 GEN WR32X1457 Contact Us For Availability
416
GEN WR32X10102 GEN WR32X10102 Contact Us For Availability
417
GEN WR17X10506 GEN WR17X10506 Contact Us For Availability
418
GEN WR17X10538 GEN WR17X10538 Contact Us For Availability
418
GEN WR17X4086 GEN WR17X4086 Contact Us For Availability
421
GEN WR17X10557 GEN WR17X10557 Contact Us For Availability
423
GEN WR02X10050 GEN WR02X10050 Contact Us For Availability
423
GEN WR02X6347 GEN WR02X6347 Contact Us For Availability
424
GEN WR09X0499 GEN WR09X0499 Contact Us For Availability
425
GEN WR02X8398 GEN WR02X8398 Contact Us For Availability
426
GEN WR02X8425 GEN WR02X8425 Contact Us For Availability
426
GEN WR02X8514 GEN WR02X8514 Contact Us For Availability
427
GEN WR23X0316 GEN WR23X0316 Contact Us For Availability
428
GEN WR02X8513 GEN WR02X8513 Contact Us For Availability
428
GEN WR02X9396 GEN WR02X9396 Contact Us For Availability
429
GEN WR02X8516 GEN WR02X8516 Contact Us For Availability
432
GEN WR02X8654 GEN WR02X8654 Contact Us For Availability
433
GEN WR02X9239 GEN WR02X9239 Contact Us For Availability
434
GEN WR02X9431 GEN WR02X9431 Contact Us For Availability
436
GEN WR02X7736 GEN WR02X7736 Contact Us For Availability
439
GEN WR17X2922 GEN WR17X2922 Contact Us For Availability
440
GEN WR17X4094 GEN WR17X4094 Contact Us For Availability
442
GEN WR02X9432 GEN WR02X9432 Contact Us For Availability
443
GEN WR02X8570 GEN WR02X8570 Contact Us For Availability
444
GEN WR23X10129 GEN WR23X10129 Contact Us For Availability
446
GEN WR13X0660 GEN WR13X0660 Contact Us For Availability
447
GEN WR02X8843 GEN WR02X8843 Contact Us For Availability
447
GEN WR02X8844 GEN WR02X8844 Contact Us For Availability
448
GEN WR13X0659 GEN WR13X0659 Contact Us For Availability
450
GEN WR02X4194 GEN WR02X4194 Contact Us For Availability
452
SHIM HINGE BTM .031 GEN WR02X4497 Contact Us For Availability
452
SHIM HINGE BTM. .062 GEN WR02X7011 Contact Us For Availability
453
GEN WR40X1734 GEN WR40X1734 Contact Us For Availability
454
GEN WR40X1735 GEN WR40X1735 Contact Us For Availability
455
GEN WR40X1736 GEN WR40X1736 Contact Us For Availability
456
GEN WR40X1733 GEN WR40X1733 Contact Us For Availability
457
GEN WR40X10029 GEN WR40X10029 Contact Us For Availability
458
GEN WR02X10334 GEN WR02X10334 Contact Us For Availability
458
GEN WR02X9376 GEN WR02X9376 Contact Us For Availability
458
GEN WR40X1740 GEN WR40X1740 Contact Us For Availability
470
GEN WR14X0465 GEN WR14X0465 Contact Us For Availability
471
GEN WR32X1460 GEN WR32X1460 Contact Us For Availability
472
GEN WR17X10541 GEN WR17X10541 Contact Us For Availability
473
GEN WR72X0282 GEN WR72X0282 Contact Us For Availability
473
GEN WR72X0283 GEN WR72X0283 Contact Us For Availability
500
GEN WR71X2585 GEN WR71X2585 Contact Us For Availability
501
GEN WR32X10104 GEN WR32X10104 Contact Us For Availability
504
GEN WR14X0474 GEN WR14X0474 Contact Us For Availability
505
GEN WR01X2080 GEN WR01X2080 Contact Us For Availability
520
GEN WR71X2247 GEN WR71X2247 Contact Us For Availability
521
GEN WR32X10101 GEN WR32X10101 Contact Us For Availability
522
GEN WR38X2240 GEN WR38X2240 Contact Us For Availability
523
GEN WR71X2494 GEN WR71X2494 Contact Us For Availability
525
GEN WR72X0220 GEN WR72X0220 Contact Us For Availability
525
GEN WR72X0221 GEN WR72X0221 Contact Us For Availability
526
GEN WR32X10103 GEN WR32X10103 Contact Us For Availability
551
GEN WZ04X0244 GEN WZ04X0244 Contact Us For Availability
560
GEN WR01X2140 GEN WR01X2140 Contact Us For Availability
564
SCR 1/4 14 BA HX 3/4 SN GEN WR01X1194 Contact Us For Availability
610
GEN WR60X10009 GEN WR60X10009 Contact Us For Availability
611
GEN WR02X10100 GEN WR02X10100 Contact Us For Availability
612
GEN WR02X10112 GEN WR02X10112 Contact Us For Availability
613
GEN WR60X10011 GEN WR60X10011 Contact Us For Availability
616
GEN WR82X10042 GEN WR82X10042 Contact Us For Availability
627
GEN WR17X10449 GEN WR17X10449 Contact Us For Availability
650
GEN WR60X10024 GEN WR60X10024 Contact Us For Availability
651
GEN WR60X10034 GEN WR60X10034 Contact Us For Availability
652
RING COMPRESSION GEN WR02X10323 Contact Us For Availability
683
GEN WR01X10127 GEN WR01X10127 Contact Us For Availability
717
GEN WR02X10335 GEN WR02X10335 Contact Us For Availability
730
GEN WR84X0207 GEN WR84X0207 Contact Us For Availability
732
CLAMP-COVER GEN WR02X7226 Contact Us For Availability
733
GEN WR07X0253 GEN WR07X0253 Contact Us For Availability
734
COVER RELAY GEN WR02X7834 Contact Us For Availability
735
GEN WR08X0172 GEN WR08X0172 Contact Us For Availability
738
GEN WR84X0168 GEN WR84X0168 Contact Us For Availability
747
GEN WR17X10427 GEN WR17X10427 Contact Us For Availability
749
GEN WR17X4148 GEN WR17X4148 Contact Us For Availability
754
GEN WR82X10067 GEN WR82X10067 Contact Us For Availability
765
GEN WR01X1985 GEN WR01X1985 Contact Us For Availability
910
GEN WR78X10200 GEN WR78X10200 Contact Us For Availability
× ![]()
