Model GE TFX24ZFSBAD Refrigerator – Common Parts & Diagrams
0
FREEZER DOOR

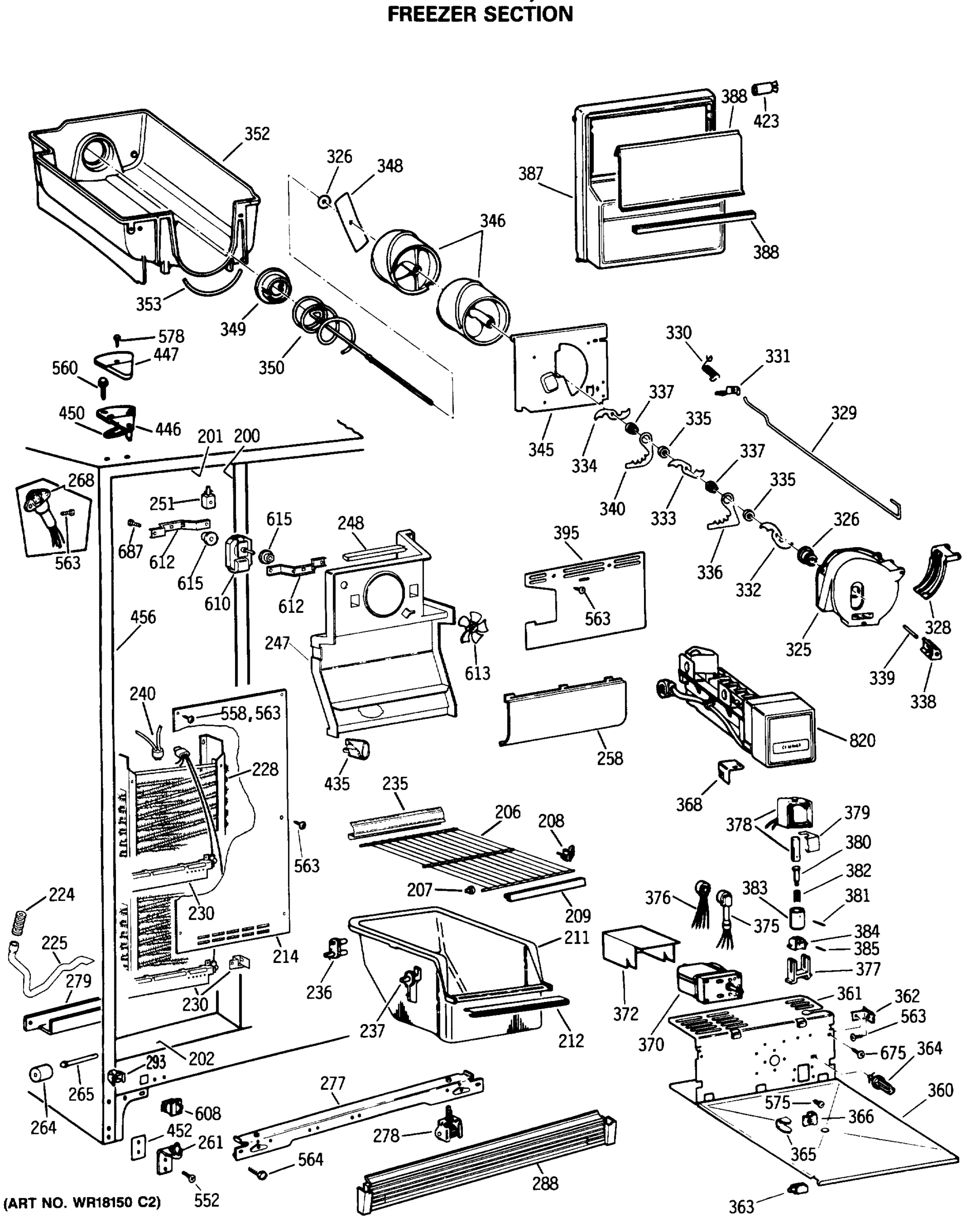

FREEZER SECTION

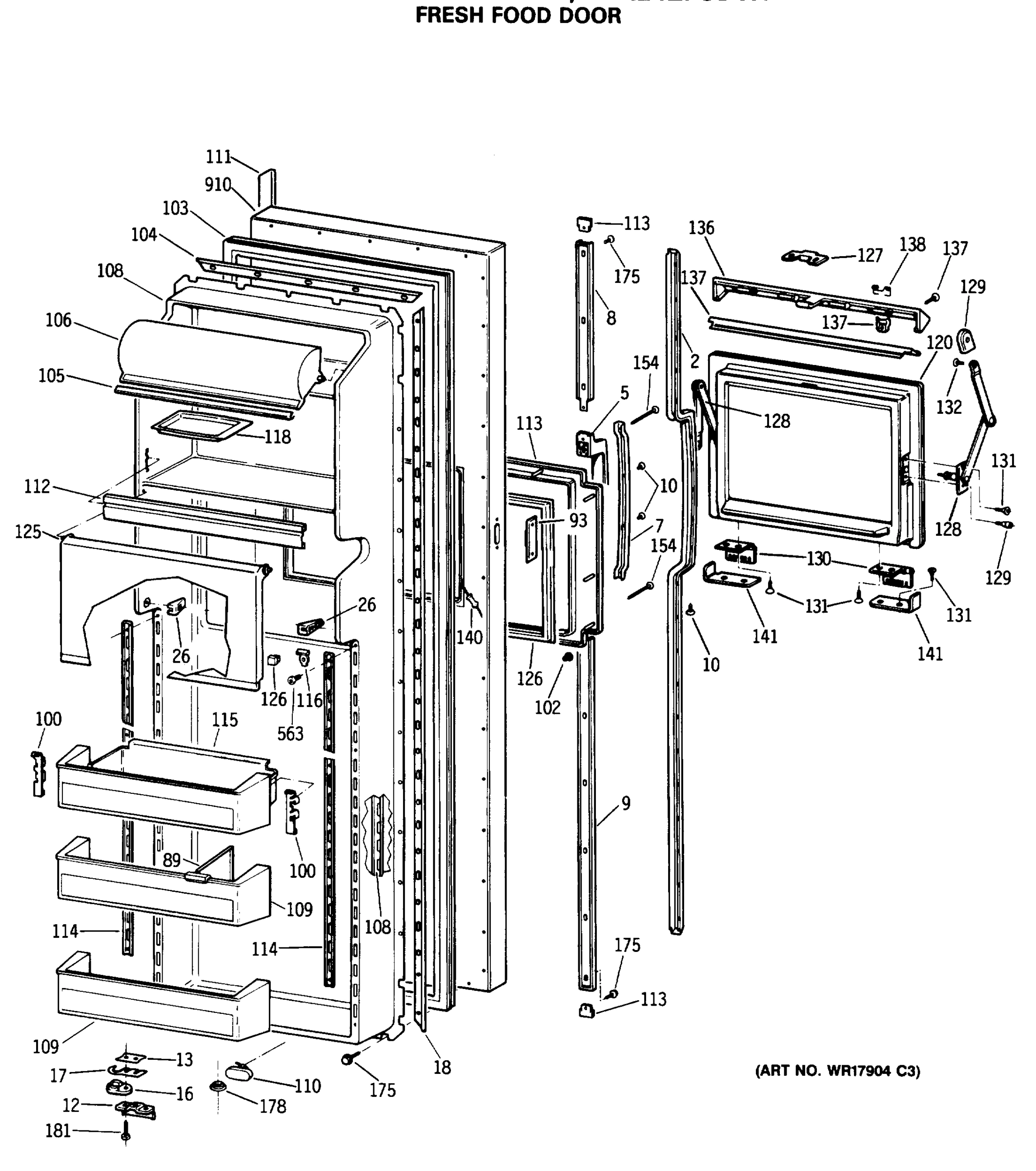

FRESH FOOD DOOR

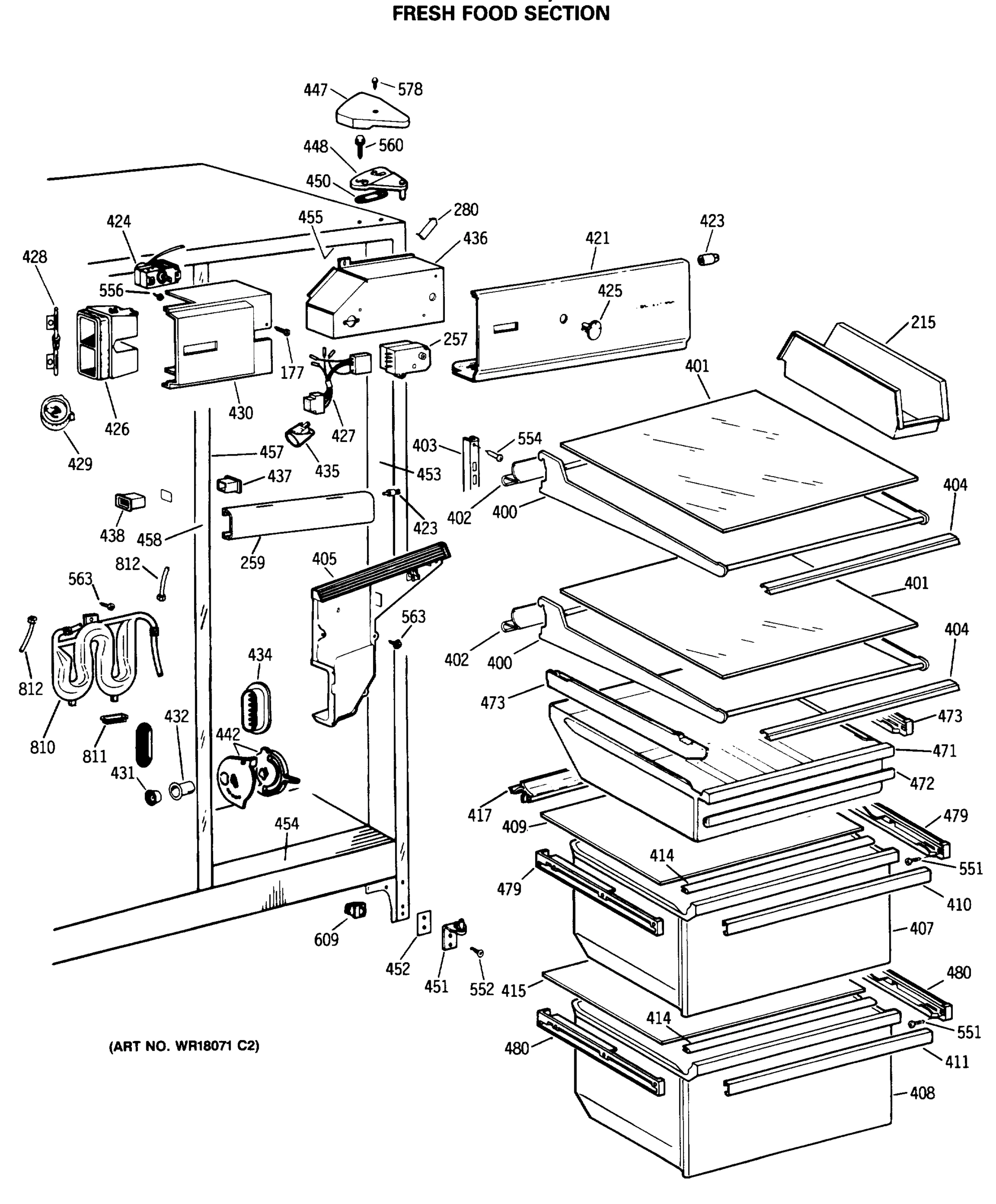

FRESH FOOD SECTION
Common parts from model GE TFX24ZFSBAD Refrigerator
1
GEN 49-6754 GEN 49-6754 Contact Us For Availability
1
MINI MANUAL WIRING GEN SR2809 Contact Us For Availability
2
GEN WR12X0622 GEN WR12X0622 Contact Us For Availability
3
GEN WR02X8669 GEN WR02X8669 Contact Us For Availability
5
GEN WR12X0618 GEN WR12X0618 Contact Us For Availability
7
GEN WR12X0620 GEN WR12X0620 Contact Us For Availability
8
GEN WR12X0872 GEN WR12X0872 Contact Us For Availability
9
GEN WR12X0873 GEN WR12X0873 Contact Us For Availability
10
GEN WR01X1766 GEN WR01X1766 Contact Us For Availability
11
GEN WR01X5469 GEN WR01X5469 Contact Us For Availability
11
GEN WR38X1925 GEN WR38X1925 Contact Us For Availability
12
GEN WR02X4537 GEN WR02X4537 Contact Us For Availability
13
GEN WR02X4540 GEN WR02X4540 Contact Us For Availability
13
GEN WR02X4599 GEN WR02X4599 Contact Us For Availability
14
GEN WR24X0530 GEN WR24X0530 Contact Us For Availability
15
GEN WR17X1167 GEN WR17X1167 Contact Us For Availability
17
GEN WR02X7491 GEN WR02X7491 Contact Us For Availability
18
GEN WR17X1169 GEN WR17X1169 Contact Us For Availability
19
GEN WR77X0617 GEN WR77X0617 Contact Us For Availability
21
GEN WR17X3229 GEN WR17X3229 Contact Us For Availability
22
GEN WR17X3107 GEN WR17X3107 Contact Us For Availability
23
GEN WR17X3230 GEN WR17X3230 Contact Us For Availability
26
GEN WR02X7844 GEN WR02X7844 Contact Us For Availability
29
GEN WR49X0349 GEN WR49X0349 Contact Us For Availability
31
GEN WR02X8656 GEN WR02X8656 Contact Us For Availability
32
GEN WR17X3335 GEN WR17X3335 Contact Us For Availability
33
GEN WR51X0353 GEN WR51X0353 Contact Us For Availability
41
GEN WR17X3493 GEN WR17X3493 Contact Us For Availability
42
GEN WR02X8650 GEN WR02X8650 Contact Us For Availability
46
GEN WR02X8702 GEN WR02X8702 Contact Us For Availability
47
GEN WR02X8681 GEN WR02X8681 Contact Us For Availability
54
GEN WR17X3153 GEN WR17X3153 Contact Us For Availability
56
LAMP 7C7 GEN STD372071 Contact Us For Availability
56
GEN WR02X8660 GEN WR02X8660 Contact Us For Availability
56
GEN WR02X8662 GEN WR02X8662 Contact Us For Availability
57
GEN WR23X0370 GEN WR23X0370 Contact Us For Availability
58
GEN WR17X3190 GEN WR17X3190 Contact Us For Availability
60
GEN WR02X8652 GEN WR02X8652 Contact Us For Availability
61
GEN WR17X3145 GEN WR17X3145 Contact Us For Availability
63
GEN WR02X8663 GEN WR02X8663 Contact Us For Availability
69
GEN WR17X3095 GEN WR17X3095 Contact Us For Availability
70
SUPPORT FUNNEL & GUARD GEN WR02X8943 Contact Us For Availability
71
GEN WR17X3478 GEN WR17X3478 Contact Us For Availability
72
GEN WR23X0366 GEN WR23X0366 Contact Us For Availability
75
GEN WR17X3611 GEN WR17X3611 Contact Us For Availability
76
GEN WR02X8933 GEN WR02X8933 Contact Us For Availability
80
GEN WR02X4265 GEN WR02X4265 Contact Us For Availability
89
GEN WR02X7971 GEN WR02X7971 Contact Us For Availability
90
GEN WR55X0059 GEN WR55X0059 Contact Us For Availability
92
GEN WR23X0389 GEN WR23X0389 Contact Us For Availability
93
GEN WR23X0388 GEN WR23X0388 Contact Us For Availability
95
GEN WR55X0055 GEN WR55X0055 Contact Us For Availability
97
GEN WR52X0025 GEN WR52X0025 Contact Us For Availability
100
GEN WR02X8409 GEN WR02X8409 Contact Us For Availability
100
GEN WR02X8410 GEN WR02X8410 Contact Us For Availability
102
GEN WR02X8162 GEN WR02X8162 Contact Us For Availability
103
GEN WR24X0529 GEN WR24X0529 Contact Us For Availability
104
GEN WR17X1168 GEN WR17X1168 Contact Us For Availability
105
GEN WR38X1767 GEN WR38X1767 Contact Us For Availability
106
GEN WR22X0454 GEN WR22X0454 Contact Us For Availability
108
GEN WR72X0126 GEN WR72X0126 Contact Us For Availability
108
GEN WR77X0524 GEN WR77X0524 Contact Us For Availability
109
GEN WR71X2268 GEN WR71X2268 Contact Us For Availability
110
GEN WR02X8989 GEN WR02X8989 Contact Us For Availability
111
GEN WR38X1425 GEN WR38X1425 Contact Us For Availability
112
GEN WR17X3011 GEN WR17X3011 Contact Us For Availability
113
GEN WR02X7871 GEN WR02X7871 Contact Us For Availability
113
GEN WR38X1517 GEN WR38X1517 Contact Us For Availability
114
GEN WR72X0238 GEN WR72X0238 Contact Us For Availability
115
GEN WR71X2269 GEN WR71X2269 Contact Us For Availability
116
GEN WR02X7829 GEN WR02X7829 Contact Us For Availability
118
BUTTER DISH GEN WR19X5003 Contact Us For Availability
120
DOOR ASM CMK COMPLETE GEN WR17X3612 Contact Us For Availability
125
GEN WR22X0467 GEN WR22X0467 Contact Us For Availability
126
GEN WR02X7828 GEN WR02X7828 Contact Us For Availability
126
GEN WR24X0453 GEN WR24X0453 Contact Us For Availability
127
GEN WR02X8955 GEN WR02X8955 Contact Us For Availability
128
GEN WR13X0605 GEN WR13X0605 Contact Us For Availability
128
GEN WR13X0606 GEN WR13X0606 Contact Us For Availability
129
GEN WR01X1706 GEN WR01X1706 Contact Us For Availability
129
GEN WR01X1710 GEN WR01X1710 Contact Us For Availability
129
GEN WR01X1760 GEN WR01X1760 Contact Us For Availability
130
GEN WR13X0607 GEN WR13X0607 Contact Us For Availability
130
GEN WR13X0608 GEN WR13X0608 Contact Us For Availability
131
GEN WR01X1707 GEN WR01X1707 Contact Us For Availability
132
GEN WR01X1708 GEN WR01X1708 Contact Us For Availability
136
GEN WR12X0666 GEN WR12X0666 Contact Us For Availability
137
GEN WR01X1711 GEN WR01X1711 Contact Us For Availability
137
GEN WR38X1055 GEN WR38X1055 Contact Us For Availability
138
GEN WR02X7353 GEN WR02X7353 Contact Us For Availability
140
GEN WR51X0359 GEN WR51X0359 Contact Us For Availability
141
GEN WR02X8684 GEN WR02X8684 Contact Us For Availability
154
GEN WR01X1765 GEN WR01X1765 Contact Us For Availability
175
SCREW GEN WR01X1464 Contact Us For Availability
177
SCREW GEN WR01X5034 Contact Us For Availability
178
GEN WR02X6058 GEN WR02X6058 Contact Us For Availability
181
GEN WZ06X0105 GEN WZ06X0105 Contact Us For Availability
200
GEN WR40X1685 GEN WR40X1685 Contact Us For Availability
201
GEN WR40X1683 GEN WR40X1683 Contact Us For Availability
202
GEN WR40X1681 GEN WR40X1681 Contact Us For Availability
207
GEN WR02X4676 GEN WR02X4676 Contact Us For Availability
208
GEN WR02X4674 GEN WR02X4674 Contact Us For Availability
209
GEN WR38X1817 GEN WR38X1817 Contact Us For Availability
211
GEN WR21X0185 GEN WR21X0185 Contact Us For Availability
212
GEN WR17X3006 GEN WR17X3006 Contact Us For Availability
214
GEN WR01X1332 GEN WR01X1332 Contact Us For Availability
214
GEN WR02X8950 GEN WR02X8950 Contact Us For Availability
214
GEN WR14X0455 GEN WR14X0455 Contact Us For Availability
214
GEN WR17X3486 GEN WR17X3486 Contact Us For Availability
215
GEN WR32X1299 GEN WR32X1299 Contact Us For Availability
224
GEN WR02X8657 GEN WR02X8657 Contact Us For Availability
225
GEN WR01X5042 GEN WR01X5042 Contact Us For Availability
225
GEN WR02X4838 GEN WR02X4838 Contact Us For Availability
225
GEN WR02X8293 GEN WR02X8293 Contact Us For Availability
230
GEN WR02X8647 GEN WR02X8647 Contact Us For Availability
235
GEN WR38X1815 GEN WR38X1815 Contact Us For Availability
236
GEN WR02X4548 GEN WR02X4548 Contact Us For Availability
237
GEN WR02X7036 GEN WR02X7036 Contact Us For Availability
247
GEN WR17X3488 GEN WR17X3488 Contact Us For Availability
247
GEN WR02X4845 GEN WR02X4845 Contact Us For Availability
248
GEN WR14X0272 GEN WR14X0272 Contact Us For Availability
251
GEN WR02X2880 GEN WR02X2880 Contact Us For Availability
258
GEN WR17X3489 GEN WR17X3489 Contact Us For Availability
259
GEN WR17X2555 GEN WR17X2555 Contact Us For Availability
265
GEN WR02X3595 GEN WR02X3595 Contact Us For Availability
265
GEN WR02X3598 GEN WR02X3598 Contact Us For Availability
265
GEN WR02X4742 GEN WR02X4742 Contact Us For Availability
268
GEN WR23X0312 GEN WR23X0312 Contact Us For Availability
276
GEN WR01X1510 GEN WR01X1510 Contact Us For Availability
277
GEN WR17X2113 GEN WR17X2113 Contact Us For Availability
278
WHEEL ASM FRT GEN WR02X4858 Contact Us For Availability
279
GEN WR17X2743 GEN WR17X2743 Contact Us For Availability
280
GEN WR02X8519 GEN WR02X8519 Contact Us For Availability
288
GEN WR74X0199 GEN WR74X0199 Contact Us For Availability
293
GEN WR02X7080 GEN WR02X7080 Contact Us For Availability
303
GEN WD01X1440 GEN WD01X1440 Contact Us For Availability
326
GEN WR01X1366 GEN WR01X1366 Contact Us For Availability
326
GEN WR01X1585 GEN WR01X1585 Contact Us For Availability
328
DEFLECTOR ICE DISP GEN WR17X2059 Contact Us For Availability
328
GEN WR02X4561 GEN WR02X4561 Contact Us For Availability
329
WIRE ACTUATOR DISP GEN WR17X2060 Contact Us For Availability
330
GEN WR02X4145 GEN WR02X4145 Contact Us For Availability
331
GEN WR02X4251 GEN WR02X4251 Contact Us For Availability
335
SPACER GEN WR02X4139 Contact Us For Availability
336
GEN WR17X1009 GEN WR17X1009 Contact Us For Availability
339
GEN WR02X4141 GEN WR02X4141 Contact Us For Availability
345
PLATE FRONT DISP GEN WR17X2062 Contact Us For Availability
346
HELIX REAR-DISP GEN WR17X2056 Contact Us For Availability
346
HELIX FRONT-DISP GEN WR17X2057 Contact Us For Availability
348
GEN WR02X7351 GEN WR02X7351 Contact Us For Availability
350
GEN WR17X2740 GEN WR17X2740 Contact Us For Availability
360
GEN WR02X4566 GEN WR02X4566 Contact Us For Availability
360
GEN WR71X2445 GEN WR71X2445 Contact Us For Availability
361
GEN WR71X2353 GEN WR71X2353 Contact Us For Availability
362
GEN WR02X8839 GEN WR02X8839 Contact Us For Availability
363
GEN WR02X8952 GEN WR02X8952 Contact Us For Availability
364
GEN WR02X7310 GEN WR02X7310 Contact Us For Availability
365
GEN WR02X4854 GEN WR02X4854 Contact Us For Availability
366
GEN WR01X1547 GEN WR01X1547 Contact Us For Availability
368
GEN WR02X8459 GEN WR02X8459 Contact Us For Availability
375
GEN WR23X0194 GEN WR23X0194 Contact Us For Availability
376
GEN WR23X0189 GEN WR23X0189 Contact Us For Availability
387
GEN WR17X3010 GEN WR17X3010 Contact Us For Availability
388
GEN WR17X2874 GEN WR17X2874 Contact Us For Availability
388
GEN WR38X1524 GEN WR38X1524 Contact Us For Availability
395
GEN WR17X2905 GEN WR17X2905 Contact Us For Availability
400
GEN WR71X2292 GEN WR71X2292 Contact Us For Availability
401
GEN WR32X1346 GEN WR32X1346 Contact Us For Availability
402
GEN WR38X1928 GEN WR38X1928 Contact Us For Availability
403
GEN WR71X2124 GEN WR71X2124 Contact Us For Availability
404
GEN WR38X2032 GEN WR38X2032 Contact Us For Availability
405
GEN WR14X0264 GEN WR14X0264 Contact Us For Availability
405
GEN WR17X1523 GEN WR17X1523 Contact Us For Availability
407
GEN WR32X1277 GEN WR32X1277 Contact Us For Availability
408
GEN WR32X1278 GEN WR32X1278 Contact Us For Availability
409
GEN WR32X1264 GEN WR32X1264 Contact Us For Availability
410
GEN WR17X2960 GEN WR17X2960 Contact Us For Availability
411
GEN WR17X2961 GEN WR17X2961 Contact Us For Availability
414
GEN WR14X0451 GEN WR14X0451 Contact Us For Availability
415
GEN WR32X0886 GEN WR32X0886 Contact Us For Availability
417
GEN WR02X7359 GEN WR02X7359 Contact Us For Availability
421
GEN WR17X2971 GEN WR17X2971 Contact Us For Availability
423
GEN WR02X6347 GEN WR02X6347 Contact Us For Availability
424
GEN WR09X0499 GEN WR09X0499 Contact Us For Availability
425
GEN WR02X8555 GEN WR02X8555 Contact Us For Availability
426
GEN WR02X8425 GEN WR02X8425 Contact Us For Availability
426
GEN WR02X8514 GEN WR02X8514 Contact Us For Availability
426
GEN WR14X0369 GEN WR14X0369 Contact Us For Availability
427
GEN WR23X0357 GEN WR23X0357 Contact Us For Availability
428
GEN WR02X4835 GEN WR02X4835 Contact Us For Availability
429
GEN WR02X8553 GEN WR02X8553 Contact Us For Availability
430
GEN WR17X2209 GEN WR17X2209 Contact Us For Availability
431
GEN WR02X8722 GEN WR02X8722 Contact Us For Availability
432
GEN WR02X8654 GEN WR02X8654 Contact Us For Availability
434
GEN WR02X8653 GEN WR02X8653 Contact Us For Availability
436
GEN WR02X7736 GEN WR02X7736 Contact Us For Availability
437
GEN WR02X7476 GEN WR02X7476 Contact Us For Availability
438
GEN WR02X8655 GEN WR02X8655 Contact Us For Availability
442
GEN WR02X8651 GEN WR02X8651 Contact Us For Availability
446
GEN WR13X0647 GEN WR13X0647 Contact Us For Availability
447
GEN WR02X8263 GEN WR02X8263 Contact Us For Availability
448
GEN WR13X0646 GEN WR13X0646 Contact Us For Availability
450
GEN WR02X4194 GEN WR02X4194 Contact Us For Availability
452
GEN WR02X4497 GEN WR02X4497 Contact Us For Availability
452
GEN WR02X7143 GEN WR02X7143 Contact Us For Availability
453
BREAKER STRIP R/S FF GEN WR40X1679 Contact Us For Availability
454
BREAKER STRIP BTM FF GEN WR40X1678 Contact Us For Availability
455
BREAKER STRIP TOP FF GEN WR40X1680 Contact Us For Availability
456
GEN WR40 GEN WR40 Contact Us For Availability
457
GEN WR40X1684 GEN WR40X1684 Contact Us For Availability
458
GEN WR02X4739 GEN WR02X4739 Contact Us For Availability
458
GEN WR02X7033 GEN WR02X7033 Contact Us For Availability
458
GEN WR02X8721 GEN WR02X8721 Contact Us For Availability
458
GEN WR40X1676 GEN WR40X1676 Contact Us For Availability
461
GEN WZ06X0136 GEN WZ06X0136 Contact Us For Availability
471
GEN WR32X1348 GEN WR32X1348 Contact Us For Availability
472
GEN WR38X1761 GEN WR38X1761 Contact Us For Availability
473
GEN WR72X0210 GEN WR72X0210 Contact Us For Availability
473
GEN WR72X0211 GEN WR72X0211 Contact Us For Availability
479
GEN WR72X0206 GEN WR72X0206 Contact Us For Availability
479
GEN WR72X0230 GEN WR72X0230 Contact Us For Availability
480
GEN WR72X0208 GEN WR72X0208 Contact Us For Availability
480
GEN WR72X0209 GEN WR72X0209 Contact Us For Availability
551
SCREW GEN WZ04X0244 Contact Us For Availability
554
SCR 10-24 BP PA 1 1/2 S GEN WR01X1483 Contact Us For Availability
560
GEN WR01X1249 GEN WR01X1249 Contact Us For Availability
560
GEN WR01X1806 GEN WR01X1806 Contact Us For Availability
562
GEN WB17X5054 GEN WB17X5054 Contact Us For Availability
562
GEN WX05X0558 GEN WX05X0558 Contact Us For Availability
584
GEN WZ02X0509 GEN WZ02X0509 Contact Us For Availability
621
GEN WR02X4495 GEN WR02X4495 Contact Us For Availability
651
GEN WR01X1515 GEN WR01X1515 Contact Us For Availability
651
GEN WR01X1714 GEN WR01X1714 Contact Us For Availability
651
GEN WR60X0212 GEN WR60X0212 Contact Us For Availability
683
GEN WR01X1825 GEN WR01X1825 Contact Us For Availability
689
GEN WR01X1598 GEN WR01X1598 Contact Us For Availability
691
GEN WX02X0560 GEN WX02X0560 Contact Us For Availability
692
SCREW GEN WZ04X0416 Contact Us For Availability
730
GEN WR84X0164 GEN WR84X0164 Contact Us For Availability
731
GEN WR02X4850 GEN WR02X4850 Contact Us For Availability
731
GEN WR02X8951 GEN WR02X8951 Contact Us For Availability
733
GEN WR07X0198 GEN WR07X0198 Contact Us For Availability
734
CLAMP-COVER GEN WR02X7226 Contact Us For Availability
734
COVER RELAY GEN WR02X7834 Contact Us For Availability
735
GEN WR08X0114 GEN WR08X0114 Contact Us For Availability
737
GEN WR02X7238 GEN WR02X7238 Contact Us For Availability
738
GEN WR84X0170 GEN WR84X0170 Contact Us For Availability
747
GEN WR17X3123 GEN WR17X3123 Contact Us For Availability
749
GEN WR17X3085 GEN WR17X3085 Contact Us For Availability
753
GEN WB01K5052 GEN WB01K5052 Contact Us For Availability
762
GEN WR02X7493 GEN WR02X7493 Contact Us For Availability
764
GEN WR02X8222 GEN WR02X8222 Contact Us For Availability
765
GEN WR02X8649 GEN WR02X8649 Contact Us For Availability
782
GEN WB17X5060 GEN WB17X5060 Contact Us For Availability
788
GEN WB17X5079 GEN WB17X5079 Contact Us For Availability
804
GEN WR02X4046 GEN WR02X4046 Contact Us For Availability
810
GEN WR17X3105 GEN WR17X3105 Contact Us For Availability
811
GEN WR02X8659 GEN WR02X8659 Contact Us For Availability
825
GEN WR23X0305 GEN WR23X0305 Contact Us For Availability
830
GEN WR17X3087 GEN WR17X3087 Contact Us For Availability
900
GEN WR78X8613 GEN WR78X8613 Contact Us For Availability
910
GEN WR78X8612 GEN WR78X8612 Contact Us For Availability
941
GEN WD01X1391 GEN WD01X1391 Contact Us For Availability
942
GEN WD01X1395 GEN WD01X1395 Contact Us For Availability
1458
GEN WB17X5061 GEN WB17X5061 Contact Us For Availability
1458
GEN WB17X5062 GEN WB17X5062 Contact Us For Availability
× ![]()
