Model GE TFX24PAXCBB Refrigerator – Common Parts & Diagrams

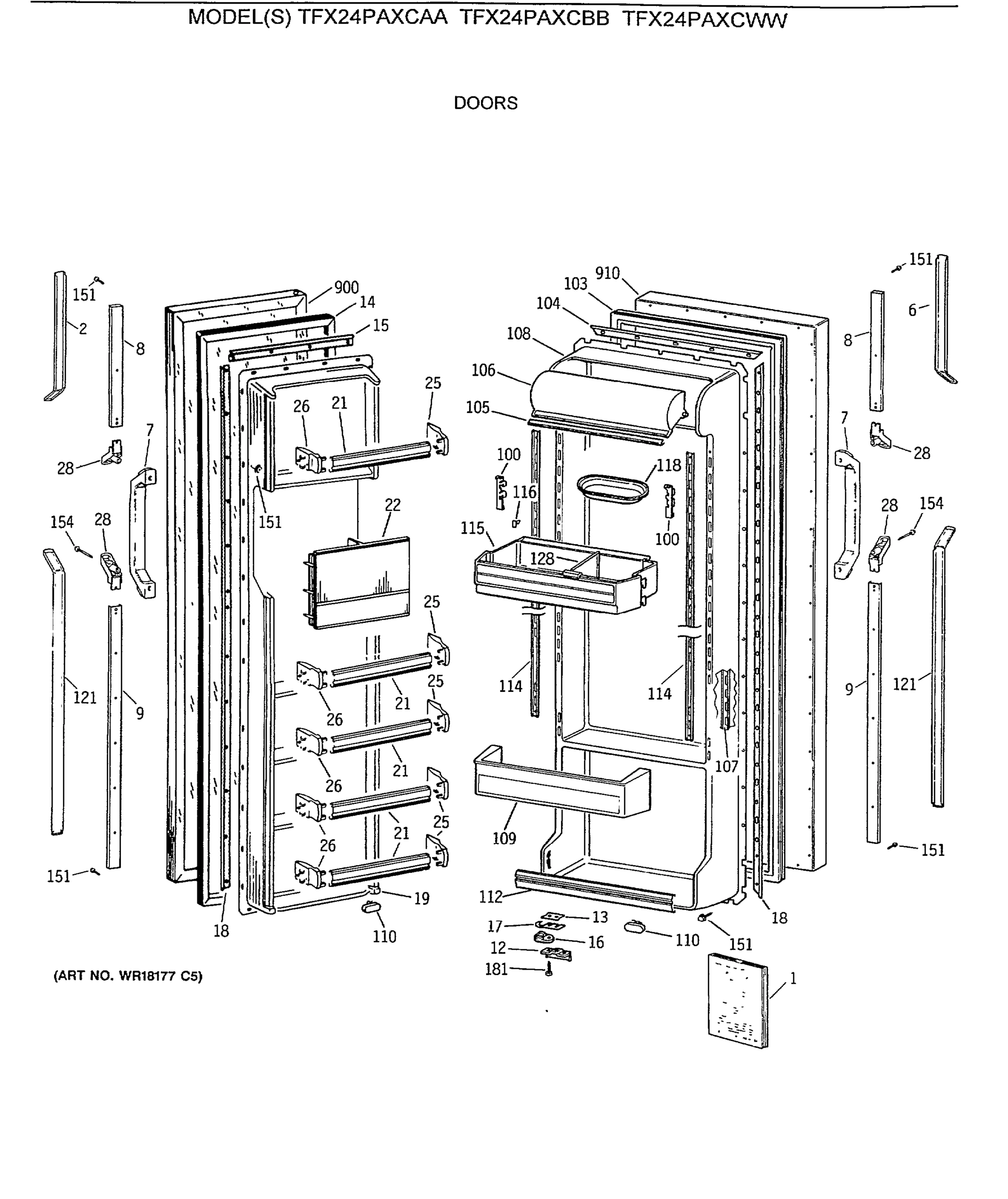

DOORS

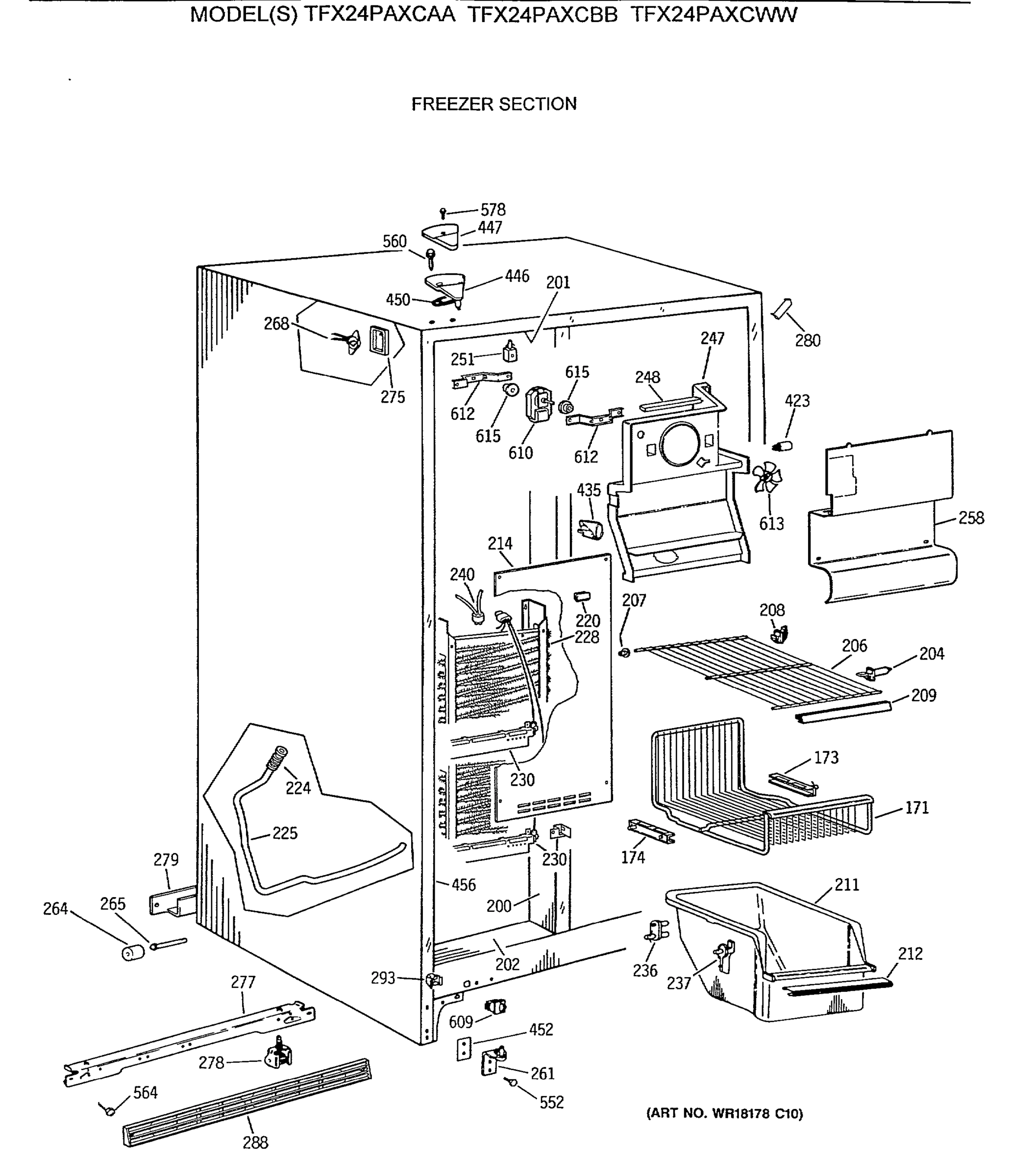

FREEZER SECTION

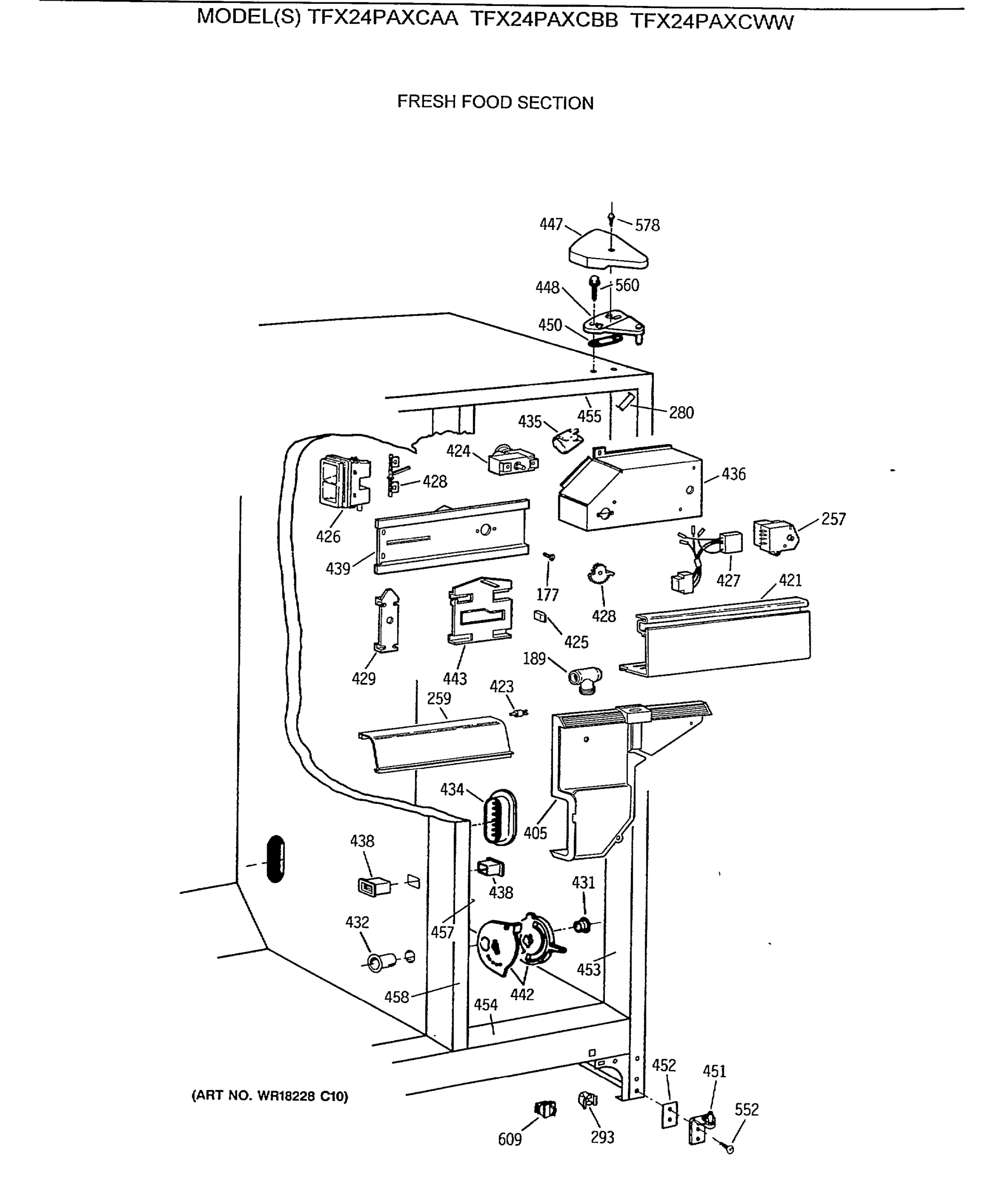

FRESH FOOD SECTION

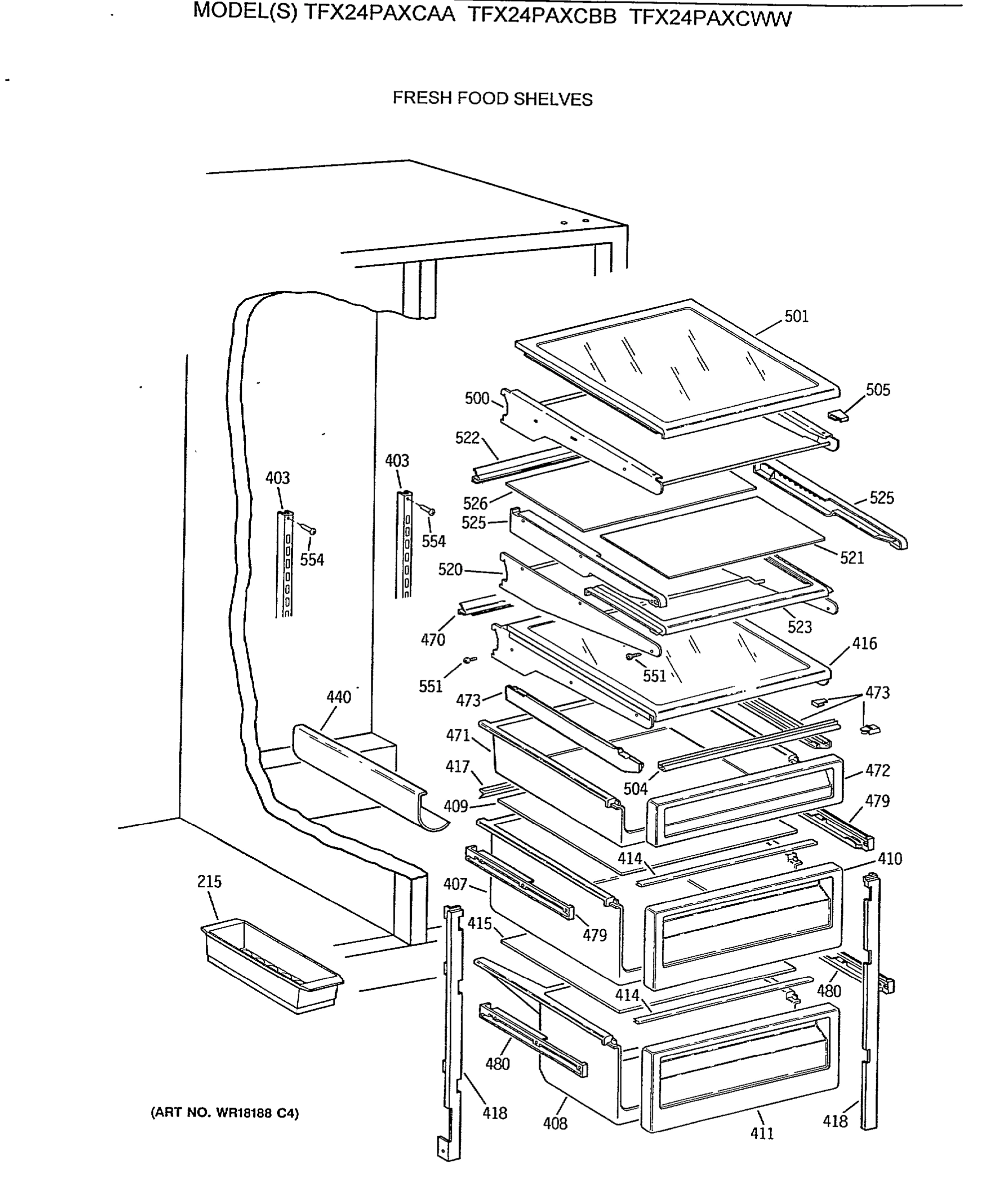

FRESH FOOD SHELVES

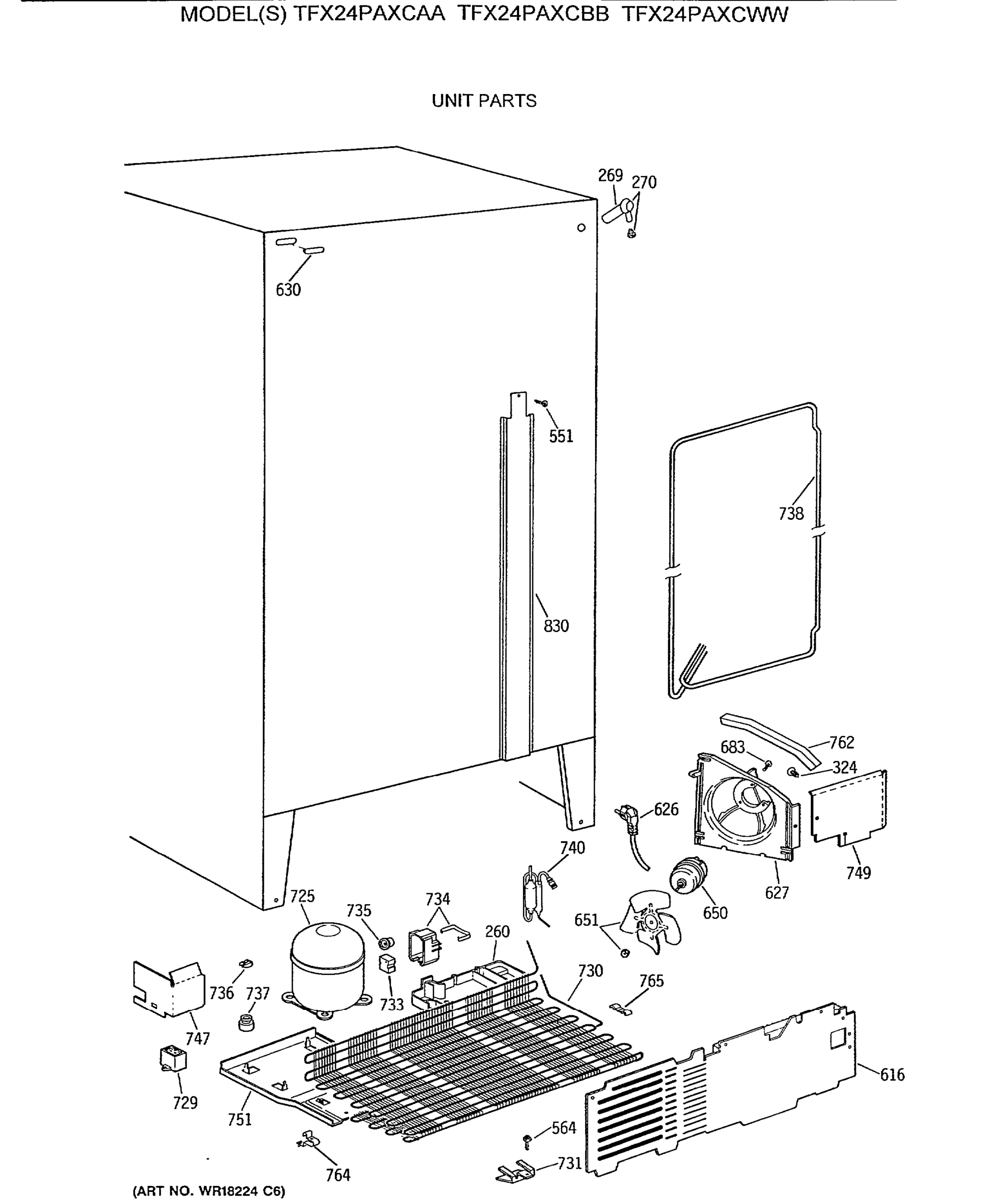

UNIT PARTS
Common parts from model GE TFX24PAXCBB Refrigerator
13
GEN WR02X4599 GEN WR02X4599 Contact Us For Availability
13
GEN WR02X7490 GEN WR02X7490 Contact Us For Availability
14
GASKET DOOR FRZ BK GEN WR24X0537 Contact Us For Availability
15
GEN WR17X1167 GEN WR17X1167 Contact Us For Availability
17
GEN WR02X7491 GEN WR02X7491 Contact Us For Availability
17
GEN WR02X9147 GEN WR02X9147 Contact Us For Availability
18
GEN WR17X1169 GEN WR17X1169 Contact Us For Availability
19
GEN WR77X0665 GEN WR77X0665 Contact Us For Availability
21
GEN WR17X4154 GEN WR17X4154 Contact Us For Availability
22
GEN WR01X5015 GEN WR01X5015 Contact Us For Availability
22
GEN WR17X3790 GEN WR17X3790 Contact Us For Availability
25
GEN WR02X6320 GEN WR02X6320 Contact Us For Availability
26
GEN WR02X6321 GEN WR02X6321 Contact Us For Availability
28
GEN WR02X8576 GEN WR02X8576 Contact Us For Availability
80
GEN WR02X4265 GEN WR02X4265 Contact Us For Availability
100
GEN WR02X8409 GEN WR02X8409 Contact Us For Availability
100
GEN WR02X8410 GEN WR02X8410 Contact Us For Availability
103
GEN WR24X0535 GEN WR24X0535 Contact Us For Availability
104
GEN WR17X1168 GEN WR17X1168 Contact Us For Availability
105
GEN WR38X2037 GEN WR38X2037 Contact Us For Availability
106
GEN WR22X0383 GEN WR22X0383 Contact Us For Availability
107
GEN WR72X0256 GEN WR72X0256 Contact Us For Availability
108
GEN WR77X0672 GEN WR77X0672 Contact Us For Availability
109
GEN WR71X2604 GEN WR71X2604 Contact Us For Availability
110
GEN WR02X8989 GEN WR02X8989 Contact Us For Availability
112
GEN WR17X3959 GEN WR17X3959 Contact Us For Availability
114
GEN WR72X0257 GEN WR72X0257 Contact Us For Availability
115
GEN WR71X2603 GEN WR71X2603 Contact Us For Availability
116
GEN WR02X7829 GEN WR02X7829 Contact Us For Availability
118
GEN WR19X0037 GEN WR19X0037 Contact Us For Availability
121
GEN WR12X0859 GEN WR12X0859 Contact Us For Availability
128
GEN WR02X7971 GEN WR02X7971 Contact Us For Availability
154
GEN WR01X2127 GEN WR01X2127 Contact Us For Availability
171
GEN WR71X2352 GEN WR71X2352 Contact Us For Availability
173
GEN WR02X8724 GEN WR02X8724 Contact Us For Availability
174
GEN WR02X8667 GEN WR02X8667 Contact Us For Availability
177
SCREW GEN WR01X5034 Contact Us For Availability
181
GEN WZ06X0105 GEN WZ06X0105 Contact Us For Availability
189
SOCKET LAMP GEN WR02X9243 Contact Us For Availability
200
GEN WR40X1752 GEN WR40X1752 Contact Us For Availability
201
GEN WR40X1753 GEN WR40X1753 Contact Us For Availability
202
GEN WR40X1754 GEN WR40X1754 Contact Us For Availability
204
GEN WR02X9217 GEN WR02X9217 Contact Us For Availability
207
GEN WR02X4676 GEN WR02X4676 Contact Us For Availability
208
GEN WR02X4674 GEN WR02X4674 Contact Us For Availability
209
GEN WR38X2058 GEN WR38X2058 Contact Us For Availability
211
GEN WR21X0190 GEN WR21X0190 Contact Us For Availability
212
GEN WR17X3103 GEN WR17X3103 Contact Us For Availability
214
GEN WR01X2128 GEN WR01X2128 Contact Us For Availability
214
GEN WR14X0455 GEN WR14X0455 Contact Us For Availability
214
GEN WR17X3930 GEN WR17X3930 Contact Us For Availability
215
GEN WR32X1435 GEN WR32X1435 Contact Us For Availability
220
GEN WR02X9002 GEN WR02X9002 Contact Us For Availability
224
GEN WR02X8657 GEN WR02X8657 Contact Us For Availability
225
GEN WR01X5042 GEN WR01X5042 Contact Us For Availability
225
GEN WR02X4838 GEN WR02X4838 Contact Us For Availability
225
GEN WR02X8293 GEN WR02X8293 Contact Us For Availability
230
GEN WR02X8647 GEN WR02X8647 Contact Us For Availability
231
GEN WR01X1987 GEN WR01X1987 Contact Us For Availability
231
GEN WR01X2110 GEN WR01X2110 Contact Us For Availability
236
GEN WR02X4548 GEN WR02X4548 Contact Us For Availability
237
GEN WR02X7036 GEN WR02X7036 Contact Us For Availability
247
GEN WR17X3488 GEN WR17X3488 Contact Us For Availability
247
GEN WR02X4845 GEN WR02X4845 Contact Us For Availability
248
GEN WR14X0272 GEN WR14X0272 Contact Us For Availability
251
GEN WR02X2880 GEN WR02X2880 Contact Us For Availability
258
GEN WR17X3671 GEN WR17X3671 Contact Us For Availability
259
GEN WR17X3909 GEN WR17X3909 Contact Us For Availability
260
GEN WR32X1427 GEN WR32X1427 Contact Us For Availability
265
GEN WR02X3595 GEN WR02X3595 Contact Us For Availability
265
GEN WR02X3598 GEN WR02X3598 Contact Us For Availability
265
GEN WR02X4742 GEN WR02X4742 Contact Us For Availability
268
GEN WR23X0312 GEN WR23X0312 Contact Us For Availability
269
GEN WR02X6087 GEN WR02X6087 Contact Us For Availability
275
GEN WR02X9004 GEN WR02X9004 Contact Us For Availability
276
GEN WR01X1510 GEN WR01X1510 Contact Us For Availability
277
GEN WR17X2113 GEN WR17X2113 Contact Us For Availability
278
WHEEL ASM FRT GEN WR02X4858 Contact Us For Availability
279
GEN WR17X3661 GEN WR17X3661 Contact Us For Availability
280
GEN WR02X8524 GEN WR02X8524 Contact Us For Availability
288
GEN WR74X0199 GEN WR74X0199 Contact Us For Availability
293
GEN WR02X7080 GEN WR02X7080 Contact Us For Availability
324
PLUG BUTTON LG WH GEN WR02X7069 Contact Us For Availability
403
GEN WR71X2588 GEN WR71X2588 Contact Us For Availability
405
GEN WR17X3890 GEN WR17X3890 Contact Us For Availability
407
GEN WR32X1461 GEN WR32X1461 Contact Us For Availability
408
GEN WR32X1459 GEN WR32X1459 Contact Us For Availability
409
GEN WR32X1456 GEN WR32X1456 Contact Us For Availability
410
GEN WR17X3840 GEN WR17X3840 Contact Us For Availability
411
GEN WR17X3841 GEN WR17X3841 Contact Us For Availability
414
GEN WR14X0431 GEN WR14X0431 Contact Us For Availability
415
GEN WR32X1457 GEN WR32X1457 Contact Us For Availability
416
GEN WR32X1572 GEN WR32X1572 Contact Us For Availability
417
GEN WR14X0470 GEN WR14X0470 Contact Us For Availability
418
GEN WR17X4085 GEN WR17X4085 Contact Us For Availability
418
GEN WR17X4086 GEN WR17X4086 Contact Us For Availability
421
GEN WR17X2975 GEN WR17X2975 Contact Us For Availability
423
GEN WR02X6347 GEN WR02X6347 Contact Us For Availability
424
GEN WR09X0499 GEN WR09X0499 Contact Us For Availability
425
GEN WR02X8398 GEN WR02X8398 Contact Us For Availability
426
GEN WR02X8425 GEN WR02X8425 Contact Us For Availability
426
GEN WR02X8514 GEN WR02X8514 Contact Us For Availability
427
GEN WR23X0316 GEN WR23X0316 Contact Us For Availability
428
GEN WR02X8513 GEN WR02X8513 Contact Us For Availability
428
GEN WR02X8582 GEN WR02X8582 Contact Us For Availability
429
GEN WR02X8516 GEN WR02X8516 Contact Us For Availability
432
GEN WR02X8654 GEN WR02X8654 Contact Us For Availability
434
GEN WR02X9431 GEN WR02X9431 Contact Us For Availability
436
GEN WR02X7736 GEN WR02X7736 Contact Us For Availability
438
GEN WR02X7476 GEN WR02X7476 Contact Us For Availability
438
GEN WR02X8655 GEN WR02X8655 Contact Us For Availability
439
GEN WR17X2922 GEN WR17X2922 Contact Us For Availability
440
GEN WR17X4094 GEN WR17X4094 Contact Us For Availability
442
GEN WR02X3884 GEN WR02X3884 Contact Us For Availability
442
GEN WR02X8840 GEN WR02X8840 Contact Us For Availability
443
GEN WR02X8570 GEN WR02X8570 Contact Us For Availability
446
GEN WR13X0647 GEN WR13X0647 Contact Us For Availability
447
GEN WR02X8523 GEN WR02X8523 Contact Us For Availability
448
GEN WR13X0646 GEN WR13X0646 Contact Us For Availability
450
GEN WR02X4194 GEN WR02X4194 Contact Us For Availability
452
GEN WR02X4497 GEN WR02X4497 Contact Us For Availability
452
GEN WR02X7143 GEN WR02X7143 Contact Us For Availability
452
GEN WR02X9442 GEN WR02X9442 Contact Us For Availability
453
GEN WR40X1744 GEN WR40X1744 Contact Us For Availability
454
GEN WR40X1745 GEN WR40X1745 Contact Us For Availability
455
GEN WR40X1746 GEN WR40X1746 Contact Us For Availability
456
GEN WR40X1755 GEN WR40X1755 Contact Us For Availability
457
GEN WR40X1756 GEN WR40X1756 Contact Us For Availability
458
GEN WR02X4739 GEN WR02X4739 Contact Us For Availability
458
GEN WR02X7033 GEN WR02X7033 Contact Us For Availability
458
GEN WR02X9376 GEN WR02X9376 Contact Us For Availability
458
GEN WR40X1750 GEN WR40X1750 Contact Us For Availability
461
GEN WZ06X0136 GEN WZ06X0136 Contact Us For Availability
470
GEN WR14X0465 GEN WR14X0465 Contact Us For Availability
471
GEN WR32X1460 GEN WR32X1460 Contact Us For Availability
472
GEN WR17X3839 GEN WR17X3839 Contact Us For Availability
473
GEN WR72X0282 GEN WR72X0282 Contact Us For Availability
473
GEN WR72X0283 GEN WR72X0283 Contact Us For Availability
500
GEN WR71X2585 GEN WR71X2585 Contact Us For Availability
501
GEN WR32X1504 GEN WR32X1504 Contact Us For Availability
504
GEN WR14X0474 GEN WR14X0474 Contact Us For Availability
505
GEN WR01X2080 GEN WR01X2080 Contact Us For Availability
520
GEN WR71X2247 GEN WR71X2247 Contact Us For Availability
521
GEN WR32X1503 GEN WR32X1503 Contact Us For Availability
522
GEN WR38X2240 GEN WR38X2240 Contact Us For Availability
523
GEN WR71X2494 GEN WR71X2494 Contact Us For Availability
525
GEN WR72X0220 GEN WR72X0220 Contact Us For Availability
525
GEN WR72X0221 GEN WR72X0221 Contact Us For Availability
526
GEN WR32X1269 GEN WR32X1269 Contact Us For Availability
551
SCREW GEN WZ04X0244 Contact Us For Availability
552
GEN WR01X2078 GEN WR01X2078 Contact Us For Availability
556
GEN WH12X0497 GEN WH12X0497 Contact Us For Availability
560
SCR 12-24 C AHXW 7/8 S GEN WR01X2140 Contact Us For Availability
564
GEN WR01X1194 GEN WR01X1194 Contact Us For Availability
584
GEN WZ02X0509 GEN WZ02X0509 Contact Us For Availability
610
GEN WR60X0188 GEN WR60X0188 Contact Us For Availability
612
GEN WR02X8549 GEN WR02X8549 Contact Us For Availability
615
GEN WR02X7391 GEN WR02X7391 Contact Us For Availability
616
GEN WR82X0389 GEN WR82X0389 Contact Us For Availability
627
GEN WR17X3811 GEN WR17X3811 Contact Us For Availability
630
GEN WR02X8525 GEN WR02X8525 Contact Us For Availability
651
GEN WR01X1515 GEN WR01X1515 Contact Us For Availability
651
GEN WR01X1714 GEN WR01X1714 Contact Us For Availability
651
GEN WR60X0231 GEN WR60X0231 Contact Us For Availability
683
GEN WR01X1825 GEN WR01X1825 Contact Us For Availability
730
GEN WR84X0189 GEN WR84X0189 Contact Us For Availability
731
GEN WR01X2014 GEN WR01X2014 Contact Us For Availability
731
GEN WR02X8951 GEN WR02X8951 Contact Us For Availability
733
RELAY (PTCR) GEN WR07X0198 Contact Us For Availability
734
CLAMP-COVER GEN WR02X7226 Contact Us For Availability
734
COVER RELAY GEN WR02X7834 Contact Us For Availability
735
GEN WR08X0172 GEN WR08X0172 Contact Us For Availability
737
GEN WR02X7238 GEN WR02X7238 Contact Us For Availability
738
GEN WR84X0170 GEN WR84X0170 Contact Us For Availability
747
GEN WR17X3643 GEN WR17X3643 Contact Us For Availability
749
GEN WR17X4148 GEN WR17X4148 Contact Us For Availability
751
GEN WR17X3645 GEN WR17X3645 Contact Us For Availability
753
GEN WB01K5052 GEN WB01K5052 Contact Us For Availability
762
GEN WR02X7493 GEN WR02X7493 Contact Us For Availability
765
GEN WR01X1985 GEN WR01X1985 Contact Us For Availability
830
GEN WR17X3745 GEN WR17X3745 Contact Us For Availability
900
GEN WR78X8677 GEN WR78X8677 Contact Us For Availability
910
GEN WR78X8556 GEN WR78X8556 Contact Us For Availability
941
GEN WD01X1391 GEN WD01X1391 Contact Us For Availability
1458
GEN WB17X5061 GEN WB17X5061 Contact Us For Availability
1506
GEN WB17X5059 GEN WB17X5059 Contact Us For Availability
× ![]()
